Saba TL712L21W User manual

TL712L21W

TABLE OF CONTENTS
Thank you for choosing SABA quality.This product has been developed by our
team of professional and according to European regulations. In order to get the
most out of your new appliance, we recommend that you read this instruction
manual carefully and keep it for future reference.
SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
PACKAGING/OLD APPLIANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
OPERATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
MAINTENANCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
DISPOSAL OF OLD ELECTRICAL APPLIANCES . . . . . . . . . . . . . . . . . . . 88
GB

Safety instructions
• Safety Instructions
For your safety, the information in this manual must be followed
to minimize the risk of re or explosion, electric shock, or
to prevent property damage, personal injury or loss of life.
Explanation of the symbols:
Warning!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in death or
serious injuries unless it’s avoided.
Caution!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in slight or
minor injuries or damage to property and the environment.
Note!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in slight or
minor injuries.
• Please insert: This appliance is intended to be used in
household and similar applications such as:
– sta kitchen areas in shops, oces and other working
environments;
– farm houses;
46
GB

– by clients in hotels, motels and other residential type
environments;
– bed and breakfast type environments.
– Areas for communal use in blocks of ats or in launderettes.
• This appliance is designed to wash a maximum of 7.0 kg of dry
laundry
Warning!
The electric shock!
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
• The appliance must be connected to the water distribution
network by using the new connection assemblies provided
with the appliance; old hose‐sets should not be reused.
• Before any maintenance the device, unplug the appliance from
the mains.
• Always unplug the machine and turn o the water supply after
use.The max. inlet water pressure, in 1 MPa. The min. inlet
water pressure, 0.05 MPa.
• To ensure your safety, power plug must be inserted into an
earthed three-pole socket. Check carefully and make sure that
your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must be
connected by a qualied technician in accordance with the
manufacturer’s instructions and local safety regulations.
47
GB

Risk to children!
• EN countries: the appliance can be used by children aged from
8 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
• Keep children under 3 years of age away from the appliance,
unless they are under constant supervision.
• Animals and children may climb into the machine. Check the
machine before every operation.
• Kids should be supervised that they do not play with the
appliance.
• Remove all packages and transport bolts before using the
appliance. Otherwise, serious damage may result.
• Plug must be accessible after installation.
Risk of explosion!
• Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.)This may result in re or
explosion.
• Beforehand thoroughly rinse items of washing by hand.
48
GB

Caution!
Installing the product!
• This washing machine is for indoor use only.
• It isn’t intended to be built-in using.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bathrooms or very
wet rooms as well as in the rooms with explosive or caustic
gases.
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product with double
inlet valves should be correctly connected to the hot water and
cold water supply.
• Plug must be accessible after installation.
• Remove all packages and transport bolts before using the
appliance. Otherwise, serious damage may result.
Risk of damaging appliance!
• Your product is only for home use and is only designed for the
textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1. Transport bolts shall be reinstalled to the machine by a
specialized person.
2. The accumulated water shall be drained out of the machine.
49
GB

3. Handle the machine carefully. Never hold each protruded part on
the machine while lifting. Machine door cannot be used as the
handle during the conveyance.
4. This appliance is heavy.Transport with care.
• Please do not close the door with excessive forces. If it is found
dicult to close the door, please check if the clothes are put in
or distributed well.
• It is forbidden to wash carpets.
Operating the appliance!
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc. Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid items
such as coin, brooch, nail, screw or stone etc. may cause
serious damages to this machine.
• Please check whether the water inside the drum has been
drained before opening its door. Please do not open the door if
there is any water visible.
• Be careful of burning when the product drains hot washing
water.
• Never rell the water by hand during washing.
• After the program is completed, please wait for two minutes
to open the door.
50
GB

Packaging/Old appliance
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU.To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of material
resources.To return your used device, please use the collection
systems or contact the retailer where the product was purchased.
They return and can take this product for environment-safety
recycling.
51
GB

Installation
• Product Description
1
6
5
7
2
3
4
1. Door
2. Detergent dispenser
3. Drum
4. Service lter
5. Power supply cord
6. Control panel
7. Drain hose
Note!
• The product line chart is for reference only, please refer to real
product as standard.
52
GB

Accessories
Transport hole plug Supply hose cold
water
Drain hose support
(optional)
Owner’s manual
Installation area
Warning!
• Stability is important to prevent the product
from wandering!
• Make sure that the product should not stand
on the power cord.
Before installing the machine, the location characterized
as follows shall be selected:
1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sucient ventilation
4. Room temperature is above 0°C
5. Keep far away from the heat resources such as
coal or gas.
Unpacking the washing machine
Warning!
• Packaging material (e.g. Films, Styrofoam) can
be dangerous for children.
w
w
W>20mm
53
GB

• There is a risk of suocation! Keep all packaging well away
from children.
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing. Make
sure the small triangle foam is removed with the bottom one
together. If not, lay the unit down with side surface, then remove
the small foam from the unit bottom manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Remove transport bolts
Warning!
• You must remove the transport bolts from the backside before
using the product.
• You’ll need the transport bolts again if you move the product,
so make sure you keep them in a safe place.
Please take the following steps to remove the
bolts:
1. Loosen 4 bolts with spanner and then remove
them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.

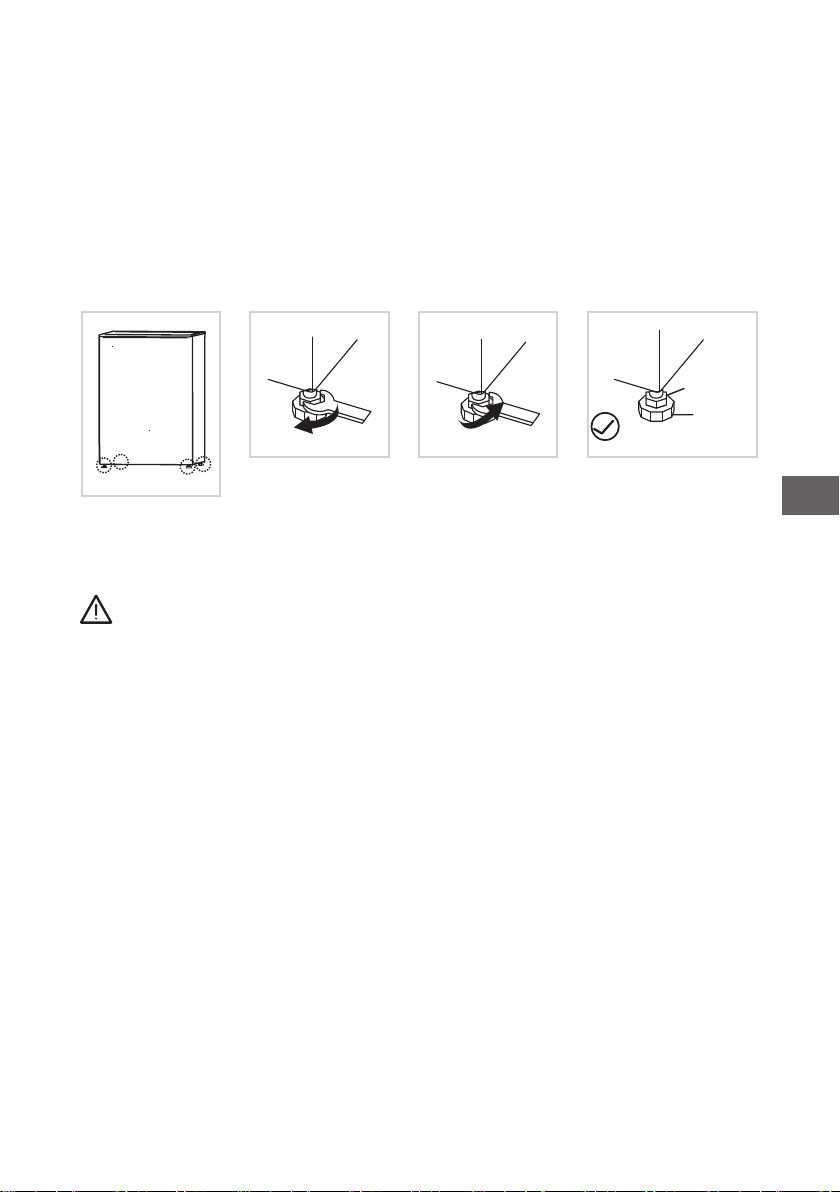

Levelling the washing machine
Warning!
• The lock nuts on all four feet must be screwed tightly against
the housing.
54
GB

1. Check if the legs are closely attached to the cabinet. If not, please
turn them to their original positions tighten the nuts.
2. Loosen the lock nut turn the feet until it closely contacts with the
oor.
3. Adjust the legs and lock them with a spanner, make sure the
machine is steady.
Raise Lower foot
Lock nut
foot
Connect Water Supply Hose
Warning!
• To prevent leakage or water damage, follow the instructions in
this chapter!
• Do not kink, crush, modify or sever water inlet hose.
• For the model equips hot valve, connect it to hot water tap
with hot water supply hose. Energy consumption will decrease
automatically for some program.
55
GB

Connect the inlet pipe as indicated,There are two ways to
connect the inlet pipe.
1. Connection between ordinary tap and inlet hose.
damp nut
slide bushing
Loosen clamp nut and
four bolts
Tighten clamp nut Press slide bushing,
insert inlet hose into
connecting base
Connection nished
2. Connection between screw tap and inlet hose.
Tap with threads and inlet hose Special tap for washer dryer
slide bushing
Connect the other end of inlet pipe to the inlet valve at the
backside of product and fasten the pipe tightly clockwise.
water supply hose
water Inlet valve
56
GB

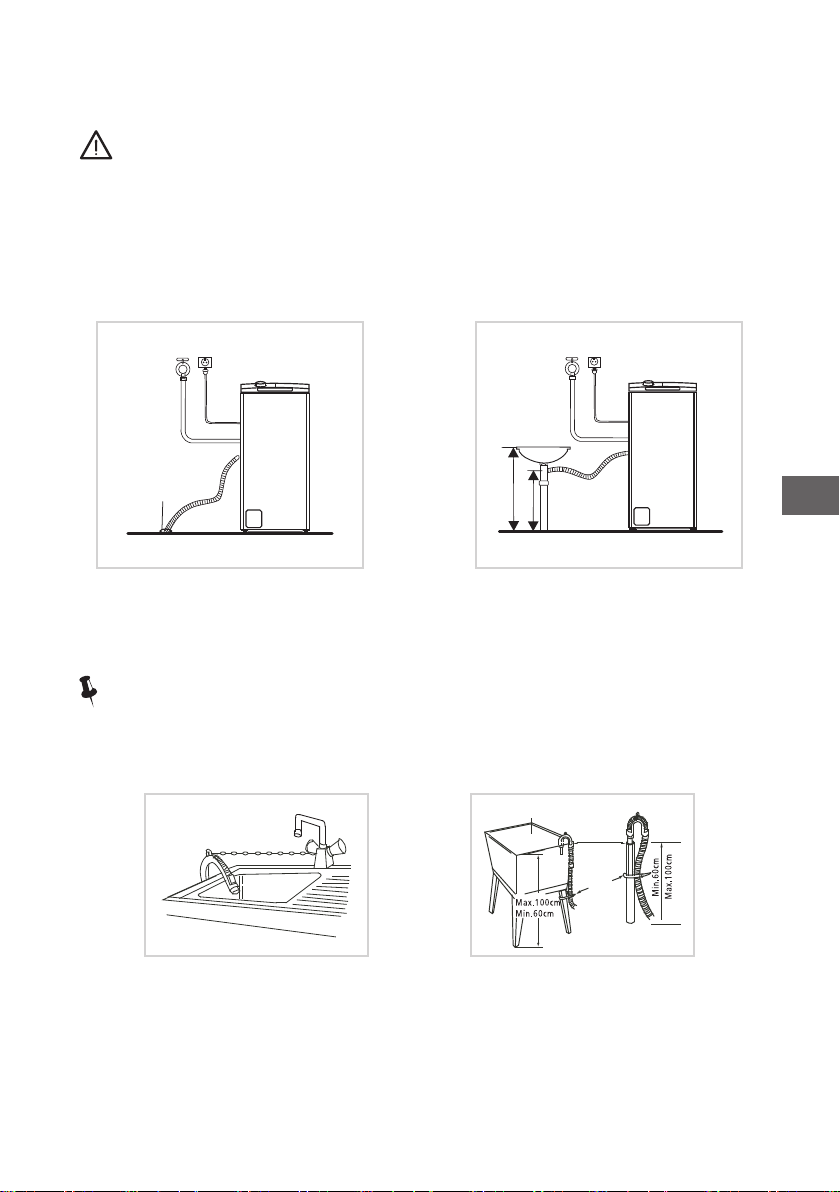

Drain Hose
Warning!
• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result
of water leakage.
There are two ways to place the end of drain hose:
iM n.6 c0 m
10 c0 m
xaM .
2. Connect it to the branch drainpipe of
the trough.
1. Put it into the water trough.
water
trough
Note!
• If the machine has drain hose support, please install it like the
following .
Hose
Retainer
Trough
Bind
57
GB

Warning!
• When installing drain hose, x it properly with a rope.
• If drain hose is too long, do not force it into washing machine
as it will cause abnormal noises.
Operations
Quick Start
Caution!
• Before washing, please make sure it’s installed properly.
1. Before Washing
Plug in Open tap Load
58
GB

: Pre-Wash
: MainWash
: Softener
Add detergent Close drum door Close machine door
Note!
• Detergent need to be added in“case
I“after selecting pre-washing for
machines with this function.
• Make sure that the drum aps are properly locked.
• All metal hooks must be properly hooked inside the rear door
ap.
• Check the roller before each laundry, it must roll
smoothly.
2. Washing
Select Programme Select function or default Start
59
GB

Note!
• If default is selected, step 2 can be skipped.
3. After Washing
“End”on display.
Before Each Washing
• The working condition of the washer should be(0-40)°C.If
used under 0°C,the inlet valve and draining system may be
damaged. If the machine is placed under condition of 0°C
or less, then it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose
are not frozen before use.
• Please check the labels and the explanation of using detergent
before wash. Use non-foaming or less-foaming detergent
suitable for machine washing properly.
60
GB

Check the label
Put small clothes into the
pillowslip
Take out the items out of the
pockets
Turn easy-pilling and long-
pile fabric inside out
Knot the long strips.zip or
button
Separate clothes with
dierent textures
Warning!
• When washing a single clothes, it may easily cause great
eccentricity and give alarm due to great unbalance.Therefore
it is suggested to add one or two more clothes to be washed
together so that draining can be done smoothly.
• Don’t washing the clothes touching with kerosene, gasoline,
alcohol and other ammable materials.
61
GB

Detergent Dispenser
Pre-Wash detergent
Pull out the dispenser
MainWash detergent
Softener
Caution!
• Detergent only need to be added in“case I“after selecting pre-
washing for machines with this function.
• Do not exceed the“MAX”level mark when lling in detergent,
additives or softener.
Programme I II Programme I II
Cotton Spin Only
Synthetic Rinse & Spin
Mix Wool
Jeans DailyWash 45'
Sportswear Quick 15'
Drum Clean ECO 40-60
20°C Rapid 45'
Intensive
Means must Means optional
62
GB

Note!
• As for the agglomerated or ropy detergent or additive, before
they are poured into the detergent box, it is suggested to use
some water for dilution to prevent the inlet of detergent box
from being blocked and overowing while lling water.
• Please choose suitable type of detergent for the various
washing temperature to get the best washing performance
with less water and energy consumption.
Control Panel
Model:TL712L21W
Note!
• The chart is for reference only, Please refer to real product as
standard.
63
GB
7KG
TL712L21W
1200trs
5312 41
1
