Saber Compact RP100-090W-120V-BLK User manual

LET’S ROLL
1. Power button/LED
2. Battery level LEDs
3. Bluetooth button/LED
4. USB-C
5. USB 2
6. USB 1
7. DC in
8. AC outlet
1. Power button/LED – Press for 2 sec. to turn Saber on/off. (Saber
turns off automatically after 1 minute if not in use.) Power button
LED indicates Saber’s states:
• White when Saber is on
• Blinks yellow at 5% battery life
• Green when the AC outlet is on
• Blinks yellow when there’s a temporary error
– check the app to troubleshoot
• Red when there’s a permanent error
– call customer service at 1-833-GOSABER (1-833-467-2237)
2. Battery level LEDs – Light up gradually during charging. Light up
for 5 seconds to show Saber’s battery level when powered on;
quick press the power button to check Saber’s battery level again,
or just use the app.
3. Bluetooth button – Press for 2 sec. to turn Bluetooth on/off.
4. USB-C – 20V, 3A - 60W/5V, 3A - 15W
Note: USB-C supports 20V, 3A - 60W/5V, 3A - 15W. If your device’s
power requirements are different, plug it into Saber’s AC outlet
using the device adapter.
5. USB 2 – 5V, 1A – 5W
6. USB 1 – 5V, 2.5A – 12.5W
7. DC in – 19V, 3.42A – 65W – Connect the wall charger (included)
and plug Saber in to any standard wall outlet (charger rated for
100-240V~, 1.5A, 50-60Hz).
8. Universal AC outlet – 120V, 60Hz – 90W – Double-click the
power button to turn AC outlet on/off.
3
1
75
6
4
100%
75%
50%
25%
2
8
01ROMEO POWER TECHNOLOGY

LIVE THE MOBILE LIFE
Charge Saber super fast – you’re ready to go in just 2 hours.
No other high capacity power bank comes close. And with
built-in SafeCharge, Saber never overcharges.
NOTE: All USB ports are disabled while Saber is charging; you
can charge your devices via AC outlet while Saber is charging.
You can also charge Saber in the car or outside via DC in with
a compatiable car charger or solar panel.

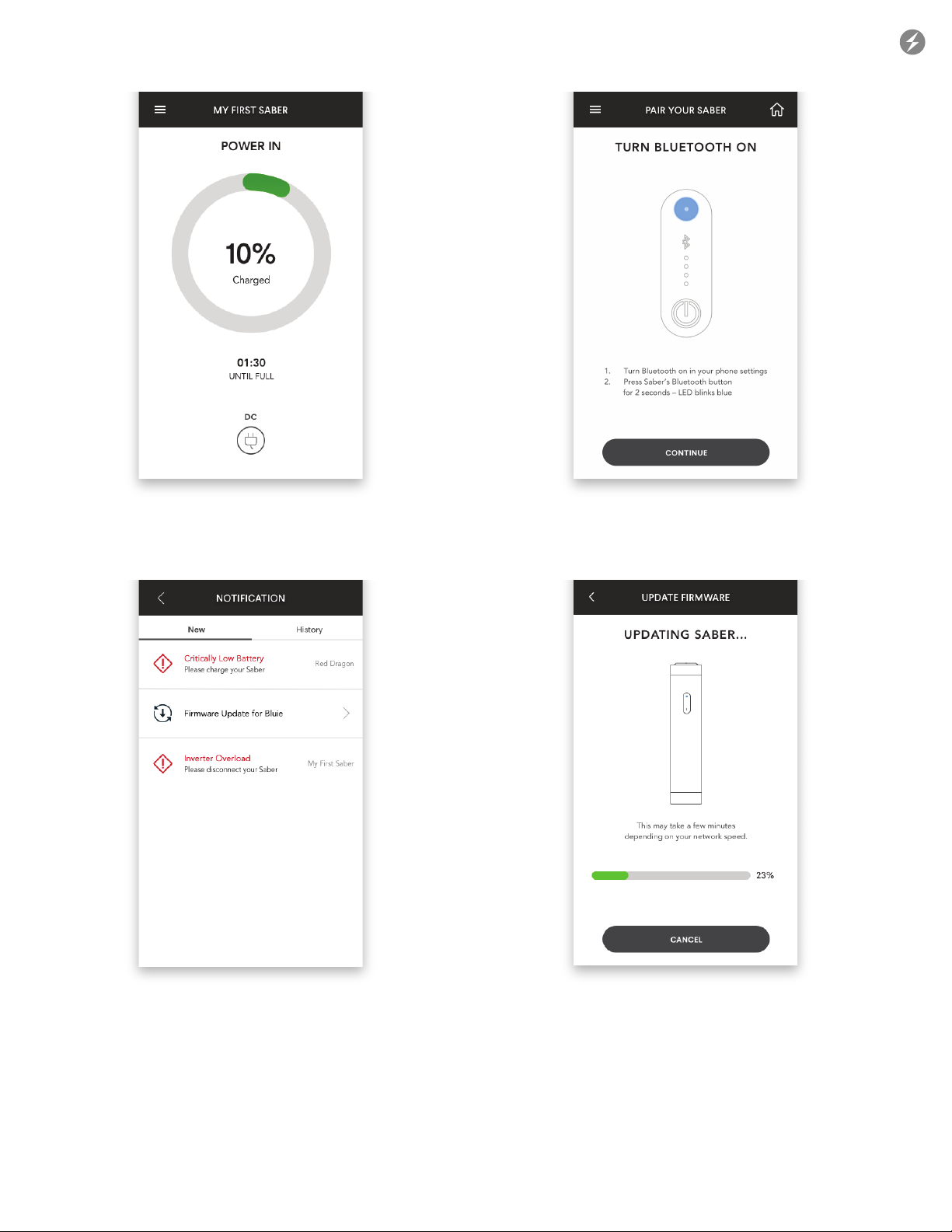

SEE REALTIME INFO IN THE APP
1) Get it for iOS 10.0 and above and Android 5.0 and above.
2) Turn Saber on, press the Bluetooth button for 2 sec. to turn
Bluetooth on (LED blinks blue).
3) Follow the steps on your device to connect.
4) You’re connected when the LED stops blinking and remains
solid blue.
Note: Bluetooth turns off after 120 seconds if no device is
connected. Bluetooth/LED turn off immediately when a
mobile device disconnects from Saber.
DC in
THE POWER YOU NEED
FOR THE DEVICES YOU DEPEND ON
Saber can charge more than one device at a time – it knows
what’s plugged in and auto-adjusts output power for rapid
charging.
And you can plug small appliances like portable speakers into
Saber’s AC outlet, just like you would in the wall (up to 90W).
1+ Charges2-5 Charges7-12 Charges
10-15 Charges 6-8 Charges 1-5 Charges
See instantly how Saber’s battery life
changes when you plug in/unplug devices.
02ROMEO POWER TECHNOLOGY

The app will alert you when Saber is fully charged.
What you need to know, when you need
to know it.
Keep Saber up to date and stay on top of your game.
Note: Bluetooth LED blinks blue and power
button LED is solid blue when Saber is
communicating with the app. Power button LED
blinks blue while software is being updated.
Easy to pair, easy to use.
03ROMEO POWER TECHNOLOGY

SAFETY
Protect yourself, and your new Saber. Please read this section
fully before use. Failure to follow these safety precautions
could result in bodily injury, or damage to your Saber or other
property.
Let’s start with the symbols under the lid:
GENERAL CARE
CAUTION: RISK OF ELECTRIC SHOCK. If Saber’s exterior or
ports get wet, turn off immediately and use a soft, absorbent
cloth to dry fully. Saber is designed to be water-resistant, but
the product and its portsv must be completely dry before
using.
CAUTION: Keep away from combustible materials. Saber may
get hot during use. Do not charge or use Saber on soft,
combustible surfaces such as pillows or blankets and avoid
prolonged contact with skin.
Never use a damaged power supply or other cable to charge
Saber. Unplug the power supply and all devices from Saber by
holding and pulling the plug, not the cord.
Do not leave Saber in the car where it will be exposed to the
sun through a window or windshield. Exposing Saber to
temperatures outside the safe operating temperature range
(32-104°F/0-40°C) will degrade performance and may void the
warranty. If you are going to store Saber for an extended
period, charge it to 100% and keep it in at room temperature.
Failure to store Saber properly will degrade performance and
may void the warranty. Charge Saber to 100% every 8-12
months while in storage to maintain battery capacity.
Do not clean the surface of Saber with water, liquid cleaner, or
abrasive/corrosive cleaners.
SERVICE
CAUTION: Do not open. Contains no user-serviceable parts.
Saber contains a non-removable, non-serviceable lithium-ion
battery.
CAUTION: RISK OF INJURY. Do not open, crush, puncture, or
mutilate battery. Released electrolytes are harmful/toxic.
CAUTION: RISK OF ELECTRIC SHOCK. Do not immerse/sub-
merge Saber in water or other liquid, and do not use Saber if
this has happened.
If Saber is damaged, malfunctions, or was accidentally
immersed/submerged in water or other liquid, please call
Romeo Power Technology Customer Service at
1-833-GOSABER (467-2237) for service (US and Canada only).
Potential risk of electric shock
Potential risk of energy or chemical hazard
Unplug all devices after charging/when
storing to reduce risk of electric shock
Double insulation
Dispose of container/contents per local,
national, and international regulations
DISPOSAL
Saber contains a rechargeable lithium-ion battery that must
be disposed of per local, national, and international regula-
tions. Do not throw this product away with normal household
waste. Consult your local city or town website for battery
disposal information, call 1-800-8-BATTERY, or call Romeo
Power Technology Customer Service at 1-833-GOSABER
(467-2237) – US and Canada only
CAUTION: Do not dispose of this product by incinerating.
Battery may explode.
04ROMEO POWER TECHNOLOGY

ELECTRONIC EQUIPMENT INTERFERENCE
Saber uses radio signals based on Bluetooth protocol to
connect to wireless networks. Although Saber is made to
comply with radio frequency emissions regulations, such
emissions can interfere with other electronic equipment.
Please follow the rules for using electronic devices in specific
settings (e.g. airplanes and hospitals).
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Product SKUs: RP100-090W-120V-BLK;
RP100-090W-120V-BLU; RP100-090W-120V-RED
ID: RYYEYSHCN
IC: 4389B-EYSHCN
MEDICAL DEVICE INTERFERENCE
Saber contains parts that emit electromagnetic fields, which
may interfere with pacemakers and other medical devices.
Keep a safe distance between Saber and your medical
device, and ask your doctor and medical device maker for
more information. If you think Saber is interfering with your
medical device, stop using Saber.
SPECIFICATIONS
Charge Time
Wall – 2 hours
Battery Details
Cell type: Li-NMC
Pack capacity: 86Wh (24,000mAh)
Cycle life: ~800 cycles to 80% capacity (0.62C charge, 1.5C
discharge), 86°F (30°C) ambient
Shelf-life: 8-12 months
Management system: charging system with overvoltage
secondary protection, over temperature protection, under
temperature protection, overload protection, and short
circuit protection.
User Interface
1x power indicator LED, white/RGB
4x battery level LEDs, white
1x Bluetooth connectivity LED, blue
Power button: turns unit on/off (2 sec. press); displays battery
level for 5 sec. (.25 second press); turns AC outlet on/off
(double-click when Saber is on), power button LED remains
solid green while AC outlet is on.
Bluetooth connect button: turns Bluetooth on/off (2 sec.
press).
Ports
USB 1: female type A, output: 5V, 2.5A – 12.5W, current-limited
USB 2: female type A, output: 5V, 1A – 5W, current-limited
USB-C port output: 20V, 3A - 60W/5V, 3A - 15W
AC inverter output: 120VAC, 60Hz – 90W
DC input charging port: 18-22V, 65W min. ; 5.5mm outer
diameters (negative), 2.5mm inner (positive) for supplied
charger
Charger
Universal AC/DC power supply, 19V, 3.42A – 65W, 2.5mm plug,
with short circuit protection
General
Product SKUs: RP100-090W-120V-BLK;
RP100-090W-120V-BLU; RP100-090W-120V-RED
Weight: 2.2lbs. (1kg)
Rugged construction
Water resistant
Dimensions 2.28” x 2.36” x 10.5” (58mm x 60mm x 267mm)
Operating temperature: 32-104°F (0-40°C)
05ROMEO POWER TECHNOLOGY

LIMITED WARRANTY
Romeo Systems, Inc. (d/b/a Romeo Power Technology)
products are engineered, designed, and manufactured to
provide you with years of reliable service. Romeo Power
Technology warrants the Saber (RP100-090W-120V-BLK;
RP100-090W-120V-BLU; RP100-090W-120V-RED) portable
battery charger (hereinafter “Product”) against defects in
materials and workmanship for SIX (6) months. During the
first six months from the purchase date, if you notify us and
retain all evidence of your purchase, our warranty is limited
to our repair or replacement of the Product, in our sole
discretion (the “Limited Warranty”).
This Limited Warranty shall be null and void in the following
circumstances:
1. Modification or repair by the customer or any
unauthorized Romeo Power Technology
service provider;
2. Improper use of the Product, or damage by
accident or neglect;
3. Failure of the customer or any third party to
exercise caution to protect the Product or part from
electrostatic discharge damage, adverse temperature
and humidity, or physical abuse;
4. The Product has been previously opened or
tampered with;
5. More than 6 months have elapsed from the purchase of
the Product;
6. The Product is damaged due to fire, natural disaster,
accident, theft, loss, or any other outside force;
7. Illegal operation of the Product causing its failure,
disassembly, or retrofitting; or
8. You do not have a Product warranty card and proof
of purchase.
ROMEO POWER TECHNOLOGY HAS NO CONTROL OVER
THE CONDITIONS UNDER WHICH THE PRODUCT IS USED.
ROMEO POWER TECHNOLOGY, THEREFORE, DISCLAIMS
ALL WARRANTIES NOT SET FORTH ABOVE, BOTH EXPRESS
AND IMPLIED WITH RESPECT TO THE PRODUCT, INCLUD-
ING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. ROMEO POWER TECHNOLOGY SHALL NOT BE
LIABLE TO ANY PERSON OR ENTITY FOR ANY MEDICAL
EXPENSES OR ANY DIRECT, INCIDENTAL, OR CONSEQUEN-
TIAL DAMAGES CAUSED BY ANY USE, DEFECT, FAILURE, OR
MALFUNCTION OF THE PRODUCT, WHETHER A CLAIM FOR
SUCH DAMAGES IS BASED UPON WARRANTY, CONTRACT,
TORT, OR OTHERWISE. THE SOLE REMEDY FOR ANY
DEFECT, FAILURE, OR MALFUNCTION OF THE PRODUCT IS
REPLACEMENT OF THE PRODUCT. NO PERSON HAS ANY
AUTHORITY TO BIND ROMEO POWER TECHNOLOGY TO
ANY REPRESENTATION OR WARRANTY WITH RESPECT TO
THE PRODUCT.
The exclusions and limitations set out above are not intend-
ed to, and should not be construed so as to contravene
applicable law. If any part or term of this Limited Warranty is
held to be illegal, unenforceable, or in conflict with applica-
ble law by a court of competent jurisdiction, the validity of
the remaining portions of this Limited Warranty shall not be
affected, and all rights and obligations shall be construed
and enforced as if this Limited Warranty did not contain the
particular part or term held to be invalid.
The Limited Warranty becomes effective the date you
purchase the Product. Register your product online at the web
address below to ensure you're covered, even if you lose your
receipt.
https://support.romeopower.com/register
If you experience difficulty with the Product, call the toll-free
number below for Customer Service:
1-833-GOSABER (467-2237)
If you need to return the Product for service, the Customer
Service Representative with whom you speak will provide
you with instructions for returning the Product. Please pack
the Product carefully and send to:
Saber Customer Service
4380 Ayers Ave
Vernon, CA 90058
ENVIRONMENTAL LIMITS
Temperature:
Operating 32-104°F (0-40°C)
Non-operating 14-131°F (-10-55°C)
Storage (long-term non-operation) 14-84°F (-10-30°C)
Humidity:
10-90% non-condensing
Altitude (relative to sea level):
Operating -200 to 6,000 feet
Non-operating -200 to 45,000 feet
06ROMEO POWER TECHNOLOGY
