Safeline MX3+ User manual

www.safeline-group.com
12.2018 © 2018 SafeLine and all the SafeLine products and
accessories are copyrighted by law.
Reliability – brought to you from Tyresö Sweden
Lift Emergency Telephone
MX3+ v.2.02 EN
MX3+
Manual

2
MX3+ v.2.02 EN
Introduction
Certicate
Declaration of conformity 25
Operating
LED indication 21
Testing 22
Emergency calling progress 23
Troubleshooting 24
Overview
Overview MX3+ 6
Parallel wiring 6
Wiring diagram H1/H2 7
Wiring diagram output 1, 2 and external button 8
Outputs 9
Conguration
CONNECT 10
Conguration interfaces 11
Conguration methods 12
Conguration examples 13
Parameter list 14
Content Introduction
Technical data 3
General information 4

3
MX3+ v.2.02 EN
Introduction
SafeLine MX3+
Technical data
Power: 10 - 30 VDC
Consumption: In standby: 50 mA at 12 VDC
Operation: 160 mA at 12 VDC
Input: 10 to 30 VDC, 5 mA optically isolated
Output: 2x 12 to 24 VDC, max 200 mA (transistor negative)
Weight: Surface mounted with button: 575 g
Size (H x W x D): Surface mounted with button: 155 x 90 x 31 mm
IP class: IP 43
Bluetooth: Bluetooth 4.0
BLE 2,4 GHz
Operation temperature:
Air humidity:
Soundles:
+5°- 40°
30%-90% R
16 kHz/16 bit waveformat
Max 16 sec/le
Audio les: Format WAVE-8 or 16kHz, 16 bit mono, max 16 sec/le
Ljudler: Format WAVE- 8 eller 16kHz, 16 bit mono, max 16 sek/le.

4
MX3+ v.2.02 EN
Introduction
This unit was built with state-of-the-art technology and to
generally recognised safety related technical standards currently app-
licable. These installation instructions are to be followed by all people
working with the unit, in both installation and maintenance.
It is extremely important that these installation instructions are made
available at all times to the relevant technicians, engineers or servicing
and maintenance personnel. The basis prerequisite for safe handling
and trouble free operation of this system is a sound knowledge of the
basic and special safety regulations concerning conveyor technology,
and elevators in particular. The unit may only be used for its intended
purpose. Note in particular that, no unauthorised changes or additions
may be made inside the unit or individual components.
Exclusion of liability
The manufacturer is not liable with respect to the buyer of this product
or to third parties for damage, loss, costs or work incurred as a result of
accidents, misuse of the product, incorrect installation or illegal chang-
es, repairs or additions. Claims under warranty are likewise excluded in
such cases. The technical data is the latest available. The manufacturer
accepts no liability arising from printing errors, mistakes or changes.
Declaration of conformity
Download ”The declaration of conformity” at our website:
www.safeline-group.com
Safety Precautions!
- Only trained professionals, who are authorised to work on the equip-
ment, should install and con gure this product.
- This quality product is dedicated for the lift industry. It has been
designed and manufactured to be used for its speci ed purpose only.
If it is to be used for any other purpose, SafeLine must be contacted in
advance.
- It should not be modi ed or altered in any way, and should only be
installed and con gured stric tly following the procedures described in
this manual.
- All applicable health and safety requirements and equipment
standards should be considered and strictly adhered to when installing
and con guring this produc t.
- After installation and con guration this product and the operation
of the equipment should be fully tested to ensure correct operation
before the equipment is returned to normal use.
Electrical and electronic products may contain materials, parts and
units that can be dangerous for the environment and human health.
Please inform yourself about the local rules and disposal collection
system for electrical and electronic products. The correct disposal of
your old product will help to prevent negative consequences for the
environment and human health.
General
information

5
serial no.
hologram
sw ver.
www.safeline-group.com
1
3
4
5
123
4 5 6
97 8
*0#
SafeLine MX3+
2
MX3+ v.2.02 EN
Overview
This unit was built with state-of-the-art technology and to
generally recognised safety related technical standards currently app-
licable. These installation instructions are to be followed by all people
working with the unit, in both installation and maintenance.
It is extremely important that these installation instructions are made
available at all times to the relevant technicians, engineers or servicing
and maintenance personnel. The basis prerequisite for safe handling
and trouble free operation of this system is a sound knowledge of the
basic and special safety regulations concerning conveyor technology,
and elevators in particular. The unit may only be used for its intended
purpose. Note in particular that, no unauthorised changes or additions
may be made inside the unit or individual components.
Exclusion of liability
The manufacturer is not liable with respect to the buyer of this product
or to third parties for damage, loss, costs or work incurred as a result of
accidents, misuse of the product, incorrect installation or illegal chang-
es, repairs or additions. Claims under warranty are likewise excluded in
such cases. The technical data is the latest available. The manufacturer
accepts no liability arising from printing errors, mistakes or changes.
Declaration of conformity
Download ”The declaration of conformity” at our website:
www.safeline-group.com
Safety Precautions!
- Only trained professionals, who are authorised to work on the equip-
ment, should install and con gure this product.
- This quality product is dedicated for the lift industry. It has been
designed and manufactured to be used for its speci ed purpose only.
If it is to be used for any other purpose, SafeLine must be contacted in
advance.
- It should not be modi ed or altered in any way, and should only be
installed and con gured strictly following the procedures described in
this manual.
- All applicable health and safety requirements and equipment
standards should be considered and strictly adhered to when installing
and con guring this produc t.
- After installation and con guration this product and the operation
of the equipment should be fully tested to ensure correct operation
before the equipment is returned to normal use.
Electrical and electronic products may contain materials, parts and
units that can be dangerous for the environment and human health.
Please inform yourself about the local rules and disposal collection
system for electrical and electronic products. The correct disposal of
your old product will help to prevent negative consequences for the
environment and human health.
General
information
Please refer to the
Parameterlist *88*
for programming
information.
Cable13 is required.
1. Connections
2. RS232 PC connection
Firmware update and conguration with SafeLine Pro.
3. Volume control
To increase volume, press Button ”2”; to decrease volume, press
Button ”8”. It is also possible to adjust the volume in the SafeLine
CONNECT app (available on both Google Play and Apple App Store).
4. Output for additional voice station/hearing loop
When connecting an additional remote station Cable14 is required.
5. Keyboard
Overview and
wiring diagram
Telephone line in
Input alarm button
Additional input (lter)
Voltage supply +10 - 30 VDC
Voltage supply 0 VDC
Additional alarm button, only N/O.
Cable13 is required.
Output 2
Output 1
SafeLine MX3+ on PSTN Line (max 9 units) Telefone line
x9
Parallel wiring
In order to access the unit
remotely, it needs to be assigned
a unit number. Please refer to the
Parameter list (*82*) for more
information.
Pink
Grey
Yellow
Green
Brown
White
Brown
White
Brown
White
If extra voice station is connected, connection cable *CABLE14 is
required.

6
123
4 5 6
97 8
*0#
SafeLine MX3+
Speaker B
serial no.
hologram
sw ver.
www.safeline-group.com
Speaker A
MX3+ v.2.02 EN
Overview
Wiring diagram,
H1/H2
Use CABLE15 to connect SafeLine
MX3+ with a hearing loop.
CABLE15
Hearing loop

7
hologram
serial nr.
sw ver.
www.safeline-group.com
123
456
789
*0#
SafeLine MX3 +
MX3+ v.2.02 EN
Overview
Wiring diagram,
output 1, 2 and
external button
Use CABLE13 to connect SafeLine MX3+ with
external accessories. Output 1 and 2 can be
congured independently.
Requires that the output
is congured for the
corresponding function.
Please refer to the Parameter
list (*88*) or the app for
more information.

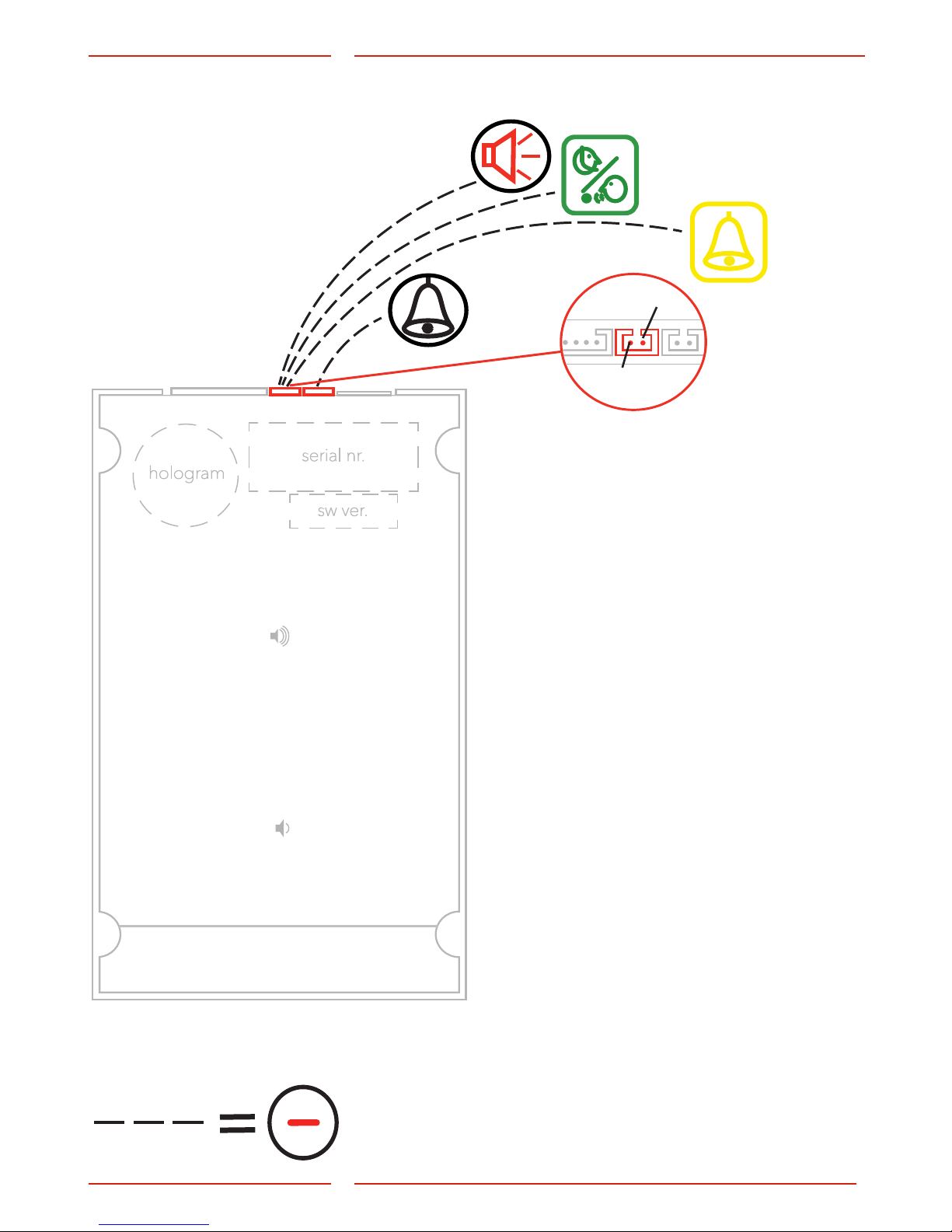

0 = Pictogram (Output 1 - yellow, Output 2 -
green)
1 = Activate with DTMF 8/9 (Output 1 - DTMF8,
Output 2 – DTMF9)
2 = System failure
3 = Emergency bell
E.g. *88*13# congures output 1 for an
emergency bell.
Pictogram yellow
(Output 1, Conguration code 0)
The output is activated at the following events:
- Input for emergency bell is activated.
- Input for emergency bell is set active at a certain time.
The output is deactivated at the following events:
- Distress input deactivated before set time.
- Active alarm ended.
- Reset button (#) is pressed.
Pictogram green
(Output 2, Conguration code 0)
The output is activated at the following events:
- Voice communication activated.
- Incoming call connected.
The output is deactivated at the following events:
- Outgoing call ended/timeout/cancelled.
- Incoming call ended/timeout/cancelled.
- Reset button (#) is pressed.
Outputs
The two outputs can be congured independently
with a number of functions. The conguration
is performed via SafeLine Pro or with the
conguration code *88*XY#, where X species
output 1 or 2 and Y species the function:
Output 2
Output 1

8
MX3+ v.2.02 EN
Overview
Outputs Activate with DTMF 8
(Output 1, Conguration code 1)
The output is activated at the following events:
- DTMF tone 8 is received.
The output is deactivated at the following events:
- 3 seconds after activation.
Activate with DTMF 9
(Output 2, Conguration code 1)
The output is activated at the following events:
- DTMF tone 9 is received.
The output is deactivated at the following events:
- 3 seconds after activation.
System failure
(Output 1 & 2, Conguration code 2)
The output is activated at the following events:
- Telephone line OK.
The output is deactivated at the following events:
- Telephone line missing.
Emergency bell
(Output 1 & 2, Conguration code 3)
The output is activated at the following events:
- Emergency alarm button input active.
- The call is not yet connected.
The output is deactivated at the following events:
- Emergency alarm button input deactivated.
- The call is connected.
Silence disconnect
The function will automatically disconnect a call if no sound is
received from the alarm operator within a set time. Only works for
voice calls, not for P100/CPC/Q23.
The conguration is performed via SafeLine Pro or with the
conguration code *92*X#, where X species the time:
0 = The function is off.
1 = 30 seconds.
2 = 60 seconds (default).
3 = 90 seconds.
Volume control through software
The speaker volume is adjusted via the keyboard control. Key 2
raises and Key 8 lowers the volume in 6 steps. The volume can also
be adjusted using the command *76*X# where X is the desired
volume position between 1 and 6. Default value is 3.
The set volume mode are stored in the EEPROM so that the unit
remembers the set position.
External mic/voice station
When a call is activated by the emergency alarm button on
the external mic/voice station, the microphone on the external
mic/voice station will be used and the internal microphone
disconnected. The speaker sound will however be heard from both
speakers simultaneously.
Functions

9
MX3+ v.2.02 EN
Conguration
Activate with DTMF 8
(Output 1, Conguration code 1)
The output is activated at the following events:
- DTMF tone 8 is received.
The output is deactivated at the following events:
- 3 seconds after activation.
Activate with DTMF 9
(Output 2, Conguration code 1)
The output is activated at the following events:
- DTMF tone 9 is received.
The output is deactivated at the following events:
- 3 seconds after activation.
System failure
(Output 1 & 2, Conguration code 2)
The output is activated at the following events:
- Telephone line OK.
The output is deactivated at the following events:
- Telephone line missing.
Emergency bell
(Output 1 & 2, Conguration code 3)
The output is activated at the following events:
- Emergency alarm button input active.
- The call is not yet connected.
The output is deactivated at the following events:
- Emergency alarm button input deactivated.
- The call is connected.
Android iPhone
Android iPhone
Press the SL6+ icon. To access a device it must have a programmed
password or have been restarted within 10 minutes. Every time the
device is powered on, the device’s bluetooth is open for 10 min-
utes, allowing you to program a password for the unit. Note: some
devices are quicker than other to nd the devices nearby. If the
device doesn’t appear on the screen, try waiting a bit longer.
When accessing a SL6+ you can see the device information at the top.
Android iPhone
You can then select:
Edit unit info
– This is the name and phone number of the device and how the
device is found.
Conguration:
– Here you congure all the functions for voice stations, in- and
outputs etc.
Simulate alarms:
– Here it is possible to simulate an alarm, battery failure, callback,
stuck button etc.
Main unit diagnostics:
– See current status of the device (for example: battery status, active
alarms, mains status, etc.)
Voice station diagnostics:
– Se current status of voice stations.
Congure
with Safeline
CONNECT
The SafeLine CONNECT app
is used to congure and
surveil your SafeLine devices.
Apple store, iPhone
Google play, Android
Download SafeLine CONNECT from Google Play or the Apple App
Store. To fully use the app’s features you must register an account.
In the upper corner you can access a menu containing account
information, patch notes and a demo mode. To register an account:
select account and then ”Register new account”. You will then be
redirected to a site where you register your product key.

10
SafeLine SL6
SafeLine
ProLink
SafeLinePro
123
4 5 6
78 9
0
*#
SafeLinePro
1 2 3
4 5 6
97 8
*0#
SafeLine MX3+
serial no.
hologram
sw ver.
www.safeline-group.com
MX3+ v.2.02 EN
Conguration
Conguration
interfaces
Keyboard conguration
The integrated keyboard at the rear of the MX3+ enables a fast
conguration of the unit.
Conguartion with SafeLine Pro
The unit can be congured at the ofce prior to the installation or at
site after installation, with a conguration cable (*PCable).
Remote conguration
For remote conguration, you can use any PSTN tone dial phone.
Please nd the instructions of how to perform it in the section
”Conguration method” (page 12).
Remote conguraion with SafeLine Pro
Connect an SLPro Link to a computer with SafeLine Pro and a serial cable.
The unit has to be connected
to a power source before the
conguration can begin.
SafeLine Pro can be downloaded on our website:
http://www.safeline-group.com/en/downloads/
SafeLine Pro 4.42 or later is required.

11
MX3+ v.2.02 EN
Conguration
Remote conguration
with external telephone.
Conguration
with telephone
If the time between the
operation of two keys exceeds
10 seconds, the code has
to be re-entered. If the time
exceeds 30 seconds, the call is
disconnected or conguration
mode is ended.
Dial phone number.
Multiple units
connected to
phone line?
1 beep.
(All MX answers)
Press unit no. [ 1-9 ]
repeatedly.
(Until recieving 3 tones)
3 beeps.
(Requested unit answers)
Start conguration:
2 short beeps.
(Waiting for password)
Enter the password:
Valid
password? Wrong password
(One long beep).
2 short beeps.
(Entering conguration mode)
Continue
conguration?
2 short beeps.
Call disconnected or
end of conguration.
MX3+ will restart with
the new settings.
Enter code,eg: *11*
Enter setting, eg: 012341234
End parameter: #
2 short beeps?
One long beep.
Invalid input. Last code
has to be re-entered.
On-site conguration
using the keyboard.
Start conguration:
Quit conguration:

12
MX3+ v.2.02 EN
Conguration
Conguration
examples
SafeLine emergency
telephones
Example 1: Storing of two dif-
ferent telephone numbers, one
to be answered by P100 code
and the other one with voice.
For test facility, see example 2.
1.Start conguration:
2.1st phone number:
3.2nd phone number:
4.Call type 1st number:
5.Call type 2st number:
6.Alarm button delay:
7.End conguration:
- Example: Answered with P100 code.
- Example: Answered as voice call.
- Example: 3 seconds delay.
1.Start conguration:
5.LMS phone number:
4. Set number of days
between test alarm:
3.Set test alarm type:
Example 2: SLCC (SafeLine
Call Centre) and 3-day test.
If at any time you need to start over, use the factory reset
command *99*1#. Please refer to the full conguration setup in the
“Parameter list” as these are merely examples.
(Only if using SLCC)
(For more information, please refer to parameter *17* in the
”Parameter list”)
Lift ID code (each lift must have its own unique code).
- Example: 3 days between test alarm.
- Example: Test alarm type P100.
7.End conguration:
6.Test alarm:
2.Enter P100 ID code:

13
MX3+ v.2.02 EN
Conguration
Parameter list
CONFIGURATION CODE DATA COMMENTS
Enter conguration mode 00
Enter password * - - - - # Default = 0000
Exit conguration mode *00*#
ALARM CODE DATA COMMENTS
P100 ID code *01* - - - - - - - - # P100 is always 8 digits
CPC ID code *02* - - - - - - # CPC 6-8 digits
Q23 ID code *03* - - - - - - - - -- - # Q23 is always 12 digits
TELEPHONE NUMBERS CODE DATA COMMENTS
1st Phone number *11* - - - - - - - - - # Phone number to alarm receiver: 1-20 digits.
If calling through a switch board, delay time
can be set by adding asterisks between
leading number of the switchboard and
telephone number for the alarm call receiver.
Each asterisk (*) is equal to one second delay.
Example #1: *11*0**1234567#
Example #2: *11*# deletes the phone number.
2nd Phone number *12* - - - - - - - - - #
3rd Phone number *13* - - - - - - - - - #
4th Phone number *14* - - - - - - - - - #
CALL TYPE CODE DATA COMMENTS
Call type 1st number *21* - # Change the call type of the stored telephone
numbers:
0 = P100
1 = VOICE (default)
2 = Q23
3 = CPC
Change this only if your alarm operator is using
any of the mentioned protocols.
Call type 2nd number *22* - #
Call type 3rd number *23* - #
Call type 4th number *24* - #
Call type LMS number *30* - # LMS (Lift Monitoring System) call type:
0 = P100
3 = CPC (Only battery alarm)

14
MX3+ v.2.02 EN
Conguration
TEST ALARM
BATTERY ALARM
CODE DATA COMMENTS
LMS phone number *16* - - - - - - - - - # LMS (Lift Monitoring System) phone number to alarm
receiver or SLCC.
Test alarm *17* - - - - - - - - - # Phone number to test alarm receiver or SLCC.
Days between tests *27* - - # Number of days between test alarms, 00-99 days.
Always two digits.
Max 3 days according to EN 81-28.
00 = No test alarms
Test alarm protocol *31* - # 0 = P100
3 = CPC
4 = Caller ID
ALARM TYPE CODE DATA COMMENTS
Alarm type 1st number *41* - - # Only when using CPC as alarm protocol
Normally 10 or 27, check with your alarm company!
Alarm type 2nd number *42* - - #
Alarm type 3rd number *43* - - #
Alarm type 4th number *44* - - #
Alarm type LMS *45* - - # LMS (Lift Monitoring System)
(Battery alarm)
Normally 17
Alarm type Test alarm *46* - - # Normally 26
DISTRESS MESSAGE CODE DATA COMMENTS
Record distress message
played in the lift car
*51* ”Speak” # This message will be played in the lift car when the
emergency lift telephone starts calling the alarm
centre. Make sure that there is no noise in the
background when recording the message.
Example of message:
Please do not panic, the emergency telephone is
now calling the emergency call centre.
Record alarm message
from Lift Car to alarm
central
*52* ”Speak” # This message will be played to the alarm receiver
and in the car when the call is answered. Make
sure that there is no nose in the background when
recording the message.
Example of message:
This is an alarm from the lift on 5th avenue.
To hear the quality of the message, press “1”.
To terminate the call press “#”.
Options for the recorded
distress message
*61*
*61*
- #
#
To play the recorded message, press the desired
parameter followed by #.
Options for the recorded
message from Lift Car
*62*
*62*
- #
#
0 = Disable recorded message.
1 = Enables recorded message.

15
MX3+ v.2.02 EN
Conguration
OTHER CODES CODE DATA COMMENTS
Emergency signal in
speaker
*71* - # The speaker siren will sound at emergency
call.
0 = Off (default)
1 = On
Ring-tone timeout *72* - - # Number of ring signals before dialling the
next number (default = 08).
Additional input
function
*73* - # Selects input function:
0 = None (Default)
1 = Filter, blocks the alarm input when active.
2 = LMS (Lift Monitoring System), sends a lift
monitoring alarm at input activation.
3 = Clear/Maintenance
4 = Call Delay
Additional input type *74* - # 0 = Normally-open contact, N/O (Default)
1 = Normally-closed contact, N/C
Hotline *75* - # Phone connects directly to a xed receipient
without phone number
0 = Standard phone line (default)
1 = Hotline
Volume control *76* - # Adjustabel volume, between 1-6.
(Default = 4)

16
MX3+ v.2.02 EN
Conguration
OTHER CODES CODE DATA COMMENTS
Compatibility mode *77* - # 0 = Automatic voice switching
The call is validated when there is a voice
response.
The call is terminated by pressing ”#”.
1 = Kone ECII (lift telephone)
When there is a voice response, some
ascending tones will be heard.
The call is validated by pressing ”4”.
The call is terminated by pressing ”0”.
The call is terminated without reciept notication
by pressing ”2”(the unit will call the next number).
2 = Manual voice switching
When there is a voice response, some
ascending tones will be heard.
The call is validated by pressing ”4”. Unit is
still in automatic mode. ‘
To enter manual mode and talk press ”*”.
To listen press ”7”.
Go back to automatic mode press ”4”.
The call is terminated by pressing ”#”.
It is possible to enter manual voice switching
mode although the unit is programmed as
automatic by pressing ”*”. No ascending
tones will be heard.
For repeating the Alarm messages to
operator, press “1” in all in/out going calls.
3 = Swiss M (Alarm operator mode)
Only to be used in voice mode.
Disconnect by “0”.
Dials the next number if call timeout, blocking
tone, new dailing tone, and operator silence.
Indicator mode *78* - # 0 = Standard (default)
1 = Strictly EN81-28
2 = Strictly single EN81-28
Voice communication time-out *79* - - # Value 1 - 20 minutes.
05 = default value
08 = default value for other protocols
Reset active alarm
automatically *80* - # 0 = Off 1 = On (default)
Auto answer *81* - - # Number of signals before SafeLine answers
incoming call.
Can be set from 00-16 (default = 02).
00 = Never answering.
Unit number *82* - # Unit number [0] is set by default, and means
that the unit will respond immediately.
Unit number [1-9] is used when the units
are sharing the same phone line. When the
unit number is assigned, the specied unit is
accessible for conguration.

17
MX3+ v.2.02 EN
Conguration
OTHER CODES CODE DATA COMMENTS
Detect dial tone *83* - # 0 = Off
1 = On (default)
Set to off if SafeLine has problem to detect the
dial tone.
Receipt to alarm
receiver with P100
protocol
*84* - # Select which message(s) to send to the alarm
receiver at an alarm call.
0 = None (default)
1 = Start of alarm
2 = Start+end of alarm
Break on new alarm *86* - # Disconnects a call longer than 60 seconds at new
activation of the alarm button and calls the next
emergency call number.
0 = Off
1 = On (default)
Alarm button delay
time
*87* - - # Delay time from pressing the alarm button until
activating the alarm.
00-25 seconds. Default = 05
Outputs *88* - - # The rst digit species the output, i.e Output 1 or
Output 2.
The second digit species the function:
0 = Pictogram
(Output 1 - Yellow, Output 2 - Green)
1 = Activate with DTMF 8/9
(Output 1 - DTMF 8, Output 2 - DTMF 9)
2 = System failure
3 = Alarm
Example:
*88*11# - Output 1, Activate with DTMF 8
*88*23# - Output 2, Alarm
Alarm button type *89* - # 0 = Normally-open contact, N/O (Default)
1 = Normally-closed contact, N/C

18
MX3+ v.2.02 EN
Conguration
OTHER CODES CODE DATA COMMENTS
Microphone sensitivity *90* - # The sensitivity of the microphone can be reduced
in three levels.
0 = No reduction (default)
1 = 20 % Reduction
2 = 40 % Reduction
3 = 60 % Reduction
Change password *91* - - - - # Change password (default=0000).
Operator silence
disconnect
*92* - # Disconnects the call when the alarm operator
has been quiet for longer than the time set.
0 = Off (default)
1 = 30 sec
2 = 60 sec
3 = 90 sec
Simulate an alarm event *94* - # Triggers an alarm event after conguration is
terminated.
1 = Emergency call
2 = Test alarm
3 = Battery failure
4 = Microphone/Speaker failure
5 = Receipt on voice call
6 = Maintenance
7 = Main unit power failure
8 = Stuck button alarm
Reset to default settings *99* - # 1 = Factory standard
2 = Default P100 (The following codes will be set):
*21*0#, *22*0#, * 27*03#, *76*4#, *80*1#,
*84*1#, *88*1#
3 = Default CPC (The following codes will be set):
*21*3#, *22*3#, *27*03#, *76*4#, *80*1#,
*84*1#, *88*1#
4 = Default VOICE (The following codes will
be set):
*21*1#, *22*1#, *27*03#, * *76*4#, 80*1#,
*84*1#, *88*1#

19
MX3+ v.2.02 EN
Operating
LED indication
for pictogram
in car
Yellow LED Green LED
Call in progress
The yellow pictogram LED is lit
as soon as the alarm button is
pressed.
Call connected
The green pictogram LED turns
on as soon as the SafeLine unit
detects a responding voice.
The LED is turned off when the
call is terminated.
Standard (*78*0#) Yellow LED Green LED
Light off No alarm activated Telephone line not OK.
Flashing slowly Flashing once every 5 seconds
Telephone line not OK.
Flashing once every 5 seconds
Unit is OK.
Flashing quickly Flashing twice ever y second
Alarm button active.
Flashing two times every 5
seconds
Alarm lter activated.
Continuous light Activated alarm. Remains lit
until reset.
Call connected.
Strictly EN81-28 (*78*1#) Yellow LED Green LED
Flashing Flashing twice every second
Alarm button active.
Continuous light Activated alarm. Remains lit
until reset.
Call connected.

20
MX3+ v.2.02 EN
Operating
Testing Testing the SafeLine
MX3+
Connect 10-30 VDC.
SafeLine MX3+ will make
a self-test.
Green LED ashes
5 times. Short tone
in the speaker?
Connect telephone line.
Green LED ashes
every 5 sec?
Press on keypad:
Phone line
dial tone?
Dial out on keypad.
Yellow LED ashes 5 times.
Long tone in the speaker.
Check the mic and speaker
connections.
Yellow LED ashes
every 5 sec.
Check telephone line.
No connection.
Check PSTN-line,
Go to Troubleshoot tables.
