Safemate BTC-1004A User manual

BATTERY CHARGER
BTC-1004A
1. This charger is designed for indoor use only and should never expose this product
to rain or wet conditions.
2. Make sure you are using proper AC line power voltage.
3. Do not attempt to use the charger if it has been dropped or damaged.
4. Never attempt to charge a damaged battery, frozen battery or non-rechargeable
battery.
5. Do not use the charger in a closed area or poorly-ventilated area.
6. The battery charger should be away from any heat source or ignitable air, which
would possibly cause explosion.
7. Don’t replace the cord and plug.
8. If battery charger does not work properly, don’t repair it on your own, otherwise it
would possibly be damaged and cause people injury.

9. Keep the battery charger away from children and animals.
10. Disconnect the battery charger after turning off.
11. Before charging, check the battery type and max. Charging current is allowed, or
get this information from battery supplier.
12. Use goggle during connect or disconnect battery charger to battery.
13. Do not operate this product in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust, could result in serious injury.
14. Don’t insert any metal things into the ventilator of battery charger.
To reduce risk of damaging the Battery, avoid dropping any metal tools onto the
battery.
15. Don’t put the battery charger too close to the battery during charging.
16. During charging, the battery must be placed in a well ventilated area
17. This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.children shall not play
with the appliance.cleaning and user maintenance shall not be made by children
without supervision.
18. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
19.It only can be used for lead-acid rechargeable batteries.
- warning against recharging non-rechargeable batteries
- The battery terminal not connected to the chassis has to be connected
first. The other connection is to be made to the chassis, remote from the
battery and fuel line. The battery charger is then to be connected to the
supply mains;
- After charging, disconnect the battery charger from the supply mains.
Then remove the chassis connection and then the battery connection.
- cleaning and user maintenance shall not be made by children without
supervision
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual before set up or use of this product.

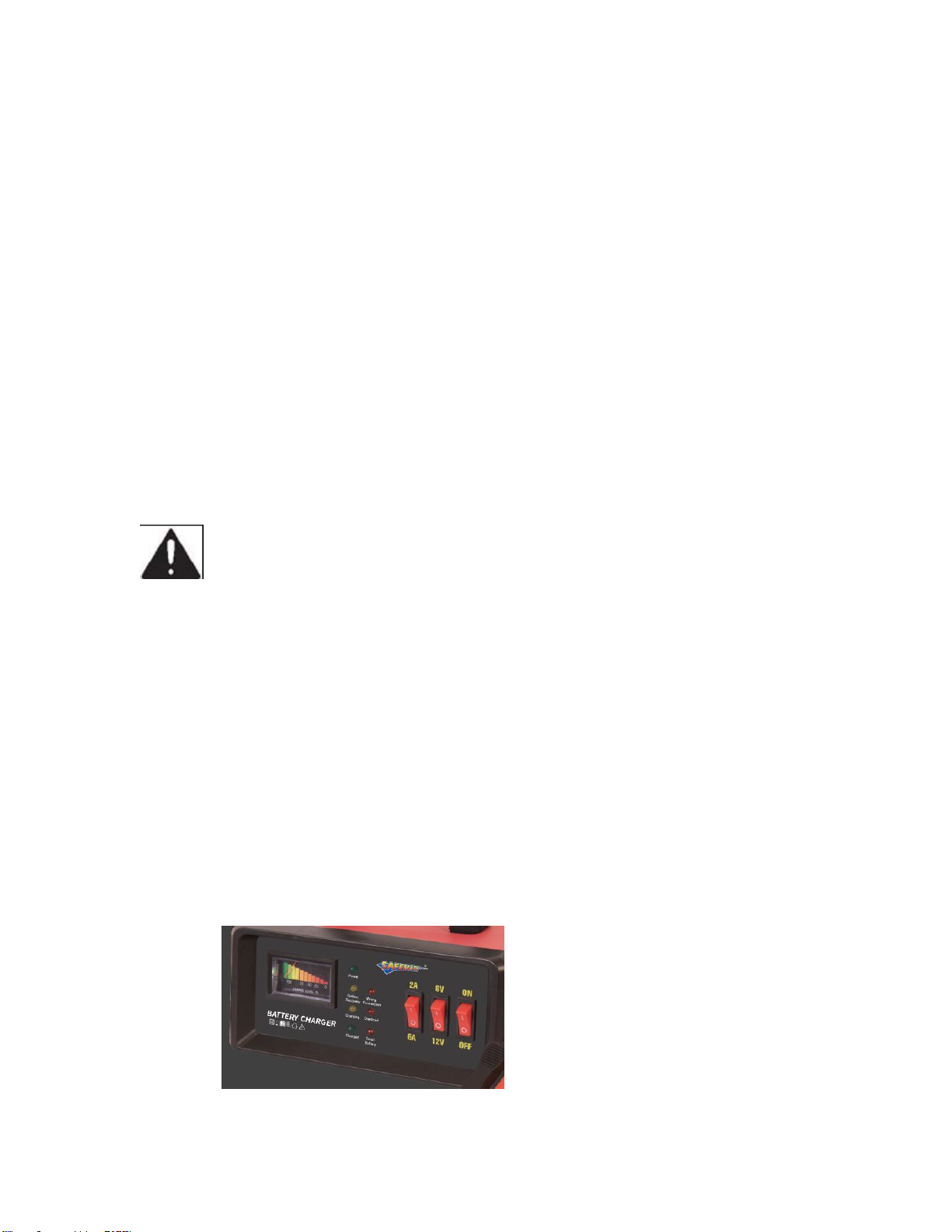

Control Board and Display
Function Buttons and LED Display

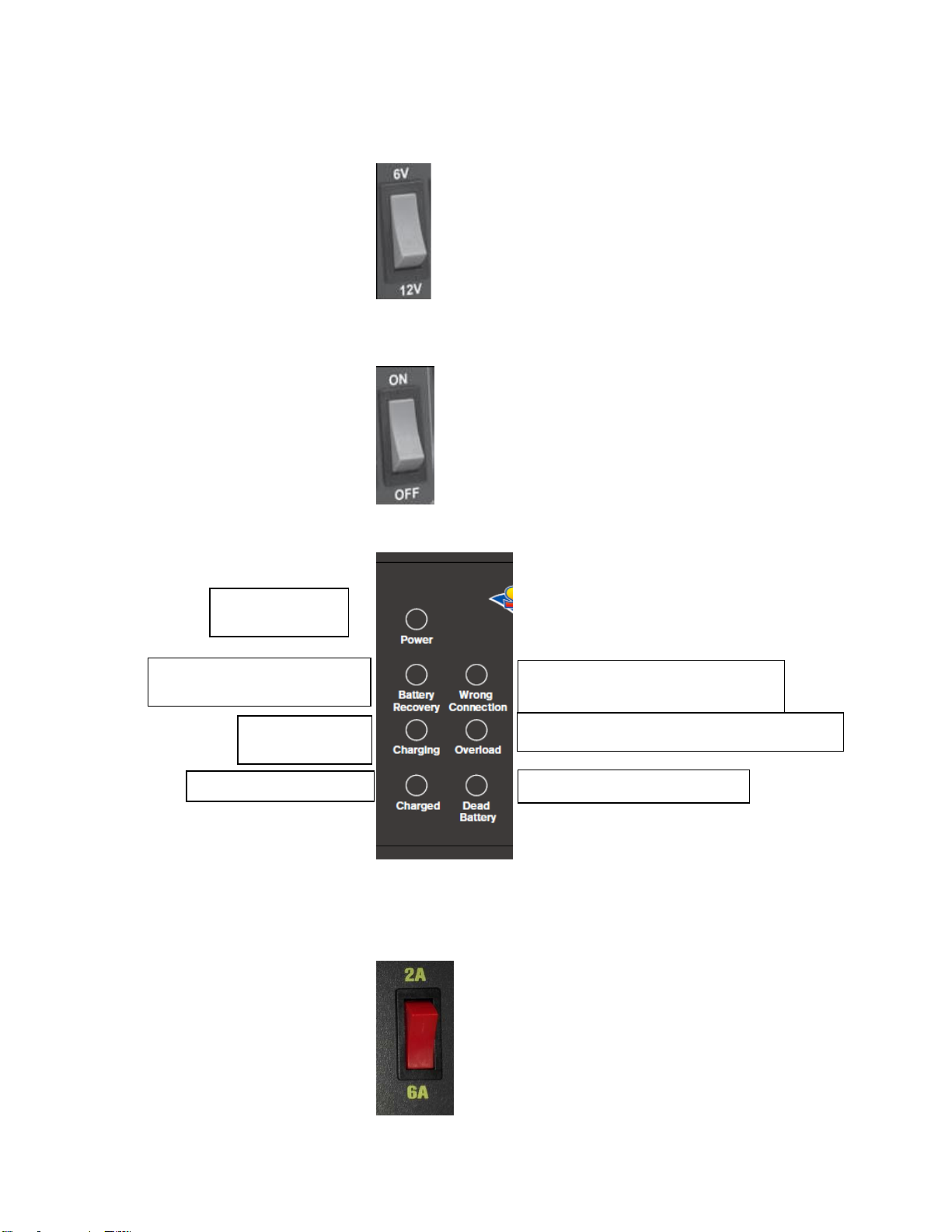

Switch of voltage Selection
Press switch up for charging 6V battery and press switch down for charging 12V battery. Charge
voltage can not be selected after charging or during charging
Switch of Power ON/OFF
Press switch up is ON and press switch down is OFF. Before you press the switch make sure that the
battery charging voltage is selected correctly, it is very important, if you choose wrong, it will damage
the battery or charger.
LED Display of Charging condition
The LED will indicate the charging condition when charging.
Charging current switch
When charging the battery according to the battery capacity (refer to the battery charging current
can be recommended in the specification), the current selection switch to select suitable battery
charging current, charging current can not exceed the maximum current of the battery, so as not to
damage the charger or battery.
Power Indicator,
Green light
Battery Recovery, Yellow flash
light
Charging,
Yellow Light
Charged, Green light
Output short circuit or battery
reverse connection，Red flash light
Internal temperature protection，Red light
Dead battery ，Red flash light

LED Display information
1. power Connect the Household power, Turn on the power switch, Green light。
2. battery recovery if the battery voltage is too low, Yellow light indicatior flas
h, first to recovery-charging(Max Amp 1A), it will last for one hour,if the battery
voltage can be recovered to be above 8.5V(12V battery), 4.5V(6V battery), the
charging light will turn on, recovery light will be off, recovery-charging will turn
to normal charging. If it can not be recovered to normal voltage, dead battery
red light will be on, recovery light will be off.
3. charging When charging, yellow light will be on
4. charged When charged, green light will be on, disconncet the battery connection, light will
be off.
5. wrong connectlon when the Red/black clamp is circuit short or the battery is
connected reversely, or the charger is connected to 12V battery under the condition of 6V, red
light will flash.
6. overload If the internal temperature is above 80℃, the red light will be on, it can be
charged, if above 100℃, the output will be cut, charging light will be off, this red light will
be on.
7. dead battery If the battery can not reach the preset voltage above 8.5V(12V battery),
4.5V(6V battery), after 1 hour recovery, the recovery will stop，red light will be on to
judge it as a dead battery.
Warning: When charging, according to the battery voltage, select the charger charging
voltage, so that the charger output voltage to meet the requirements of the battery
requirements, so as not to use the wrong voltage charge battery

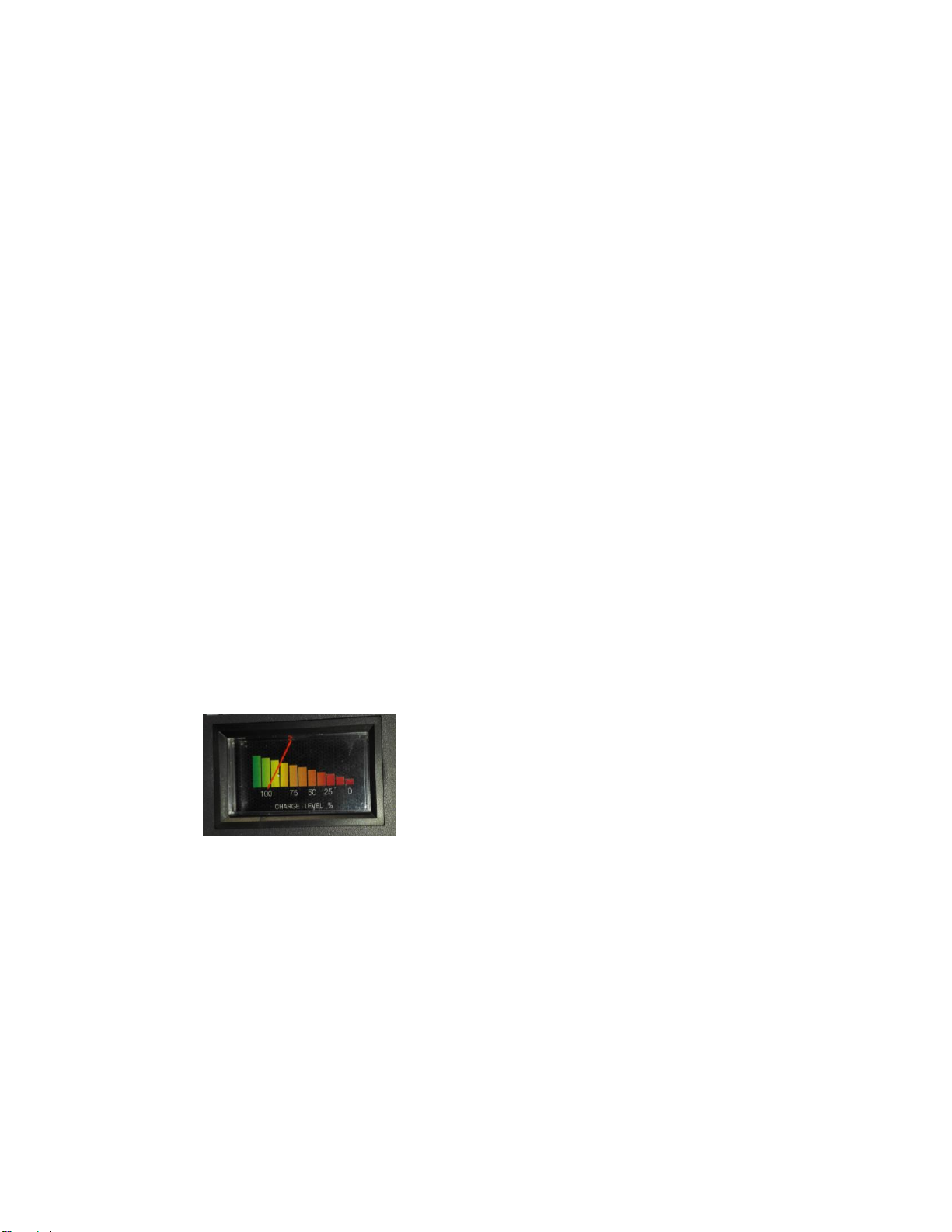

Ammeter display battery status
The ammeter indicates the battery capacity by the percentage of battery capacity.
0 -6A Charging current be appropriate for 6-75 AH Lead-acid battery
Charging Procession
Connect the battery charger to the mains power (120V AC):
Connecting 120V AC power supply, the power LED will indicate. If the output is in a short-circuit
situation, the LED will indicate “Fault”,, please solve the problem.
Connecting the battery charger to your Battery
Connect the red clamp from the charger to the positive (+) battery terminal. The Black clamp from the
charger to the negative (-) battery terminal. (The “Fault” LED will indicate if output reverse polarity
connection, please re-connect )
Start the charging
Connect AC plug to 120V power correctly, Select charging voltage 6v or 12v battery (If you are not
sure the battery type please read the battery’s rating label first). Then connect both of clamps with
battery terminals, turn on the power switch and began charging, final select appropriate current.
Floating charging function

Battery is fully charged and is ready for use. Chargers will output a constant safe voltage, remained
voltage between 7.2V±0.25v for 6V battery or 14.3V±0.25v for 12V battery.
SPECIFICATIONS PARAMETERS
Rated input: 120V AC 50Hz 90W
Rated output: 12V/6VDC 0-6A
Max charging current: 6A (short time)
Battery Type: 6V/12V Lead-acid Battery
Max. capacity:75Ah
Output Display: LED and ammeter
Meaning of crossed –out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste, use separate
collection facilities.
Contact you local government for information regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the
groundwater and get into the food chain, damaging your health and well-being.
When replacing old appliances with new ones, the retailer is legally obligated to take back your old
appliance for disposals at least free of charge.
Zhejiang Safemate Automotive Safety&Emergency Technology Co., Ltd
Add:78#maan road, qiantan,jiande,zhejiang
