Saferhomee HB-T704 User manual
Solar Wireless Motion Sensor

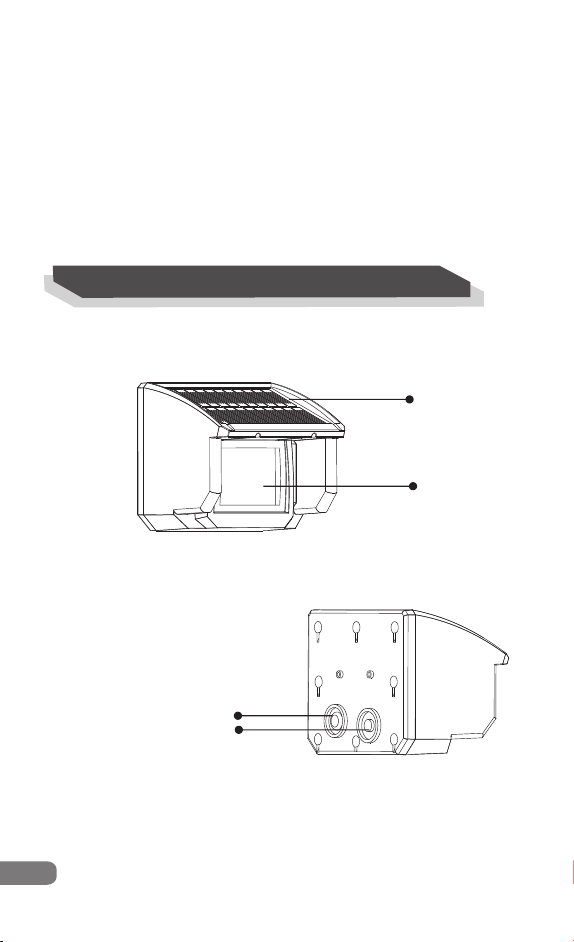

Sensor Eye
Sensor Eye: detect the objects
Solar Panel:charge the built-in battery of the sensor
1
Solar Wireless Motion Sensor
User Manual
1. System Components And Usage
After-sale Service:
E-mail:
Solar Panel
ON/OFF
Charge Jack
Charge Jack:used to connect the additional solar panel
or DC 5V power adapter
ON/OFF:turn on/off the sensor
2
Step 1
Turn on the Wireless Motion Sensor:
Press the ON/OFF button 4 times
(1)How to add sensors to the wireless alarm receiver
(up to 32 sensors can be added to the receiver)
Step 2
Power on the wireless alarm receiver by the power adapter
2. Operation Instructions
(bleep prompt means work normally)
ON/OFF
( )press 4 times
Power
3
Step 4
Activate The Wireless Motion Sensor
(wait about 30 seconds after you turned on the sensor)
1st method:press the ON/OFF button twice
(the light of the ON/OFF button will flash once means
the motion sensor was activated and sent the alarm signal)
ON/OFF
( twice)press

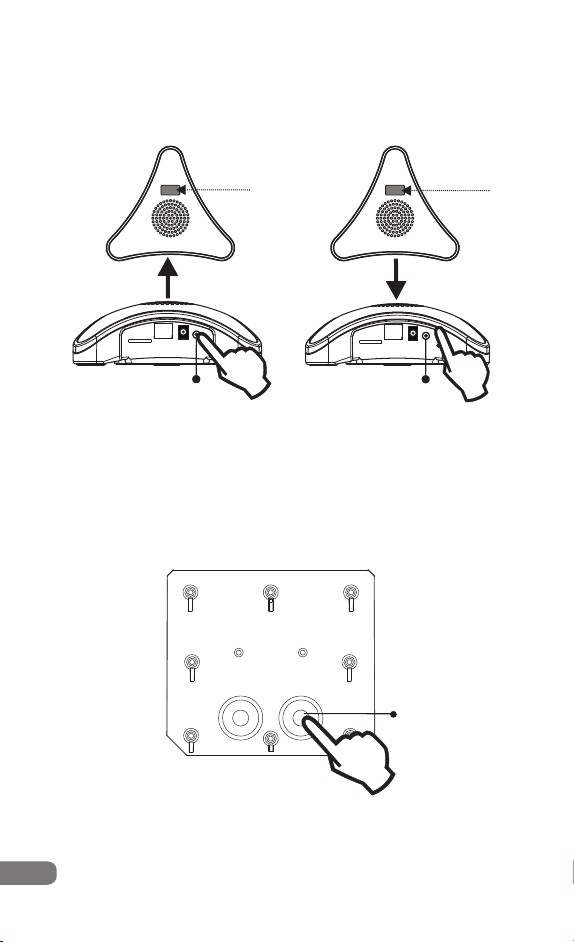

Step 3
Press and hold the “ON/OFF” button of the receiver for 5 seconds
and release the button when the indicator light flashing;
ON/OFF
ON/OFF
light up
press and hold the ON/OFF button
for 5 seconds
flashing
release the button
4
(the light of the ON/OFF button will flash
once means the motion sensor was activated
and sent the alarm signal;and then the motion
sensor will back to work mode automatically
after about 10 seconds if not detecting
any movements)
1 foot waya
2nd method: Ensure the sensor is turned away from you.
and walk through in front of the sensor to acivate
Step 5
to the wireless alarm receiver already
Activate the sensor again to confirm the sensor has been added
Step 6
Same steps for the other sensors
(a ring tone prompt and the indicator light stops
flashing means the sensor has been added to
the wireless alarm receiver successfully)
stop flashing
5
long screws
short screws
1
2
3
Wireless Motion Sensor
Step 7
Installations
6

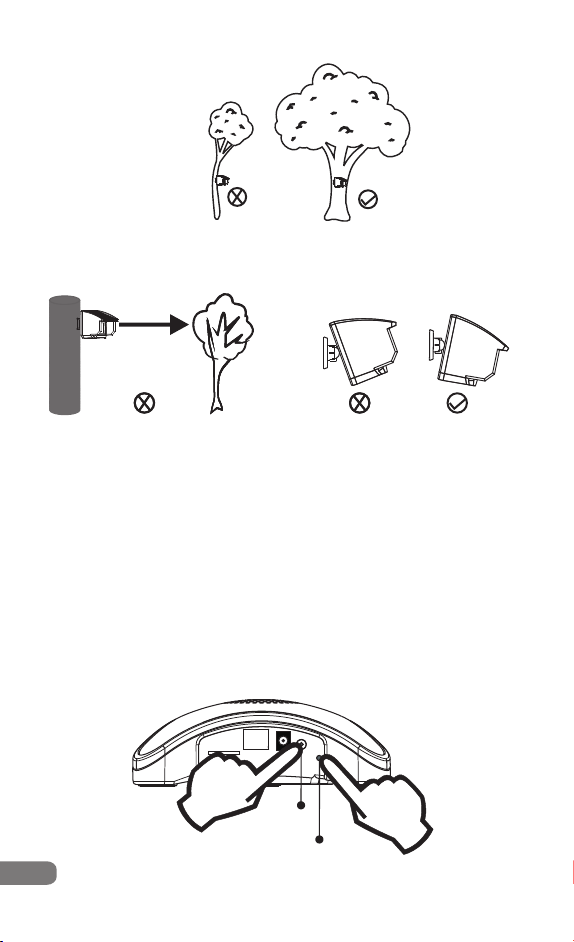

1. Please fix the motion sensor tightly to ensure
the position and the direction will not be moved
easily by wind.
2.Please point the sensor towards
a open field(not towards
the trees or bushes)
3.please adjust the sensor a
little down(not upward)
Step 1
Power on the wireless alarm receiver by the power adapter
Step 2
Press and hold both the “ON/OFF” button and “Tone
button for 10 seconds and release
the buttons when you heard a long bleep;
Note: all the sensors will be deleted by this operation;
”
ON/OFF
Tone
(2)How to delete the sensors of the wireless alarm receiver
Installation Notes:
7
(3)How to adjust the alarm volume
(5)How to adjust the sensitivity of the sensor
The sensor has 3 sensitivities adjustable (High, Middle, Low)
Step 1
turn off the sensor by press the ON/OFF button 3 times
ON/OFF
Tone
Step 1
Step 2
Power on the wireless alarm receiver by the power adapter
Press and hold the“ON/OFF”button first,and then press
the“Tone”button to adjust the alarm volume,
total 4 volume levels
(4)How to change the ring tone for the sensors
Step 1
Power on the wireless alarm receiver by the power adapter
Step 2
Activate the sensor first,and then press the "Tone" button to
choose the ring tone for this sensor;
Same steps for other sensors which have been added to
the wireless alarm receiver already.
8
3. Technical Parameters
28-HB201811-T704(1.1)-01
103mm
92mm
Wireless Motion Sensor
45mm 90mm
Technical parameters
50 feet(15m)
Technical Parameters
1/4 Mile(400m)
434.6MHz FSK+FHSS
3.2V
Chargeable LiFePO4 Battery
500mAh
Static: 1mA; Alarming:60mA
≥100mA in Sunny days
-30℃ to 70℃
15
Detection Range
Item
Wireless Transmission Range
Wireless Frequency
Working Voltage
Battery Type
Battery Capacity
Working Current
Solar Panel Output Current
Working Temperature Range
Detection Angle
Step 2
If select Low sensitivity---turn on the sensor by pressing
the ON/OFF button 3 times
If select Middle sensitivity---turn on the sensor by pressing
the ON/OFF button 4 times
If select High sensitivity---turn on the sensor by pressing
the ON/OFF button 5 times
Charge Jack
ATTENTION PLEASE
The KIT inclues a charge cable
which is used to charge the solar
wireless motion sensor before
use or if long-term continuously
rainy days caused low battery.
Please charge the sensor for 4
hours as below:
After-sale Service
contact@saferhomee.com
&tĂƌŶŝŶŐ^ƚĂƚĞŵĞŶƚŚĂŶŐĞƐŽƌŵŽĚŝĨŝĐĂƚŝŽŶƐŶŽƚĞdžƉƌĞƐƐůLJĂƉƉƌŽǀĞĚďLJƚŚĞƉĂƌƚLJƌĞƐƉŽŶƐŝďůĞĨŽƌĐŽŵƉůŝĂŶĐĞĐŽƵůĚǀŽŝĚƚŚĞƵƐĞƌƐĂƵƚŚŽƌŝƚLJƚŽŽƉĞƌĂƚĞƚŚĞĞƋƵŝƉŵĞŶƚdŚŝƐĞƋƵŝƉŵĞŶƚŚĂƐďĞĞŶƚĞƐƚĞĚ
ĂŶĚĨŽƵŶĚƚŽĐŽŵƉůLJǁŝƚŚƚŚĞůŝŵŝƚƐĨŽƌĂůĂƐƐĚŝŐŝƚĂůĚĞǀŝĐĞƉƵƌƐƵĂŶƚƚŽWĂƌƚϭϱŽĨƚŚĞ&ZƵůĞƐdŚĞƐĞůŝŵŝƚƐĂƌĞĚĞƐŝŐŶĞĚƚŽƉƌŽǀŝĚĞƌĞĂƐŽŶĂďůĞƉƌŽƚĞĐƚŝŽŶĂŐĂŝŶƐƚŚĂƌŵĨƵů
ŝŶƚĞƌĨĞƌĞŶĐĞŝŶĂƌĞƐŝĚĞŶƚŝĂůŝŶƐƚĂůůĂƚŝŽŶdŚŝƐĞƋƵŝƉŵĞŶƚŐĞŶĞƌĂƚĞƐƵƐĞƐĂŶĚĐĂŶƌĂĚŝĂƚĞƌĂĚŝŽĨƌĞƋƵĞŶĐLJĞŶĞƌŐLJĂŶĚŝĨŶŽƚŝŶƐƚĂůůĞĚĂŶĚƵƐĞĚŝŶĂĐĐŽƌĚĂŶĐĞǁŝƚŚƚŚĞŝŶƐƚƌƵĐƚŝŽŶƐ
ŵĂLJĐĂƵƐĞŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞƚŽƌĂĚŝŽĐŽŵŵƵŶŝĐĂƚŝŽŶƐ,ŽǁĞǀĞƌƚŚĞƌĞŝƐŶŽŐƵĂƌĂŶƚĞĞƚŚĂƚŝŶƚĞƌĨĞƌĞŶĐĞǁŝůůŶŽƚŽĐĐƵƌŝŶĂƉĂƌƚŝĐƵůĂƌŝŶƐƚĂůůĂƚŝŽŶ/ĨƚŚŝƐĞƋƵŝƉŵĞŶƚĚŽĞƐĐĂƵƐĞ
ŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞƚŽƌĂĚŝŽŽƌƚĞůĞǀŝƐŝŽŶƌĞĐĞƉƚŝŽŶǁŚŝĐŚĐĂŶďĞĚĞƚĞƌŵŝŶĞĚďLJƚƵƌŶŝŶŐƚŚĞĞƋƵŝƉŵĞŶƚŽĨĨĂŶĚŽŶƚŚĞƵƐĞƌŝƐĞŶĐŽƵƌĂŐĞĚƚŽƚƌLJƚŽĐŽƌƌĞĐƚƚŚĞŝŶƚĞƌĨĞƌĞŶĐĞďLJŽŶĞ
ŽƌŵŽƌĞŽĨƚŚĞĨŽůůŽǁŝŶŐŵĞĂƐƵƌĞƐ
ϋϋZĞŽƌŝĞŶƚŽƌƌĞůŽĐĂƚĞƚŚĞƌĞĐĞŝǀŝŶŐĂŶƚĞŶŶĂ
ϋϋ/ŶĐƌĞĂƐĞƚŚĞƐĞƉĂƌĂƚŝŽŶďĞƚǁĞĞŶƚŚĞĞƋƵŝƉŵĞŶƚĂŶĚƌĞĐĞŝǀĞƌ
ϋϋŽŶŶĞĐƚƚŚĞĞƋƵŝƉŵĞŶƚŝŶƚŽĂŶŽƵƚůĞƚŽŶĂĐŝƌĐƵŝƚĚŝĨĨĞƌĞŶƚĨƌŽŵƚŚĂƚƚŽǁŚŝĐŚƚŚĞƌĞĐĞŝǀĞƌŝƐĐŽŶŶĞĐƚĞĚ
ϋϋŽŶƐƵůƚƚŚĞĚĞĂůĞƌŽƌĂŶĞdžƉĞƌŝĞŶĐĞĚƌĂĚŝŽdsƚĞĐŚŶŝĐŝĂŶĨŽƌŚĞůƉ
dŚŝƐĚĞǀŝĐĞĐŽŵƉůŝĞƐǁŝƚŚƉĂƌƚϭϱŽĨƚŚĞ&ZƵůĞƐKƉĞƌĂƚŝŽŶŝƐƐƵďũĞĐƚƚŽƚŚĞĨŽůůŽǁŝŶŐƚǁŽĐŽŶĚŝƚŝŽŶƐ;ϭͿdŚŝƐĚĞǀŝĐĞŵĂLJŶŽƚĐĂƵƐĞŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞĂŶĚ;ϮͿƚŚŝƐĚĞǀŝĐĞ
ŵƵƐƚĂĐĐĞƉƚĂŶLJŝŶƚĞƌĨĞƌĞŶĐĞƌĞĐĞŝǀĞĚŝŶĐůƵĚŝŶŐŝŶƚĞƌĨĞƌĞŶĐĞƚŚĂƚŵĂLJĐĂƵƐĞƵŶĚĞƐŝƌĞĚŽƉĞƌĂƚŝŽŶ
