Safety 1st Complete air 65 User manual

4358-6537
rear facing 5-40 lbs (2.3-18 kg) 19-40 in. (48-101.6 cm)
forward facing 22-65 lbs (10.1-29 kg) 29-49 in. (73.6-125 cm)
and at least 1 year old
2013

1
www.safety1st.com/airprotect
1 in 4 car crashes involving children are
side impact collisions. They are by far the
deadliest type of collision for children,
accounting for 1 in 3 child fatalities; nearly all
of which are caused by head trauma. These
are frightening facts, but Safety 1st has been
by your side for over 25 years providing
innovative products to help protect your child
from becoming a statistic. It is in this tradition
that we proudly announce Air Protect® side
impact technology.
Safety 1st engineers designed Air Protect®
using next generation testing methods that
simulate the most violent types of side
impact crashes, those with vehicle intrusion.
Using this advanced methodology, Air
Protect® was engineered to defend your
child in two vital ways. During a crash, the
system immediately shields your child’s head
from the impact. In a second layer of defense,
Air Protect® allows air to escape from the
headrest: channeling crash energy away from
your child, creating more ride down time. It is
this double layer of protection that makes Air
Protect® technology unique.
At Safety 1st, we are proud of our history,
but are always looking towards the future
and developing innovative products.
Products like Air Protect® that help shield
your child from the most violent real world
threats.
®
side impact protection

3
2
E-1 Preparing to Install Rear Facing
E-2 Preparing to Install LATCH Rear Facing
E-3 Installing Rear Facing with LATCH
E-4 Installing Rear Facing with Vehicle Belts
E. Installing Rear Facing.......................Pages 33-40
F. Installing Forward Facing Pages 41-49
F-1 Preparing to Install Forward Facing
F-2 Adjusting Top Anchorage Strap (Tether)
F-3 Preparing to Install LATCH Forward Facing
F-4 Installing Forward Facing With LATCH
F-5 Installing Forward Facing with Vehicle Belts
B. Safety Information.........................Pages 10-11
B-1 Vehicle Seating Position
B-2 Installation in Vehicle
B-3 Child Restraint Use
A. Before You Begin.................................Pages 4-9
A-1 Thank you..
A-2 Registration and Safety Notices
A-3 Understanding Your Child Restraint
C. Basic Use.............................................Pages 12-27
D. General Vehicle Installation.....Pages 28-32
D-1 Understanding Your Vehicle
D-2 Vehicle Seating Position
D-3 Choosing LATCH or Vehicle Belts
D-4 Knowing Your Vehicle Belts
D-5 Aircraft Information
C-1 Choosing Position for Your Child
C-2 Preparing Child Restraint to Fit Your Child
C-3 Securing Child in Child Restraint
C-4 Removing Child From Child Restraint
C-5 Reclining Child Restraint
C-6 Removing Harness System
C-7 Removing Pad for Cleaning
C-8 Installing Harness System
C-9 Accessories
General Information................................Pages 50-57
Using a Locking Clip
Warranty
Troubleshooting
Replacement Parts Order Form

4
Thank you for choosing this car seat, referred to throughout
this manual as a child restraint. The DJG family is
committed to creating a child restraint with the most
comfort and convenience available today.
Remember, parents are a child’s first teachers and
examples. If you always buckle your seat belt, your child
will think it is the natural thing to do. Make it a firm rule
that the vehicle does not go until everyone is buckled up.
Make no exceptions.
No one can predict if use of a child restraint will prevent
injury or death in a particular crash. However, combined
with careful driving, proper use of a child restraint can
lower a child’s risk of injury or death in most crashes.
Your child’s safety is worth the time it will take to read and
follow these instructions. After reading, if you still have
questions or have any problems with this child restraint,
please contact our Consumer Relations Department at:
Dorel Juvenile Group, Inc.
Website: www.djgusa.com
Fax: [phone]
Mailing Address: Dorel Juvenile Group, Inc.
P.O. Box 2609
Columbus, IN 47202-2609
Telephone: [phone]
8 A.M. to 6 P.M. EST M-TH
8 A.M. to 4:30 P.M. EST FRI
A-1 ThankYou...
A. Before You Begin
5
Para recibir las instrucciones en español, llame al
1-800-544-1108 o solicitarse por escrito al dirección por arriba.
Please complete the postage-paid registration card that
came with your child restraint, and send it to us. Child
restraints could be recalled for safety reasons. You must
register this restraint to be reached in a recall. Send
your name, address, email address if available, and the
restraint’s model number and manufacture date to:
Dorel Juvenile Group, Inc.
PO Box 2609, Columbus, IN 47202-2609
Attn: Consumer Relations
or call 1-800-544-1108 or register online at www.
djgusa.com/registration/carseat/us.
For recall information, call the U.S. Government’s Vehicle
Safety Hotline at 1–888–327–4236
(TTY: 1–800–424–9153), or go to http://www.NHTSA.gov
If you don’t have the card or if your
address changes, you will find the
model number and manufacture date
on the label located on side of shell.
A-2 RegistrationandSafetyNotices
Model
Number
Manufacture
Date
Example of model number and manufacture date.

PUSH
6
A. Headrest/Harness
Height Adjustment
Levers
B. Adjustable Headrest
and Headrest Pad
C. Upper Harness Slots
D. Cup Holder
(on select models)
E. Harness Release
Lever (under flap)
F. Harness
Tightening Strap
A-3 UnderstandingYourChildRestraint
continued on next page.
7
A.
B.
C.
G. Chest Clip
H. Harness Strap
I. Buckle Tongue
J. Buckle
K. Lower Harness
Guides
L. Buckle Strap
M. Buckle Strap Slots
E.
F.
G.
I.
K.
L.
H.
J.
D.
Front View Harness System Detail
A. Before You Begin
M.

Rear-Facing
ForChildren 5-22 lbs
(2.3-10kg)
BottomLine MUST Be
Levelwith the
Ground.
Rear-Facing
ForChildren 22-40 lbs (10.1-18 kg)
ANDcan sit up unassisted
MostReclined Level to Ground Line
MostUpright Level to Ground Line
Reclinerange is between
the2 level to ground lines.
Reviewinstructionmanual.
4360-2593
Childrestraints could be
recalledfor safety reasons. You
mustregister this child restraint
tobe reached in a recall. Send
yourname, address and the
restraint'smodel number
andmanufacturing date
toDorel Juvenile
Group,Inc., P.O. Box
2609,Columbus,
IN47202, Attn:
Consumer
Relationsor
registeronline at
www.djgusa.com/registration/
carseats/us. For recall
information,call the U.S.
Government'sVehicle Safety
Hotlineat 1-888-327-4236 (TTY:
1-800-424-9153),orgo to
http://www.NHTSA.gov.Forchild
restraintparts and service, call
1-800-544-1108.
Forward-Facing
22-65lbs (10.1-29.4 kg)
34-52inches(85.1-132.1 cm)
Back View
N. LATCH Connector
O. Top Anchorage
Strap (Tether)
P. LATCH Adjuster
Q. Splitter Plate
R. Recline Stand
S. Instructions
(in recline stand)
T. Top Anchorage
Strap (Tether) Storage
U. LATCH Storage
O.
V. Forward-Facing
Belt Path
W. Rear-Facing Belt
Path
X. Level-to-Ground Lines
(on side of shell)
Q.
T.
S.
V.
W.
Side View
89
R.
T.
R.
U. N. X.
P.
A. Before You Begin

10 11
B-3 ChildRestraintUse
Do not use this child restraint unless the
child is 5-65 lbs (2.3-29 kg) and 19-49 in.
(48-125 cm).
Never take your child out of the child
restraint while the vehicle is moving.
Never leave child unattended.
Placing your child in a hot child restraint
may result in burns.
Do not use a child restraint with damaged
or missing parts.
Do not use cut, frayed, or damaged
harnesses.
Do not lubricate buckles and fasteners.
Do not substitute parts or try to modify
the child restraint in any way.
Do not use any child restraint accessory
except those approved by Dorel Juvenile
Group.
Never allow any child to play with this
child restraint; it is not a toy.
Do not remove or cover up any of the
warning labels or other labels on the child
restraint.
Read all instructions for additional
warnings.
On the back of this child restraint there
is an expiration date. Do not use this child
restraint after the expiration date.
B-1 VehicleSeatingPosition
Never place a child rear facing in a
seating position with an active frontal
airbag.
Check the vehicle owner’s manual for more
information about airbag/child restraint use.
For vehicles without a back seat, refer to
your vehicle owner’s manual.
B. Safety Information
Failure to follow these warnings can result in
the serious injury or death of your child. To help
you recognize instructions which are most
critical to your child’s safety, we use this
symbol:
B-2 InstallationinVehicle
Check the vehicle belt or LATCH belt before
each use. Use only if the belt is tightened
properly and securely.
This child restraint should be securely belted
in the vehicle even when not in use. In a crash
or sudden stop, an unsecured child restraint
could injure occupants.
Do not use a child restraint that has been in a
crash. You must get a new child restraint.

C. Basic Use
C-1 ChoosingPositionforYourChild
Your child’s height, weight and age determine how your
child restraint should be placed in the vehicle.
5-40 lbs (2.3-18 kg)
and 19-40 in. (48-101.6
cm)
Rear Facing using
5-point harness
Child and child restraint
are placed in the back
seat, facing the back of the
vehicle.
22-65 lbs (10.1-29 kg)
and 29-49 in.
(73.6-125 cm) and
at least 1 year old
Forward Facing using
5-point harness
Child and child restraint
are placed in the back
seat, facing the front of
the vehicle.
C-2 PreparingChildRestrainttoFit
YourChild

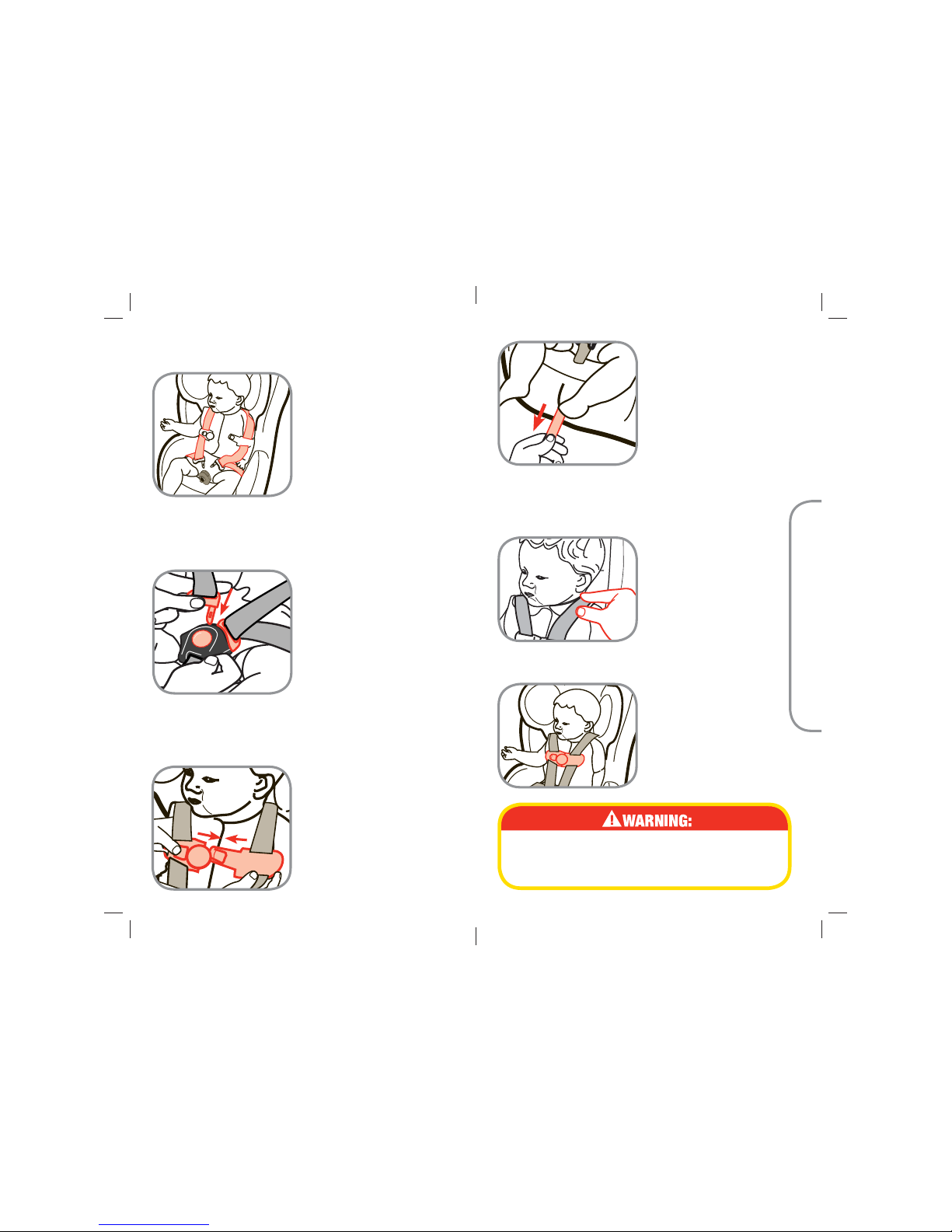

ReleaseChestClip
Press on chest clip
release button and pull
apart.
LoosenHarness
Push down on the
harness release lever
(under flap on the
front of child restraint)
while pulling out on the
harness.
You MUST make these adjustments with your child
before you install the child restraint in the vehicle.
UnbuckleHarness
Press red button. Pull
buckle tongues out. Place
harness straps out of
the way.
continued on next page.
1.
2.
3.
12 13
Place Child in Child
Restraint
Place the child’s bottom
and back flat against the
restraint.
This will allow the harness
to be properly tightened.
4.

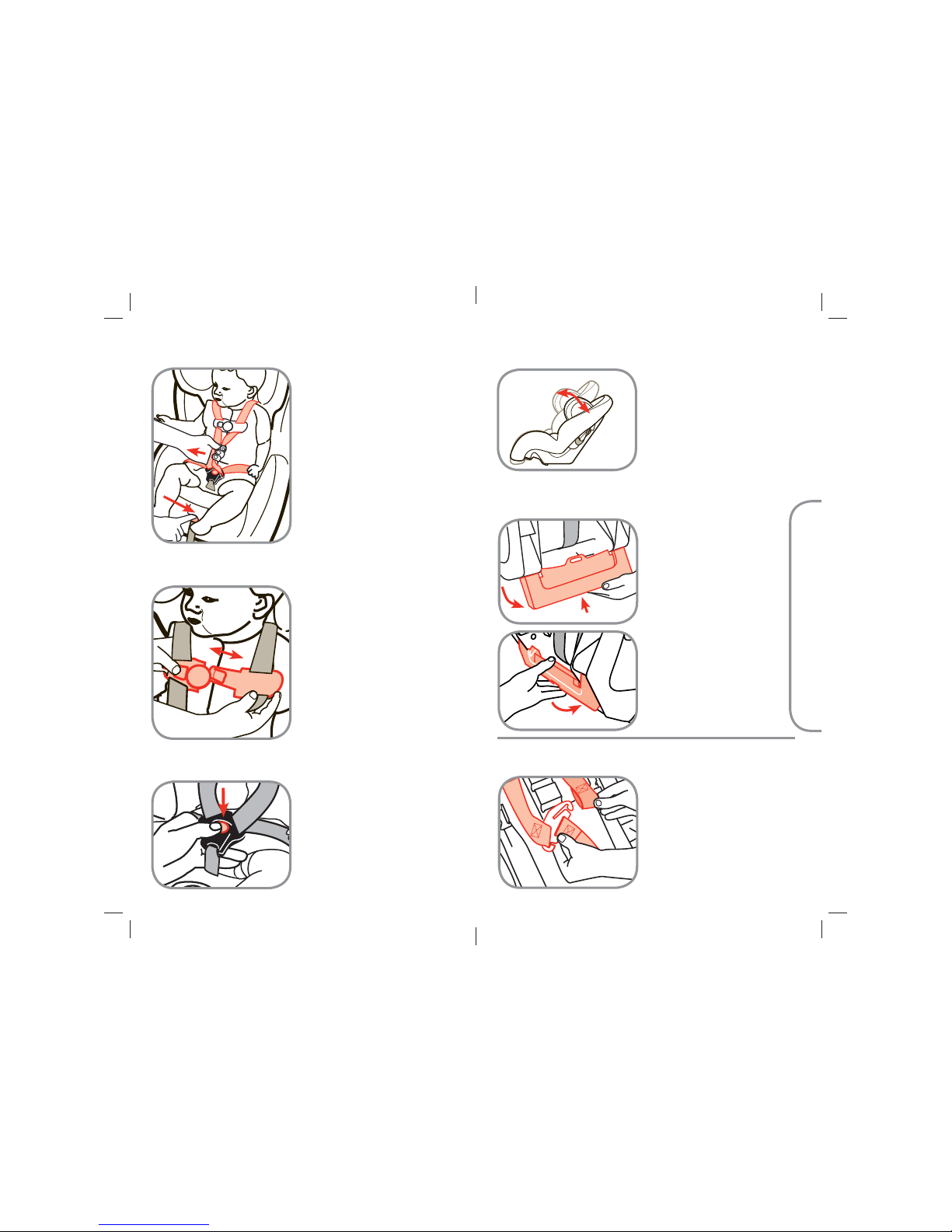

Check Buckle
Position
Determine which of the
three slots is closest to the
child and will provide a snug
fit.
5.
14
Rotate metal retainer, then
insert retainer up through
the shell and pad.
From the top, pull buckle
free from shell and pad.
a.
b.
To Change Buckle
Position
Lay the child restraint on its
back and locate buckle’s
metal retainer on bottom of
shell.
6.
You MUST use the 1st or 2nd buckle strap slots
when rear facing. Any slot can be used for forward
facing.
1
2
3
C. Basic Use
15
Insert the buckle’s metal
retainer through the
desired slot.
Make sure that the
buckle is facing out.
From the bottom of
the child restraint, pull
buckle’s metal retainer
completely through
pad and shell.
Pull up on buckle to
make sure it is secured.
The buckle must not
pull out.
Failure to place buckle’s metal retainer
completely through pad and shell can result
in serious injury or death.
c.
d.
e.
continued on next page.

C. Basic Use
ToAdjustHeadrest/
Harness Height
Loosen harness straps.
Rotate headrest/harness
height adjustment levers
inward.
Move headrest to the
proper height and lock
into place.
8.
Make sure metal
bar is locked into
position. Failure to
do this can result
in serious injury or
death.
Check Headrest/
Harness Height
With child in the child
restraint, check the location
of the upper harness slots.
Follow the guidelines below
to determine the correct
headrest/ harness height.
7.
Rear-FacingPosition
Upper harness slots must be
even with or just below the
shoulders.
If the upper harness slots are
above the child’s shoulders
with the headrest in the lowest
position, do not use this
child restraint.
Forward-FacingPosition
Upper harness slots must be
even with or just above
the shoulders.
If the upper harness slots are
below the child’s shoulders
with the headrest in the
highest position, do not use
this child restraint.
Do not use this child restraint
rear facing if the top of your
child’s head is above the top of
the child restraint’s headrest.
Do not use this child restraint
forward facing if the midpoint of
your child’s head is above the top
of the child restraint’s headrest.
Make sure the harness height is correct
for your child’s size.
Failure to follow these steps can result in
serious injury or death.
16 17

C. Basic Use
C-3 SecuringChildinChildRestraint
Position Harness
Straps Over the
Child’sShoulders
1.
Buckle Harness
Push each buckle tongue
into buckle until you hear a
“click.”
Pull up on harness straps
to make sure buckle is
locked.
2.
Close Chest Clip
Insert right half of chest
clip into left half and
snap together.
3.
TightenHarness
Pull on harness
tightening strap to tighten
harness snugly.
NOTE: A snug strap
should not allow any
slack. It lies in a relatively
straight line without
sagging. It does not press
on the child’s flesh or
push the child’s body into
an unnatural position.
4.
Position Chest Clip
The chest clip must be
placed at mid-chest (even
with armpits) and away
from the child’s neck.
6.
Failure to fasten and tighten the harness
system correctly and snugly can result in
serious injury or death.
18 19
5. Check Harness
Tightness
Try to pinch the harness
at the shoulders. If you
can pinch the harness
strap, tighten more. If
your fingers slip off, the
harness is tight enough.

C. Basic Use
C-4 RemovingChildFromChildRestraint
Loosen Harness
Push down on the harness
release lever (under flap on
the front of child restraint)
while pulling out on the
harness.
1.
ReleaseChestClip
Press on chest clip release
button and pull apart.
2.
UnbuckleHarness
Press red button on buckle
to release the buckle
tongues.
Move harness away from
child and remove child.
3.
20 21
C-5 RecliningChildRestraint
RearFacing- 1Must
be fully reclined. Recline
restraint so that the level-
to-ground line on the side
of shell that matches your
child’s weight is level with
ground.
ForwardFacing-2Must
be upright.
1
2
Upright
Rotate recline stand out
and push upward to lock
in position.
ToRecline
Pull recline stand down
and rotate under child
restraint.
C-6 RemovingHarnessSystem
Remove Harness Strap
from Splitter Plate
Fully loosen harness. Locate
splitter plate on the back
of the child restraint and
unfasten the harness strap.
1.
continued on next page.

C. Basic Use
22
Remove Harness
Strap
(1) Pull harness strap ends
through the upper harness
slots from the front.
(2) Unthread harness strap
ends from the chest clip.
(3) Unthread harness from
the buckle tongues.
(4) Pull harness strap out of
shell.
2.
1
2
3
4
Rotate metal retainer, then
insert retainer up through
the shell and pad.
From the top, pull buckle
free from shell and pad.
Remove Buckle
Lay the child restraint on its
back and locate buckle’s
metal retainer on bottom of
shell.
3.
a.
b.
23
C-7 RemovingPadforCleaning
You must remove the harness system to remove the pad
from the shell.
Remove theElastic
Straps
Release the elastic
straps on the back of
the child restraint.
1.
2. Remove Harness
Guides
Remove both lower
harness guides (A) in
bottom of child restraint
under recline stand.
Push harness guide lip
toward outside of shell
with one hand while
pulling harness guide
from the front with the
other.
Lower Harness Guides
A
DO NOT remove the headrest pad. Spot clean
with warm sudsy water.

C. Basic Use
24
Remove Pad
Adjust backrest to lowest
position. Pull pad off the
top of child restraint and
around headrest.
3.
Replace child restraint pad by reversing order.
Starting from bottom of child restraint, slip pad on shell.
Pull harness tightening strap through pad.
Make sure pad is under headrest.
Replace lower harness guides.
Attach all of the elastic straps.
Rethread harness (see section C-8).
Do not use child restraint without the pad.
CleaningPad
Hand wash pad with warm sudsy water, rinse clean and air
dry. Spot clean the harness straps. Do not use bleach or use
other harsh cleaners. Do not dry clean.
C-8 InstallingHarnessSystem
Install Buckle
Insert the buckle’s metal
retainer through the desired
slot.
Make sure that the buckle
is facing out.
1.
Pull up on buckle to make
sure it is secured.
The buckle must not
pull out.
From the bottom of
the child restraint, pull
buckle’s metal retainer
completely through pad
and shell.
c.
b.
2.
25
Thread Harness Strap
(1) With sewn end of
the harness strap loop
facing the buckle,
thread the harness strap
down through lower
harness guide on left side
of shell.
(2) Pull across bottom
of shell and up through
lower harness guide on
right side of shell.
Harness tightening
strap MUST lay
between shell and
harness strap as
shown.
12
continued on next page.

C. Basic Use
26 27
Thread Harness Strap
OVER Metal Bar
c.
b.
a.
(3) Thread left harness
strap end through the back
of the left buckle tongue.
Repeat for right harness
strap end.
(4) Thread the chest clip
from front to back as
shown.
(5) Push harness strap
ends through upper
harness slots.
DO NOT twist harness
straps.
3
4
5
Attach Harness Strap
to Splitter Plate
From the bottom of the
child restraint, fit the
harness strap loops onto
the splitter plate.
The sewn ends of the
harness strap loops MUST face towards you. DO NOT
twist harness straps or harness tightening strap and
make sure the harness strap loops are COMPLETELY
ON the splitter plate.
C-9 Accessories
Install Cup Holder
(on select models)
Pull pad off corner. Hook
bottom of cup holder to edge
of shell.
Rotate cup holder up until it
snaps into the hole on the
shell.
Replace pad.
Take both ends of the
harness strap and make
them even in length.
The sewn ends of the
harness strap loops MUST
face each other as shown.
4
3.
Failure to place the harness
tightening strap between
shell and the harness
straps as shown can result
in serious injury or death.
Harness MUST be threaded
over the metal bar.
Harness system must be reattached
correctly.
Failure to follow these warnings can result
in serious injury or death.

28 29
D. General Vehicle Installation
Your vehicle’s features may be considerably different than
those pictured here. Consult your vehicle owner’s manual to
help identify your vehicle’s specific features and locations.
D-1 UnderstandingYourVehicle
AnchorBrackets
For Top Anchorage
Strap (Tether)
(Forward Facing Only)
LATCHAnchors
Located in the seat
bight.
Airbags
Consult your vehicle
owner’s manual for
all airbag locations.
SeatBight
VehicleSeatBelts
Consult your vehicle
owner’s manual for
vehicle belt use.
Safety Tip:
To avoid your child being seriously burned, take
the following precautions:
1. Park in the shade or where sun does not directly hit
the child restraint.
2. Cover the child restraint with a sheet or blanket
when not in use.
3. Check for hot child restraint and buckles before
placing child in child restraint.
D-2 VehicleSeatingPosition
Use the child restraint
only on vehicle seats
that face forward. Do not
use on seats that face
the sides or rear of the
vehicle.
Some seating positions in your vehicle may not be safe for
this child restraint. Some vehicles do not have a seating
position that can be used safely with this child restraint. If
you are not sure where to place the child restraint in your
vehicle, consult your vehicle owner’s manual or contact
Dorel Juvenile Group Consumer Relations Dept.
Never place a child rear-facing in a
seating position with an active frontal
airbag. This can result in serious injury
or death.
Safety Tip:
Children are safer
when properly
restrained in rear
seating positions than
in the front seating positions.
According to National Highway Traffic
Safety Administration information, children
in rear seating positions are statistically
safer, whether you have airbags, advanced
airbags, or no airbags at all.
To help protect your vehicle seat’s upholstery from damage, use
a single layered towel underneath and behind child restraint.

30
Vehicle Belts
If LATCH is not an option,
you must use the vehicle
seat belt system to install
the child restraint. There
are some vehicle belts that
will not work with a child
restraint or will require special attention.
See next page and check your vehicle’s owner’s manual for
specific instructions.
The LATCH System
LATCH (Lower Anchors
and Tethers for CHildren)
is a universal system for
installing child restraints
without using vehicle seat
belts.
The LATCH system can
ONLY be used in vehicles
that have the LATCH anchor bars installed and designated
LATCH seating positions. Most vehicles manufactured after
September 2002 are equipped with LATCH.
Check your vehicle owner’s manual to see which seating
positions may be equipped with the LATCH system.
D-3 ChoosingLATCHorVehicleBelts
LATCHAnchorBars
Do not use both the LATCH belt and vehicle belt
at the same time.
Review your vehicle owner’s manual for vehicle seat belt
use with child restraints. This is your best source for
information concerning your vehicle.
Not all vehicle belts will work with this child restraint.
This child restraint must be tightly locked in place at all
times, during travel. You must determine if your vehicles
belts are compatible with this child restraint.
Vehicle Belts
• Automatic/Passive vehicle seat belts
You MUST have a vehicle lap belt to install any child
restraint. An automatic (passive) shoulder vehicle belt
may or may not have a separate vehicle lap belt. Consult
your vehicle owner’s manual.
• Vehicle belts in center of the
door or side panel
You must move the child restraint
to another seating location. Consult
your vehicle owner’s manual.
• Vehicle belts that are in front
of the seat bight
You may need to move the child
restraint to another seating location.
Consult your vehicle owner’s
manual.
• Do Not Use with inflatable seat belts You may
need to move the child restraint to another seating
location or use LATCH belts only.
• ELR (Emergency Locking
Retractor) vehicle belts
These lap and shoulder vehicle
belts only lock in a sudden stop or
crash, and do not properly secure
a child restraint alone. Consult your
vehicle owner’s manual.
To learn if you have this type of vehicle belt, gently pull
the vehicle belt all the way out of the retractor (spool),
let it return several inches, then pull on it again. If it
moves freely, it is an ELR vehicle belt. If it is locked and
will not allow any more vehicle belt to come out, it is a
switchable retractor.
D-4 KnowingYourVehicleBelts
continued on next page.
D. General Vehicle Installation
31

32
•Switchableretractor
These vehicle belts switch from ELR to ALR (Automatic Locking
Retractor). You must have the vehicle belts in the locking mode
to use them. Follow the instructions in the installation sections.
•ALR(AutomaticLockingRetractor)
These vehicle belts lock after pulling the webbing out and letting
the vehicle belt go back into the retractor an inch or two. Follow
the instructions in the installation sections.
VehicleLatch Plates
•ChecktheLatchPlates Grasp the tongue portion of the
latch plate (the part that goes
inside the buckle) and pull straight
out, inline with the vehicle lap
belt. If the latch plate does not
slide up and down the vehicle
belt, you have a locking latch
plate. You should not need to use
a locking clip. Consult your vehicle
owner’s manual.
If the latch plate slides up and down on the vehicle belt, and you
have an ELR retractor, you MUST use a locking clip to install
the child restraint. You may not need to use the locking clip
with a switchable or ALR retractor. Consult your vehicle owner’s
manual.
Locking
Latch
Plate
Sliding
Latch
Plate
ELR lap-only vehicle belts MUST NOT be used
with this child restraint.
33
E. Installing Rear Facing
LATCH Belt
Lap Belt
Lap/Shoulder Belt
5-40 lbs (2.3-18 kg) and 19-40 in. (48-101.6 cm)
Rear-Facing using 5-point harness
E-1PreparingtoInstallRearFacing
Never place a child rear facing in
a seating position with an active
frontal airbag. This can result in
serious injury or death.

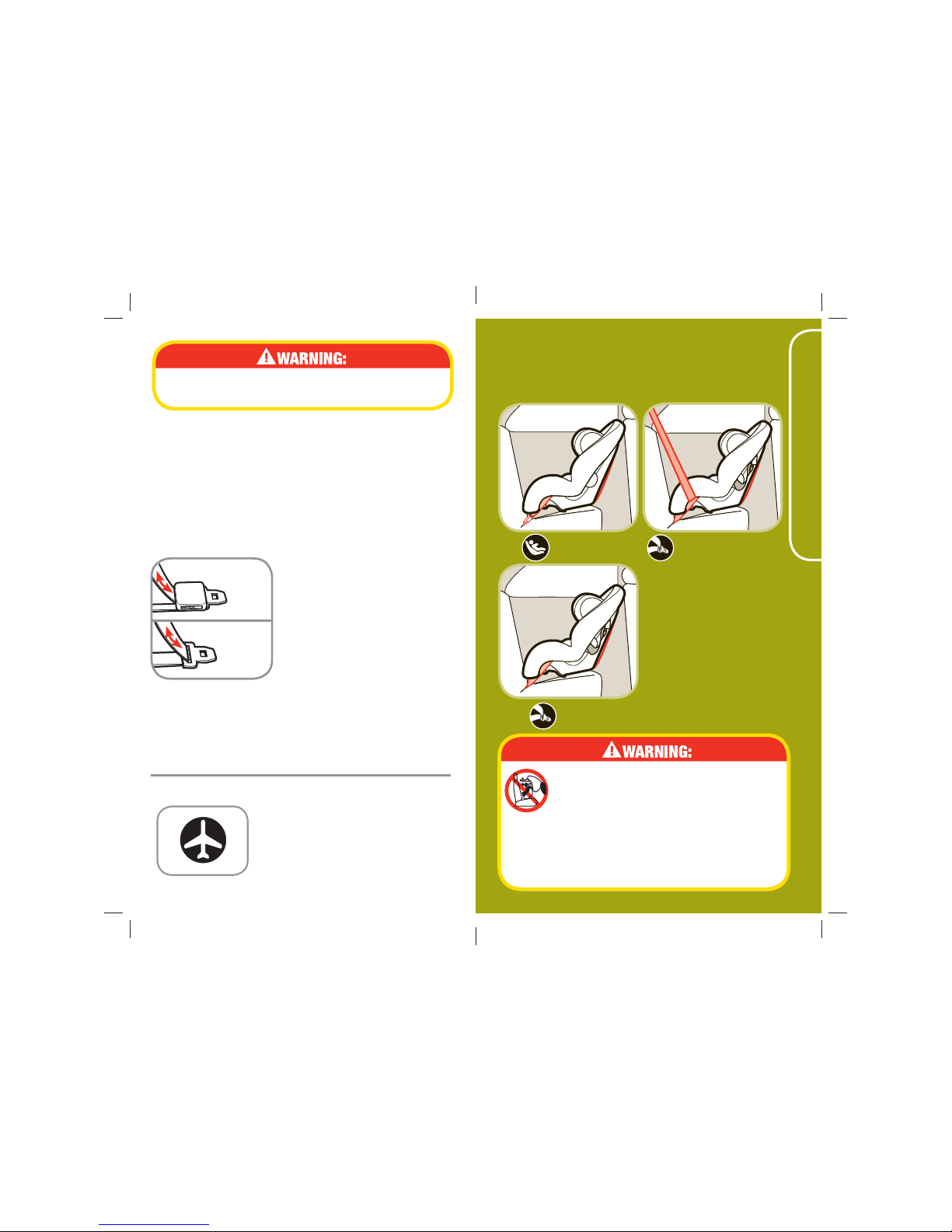

This child restraint must always face the
rear of the vehicle and be in the fully reclined
position when the child is less than 1 year
old.
This restraint is certified for aircraft use.
Use only on forward-facing aircraft seats.
Follow instructions for vehicle installation.
Contact the airline for their specific
policies.
D-5 AircraftInformation

34 35
E. Installing Rear Facing
E-2PreparingtoInstallLATCH
RearFacing

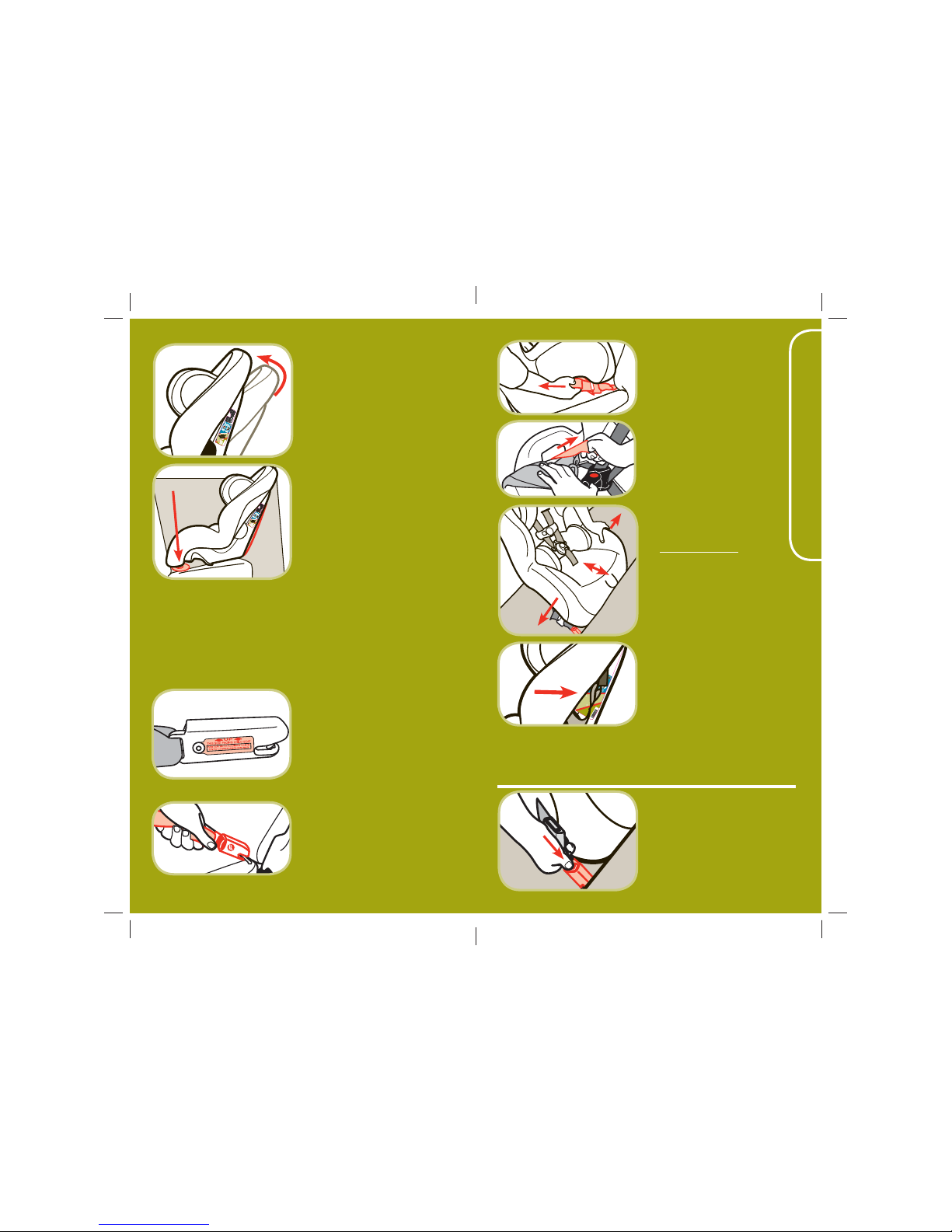

Pull PadOffCorners of
Child Restraint
Pull the pad off the front
corners of shell.
1.
Routing LATCHBelt
Insert the connector with
adjuster closest to it through
the rear-facing belt path.
2.
Pull Connector Acrossto
Opposite Side
LATCH belt MUST be under
pad and in front of buckle
strap.
NOTE: You must use the 1st
or 2nd buckle strap slots
when rear facing.
3.
Replace Pad Over
Corners
Make sure the LATCH belt is
not twisted.
4.
PUSH
12
Fold ReclineStand Under
Child Restraint
Store TopAnchorage
Hook (Tether)
Attach the top anchorage
hook (tether) to recline
stand as shown. Tighten
tether to remove the slack.
E-3 InstallingRearFacingwith
LATCH
2.
1.
Place Child Restraint
in the Back Seat Rear
Facing
For children 5-22 lbs
(2.3-10 kg), the bottom
level-to-ground line MUST be
level to the ground.
3.
Do not use the LATCH system along with
the vehicle lap or lap/shoulder belt.
Check LATCH belt before each use. Use
only if the belt can be tightened properly
and securely.
Store the top anchorage hook (tether) to
recline stand when used rear facing.
Failure to follow these warnings can result
in serious injury or death.
continued on next page.
NOTE: Review your vehicle owner’s manual for LATCH belt
use.

37
36
E. Installing Rear Facing
Connect LATCH to
VehicleLATCHAnchor
NOTE: The LATCH’s red
release button MUST face
away from child restraint and
the arrows on connectors
MUST face up.
Fasten one LATCH belt
connector to the anchor
in the vehicle seat located
in the vehicle seat bight.
Repeat for other side of
child restraint.
5.
For children 22-40 lbs
(10.1-18 kg) and can sit
up unassisted,
rotate the
child restraint between the
2 level-to-ground lines. Start
by making the bottom level-to
ground-line level, then rotate
seat up.
DO NOT rotate past the top
most upright level-to-ground
line.
Adjust child restraint if
needed.
You may need to place a
large rolled towel(s) (A)
or foam pool noodle(s)
under the front of the child
restraint to allow the level-to-ground line on the side of the
shell that matches your child’s weight to be level with the
ground.
Check often to be sure padding is still in place and the belt
is tight.
CheckBeltTightness
Grasp the child restraint
at the belt path with one
hand. Push and pull the
child restraint from side
to side, forward and back.
The child restraint should
not move more than 1 in.
(2.5 cm).
NOTE: If it moves more
than 1 in. (2.5 cm), try
reinstalling the child
restraint or try another
seating location.
Secure your child in
the child restraint.
Recheck the recline angle to make sure it is
reclined according to your child’s weight.
Repeat steps if not reclined correctly.
To Remove LATCHBelt
FromVehicleAnchor
Remove child from child
restraint. Press down firmly
on child restraint and press
the red release button on
each connector.
It may be easier to tighten
the belt through the belt
path opening as shown.
TightenLATCHBelt
Push down firmly on the
child restraint and pull up
on the free end of LATCH
belt to tighten.
6.
A
7.
Rear-Facing
ForChildren 5-22 lbs
(2.3-10kg)
BottomLine MUSTBe
Levelwith the
Ground.
Rear-Facing
ForChildren 22-40 lbs (10.1-18 kg)
ANDcan sit up unassisted
MostReclined Level to GroundLine
MostUpright Level to Ground Line
Reclinerange is between
the2 level to ground lines.
Reviewinstruction manual.
4360-2593
Childrestraints could be
recalledfor safety reasons. You
mustregister this child restraint
tobe reached in a recall. Send
yourname, address and the
restraint'smodel number
andmanufacturing date
toDorel Juvenile
Group,Inc.,P.O. Box
2609,Columbus,
IN47202, Attn:
Consumer
Relationsor
registeronline at
www.djgusa.com/registration/
carseats/us. For recall
information,call the U.S.
Government'sVehicleSafety
Hotlineat 1-888-327-4236 (TTY:
1-800-424-9153),or go to
http://www.NHTSA.gov.Forchild
restraintparts and service, call
1-800-544-1108.
Forward-Facing
22-65lbs (10.1-29.4 kg)
34-52inches (85.1-132.1 cm)
