Safety!Track!UCIT!4!Channel!DVR!
Installation!and!Configuration!Manual!
'
'''''''''''''''''''''''''''''''' '
Version'1.0.3'January,'2014'
'
'
'
'
'

Safety'Track''249'Main'Street''Belleville,'MI'48111''888‐286‐9829'
'
2'
Table&of&Contents&
'
Product'Features………………………………………………………………………………………………………………………………3'
Specifications…………………………………………………………………………………………………………………………………..'4'
Product'Diagram………………………………………………………………………………………………………………………………'5'
'''''Front'Panel………………………………………………………………………………………………………………………………….'5'
'''''Rear'Panel……………………………………………………………………………………………………………………………………5'
Wiring'Diagrams………………………………………………………………………………………………………………………………'6'
'''''12‐28v'Alarm'Input'Harness…………………………………………………………………………………………………………6'
'''''Audio'Input/Output'Harness……………………………………………………………………………………………………….'6'
'''''4‐Pin'Video'Cable'Harness……………………………………………………………………………………………………………7'
'''''Power'Harness…………………………………………………………………………………………………………………………….'7'
Unit'Installation……………………………………………………………………………………………………………………………....'8'
'''''DVR'Mounting…………………………………………………………………………………………………………………………….'8'
'''''Camera'Mounting……………………………………………………………………………………………………………………….'8'
'''''Speaker/Microphone'Mounting………………………………………………………………………………………………….'8'
System'Configuration………………………………………………………………………………………………………………………'9'
'''''Remote'Diagram………………………………………………………………………………………………………………………….'9'
'''''Menu'Screen'Overview……………………………………………………………………………………………………………….'9'
'''''Encoding'Settings………………………………………………………………………………………………………………………'10'
'''''Video'Settings……………………………………………………………………………………………………………………………'10'
'''''Time'Settings…………………………………………………………………………………………………………………………….'10'
'''''Plate'Settings…………………………………………………………………………………………………………………………….'11'
'''''CF'Card'Format………………………………………………………………………………………………………………………….'11'
'''''On'Screen'Display'(OSD)'Settings………………………………………………………………………………………………'11'
'''''Power'Management………………………………………………………………………………………………………………….'12'
'''''Firmware'Version………………………………………………………………………………………………………………………'12'
'''''Firmware'Update………………………………………………………………………………………………………………………'12'
'''''DVR'Serial'Number……………………………………………………………………………………………………………………'13'
'''''3G'Network'Settings………………………………………………………………………………………………………………….'13'
'''''12‐28v'Alarm'Input'Settings………………………………………………………………………………………………………'14'
On'Screen'Display'(OSD)………………………………………………………………………………………………………………...15'
'''''Camera'Views……………………………………………………………………………………………………………………………'15'
'''''Status'Indicators………………………………………………………………………………………………………………………..15'
Playback'Mode………………………………………………………………………………………………………………………………'16'
'''''Accessing'Playback'Mode………………………………………………………………………………………………………….'16'
'''''Reviewing'Video'Files………………………………………………………………………………………………………………..'16'
Support………………………………………………………………………………………………………………............................'17'
'
'
'
'

Safety'Track''249'Main'Street''Belleville,'MI'48111''888‐286‐9829'
'
3'
Product#Features!
•4'Channel'mobile'DVR'system'with'Live'Streaming'Video,'Audio,'and'GPS'Tracking.'
•Indoor'and'Outdoor'cameras'to'give'true'360°'viewing'coverage.'
•Video'output'for'external'monitor/In‐Dash'stereo'connectivity.'
•Industry'leading'compression'format'–'allowing'video'to'stream'over'3G'signals.'
•Automatic'and'Scheduled'Recordings'
•Four'separate'12v'inputs'to'switch'the'video'view'(example'backup'monitor).'
•Up'to'64GB'Compact'Flash'storage'which'will'hold'approximately'72'hours'of'continuous'
recordings.'
•Video'Backup'capabilities'for'archive'purposes.'
•Live'GPS'tracking'with'vehicle'speed.'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
''

Safety'Track''249'Main'Street''Belleville,'MI'48111''888‐286‐9829'
'
4'
Specifications!
!
Item!
Description!
Video!!Format!
NTSC!
PAL!
Video!!Input!
4CH!!Input!!BNC/!!Harness!!Connector!
Audio!!Input!
1CH!!Input!!/!!Harness!!Connector!
Video!!Output!
1CH!!Output!!BNC!!/!!Harness!!Connector!
Audio!!Output!
1CH!!Output!!RCA!!/!!Harness!!Connector!
Alarm!!Input!
4!!12v Inputs!
Alarm!!Output!
Buzzer (Optional)!
Display!!Mode!
Full!!Screen,!!4!!Split!
Display!!Resolution!
720!!x!!480!
720!!x!!576!
Recording!
Resolution!
D1!
720!!x!!480!
720!!x!!576!
CIF!
360!!x!!240!
360!!x!!288!
Recording!!Frame!
Max.!!120!!FPS!
Max.!!100!!FPS!
Compression!!Format!
H.264!!Technology!
Operation!!System!
Embedded!!Linux!!Kernel!
Triplex!
Record!!/!!Playback!!/!!Backup!
Recording!!Mode!
Schedule or Automatic!!Recording!
Schedule!!Recording!
15/30/60/120!!Minutes!
LED!!Indicator!
Power,!!Recording(CF1),!GPS(CF2)!
Event!!Mode!
Alarm!!Trigger!!/!!Video!!Loss!
Playback!!Mode!
Normal!!Speed!!x1/Fast!!Forward/Fast!!Rewind!
Search!!Function:!!Time!!/!!Event!
Network!
3G!!Module!!
GPS!
GPS!!
Storage!!Type!
CF!!Card!
Backup!!Device!
PC!!VIEWER!
Firmware!!Update!
USB!
Multi-Language!
English!!/!!Traditional!!Chinese!!/!!Others!!(Customizable
G!!Sensor!
G!!Sensor!
Operation!
IR!!Remote!!Controller!!(Extending!!IR!!Lead)!
Power!!Supply!
8v -!!28v DC!
Dimension!
214mm!!x!!160mm!!x!!58mm!!(W!!x!!D!!x!!H)!
Weight!
0.92kg!!(!!including!!CF!!card)!
Operation!!Temperature!
-20°C~65°C!!(inside!!vehicle)!
'
'
'
'

Safety'Track''249'Main'Street''Belleville,'MI'48111''888‐286‐9829'
'
5'
Product(Diagram! !
Front&Panel&
'
'
'
'
'
'
'
Rear&Panel&
' '
'
'
'
'
'
'
'
'
'
'
' '
'
'
IR'Receiver'
Compact'Flash'1'
Compact'Flash'2'
Power'Indicator'
Recording'Indicator'
GPS'Indicator'
IR'Extension'
BNC'Video'In'
Video'Out'
USB'
GPS'Antenna'
Audio'Out'
Aux'Power'In'
12‐28v'‘Alarm’'Input'
4‐pin'Video'In'
Power'Harness'

Safety'Track''249'Main'Street''Belleville,'MI'48111''888‐286‐9829'
'
6'
Wiring&Diagrams!
'
'
'
'
'
'
12‐28v&Alarm&Input&(Alarm&functionality&outlined&on&page&14)&
'
' '
'
'
'
'
'
Audio&Input/Output&
'
'
'
'
'
'
'
'
1. Alarm'Input'1'
2. Alarm'Input'2'
3. Alarm'Input'3'
4. Alarm'Input'4'
5. Chassis'Ground'
1. Chassis/Signal'Ground'
2. Audio'Output'(to'speaker'or'radio)'
3. Chassis/Signal'Ground'
4. Audio'Input'

Safety'Track''249'Main'Street''Belleville,'MI'48111''888‐286‐9829'
'
7'
4‐Pin&Video&Cable&Harness&
'
'
' '
'
'
'
'
Power&Harness&
'
'
' '
'
'
'
*Note:'When'connecting'wiring'harness,'the'Chassis'Ground'should'be'an'isolated'connection'to'a'true'
Chassis'Ground'not'tapped'into'an'existing'ground'circuit.'The'Signal'Ground'connections'can'be'
combined'and'added'to'an'existing'ground'circuit'or'a'new'ground'circuit.'
When'extending'wires'on'the'power'harness,'a'solder'connection'is'recommended.'If'solder'is'not'
available,'a'weatherproof'butt'style'connector'should'be'used.'
'
'
'
'
'
'
'
1. Channel'1'(Black)'
2. Channel'2'(Red)'
3. Channel'3'(Yellow)'
4. Channel'4'(White)'
1. 12v'Output'
2. Signal'Ground'
3. Signal'Ground'
4. Constant'Power'
5. 12v'Ignition'Power'
6. Chassis'Ground'

Safety'Track''249'Main'Street''Belleville,'MI'48111''888‐286‐9829'
'
8'
'
Unit%Installation%!
Mounting&DVR&
Mount'the'DVR'unit'inside'the'vehicle,'with'the'below'considerations:'
•Unit'should'be'mounted'in'an'area'that'has'no'exposure'to'potential'moisture'
•When'mounting'unit,'choose'a'location'that'will'deter'operator'tampering'but'facilitate'access'
to'the'CF'cards'should'they'need'to'be'removed'for'manual'review.'
•All'wiring'harnesses'should'be'protected'with'conduit,'and'rubber'grommets'should'be'used'for'
all'through‐metal'runs'to'prevent'chafing'of'the'wires.'
•Unit'is'to'be'mounted'using'a'screw‐type'fastener.'No'adhesive'or'Velcro'should'be'used.'
'
Mounting&Cameras&
Mount'the'cameras'in'the'areas'that'are'to'be'monitored,'with'the'below'considerations:'
•The!Cameras!are!not!to!be!installed!in!any!location!that!will!interfere!with!the!
driver/operator’s!direct!line!of!sight.!
•Outdoor'cameras'should'use'rubber'grommets'for'all'through‐metal'runs'and'sealed'with'a'
silicone'to'prevent'wind'noise'or'moisture'from'entering'the'vehicle.!
•Always'dry‐run'your'cables'and'connect'the'cameras'to'ensure'they'are'recording'what'is'
intended'and'at'the'right'direction'(e.g.'not'upside'down).!
•Interior'camera'cables'should'be'tucked'into'interior'panels/under'carpet'to'prevent'tampering,'
damage,'and'potential'interference'with'the'driver/operator.!
!
Mounting&Optional&Speaker&and&Microphone&
If'the'optional'microphone'is'being'installed,'install'inside'the'vehicle'with'the'below'considerations:'
•The'microphone'should'be'installed'close'to'the'driver/operator'to'ensure'clear'audio'is'heard.'
The'best'place'for'microphone'placement'is'typically'the'‘A’'pillar'of'the'vehicle.'
•Speaker(s)'should'be'mounted'close'to'the'driver/operator'to'ensure'they'can'hear'clearly'
without'having'to'distract'themselves'to'focus'on'the'speaker'location.'
'
'

Safety'Track''249'Main'Street''Belleville,'MI'48111''888‐286‐9829'
'
9'
System'Configuration!
Unit&Remote&Overview&
'
' '
' '
' '
'
'
'
'
'
'
'
Menu&Screen&Overview&
The'below'images'are'the'menu'options'of'the'DVR'which'will'be'outlined'in'the'following'sections.'
'
' '
'
'
'
'
'
'
'
Channel'3'
Channel'4'
Mute'
Channel'1'
Channel'2'
Record'Start/Stop'
Quad'View'
Menu'
Direction'Right'
Fast'Forward'
Stop'
Enter'
Rewind'
Play'
Pause'
Page'1'
Page'2'
Page'3'

Safety'Track''249'Main'Street''Belleville,'MI'48111''888‐286‐9829'
'
10'

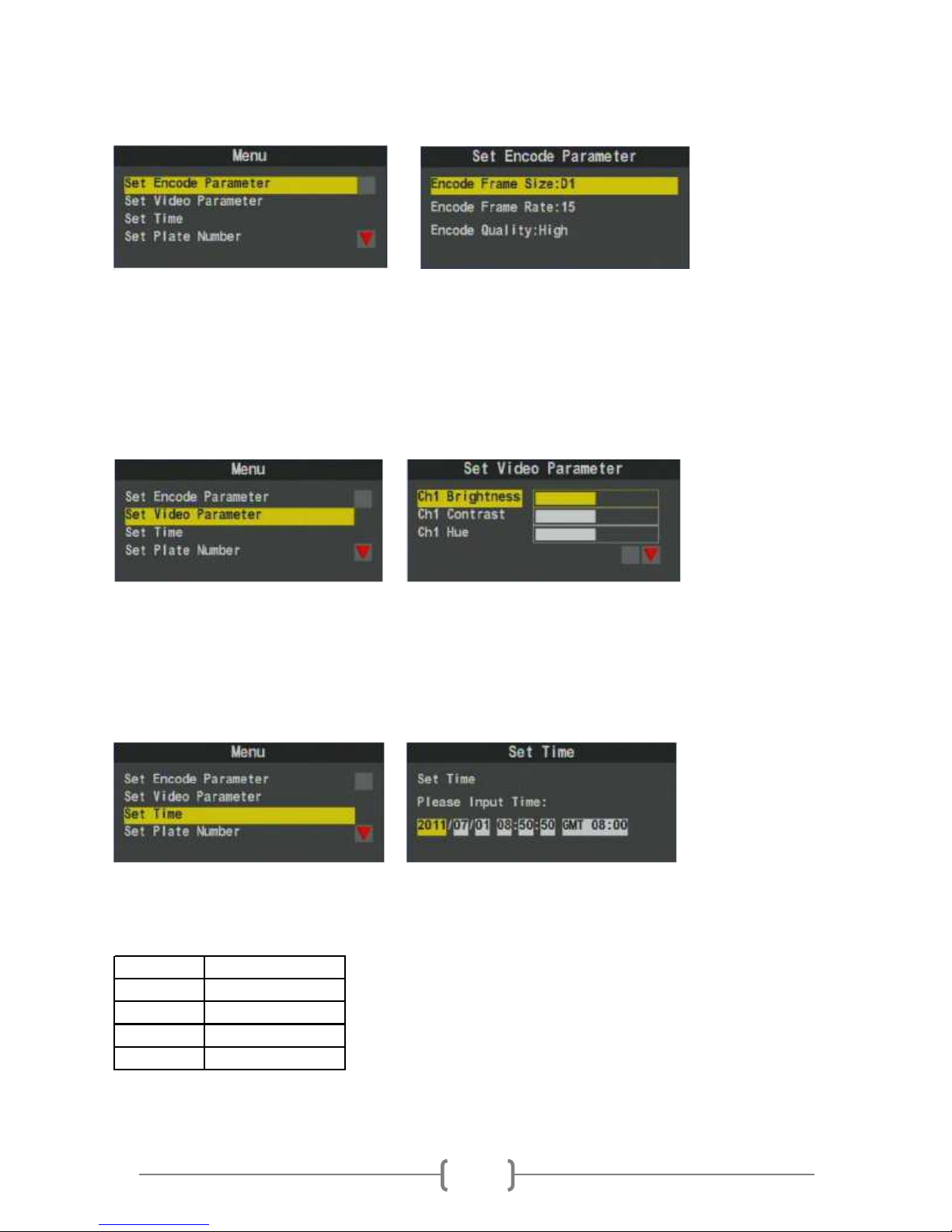

Encoding&Settings&
'
' '
' '
The'Encoding'settings'determine'the'video'quality'and'compression'for'live'streaming.'These'settings'
will'be'set'by'Safety'Track'prior'to'shipment,'and'should!not!be'modified'at'any'time.'Modifying'these'
settings'can'alter'the'compression'of'the'video'which'can'cause'undesired'live'viewing'results,'increased'
data'charges,'and'decreased'storage'intervals.'
'
Video&Settings&
'
'
'
The'Video'Settings'are'used'to'adjust'Brightness,'Contrast,'and'Hue'(Color).'These'settings'can'be'
modified'to'adjust'to'a'particular'environment,'however,'it'is'recommended'to'keep'the'default'settings'
set'by'Safety'Track.'
'
Time&Settings&
'
'
'
The'Time'Settings'are'to'set'the'DVR'time'to'local'time.'The'DVR'uses'GMT'(Greenwich'Mean'Time)'
adjustments'to'determine'local'time.'Please'use'the'below'table'to'determine'your'GMT'adjustment'to'
set'your'DVR'to'local'time:'
Time%Zone GMT%Adjustment
EST GMT%‐5
CST GMT%‐6
MST GMT%‐7
PST GMT%‐8
'
*Note:'The'DVR'does'not'adjust'for'Daylight'Savings'Time'(DST).'This'is'a'feature'being'worked'and'will'be'released'soon.'
