Safire SF-HANHELD-160T05 User manual

SF-HANHELD-160T05
Body Tmperature Scanner System
User Manual

Table of Contents
1. Safety Instructions .......................................................................................... 2
2. Structure......................................................................................................... 3
3. Display............................................................................................................ 3
4. Power On/Off.................................................................................................. 4
5. Menu Introduction........................................................................................... 4
5.1. Measurement......................................................................................... 4
5.2. Palette.................................................................................................... 4
5.3. Point Temperature ................................................................................. 5
5.4. Image Mode........................................................................................... 5
5.5. Settings.................................................................................................. 6
5.5.1. Language ...................................................................................... 6
5.5.2. Date and Time............................................................................... 6
5.5.3. Temperature Unit .......................................................................... 6
5.5.4. HI / LO Alert................................................................................... 7
5.5.5. Measurements............................................................................... 7
5.5.6. Display Brightness......................................................................... 7
5.5.7. Auto Power Off.............................................................................. 7
5.5.8. USB Mode..................................................................................... 8
5.5.9. Auto Save...................................................................................... 8
5.5.10. System Settings ............................................................................ 8
6. Operating Instructions..................................................................................... 9
7. Specifications................................................................................................ 11
8. Maintenance................................................................................................. 12
9. Common Emissivity ...................................................................................... 12
1. Safety Instructions
To ensure proper use of this producto, please read the instructions carefully before
using.
-The optimal measuring distance for this producto is 1 meter.
-To ensure measurement accuracy, please use the producto in an operating
environment of 15°C ~ 30°C, <85% RH (non-condensing).
-Please use the producto indoors without wind.
-When changing to a new environment, please turn on the producto and
leave it foor 10 or 15 minutes before measuring.
-The ambient temperatura for measuring must be stable. Do not measure in
places with large airflow such as fans and air outlets.
-When the measured objetct comes from a place with a large temperatura
difference from the measurement environment, keep it in the measurement
environment for 10 to 30 minutes before measuring.
-The producto test the Surface temperatura of the object. If temperatura
compensation is needed, please adjust in the Settings menú.
-The producto has a self-calibration function. If the Reading jumps quickly,
please read the temperatura after it gets steady.
-Afteer measuring exremely high or low temperatura objects, please leave
the producto for 10 minutes before next use.
-Do not use the producto in places with strong sunlight or electromagnetic
interference.
-Please do not use the producto in flammable, explosive, steamy, wet or
corrosive environmets.
-Please stop using the producto if it is damaged or modified to avoid
inaccurate measurement results.
-Please use the correct emissivity to obtain accurate temperatura readouts.
-To ensure accuracy of the producto, please warm it up for 10 min to 15
minutes before measuring if it has not been used for a long time.
-When being charged, the internal temperatura of the producto risees, which
Will lead to inaccurate temperatura measurement. So, it is not recommend
to take measurements during or right alfter charging the product.

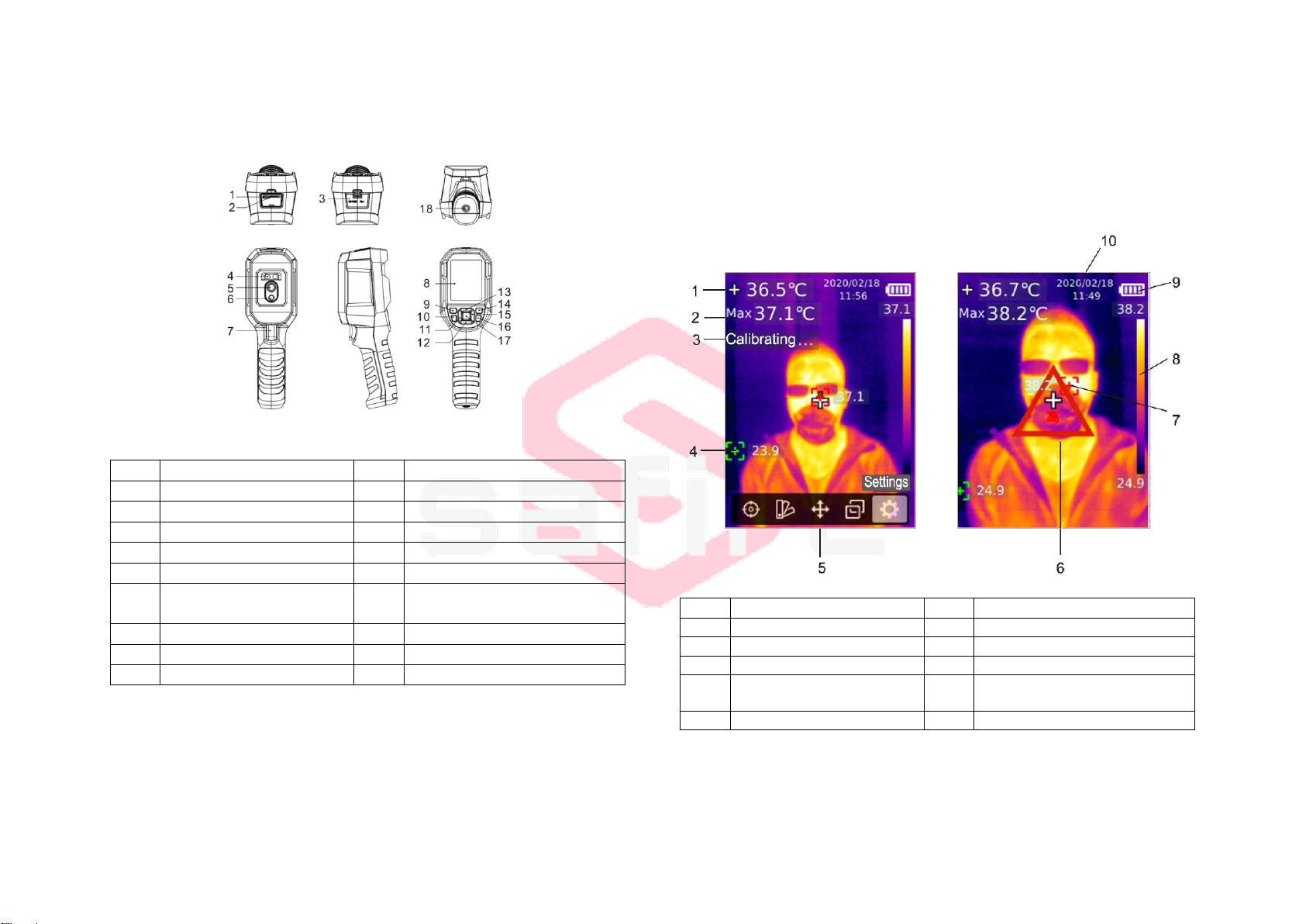

2. Structure
Item
Description
Item
Description
1
USB (Type-C) interface
10
Flashlight button
2
SD card slot
11
Left button
3
Interface cover
12
Down button
4
LED light
13
Up button
5
Infrared camera lens
14
Replay button
6
Visual light camera
lens
15
Right button
7
Trigger
16
Backb button
8
LCD display
17
SET button
9
Power button
18
Tripd mounting hole
3. Display
Display size: 2.8”
Display resolution: 320 (vertical) x 240 (horizontal) pixels
Item
Description
Item
Description
1
Center point temperatura
6
High temperatura alert sign
2
Maximum temperatura
7
Maximum temperatura pint
3
Self-calibration
8
Temperature bar
4
Minimum temperatura
point
9
Battery status
5
Main menu
10
Date and time

4. Power On/Off
Press and hold the power button for 3 seconds to turn on/off the
product.
Note: After the product starts the shutdown procedure, it takes 5 to 6 seconds.
Please try to avoid turning on and off the producto continuosly to avoid damage.
5. Menu Introduction

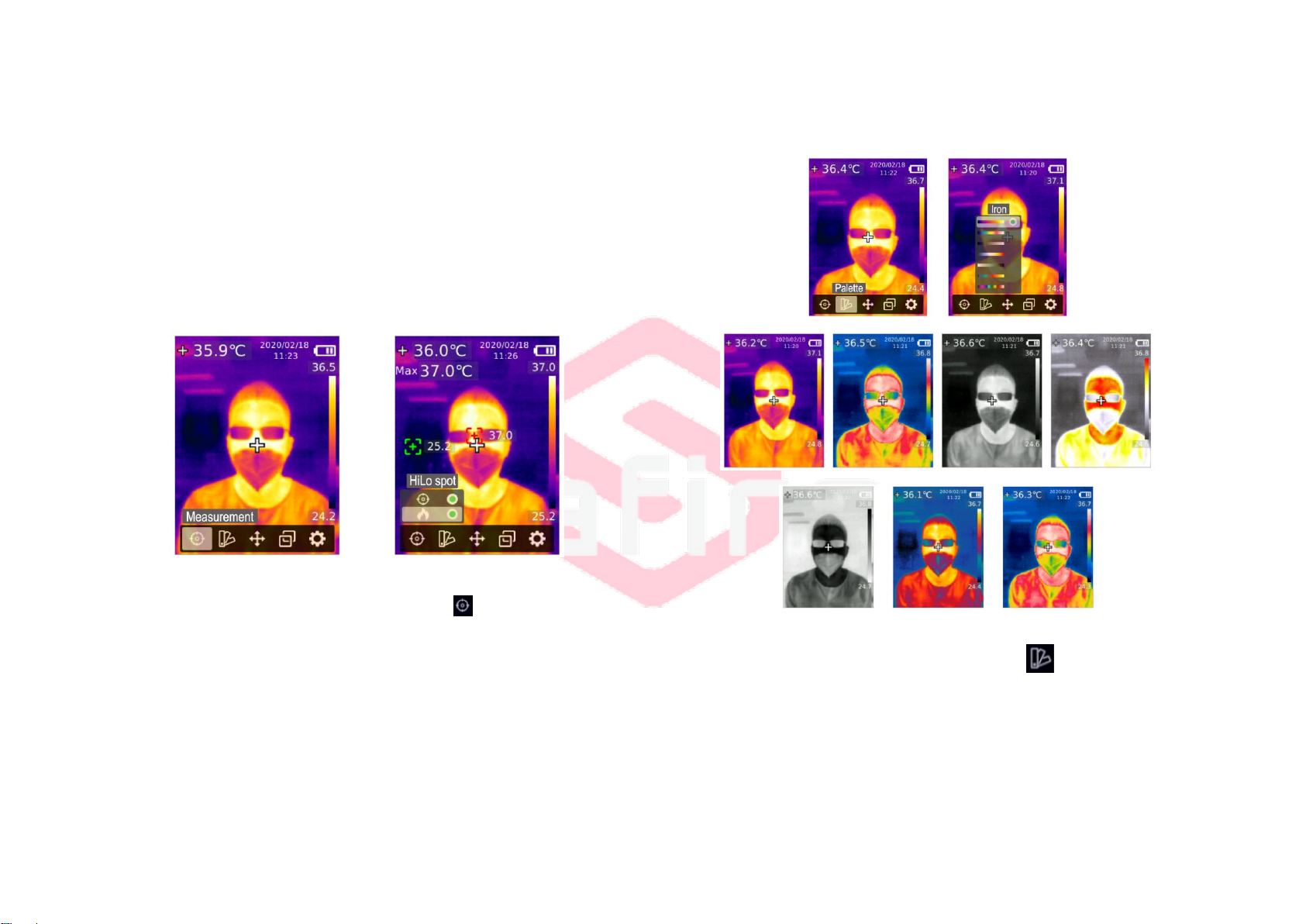

5.1. Measurement
1. Press the SET button to open the main menú.
2. Press the left/right button to selec the option.
3. Press the SET button to enter the Measurement menú.
4. Press the up/down button to select Center Spot (Center
point measurement) or Hi/Lo Spot (Maximum and mínimum
temperatura measurement).
5. Press the SET button to turn on/off Center Spot or Hi/Lo
Spot.
6. Press the back button to exit.
5.2. Palette
1. Press the SET button to open the main menú
2. Press the left/right button to select the option.
3. Press the SET button to enter the Palett menú.
4. Press the up/donw button to select the desired palette.
5. Press the SET button to apply the palette.
6. Press the back button to exit.

5.3. Point Temperature
1. Press the SET button to open the main menú
2. Press the left/right button to select the option
3. Press the SET button to enter the Point Temperature menú
4. Press the up/down button to select the desired point.
a. Press the SET button to turn on the point and enter
the thermal imaging page.
Press the left/right/up/down button to move the point.
Press the SET button to confirm and read the
temperatura of the current point.
b. Press the SET button to turn off the point. Press the
back button to exit.
5.4. Image Mode
1. Press the SET button to open the main menú
2. Press the left/right button to select the option
3. Press the SET button to enter the Image Mode menú
4. Press the up/down button to select the desired mode from
Thermal (infrared image), Digital (visual light image), and
Fusion (image blending)
5. Press the SET button to apply the current mode.
6. Plress the back button to exit.
NOTE: If Fusion is selected, users can press the left/right button to select the desired
blending ratio from 0% (pure visual light image), 25%, 50%, 75% and 100% (pure
infrared image) under the thermal imaging page.

5.5. Settings
To enter to Settings menú:
1. Press the SET button to open the main menu
2. Press the left/right button to select the
3. Press the SET button toenter the Settings menú
5.5.1. Language
To set language:
1. Press the up/downbutton to select the Language option in the
Settings menú
2. Press the SET button to enter the Language submenú
3. Press the up/down button to select Chinese or English
4. Press the SET button to confirm
5. Press the back button to exit
5.5.2. Date and Time
To set date and time:
1. Press the up/down button to selec the Date and Time option in the
settings menú
2. Press the SET button to enter the Date and Time submenú
3. Press the left/right button to select the parameter to be adjusted
4. Press the SET button to enter the parameter adjustment state
5. Press the up/down button to increase or decrease the value
6. Press the SET button to save the settings and return to set other
parameters
7. Press the back button to exit
5.5.3. Temperature Unit
To set temperatura unit:
1. Press the up/down button to selec the Date and Time option in the
settings menú
2. Press the SET button to enter the Temperature Unit submenú
3. Press the up/down button to select ºC or ºF
4. Press the SET button to confirm
5. Press the back button to exit

5.5.4. HI / LO Alert
To set HI/LO temperature alert:
1. Press the up/down button to select the HI/LO Alert option in the Settings menú
2. Press the SET button to enter the HI/LO Alert submenú
3. Press the up/down button to select the desired option
4. Select HI or LO to adjust the temperature parameter
5. Select other options to turn the alert on or off
6. Press the back button to exit
5.5.5. Measurements
To set measurements parameters:
1. Press the up/down button to select the Measurements option in the Settings menú
2. Press the SET button to enter the Measurements submenú
3. Press the up/down button to select the Emissivity or Temperature Comp
(Temperature Compensation)
4. Press the SET button to enter the parameters adjustment statetemperature
parameter
5. Press the up/down button to increase or decrease the value
6. Press the SET button to save the current setting
7. Press the back button to exit
NOTE: For emissivity values of common materials, please refer to the Common Emissivity
5.5.6. Display Brightness
To set Display Brightness:
1. Press the up/down button to select the Display Brightness option in the Settings
menú
2. Press the SET button to enter the Display Brightness submenú
3. Press the up/down button to select the desired brightness level from Low, Medium
and High
4. Press the SET button to confirm
5. Press the back button to exit
5.5.7. Auto Power Off
To set Auto power off:
1. Press the up/down button to select the Auto power off option in the Settings menú
2. Press the SET button to enter the Auto power off submenú
3. Press the up/down button to select the desired option from 5, 10, 30 minutes or Off
4. Press the SET button to confirm
5. Press the back button to exit

5.5.8. USB Mode
To set USB mode:
1. Press the up/down button to select the USB mode option in the Settings menú
2. Press the SET button to enter the USB mode submenú
3. Press the up/down button to select USB disk or USB camera
4. Press the SET button to confirm
5. Press the back button to exit
NOTE: USB disk mode allows users to browse pictures and analyze data on a PC, while USB
camera mode alloows users to realice real-time image projection after connection to a PC.
5.5.9. Auto Save
1. Press the up/down button to select the Auto save option in the Settings menú
2. Press the SET button to enter the Auto save submenú
3. Press the up/down button to select YES or NO
4. Press the SET button to confirm
5. Press the back button to exit
NOTE: Do not remove or insert the SD carda in saving pictures. It is recommended to save no
more tan 1000 pictures,so as not to affect the responsespeed ofthe product. When the number
of pictures excedes 1000, please clean up the SD card in time.
5.5.10. System Settings
To set System Settings submenu:
1. Press the up/down button to select the System Settings option in the
Settings menú
2. Press the SET button to enter the System Settings submenú
Device Information
To view the device information:
1. Press the up/down button to select the Device Information option in the
System Settings submenu
2. Press the SET button to view the detail information of the device
3. Press the back button to exit
NOTE: Capacity is the storage capacity of the SD card in use currently.

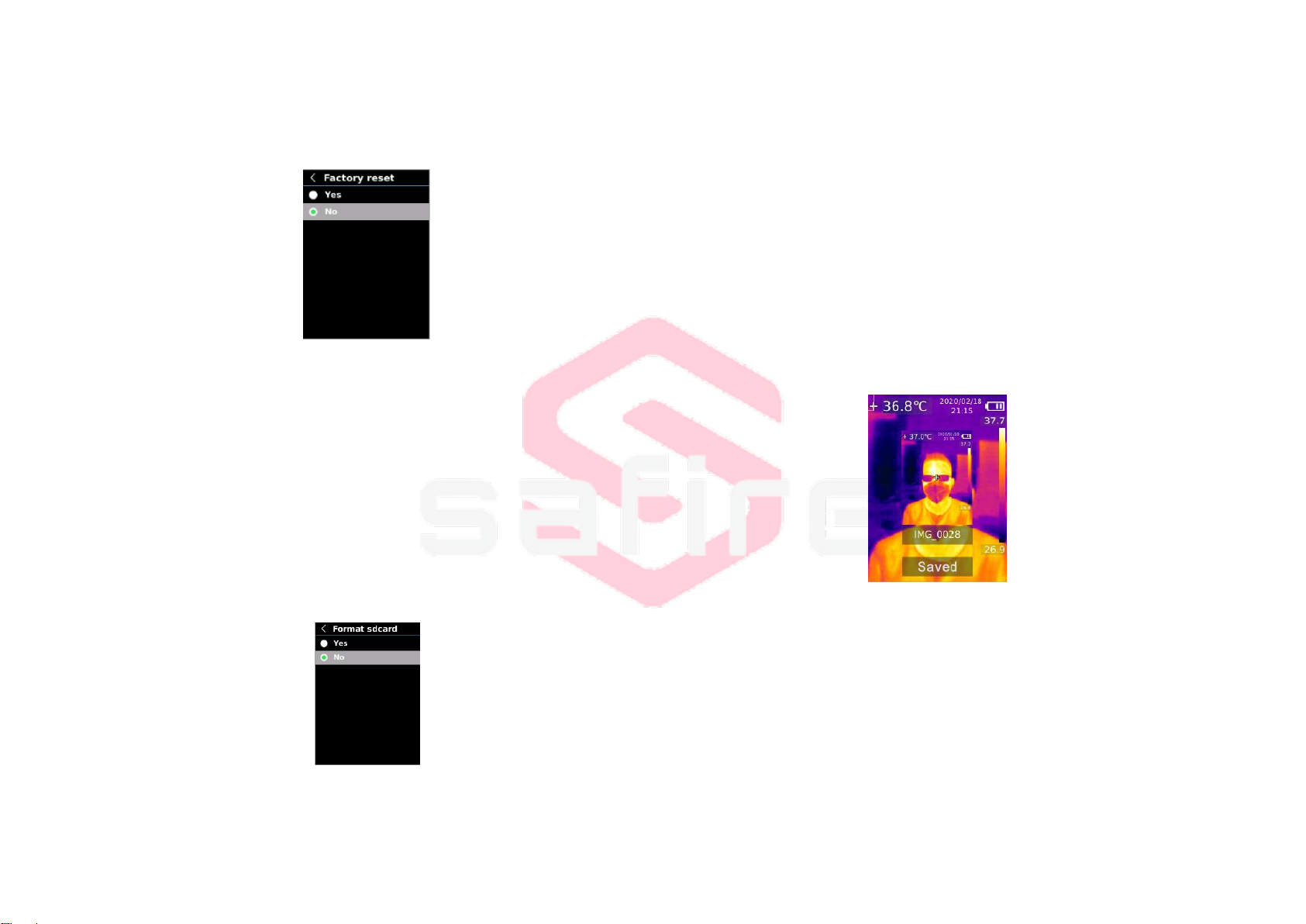

Factory Reset
To restore factory settings:
1. Press the up/down button to select the Factory Reset option in the System
Settings submenu
2. Press the SET button to enter
3. Press the up/down button to select YES
4. Press the SET button to confirm
5. Press the back button to exit
NOTE: During the factory reset process, please do not force other
operation avoid progam errors
Format SD Card
To format SD card:
1. Press the up/down button to select the Format SD card option in the System
Settings submenu
2. Press the SET button to enter
3. Press the up/down button to select YES
4. Press the SET button to confirm
5. Press the back button to exit
NOTE: During the factory reset process, please do not force other
operation avoid progam errors
6. Operating Instructions
6.1. Image Capture
1. Pull and reléase the trigger to capture an image
2. In the manual save mode, press the left/right button to discard
or save the image, and press the SET button to confirm or the
back button to return
3. In the auto save mode, the image Will be saved automatically
NOTE: Images can only be save i fan SD card is installed.

6.2. Image Viewing
1. Press the replay button to enter the gallery interface
2. Use the up/down/left/right button to select the desired image
3. Press the SET button to view the image in full screen mode
4. Press the SET button in full screen mode to delete the image or view
its information
NOTE: Do not remove or insert the SD card in viewing images
6.3. Temperature Compensation
To adapt to different environments and places, manual temperatura
compensation is available. Fort he specific settings method, please refer to
5.5.5. measurements.
6.4. Flashlight/Warning Light
Press and hold the flashlight button for 3 seconds to tur on/off the LED
light.
When the temperatura alert i son ad the measured temperatura excedes
the set temperautre range, the LED light Will flash.
NOTE: When the flashlight i son, please do not point the eyes of people or animals.
6.5. USB Communication and Image Projection
1. Download and install the PC software (refer to:
https://athena-visiotech.s3-eu-west-
1.amazonaws.com/nx9xDHEBlrFzs_pSrxzY/)
2. Connect the USB cable to the PC
3. Set the USB mode to USB disk to browse pictures and
analyze data through the PC software, set the USB mode to
USB camera to realice real-time image projection through
the PC software
4. Regardin the usage of the PC software, retrieve the
Software User Manual from the Hlp option of the operation
interface.
NOTE: Please do not unplug the USB cable during image projection; after use,
placer close the PC software before unplugging the USB cable.
6.6. SD Card
This device supports Micro SD card (TF card) to store images. To
avoid affecting the operating speed of the device, please copy the
backbup data regularly and clean up the SD card in time. To avoid
causing abnormal data on the SD card, do not inserto r remove the
SD card repeatedly. Try to remove and insert the SD card when the
device is turned off.
6.7. Charging
Please use a safety-certified 5V/1A or 5V/2A power adapter for
charging. Do not turn off the producto easily during charging. If
shutdown or restart is needed, please unplug the Type-C power
cord and disconnect the power supply first

7. Specifications
Sensor
UFPA
Temperature Range
30°C ~ 45°C
Measurement resolution
0.1°C
Accuracy
±0.5°C (at 25°C ambient
temperature)
Optimal measuring distance
1 meter
Response time
≤500 ms
IR Solution
19200 pixels (160 x 120)
Pixel size
12µm
Color Palette
Iron, Rainbow, White Hot, Red
Hot, Black Hot, Lava, Rainbow
HC
Infrared spectral band
8µm ~ 14µm
Field of View (FOV)
56°(V) x 42°(H)
Spatial resolution (IFOV)
6mrad
Thermal sensitivity (NETD)
<50 mK
Frame rate
<9 Hz
Temperature measurement
display
Center point temperatura, high
temperatura tracking (default)
Image format
BMP
Image mode
Thermal, Digital (visual light
image), Fusion
Point temperatura
measurement
In addition to the center point, 3
points can be added
Certifications
-CE
(EN 61326-1:2013, EN 61326-
2-2:2013, EN 61326-2-3)
-RoHS
Visual Light camera
Yes
Visual light resolution
640 x 480 pixels
Image blending ratio
0% (pure visual light image),
25%, 50%, 75% and 100%
(pure infrared image)
PC Software
Yes
Real-time image transmisión
Yes (real-time image projection
through PC software)
Data transmisión
Type-C USB interface
Product size (L x W x H)
236 x 45.5 x 86 mm
Display type
3. TFT LCD
Display resolution
320 x 240
Battery
3.7V/5000mAh rechargeable
Li-ion Battery
Auto power off
5 min, 10 min, 30 min, OFF
(default: 30 minutes)
Battery life
≥6 hours
Charging time
≤5 hours
Charging voltaje/current
5V / 2ª
Image storage
Micro SD card
Transportation / Storage
environment
-20°C ~ 60 °C (-4°F ~ 140°F),
<85% RH (non-condensing)
Operating environment
15°C ~ 30 °C (59°F ~ 86°F),
<85% RH (non-condensing)
Operating altitude
≤2000m
Estándar accessories
User manual, USB cable, 16GB
Micro SD Card

8. Maintenance
Use a wet cloth or weak soap solution to clean the outer Shell of the
device. Do not use abrasives, isopropyl alcohol or solvents to clean
the outer Shell, lens or window.
9. Common Emissivity
