OPERATOR’S MANUAL
SC1000 Relevation
Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30 Page 1 of 45
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
Manufactured by: Safeworks, LLC | 365 Upland Drive, Seattle, WA 98188 | Phone: [phone] | Fax: [phone]
Email: [email protected] | Website: SpiderStaging.com
MODEL:
SC1000-RE

Page 2 of 45 Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
WARNING
• All persons operating this equipment must read and completely understand this manual.
• All persons must be thoroughly trained in the use of this equipment, its operational and safety
features, and they must also be capable of carrying out the daily inspections.
• Only authorized persons shall operate this equipment.
• Any operation in violation of these instructions is at the operator’s own risk and may result in
serious injuries.
• Keep this manual with the hoist at all times.
• Use only spare parts and recommended steel wire rope from Spider®.
• It is the responsibility of the user of this hoist to determine that this hoist is suitable to be used
in conjunction with any other equipment. The user must also determine that this hoist and other
components used will be in strict conformity with the provisions of National, Provincial, and local
ordinances and regulations.
• Mishandling or exposing
the battery to extreme conditions may result in serious injuries.
Symbol Legend
The following symbols found in this manual categorize important tasks related to
operation and maintenance of this hoist:
= Inspect = Verify = Perform process

Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30 Page 3 of 45
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
Table of Contents
1. ABOUT THIS MANUAL...........................................................................................................5
1.1 Symbols Used in this Manual.............................................................................................5
2. SAFETY INSTRUCTIONS.......................................................................................................6
2.1 General Hazard Warnings..................................................................................................9
2.2 Mechanical Hazards ........................................................................................................10
2.3 Electrical Hazards ............................................................................................................10
2.4 Environmental Hazards....................................................................................................11
2.5 Wire Rope Warnings ........................................................................................................11
3. BATTERY................................................................................................................................12
3.1 Battery Warnings..............................................................................................................12
3.2 Battery Charging ..............................................................................................................13
3.3 Charge Indicator ..............................................................................................................14
3.4 Battery Storage ................................................................................................................14
3.5 Battery Disposal...............................................................................................................14
4. WIRE ROPE............................................................................................................................15
4.1 Wire Rope Terminations...................................................................................................15
4.2 Wire Rope Cautions.........................................................................................................16
4.3 Wire Rope Inspection.......................................................................................................17
5. THE SPIDER®SC1000-RE SERIES HOIST.........................................................................18
5.1 Features of the Spider®SC1000-RE Series Hoist ...........................................................18
5.2 Features of the Spider®SC1000-RE Series Hoist (continued) ........................................19
5.3 Optional Features of the Spider®SC1000-RE Series Hoist.............................................19
 ...................................................................................................................19
6. PARTS OF THE SPIDER®SC1000-RE SERIES HOIST.....................................................20
6.1 Front View .......................................................................................................................20
6.2 Back View & Battery Pack ...............................................................................................21
6.3 Labels ..............................................................................................................................22
7. HOIST SETUP........................................................................................................................23
7.1 Installing Hoist onto Platform ...........................................................................................23
7.2 Reeving Primary Suspension Wire Rope.........................................................................23
7.3 Reeving Optional Secondary Wire Rope .........................................................................24
8. OPERATING THE HOIST......................................................................................................25
8.1 Warnings ..........................................................................................................................25
8.2 Normal Operation.............................................................................................................26
8.3 Cautions for Cold Weather Operation..............................................................................27
9. DAILY TESTING AND INSPECTION ...................................................................................28

Page 4 of 45 Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
9.1 Inspect after Previous Use...............................................................................................28
9.2 Testing the Overspeed Brake Test Button........................................................................29
9.3 Resetting the Overspeed Brake Test Button....................................................................29
9.4 Testing the Overspeed Brake...........................................................................................31
9.5 Check for Flywheel Movement.........................................................................................32
9.6 Testing the Emergency Stop Button.................................................................................32
9.7 Testing the Emergency Descent ......................................................................................33
10.DE-REEVING..........................................................................................................................34
10.1 Removing the Optional Secondary Suspension Wire Rope ............................................34
10.2 Removing the Primary Suspension Wire Rope................................................................34
11. HOIST MAINTENANCE.........................................................................................................35
11.1 Regular Maintenance.......................................................................................................35
11.2 Special Maintenance........................................................................................................35
12.BATTERY MAINTENANCE...................................................................................................35
13.TROUBLESHOOTING...........................................................................................................36
14.CODE OF SAFE PRACTICES FOR ADJUSTABLE SUSPENDED SCAFFOLDS ..........41

Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30 Page 5 of 45
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
1. ABOUT THIS MANUAL
Before using the Spider®SC1000 Relevation (SC1000-RE) hoist, learn the procedures described
in this manual. Any operation in violation of these instructions may result in bodily injury or death.
This manual is included with each Spider®SC1000-RE hoist. Additional copies are available from
your hoist supplier. Keep a current copy of this manual with the hoist at all times. It is the duty
of the employer to provide each operator with a copy of this manual. Spider®reserves the right

operating information prior to using this equipment. Call your local hoist supplier.
The design and manufacturing of the Spider®SC1000-RE hoist complies with UL 1323 standards.
The use of this Spider®hoist within the United States is governed by OSHA CFR 29. Consult
OSHA CFR 1926 for temporary applications and OSHA CFR 29 1910 for permanent applications.
1.1 Symbols Used in this Manual
This manual includes symbols that denote information that is important for hazard avoidance.
Read carefully and follow all instructions when you see these symbols.
Symbol Term Meaning
STOP STOP Stop action and follow instructions before continuing.
WARNING Warns against possible immediate death or serious injury.
CAUTION Warns against possible injury.
ELECTRICAL
HAZARD Warns against possible electrical shock hazard.
READ Must read this before performing any action that follows.
NOTE/TIP Remember and take the following into account.

Page 6 of 45 Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
2. SAFETY INSTRUCTIONS
CAUTION:
Every year, workers on suspended scaffolds are injured, become disabled, or are
killed because of carelessness or because they did not understand how to correctly
operate the equipment. DO NOT become one of them. Know how to use this
equipment and prevent accidents. NEVER operate equipment that you DO NOT
understand. You may cause accidents, resulting in injury or death to you or people
around you.
This instruction manual is not all inclusive. It is impossible to anticipate every possible way
this equipment may be used, and all possible hazardous situations. It is very important that
you determine for yourself whether the equipment is safe. You must understand the operating
characteristics of this hoist. You must understand how the hoist will operate in your application.
You must be certain not to put yourself or others in danger, or cause damage to property or other
persons. Call your hoist supplier if you have any questions concerning this equipment.
1. Read and understand this manual BEFOREBEFORE using this equipment.
2. Setup and use must comply with Spider®instructions and local codes.
3. Use the Troubleshooting Guide in this manual to solve problems that may develop with
the hoist. Repairs must only be made by people trained and authorized to do so. NEVERNEVER
maintain or repair the equipment while the unit is suspended (above ground level).

Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30 Page 7 of 45
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
Operating the Hoist
1. Be careful when operating the hoist in freezing temperatures. Water or moisture may enter the
hoist’s overspeed brake or traction assembly. See “Cautions for Cold Weather Operation” on
Page 27.
2. Be careful when operating the hoist in high winds. Consider stopping work or adding
stabilization at wind speeds of 40 kph (25 mph) or more when working on a 2-line
suspended platform. When working on a single line platform, stabilization should be used
in winds above 32 kph (20 mph). Avoid carrying large panels of material which can act
like a sail in high winds.
3. DO NOT remove any parts from the hoist without replacing them. DO NOT change
or substitute any approved hoist parts for parts that DO NOT meet manufacturer’s
DO NOT modify this hoist without prior approval from Spider®.

void any manufacturer’s warranty and make you liable for any damage.
4. Maintain clearances and make sure no obstructions interfere with vertical travel.
5. Rotate the operating switch by hand only. DO NOT use foreign objects to operate the
hoist
6. When not in use, store hoist and stage to protect from unauthorized use. Cover the hoist
if possible. Always unplug power cord when not in use and equipment is left unattended.
7. Only authorized and properly trained personnel shall operate this hoist. Each operator



Page 8 of 45 Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
Suspended Sca󰀨olds
1. WARNING!WARNING! DO NOT󰀨
a. 
requirements.
b. You have personally made sure that:
i. the roof support system is complete, properly assembled, counterweighted (or
󰀨
ii. hoists and platforms are not overloaded.
c. 
d. 
e. The primary suspension wire rope is vertical.
2. Use approved personnel harnesses, lanyards, rope grabs, and independent lifelines at all
times. Attach the lifelines to a structural member of the building or structure, never to part

3. Avoid electrical power lines. Ensure the platform cannot swing or be blown within
3 m (10 feet) of a power line. NEVERNEVER, under any circumstances, rig a platform above
power lines.
4. Comply with all local, provincial and federal safety codes and equipment instructions.
5. If you hear any strange noises or if the hoist does not appear to work normally, stop using
it immediately. DO NOT continue to use the equipment until it has been repaired.
6. DO NOT allow anyone under suspended equipment. If necessary, provide protection
below the suspended equipment to prevent injury to people from falling objects. Use
lanyards to secure tools and materials from falling on personnel below.
7. DO NOT
the Troubleshooting Guidelines in this manual.
Wire Rope
1. Inspect the wire rope before rigging. Handle, inspect, and maintain wire rope carefully
during and after each job.
2. DO NOT use visibly worn, kinked, bird-caged, undersized, or damaged wire rope. Protect
wire rope from sharp or abrasive edges of building. DO NOT use wire rope that has been

current, or temperatures above 200° F (94° C).

Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30 Page 9 of 45
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
Welding/Electrical Cautions
1. 󰀨
hoist.
2. Ensure platform is grounded to the structure.
3. Insulate wire rope 1.2 m (4 feet) above and below the platform.
4. Insulate wire rope at suspension point and ensure that the wire rope cannot come in
contact with the structure at any point along its entire length, including the tail line.
5. Cover the hoist and battery with an insulating material.
6. Avoid power lines. Make sure the platform or hand tools cannot swing or be blown
within a minimum of 3 m (10 feet) of a power line. Check your local codes for minimum
distances. Never, under any circumstances, rig a platform above electrical power lines.
Corrosive/Explosive Environments
1. 
plant, grain elevator, distilleries, ship or silo interiors, mines, around coal handling

2. Never use hoists and aluminum platforms around caustic materials, acids, or acid fumes.
Use hoist covers when corrosive materials are present.
2.1 General Hazard Warnings
CAUTION:
If the hoist is suspended in the air and the motor runs but the wire rope does not move
through the hoist, STOP the hoist immediately! Damaged wire rope may be jammed inside
the hoist. Any attempt to move the hoist up or down could damage equipment or cause
injury or death.
󰀨
hazards. This list is not complete! It is provided to increase safety awareness on the job site.

Page 10 of 45 Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
2.2 Mechanical Hazards
  between the platform and the building or structure.
  or severing between moving machine parts.
  because of one or more of the following:
󰀩

Increase in vertical load on suspension wire because the platform encounters an obstacle,

Platform catches on overhang when going up.
 




rigging failure can cause falling.
  due to loss of traction.
  due to damaged wire rope.
2.3 Electrical Hazards
Failure of the electrical supply may delay travel of the platform.
 
All electrical connections must be locked and supported to midrail with velcro strap.
Make sure the electrical cord (if required) and wire rope are long enough to allow full travel of
the suspended equipment.

Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30 Page 11 of 45
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
2.4 Environmental Hazards
 󰀨
Sandblasting and acid wash procedures may introduce special concerns. They may adversely
󰀨
equipment being used.
2.5 Wire Rope Warnings
Use protective gloves to handle the steel wire ropes.
Use only Spider®approved steel wire rope.
Steel wires ropes must be replaced under any of the following conditions:

in one rope lay, where a rope lay is the length along the rope in which one strand makes a
complete revolution around the rope.




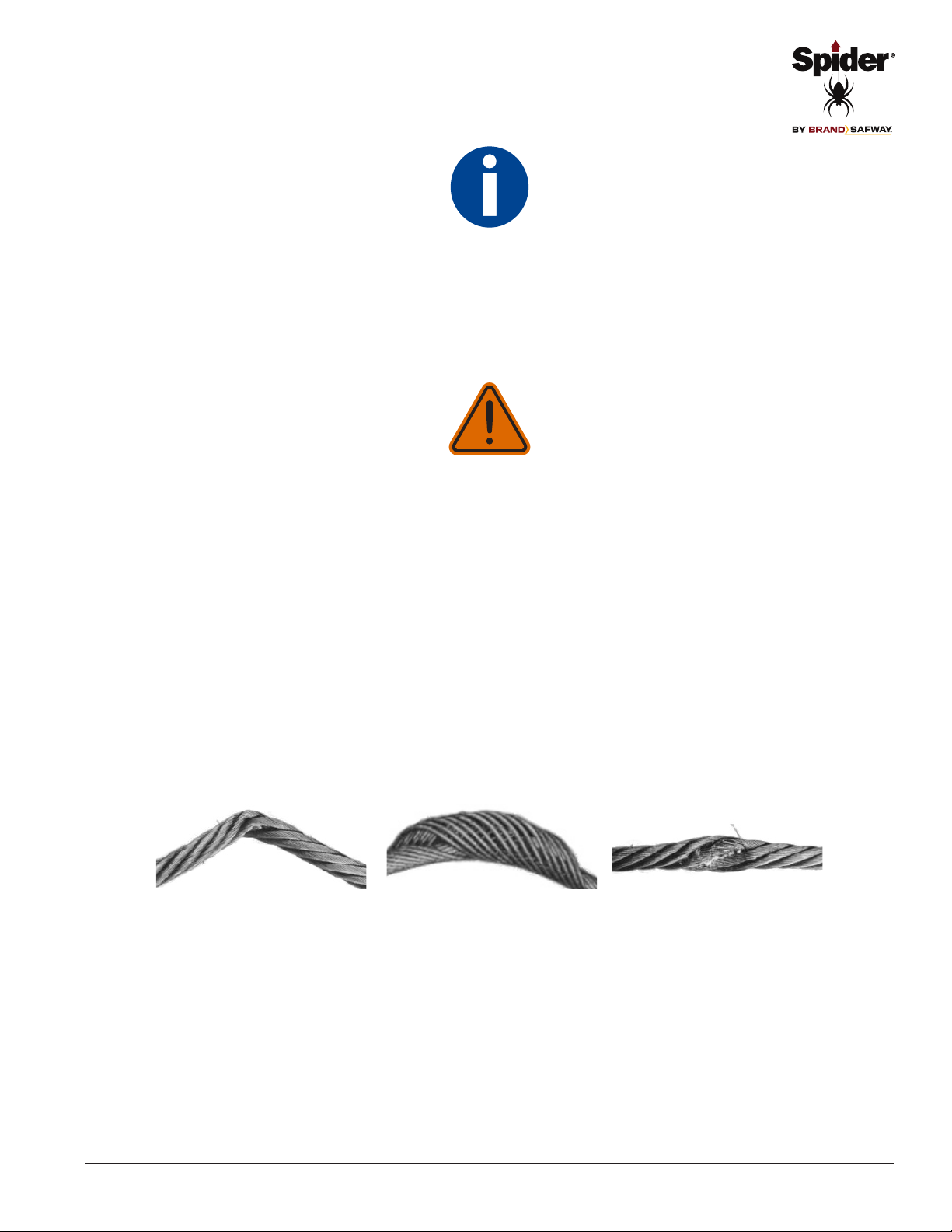

Kinking (see below), bird-caging (see below), crushing (see below) or any other
distortion of the wire rope structure.

Figure: 2.5.1

Page 12 of 45 Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
3. BATTERY
Battery Information
Cycle Life Minimum 800 cycles (a cycle is from 0% to 100%)
Operating Temperature Charge: 0° to 40°C (32° to 104° F)
Discharge: -10° to 40°C (14° to 104° F)
Capacity 40.5 Amp hours
 54 V
󰀨 40 V
IP rating IP64

UN 38.3
UL 1642 (Cell level)
UL 2271 (Pack level)
3.1 Battery Warnings
The lithium-ion battery pack is potentially volatile if mishandled and therefore must be treated
properly. The battery pack must be protected from the following:
Heat
• Keep the battery from temperatures above 80° C (176° F).
• 

Water
• DO NOT

• 
water and seek medical attention immediately.
Impact / Mishandling
• DO NOT

• Always set the battery pack down gently. DO NOT drop the battery pack during transport or set
objects on top of it.
• DO NOT use the battery pack as a stool, seat, weight or for any other purpose than as
designed.

Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30 Page 13 of 45
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
3.2 Battery Charging
CAUTION:
The battery charger is only suitable for the 48 VDC lithium-ion battery pack of the hoist and
must not be used for other purposes.
The battery must be charged indoors to protect charger reduce the risk of moisture/debris
getting into the charging port.
The battery must be turned off before connecting or disconnecting the charger or hoist to
reduce the chance of electrical arcing between connectors.
DO NOT charge the battery near high temperatures. The battery’s protection circuit may
activate if temperatures are too high and prevent charging.
1. Connect the battery charger to a 110V wall outlet. DO NOT connect the battery pack

minimum of 15A.
2. If not already done, disconnect the battery from the hoist and bring to the charger
location.
3. Remove the charging plug from the battery and connect the cable from the charger to the
battery.
4. The top POWER light will display red when plugged into 110V source.
5. The bottom CHARGE light has two colors:
a. When RED, the light indicates that the battery is charging.
b. When GREEN, the light indicates that the battery is fully charged or disconnected.
6. Check the voltage meter on the battery pack to ensure battery is fully charged.
A completely charged battery will read 54V (or 100%) on the meter.
7. Remove the battery pack from the charger and reinstall the charging port plug.

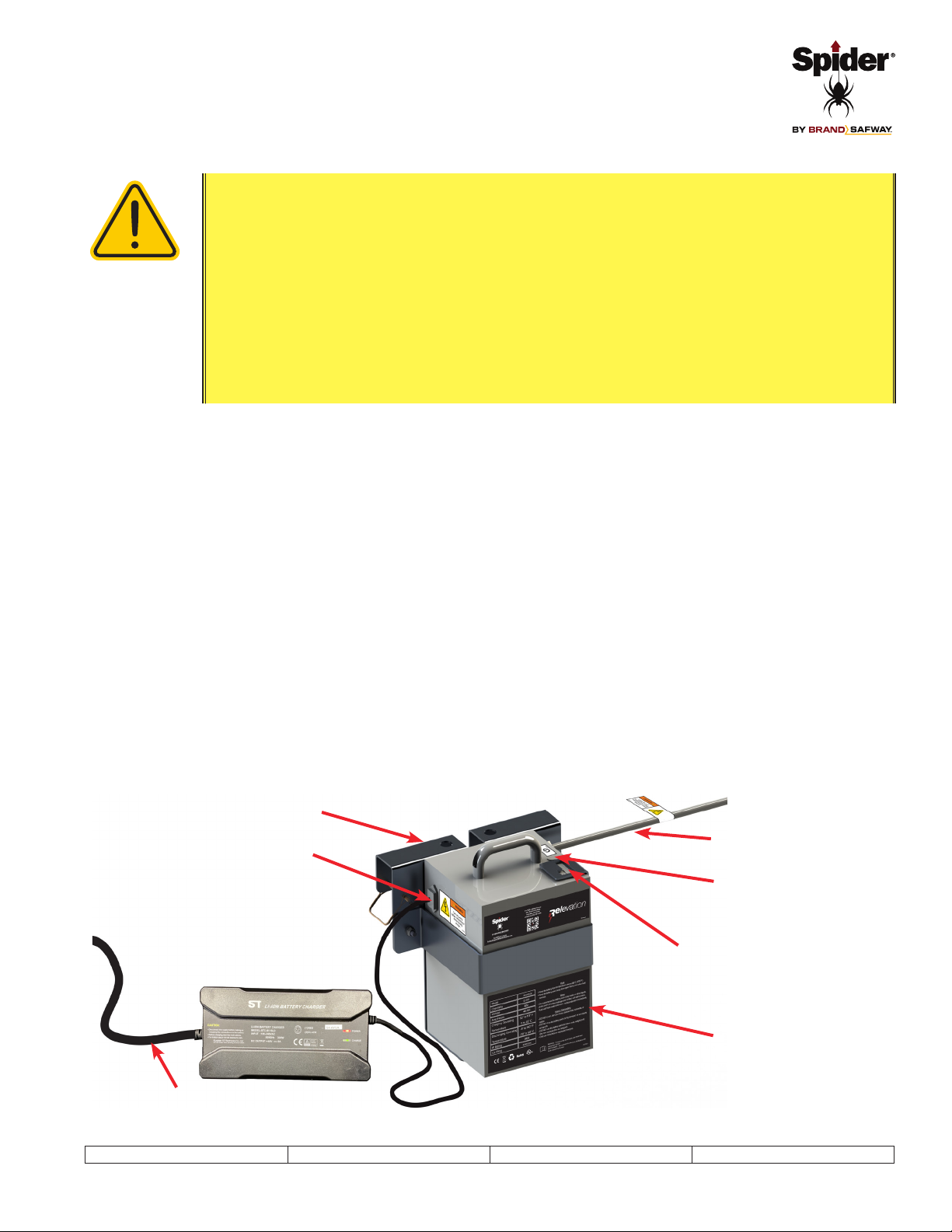

Battery Pack
Battery Pack Bracket
Charging Port Plug
Charger Cable ( to 110V outlet)
Battery Charger &
Battery Charger Light
(Red = Charging)
(Green = Fully Charged / Disconnected
from battery)
Charge Level Indicator
(Press Green Button to Display)
Battery ON/OFF
Button
Power Supply Cable
(to hoist)
Figure: 3.2.1

Page 14 of 45 Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
3.3 Charge Indicator
The battery charge indicator displays the current charge remaining on the battery. One of
ten colored bars will be illuminated (seven green, two yellow, and one red bar) as the battery

than 30% and should be charged.
Figure: 3.3.1
3.4 Battery Storage
For long term storage (longer than three months), DO NOT store the battery pack at full charge as

To maintain peak battery life, the battery pack should be stored in a dry, clean area with good
ventilation.
• For storage of under one month, the battery pack can be stored in a location between
-20° to 60°C (-4° to 140°F).
• For storage between one and three months, the battery pack can be stored in a location
between 0° to 40°C (32° to 104°F).
• If the battery will be stored for over three months, the ambient temperature should be
maintained at 20°C +/- 5°C (68°F +/- 10°F) with a relative humidity of 65% +/- 20%.

month. The battery pack should be checked periodically to prevent under-voltage conditions and
partially recharged as necessary.
3.5 Battery Disposal
®service center for proper disposal.

Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30 Page 15 of 45
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
4. WIRE ROPE
4.1 Wire Rope Terminations
1. To prepare the end of IWRC wire rope for insertion, cut back the steel center at least
2” (51 mm) to allow for independent movement of the core. Braze and rough shape the
end of the wire rope to form a smooth, tapered, bullet shape no more than 1/4” (6.4 mm)
long. DO NOT cool the end of the hot wire rope in water or oil as this makes the end
󰀨
ALL DIMENSIONS ARE IN INCHES
Figure: 4.1.1
2. Use a heavy-duty thimble for the primary suspension wire rope and follow the
manufacturer’s requirements for termination of the wire rope hardware that you are using.
3. In situations where it is not possible to lower the platform to the ground, secure the tail
󰀨
suspension ropes. Before rigging in such a situation, consult a safety professional.
Tail line with suspension loop
Figure: 4.1.2

Page 16 of 45 Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
4.2 Wire Rope Cautions
1. Wire rope stretches when loaded, which reduces the diameter. Wire rope begins to wear
the moment it is used. It must be regularly inspected to be sure it is in good condition.
Wire rope must be removed from service when diameter loss or wire breakage occurs, as
detailed in ANSI A10.4.
2. Be sure there is enough wire rope to reach the lowest possible point of travel.
3. DO NOT

make the wire rope unsafe.
4. Acids will corrode and reduce the strength of both inner and outer stands. If wire rope

project, or sooner if any damage is evident. DO NOT save wire rope that has been in
contact with corrosive substances. When in doubt, replace the wire rope.

Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30 Page 17 of 45
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
4.3 Wire Rope Inspection
The need for replacement of suspension wire ropes shall be determined by regular inspection and
shall be based on the condition of the wire rope inspected. Wire rope in active service should be
visually inspected once every working day. A thorough inspection shall be made once a month,
or before each use if the suspension wire ropes have been inactive for 30 days or longer and are
placed into service. Dated and signed monthly reports indicating the condition of the ropes found
during inspections must be kept.
󰀩
reason for the removal of the wire rope from service:
Wire rope with one or more of the following defects shall be removed and replaced immediately:
1. Whenever there is severe corrosion. Any development of slight corrosion shall be noted

2. Whenever there are broken wires, as follows:
a. When there is more than one valley break. A valley break is a wire break occurring in
the valley between two adjacent strands.
b. 
broken wires in one strand in one rope lay. (A rope lay is the length along the rope in
which one strand makes a complete revolution around the rope.)
3. Whenever there are broken wires in the vicinity of attachments. If this condition is
localized in an operating rope, the section in question may be eliminated by making a
new attachment. This may be done instead of replacing the entire rope.
4. 
than one-third of the original diameter of the outside wires.
5. Whenever there are severe kinks, crushing, bird-caging, or other damage resulting in
distortion of the rope structure.
6. Whenever there is evidence of any heat damage resulting from a torch or caused by

rope is:
a. More than 1.2 mm (0.047 in.) for diameters up to and including 20 mm (0.78 in.)
b. 1.5 mm (0.059 in.) for diameters 22 to 28 mm (0.87 to 1.10 in.)
c. 2.5 mm (0.01 in.) for diameters 32 to 40 mm (1.26 to 1.57 in.)
7. Always inspect the wire rope termination and refer to the manufacturer’s inspection
procedures.

Page 18 of 45 Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
5. THE SPIDER®SC1000-RE SERIES HOIST
The Spider®󰀨
cages on, or in, buildings and structures. If this hoist is used for any other purpose, all necessary
precautions must be taken to ensure that both the design and operation of the setup in which
the hoist will be used will be hazard-free, and that such use conforms to the manufacturer’s

Spider®
must request current operating information prior to using this equipment. Call your local Spider®
operations center.
5.1 Features of the Spider®SC1000-RE Series Hoist
Feature Function 
Operating Range:
40 VDC - 48 VDC
• Proven reliable performance
• Tested in 1 hour continuous run
tests
• Reduces service calls
• 
• Eliminates power-induced down time
• Saves time and money
Load-sensitive Traction • Applies only the traction needed
to lift load, not full 1,000 lb
(454 kg) lifting force on rope
• Virtually eliminates the risk of
wire rope jams
• Greater tolerance of wire rope condition
• 
wear and tear on rope
• Prevents costly wire rope jams
• Reduces the need for rescues
Emergency Descent • Allows downward travel at a
controlled rate of speed in the
event of power loss
• Eliminates need for rescue
• Allows self-rescue of workers and
platforms
Built-in Overspeed
Brake
• Stops hoist in overspeed
condition
• Can’t be left behind in shop,
bypassed, or dismantled
• Ensures greater operator safety
• Improved reliability
Battery Powered • Provides up to 3 hours of run
time
• Rechargeable
• Allows for operation in situations where
on-site power is not available or feasible
Battery Regeneration
(in down direction)
• Battery will recharge while
operating in the down direction
• 
Overspeed Trip
Indicator
(Incorporated into
DOWN Button)
• DOWN button lights up red when
overspeed has been tripped
and DOWN circuit has been
interrupted
• Gives the operator greater control and
understanding

Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30 Page 19 of 45
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
5.2 Features of the Spider®SC1000-RE Series Hoist (continued)
Feature Function 
Voltage Indicator Light
(Incorporated into UP Button)
• 
to unit and battery is properly
connected
• Easy visual inspection can eliminate
a service call
Remote Ready • Built-in pendant port accepts
plug-in remote control
• 
pendant
• No need to drill and wire remote into
hoist
• Leaves hoist mounted controls
operable
Overload Kit • Allows overload to be shop-set
to 125% of rated load
• Reduces rigging material and labor
Battery Charge Indicator • Displays the remaining charge
on battery while moving
• Easily indicates to operator when to
charge the battery
Hour Meter • Displays the number of hours
the hoist has been in use
• Easily indicates when service needs
to be performed
5.3 Optional Features of the Spider®SC1000-RE Series Hoist
Feature Function 
Optional Top Limit Switch • Stops upward travel on contact
with an overhead obstruction
• Easy installation
Optional Built-in Secondary
Suspension Wire Rope
• 
security and durability
• Allows use of secondary
suspension wire rope for
applications that require it
• Eliminates possible loss/damage
because it is built-in
• Adds versatility to hoist applications
5.4 Specications
Single Phase
Working Load Limit
(WLL) 1,000 lb (454 kg)
Power Supply 48 VDC
Amperage at WLL 28 amps at 1,000 lb (454 kg)
Wire Rope Diameter 5/16" (8 or 8.4 mm)
Wire Rope Specication




breaking strength safety factor. US temporary applications require 6:1.

Page 20 of 45 Document No: 723590-1 Revision: D Issue Date: 2023-Jan-30
This document and all copies are the property of Safeworks, LLC. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
6. PARTS OF THE SPIDER®SC1000-RE SERIES HOIST
6.1 Front View
Overspeed
Reset Knob
UP Operation Button
and Power On (Green
Light)
Emergency Stop
(Power Supply Cut-off)
Primary Wire Rope
Insertion Point
Overspeed
Brake Test
Button
Primary Wire Rope
Exit Guide
DOWN Operation Button
and Overspeed Brake Trip
Indicator Light (Red Light)
Carrying Handle
Hour Meter and Battery
Charge Level Indicator
Power Supply
Cable
Remote Receptacle
Attach hoist to
stirrup bar
Optional Wire Rope
Insertion Point for
Secondary Wire Rope
Figure: 6.1.1
