SAIC MAXUS VCI 6520 User manual

SAIC GRADE-X
Page 1of 20
SAIC MAXUS Diagnostic Equipment
Quick Start
Contents
1. Product Overview ...................................................................................................................... 2
2. Environment configuration ........................................................................................................ 2
3. Hardware inventory ................................................................................................................... 3
4. Software installation ..................................................................................................................4
4.1 official address........................................................................................................................4
4.2 Installing GRADE-X and CVDS+ VCI Driver+ Adobe Air Installation Package................. 5
4.3 Test the VCI Manager connection.........................................................................................5
5. Active SAIC GRADE-X..............................................................................................................6
5. 1 Ensure that the computer and the Internet are properly connected (the network is
working properly):..........................................................................................................................7
5.2 Send Computer Hardware Information................................................................................. 7
5.3 After the activation, please click the “Refresh online”button in the figure below or
restart the SAIC Grade-X software..............................................................................................8
5.4 After successful activation, enter the diagnostic software page, as shown below: ..........9
5.5 Expiration date (It must be used once every 30 days in state of INTERNET available) ..9
6. VCI driver should be selected before using SAIC GRADE-X ................................................9
7. Software upgrade .................................................................................................................... 10
7.1 Checking Updates ................................................................................................................ 10
7.2 install updates automatically................................................................................................ 10
7.3 Manual update ...................................................................................................................... 11

SAIC GRADE-X
Page 2of 20
8. Interface description ................................................................................................................ 11
8.1【 】VCI set................................................................................................................ 11
8.2 Select Vehicles and Select ECUS....................................................................................... 12
9. Frequently Questions .............................................................................................................. 14
1. How to change the software language? ................................................................................. 14
2. What should l do if the software fails to open and encounters the following errors?............ 15
3. How does VCI set up wireless?............................................................................................... 15
4. How does the software activate and register? ....................................................................... 16
5. How to reset VCI?................................................................................................................... 16
6. How to do when software cannot diagnosis system? ............................................................ 18

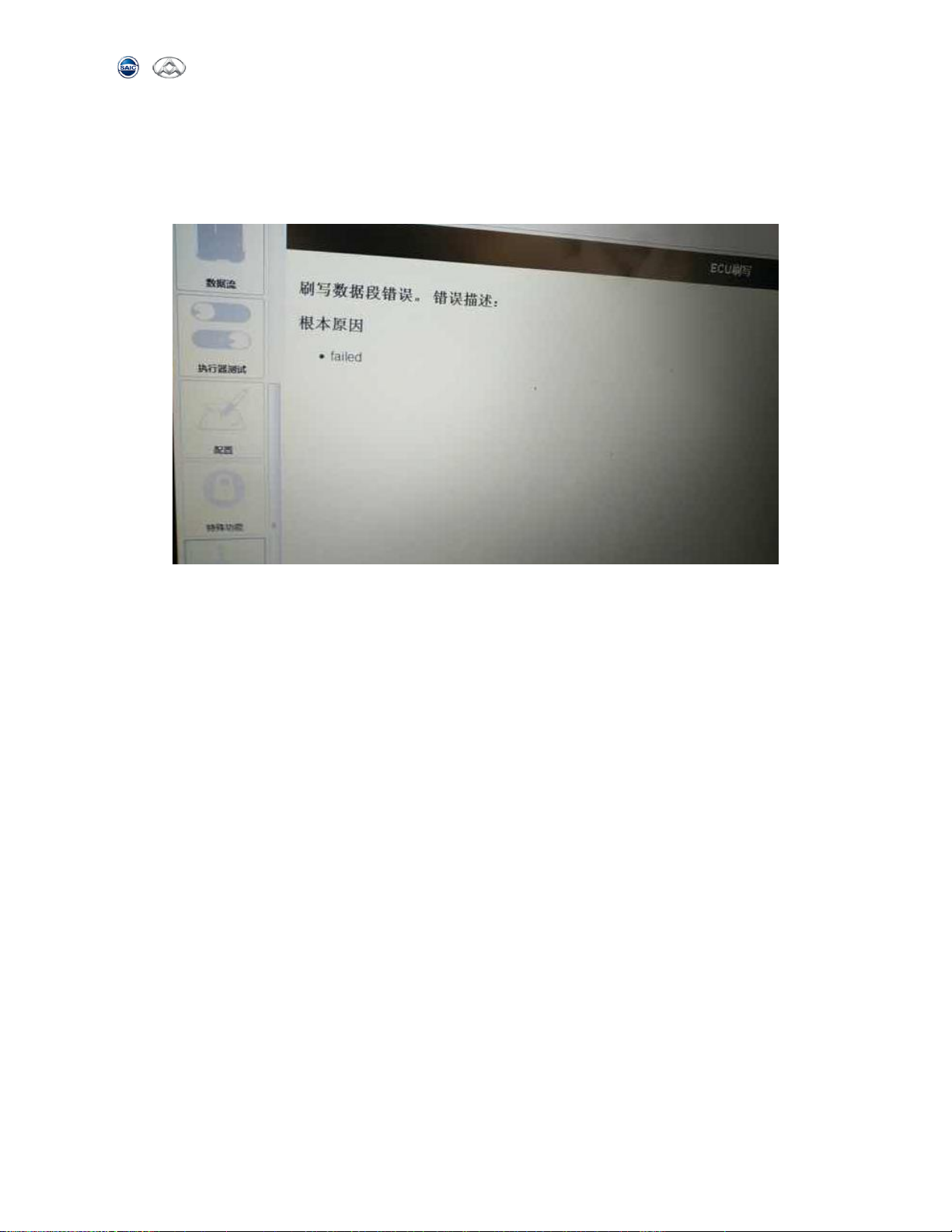

7. When the ECU flashes the following situation as shown in the figure below, please solve the
problem as follows:....................................................................................................................... 20
1. Product Overview
This set of automobile after-sales diagnostic equipment is a professional instrument for
SAIC MAXUS auto sales and after-sales diagnostic, It can detect vehicle faults in real time
and is a necessary tool in the after-sale automobile repair process. The after-sales
diagnostic equipment is consisted of two parts: diagnostic software (SAIC GRADE-X) and
diagnostic hardware (VCI I / II)
2. Environment configuration
This software works in Windows 7 and Windows 10(recommended) operating system
environment. The computer configuration is as follows:
CPU
32-bit or 64-bit , 2.4GHz or higher(Intel i5 processor or above)
Memory
8GB or above , DDR3 or above
Hard disk
100G or above , HHD or SSD(recommended)
Graphics
Direct X9 WDDM 1.0 or above
Display resolution
1024*768 or more (1366*768 or 1600*900 recommended)
Required Environment
Adobe AIR and Adobe Reader Software Environment
For the first time when SAIC MAXUS Diagnostic Software (SAIC GRADE-X) was
installed , it was requested that both CVDS+VCI Driver and Adobe AIR Software be

SAIC GRADE-X
Page 3of 20
installed , if you need install the two software , please content your PC to the
internet ,download the relevant software , and follow the steps below:
1. Open your browser and enter the URL: https://obd.maxuscloud.com/download/
2. Select the CVDS+VCI Driver and Adobe Air software to download.(see picture below)
3. Click on the downloaded files to install.
3. Hardware inventory
Hardware name
VCI 6520
VCI VDI II
1.USB cable
2.Vehicle Communication
Interface Module
（VCI）
3.OBD interface cable
3.1 Explanation of the VCI indicator and interface
The following figure shows the indicator and interface for the 6520 and VDI II:
VCI 6520
VCI VDI II
1
Vehicle communication
indicator
2
Host communication
indictor
3
Fault indictor
4
Host power indictor

SAIC GRADE-X
Page 4of 20
3.2 Equipment connection diagram
Equipment name
Connection diagram
Connection method
VCI 6520
（Support wired
and wireless）
（Windows 10
does not support
wireless
connection）
1. Use the OBD cables to connect
computer and VCI devices
2. Use the USB cables to connect
computer and VCI devices
VCI VDI II
（Support wired
and wireless）
1. Insert the USB WIFI dongle in an
available USB port on your PC (Wait
for USB driver to be automatically
configured during 1st time the USB
dongle is inserted in PC USB Port.)
2. Power-up VCI by connecting the VCI to
the vehicle using DLC cable.
3. Start the VCI Manager software by
doubleclicking the icon on the PC
desktop.
4. Select the VCI with green bars in the
VCI Manager Explorer tab and click
“Connect” button. Once connected, a
green check mark will replace the
green bars.
4. Software installation
Before installing the diagnostic software, you need to install the VCI Manager software to
check if the VCI is working properly, so we need to make sure that the both software have
been installed: 1. CVDS+VCI Driver software; 2. Adobe Air software.
4.1 official address
If you install the software on your computer for the first time, you need to install the
installation package on the official website.
Download link: https://obd.maxuscloud.com/download/

SAIC GRADE-X
Page 5of 20
4.2 Installing GRADE-X and CVDS+ VCI Driver+ Adobe Air Installation Package
4.3 Test the VCI Manager connection
(1) Make sure that the connection of VCI Manager, the vehicle and the computer correctly,
as shown in Figure:
VCI 6520
VCI VDI II
(2) Run the VCI Manager
[connect]
设备名称
连接方式
连接状态

SAIC GRADE-X
Page 6of 20
VCI 6520
VCI VDI II
[Disconnect] or close the software
Note: After the test shows normal, you must exit the VCI manager software, otherwise
it will affect the normal use of the diagnostic software!!!
5. Active SAIC GRADE-X
SAIC GRADE-X software registration procedures are as follows:

SAIC GRADE-X
Page 7of 20
5. 1 Ensure that the computer and the Internet are properly connected (the network is
working properly):

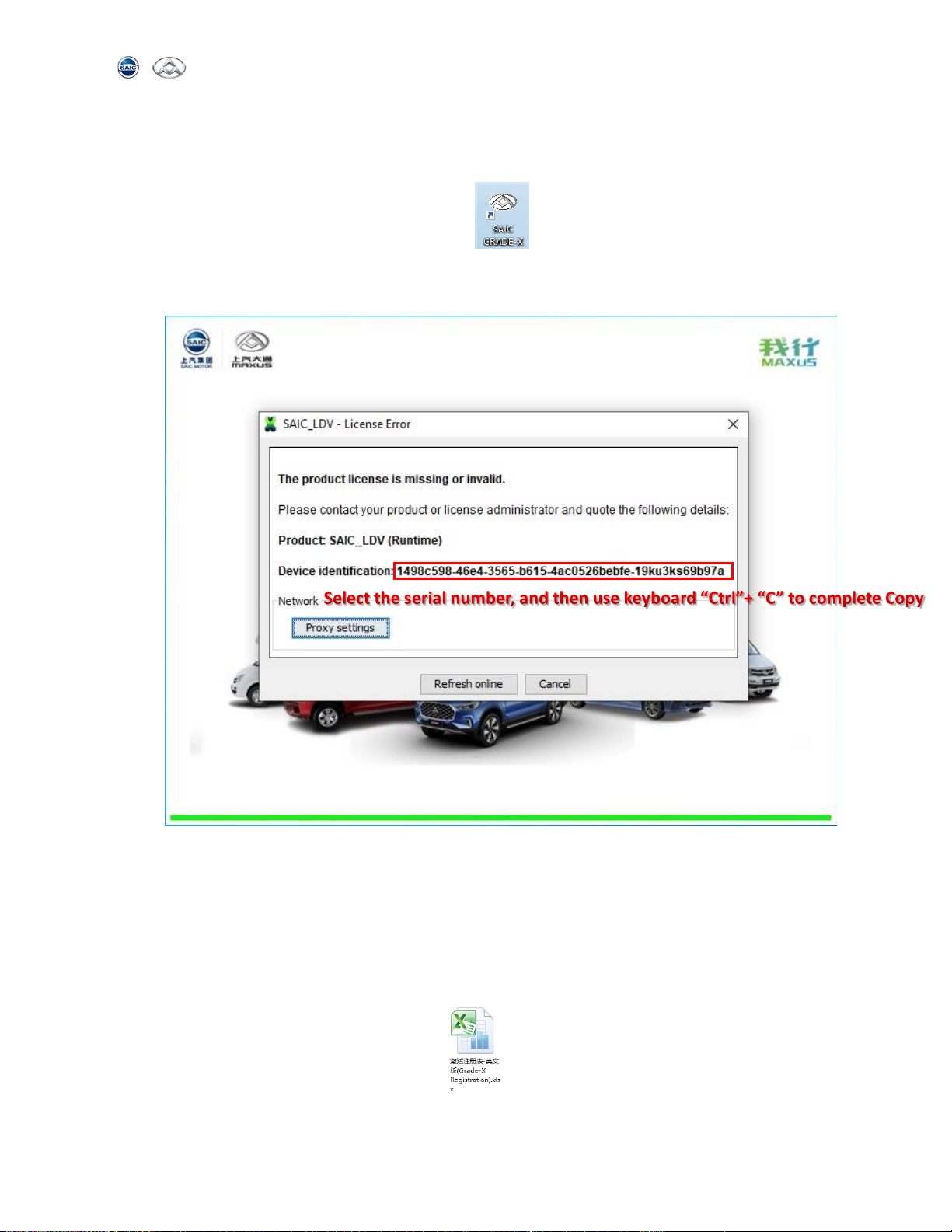

When running SAIC GRADE-X software , the page will pop up the computer
hardware information (This page only appears when the user opens the installation for the first
time. It will not be displayed after the activation is successful), as shown below:
5.2 Send Computer Hardware Information
Please copy the numbers in the red box above and send back to the Maxus
administrator via email. The Maxus administrator will notify you when you are activated. Please
also provide your repair station name and code, contact telephone number, contact email
address, VCI serial number to Maxus administrator, the registration table as shown:
)

SAIC GRADE-X
Page 8of 20
Sample
序
号
NO
序列号
Computer hardware
information
注册人单位
Maintenance
station
部门
Departm
ent
维修站代码
Maintenance
station code
注册人
姓名
Name
联系邮件
E-mail
联系电话
Telephone
number
VCI 序列号
VCI serial
number
申请时间
Time of
application
1
1e0c301a-c545-3474-
95fc-86c8160343ff-
19ku3ks69b97a
DIVEMOTOR
DE PERU
AS
123
JULIO
jochoa@divemotor.
com.pe
00519418664
10
1321-
22302520
2018/4/17
Maxus administrator email address: [e-mail]
5.3 After the activation, please click the “Refresh online”button in the figure below or
restart the SAIC Grade-X software
Note: If you still can't enter the main page of the diagnostic software after receiving the
activation notification, please check the following three points:
1. Whether the computer serial number in the submitted activation registration table is
correct;
2. Whether the computer network can be used normally, i.e. whether it can browse the
web normally;
3. Whether the local time of the computer is set correctly. If the date and time are
abnormal, please adjust it back to the correct date and time.

SAIC GRADE-X
Page 9of 20

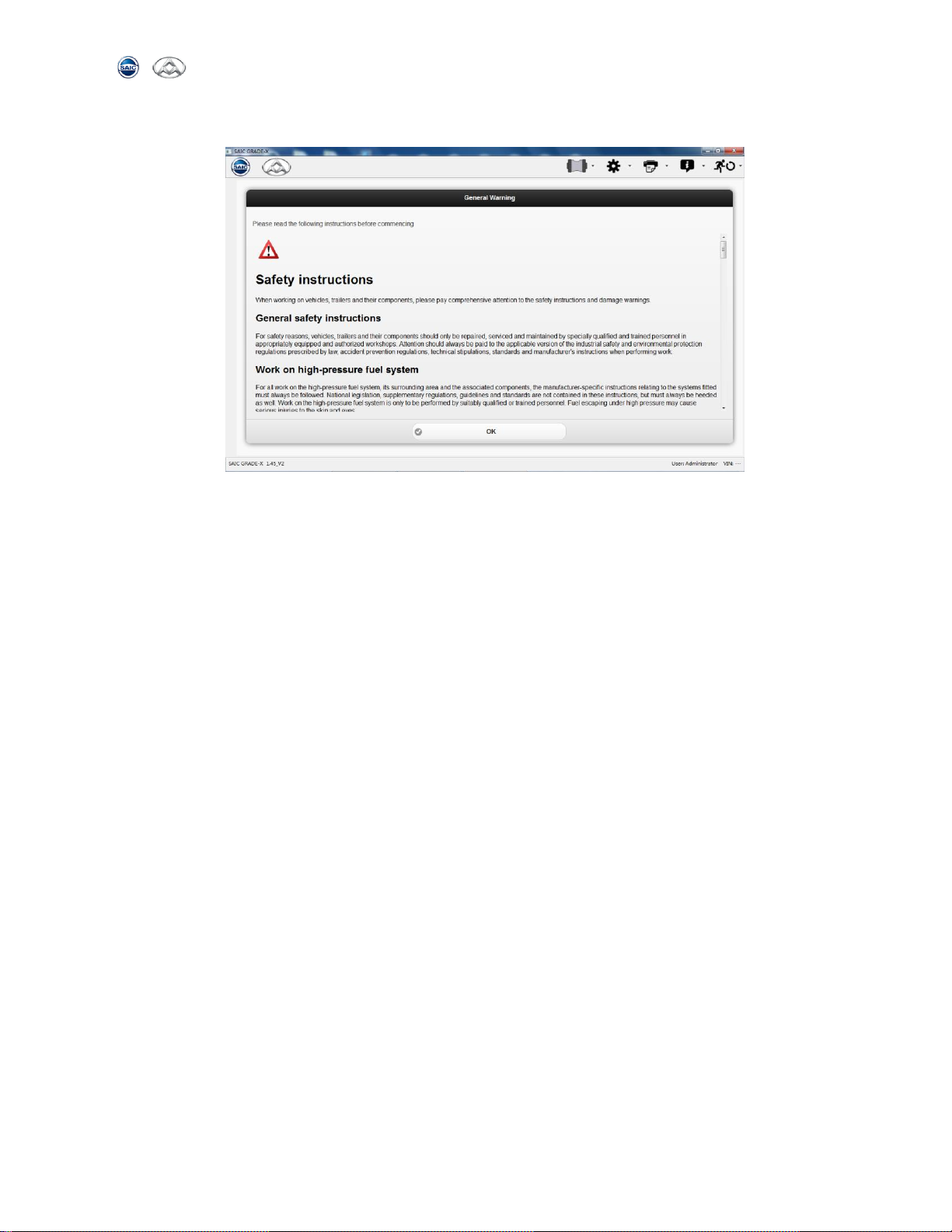

5.4 After successful activation, enter the diagnostic software page, as shown below:
5.5 Expiration date (It must be used once every 30 days in state of INTERNET available)
Each time you open SAIC GRADE-X, you will directly enter the main page of the
diagnostic software; the user must use SAIC GRADE-X once in a computing-networked state
within 30 days; if the user does not use the SAIC GRADE-X within 30 days, the system will
force the user to connect only use diagnostic software.
Note: After the use changes the computer, the original software will not be able to enter.
Please provide Maxus administrators with new computer hardware information
displayed by the software.

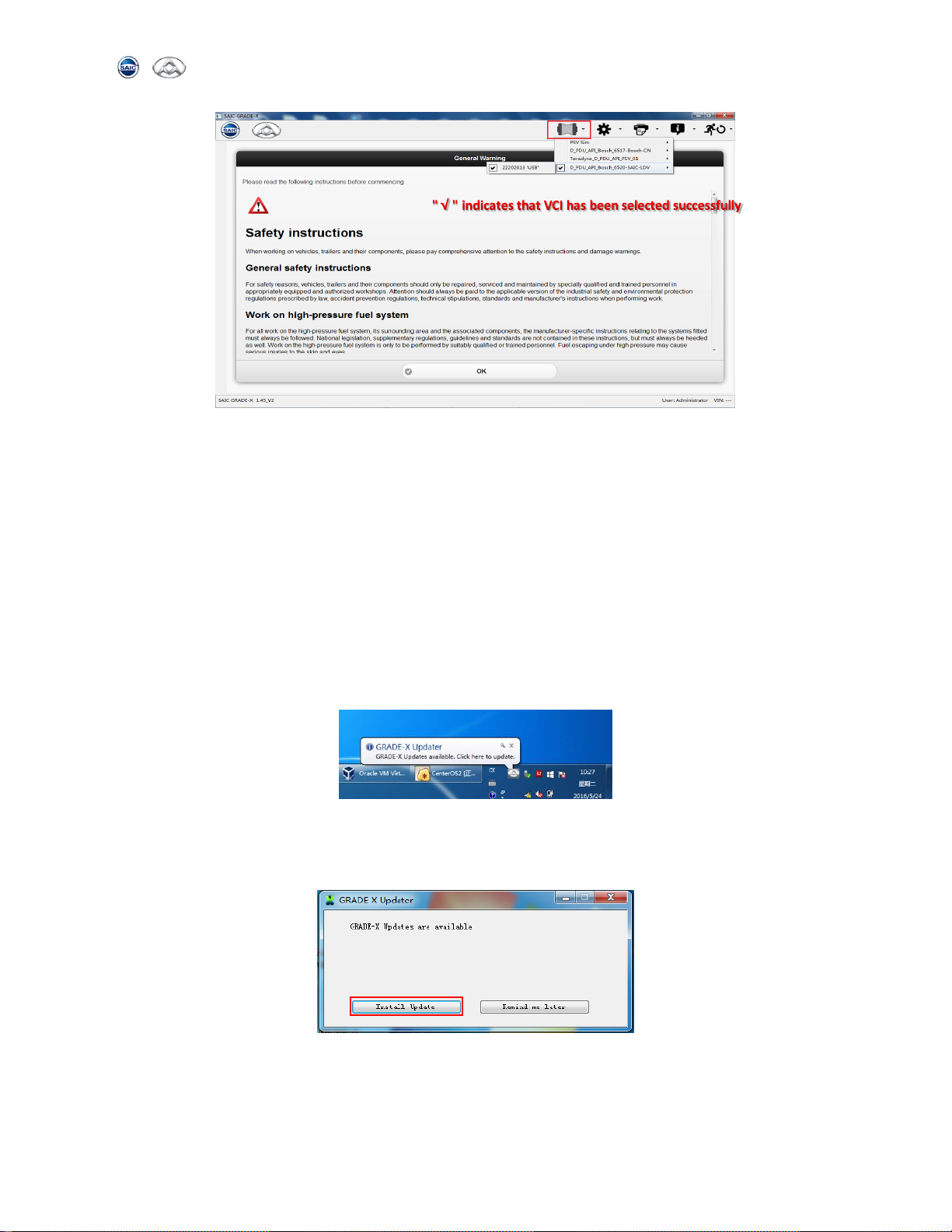

6. VCI driver should be selected before using SAIC GRADE-X
1. Open SAIC GRADE-X software
2. Select the correct use driver (as shown below)

SAIC GRADE-X
Page 10 of 20
7. Software upgrade
Note: Software update prompts can only be received after the diagnostic software has been
active.
7.1 Checking Updates
When your computer is connected to the network, if your computer is not installed with the
latest version of the software, you will receive a software update message automatically, as
shown below:
7.2 install updates automatically
Click on the icon pop-up interface upgrade tips, click the [install update], update the software

SAIC GRADE-X
Page 11 of 20
7.3 Manual update
Right click the icon to select software, find the attribute, choose to open the file path, find the
wyUpdate.exe folder, click Update
8. Interface description

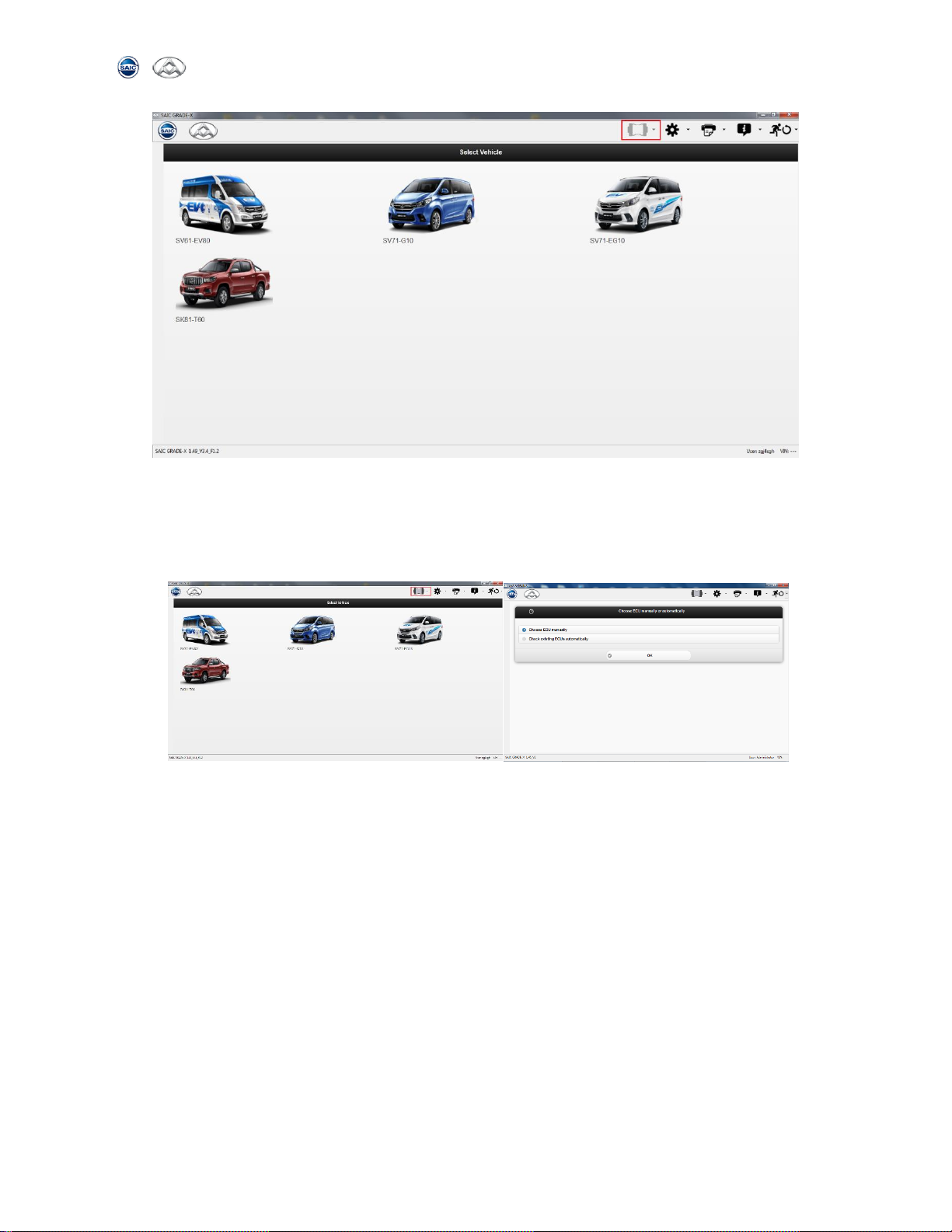

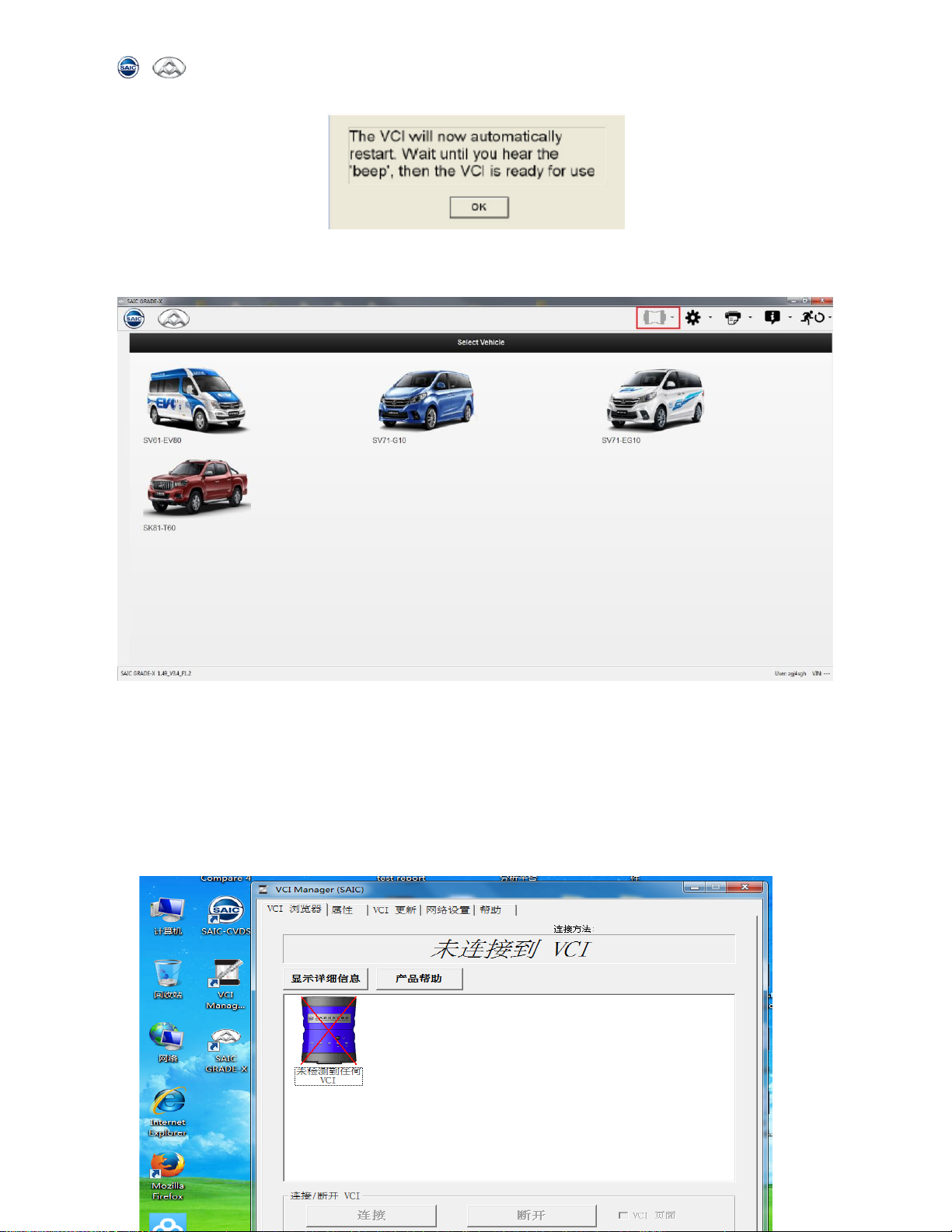

8.1【 】VCI set
1) Connect the correct VCI equipment
2) If the VCI icon is dark, please install the VCI Manager software, as shown below:

SAIC GRADE-X
Page 12 of 20
8.2 Select Vehicles and Select ECUS
1）Click on the corresponding picture, select the vehicle you want to detect, [Manually
select ECU] or [Automatically check the connected ECU], as shown below:
2）Select the system to be tested or select all the system tests, Click [Ok] enter the test
interface, as shown below:

SAIC GRADE-X
Page 13 of 20
1）Main page is divided into navigation bar and vehicle information bar
2）Menu navigation description (Please refer to the user manual for the detailed function
operation)
Menu
Description
Function introduction
Check ECU trouble
code
1.The trouble code of the ECU(icon status, text status)
2.Freeze and check frame data
3.Reread and clear the single ECU or all ECU trouble

SAIC GRADE-X
Page 14 of 20
code
ECU data stream
monitoring
1.Check all the ECU data stream (all or part or custom
groupings)
2.Freeze the data of ECU data stream
3.Record and playback the data of ECU data stream
ECU function test
1. Test each function of the ECU one by one
2. Feedback test results
ECU function
configuration
1. Configure all functions and system information of the
ECU
Note: Improper operation can have unforeseen
consequences for the vehicle. Follow safety instructions or
have qualified personnel perform the operation
ECU special function
configuration
1.Configuration of the special ECU functions
Such as: Add key and anti-theft match
2.Configuration feedback
ECU writing brush
1.Refresh and written ECU internal system
Note: Please read the precautions carefully and make
sure the vehicle meets the brushing conditions before
writing brush.
Vehicle diagnostic
report
1.Summarize all the operations to give detailed vehicle
diagnostic test results
2.Print test report
9. Frequently Questions
1. How to change the software language?
A：Select the top menu of the software interface【 】,as shown below：

SAIC GRADE-X
Page 15 of 20
2. What should l do if the software fails to open and encounters the following errors?
A: 1.1Please turn off 360, anti-virus software, firewall and other security software in your
computer.
1.2 Check id the current version is the latest version. You can check whether the current
version is the latest one through the following website, If it is not the latest version, please
download the latest (https://obd.maxuscloud.com/download/).
1.3 Check if your current operating system time is not the same as your mobile phone time,
please adjust the time of your computer to the same as your mobile phone (check the bottom
right corner of your computer screen)
1.4 If you have close your diagnostic software abnormally before, please restart your
computer.
1.5 If the above operation does not solve the problem, please uninstall your software and
download the full installation package again.
3. How does VCI set up wireless?
A: 1. First you need to install the VCI Manager software and open it, as follows:
Note: VCI VDI II and VCI 6520 have the same wireless connection, as follows:

SAIC GRADE-X
Page 16 of 20
2.Select the VCI and click connect
3.Select “network set”->”wireless (802.11)”The information in the red box is set and the
point application is set.
4. How does the software activate and register?
A: when you open the diagnostic software, the following prompt box pops up:
When you install the GRADE-X diagnostic software first time, please fill out the form and send it
to Maxus administrator, Email Address: [e-mail]
Sample
序
号
NO
序列号
Computer hardware
information
注册人单位
Maintenance
station
部门
Departm
ent
维修站代码
Maintenance
station code
注册人
姓名
Name
联系邮件
E-mail
联系电话
Telephone
number
VCI 序列号
VCI serial
number
申请时间
Time of
application
1
1e0c301a-c545-3474-
95fc-86c8160343ff-
DIVEMOTOR
AS
123
JULIO
jochoa@divemotor.
00519418664
1321-
2018/4/17

SAIC GRADE-X
Page 17 of 20
19ku3ks69b97a
DE PERU
com.pe
10
22302520
5. How to reset VCI?
A: When the VCI prompts the following message (1.VCI reprogramming error, enter the
recovery mode; 2.reprogramming problems), any error prompts need to be VCI needs to be
reset, as shown below:
2. Make VCI into RECOVER state by following procedure.
2.1 Disconnect the power supply of VCI, may need to disconnect the power line and
press the power button, check on the VCI lamp is extinguished, if the disconnection of the
power line, the power light is not extinguished, please remove the battery.
2.2 After the VCI is powered on, press and hold the power button at the same time to
know that all the status lights are on. Release the power button and wait until the rightmost light
is on, and a beep sounds that the recovery was successful.
2.3 When you open the VCI management software,you must use USB to connect VCI,
otherwise it can not be identified, as shown below:
2.4 During the recovery process, please do not disconnect USB and power.
2.5 As shown below, It means VCI recovery successful.

SAIC GRADE-X
Page 18 of 20
6. How to do when software cannot diagnosis system?
A: when you open the diagnostic software, Popup prompt box:
1. Note: When you open your software, the button in the red box is found to be gray, It means
you do not have the CVDS software installed, Please install the CVDS and VCI Manager
software first, otherwise the diagnostic software will not work properly.
2. If this is your first time to install CVDS software, please download and install 1.6.1 fault
package before installing the CVDS software package.
3. After the CVDS software is properly installed, As shown in the figure:

SAIC GRADE-X
Page 19 of 20
4．Correct Status
5. The following picture shows that the VCI is connected normally and you can use this
diagnostic software.

SAIC GRADE-X
Page 20 of 20
6. Two or more lights must be on when you look at the VCI lamp (normal green light, red light
indicates fault light).
7. When the ECU flashes the following situation as shown in the figure below, please solve the
problem as follows:
Please check whether the SAIC GRADE-X software version is the latest and the VCI firmware
version is upgraded to 2.4.33.5. Please delete the old SAIC GRADE-X software and the old VCI
management software before installation.
