18*18W IP65 WATERPROOF
LED PAR LIGHT SW-E6V18
User Manual

www.sailwinlight.com
[email protected]
2
SAFETY INSTRUCTION
Caution
Do not attempt any repairs yourself. Doing so will void your manufactures warranty. In the
unlike event your unit may require service please contact us.
Warning
To prevent or reduce the risk of the electrical shock or fire, do not expose this unit to any
moisture. Please read this manual carefully to familiarize yourself with basic operations of this
unit
Safety precautions
1.Do not expose this unit to , wet moisture, explosive
2.Before plugging the power be sure local power outlets matches with the required voltage of
the unit
3.Do not remove the cover under the circumstance in case you are not qualified to do so
4.Never connect the power when cover is removed
5.Never use this unit if it becomes damage
6.Never connect this unit to any if dimmer and / or power pack
7.If the unit will not be used for the long time , disconnect it from the power supply
8.Always mount this unit safe and stable and make sure the area will have proper ventilation.
Take care this unit will not mounted in are close to heat sources such as lighting fixtures,
amplifiers heat registers, stoves and radiators
9.Always contact us in case you have any doubts
General Instruction
This is a battery powered and wireless Dmx intelligent RGBAW UV color light. User can
control the light by using wireless Dmx transmitter or run at master and salve mode. Fixture it
has 12 static color, user can set lights at static color mode without using the Dmx controller

www.sailwinlight.com
[email protected]
3
FEATURE & INSTRUCTION
Product Name
18X18W 6IN1 RGBAW UV WATERPROOF LED PAR LGIHT
Model No
SW-E6V18
Brand
Sailwin
Input Voltage
AC110V-250V 50-60HZ
Power Consumption
180W
LED Chip
Tian Xin Brand
Material
Housing Aluminum
Control Mode
DMX512 Control Mode Sound Active stand alone
Color Effects
RGBAW UV 6in1 Color Mixing
PVM Dimmer
》400HZ(6666 steps)
DMX Channel
7/12CH
Beam Angle
20/25/40 degree
IP Rate
IP65
Battery Last Time
100%：12 Hours, 50%:22 Hours,10%:40 Hours
LED Lifespan
5000 Hours
Feature
Power in,Power out,DM in and DMX out port for easy
connection
Cooling mode
Natural Convection and 1 Nos fan Flicker Free
Insulation
Resistance
＞２MΩ
NW
4KG
GW
6KG
Flight Case
88*55*35CM 68KG(8pcs/CTN) 61*60*37CM*4PCS/CTN)

www.sailwinlight.com
[email protected]
4
MAIN MENU
Safety Precautions
• To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt
to remove or break off the ground prong from the electrical cord. This prong is used to reduce
the risk of electrical shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out` doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by the manufacturer.
• Heat -The appliance should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a marked change in
performance.
MENU
UP
DOWN
ENTER

www.sailwinlight.com
[email protected]
5
Power Supply: The Sailwin Hex Lion V18 Profile contains a switching(Dual Voltage) voltage switch,
which will auto sense the voltage when it is plugged into the power source. With this switch there
is no need to worry about the correct power voltage; this unit can be plugged in anywhere. Light
can recharge and use at same time.
DMX-512: DMX is short for Digital Multiplex. This is a universal proprotocol used as a form of
communication between intelligent fixtures and controllers. A wireless transmitter/ DMX controller
sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that
travels from fixture to fixture via the DATA “IN”and DATA “OUT”XLR terminals located on all DMX
fixtures (most controllers only have a DATA “OUT”terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufactures to be
linked together and operate from a single controller, as long as all fixtures and the controller are
DMX compliantant. To ensure proper DMX data transmission, when using several DMX fixtures try
to use the shortest cable path possible or connect wireless transmission. The order in which fixtures
are connected in a DMX line does not influence the DMX addressing. For example; a fixture
assigned a DMX address of Addr-A001 may be placed anywhere in a DMX line, at the beginning, at
the end, or anywhere in the middle. When a fixture is assigned a DMX address of A0011, the DMX
controller knows to send DATA assigned to address A001 to that unit, no matter where it is located
in the DMX chain/Controller.
Data Cable (DMX Cable) Requirements (For DMX Operation): The Hex Lion Par V18 Profile can be
controlled via DMX-512 protocol/Wireless DMX(sell separately). The Hex Lion V18 Profile has 7/12
DMX channel modes,. The DMX address is set on the back panel of the Hex Lion V18 Profile. Your
unit and your DMX controller require a standard 3-pin XLR connector/wireless DMX Transmitter for
data input and data output. We recommend Sailwin-Cable DMX cables/Wireless Transmitter. If you
are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may
be purchased at almost all pro lighting stores) or 2.4Mhz Wireless Transmitter/Receiver. Your cables
should be made with a male and female XLR connector on either end of the cable. Also, remember
that DMX cable must be daisy chained and cannot be split.
Notice: Be sure to follow figures two and three when making your own cables. Do not use the
ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug
or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the shield
could cause a short circuit and erratic behavior.
Special Note: Line Termination. When longer runs of cable are used, you may need to
use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt
resistor which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -).

www.sailwinlight.com
[email protected]
6
This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the
line. Using a cable terminator (Sailwin part number R-DMX/T) will decrease the possibilities of
erratic behavior
5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-512 data cables for DATA
transmission in place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When
inserting standard 5-pin data cables in to a 3-pin line a cable adaptor must be used, these adaptors
are readily available at most electric stores. The chart below details a proper cable conversion.

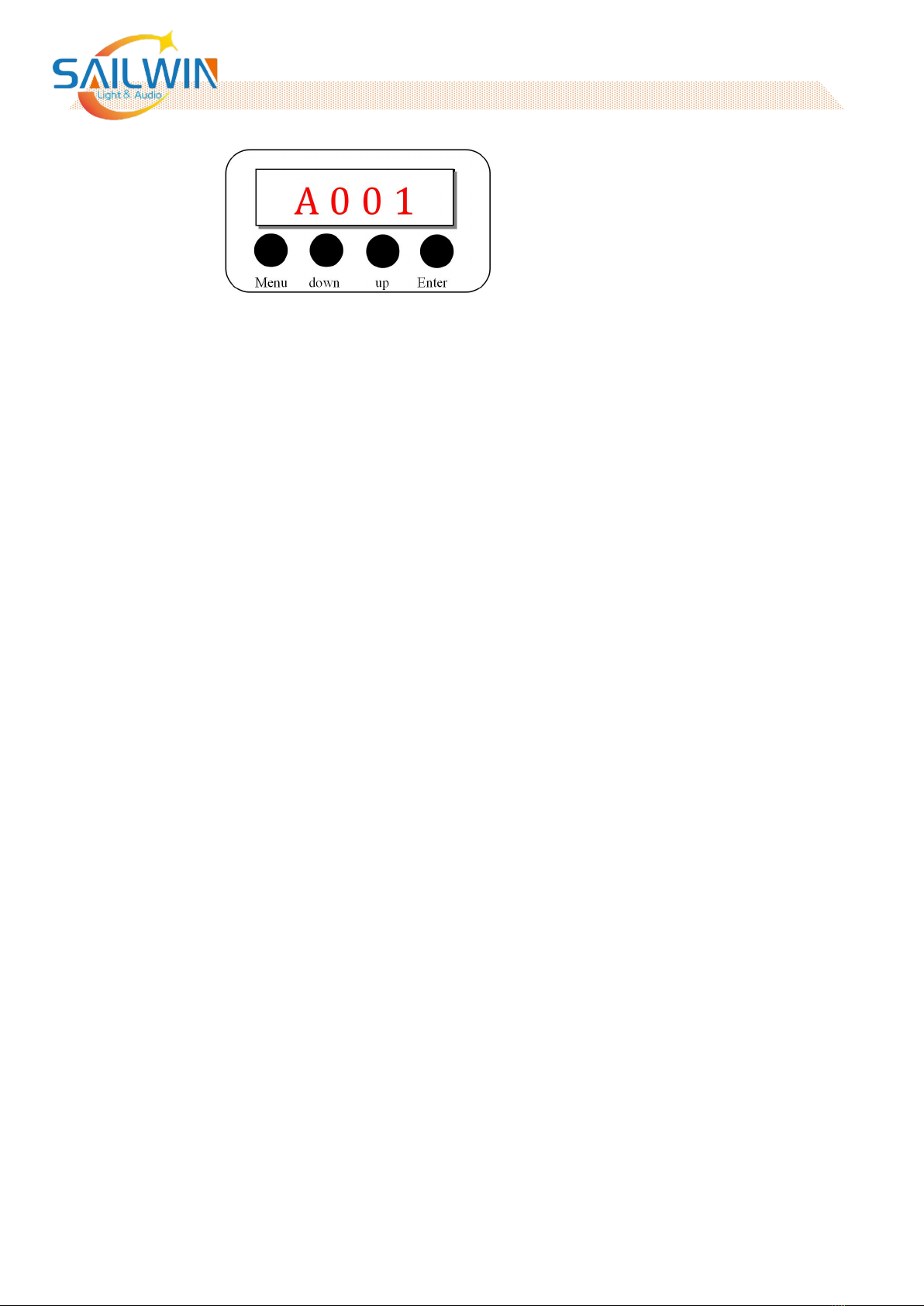

LED Display menu details. Press UP/DOWN and Enter Button to choose option and Confirm.

www.sailwinlight.com
[email protected]
7
LED Display Inversion:
After initialization, the unit is ready for setting and working.
This function will allow you to “flip”the LED display.
1. Plug the fixture in and press the MENU button until “ADDR”is displayed-ENTER “A001”
represents either DMX Connection Mode
2. Press the UP or DOWN button to “flip”the display. Press the MENU button to exit.
Default Running Mode:
This is a default running mode. When this mode is activated all modes will return to their default
settings.
1. Press the MENU button until “ADDR”ENTER- Press A001 and press ENTER for DMX Mode.
2. Press the UP and DOWN buttons simultaneously. Press the MENU button to exit.
3. Press MENU- UP/DOWN-SLDN –NAST(Master mode) SL1(Salve mode)
4. Press MENU- UP/DOWN –SHND-SOUN for sound active mode
5. Press MENU- UP/DOWN- SHND-COLO –AUTO to choose auto color mixing
6. Press MENU- UP/DOWN-SLND-NAST-UP/DOWN-SHND-COLO-CO1 to CO15
Static color and choose CO12 for the custom color.
7. Choose NANU then Enter then put the value of each color RGBA or RGBW then
Enter, to display the customized color go to CO12 or CO13 then press Enter.
Master-Slave Configuration:
This function will allows you to link units together to run in a Master-Slave mode. In
Master-Slave operation one unit will act as the controlling unit and the others will react
to the controlling unit’s built-in programs. Any unit can act as a Master or as a Slave
however, only one unit can be programmed to act as the “Master.”
Master and salve connection setting without using the DMX controller
1. Daisy chain your units via the XLR connector or DMX cable on the rear of the unit.
Use standard XLR data cables to link your units together. Remember that the Male
XLR connector is the input and the Female XLR connector is the output. The first
unit in the chain (master) will use the female XLR connector only. The last unit in
the chain will use the male XLR connector only.

www.sailwinlight.com
[email protected]
8
2. Set first light at “NAST”and rest of fixtures on SL1 Mode. It means first fixture will
be the master fixture which send same operating command to other fixtures of
the network(we call those other fixture on Slave mode or Sl1 or Sl2)
3. After done this setting of No 2, now all fixtures are connected and ready to go or
ready to get command of the first fixture or master fixture. Now you can set
different operating modes, example: sound active, static color, auto or fade. Once
you set the modes at first master unit other fixtures will start to project same the
effect as master unit did.
Master and salve connection setting by using the DMX controller
Connect the DMX controller and Fixture by using the DMX cable. Link other units with first
fixture and rest of unit, set all fixtures at Sl1 or Sl2 mode. Once you set the fixture it will
appear “A001” or “STBY” it means now fixture ready to go with DMX controller.
DMX Control:
Operating through a DMX controller gives the user the freedom to create their own
programs tailored to their own individual needs. Follow the directions below to set your
DMX Mode and address.
Before connecting to DMX controller, your fixture has different DMX channel modes,
please select your desired mode by pressing the DMX Mode button, then using the “up” or
“down” buttons to scroll through the DMX Channel Modes. Set the mode Sl1 or Sl2 before
you address the fixture.
How to group fixtures/ project different colors in different fixtures by using same
DMX controller/how to set DMX address so user can control the fixture and
project different color at same time by same DMX controller?
1. First make sure how many groups you are going to create which you are planning to control
by 1 DMX controller. In 1 group you can link minimum 1 to maximum 33 fixtures.
2. Link all fixtures with each other by Cable or link each group in DMX splitter. DMX splitter is a
device which helps to split the DMX signals to different group, DMX splitter will be useful
and needed if you are going to control over 33 fixtures at once. In market you can find 8
channels, 16 channels and 32 channel DMX splitter.
3. Once you made the link or network, Now you can put address value in “Addr” or “A001”.
Remember always that you need to put gap between 1st group and second group or third
group or in each group depends on the DMX channel. On Hex Lion par 18 it has 7/12 DMX
channel, let’s say user choose 12 DMX channel and want to make the 4 group each group it
has 10 fixtures. Set first 10 pcs fixtures to A001, set second group’s all 10pcs fixtures at
A013, set third group all fixtures at A026 and set all fixtures of the group 4 in A039. It
means that DMX controller feeder 1- 12 it will control fist group, 13-25DMX controller
feeder it will control group 2, 26-38DMX controller feeder will control the group 3 and 39-51
DMX controller feeder it will control the group 4. We put here gap of the 12 because we set
the light at 12DMX channel mode. hereA001(01), A013(13), A026 (026) and A039(39)
those in bracket (01),(13), (26) and (39) those it will be referred as DMX channel number 1
of each group also DMX controller’s feeder number. Use the feeder of the DMX controller to
control the fixtures separately.

www.sailwinlight.com
[email protected]
9
7 CH Modes
Channel
Value
Description
CH 1
0
No action
1-255
RED dimmer
CH 2
0
No action
1-255
GREEN dimmer
CH 3
0
No action
1-255
BLUE dimmer
CH 4
0
No action
1-255
Amber dimmer
CH 5
0
No Action
1-255
White dimmer
CH 6
0
No Action
1-255
Ultraviolet dimmer
CH 7
0
No Action
1-255
Strobe speed
12 CH Modes
Channel
Value
Description
CH1
0
No action(blackout)
1-255
RED dimmer--Bright
CH2
0
No action (blackout)
1-255
GREEN dimmer--Bright
CH3
0
No action (blackout)
1-255
BLUE dimmer--Bright
CH4
0
No action (blackout)
1-255
Amber dimmer-Bright
CH5
0
No action (blackout)
1-255
White Dimmer-Bright
CH6
0
No action(blackout)
128-255
UV dimmer-Bright
CH7
0-127
No action (blackout)
128-255
Static colors
CH 8
0
No action (blackout)
1-255
Shutter- ON/OFF
CH 9
0
No action (blackout)
1-255
Strobe speed
CH 10
0
No action (blackout)
1-255
RGBAWUV slow to fast ramdom color change
CH 11
0
No action (blackout)
1-255
Auto color change slow to fast without strobe
CH 12
0
No action (blackout)
1-255
Auto color change with strobe along with sound

www.sailwinlight.com
[email protected]
10
Trouble Shooting:
Listed below are a few common problems the user may encounter, with solutions.
Unit not responding to DMX:
1. Check that the DMX cables are connected properly and are wired correctly (pin 3 is “hot”; on
some other DMX devices pin 2 may be ‘hot’). Also, check that all cables are connected to the right
connectors; it does matter which way the inputs and outputs are connected.
SOME LED OFF or dead or color dead
Sometime due to shipping and pressed by the lens some leds may not project 1 or 2 color, to solve
the problem make sure which led are turnoff or dead, use pin or testpin to find the problem once
you find out the broken point do welding on that breakpoint.
Cleaning:
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be
carried out periodically to optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
2. Clean the external optics with glass cleaner and a soft cloth every 20 days.
3. Always be sure to dry all parts completely before plugging the unit back in.
Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog
residue, dust, dew).
Warranty:
We offer one year warranty,please contact us if you have any questions during
light not work properly.
Company: Guangzhou Sailwin Light&Audio Technology CO.,LTD
Add:NO3 Seiko Creative Park,Wangang Road Huadu District,Guangzhou,China
Email: [email protected]
Tel: [phone]
Phone: [phone]
