SainSmart DSO NoteII User manual

User Manual
DSO NoteII
Made in China
Design by SAIN SMART

● Read carefully all the following safety precautions to avoid personal injury and prevent damage
to the device or any products connected to it. Failure to follow these safety instructions could
result in personal injuries or risk of fire.
● Use proper power cord. Please use power cord specified for this product and certified for your
country/district of use.
● Connect and disconnect properly. Do not connect or disconnect probe or test leads while they
are connected to voltage source.Before you connect or disconnect current probes, please
disconnect power to the circuit under test.
● Observe all the terminal ratings. To avoid fire or shock hazard, please do not measure signals
at DC40V or above.Please read the User Manual carefully to learn more about ratings before
connection.
● Do not operate in a humid environment.
● Do not operate in a potentially inflammable/explosive atmosphere.
● Please keep the device surface clean and dry.
Safety Statement
1. General Safety Information
- 2 -
Contents
Safety Statement
DSO NOTE II Overview
Interface Introduction
Getting Started
Functional Overview
Product Inspection
Battery Disposal
Technical Support
- 1 -
2
3
7
11
18
24
25
26

DSO NOTE II Overview
2. Operating Environment
Operating Environment
Temperature
Humidity
Requirement
Operating Condition: +0°C to 50°c
Non-operating Condition: -20°c to +60°c
Operating Condition: High Temperature：40°C to 50°C,0% to 90%RH
Low Temperature : 0° C to 40°C,10% to 90%RH
Non-operating Condition: High temperature：40°C to 60°C,5% to 95%RH
Low temperature：0° C to 40°C,5% to 95%RH
1. Specifications
Performance parameters
- 3 -
Functionalities
Coupling
Analog bandwidth
Maximum sampling rate
Analog input impedance
Maximum input voltage
Maximum sample memory depth
Horizontal sensitivity
Vertical sensitivity
AC/DC
1MHz
10MSa/s
1MΩ
±40V(X1 probe)
8K
1uS/Div~2S/Div(in 1-2-5 sequence step)
20mv/Div~10V/Div (in 1-2-5 sequence step)
Modes
Trigger mode
Synchronous mode
Math waveforms
Auto measurement
Inbuilt signal Generator
Vertical precise, horizontal precise measurement andtrigger threshold
Rising/Falling edge trigger
Auto，Normal，Single，None，Scan
A,-B，A+B，A-B，RecA，RecB，RecC
frequency, cycle time, duty cycle,DC RMS voltage/Vpp /Vmax/Vmin/Vavg
10Hz~1MHz square wave (duty adjustable) or 10Hz~20KHz Sine/Square/
Triangle/Sawtooth wave
- 4 -

2. Interface & Buttons
Storage
Operation
Dimension
Battery
Display
Inbuilt 8MB U disk storage for waveform data and images
Capacitive touchscreen,supporting swipe gestures
(100mm×56.5mm×10.7mm)
Internal 550mAh Lithium battery, external USB port
Color TFT LCD display (320X240 pixels)
Product parameters
Run/Pause Button
Slide option area
Sub-menu selection
Charge indicator Selection/Confirmation &
Display/Hide menu
USB
Power Button
USB Port
Wave Out
Signal Input
Standby indicator
DSO NOTE II
- 5 -
3. Operation on option area
● Capacitive touchscreen
● Supporting swipe gestures
● Tap
● Vertical slide ● Horizontal slide
M
s
||
Button Function
1) Run/Pause
2) Save current parameter/screen display(long
1) Menu display/hide
2) Sub-menu confirmation
Upward selection(Slide Up)
Downward selection( Slide Down)
Reset Parameters(Tap Right/Increase, Slide Right)
Reset Parameters(Tap Left/Reduce, Slide Left)
Sub-menu On/Off
* Note that each item's
color in Parameter Area
is the same as that in
Measurement Area.
- 6 -

Interface Introduction
Function
1. Home screen introduction
a.Measurement area
a.Measurement area introduction
b.Option area
c.Parameter area
Menu
△ V=V1-V2
Measured Value (Blue corresponds
with Channel A,Yellow with Channel B)
corresponding the 1st and 2nd item in
Page2
△ T=T2-T1
- 7 -
b.Option area introduction
Page1(oscilloscope)
A channel option
B channel option
C channel option
TimeBase option
Trigger option
Vernier option
Horizontal window
- 8 -

Page2(Measurement)
Frequency
Duty ratio
Root-mean-square value
Voltage average value
Voltage peak-to-peak value
Battery voltage
Page3(option)
File management
Output option
System settings
Adjusting option
Product information
Relevant information
- 9 -
c..Parameter area introduction
//Battery supply// / USB charging/Full charge
Menu Item Functions(Operation: Tap ,or Slide)
20mV-10V(1-2-5sequence step) AC/DC (Channel A) y-axis voltage per grid, AC/ DC coupling method
20mV-10V(1-2-5sequence step) AC/DC (Channel B) y-axis voltage per grid, AC/ DC coupling
(-A): Ch_A waveform reverses
(-B): Ch_B waveform reverses
(A+B): Ch_A waveform overlaps with Ch_B waveform;
(A-B): Subtraction of channel A waveform and channel B waveform
RecA: Reload the last waveform saved in Ch_A;
RecB: Reload the last waveform saved in Ch_B
RecC: RecC: Reload the last waveform saved in Ch_C
(-A)/(-B)/(A+B)/(A-B)/RecA/RecB/RecC
AUTO/NORM/SINGL/NONE/SCANSTOP Auto/Normal/Single/Slow Scan/Instant Scan/Run/Pause
1.0uS-1S(1-2-5sequence step) Timebase (x-axis voltage per grid)
Trigger mode: falling edge trigger / rising edge trigger
- 10 -

In the Power On state, press Power
Button “ ” for approximately 2 seconds
to pop-up “Power Off” menu,according
Icon operation Choose Power Off. (In the
Power On state, long press “ ” Power
Button for approximately 8 seconds to
force Shut Down.)
Getting Started
1. Power On/Off
a. Starting up
Power On/Off Button
b. Forced ShutDown
c. The Default get into APP1
In the Shutdown state,
press “ ” Power Button
for approximately 2 seconds
to start normally.
d. Upgrade mode
Long press “ ” Power Buttonfor approximately
4 seconds to get into DFU mode.
- 11 -
2. Check up before use
Connect probes to
both the MCX and
CHA input jacks
Adjust relevant parameters
of CH A：
a. Adjust the DC mode in AC/
DC function in CH A
b. Voltage adjustment: adjust
probe X1 to 1V, adjust probe
X10 to 0.1V
Measure WAVE OUT
outlet waveform
- 12 -

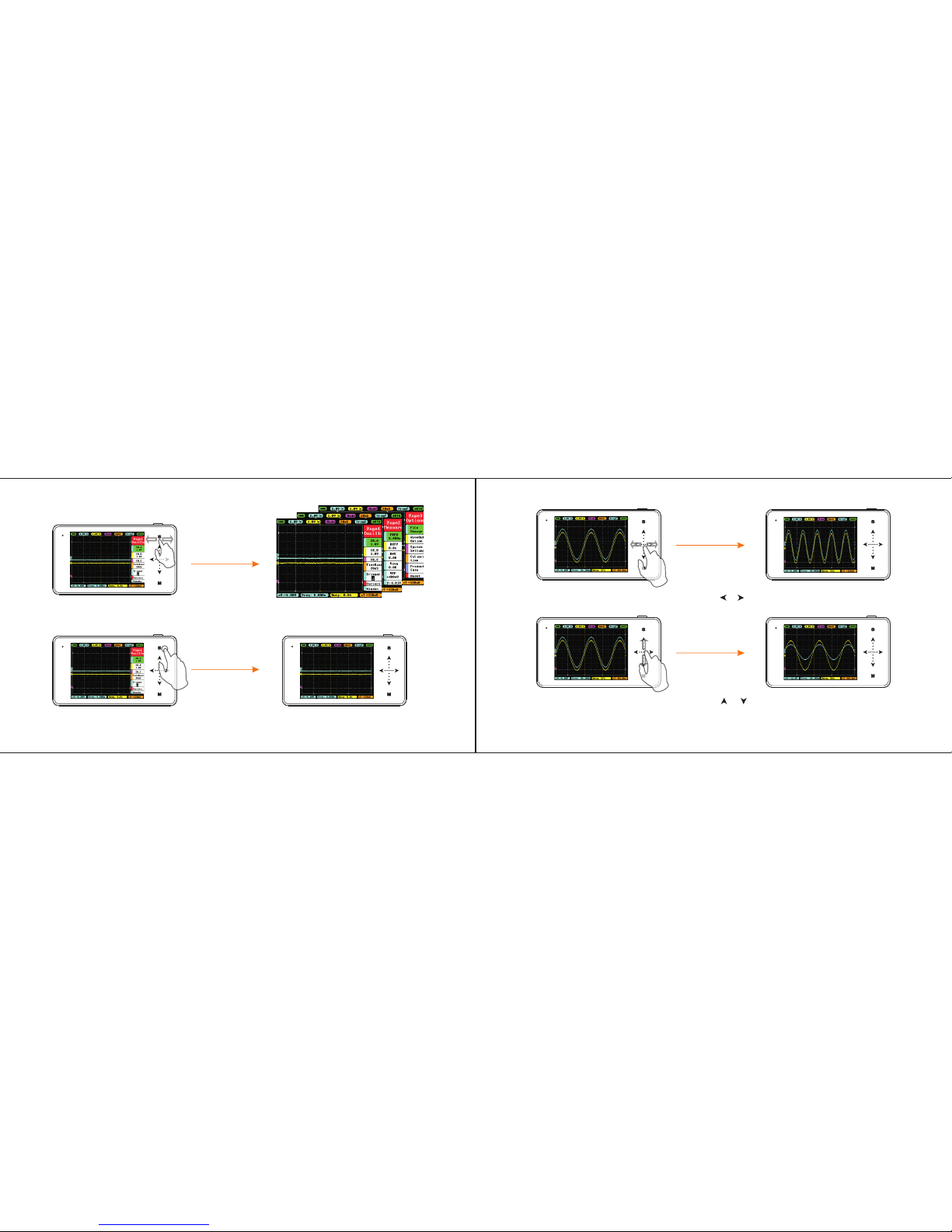

3. Operation Introduction
In the Main Menu interface, you can switch between the Main Menu pages by
sliding horizontally on the upper Touchpad.
In the Main Menu interface, tap “S” button,to switch the Main Menu Display/ Hide.
- 13 -
When the Main Menu is hidden, you can slide ··· horizontally to change the TimeBase.
When the Main Menu is hidden, you can slide ··· vertically to change voltage.
(shortcut for Channel A only)
- 14 -

In the Main Menu interface, tap “M” Button to switch
the Sub-menu to Display/Hide.
In the Sub-menu interface, tap “S” Button to confirm the selection of operation.
- 15 -
In the Main Menu or Sub-menu interface, tap" "" "or slide vertically to select items upward or downward.
In the Main Menu or Sub-menu interface, tap" "" "or slide horizontally to adjust the Menu parameters
(When you move Positions in Sub-menu interface, tap and hold your finger for continuous operation).
- 16 -

In the Main Menu or Sub-menu interface,tap and hold an non-
button identification area to Display/Hide file management
sub-menu.
When you turn on “Auto Fit” in “Trigger”, double-tap the non-button identification area,
the device will automatically adjust the amplitude, the time base and the trigger grid.
- 17 -
1. Specific Parameter Intro
Menu
In the System Setting interface, when “PostSlide” is ON, vertically slide up/down the Touchpad in the left
to adjust the position.
Functional Over view
Annotation for Functions
Page1
Oscillo
Options Functions Description
Voltage
Post
Channel A y-axis voltage per grid
Adjust Channel A waveform position
upward/downward in the window
20mV/50mV/0.1V/0.2V/0.5V/1.0V/2.0V/5.0V/10V
Position:5-195
AC/DC channel A coupling AD/DC
Enable channel A display/hide ON/OFF
- 18 -

Menu Annotation for Functions
Page1
Oscillo
Options Functions Description
Voltage
Post
AC/DC
Enable
Channel B y-axis voltage per grid 20mV/50mV/0.1V/0.2V/0.5V/1.0V/2.0V/5.0V/10V
Adjust Channel B waveform position
upward/downward in the window Position: 5-198
channel B coupling AD/DC
channel B display/hide ON/OFF
Match
Post
Enable
Calculation between CH_A
waveform and CH_B waveform –A, -B, A+B, AB, RecA, RecB, RecC
Adjust CH_C waveform position
upward/downward in the window Position: 5-198
CH_C display / hide ON/OFF
TimeBase TimeBase X-axis voltage per grid 1.0us-2.0s(1-2-5 sequence step)
Syncmode
Trigmode
Source
Threshol
Syncmode trigger mode selection
AUTO/NORM/SINGL/NONE/SCAN
Automatic /standard /single pass /
slow scan /immediate scan
Choose the Triggering Mode
Choose the Triggering channel
Horizontal Triggering Position Level
Rising edge/Falling edge Triggering mode
CHA/CHB
Position:5-198
- 19 -
Enable
Auto Fit
Display/Hide Horizontal
Triggering Position Level
Automatic adjustment
ON/OFF
ON/OFF
Menu Annotation for Functions
Page1
Oscillo
Options Functions Description
T1.Post
T2.Post
Enable.T
V1.Post
V2.Post
Enable.V
Time measurement cursorT1
Time measurement cursor T2
Display/Hide Time
Measurement cursor
Voltage Measurement Cursor V1
Voltage Measurement Cursor V2
Display/Hide Voltage
Measurement cursor
Position: 5-198
Position:5-198
ON/OFF
ON/OFF
ON/OFF
Site selection: 5-198
Site selection:5-198
CHA/CHB/OFF
Post
Depth
Enable
Horizontal movement
to view waveform
Internal storage depth
Display/hide Trigger line cursor
Depends sample memory depth
1k～8k
Page2
Measure
Source
Type
Enable
Choose the Measurement channel
Choose the Measurement Type
Display/Hide measurement window
CHA/CHB
FREQ/DUTY/RMS/Vavg/Vpp/Vmax/Vmin
- 20 -

ON/OFF
Source
Type
Enable
Choose the Measurement channel
Choose the Measurement Type
Display/Hide measurement window
CHA/CHB
Menu Annotation for FunctionsOptions Functions Description
Page2
Measure
FREQ/DUTY/RMS/Vavg/Vpp/Vmax/ Vmin
ON/OFF
Source
Type
Enable
Choose the Measurement channel
Choose the Measurement Type
Display/Hide measurement window
CHA/CHB
FREQ/DUTY/RMS/Vavg/Vpp/Vmax/ Vmin
ON/OFF
Source
Type
Enable
Choose the Measurement channel
Choose the Measurement Type
Display/Hide measurement window
CHA/CHB
FREQ/DUTY/RMS/Vavg/Vpp/Vmax/ Vmin
ON/OFF
Source
Type
Enable
Choose the Measurement channel
Choose the Measurement Type
Display/Hide measurement window
CHA/CHB
FREQ/DUTY/RMS/Vavg/Vpp/Vmax/ Vmin
Vbat Battery voltage
Save Param
Save Bmp
Save current parameter settings
Save bmp file (waveform image) to
the built-in U disk.(Shortcut: long
press”Run/Pause”button
Tap “S”button to Save
Tap “S”button to Save
Page3
Setting
- 21 -
Menu Annotation for FunctionsOptions Functions Description
Tap “S” button to Save
Tap “S” button to Save
Tap “S” button to Save
Save Dat
Save Buf
Save Csv
Load Dat
Load Buf
Save dat file to built-in U disk
Save buf file (sampling data in
buffering area) to built-in U disk
Save csv file (export sampling data
in buffering area) to built-in U disk
Load dat file
Load buf file
Tap “S” buttonLoad files
Tap “S” buttonLoad files
Type
Freq
Duty
Output signal type
Output signal frequecy
Output signal duty cycle
squar/sine/triangle/sawtooth
Squar（10Hz-1Mhz）sine/
triangle/sawtooth（10Hz-20kHz）
10%-90%
Volume
Blight
Standby
Adjust buzzer volume
Adjust backlight brightness
Adjust standby time
0%-90%
10%-100%
1min-30min
PowerOff
MenuCycle
ItemCycle
PostSlide
Auto power off time
Main Menu option cycle
Sub-menu option cycle
Ripid Slide post
1min-30min
ON/OFF
ON/OFF
ON/OFF
Page3
Setting
- 22 -

Choose the items in parameter area through tapping " "/" " buttons or sliding in, tap "M" button to access parameter
setting menu, tap " "/" " or Slide in Choose the parameter item, and then tap " "/" " or Slide in to change the
parameter value of the place where the cursor blinks.
Menu Annotation for FunctionsOptions Functions Description
Page3
Setting
Calibrate Zero
Restore Data
Tap "S" Button, Auto Calibration window pops up retap "S" to perform Auto
Calibration, after Auto Calibration is completed, tap "S" Button to confirm
saving the calibrated data.
Tap "S" Button, from a pop-up window, you can select Restall in the dialog that
appears, then tap "S" to perform Auto Calibration, after Auto Calibration is
completed, tap "S" Button to confirm saving the calibrated data.
DeviceSN
Hardware
MCU Typy
LCD Typy
USB Disk
DFU Typy
APP Typy
device serial number
Hardware version number
Processor type
LCD screen mode
U Disk capacity
DFU version
APP version
Relevant ancillary information
- 23 -
Product Inspection
1. Charge and monitor the battery
2. General Inspection
When the battery voltage status turns to or display brightness is relatively dim, please charge
the battery in time.Charging is available in both power-on and off mode. When the battery is being
charged, the LED will light on until the charging process is finished.
In case of any problems, long press " " Power Button for eight seconds to force Shut Down.
● When you get a new DSO NOTE II oscilloscope, you are advised to inspect the product by the following steps.
● Inspect damages caused by shipping.
If the packaging carton or the protection pad is seriously damaged,keep the package until the oscilloscope &
accessories pass the electrical and the mechanical test.
● Inspect the product. Please contact the company if the following problems occur:
1) product surface is damaged,
2) product doesn't work properly,
3) product does not pass performance test.
If the damage is resulted from shipping, please keep the package and contact the company for repair
or exchange.
- 24 -

1. Regulatory Markings
Battery Disposal
3. Inspecting
Make a quick inspection of functions to ensure the device is working soundly. Please perform following steps:
● Turn on power and access the homepage of the mini oscilloscope.
● Connect the oscilloscope with standard signals (e.g. square wave 20KHz，Vpp=5V), set the switch on
probe tip as 1X, plug oscilloscope probe to the Input Channal.Check whether the measured signal value
is the same as the standard value; it can be calibrated if the margin is small.
FCC compliance statement
This device is complied with the regulation in the 15th part of FCC regulation.
Operation is subject to the following two conditions:
● This device may not cause harmful interference,and
● This device must accept any interference received, including the interference that may
cause undesired operation.
The CE mark is a registered trademark of European Community.
This CE mark shows that the product complies with all the relevant European Legal Directives.
- 25 -
1. Firmware upgrading
Technical Support
Do not dispose in domestice household waste
● This device complies with the WEEE Directive (2002/96/EC) marking requirement.
This affixed product label indicates that you must not discard this electrical or electronic
product in domestic household waste.
● Disposal and recycling: you must dispose the mini oscilloscope according to local law and
regulations. As the oscilloscope contains electronic building brick and battery, you must
dispose it respectively with garbage.
● Please dispose the battery in accordance with local environmental regulations.
- 26 -
DSOIIAPP.hex
HEX 文件
146 KB
DSOIIAPP.RDY
RDY 文件
164 KB

To upgrade the firmware of oscilloscope, please carry out the operation below：
● Open web browser to visit www.sainsmart.com, download the newest firmware appropriate to oscilloscope
to your PC.
● Press DSO NOTE II 's Power button “ ” for approximately 4 seconds to enter into DFU firmware
upgrading mode and the indicator light flickers.
● Use USB data cord to connect DSO NOTE II to your PC, and a removable hard disk named
“DFU V3_40_D” will appear on your PC. Copy the hex firmware to the root directory of that disk.
After the extension of the firmware changes from “hex” to “rdy”, restart DSO NOTE II. Then the
upgrading process is finished.
- 27 -
Love all SainSmart products? Stay up-to-date by following us on Facebook and youtube!
You'll never miss out on the best promotions and giveaways reserved for our wonderful suppoerters.
Enjoy giveaways, prizes, and other great benefits offered exclusively to members.
Learn more about the SainSmart DSO Note II refer to the SainSmart product page at:
www.sainsmart.com
