Sakamoto Auscultation Simulator 2 M164-1 User manual
SAKAMOTO Auscultation Simulator 2
User's Manual
-
··································
···························
····························
·······················
·······································
···································
·································
····················
-············
···························
······························
·············
３
-
（QR コード）
- 41 -
- 42 -
Table of contents
- ·································································
- ···································································
- ···························································
- ················································
- ·····················································
- ·····································
-······························
- ·············································
- ······························································
-
-································································
- ·····················································
- 43 -
Thank you very much for purchasing the "Sakamoto Auscultation
Simulator 2".
l.
■About this user's manual
●If you have any questions
-
●Cautions and other symbols
.
●About illustrations
1Introduction
- 44 -
-
2Product contents
- 45 -
■Body
●Do not subject the body to severe impacts or other forces.
●Do not get the product wet or immerse it into water.
●Do not write on the body with items such as ballpoint pens.
●Do not touch against printed items.
■Tablet
●Do not use the tablet for other applications.
-
●Handle the tablet's screen carefully.
3Cautions on use
- 46 -
■General product handling
●Do not process or modify the product.
●Do not use continuously for long periods.
●Do not pull the cables with excessive force.
●Hold the power cable by the plug when disconnecting it.
.
●If you notice any problems when using the product, stop using it.
●Do not store in places which are exposed to high temperatures, high levels of
humidity or large amounts of dust.
●There are limits to the effectiveness of simulator training.
●Do not use this product for other applications.
- 47 -
4-1 Outline of Functions
(1) Auscultation of breathing sound
-
-
(2) Auscultation of heart sound
-
.
(3) External output of sounds
-
(4) Saving and loading memory files
4Product applications
- 48 -
4-2 Training Examples
●Example of training for checking breathing sound
- 49 -
<Installing the chest cover>

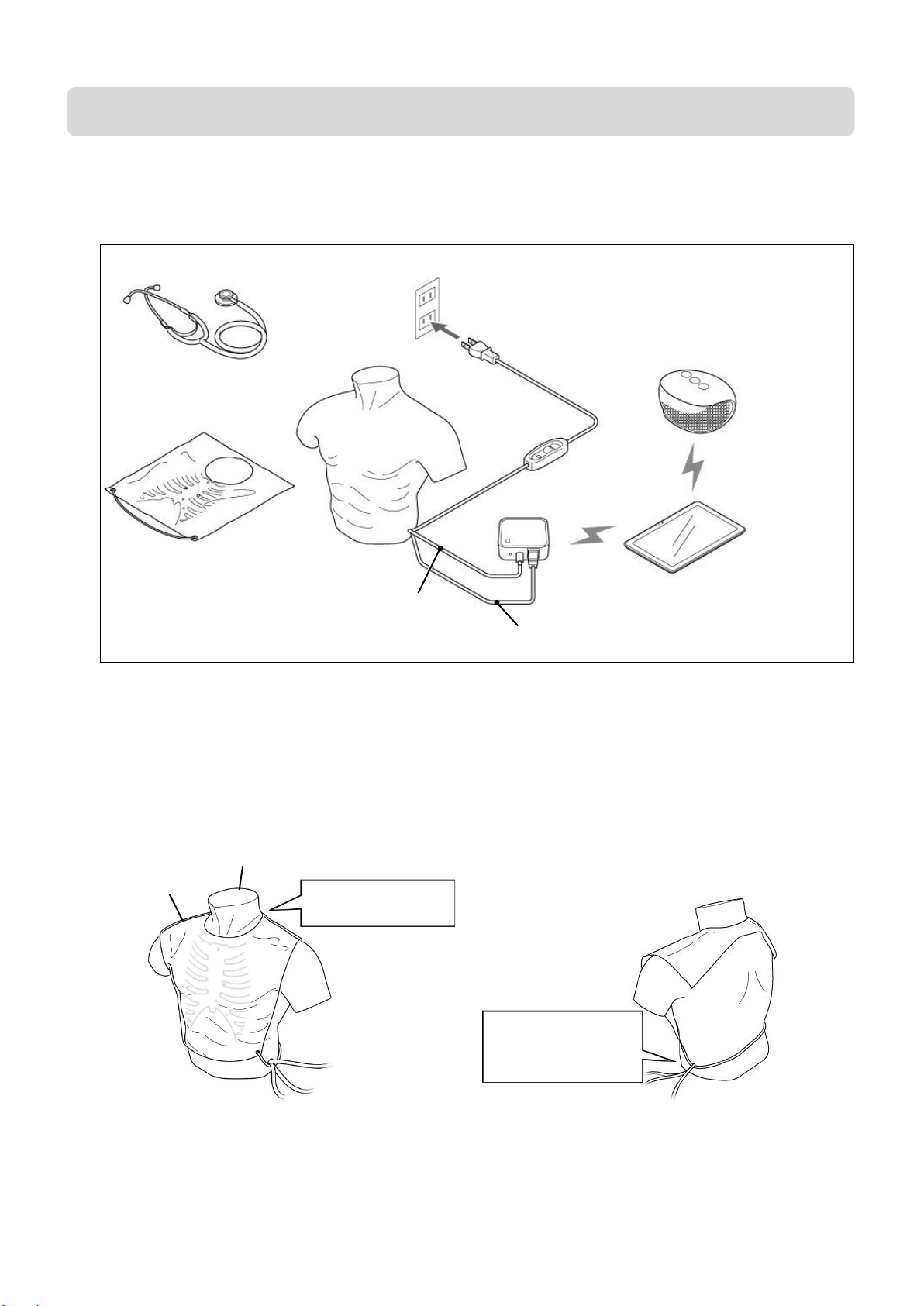

5Part names / Overall connection diagram
-
- 50 -
❶ Refer to "5 Part names / Overall connection diagram" (P.49) while making
the connections.
❷ Turn on the power switch of the body.
❸ Turn on the power switch of the tablet.
After the router and the tablet have started up, the Wi-Fi connection will be
enabled.
6Preparation
-
-
-
If the Wi-Fi connection is not enabled even after the router has finished starting up,
(the indicator is illuminated), connect the Wi-Fi while following the procedure in "Wi-Fi
connection is not enabled" (P.51).
When the power has turned on,
the indicator will illuminate.
ON
- 51 -
❹ (Using the external speaker)
Turn on the power switch of the external speaker.
Bluetooth communication with the tablet will be enabled.
<Wi-Fi connection is not enabled>
❶ Check the wireless password which is written on the label on the base of
the router.
- 52 -

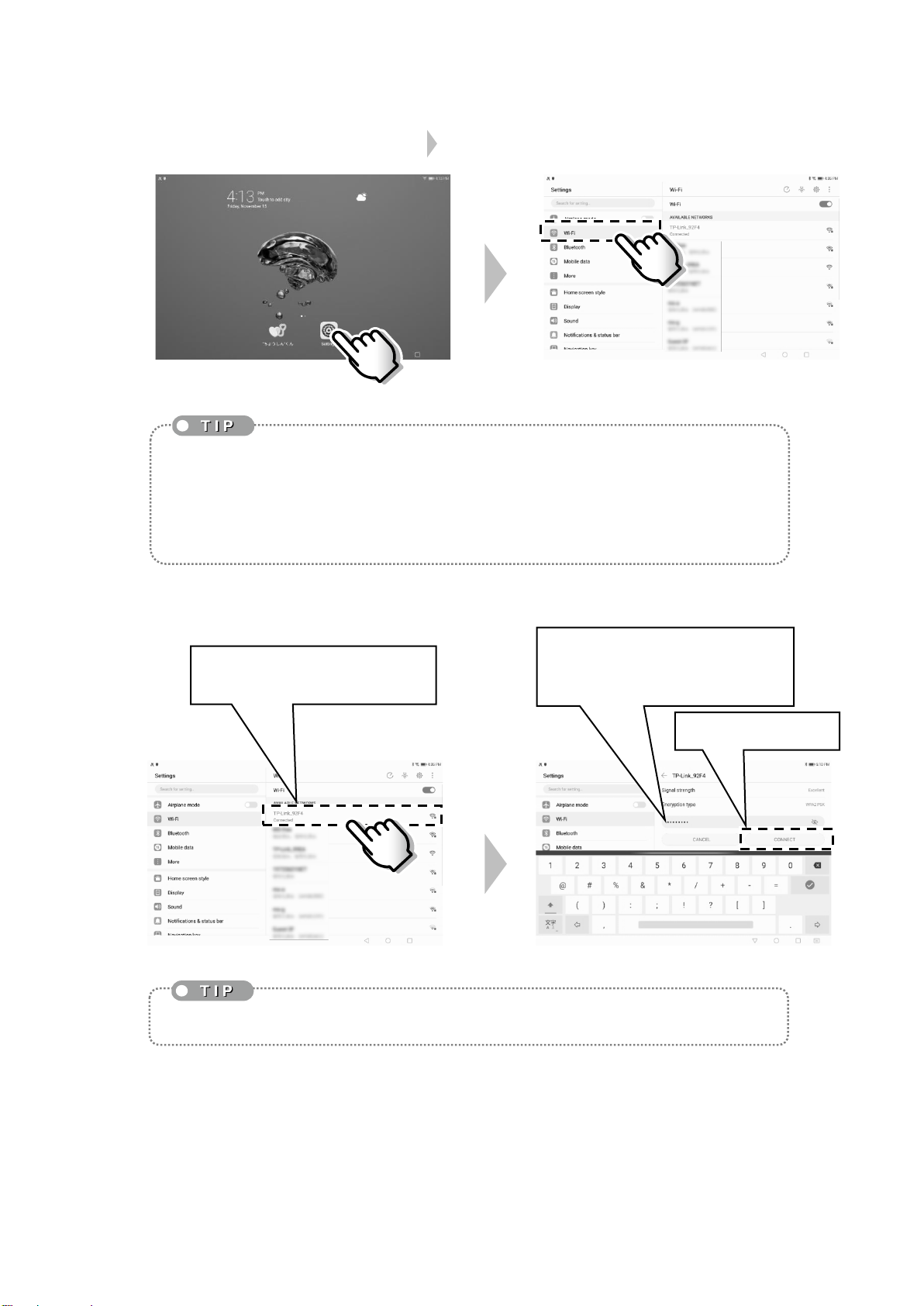

❷ Tap [Settings] on the tablet. Tap [Wi-Fi].
❸ Connect by following the procedure given below.
-
その際、接続先（本製品のタブレット）の機器（）種別は（アンドロイド）
となりますので、該当する手順にしたがってください。
(2) Enter the wireless password
which was checked in step ①
into the password text box.
( (3) Tap [CONNECT].
(1) Tap the connection name
(TP-Link_****).
- 53 -
❹ Return to the home screen, and tap ["ちょうしん"くん].
- 54 -
-
7-1 Basic Tablet Operations
(1) Tap
(2) Slide
-
(3) Character input
-
7How to use
- 55 -
7-2 Auscultation of Breathing Sound
◆Operating method
❶ Tap [Breathing Sound] on the tablet screen.

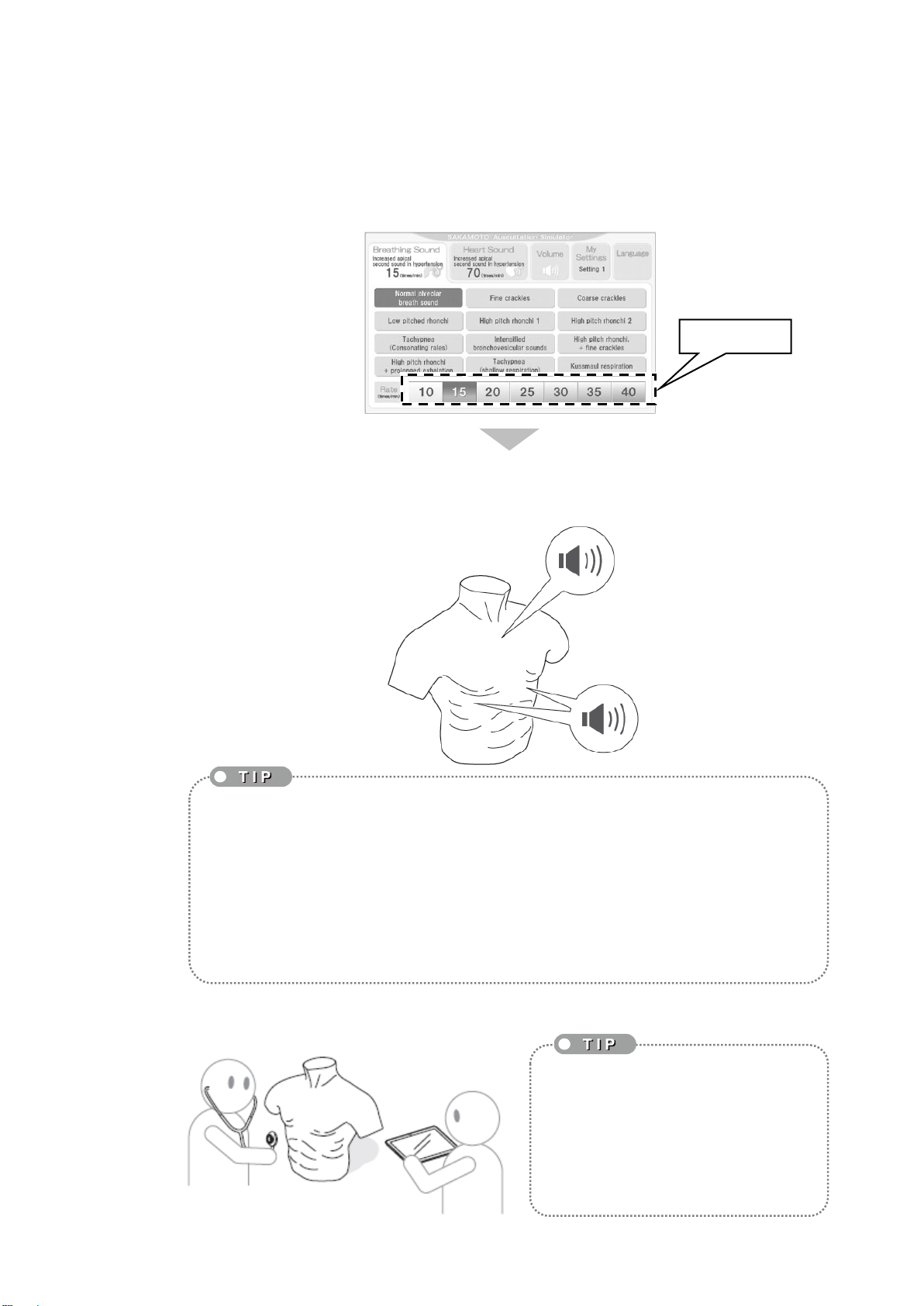

❷ Tap the breathing sound which you would like to use. (There are 12
choices available.)
②
③
Tap the breathing
sound.
- 56 -
❸ Tap the rate which you would like to set. (The rate can be set within
the range of 10 - 40 times per minute or 30 - 60 times per minute in
increments of 5.)
The breathing sound will come from the airway and the left and right
lungs of the body.
❹ Use the accessory stethoscope for training.
②-
-
② ③
-
Tap the rate.
- 57 -
◆Types of breathing sound that can be set
-
-
（）
-
- 58 -
7-3 Auscultation of Heart Sound
◆Operating method

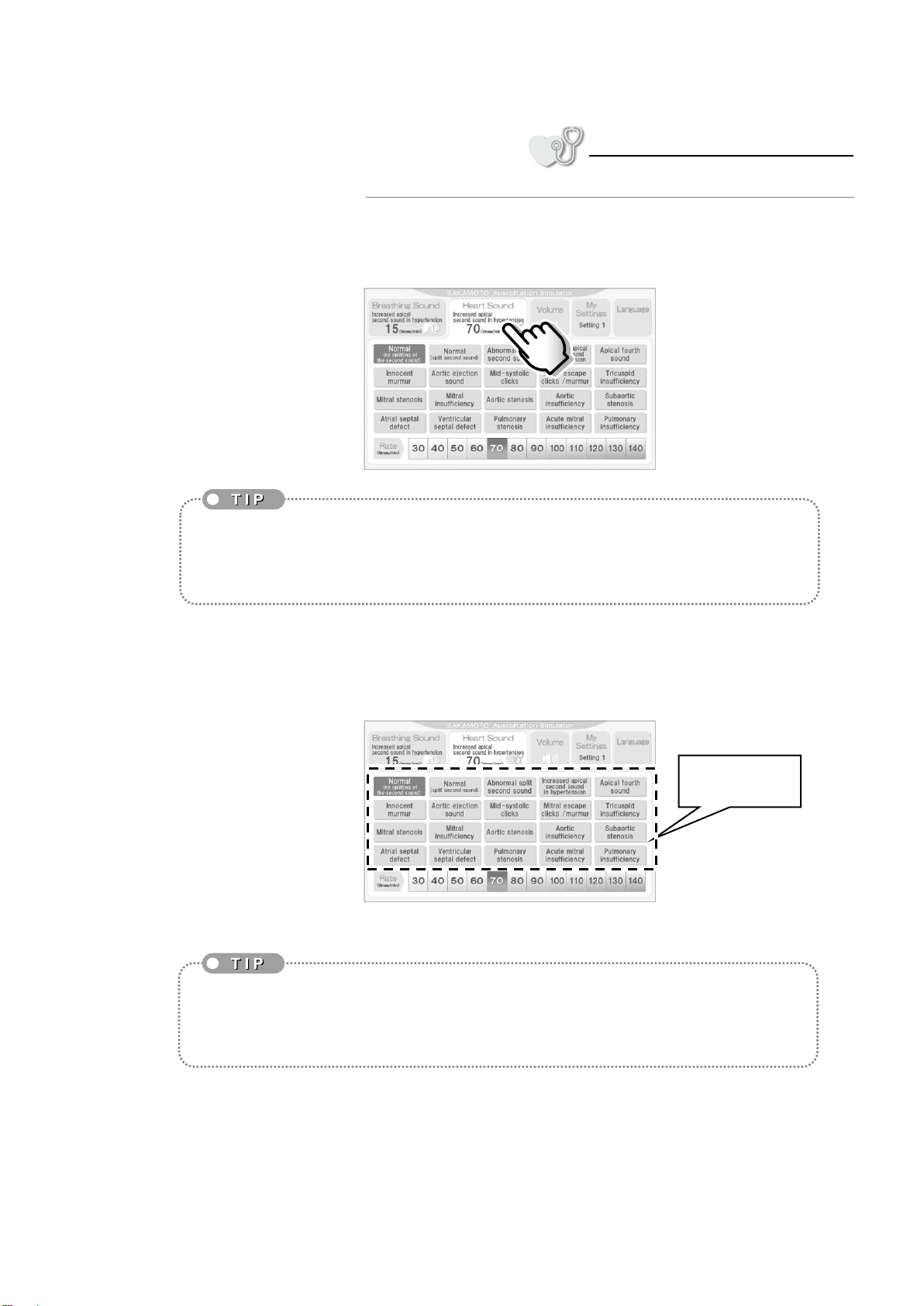

❶ Tap [Heart Sound] on the tablet screen.
❷ Tap the heart sound which you would like to use.
(There are 20 choices available.)
②
Tap the heart
sound.
③
- 59 -

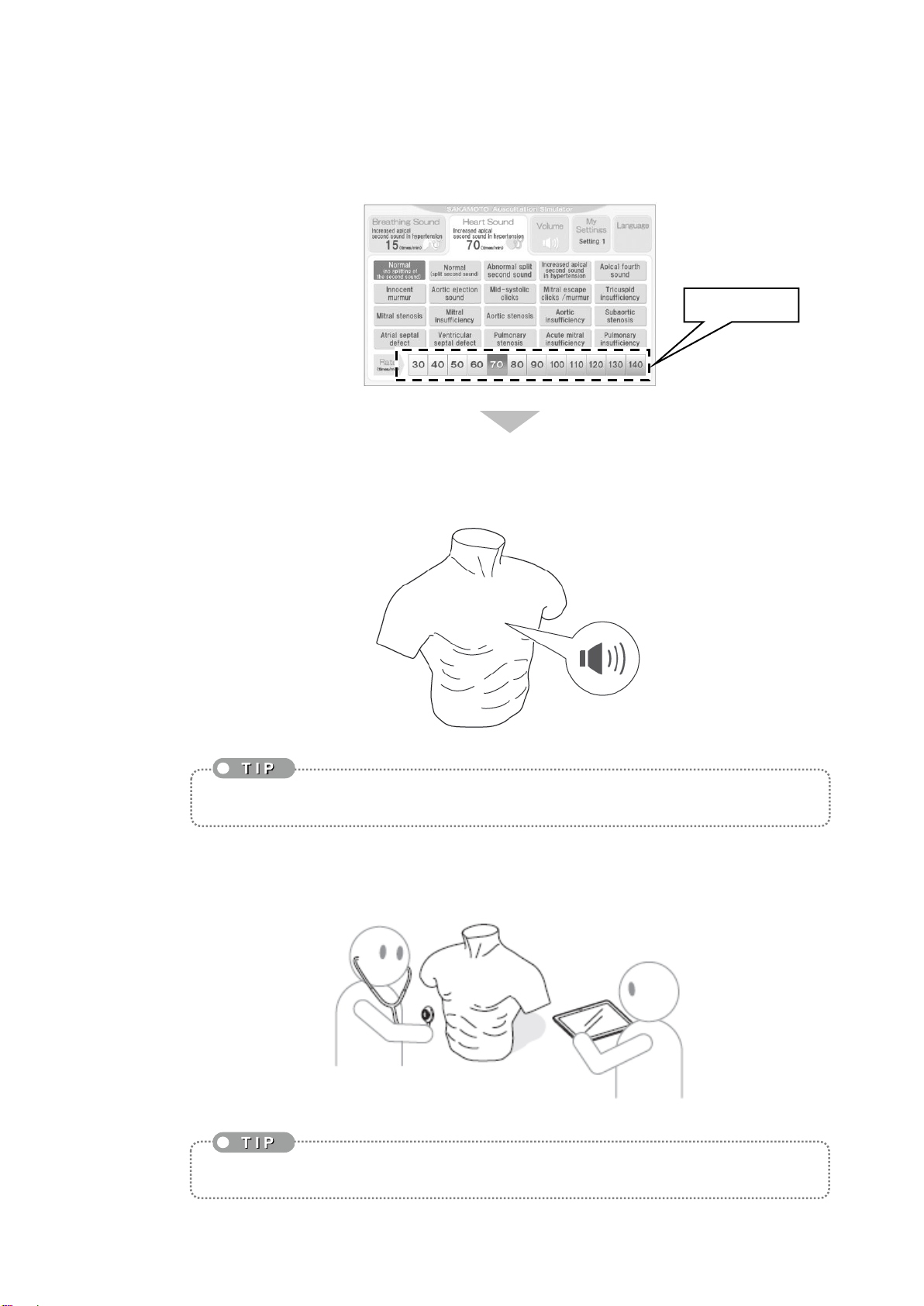

❸ Tap the rate which you would like to set. (The rate can be set within
the range of 30 - 140 times per minute in increments of 10.)
The heart sound will come from the left and right cardiac base, the left
edge of the sternum and the cardiac apex.
❹ Use the accessory stethoscope for training.
② ③
-
Tap the rate.
- 60 -
◆Types of heart sound that can be set
Aortic insufficiency
-
