SALICE F70 Clips User manual

F70
ENGLISH

INDEX
Fixing page 7
Technical information page 8
Part number composition and packing page 11
F70 SMOVE page 23
Runner for drawers with decelerated closing for side thicknesses up to 16 mm
F70 PUSH page 27
Runner for drawers with Push opening system for side thicknesses up to 16 mm
F70 FIXING CLIP page 13
F70 ADJUSTMENTS page 17
ACCESSORIES page 31
Synchroniser for F70 Push runners page 32
Drawer drilling templates page 35
Lever for the tilt adjustment page 37
Fixing screws page 37
3

Smove
F70
Smove
50 mm
F70 is the new Salice heavy-duty high-capacity drawer runner. It can be used with both wooden drawers and Lineabox
aluminium drawers.
The 500 mm length F70 has successfully completed the extremely demanding static and dynamic tests*required for the
certication of its load capacity up to 70 Kg thus demonstrating its high levels of performance, its extreme versatility and
adaptability to any furniture application.
This runner is available in the Smove version, characterised by decelerated closing and in the Push version for all handle-less
drawers. The Push version can be equipped with a synchronisation system that allows the opening of drawers of any width.
Pressure at any point of the drawer frontal (even at the extremities), is sufcient for the Push devices to release and
consequently for the drawer to self-open with minimum effort.
Both versions are available in the full range of lengths from 350 mm to 750 mm.
All versions and lengths of F70 have an integrated rack system, which synchronizes the three sliding elements of the runner
and guarantees excellent lateral stability and a perfectly silent sliding movement without the need for further components.
F70 is equipped with direct and intuitive tool-free adjustment of side, depth, height and tilt of front panel.
Its features and distinctive elements make F70 a complete runner, suitable to meet all needs and usable in a wide variety
of furniture and room settings: from the kitchen to the bathroom, as well as living spaces, bedroom, ofce, and wherever a
versatile product is needed with extreme durability and high load-bearing capacity.
* tests performed according to the DIN EN 15338 standard
In the Smove version, the F70 runner is equipped with a fully
integrated soft close system that decelerates the closing
action of the drawer.
4

The F70 runner is also available in the version with
integrated Push opening system, for all handle-less drawers.
A slight pressure of the drawer frontal is sufcient for the
Push mechanism to release and consequently for the
drawer to self-open with minimum effort.
The synchronisation system optimises the opening movement of wider drawers.
Even a slight pressure at the extremities of the drawer frontal opens the drawer quickly and easily.
Synchroniser for F70 Push runners (Optional)
5

F70
Clip
Fixing clip with pressed steel components giving direct and
intuitive tool-free sideways and depth adjustment of the
drawer frontal.
The adjusters for height and tilt (optional) of the drawer
frontal are located on the runner.
Rack system
All versions and lengths of F70 have an integrated rack
system, which synchronises the three sliding elements of
the runner and guarantees excellent lateral stability and a
perfectly silent sliding movement without the need for further
components.
6

10 9 9
37
9 32
9.5
99 9
14
32
12
2
ø7
ø 6.3
0
-0.2
ø7 +0.5
-0.2
ø 4
ø 6.3
38
+/- 4.5
+/- 6
+/- 4.5
+/- 6
Screws, see page 37.
Fixing of the full-extension runner on the cabinet side
Fixing
The oval slots on the runners enable a depth adjustment of +/- 4.5 mm and a height adjustment of +/- 6 mm to be made.
These adjustments are in addition to those incorporated in the xing clips and in the runner (Adjustments, see page 17).
EUROSCREW
Pre-drilling ø 5 mm
If the xing of the runners is carried out before the assembly of the cabinet, we recommend that the inset position of the runner is increased
from 38 to 39 mm to accommodate the manufacturing tolerances in the cabinet and the runner.
7

350
400
450
500
550
600
650
700
750
2350
38
10
37
MIN 360
MIN 410
400
38
37
450
MIN 460
37
14
500
37
550
37
MIN 560
MIN 510
12
64
MIN 610
37
MIN 660
600
650
37
64
MIN 710
37
700
750
MIN 760
37 416
416
10
38
10
383838
38
38
38
10
10
10
10
10
10
14
32 32
32
32
416
96
320
320
320
256
256
256
88
49
65
103

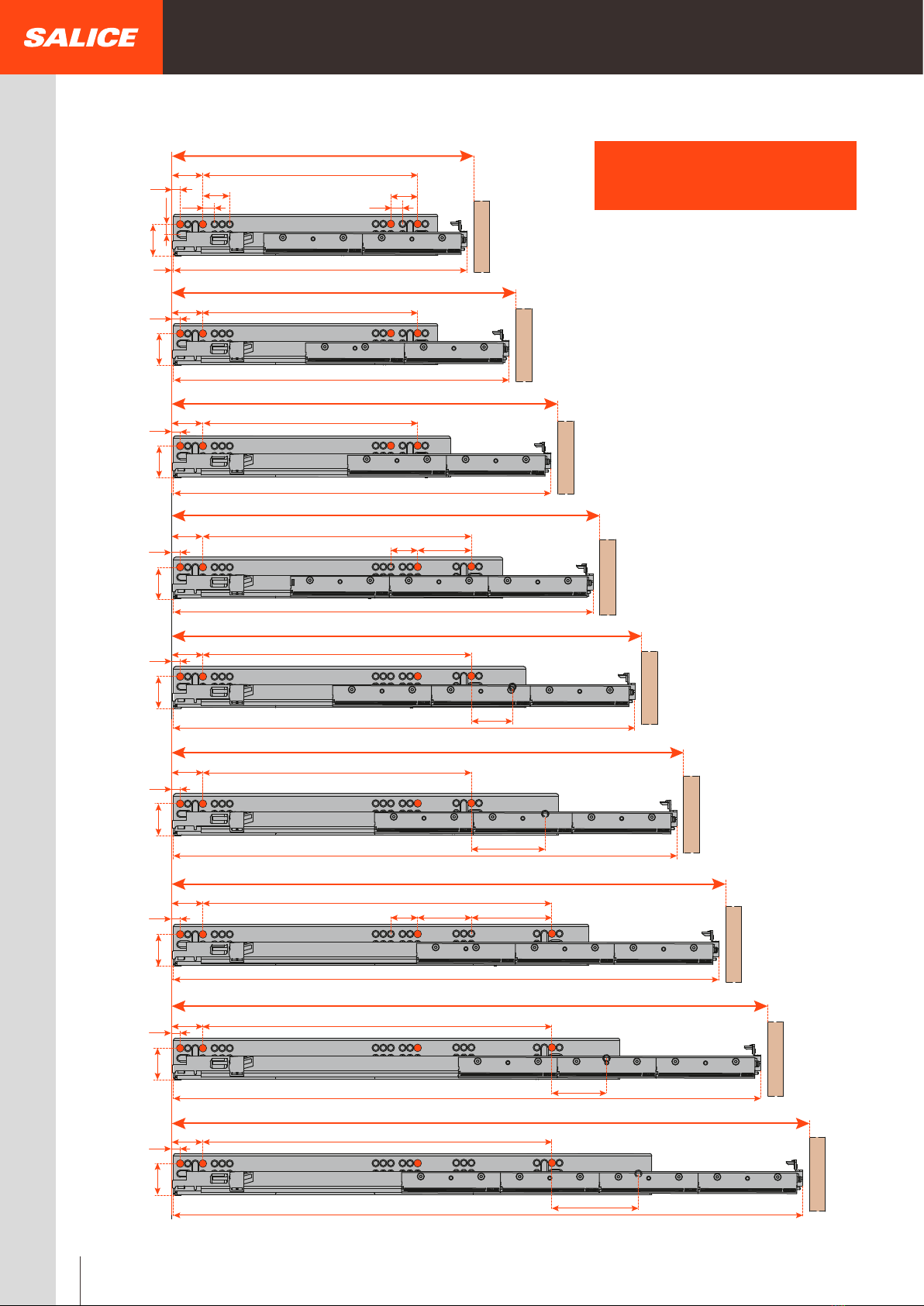

Drilling positions for runner on cabinet side
The use of at least 4 fixing screws for
each runner to the cabinet side is highly
recommended.
On longer lengths load capacity may vary.
8

X
PM
SP 16 mm MAX
LN
LC
(X - 42)
0
- 1.5
X - 42
LC = LN - 10

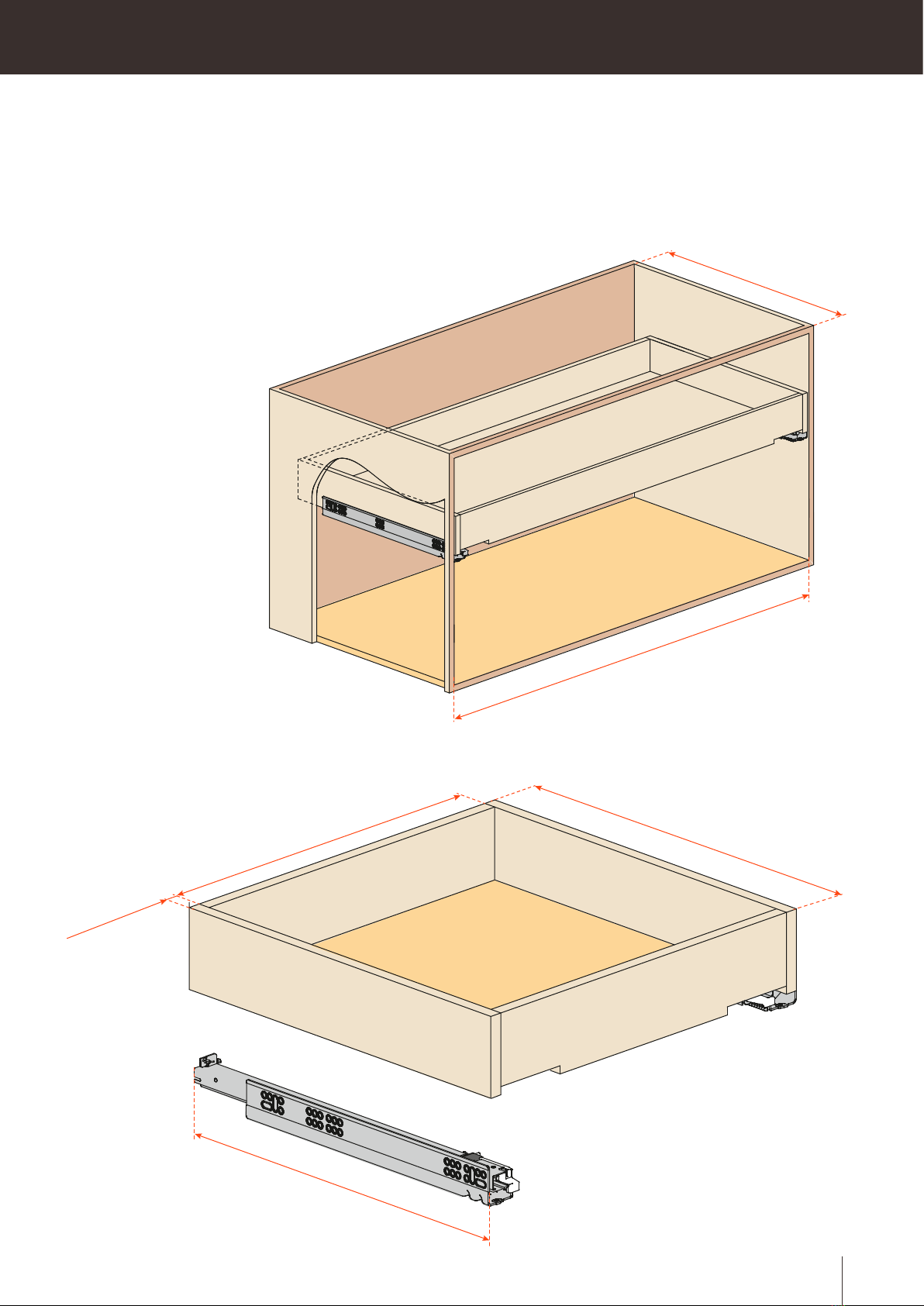

Abbreviations
CHEST OF DRAWERS
SP = Thickness of the drawer side
LC = Depth of the drawer
PM = Depth of the cabinet
X= Internal width of the cabinet
LN = Nominal runner length
The external length of the drawer is
10 mm less than the runner length
The internal width of the drawer is 42 mm less than
the internal width of the cabinet
Drawer setting
9

LN - 10
ø 6x10 7
40 mm MIN
*
95 mm MIN
11
LN - 10
ø 6x10 7
40 mm MIN
*
11
A
11
ø6x 10
13 MAX
7
LN - 10
ø 6x10 7
40 mm MIN
*
95 mm MIN
11
LN - 10
ø 6x10 7
40 mm MIN
*
11
A
A
A
A
REAR HOOK
Use SGD704UGXA drilling template for rear hook,
see page 35.
3-SIDED drawer
4-SIDED drawer
Synchroniser for Push runners, see page 32.
Lever for the tilt adjustment, see page 37.

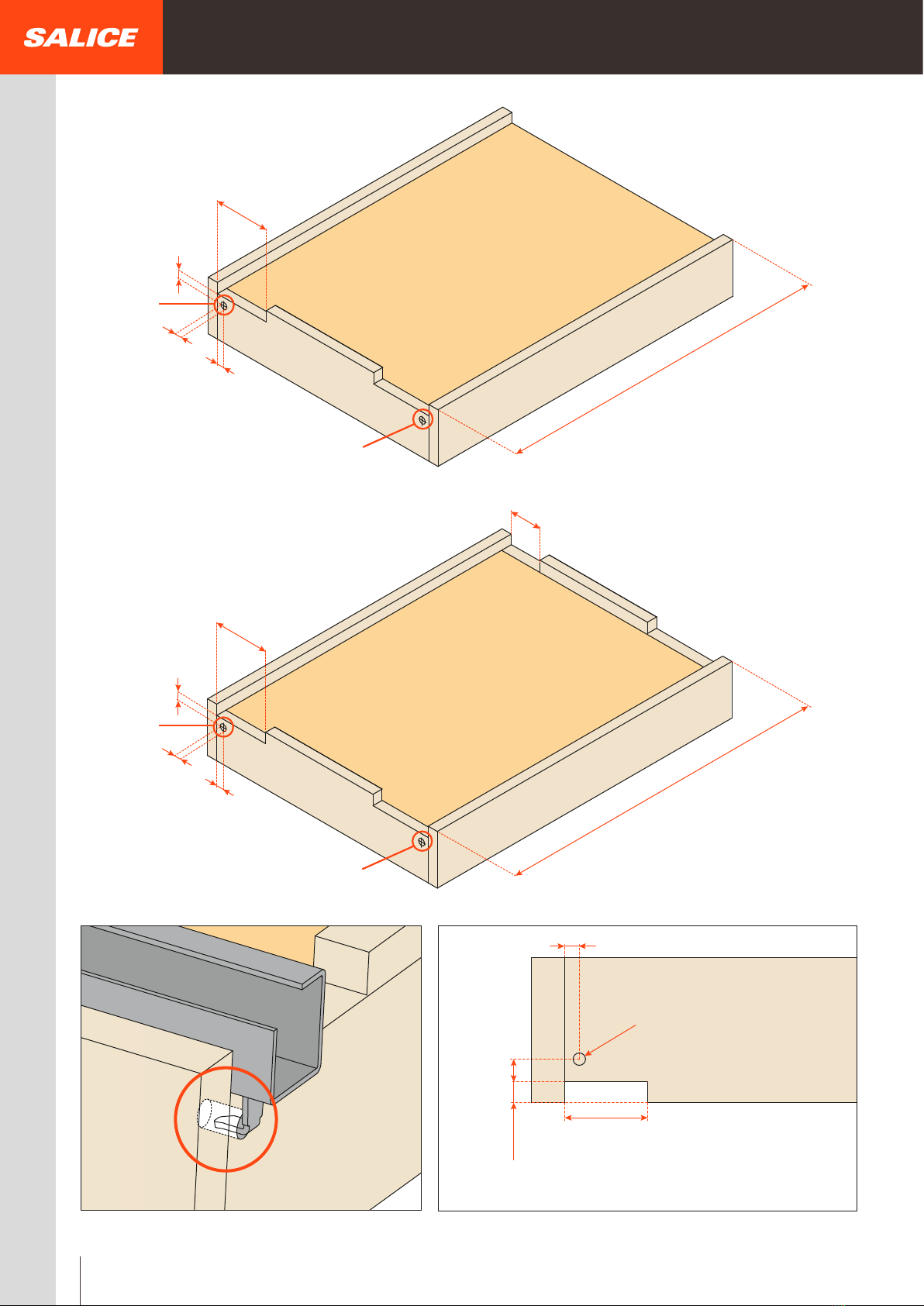

Drawer drilling
40 mm MIN
75 mm MIN
with Synchroniser
for Push runners
or with Lever for the
tilt adjustment
10

ARTICLE VERSIONS
S = SMOVE
P = PUSH
Example:
G7E6 _ ___ XXB
BASIC PART NUMBER
RUNNER LENGTH
(350 - 400 - 450 - 500 - 550 - 600 - 650 - 700 - 750 mm)
Part number composition
Industrial packing
SMOVE LENGTH BOX
Right runners
BOX
Left runners
PALLET
Right runners PALLET
Left runners
G7E6S350XXB 350 mm 6 pcs. 6 pcs. 384 pcs. 384 pcs.
G7E6S400XXB 400 mm 6 pcs. 6 pcs. 384 pcs. 384 pcs.
G7E6S450XXB 450 mm 6 pcs. 6 pcs. 384 pcs. 384 pcs.
G7E6S500XXB 500 mm 6 pcs. 6 pcs. 384 pcs. 384 pcs.
G7E6S550XXB 550 mm 6 pcs. 6 pcs. 384 pcs. 384 pcs.
G7E6S600XXB 600 mm 4 pcs. 4 pcs. 256 pcs. 256 pcs.
G7E6S650XXB 650 mm 4 pcs. 4 pcs. 256 pcs. 256 pcs.
G7E6S700XXB 700 mm 4 pcs. 4 pcs. 256 pcs. 256 pcs.
G7E6S750XXB 750 mm 4 pcs. 4 pcs. 256 pcs. 256 pcs.
PUSH LENGTH BOX
Right runners
BOX
Left runners
PALLET
Right runners PALLET
Left runners
G7E6P350XXB 350 mm 6 pcs. 6 pcs. 384 pcs. 384 pcs.
G7E6P400XXB 400 mm 6 pcs. 6 pcs. 384 pcs. 384 pcs.
G7E6P450XXB 450 mm 6 pcs. 6 pcs. 384 pcs. 384 pcs.
G7E6P500XXB 500 mm 6 pcs. 6 pcs. 384 pcs. 384 pcs.
G7E6P550XXB 550 mm 6 pcs. 6 pcs. 384 pcs. 384 pcs.
G7E6P600XXB 600 mm 4 pcs. 4 pcs. 256 pcs. 256 pcs.
G7E6P650XXB 650 mm 4 pcs. 4 pcs. 256 pcs. 256 pcs.
G7E6P700XXB 700 mm 4 pcs. 4 pcs. 256 pcs. 256 pcs.
G7E6P750XXB 750 mm 4 pcs. 4 pcs. 256 pcs. 256 pcs.
CLIP BOX
Right clips
BOX
Left clips
PALLET
Right clips PALLET
Left clips
AFCGXX3B 100 pcs. 100 pcs. 2400 pcs. 2400 pcs.
LEVER FOR TILT ADJUSTMENT BOX PALLET
AGLRXX3F 10 boxes
1 box = 12 right pcs. and 12 left pcs. 2400 right pcs. and 2400 left pcs.
11

12

F70
Fixing clip
13

97
95 min.
6
51 23
111
59 23
7
AFCGXX3B
Right and left clip with
integrated adjustments
PACKING
2 BOXES = 100 right pcs. and 100 left pcs.

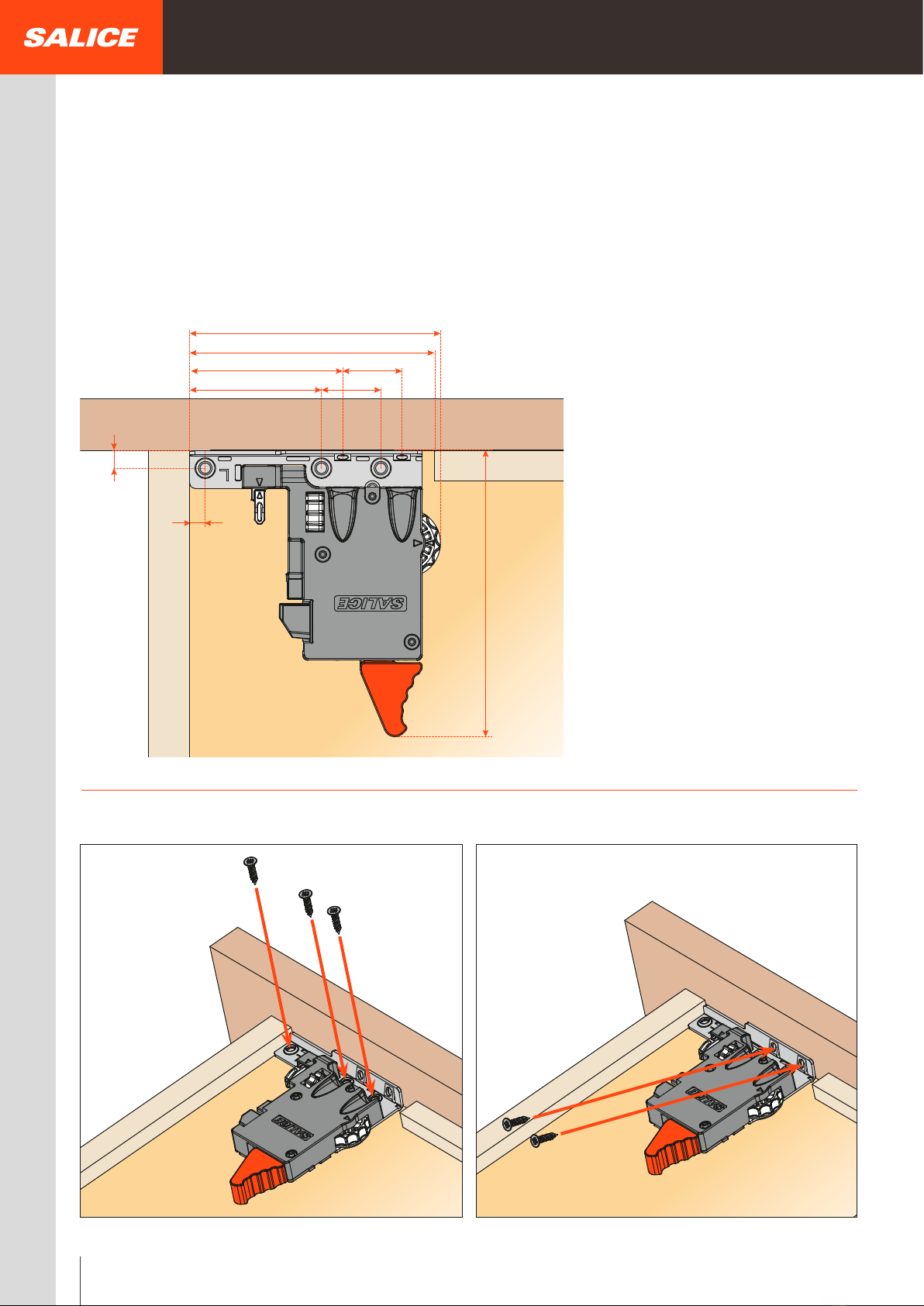

Dimension of the clip and drilling position
F70 - Fixing clip
- For all F70 runner versions
- Material: plastic and steel
- Integrated tool-free side and depth adjustments
- Recommended pre-drilling ø 2,5 mm
- Fixing to the bottom or to the frontal of the drawer
Fixing to the bottom of the drawer Fixing to the drawer frontal
It is recommended to pre-drill the bottom or the frontal using the SGD704UGXA drilling template, see page 35.
Fix with the screws,
as indicated
(recommended screws
ø 4 x 16 mm)
Fix with the screws,
as indicated
(recommended screws
ø 4 x 16 mm)
14

1 1
2
2 2
2
Open the drawer completely, press the indicated lever and slide the drawer out of the cabinet
Place the drawer on the runners and push forward until completely closed
Drawer fixing
Drawer removal
11
15

16

F70
Adjustments
17

1.5 mm
1.5 mm

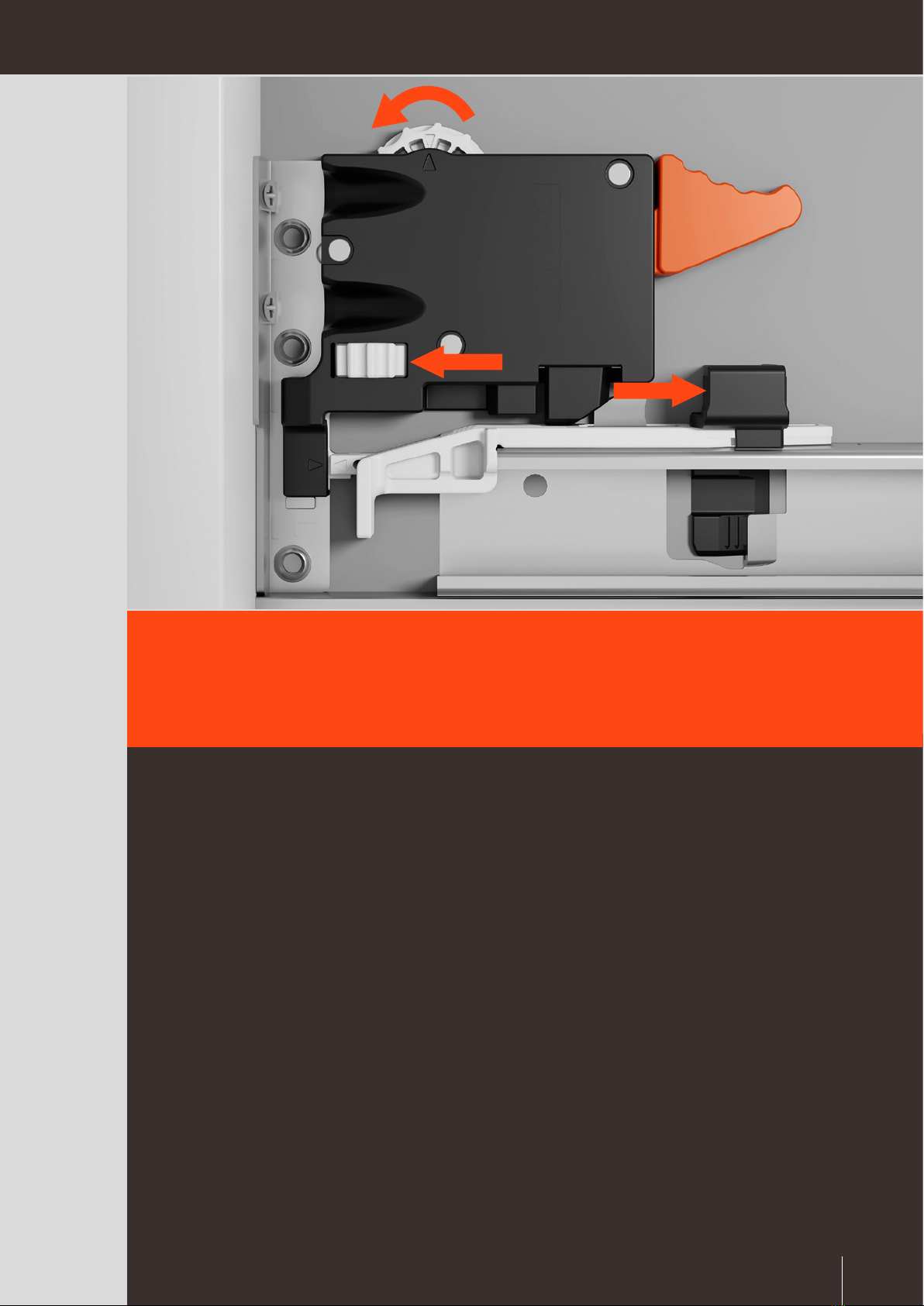

Rotate the white wheel towards the back of the drawer to adjust right.
This operation is tool free.
Rotate the white wheel towards the drawer frontal to adjust left.
This operation is tool free.
For sideways adjustment, it is recommended that the adjusters on the clips are operated in the same direction, in order to maintain
the correct alignment and movement of the runners.
Sideways adjustment +/- 1,5 mm
18

+ 3 mm
- 3 mm
Rotate the white wheel towards the inside of the drawer to reduce the gap between the frontal and the side.
This operation is tool free.
Depth adjustment +/- 3 mm
Rotate the white wheel towards the outside of the drawer to increase the gap between the frontal and the side.
This operation is tool free.
19

+
-
=
=
2.5 mm

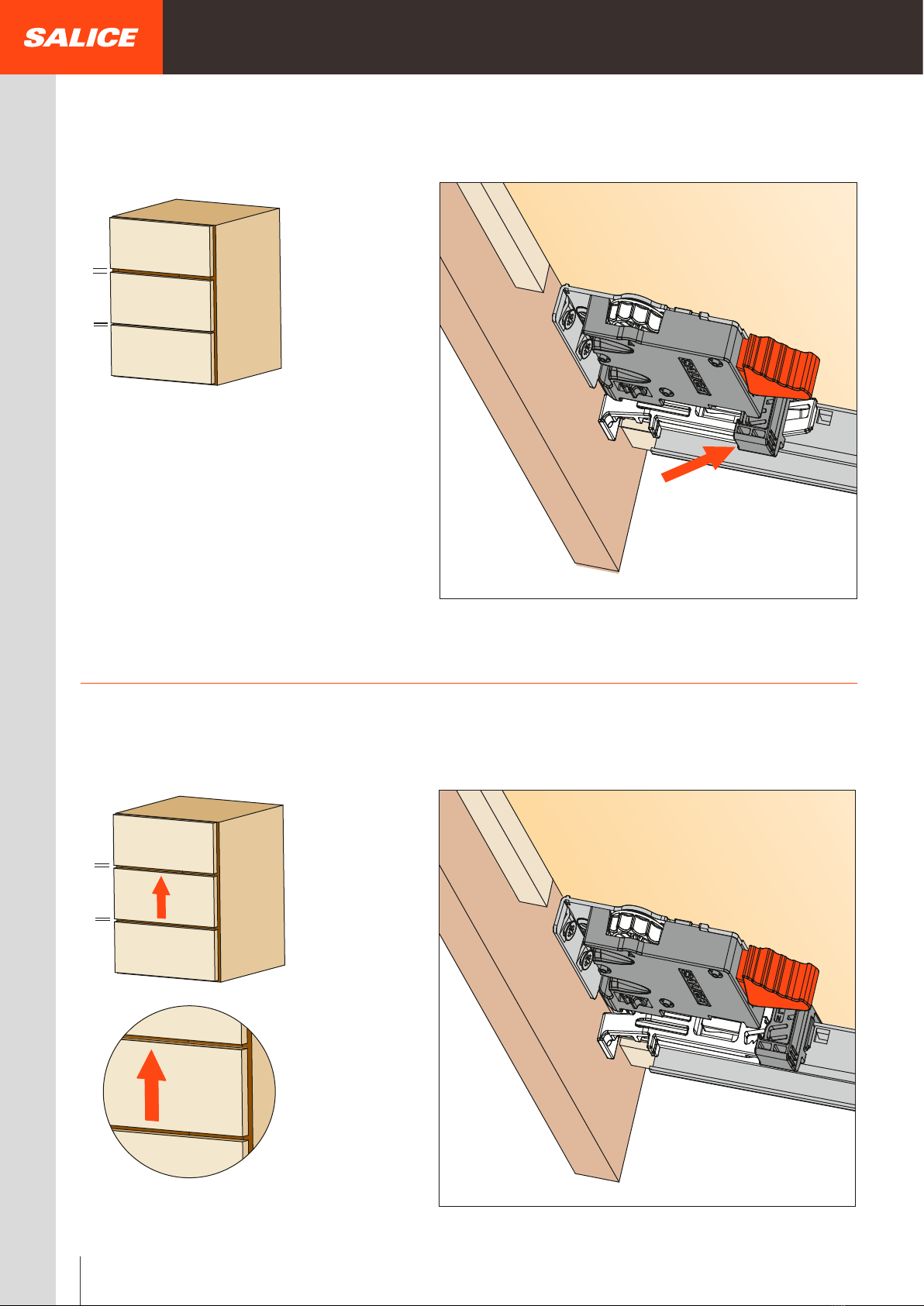

Height adjustment + 2.5 mm
Push the lever towards the inside of the drawer to achieve height adjustment.
This operation is tool free.
20
