1. SAFETY INSTRUCTIONS
1. Read all warnings posted on the equipment.
2. Read this Owner's Manual and follow it carefully before using the equipment.
3. We recommend that two people be available for assembly of this product.
4. Keep children and pets away from the equipment. Do not allow children and pets to use or
play on the equipment.
5. Make sure it is correctly assembled before start using it.
6. Place the equipment in a dry area away from humid, saline or corrosive environments.
7. Set up and operate the equipment on a solid level surface. Do not position the equipment on
loose rugs or uneven surfaces.
8. Inspect the equipment for worn or loose components prior to each use.
9. Replace any loose or worn components prior to using the equipment and/or or keep the
equipment out of service until it has been completely repaired.
10. Do not wear loose or dangling clothing while using the equipment.
11. Never exercise in bare feet or socks; always wear correct footwear, such as running, walking,
or cross-training shoes.
12. Be careful to maintain your balance while using, mounting, dismounting, or assembling the
equipment loss of balance may result in a fall and serious bodily injury.
13. Keep both feet firmly and securely on the foot pedals or on the band (in case of treadmills)
while exercising.
14. The equipment should not be used by persons weighing over 130 kg.
15. The equipment should be used by only one person at a time.
16. The equipment is for home usage.
17. Make sure that adequate space is available for access to and passage around the equipment;
keep at least a distance of 1 meter from any obstruction object while using the machine.
18. Do the maintenance of the equipment indicated in this manual.
ATTENTION: Before starting any exercise or conditioning program you should consult with your
personal physician to see if you require a complete physical exam. If, at any time during exercise,
you feel faint, dizzy, or experience pain, stop and consult your physician. Follow your physician's
recommendations in developing your own personal fitness program. Always choose the workout
which best fits your physical strength and flexibility level. Know your limits and train within them.
Always use common sense when exercising.

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es

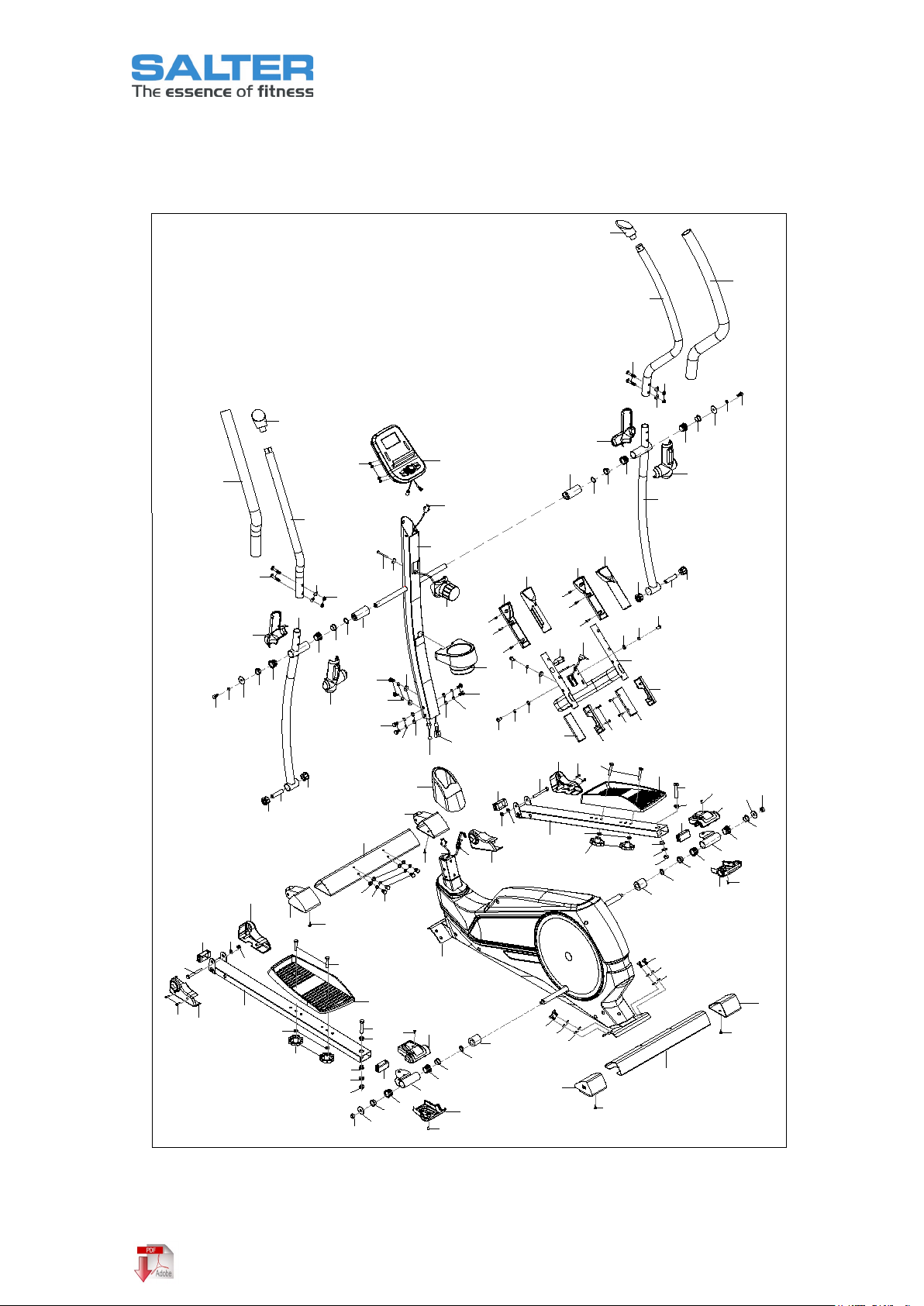

2. EXPLODED DRAW
1
2
3
67
8
9
10
10
10
11
12
11 42
11
42
8
2
13
14
14
15
15
16L
16R
17
17
18
18
19
19
20L
20R
21L
21R
10
10
11
11
22
22
23
23
24
23
23
24
24
24
25
25
26
26
27L
27R
28
28
28
28
29
29
39
40
41L
41R
10
11
42
43L
43R
5
5
44
44
45
45
46
46
46
46
42
42
19
19
47L
47R
48
48
42
42
49L
49R
50
50
51
51
52
52
52
52
53
53
54
54
54
54
55
55
23
23
23
23
24
24
24
24
56
56
25
25
57L
57R
58L
58R
59
59
59
59
60
60
61
62
63
63
63
63
64
10
10
11
11
42
42
37
36
35R
35L
34R
34L 33
33
33
33
33
33
37 11
42
37 11
12
38
42 11
37
31R
4R
30
33
33
4L
31L
108L
108R

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es
66
66
67
67
68L
68R
5
5
5
5
55
5
5
69
69
69
69 69
69
70
71
71
72
72
32
32
32
32
32
32
32
73 74
74
75
75
76
76
77
77
78
78
79
79
80
81
82
83
64
61
62
84
85
86
86
87
88
89
90 91
19
92
92
92
93
93 93
94
94
95
95
96
97
98
99
78
78
100 5
101
102 103 104
105
106
107

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es
3. HARDWARE PACKING LIST
4. ASSEMBLY INSTRUCTION
STEP 1
10
11
42
10
10
11
11
42
42
65
40
64
#A S13-14-15 1PC
#10 M8×16×S14 8PCS
#11 d8 8PCS
#42 d8*φ16 8PCS
S14

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es

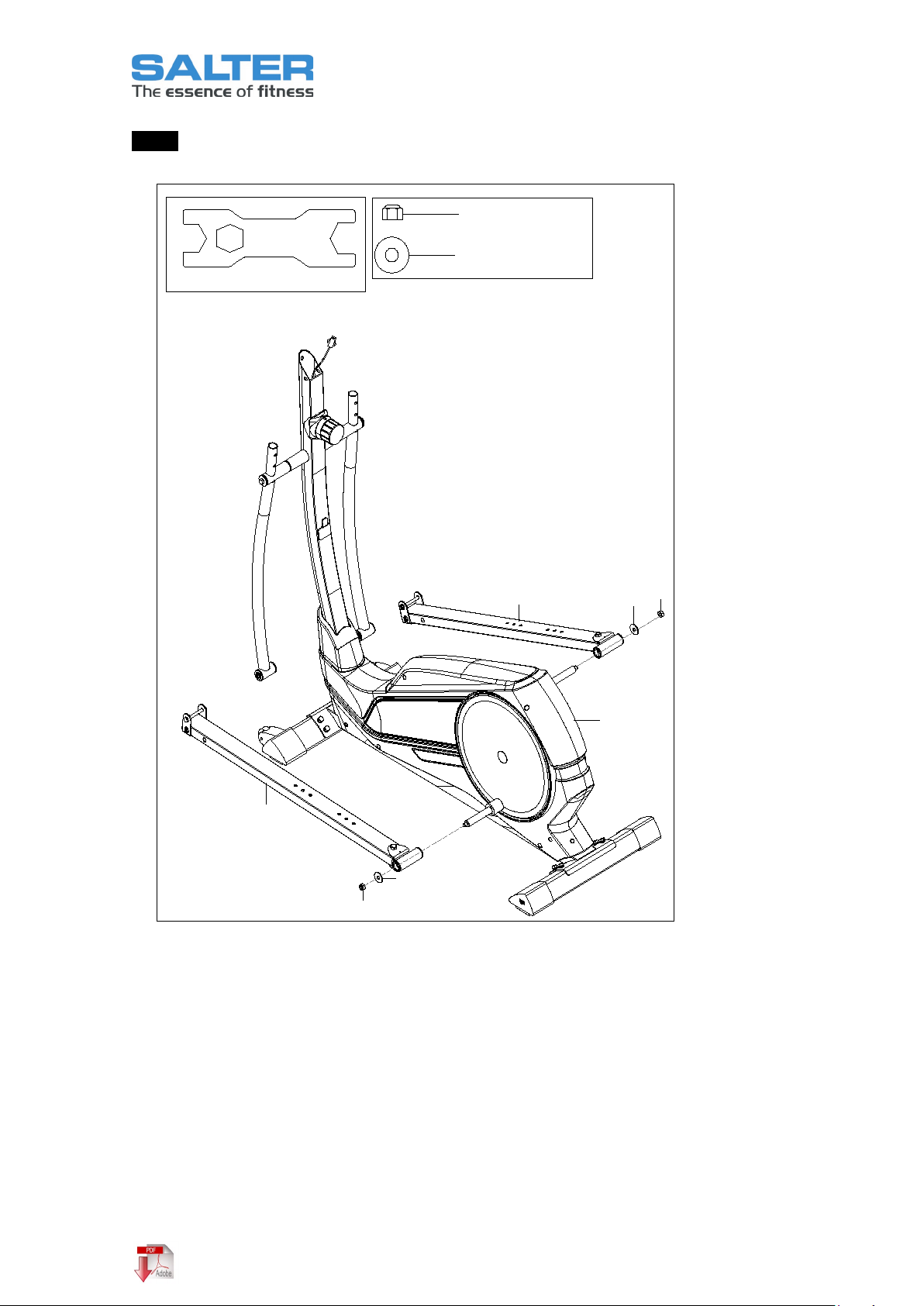

STEP 2
8
2
13
64
61
62
10
10
1112
11
42
11
42
10
68L
68R
#A S13-14-15 1PC
S14
#10 M8×16×S14 6PCS
#11 D8 6PCS
#12 d8×Φ20×R30 2PCS
#42 d8×Φ16 4PCS
A
2
62
8
61
①③ ②④
B
3

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es
STEP 3
10 11 22
10
11
22
21L
21R
3
#10 M8*16*S14 2PCS
#11 D8 2PCS
#22 d8*φ32*2 2PCS
#A S13-14-15 1PC
S14

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es
STEP 4
45
45
54
55
54
55
64
#54 M10*S17 2PCS
#55 d10*φ32 2PCS
S17
#B S17-18-19 1PC

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es
STEP 5
21L 21R
44
42 19
45
45
44
19
42
#44 M8*75*S14 2PCS
#42 d8*φ16 2PCS
#19 M8*S13 2PCS
S13
S14
#A S13-14-15 2PCS

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es
STEP 6
16L
16R
21L
21R
17
18
19
17
19
18
#17 M8*43*20*H3 4PCS
#18 d8×Φ20×R16 4PCS
#19 M8*S13 4PCS
S13
#A S13-14-15 1PC

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es

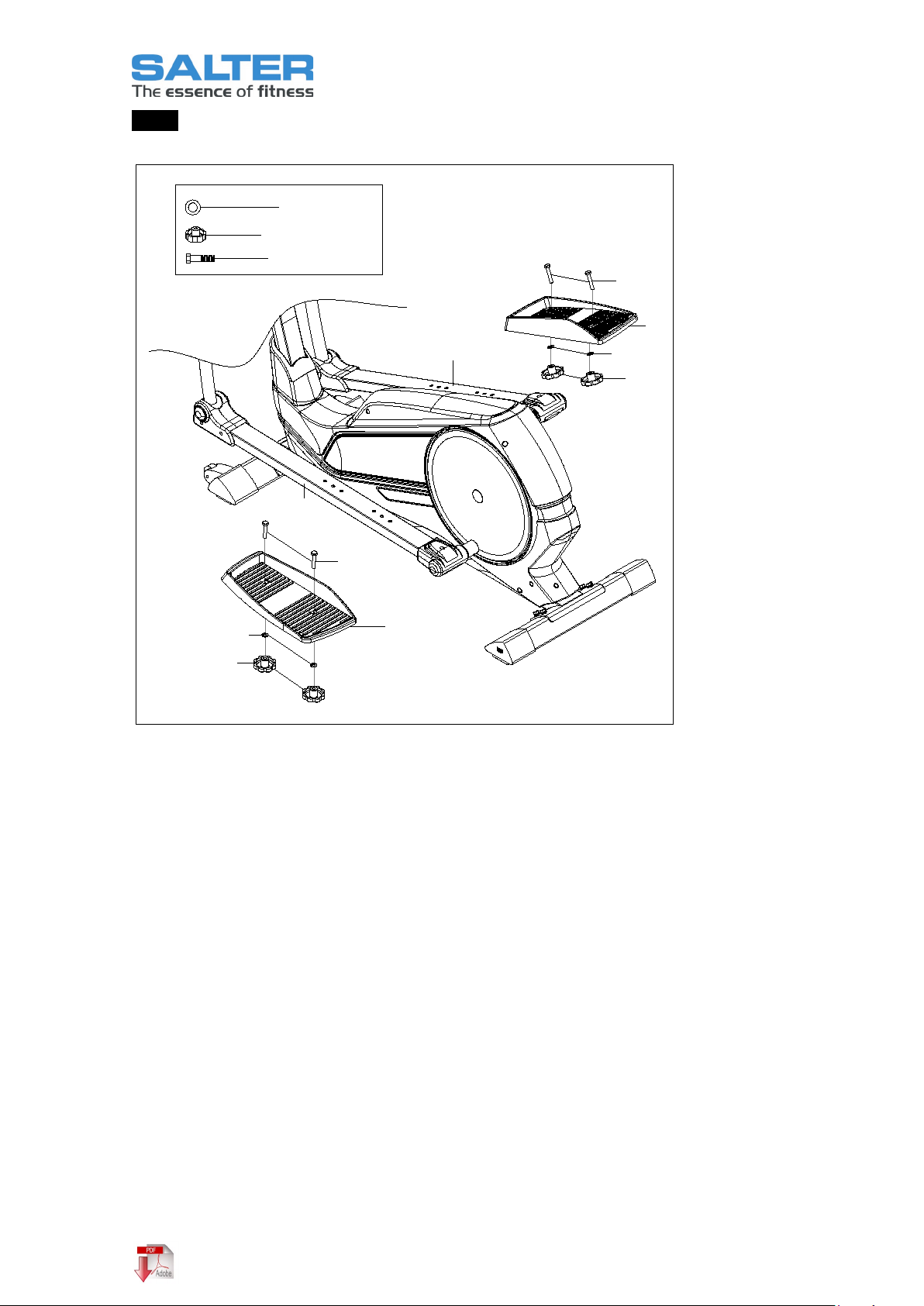

STEP 7
49L
49R
50
50
48
42
48
42
45
45
#50 M8*45*S14 4PCS
#42 d8*φ16 4PCS
#48 M8*φ60*30 4PCS

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es

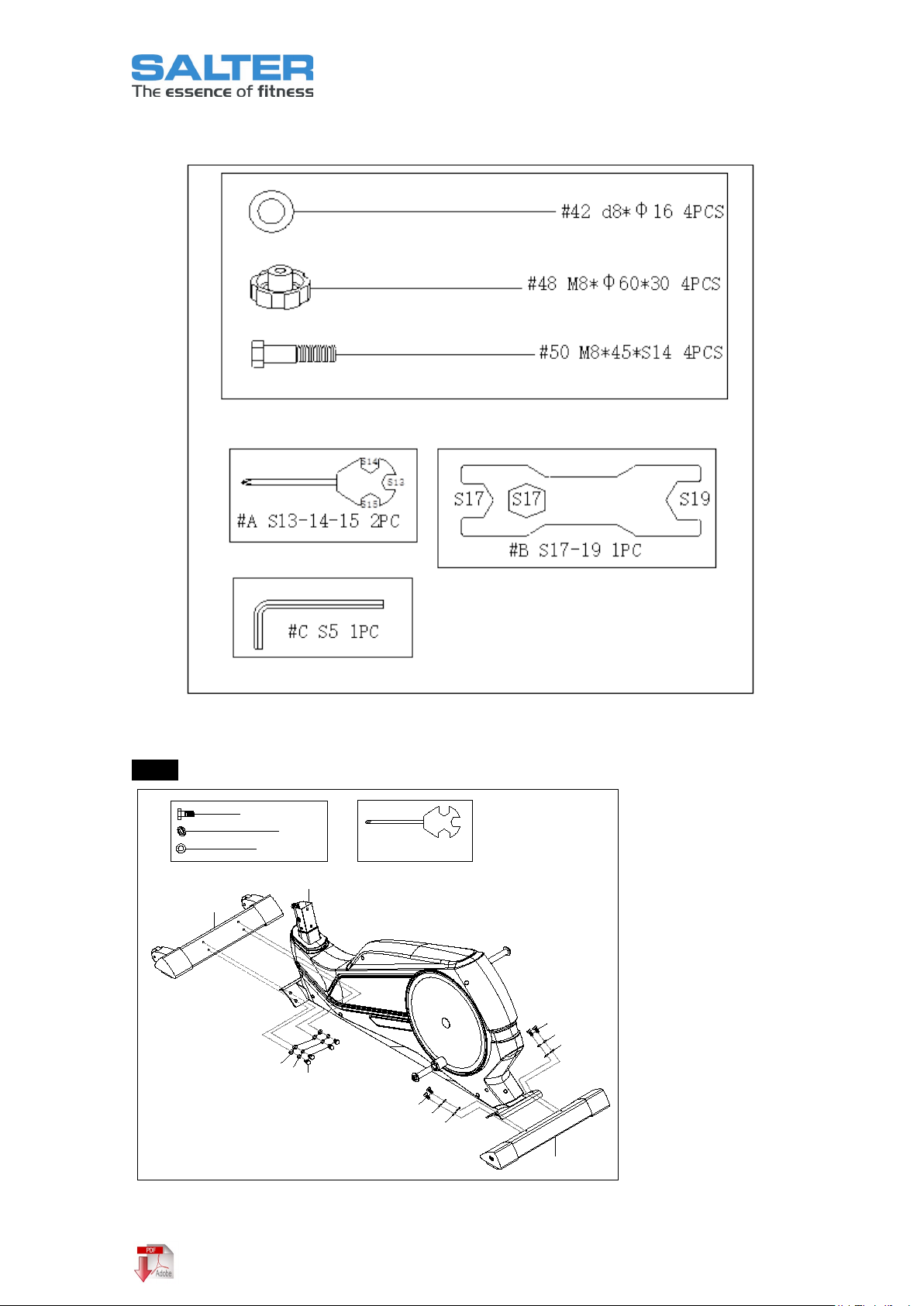

STEP 8 8
37 11 42
39
30
36
1
1a 1b
37
11
42
37 11 12
3
2
#A S13-4-15 1PC
#C S5 1PC
1a
2
1b
36
BA
#12 d8*φ20*R30 1PC
#37 M8*16*S5 3PCS
#11 D8 3PCS
#42 d8*φ16 2PCS
#39 M5*15 4PCS

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es
STEP 9
58L
59
57L
59
57R
58R
59
59
43L
5
47L
43R
5
47R
20L
27L
20R
27R
9
56
56
45
45
21L
21R
3
#A S13-14-15 1PC
#59 M5*10 4PCS
#5 ST4.2*19 4PCS

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es
5. MOVING THE MACHINE
To move the machine, press on the mid handlebar (30) until the transportation wheels on the
front stabilizer (40) touch the ground. With the wheels on the ground, you can transport the bike
to the desired location with ease.
41
30
6. ADJUSTMENTS GUIDE
ADJUSTING THE RESISTANCE
8
3
ADJUSTING THE BALANCE
108L
108R
As showed in figure: Rotate tension
control knob(8) clockwise to increase the
level of resistance, rotate the knob
counter-clockwise to decrease the level
of resistance. Level 1 is the lowest and
level 10 is the highest.
When this product is on an uneven surface,
please adjust both foot pads on end
cap(108L/R)according to the instruction
picture.

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es
7. COMPUTER INTRUCTIONS
DISPLAY FUNCTION:
ITEM DESCRIPTION
SCAN
. In SCAN mode, press MODE/ENTER key to choose functions.
. Automatically scan through each mode in every 6 seconds.
. The sequence of display when press MODE/ENTER key : TIME→
DIST→CAL→PULSE→RPM/SPEED
SPEED
. Range 0.0 ~ 99.9
. Without any signal being transmitted into the monitor for 4 seconds during
workout, SPEED will display “0.0”
RPM
. Range 0 ~ 999
. Without any signal being transmitted into the monitor for 4 seconds during
workout, RPM will display “0”
TIME
. Without setting the target value, time will count up.
. When setting the target value, time will count down from your target time
to 0 and alarm will sound or flash.
. Without any signal being transmitted into the monitor for 4 seconds during
workout, time will STOP
. Range 0:00~99:59
DISTANCE
. Without setting the target value, distance will count up.
. When setting the target value, distance will count down from your target
distance to 0 with an alarm sound or flash.
. Range 0.00~99.99
CALORIES
. Without setting the target value, calorie will count up.
. When setting the target value, calories will count down from your target
calorie to 0 with an alarm sound or flash.
. Range 0~9999
PULSE
. Current pulse will display after 6 seconds when detected by the console.
. Withot any pulse signal for 6 seconds, console will display “P”.
. Pulse alarm will sound when current pulse is over the target pulse.
. Range 0-30~230 BPM

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es
KEY FUNCTION:
OPERATION PROCEDURE
POWER ON
. LCD will display all segments as Drawing 1.
Drawing 1
POWER OFF
. Without any signal being transmitted into the monitor for 4 minutes the monitor will enter
SLEEP mode.
ITEM DESCRIPTION
UP
(ENCODER)
. Press UP Key to increase value. Press and hold the key to increase value faster.
. TIME setting range: 00:00~99:00 (Each increment is 1:00)
. CAL setting range: 0~9990 (Each increment is 10)
. DIST setting range: 0.00~99.50 (Each increment is 0.5)
. PULSE setting range: 0-30~230 (Each increment is 1)
DOWN
(ENCODER)
. Press DOWN Key to decrease value. Press and hold the key to decrease the value
faster.
. TIME setting range: 00:00~99:00 (Each decrement is 1:00)
. CAL setting range: 0~9990 (Each decrement is 10)
. DIST setting range: 0.00~99.50 (Each decrement is 0.5)
. PULSE setting range: 0-30~230 (Each decrement is 1)
MODE/ENTER
. Choose each function by pressing MODE/ENTER key.
. Press and hold MODE/ENTER key for 2 seconds to reset all functions (same
feature as the reset key if press for 2 seconds).
RESET
. In setting mode, press RESET key once to reset the current function figures.
. Press RESET key and hold for 2 seconds to reset all function figures.
RECOVERY
. After the console detects pulse signal, press the RECOVERY key to enter recovery
mode to monitor heart rate recovery ability.
BODY FAT
. Test body fat% and BMI.
TOTAL RESET
. Console will restart over.

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es
OPERATION
1. User Profile setting
Use UP or DOWN (ENCODER) to set SEX, HEIGHT, WEIGHT and AGE, press
MODE/ENTER to confirm.
2. Workout setting
Press MODE/ENTER key to select the function of TIME, DISTANCE, CALORIES, and PULSE.
Use UP or DOWN (ENCODER) for setting and press MODE/ENTER key for confirmation.
For instance the time set-up, when the time value is blinking, you can use UP and DOWN
(ENCODER) to adjust the number. Press MODE/ENTER key for confirmation and skip to
next set-up. The set-up of DISTANCE, CALORIES and PULSE is the same as TIME set-up.
Once the workout begins and the console picks up the exercise signal, the value of
SPEED/RPM, TIME, DST and CAL will count up on the display.
Recovery
1. The RECOVERY key will only be valid if pulse is detected.
2. TIME will show "0:60" (seconds) and counts down to 0.
Computer will show F1 to F6 after the countdown to test heart rate recovery status. User can
find the heart rate recovery level based on the chart below.
3. Press RECOVERY key again to return to the beginning.
F1
Outstanding
F2
Excellent
F3
Good
F4
Fair
F5
Below average
F6
Poor
Body Fat
1. Press the BODY FAT key to start body fat measurement.
2. During measuring, users have to hold both hands on the hand grips. LCD display “-” “- -” “- - -
” “- - - -” for 8 seconds until computer finish measuring.
3. LCD will display BMI and FAT %.
4. Error message:
*E-1–There is no heart rate signal input detected.
*E-4–Occurs when FAT% and BMI result is below 5 or exceeds 50.
Trouble shooting:
. When the display of LCD is dim, it means the batteries need to be changed.
. If there is no signal when you pedal, please check if the cable is well connected.
NOTE:
1. When stop training for 4 minutes, the main screen will be off.
2. If the computer displays abnormally, please re-install the batteries and try again.

OWNER’S MANUAL V. 042021 ENGLISH
E-2115 MAGNETIC ELLIPTICAL
This manual can be downloaded on www.salter.es
8. MAINTENANCE
•Dry and clean those areas exposed to perspiration. It is recommended to use towels in order
to avoid the sweat falling to the equipment.
•Dust and dirt may be the cause of functioning problems in the gears and the internal bearings.
It is recommended keeping the equipment casing and its different elements clean.
9. ENVIRONMENTAL NOTE
The symbol with which is marked this unit (waste bin with wheels) indicates that it
cannot be thrown for any reason to the domestic waste. When disposing of the
product should be taken to a proper recycling point.
If properly dispose of the product may be reused and recycled, and it will help to
conserve natural resources, preserve the environment and significally reduce the potential
negative impact on our environment.
For more information about the return system, collection and recycling of these products contact
your City Council or the retailer.
10. WARRANTY CONDITIONS
Consult the warranty of this equipment on www.salter.es. It is essential to indicate the serial
number of the equipment for repairs under warranty.
