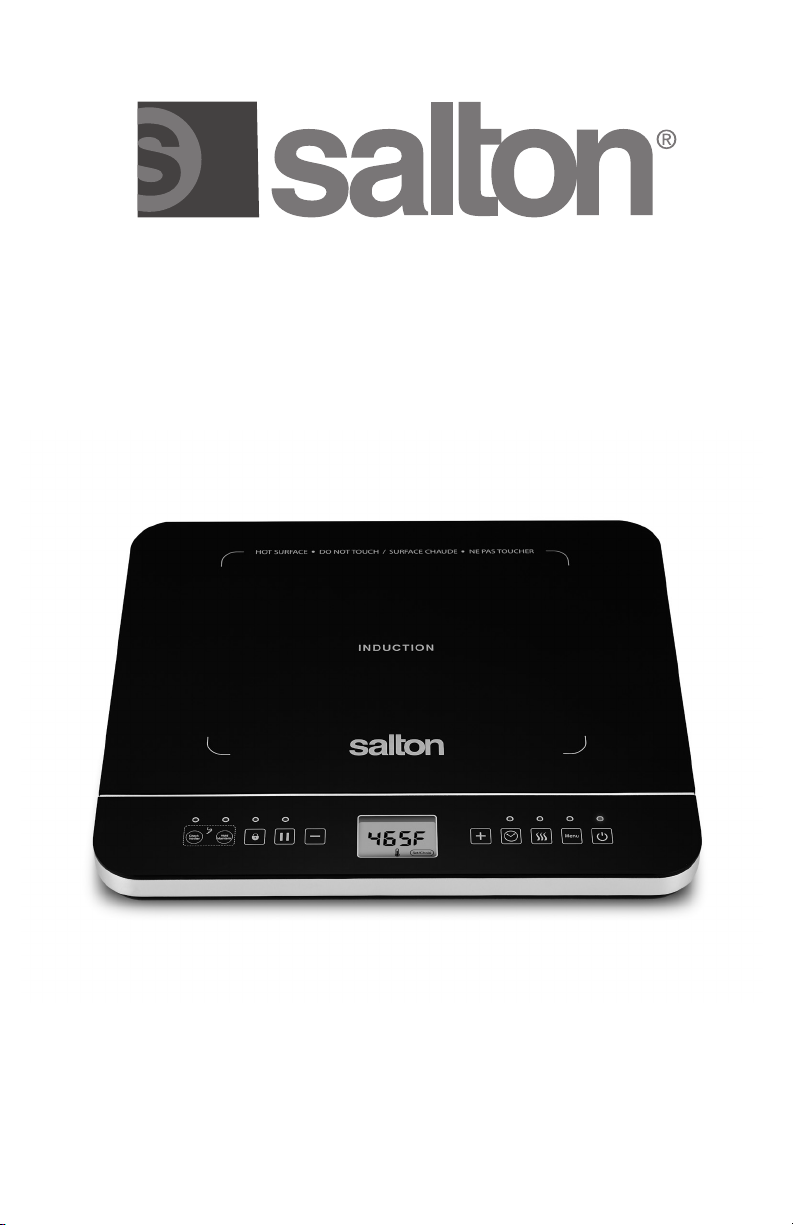

Salton ID1880 User manual

Instruction Booklet
Model: ID1880
induction cooktop with
temperature probe

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be followed, including the following:
1. Read all instructions.
2. DO NOT touch hot surfaces. Use handles or knobs.
3. To protect against electrical hazards, do not immerse cord, plugs, or
the appliance in water or other liquid.
4. This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a person
responsible for their safety.
5. Close supervision is necessary when any appliance is used by or
near children. Children should be supervised to ensure that they do
not play with the appliance.
6. Unplug from outlet when not in use and before cleaning. Allow to
cool before putting on or taking o parts, and before cleaning the
appliance.
7. DO NOT operate any appliance with a damaged cord or plug or
after the appliance malfunctions, or is dropped or damaged in any
manner. Return appliance to the manufacturer for examination,
repair or electrical or mechanical adjustment. All servicing, other
than cleaning, should be performed by an authorized service
representative. See Warranty section.
8. If the appliance is not working as described in this instruction
booklet discontinue use and contact the manufacturer. See
Warranty.
9. The use of accessories or attachments not recommended by the
manufacturer may cause hazards.
10. DO NOT use outdoors.
11. DO NOT let cord hang over edge of table or counter, or touch hot
surfaces.
12. A re may occur if surface is covered or touching ammable material
such as curtains, draperies, walls and the like when in operation.
13. Always disconnect appliance from outlet when not in use. To
disconnect, turn any control to OFF, then remove plug from wall
outlet.
14. DO NOT use appliance for other than intended use.
15. DO NOT place on or near a hot gas or electric burner, or in a heated
oven.
16. Extreme caution must be used when moving an appliance containing
hot liquids. Do not overll Cookware used on the appliance to avoid
spilling when contents are boiling.
2

17. People with pacemakers or similar medical devices should use care
when standing near this induction cooktop while it is powered on.
The electromagnetic eld may aect pacemakers or similar devices.
Consult your doctor, or the manufacturer of the pacemaker or similar
medical device for additional information regarding the possible
eects of electromagnetic elds emitted by induction cookers.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
POLARIZED PLUG
This appliance has a polarized plug (one blade is wider than the other).
To reduce the risk of electric shock, this plug will t in a polarized outlet
only one way. If the plug does not t fully in the outlet, reverse the plug.
If it still does not t, contact a qualied electrician. Do not modify the
plug in any way.
ABOUT INDUCTION COOKING
Induction cooking has been used for decades in restaurants and
commercial kitchens worldwide. Only now, has the induction revolution
been made available at an aordable cost for everyday household use.
How does induction work?
Induction cooking uses electromagnetic energy to heat cookware. When
cookware is placed on an induction cooktop and the cooker is turned
on, the coil inside the induction unit produces an alternating magnetic
eld, which ows through the cookware. Molecules in the cookware
vibrate rapidly, causing the cookware to become hot almost instantly.
What types of cookware can be used?
As explained above, induction cooking works by electromagnetic
energy. Induction Cooktops will operate with a variety of cookware
but must have a ferrous magnetic bottom such as cast iron, enameled
steel or magnetic stainless steel. The interior or cooking surface of the
cookware can be aluminum or other non-ferrous material with or without
a non-stick coating, as long as the bottom is ferrous.
It is very easy to check whether or not your cookware will work by using
a fridge magnet or any other permanent magnet. If the magnet sticks
to the bottom of the pot/pan, the cookware will work on an induction
cooktop.
3

What are the advantages of induction cooking?
Induction cooking allows you to adjust the cooking heat instantly
and with great precision much like a gas burner, but with even more
accuracy.
Induction cooking is also faster, cleaner, safer and more energy ecient
than any other counter top cooking technology.
Faster
Energy is transferred directly to the cookware, there is no wasted heat,
resulting in extremely fast heat up time - even faster than gas.
Cleaner
An induction cooktop only gets hot under the bottom of the cookware.
The area around the cookware does not get hot, so drips, spatters and
spills don’t bake on the induction cooker surface. Simply wipe with a
damp cloth - cleanup is a breeze.
Safer
There are no open ames or hot elements. Induction cooktops will start
only once the appropriate cookware has been placed on the surface
and stops immediately when the cookware is removed. No more burned
ngers or hands and safer around young children.
Energy Ecient
Conventional cooking methods involve generating heat which is then
transferred to cookware. With induction cooking, there is almost no
wasted heat since heat is being generated in the cookware itself. Also,
because there are no open ames or hot elements releasing heat into
your kitchen, your kitchen stays cooler.
What can I cook on an induction cooker?
What you can cook on an induction cooker is no dierent than what you
can cook with gas, an electric coil or any other form of heat. There are
no special recipes or cookbooks.
Portable Induction Cooktops are ideal for everyday use. They can also
be used for camping, cottages, dorm rooms and oces. They can be
used any place a stove is not available or an extra cooking surface is
required.
Induction cooking is very powerful and new users don’t realize how
quickly the pot generates heat. If you have never used induction
cooking we recommend that you practice using the Induction Cooktop
with a pot/pan of water and bring it to a boil several times using dierent
amounts of water and dierent temperature/power settings to familiarize
yourself with how quickly the Induction Cooktop generates heat. In a
very short time you will become familiar with your Induction Cooktop
and enjoy it’s fast, clean, safe and energy ecient features.
4

DESCRIPTION OF PARTS
1. Induction Cooktop
2. Pot Guide Marks (4)
3. Temperature Probe (underneath Cooktop)
4. Probe Clip (underneath Cooktop)
5. Temperature Probe Socket
6. Probe Temperature CHECK with Indicator Light ( )
7. Probe Temperature HOLD with Indicator Light ( )
8. Control Panel Lock with Indicator Light ( )
9. Pause with Indicator Light ( )
10. Reduce Temperature or Power Level ( )
11. Display
12. Increase Temperature or Power Level ( )
13. Timer with Indicator Light ( )
14. Keep Warm with Indicator Light ( )
15. Menu Button selects Temperature or Power with Indicator Light
16. Power Button with Indicator Light ( )
5
2
1
3
4
5
6 7 8 9 10 12 13 14 15 1611

HOW TO USE
1. Place the Induction Cooker on a dry, level surface.
2. Add food to the cookware.
IMPORTANT:
NEVER heat empty cookware. This will cause the unit to overheat
and may damage the cookware and/or cause the unit to shut o.
3. If using the Probe, place the Clip on the cookware and the Probe
through the Clip holes and into the food. Plug the Probe into the
socket at the back on the Induction Cooktop (See #5 in Description
of Parts.
4. Place the cookware within the rectangular Guide Marks indicated on
the Induction Cooktop.
NOTE: Ensure that the bottom of the cookware is clean before
placing on the Cooktop.
5. Plug into a 120 volt outlet. The Cooktop will beep and the Indicator
Light above the Power Button ( ) will ash.
6. Press the Power Button ( ) to turn the cooktop On. The red
indicator light above the Power Button ( ) will remain illuminated.
7. Choose the desired function by pressing the Menu Button to select
the temperature or the power level. Press once for Fahrenheit, twice
for Celcius and 3 times for the power level.
8. Press the ‘+’ or ‘-’ Buttons to increase or decrease the temperature
or power level.
9. Press the Pause Button ( ) if you want to remove the pot from the
cooking surface and keep your settings. The Pause feature will work
for a maximum of 10 minutes.
10. Press the Control Panel Lock Button ( ) to lock the setting so they
are not pressed accidently.
11. When nished cooking press the Power Button ( ) to turn the unit
O and unplug from the wall outlet.
NOTE: If the cookware is removed from the Induction Cooktop at any
time during the cooking cycle and the Pause Function is not activated,
the unit will beep continually for 30 seconds and error code E1 will
appear in the Display Window and the unit will shut-o automatically. In
order to reactivate the unit, place the cookware back on the cooktop and
follow steps in the How to Use section above.
TEMPERATURE AND POWER LEVEL FUNCTIONS
The are two ways to cook with the Induction Cooktop. Choose
Temperature (F° or C°) or Power Level. The instructions below explain
each method.
6

Temperature
Fahrenheit (ºF)
1. Press the On/O Button to turn the unit On.
2. Press the MENU Button once and the oF Indicator Light illuminates.
The default Temperature is 320 oF.
3. To adjust the temperature, press the +/- Buttons to select the
desired temperature from the chart below.
Celsius (ºC)
1. Press the On/O Button to turn the unit On.
2. Press the MENU Button twice and the oC Indicator Light illuminates.
The default temperature is 160 oC.
3. To adjust the temperature, press the +/- Buttons to select the
desired temperature from the chart below.
Power Level
The Power Level relates to the amount of wattage the cooktop
uses. The lower the Power Level the less wattage, which results in a
lower cooking speed. As you increase the Power Level the wattage
is increased as is the cooking speed. Use this feature if a specic
temperature is not required for example to boil water or to quick brown
or sauté.
1. Press the Power Button ( ) to turn the unit On.
2. Press the MENU Button 3 times and the letter P and the default
Power Level setting 6 appears in the display window.
3. To adjust the Power Level press the ‘+’or ‘-‘ Buttons to select from
the 10 Power Level settings. (See chart below)
Temperature and Power Level Settings
ºF 140 175 210 250 285 320 355 400 430 465
ºC 60 80 100 120 140 160 180 200 220 240
Power
Level 12345678910
TIMER
Auto-O Timer
The Timer allows you to program the induction cooker to turn o after a
certain time.
1. Once you have chosen the desired cooking function (Temperature
or Power Level) and heat setting, press the Timer Button ( ). The
Timer Indicator Light will illuminate and the default time that will
appear on the display screen is 0:00.
7

2. Press the +/- buttons to adjust the timed cooking time from 1 minute
up to 3 hours, in increments of one minute or press and hold the +/-
Buttons to increase or decrease time in increments of 5 minutes.
3. Once you have selected the desired shut o time, press the Timer
Button ( ) again or wait for the screen to blink 5 times, to conrm
your selection.
4. When the programmed time has elapsed the induction cooker will
beep once and shut o automatically.
NOTE: If at any time during the cooking cycle you would like to cancel
the programmed time, press and hold the Timer Button ( ) for a
couple of seconds until you hear a beep and the Indicator Light turns
o.
LOCK FUNCTION
The Lock Button ( ) allows you to set the desired temperature and
then lock the control panel to avoid changing the setting by mistake.
To use this feature, press the “Lock” button ( ). The Indicator Light
will illuminate and LOC will appear in the display. The cooktop will not
respond to any temperature, power or timer changes. When the “Lock”
is activated, the only Button that will function is the On/O Button.
To turn the Lock Function o, press and hold the Lock button ( ) for
a couple of seconds until you hear a beep and the Indicator Light turns
o.
PAUSE FUNCTION
The Pause Button ( ) will pause the set cooking mode/program
allowing you to temporarily remove your cookware. To resume cooking
mode/program, press the Pause Button ( ). The Induction Cooktop
will automatically turn o after 10 minutes if the Pause Function mode/
program is not resumed.
TEMPERATURE PROBE AND CLIP
The Temperature Probe is stored on the underside of your Induction
Cooktop. To remove the Probe, pull straight out. Before use, ensure the
Temperature Probe is plugged into the back to your Induction Cooktop -
see #5 in the Description of Parts.
IMPORTANT NOTES:
a) The Temperature Probe may become hot during use. Always handle
with care and use oven mitts to avoid burns.
b) Always use the Probe Clip to ensure that the Probe wire does not
touch the side of the cookware or the food.
8

Check Function (Check/Vérier Button)
1. Place Clip on the cookware then insert Probe plug into the socket
at the back of the Cooktop (see #5 in Description of Parts). Place
Probe through the holes in the Clip then into food. Arrange the wire
so it does not come into contact with food or cookware. The default
set temperature of 320ºF (160ºC) will appear on the Display.
2. To adjust the set temperature, press the +/- buttons.
3. To change between Fahrenheit (ºF) and Celsius (ºC) press the
Check button. Once set, the Display will alternate to show your set
temperature with the word “set” in the bottom right corner of the
Display and the real temperature with the word “real” in the bottom
left corner of the Display.
4. When the set temperature has been reached, the Induction Cooktop
will beep once and END will appear in the Display. The unit will
automatically shut o once the set temperature has been reached.
Hold Function (Hold/Maintenir Button)
Keeps food at a specic temperature.
1. Place Clip on the cookware then insert Probe plug into the socket at
the back of the Cooktop (see #5 in the Description of Parts). Place
Probe through the holes in the Clip then into food. Arrange the wire
so it does not come into contact with food or the cookware.
2. Press the Hold/Maintenir Button once and the default Fahrenheit
temperature of 100˚F will appear in the display. Press the Hold/
Maintenir Button twice and the default Celsius temperature of 37˚C
will appear in the display. To adjust the temperatures press the ‘+’
Button.
3. The Timer can be used for up to 8 hours. Press the Timer Button
repeatedly to adjust the timer in one minute increments or hold the
Timer Button to increase the minute increments faster.
Once the desired temperature and time are set the display will ash
between the temperature and the time.
4. The Hold Function will maintain your set temperature until the set
time is reached or the unit is turned o.
Helpful Hint:
Insert Temperature Probe halfway into your liquid to obtain an accurate
temperature reading. Heat will be generated at the bottom of your
cookware and rise toward the surface. It is also important to stir liquids
while the Hold Function is activated to ensure even heat distribution and
an accurate temperature reading.
9

KEEP WARM FUNCTION
The Keep Warm button ( ) allows you to keep food warm for up to
two hours. Press the Keep Warm button ( ) and the Display will show
2 (80ºC/175ºF). Induction Cooktop will automatically shut o after two
hours.
IMPORTANT NOTES:
1. This Induction Cooktop will only operate with suitable Cookware. The
most common types are cast iron, enameled and stainless steel. The
Induction Cooktop will not operate when using aluminum, ceramic,
copper, glass or pyrex or cookware that has a concave bottom.
NOTE: Cookware should have a diameter no less than 12cm (4”) or
more than 26 cm (10”) in order to work correctly.
2. If the Induction cooker has been turned on without a compatible pot in
place the unit will beep for approximately 30 seconds, error code E1 will
be appear in the Display Window and the unit will shut off automatically.
3. When the unit is off, the fan may continue running for a few minutes.
4. NEVER heat empty cookware. This will cause the unit to overheat,
damage the cookware and/or cause the unit to shut off.
CARE AND CLEANING
1) Unplug from the wall outlet.
2) Clean the Induction Cooktop and the Control Panel with a damp cloth.
NOTE:
•DO NOT use a brush or abrasive cleansers. This may damage the
Cooktop.
•DO NOT immerse the unit in water or any other liquid.
3) Dry with a soft cloth.
4) Clean the unit after each use.
All servicing, other than cleaning, should be performed by an authorized
service representative. See Warranty section.
ERROR CODES:
Error Code
(See Digital
Display)
Reason Solution(s)
E0, E2, E5, E6 Internal Circuit Error
- parts are either
overheating or have an
open or short circuit
• Contact Salton service
center. See ‘Warranty’
section in this instruction
booklet for contact
information
10

11
E1 Cookware Sensor
Detection
• Check whether or not
cookware is suitable.
• Make sure the cookware
is within the circular
cookware placement
guides indicated on the
Induction Cooktop.
• Cookware was removed
during cooking. Replace
cookware back on
Cooktop.
E3 Incorrect Voltage Sensor
– Voltage over 150V
• Make sure the outlet used
is 110/120V AC.
E4 Incorrect Voltage Sensor
– Voltage below 80V
• Make sure the outlet used
is 110/120V AC.

A short supply cord is provided to reduce the hazards of becoming
entangled in or tripping over a long cord. Extension cords may be used
if care is exercised in their use. If an extension cord is used, the marked
electrical rating of the detachable power-supply cord or extension cord
should be at least as great as the electrical rating of the appliance. If
the appliance is of the grounded type, the extension cord should be a
grounded 3-wire cord. The extension cord should be arranged so that
it will not drape over the counter top or table top, where it can be pulled
on by children or tripped over.
This warranty does not include the cost of shipping, which is to be borne by the
customer.
LIMITED WARRANTY
**The original sales receipt is the only acceptable proof of purchase**
Salton Canada warrants that this appliance shall be free from defects in material
and workmanship for a period of ve (5) years from the date of original purchase.
Salton Canada, at its sole discretion during this warranty period, will repair or
replace a defective product or issue a refund. Any refund to the purchaser will
be at a pro-rated value based on the remaining period of the warranty. All liability
is limited to the amount of the purchase price. This warranty covers normal
domestic usage and does not cover damage which occurs in shipment or failure
which results from alteration, accident, misuse, abuse, glass breakage, neglect,
improper maintenance, use contrary to the operating instructions or commercial
use. This warranty is not available to retailers or other commercial purchasers or
owners.
12

TO OBTAIN PROMPT WARRANTY SERVICE:
Contact one of our many Service Centers found on our website
www.salton.com/customer-care
or
Securely package and return the appliance to us. Please enclose:
• Original proof of purchase
• The completed form below with a $12.50 Return Shipping & Handling
fee – either a cheque, money order or credit card (A personal cheque
will delay return shipping by 2-3 weeks)
For added protection, we suggest that you use an insured delivery
service with tracking information when returning your product. Salton
Canada will not be held responsible for in-transit damage or for
packages that are not received.
Name
Address
City Prov/State Postal/Zip Code
Daytime Phone No. Email
Product defect:
Type of payment Cheque/Money Order □Visa □ MasterCard □
Name on card Expiry Date CSV No
Card No.
To contact our Customer Service Department:
SALTON CANADA Telephone: [phone] (Ext. 226)
81A Brunswick, E-mail: [email protected]
Dollard-des-Ormeaux, Quebec H9B 2J5 Fax: [phone]
Canada www.salton.com
