Salton SORF16 Installation guide

INSTRUCTIONS AND WARRANTY
MODEL NO. SORF16
SALTON RECHARGEABLE FLOOR FAN
Thank you for purchasing our Salton Rechargeable Floor Fan. Please read the
instructions carefully before using and keep safe for future reference. The

2
following instructions will allow you to use this product to its maximum
performance.
IMPORTANT SAFEGUARDS
When using your fan, basic pre-cautions should always be followed including the
following:
When using any electrical appliance, basic safety precautions should always
be followed including the following:
1. Please read the instructions carefully before using any appliance.
2. Always ensure that the voltage on the rating label corresponds to the
mains voltage in your home.
3. Incorrect operation and improper use can damage the appliance and
cause injury to the user.
4. The appliance is intended for household use only. Commercial use
invalidates the warranty and the supplier cannot be held responsible
for injury or damage caused when using the appliance for any other
purpose than that intended.
5. Avoid any contact with moving parts.
6. This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible
for their safety.
7. Children should be supervised to ensure that they do not play with the
appliance.
8. Check the power cord and plug regularly for any damage. If the cord or
the plug is damaged, it must be replaced by the manufacturer or a
qualified person in order to avoid an electrical hazard.
9. Do not use the appliance if it has been dropped or damaged in any
way. In case of damage, take the unit in for examination and/or repair
by an authorized service agent.
10.To reduce the risk of electric shock, do not immerse or expose the
motor assembly, plug or the power cord to water or any other liquid.
11.Never immerse the full unit in water or any other liquid for cleaning
purposes.
12.Remove the plug from the socket by gripping the plug. Do not pull on
the cord to disconnect the appliance from the mains. Always unplug

3
the unit when not in use, before cleaning or when adding or removing
parts.
13.The use of accessory attachments that are not recommended or
supplied by the manufacturer may result in injuries, fire or electric
shock.
14.A short cord is provided to reduce the hazards resulting from becoming
entangled in or tripping over a longer cord.
15.Do not let the cord hang over the edge of a table or counter. Ensure
that the cord is not in a position where it can be pulled on inadvertently.
16.Do not allow the cord to touch hot surfaces and do not place on or near
a hot gas or electric burner or in a heated oven.
17.Do not use the appliance on a gas or electric cooking top or over or
near an open flame.
18.Place the power cable away from areas where people walk so that it
cannot be stepped on or tripped over.
19.Use of an extension cord with this appliance is not recommended.
However, if it is necessary to use an extension lead, ensure that the
lead is suited to the power consumption of the appliance to avoid
overheating of the extension cord, appliance or plug point. Do not
place the extension cord in a position where it can be pulled on by
children or animals or tripped over.
20.This appliance is not suitable for outdoor use. Do not use this
appliance for anything other than its intended use.
21.DO NOT carry the appliance by the power cord.
22.Do not leave this appliance unattended during use. Always unplug the
unit when not in use or before cleaning.
23.Always operate the appliance on a smooth, even, stable surface. Do
not place the unit on a hot surface.
24.Ensure that the switch is in the “Off” position after each use.
25.The manufacturer does not accept responsibility for any damage or
injury caused by improper or incorrect use, or for repairs carried out by
unauthorized personnel.
26.In case of technical problems, switch off the machine and do not
attempt to repair it yourself. Return the appliance to an authorized
service facility for examination, adjustment or repair. Always insist on
the use of original spare parts. Failure to comply with the above-
mentioned pre-cautions and instructions, could affect the safe
operation of this machine.
SPESIFICATIONS

4
•30CM rechargeable floor fan
•Power Input: DC 24V
•Frequency: 50Hz
•18W Fan Power
•Aluminum fan blades
•LED indicator light
•Li-Ion battery
•Recharging time: 4-5hrs
•Run time: 3.5hrs on full speed & 30hrs on the lowest speed setting
•USB output 5V
PARTS DIAGRAM
OPERATING INSTRUCTIONS
Main body (Fan guard and
fan blade)
Tilt-adjust screws (one on
each side)
Stand
Power Level control box
and USB

5
•Ensure that the voltage used corresponds with the voltage indicated.
•The fan is designed as a DC 24V lithium battery rechargeable with an
output 5V USB interface that can charge and power a mobile phone or
any other 5V product.
•To select your required speed, turn the speed control switch to the
required speed level:
0 - Off
1 - Low speed
2 - Medium speed
3 - High speed
•To change the direction of the airflow(up or down), the tilt guard can be
adjusted by pushing it upward or downward.
•Never touch the blades with your hand or any object when the fan is
plugged in.
•Do not unplug the unit by pulling the cord, grip the plug itself. If the
cord or plug are damaged, they must be repaired by a qualified
repairer before further use.
CLEANING AND MAINTAINANCE

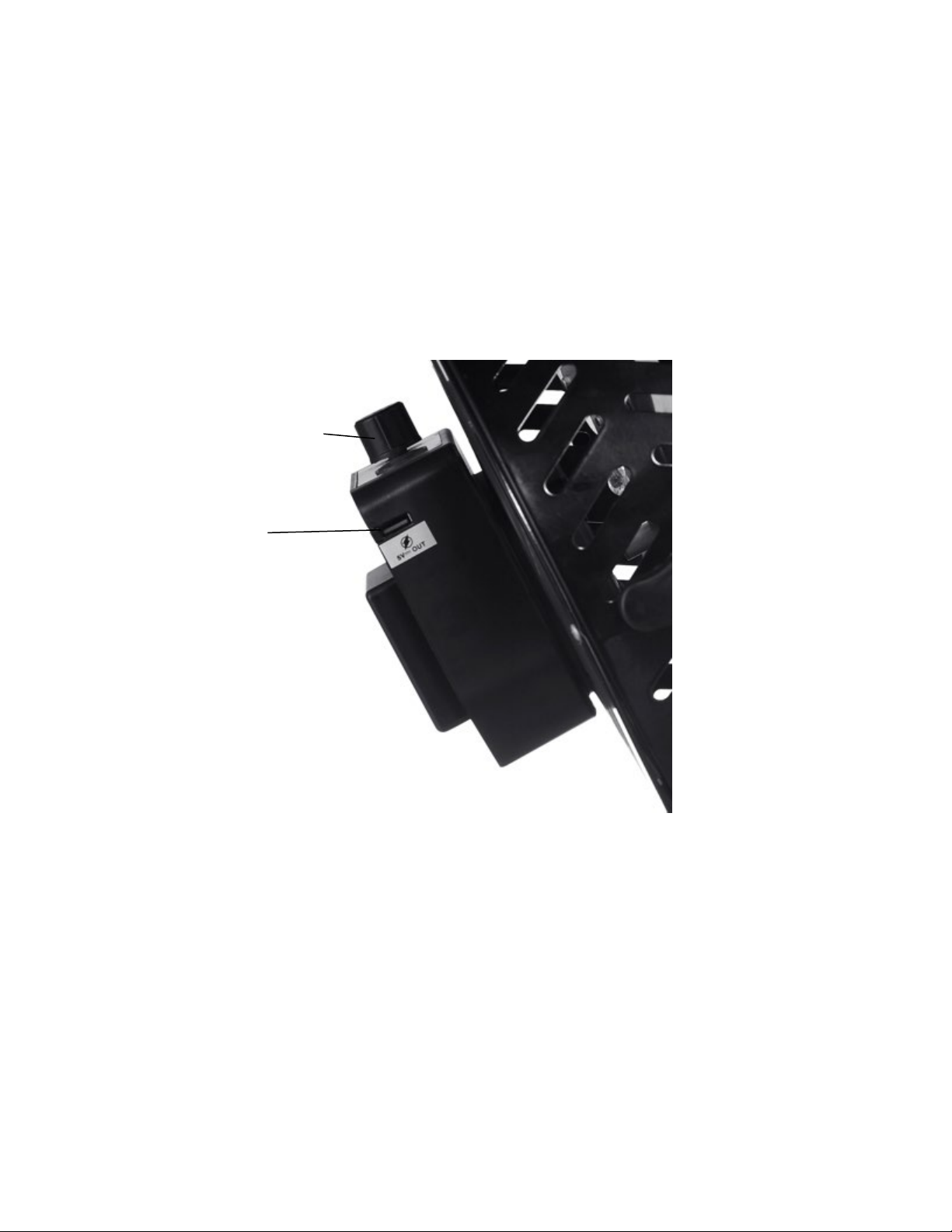

Speed Control Switch
USB Interface

6
1. Before cleaning, always ensure the fan is switched off and
disconnected from the electrical socket.
2. To clean the blade and grill assembly first remove the front grill
from the rear grill.
3. The front grill does not remove easily for safety reasons.
4. It is held in place by locking tabs that are mounted into the rear grill
and 1 safety screw and nut in the bottom of the grill.
5. Gently squeeze the rim and lift the tabs.
6. Unscrew the safety screw.
7. The fan blade assembly pulls off from the motor spindle after
unscrewing the fastening screw on the fan & motor shaft.
8. Wipe grill and blade assembly clean with a slightly damp cloth.
Make sure the parts are dry before re-assembling the fan.
9. Clean the motor housing and body assembly with a clean, dry cloth.
10. Never spray with liquids or submerge the fan in water or any other
liquid.
11. Do not immerse the unit in water or other liquids.
12. Never use polish or any corrosive or abrasive liquids or substances.
STORING THE APPLIANCE
1. Unplug the unit from the wall outlet and clean all the parts as
instructed above. Ensure that all parts are dry before storing.
2. Store the appliance in its box or in a clean, dry place.
3. Never store the appliance while it is still wet or dirty.
SERVICING THE APPLIANCE

7
There are no user serviceable parts in this appliance. If the air cooler is not
operating correctly, please check the following:
•You have followed the instructions correctly
•That the unit has been wired correctly and that the wall socket is
switched on.
•That the mains power supply is ON.
If the appliance still does not work after checking the above:
- Consult the retailer for possible repair or replacement. If the retailer fails to
resolve the problem and you need to return the appliance, make sure that:
•The unit is packed carefully into its original packaging.
•Proof of purchase is attached.
•A reason is provided for why it is being returned.
If the supply cord is damaged, it must be replaced by the manufacturer or an
authorized service agent in order to avoid any hazard. If service becomes
necessary within the warranty period, the appliance should be returned to an
approved Home of Living Brands (Pty) Ltd service centre. Servicing outside the
warranty period is still available, but will, however, be chargeable.
PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE

8
IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE
PRODUCED.
W A R R A N T Y
1. Home Of Living Brands (Pty) Limited warrants to the original purchaser of this
product (“the customer”) that this product will be free of defects in quality and
workmanship which under normal personal, family or household use and
purpose may manifest within a period of 1 (one) year from the date of
purchase (“warranty period”).
2. Where the customer has purchased a product and it breaks, is defective or
does not work properly for the intended purpose, the customer must notify the
supplier from whom the customer bought the product (“the supplier”) thereof
within the warranty period. Any claim in terms of this warranty must be
supported by a proof of purchase. If proof of purchase is not available, then
repair, and/or service charges may be payable by the customer to the
supplier.
3. The faulty product must be taken to the supplier's service centre to exercise
the warranty.
4. The supplier will refund, repair or exchange the product in terms of this
warranty subject to legislative requirements. This warranty shall be valid only
where the customer has not broken the product himself, or used the product
for something that it is not supposed to be used for. The warranty does not
include and will not be construed to cover products damaged as a result of
disaster, misuse, tamper, abuse or any unauthorised modification or repair of
the product.
5. This warranty will extend only to the product provided at the date of the
purchase and not to any expendables attached or installed by the customer.
6. If the customer requests that the supplier repairs the product and the product
breaks or fails to work properly within 3 (three) months of the repair and not
as a result of misuse, tampering or modification by or on behalf of the
customer, then the supplier may replace the product or pay a refund to the
customer.
7. The customer may be responsible for certain costs where products returned
are not in the original packaging, or if the packaging is damaged. This will be
deducted from any refund paid to the customer.
HOME OF LIVING BRANDS (PTY) LTD (JOHANNESBURG)
NATIONAL CONTACT TEL NO. [phone]
JOHANNESBURG TEL NO. [phone]
www.salton.co.za
