Sam Horizon User manual

OPERATOR’S MANUAL
SANDS AGRICULTURAL MACHINERY Ltd
Main Road, Brunstead,
Stalham, Norwich, Norfolk NR12 9ER
Tel: [phone]
Fax: [phone]
Email: [email protected]
Website: www.samltd.co.uk
Ver 4.8.2

1
Thank you for choosing a new SAM Horizon Crop Sprayer for your future spraying needs.
We urge you to read and fully understand this manual and keep it handy at all times as it could avoid
mistakes, frustration and excessive down time.
The Manual is divided into several sections. It is intended to cater for the Farm Maintenance Engineer as well
as the Spray Operator and these people must decide which sections of the manual are relevant to them.
Please ensure that the following details are completed when the machine is commissioned, as this
information will be required when ordering spare parts.
SAM Serial No: ................................................. Cab No: ..................................................
Commissioning Date: ..................................................
Sands Agricultural Machinery Ltd (SAM) may be contacted as follows:
Telephone: [phone] Fax: [phone]
Email: [email protected] Web Site: www.samltd.co.uk
DELIVERY
Upon receipt of the sprayer, please check for transport damage. Check all major fixings at this time and at
frequent periodic intervals thereafter.
CONDITIONS OF SUPPLY
Sands Agricultural Machinery Ltd cannot be held responsible for injury or damage arising from incorrect
handling, usage or storage of this sprayer.
The Customer will become wholly responsible for items or build specifications outside our normal conditions
of supply.
WARRANTY
Sands Agricultural Machinery Ltd warrants all its products for a period of 1 year or 800 hours from the date of
delivery. Free of charge replacement by post will only be accepted if the failed component(s) are returned,
adequately packed and protected, in a representative condition. Any damage not attributed to the failure will
be charged. Engine and transmission warranties are extended by their individual manufacturers – consult
SAM for details.
SAM Ltd reserves the right to charge for fair 'wear and tear' on selected items. Unusual working practices
should also be avoided as these often contribute to a shorter working life on associated components.
It is the Company's policy to continually improve and update it’s products and SAM Ltd, therefore, reserve the
right to alter specifications and design without notice.
INTRODUCTION
1

2
Introduction 1
Section 1 Safety
General Safety 1-1
Safety Critical Items & Safety First 1-2
Safety Check List - General Safety 1-3, 6
Safety Check List - Safety Decals 1-7
Do’s & Don’t’s 1-8
Section 2 Machine Controls
2.1 4000, 4000E, 5500, 6000
Steering Column 2.1-1

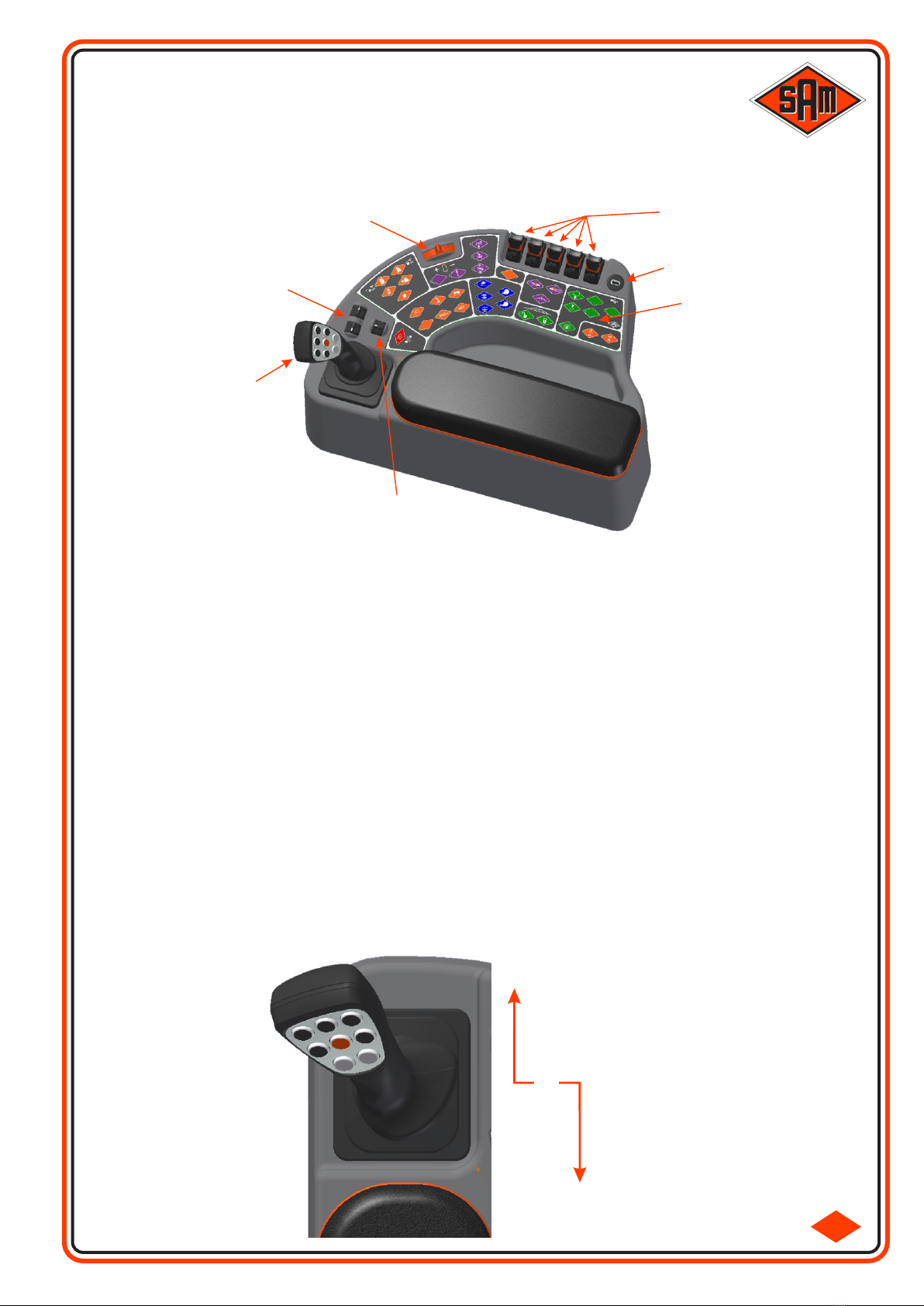

Armrest Control Console 2.1-2, 5
Floor 2.1-6
Overhead 2.1-7
Overhead - Climate Control 2.1-7
Overhead - Control Panel 2.1-8
Overhead - Electronic Dash Display 2.1-9,10
4 Wheel Steer (4WS) 2.1-11
2.2 3000, 3000E, 3500
Steering Column 2.2-1
Armrest Control Console 2.2-2
Overhead 2.2-3
Overhead - Control Panel 2.2-4
Overhead - Electronic Dash Display 2.2-5
Section 3 Mechanical Components
Power unit 3-1
Steering & Suspension Hydraulics 3-2
Auxiliary Spray Pack Hydraulics 3-3
Transmission - Hydrostatic Pump 3-3
Transmission - Hydrostatic Wheel Motor 3-4
Smart Drive (Electronic Anti-Slip System) - Optional 3-4
Suspension 3-4
Tyres - General 3-5
Floatation Tyres 3-5
Tyres - Customer / Operator 3-6, 7
Tyres - Operating Information 3-7, 8
Tyres - Maintenance & Care 3-8
Tyres - Load Index Table 3-9
Dual Wheels 3-10
Wheel Nuts 3-10
Track Adjustment 3-10
Manual Sliding Axles 3-10
Hydraulic Adjust Axles 3-11
Hydraulic Oil Reservoir 3-11
Excessive Transmission Oil Temperature 3-12
Compressed Air System 3-12
CONTENTS
2

3
Section 4 Spraying Components
Spray Tank 4-1
Sight Gauge 4-2
Rotary Taps 4-2
Suction Filter 4-2
Chemical Induction Hopper 4-3
Spray Pump 4-3
Spray Line Strainer 4-3
Prime & Purge System 4-4
Nozzle Bodies 4-4
Spray Lines 4-4
Clean Water Tank 4-4
Main On / Off Valve 4-4
Gullwing Spray Booms 4-5
Gullwing Spray Booms 36M & 40M Supplement 4-6
Boom Lock 4-6
Variable Geometry (Incline) - Optional 4-6
Headland Control - Optional 4-6
Automatic Spray Control 4-7
Dual Ride - Optional 4-7
De-Mount - Optional 4-7
Section 5 Spraying
Filling The Spray Tank 5-1
Washing Out The Spray Tank 5-2
Pesticide Spraying & The Environment 5-3
Pesticide Spraying - Field Craft 5-4
Useful Publications - Pesticide Use 5-4
Section 6 Maintenance
6.1 4000, 4000E, 5500, 6000
Checks / Service Intervals 6.1-1, 2
Lubrication 6.1-2
Cab Clean Air Filter 6.1-3
Settings / Specifications / Ratings 6.1-4
Fuses & Relays - Over Head & Right Hand Compartment 6.1-5
Fuses & Relays - Battery Compartment 6.1-6
Trouble Shooting / Fault Finding 6.1-7
Trouble Shooting / Fault Finding - Engine Fault Codes 6.1-8
Spare Parts Reference - Cab, Power Unit,
Hydraulic & Air 6.1-9
Spare parts Reference - Spray Pack 6.1-10, 11
6.2 3000, 3000E, 3500
Fuses & Relays 6.2-1
CONTENTS Cont..........
3

4
SECTION 1
SAFETY

5
1. This machine must only be used for the purpose for which it was intended i.e. crop spraying.
2. It is against the law for anybody to operate a machine that they do not understand. Please read this
handbook carefully before attempting to operate the sprayer.
3. In order to comply with the Health and Safety at Work Act, the sprayer must be thoroughly washed and
decontaminated before any person may be permitted to carry out repairs or adjustments.
4. Be aware of the COSHH Regulations and comply with them at all times.
5. Always wear protective clothing when working with chemicals.
6. Always read the label on the chemical container carefully.
7. The machine must not be used for spraying sulphuric acid unless it has been modified for this purpose.
8. Never operate the sprayer until all guards are in place.
9. Never start the machine until all personnel are clear.
10. Never perform maintenance or repair work while the machine is running. If you are working on a part of the
machine not visible from the cab, remove the ignition key.
11. Never work under the machine when it is standing on a jack unless it is properly supported.
12. Extra care should be taken when working on steep hills, as is normal practice with any high clearance tractor.
Beware of 'soft spots' and 'pot holes'. Never spray across a dangerously steep hill and never spray across a
steep hill with the uppermost boom folded. Wider wheel settings aid stability.
13. Ensure that any replaced component, hose or fitting is of the same specification as that originally fitted. All
hydraulic hoses carry an identification number.
14. If frost is expected, anti-freeze should be pumped through the complete spraying system and/or drain down.
15. Before going onto the road, check brakes, lights, indicators and tyre pressures. Ensure 4WS is disengaged
(4WS Indicators are extinguished on Over Head Control Panel and Vehicle is in ‘Road Mode’).
16. Extra care should be taken when servicing the battery (always isolate first). The sulphuric acid contained
within the battery can cause severe burns as well as explosive gases. Keep cigarettes and sparks away.
17. This machine contains an air reservoir with a maximum pressure rating of 10 bar. The reservoir should be
checked on an annual basis by a recognised inspector.
18. As with any high clearance machine with a high centre of gravity, the stability of that machine is directly related
to its wheel track width. As tractors have grown in size, their ability to achieve narrow track widths has
diminished. Like the tractor, the sprayer track width should also reflect this philosophy.
A 'risk assessment' and 'duty of care' is part of modern farming life and the farmer/contractor has a legal
responsibility to consider the sprayer track width in relation to stability in order to achieve a safe working
environment.
19. Before any spraying operation and prior to field entry, the spray operator should commence a mental risk
assessment of the area. All risks, however minor, should be recorded in some way for later reference by any
operator.
Notable risks should include water courses, footpaths, local housing, gradients, pylons and poles, power
cables, adjoining crops, wind direction etc.
20. An Emergency Hammer is provided within the Cab to smash any window to act as an emergency exit.
The hammer blow should be directed at the corner of the window. The right hand door can also be used
as an emergency escape route.
GENERAL SAFETY
1-1

6
All agricultural equipment can be hazardous. When a SAM sprayer is correctly operated and properly
maintained, it is a safe machine to work with, but when it is carelessly operated or poorly maintained it can
become a danger to you (the operator) and others.
In this handbook and on the machine you will find warning messages. Read and understand them. They tell
you of potential hazards and how to avoid them. If you do not fully understand the warning messages, ask
your employer or SAM Ltd to explain them.
However, safety is not just a matter of responding to the warnings. All the time you are working on or with the
machine, you must be thinking what hazards there might be and how to avoid them.
Do not work with the machine until you are sure that you can control it.
Do not start any job until you are sure that you and those around you will be safe.
If you are unsure of anything, about the machine or the job, ask someone who knows. Do not assume
anything.
SAFETY FIRST
SAFETY CRITICAL ITEMS
The braking and steering systems fitted on the sprayer are both safety critical services. These systems
should be thoroughly inspected at least every 250 hours and should coincide with the hydraulic filter changes.
The two braking systems fitted (Primary and Parking) require only a visual inspection around the wheel
motors. The multi-disc parking brake fitted to each rear wheel motor should be inspected for back plate spring
integrity and oil leaks from this area.
The steering system consists of several components, all of which should be checked for tightness, in
particular the fixings of the ball joint tapers plus the split pin, the ball joint, track rod, lock nut and the steering
cylinder.
In the case of adjustable axles, the track rod-adjusting bolt and axle clamp should be checked. Axle
adjustment is covered in the following pages of this instruction book but we should emphasise that both front
and rear axle fixings should be re-checked for tightness after a few hours work. A weekly visual inspection
should also be initiated.
Finally, it would be prudent to check for fatigue marking in highly stressed areas and associated components,
on a regular basis. Should any item give cause for concern then contact SAM Ltd immediately.
Remember
BE CAREFUL
BE ALERT
BE SAFE
1-2

7
As well as the warnings in this chapter, specific warnings are given throughout the book. This section is
designed to give a safety code for use of the machine generally and for operation and maintenance practices.
! WARNING
Handbook
You and others can be injured if you operate or maintain the machine without first studying this handbook.
Read the safety instructions before operating the machine. If you do not understand anything, ask your
employer or SAM Ltd to explain it. Keep this handbook clean and in good condition. Do not operate the
machine without a handbook in the cab, or if there is anything you do not understand.
! CAUTION
Regulations
Obey all laws and local regulations that affect you and your machine. Ignorance of the law is no defence
! WARNING
Decals
You can be injured if you do not obey the decal safety instructions. Keep decals clean. Replace unreadable
or missing decals with new ones before operating the machine. Make sure replacement parts include
warning decals where necessary.
! WARNING
Alcohol and Drugs
It is extremely dangerous to operate machinery when under the influence of alcohol or drugs. Do not
consume alcoholic drinks or take drugs before or whilst operating the machine. Be aware of medicines that
can cause drowsiness or affect your ability to control the machine.
! WARNING
Clothing
You can be injured if you do not wear the proper clothing. Loose clothing can get
caught in the machinery. Wear protective clothing to suit the job.
! DANGER
Parking
Do not leave the driving seat under any circumstances unless the parking brake is ON.
! WARNING
Machine Condition
A defective machine can injure you or others. Do not operate a machine that is defective or has missing parts.
Make sure the maintenance procedures in this handbook are completed before using the machine.
! WARNING
Controls
Keep the machine controls clean and dry. Your hands and feet could slide off slippery controls. If that
happens you will lose control of the machine.
! WARNING
Machine Limits
Operating the machine beyond its design limits can damage the machine and can also be dangerous. Do not
operate the machine outside its limits. Do not try to upgrade the machine performance with unapproved
modifications.
SAFETY CHECK LIST - GENERAL SAFETY
1-3

8
! WARNING
Visibility
Accidents can be caused by working in poor visibility. Keep windows clean and use your lights to improve
visibility.
! WARNING
Exhaust Gases
Breathing the machine exhaust gases can harm and possibly kill you. Do not operate the machine in closed
spaces without making sure there is good ventilation. If you begin to feel drowsy, stop the machine at once.
Get out of the cab into fresh air.
! WARNING
Noise Level in Cab
With cab door closed and at working speeds, the sound pressure level measured at the driver's ear is around
72 dB (A).
! WARNING
Repairs
Do not try to do repairs or any other type of maintenance work you do not understand. Contact SAM Ltd or get
the work done by a specialist engineer.
! WARNING
Communications
Bad communications can cause accidents. If two or more people are working on the machine, make sure
each is aware of what the others are doing. Before starting the engine, make sure the others are clear of the
danger areas; examples of danger areas are: the rotating shafts and belts on the engine, the booms, and
anywhere beneath or behind the machine. People can be killed or injured if these precautions are not taken.
! WARNING
Soft Ground
A machine can sink into soft ground. Never work under a machine on soft ground.
! WARNING
Jacking
A machine can roll off jacks and crush you unless the wheels have been chocked. Always chock the wheels at
the opposite end of the machine to that which is to be jacked. Do not work underneath a machine supported
only by jacks. Always support a jacked-up machine on axle stands before working underneath it.
! WARNING
Electrical Circuits
Understand the electrical circuit before connecting or disconnecting any electrical component. A wrong
connection can cause injury and/or damage.
! WARNING
Hydraulic Fluid
Fine jets of hydraulic fluid at high pressure can penetrate the skin. Do not use your fingers to check for
hydraulic fluid leaks. Do not put your face close to suspected leaks. Hold a piece of cardboard close to
suspected leaks and then inspect the cardboard for signs hydraulic fluid. If hydraulic fluid penetrates your
skin, seek medical help quickly.
SAFETY CHECK LIST Cont..........
1-4

9
! WARNING
Hydraulic Hoses
Damaged hoses can cause fatal accidents. Inspect the hoses regularly for:
Damaged end fittings
Chafed outer covers
Ballooned outer covers
Kinked or crushed hoses
Embedded armouring in outer covers
Displaced end fittings.
! WARNING
Rams / Cylinders
The efficiency of the rams will be affected if they are not kept free of solidified dirt. Clean dirt from around the
rams regularly. When leaving or parking the machine, close all rams if possible to reduce the risk of weather
corrosion.
! WARNING
Fires
If your machine is equipped with a fire extinguisher, make sure it is checked regularly. Keep it in the operator's
cab until you need to use it.
Do not use water to put out a machine fire, you could spread an oil fire or get a shock from an electrical fire.
Use carbon dioxide, dry chemical or foam extinguishers. Contact your nearest fire department as quickly as
possible.
Firefighters should use self-contained breathing apparatus.
! WARNING
Modifications and Welding
Non-approved modifications can cause injury and damage. Parts of the machine are made from cast iron;
welds on cast iron can weaken the structure and break. Do not weld cast iron. On no account weld or drill the
chassis structure. Contact SAM Ltd before modifying the machine.
! WARNING
Metal Splinters
You can be injured by flying metal splinters when driving metal pins in or out. Use a soft-faced hammer or drift
to remove and fit metal pins. Always wear safety glasses.
! WARNING
Cleaning
Cleaning metal parts with incorrect solvents can cause corrosion. Use only recommended cleaning agents
and solvents.
! WARNING
'O' rings, Seals and Gaskets
Badly fitted, damaged or rotted 'O' rings, seals and gaskets can cause leakages and possible accidents.
Renew whenever disturbed unless otherwise instructed. Do not use Trichloroethane or paint thinners near
'O' rings and seals.
SAFETY CHECK LIST Cont..........
1-5

10
! WARNING
Fluoroelastomeric Materials
Certain seals and gaskets (e.g. crankshaft oil seal) on SAM machines contain fluoroelastomeric materials
such as Viton, Fluorel and Technoflon. Fluoroelastomeric materials subject to high temperatures can
produce highly corrosive hydrofluoric acid. THIS ACID CAN SEVERELY BURN.
New fluoroelastomeric components at ambient temperature require no special safety precautions.
Used fluoroelastomeric components whose temperatures have not exceeded 300C require no special safety
precautions. If evidence of decomposition (e.g. charring) is found, refer to the next paragraph for safety
instructions. DO NOT TOUCH COMPONENT OR SURROUNDING AREA.
Used fluoroelastomeric components subjected to temperatures greater than 300C (e.g. engine fire) must be
treated using the following safety procedure. Make sure that heavy-duty gloves and special safety glasses
are worn:
Ensure that components have cooled then remove and place in plastic bags.
Thoroughly wash contaminated area with 10% calcium hydroxide or other suitable alkali solution, if
necessary use wire wool to remove burnt remains.
Thoroughly wash contaminated area with detergent and water.
Contain all removed items/materials, gloves etc used in this operation in sealed plastic bags and
dispose of in accordance with Local Authority Regulations.
DO NOT BURN FLUOROELASTOMERIC MATERIALS.
If contamination of skin or eyes occurs, wash the affected area with a continuous supply of clean water or with
calcium hydroxide solution for 16-60 minutes. Get medical attention immediately.
SAFETY CHECK LIST Cont..........
1-6

11
! WARNING
Decals on the machine warn you of particular hazards. Each decal is attached close to a part of the machine
where there is a possible hazard. Read and make sure you understand the safety message before you work
with or on that part of the machine.
Keep all decals clean and readable. Replace lost or damaged decals.
! WARNING
If you need eyeglasses for reading, make sure you wear them when reading the safety decals. Decals are
strategically placed around the machine to remind you of possible hazards. Do not over-stretch or place
yourself in dangerous positions to read the decals.
WARNING – POWER LINES!!
DANGER OF DEATH – Stay away from power lines while folding booms
In the unlikely event of any part of the machine touching a power line:
STAY IN THE CAB
DON'T PANIC
TRY TO DRIVE CLEAR
WARN OTHERS TO STAY WELL CLEAR
If this is not possible or the machine catches fire
JUMP WELL CLEAR – DON'T CLIMB DOWN – the metalwork of the machine may be live
NEVER TOUCH THE MACHINE ONCE YOU ARE ON THE GROUND
RUN WELL CLEAR WITH LEAPING STRIDES
STAY WELL CLEAR, WIRES MAY RE-ENERGISE WITHOUT WARNING
KEEP EVERYONE AWAY AND CALL YOUR LOCAL ELECTRICITY SUPPLIER ON:
Tel: ..................................................
SAFETY CHECK LIST - SAFETY DECALS
1-7

12
DON'T
1. Don’t put chemical in a dry Tank.
2. Don’t leave water or chemical solution in the Tank for long periods of time e.g. overnight.
3. Don’t weld on the machine without first disconnecting the Battery.
4. Don’t drive the machine while folding or unfolding the Booms.
5. Don’t drive the machine with unsupported folded Booms.
6. Don’t spray in high winds
7. Don’t use incorrect or dirty oil in the machine.
8. Don’t fold the Spray Booms under or near power lines.
9. Don’t put incomplete or incompatible chemicals in the same Tank mix – check with your agronomist.
DO
1. Do study the chemical manufacturer's recommendations.
2. Do check Nozzle output and pattern frequently.
3. Do take adequate precautions when frost is expected.
4. Do check forward speed at regular intervals
5. Do wear protective clothing (THIS IS LAW).
6. Do check for Boom 'overlap'.
7. Do check for correct Boom height, especially in crops of varying heights.
8. Do study this manual carefully - preventative maintenance is cheaper than compulsory maintenance.
9. Do contact SAM Ltd if there is any query on the control or operation of the machine.
DO’S & DON’T’S
1-8

13

14
SECTION 2
MACHINE
CONTROLS
2.1 4000, 4000E, 5500
& 6000 MACHINES
2.2 3000, 3000E &
3500 MACHINE

15
STEERING COLUMN
2.1-1
Upper Column
Adjustment
(raises the Steering
Wheel & tilts the
Upper Section)
Direction Indicator
Windscreen Wiper
High Beams & Horn
Lower Column
Adjustment
(tilts the Lower Section)
Left
Indicator
High
Beams
Ignition
Engine
Pre-Heat
Right
Indicator
Side Lights
& Low Beams
Hazard
Warning
Ignition Key

16
The Armrest Control Console contains all the essential controls for the machine, which include Transmission
Joystick, Boom Incline and Contour Switches, Boom Fold Switches, Engine Throttle and Chassis / Spray
Control Buttons.
ARMREST CONTROL CONSOLE
2.1-2
Boom Fold Switches
Engine Throttle
USB Socket
Chassis / Spray
Control Buttons
Boom
Contour
Switch
Boom Incline
Switches
Transmission
Joystick
F
R
N
If Field Mode is selected, moving the Joystick forward will drive the machine forward. The further forward the
Joystick is pushed, the faster the machine will travel but is limited by the set Engine RPM.
If Road Mode is selected the engine RPM remains at idle until the Joystick is moved (or the optional Travel
Pedal is pressed). On a 4000 sprayer the engine RPM increases and the machine will pull away with the wheel
motors in half displacement until the maximum speed of 40kph is reached. A 5500 sprayer automatically
changes displacement until the maximum speed is reached.
If the joystick is returned to neutral, the sprayer will stop. The quicker the Joystick is moved, the quicker the
response, whether it be acceleration or braking. Care must be taken not to induce skidding by moving the
Joystick too rapidly.
If greater braking is required, than the joystick provides, then the Brake Pedal can be depressed (if fitted). This
will provide braking torque on the front wheels (Horizon 4000) or all four wheels (Horizon 5500) as well as the
hydrostatic braking. After using the foot brake, the Joystick must be returned to the corresponding braked
speed before the machine will accelerate.
Moving the joystick backwards drives the machine in reverse and the same rules apply.
If the optional Travel Pedal is fitted and selected, then the joystick has to be moved fully forward or backward in
the first instance in order to dictate the direction of travel.
The engine can only be started with the joystick in neutral.

17
Section 5
(Section 4 if
only 5 sections)
Section 4
(Section 3
if only 5
sections)
Section 6
(Section 5 if
only 5 Sections)
Section 3
(Section 2 if
only 5 sections)
Main ON/OFF
Section 2
(Section 1 if
only 5 sections) Section 7
(RH Incline if
only 5 sections)
(RH Indicator in
Road Mode)
Section 1
(LH Incline if
only 5 sections)
(LH Indicator in
Road Mode)
RPM +
RPM -
The Engine Throttle control is a rotary wheel, which when moved in the forward
direction, the Engine RPM is increased. When moved in the rearward direction
the Engine RPM is decreased. The rotary wheel will remain in the position it was
left in, except in the case of the Horizon 5500. In this case the rotary wheel will
return to the central position because it operates in a momentary fashion. When
moved in the forward / rearward direction momentarily, the rpm will increase /
decrease in according steps, if held in position the RPM will change more rapidly.
The Engine Throttle will only operate while in Field Mode, as when in Road Mode
the RPM is controlled via the Joystick / Travel Pedal.
If the Engine Throttle was not at idle before switching to Road Mode, when
switching back to Field Mode the Engine Speed will return to the original RPM.
ARMREST CONTROL CONSOLE Cont..........
The Boom Fold Switches are a lever type switch.
When they are moved to the left (towards the
operator) the Boom section will fold IN. When moved
to the right (away from the operator) the Boom section
will fold OUT.
1st fold = Main Section (12m)
2nd fold = Mid Section (24m)
3rd fold = End Section (30/32/36m)
4th fold = Hydraulic Flip (24-28m, 30-32m, 36-40m)
3rd fold when a 24m Independent Fold Boom is fitted
= Left Hand Independent.
4th fold when a 24m Independent Fold Boom is fitted
= Right Hand Independent.
4th fold when a 30-36m Independent Fold Boom is
fitted = Left Hand Independent.
5th fold when a 30-36m Independent Fold Boom is
fitted = Right Hand Independent.
1st
Fold
Out 2nd
Fold
Out 3rd
Fold
Out 4th
Fold
Out 5th
Fold
Out
1st Fold In
2nd Fold In
3rd Fold In
4th Fold In
5th Fold In
2.1-3
LEFT
INCLINE
UP
RIGHT
INCLINE
UP
LEFT
INCLINE
DOWN
CONTOUR
LEFT
CONTOUR
RIGHT
RIGHT
INCLINE
DOWN
The Boom Incline switches (where fitted) are a roller type
switch. Moving the switches forwards, inclines the boom UP.
Moving the switches rearwards, inclines the boom DOWN.
The Contour Switch (where fitted) is a roller type switch.
Moving the switch to the left, contours the boom to the LEFT.
Moving the switch to the right, contours the boom to the
RIGHT. If no switch is fitted and while Field Mode is selected,
Section 1 becomes Left Contour and Section 7 becomes
Right Contour.
The 8 buttons on the front face of the Joystick
are Spray Boom Nozzle Sections. Buttons are
active when they are illuminated Green / Blue.
On the rear face are 2 more Buttons, which
control the Height of the Boom Assembly.
The centre Joystick button is the Main Spray
(master) On/Off control.
When in Road Mode Section 1 becomes the
Left Hand Indicator and Section 7 becomes the
Right Hand Indicator. They are not self
cancelling.
Boom UP
Boom Down

18
ARMREST CONTROL CONSOLE Cont..........
2.1-4
Cruise
Control
RESET/ Increase
(5500)
Cruise
Control
SET/ Decrease
(5500)
Option A
Joystick
Control
Cruise
Control
(5500)
Park Brake/ Stop
Downhill
Traction
Normal/
Up Hill
Traction
Field Mode/
4WS Unlocked
Road Mode/
4WS Locked
Max
Traction
Option
B
Dual Ride
(Option)
Smart Drive
(Option)
Locked
Smart Drive
(Option)
Unlocked
Option
C
Front/
Single
Spray
Lines
Front
& Rear
Spray
Lines
(Option)
Rear
Spray
Lines
(Option)
Spray Pump
Speed 2
Spray Pump
Speed 1
(Option)
Boom
Unlock
(30m +)
Tank
Wash
Boom
Lock
(30m +)
Left
Headland
Nozzle
(Option)
Right
Headland
Nozzle
(Option)
Headland
Lift
(Option)
Main
Spray
Tank
Clean
Water
Tank
Option
D
Smart Drive
(Option)
Locked
Spray ON
Option E
Option
F
4 WS
Engaged
Spray OFF
4WS
Engaged
Permenantly
Travel Pedal
Control

19
ARMREST CONTROL CONSOLE Cont..........
2.1-5
Park Brake / Step - Applying the Park Brake also lowers the Step.
If the Park Brake is not applied before attempting to leave the Cab, injury may result!
Remember that removing the Park Brake will raise the Step - ENSURE that the Step area is clear before
removing / applying the Park Brake!
Field Mode / 4 Wheel Steer Unlocked - For normal field work, it also unlocks the 4WS system allowing the
operator to engage 4WS by either pressing the 4WS Foot Switch, or the 4WS Engaged Spray OFF or 4WS
Engaged Permanently.
Normal / Uphill Traction - For flat land, steep uphill and moderate downhill spraying. Gives best overall
performance.
Remember: if the machine will not climb the hill in Normal / Uphill, never attempt to descend the hill.
Downhill Traction - For descending a steep hill when traction is marginal. If Normal / Uphill is being used and
the rear wheels begin to skip, Downhill may be selected on the move.
Maximum Traction - all wheel motors with full power capability – generally only suitable on flat land.
Road Mode / 4 Wheel Steer Locked- For driving on highways, maximum speed but with reduced motor
torque. Also locks the 4WS system (once the rear wheels have straightened up) to prevent 4WS use. Ensure
that the 4WS system is disengaged before entering a public highway.
The vehicle has a permanent four-wheel drive system but this is only relevant when all wheels can provide
tractive effort.
Cruise Control - Activates Cruise Control, only available on the Horizon 5500 Sprayers.
Set / Decrease - will SET the speed at which the Sprayer is travelling as the cruise speed. Once set the speed
can be increased or decreased by momentary operation of Reset / - or Set / + buttons (approx 0.5km/h each
time). Pressing the button again will decrease the vehicle speed by a predetermined amount.
Pressing the Brake Pedal or turning off Cruise Control will cancel Cruise Control.
Reset / Increase - will RESET the cruise control to the previous cruise speed. Pressing the button again will
increase the vehicle speed by a predetermined amount.
Joystick Control - when in Road mode the forward/ reverse speed is controlled by the Joystick.
Travel Pedal Control - when in Road mode the forward / reverse speed is controlled by the Travel Pedal.
Smart Drive System (Smart Drive Locked, Unlocked & Locked With Spray ON) - Smart Drive is an Anti
Slip Transmission System that ensure all wheels provide traction with out slipping in adverse conditions.
Locked provides Anti Slip permanently, Unlocked provides no Anti Slip and Locked with Spray ON provide Anti
Slip only when the Main Spray ON/OFF is ON.
Smart Drive faults are indicated by the flashing of either of the status LED’s depending which button is
selected.
Dual Ride - Provides a softer front suspension ride.
Forward Spray Nozzles - selects the forward Spray Nozzles (turret outlet) of the Duo-React Nozzles Bodies.
Rearward Spray Nozzles - selects the rearward Spray Nozzles (single outlet) of the Duo-React Nozzle
Bodies.
Forward & Rearward Spray Nozzles - selects both the forward & rearward Spray Nozzles of the Duo-React
Nozzles Bodies.
Pump Speed 1 - Slower Spray Pump speed for dual speed pumps (if fitted). Not in use if single speed pump is
fitted.
