Krautzberger RA-2 HV3 Guide

Operating instructions
and spare parts list
- keep for future use -
Robot Automatic Spray Gun
Typ: RA-2 HV3
Article No.:
0920-090-....
0921-090-....

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
1. Hazard and warning notes!
 Assembly of the automatic spray gun, type RA-2 HV3, and connection of the compressed
air and material feed should be effected only by suitably qualified personnel! Check the
mounting device and the connections from time to time!
 Always wear the protective equipment (e.g. protective clothing, goggles, breathing
protection, ear mufflers, gloves etc.) recommended by the supplier of the coating
substance during maintenance, cleaning or repair work and when changing materials!
 Comply with the explosion protection regulations when using potentially flammable and
explosive coating substances! Keep away from sources of ignition and open flames!
 Comply with the warning and hazard instructions of the supplier of the coating material
(and, if necessary, of the detergent) with regard to emission, fire or explosion hazard or
other hazards (where applicable)! In case of doubt, consult the supplier(s)!
 When mixing different components and/or when using solvents or thinning agents to
make coating materials, take steps to ensure that no substances with increased hazard
potential are created (e.g. flammability, explosion hazard, increased explosive tendency
through spraying with air, toxicity, increased toxicity due to chemical reaction with air
etc.)! Avoid increased hazard potential caused by undesired chemical reactions! In case
of doubt, consult the supplier(s) of the components! Where necessary, take protective
measures and effect special notification of the particular hazard!
 When using substances such as solvents which can generate an increased explosion
potential due to atomisation or spraying in air, take protective measures and effect
special notification of the particular hazard! In case of doubt, consult the supplier(s) of the
components!
 The compatibility of the parts of the automatic spray gun which come into contact with the
material cannot be guaranteed with all potential coating substances (see chart "Parts in
contact with the material" in Section 10, Technical Data). In case of doubt, consult
Krautzberger GmbH!
 Under no circumstances should the spray jet be directed at people or animals!
 Do not stand in the area of the material jet!
 Angle of material in front of nozzle: up to approx. 180° depending on setting. Length of
material jet in front of nozzle: depends on setting (e.g. water with a material pressure of 4
bar sprayed through a 1 mm material nozzle hits a disc measuring 2 metres in diameter
at a distance of 10 metres).
 Never direct the spray jet at electrical equipment or systems!
 During spraying, the coating substance escapes into the surrounding air: depending on
the coating substance, there may be a risk of environmental, fire, explosion and health
hazards. Therefore only use spraying equipment in the specially designed surroundings!
 Only work in adequately ventilated areas! If necessary, make use of suitable extraction
 systems!
 Ensure adequate earthing (e.g. connection to the building earth at the retaining bolt
(124)!
2

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
 Radiators or water pipes do not provide sufficient earth contact! During breaks in
operation or when shutting down the equipment as well as prior to dismantling or the
start of repair and maintenance work, you should ensure that the automatic spray gun is
no longer under pressure (close material feed, open control air until material pressure
has dissipated, close control and atomiser air supply)!
 During breaks in operation (e.g. work breaks), shut off the air supply! In particular, shut
off the control air! Check whether material escapes! Repair if necessary!
 Prior to each repeat startup, check the connections and settings and monitor the
automatic spray gun type RA-2 HV3 for seal tightness (no uncontrolled air and/or
material discharge)!
 Adhere to the pressures and temperatures listed under "Technical Data"!
 When working at temperatures above 43°C, attach protective devices and post
notification concerning the risk of combustion due to coating substance and/or heated air,
and draw particular attention to risks resulting from leakage or bursting of the spray gun!
 Ensure that neither spraying nor air or material discharge can be activated accidentally or
by defects in the unit as long as one or more persons are in the hazard zone. Take steps
to ensure that no alterations can occur or be made to the control and/or atomiser air feed
or the material pressure during setting and maintenance work without the knowledge or
consent of the setup technician!
 Check wearing parts at appropriate intervals and replace if necessary!
 Only use spare parts and accessories from Krautzberger GmbH! Krautzberger GmbH
does not assume liability for damage if parts from other suppliers are used!
 The instructions and notes of EN 1953 "Spraying Equipment for Coating Substances;
Safety Requirements" are to be adhered to, in particular the warning, hazard and safety
notes pertaining to risks and safety requirements and/or measures
Hazards which exceed those normally expected with the use of spraying equipment have
not come to our attention in the handling of the automatic spray gun type RA-2 HV3. If,
however, accidents or hazardous situations occur during practical applications, please notify
us accordingly.
1. Use for intended purposes
The automatic spray gun type RA-2 HV3 is designed to allow automatic (not manual)
coating of metal, plastic, ceramics, wood and other suitable surfaces. Typical coating
substances are, for example, lacquers, paints, water-soluble lacquer systems, adhesives,
glazes, enamel, release agents etc.
The scope and shape of the jet can be influenced by the choice of nozzle (type and size),
the pressure of the circular or flat jet pair feed and, in certain cases, the material pressure
as well as (to a limited degree) via the limitation of the needle stroke. Depending on the
requirements posed by the material to be processed and/or the shape of the surface to be
3

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
coated, the following nozzle versions can be used (also see the separate list on the
application options of nozzles):
iCircular jet: conical jet in front of the nozzle
i Flat jet: width-adjustable jet for flat-shaped application (most common type). If there is
no flat jet air feed, a circular jet is produced.
Note
The coating substances approved by the manufacturer of the coating substance for
spraying may be used; however, Krautzberger offers special designs for
isubstances dissolved in CFC-containing solvents
iabrasive or
icorrosive materials.
Areas of application
The automatic spray gun type RA-2 HV3 is used as part of a fully automatic spraying
system or a spraying robot. All functions such as circular jet air, flat jet air and material
discharge are externally controlled. All parts coming into contact with the material are made
of stainless steel.
2. Basic design, mode of operation
The design and the various versions of the automatic spray gun type RA-2 HV3 are shown
in the diagram 140-0021; details and installation notes are shown in the diagram 140-603;
the diagram 140-0019 shows accessories.
The automatic spray gun type RA-2 HV3 is supplied as standard with flat circular jet and
single material connection. The automatic spray gun is also available with and without
needle stroke adjuster. Further equipment versions are shown in the following chart.
Order/Article numbers for the automatic spray gun type RA-2 HV3
Material nozzle and needle
Stainless steel Tungsten carbide
Needle stroke adjustment
without with without with
Version
Article no. Article no.
Automatic spray gun
RA-2 HV3 0920-090-2358 0920-090-2357 0920-090-2360 0920-090-2359
Automatic spray gun
RA-2 HV3
for adapter, (drawing
140-0021)
0921-090-2362 0921-090-2361 0921-090-2364 0921-090-2363
Automatic spray gun
RA-2 HV3
for circulation
adapter,
article no. 0909-080-
0544
0921-090-2366 0921-090-2365 0921-090-2368 0921-090-2367
4

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
Automatic spray gun
RA-2 HV3
for adapter with
material
pressure regulator,
article no.
0909-080-0681
0921-090-2370 0921-090-2369 0921-090-2372 0921-090-2371
3. Assembly
The assembly of the automatic spray gun type RA-2 HV3 depends on the intended
application. We recommend the screw connection with the retaining bolt, art. no. 6922-080-
1256 as a standard fixing system. Further mounting/assembly options are shown in the
diagram 140-0019 - e.g. mounting on the adapters (101 to 103).
Note
If the automatic spray gun is not adequately secured, it may become loose during operation
- e.g. due to vibrations. There is also a risk of displacement due to recoil. Under certain
circumstances, the coating substance may escape in an uncontrolled manner.
Caution Assembly should be performed by suitably trained personnel only!
4. Startup
4.1 Connections
 Control air to input (St); (symbol stamped next to connection)
 Circular jet air to input (R); (symbol stamped next to connection)
 Flat jet air to input (F); (symbol stamped next to connection)
 Material connection to input (M); (symbol stamped next to connection)
Caution
Compressed air and material feed should only be connected up by suitably trained
personnel! Ensure that the pressures and temperatures listed under "Technical Data" are
not exceeded!
Notes
Air and material feed are connected via internal threads (e.g. nipple or nozzle-type
connection depending on application). If you not sure about the best connection method,
consult your supplier or Krautzberger GmbH.
Material feed can be effected via a container (under the intrinsic hydrostatic pressure of
the coating substance), a pressurised container or pumps. Circulation connection is
possible (e.g. when applying settling coating substances).
In the case of material feed under pressure (e.g. from pressure containers or via pumps),
5
ensure that the material feed is interrupted if the atomiser air pressure falls rapidly due

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
to, for example, loosening of a hose connection, bursting of the hose or similar.
Without atomiser air feed, the range of the material jet may be multiplied many times,
depending on the material! It is important to ensure that the control air is immediately
interrupted if there is a fall in atomiser air pressure in order to prevent material discharge.

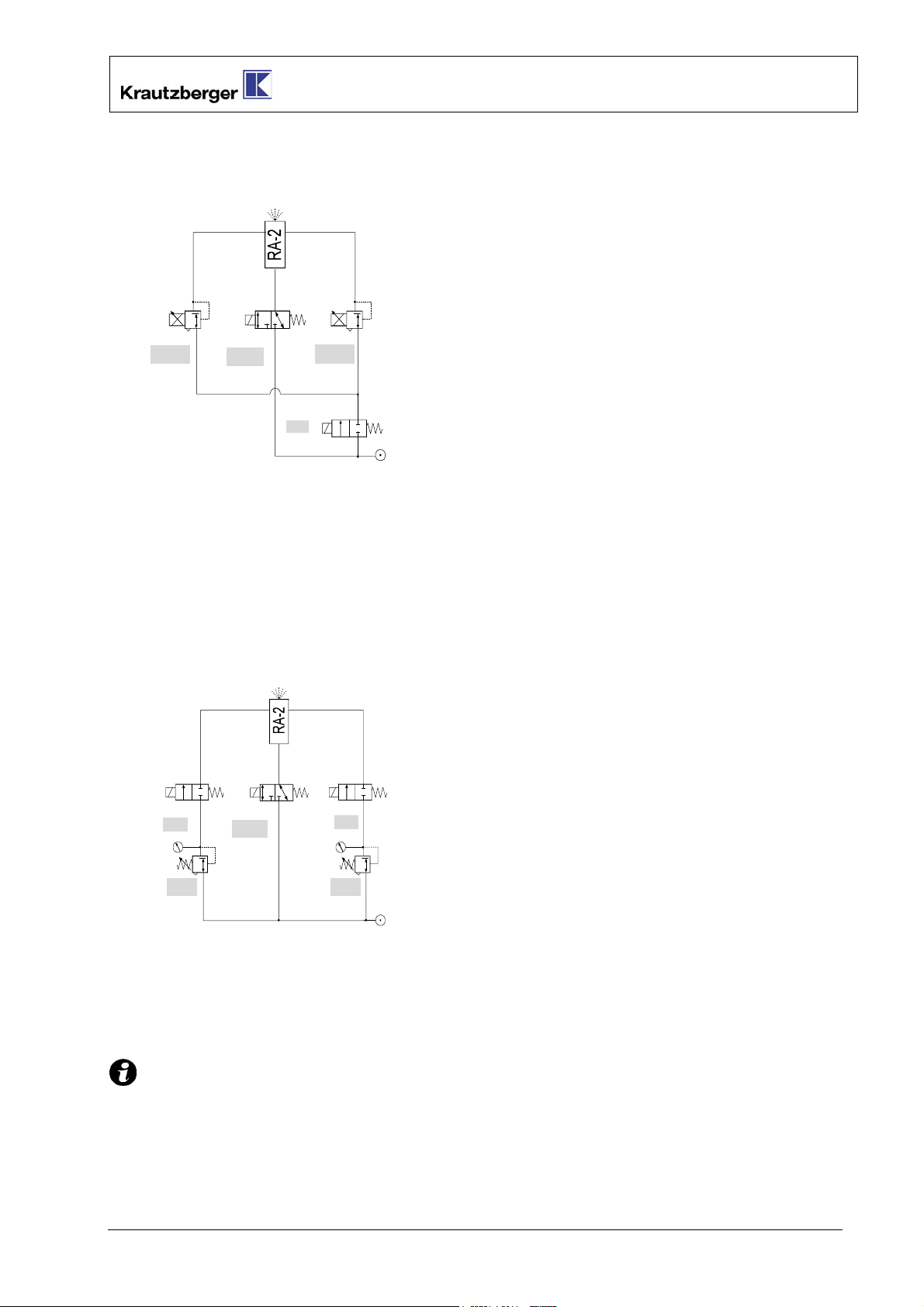

In particularly critical cases, a spray jet monitor should be installed (using, for example, a
light barrier or a pressure monitor directly in front of the automatic spray gun - in other
words, behind the control element (valve or regulator)). The spray jet monitor must be
switched in such a way that the entire air feed is interrupted if there is a rapid fall in
atomiser air pressure. This also ensures interruption of the material feed.
The automatic spray gun RA-2 HV3 must always be operated using filtered air.
Both the circular jet air pressure and (where applicable) the flat jet air pressure should be
regulated via a proportional regulating valve or a pressure reducer.
Checking the connections
 Interrupt
material feed
control air supply
circular jet air supply and
flat jet air supply.
No air or material must be discharged from the automatic spray gun type RA-2 HV3.
 Where present, open the adjusting nut (36) of the needle stroke adjuster (see section
5.2, Mode of operation/Spray profile adjustment)
Open control air supply (the needle in the material nozzle must retract)
 Open circular jet air pressure (air must flow out of the central borehole of the circular
or flat jet air nozzle)
Close circular jet air supply
 Open flat jet air supply (air must flow out of the humped boreholes of the flat jet air
nozzle)
Close air supply
Connect or open material supply
Neither air nor material must be discharged from the automatic spray gun type RA-2 HV3.
Caution
Prior to starting work, ensure that the control air connection and the atomiser air
connections have not been interchanged! Risk of uncontrolled material discharge!
4.2 Mode of operation / Spray profile adjustment
 Close control air supply
 "Open" material feed (see following instructions)
 Open circular jet air supply
 Open flat jet air supply
 Open control air supply (material needle (39 or 40) is pushed back by the air pressure
and releases the material flow)
The coating substance is sprayed. It is generally now necessary to adjust the spray profile.
 If present, open the adjusting nut (36) of the needle stroke adjuster (see following
instructions)
6

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
 Fully close the flat jet air supply (where flat jet nozzle is present)
 Set the circular jet air pressure (do not close completely!)
 Set the flat jet air pressure (where flat jet nozzle is present)
 Fine tune the settings of circular jet air pressure (and, where applicable, flat jet air
pressure) until the desired spray profile is achieved (see following notes)
Notes
Depending on the type of material feed, the material feed is "opened"
iby opening the connection valve
ior by applying pressure to the storage container
ior by switching the material pump on
i or by filling the coating substance into the storage container, from where the coating
substance then flows into the automatic spray gun type RA-2 HV3 under its intrinsic
hydrostatic pressure.
If material feed is effected under intrinsic hydrostatic pressure, the material pressure
cannot be regulated.
The optimum needle opening is 8 revolutions (from the opening point). In order to obtain
reproducible settings, the opening point should be monitored after each maintenance
routine and adjusted if necessary,
As the settings of circular and flat jet air pressure as well as material pressure affect
each other, the spray profile has to be set in several steps. It is advisable to set the spray
profile by only varying the circular and flat jet air pressure. The material feed should only
be altered if the desired spray profile cannot be achieved as described above. The
material volume is altered by varying the material pressure and/or the nozzle size.
A limited degree of fine adjustment (for example, to coordinate several automatic spray
guns in a system) can be effected via the adjusting nut (36) - where present.
Setting the opening point of the needle
 Close the air supply
 Close the adjusting nut (36) in a clockwise direction
 One revolution of the needle stroke adjuster changes the needle path by 1 mm and
corresponds to 18 locking positions.
 Open material feed
 Open control air supply; no material should be discharged.
 Close the control air, open the adjusting nut by locking position, open the control air,
check whether material is discharged. If this is not the case, repeat these steps until
the opening point is reached and material begins to be discharged.
Note
Rinse the automatic spray gun type RA-2 HV3 through with detergent before first-time use!
7

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
Caution
When setting the spray profile, take steps to ensure that no changes can occur or be made
to the settings (setting parameters) without the knowledge of the set-up technician.
The automatic spray gun type RA-2 HV3 is now ready for operation.
5. Operation of the automatic spray gun type RA-2 HV3 / Correct preliminary air
control
F = flat jet air supply
t
F
p
0
R
p
0
St
p
0
t
1
t
2
t
3
R = circular jet air supply
St = control air (material feed)
p = air supply open
O = air supply closed
t = time
t1 = time until atomiser air supply is stable
t2 = automatic spray gun in operation
t3 = time until nozzle is blown clean
Notes
Always adhere to the preliminary air control for (F) and (R) in line with the diagram.
Otherwise
imaterial may escape in non-atomised form from the material nozzle at the start of the
spraying process
iand the nozzles may become soiled or blocked at the end of the spraying process.
Excessive air pressure not only leads to unnecessarily high air consumption but also
generates heavy misting of the coating substance.
Insufficient air pressure results in an unsatisfactory spray profile.
Do not completely close the circular jet air control during operation
Select a low material pressure wherever possible!
7. Changing parts
Material needle
Unscrew the entire closing piece (31 to 36, where present)
Remove the spring (30)
Pull out parts (38 to 42)
Remove the jam nut (42) from the material needle (39 or 40)
Unscrew the material needle (39 or 40) from the piston (41)
Air gasket (material needle)
Unscrew the entire closing piece (31 to 36, where present)
Remove the spring (30)
8

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
Pull out parts (38 to 42)
Unscrew the seal screw (28)
Remove the gasket (29) on the air side
Remove the gasket (21) on the material side
Insert new gaskets (ensure correct fit!)
Material gasket (material needle)
Unscrew the screws (11)
Pull off the control section (26)
Remove the washer (25), guide ring (24) and gasket (21)
Insert new gasket (21) (ensure correct fit!)
Material and air nozzle
Unscrew the clamping nut (1) or the jam nut (2)
Remove or unscrew the air nozzle (3-6)
Unscrew the material nozzle (7-10)
Assembly is performed in the reverse order. Lightly lubricate the moving parts using a
suitable grease, e.g. article no. 7026-120-0351 from Krautzberger GmbH (supplied in 250 g
cans)
Notes
Always change the material nozzle (7 to 10) and the material needle (39 or 40) together!
Occasionally check the moving parts for free range of motion and lubricate with grease if
onecessary!
8. Operating breaks, cleaning, maintenance
Wearing parts such as material nozzle (7 to 10), air nozzle (3 to 6), material needle (39 or
40), material needle gaskets (21 and 29), guide ring (24) and other gaskets as well as
fastening components should be checked at appropriate intervals and replaced if necessary
(e.g. if the material needle does not close sufficiently or if there is uncontrolled discharge of
coating substance or air, or displacement of the automatic spray gun on the fastening
device).
Caution
Close the supply of control, circular jet and flat jet air as well as the material feed during
maintenance and repair work.
Notes
The automatic spray gun type RA-2 HV3 is never to be dismantled into its individual parts
except when this is necessary for repair or maintenance purposes. When cleaning and
during material change, the gun should be rinsed through using a detergent recommended
by the supplier of the coating substance until it is discharged clear.
The automatic spray gun RA-2 HV3 should never be completely immersed in detergent!
This could destroy the gaskets and rinse out the lubricant.
9

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
If the automatic spray gun is to be dismounted when work has been completed, ensure
that no residues of toxic, flammable or explosive material or detergent remain in the
automatic spray gun (avoidance of hazard during storage or transport).
During lengthy breaks in operation, the automatic spray gun should be stored in a
suitable place in a cleaned condition.
Do not clean material and air nozzles using hard, sharp-edged objects! (The following
are recommended for cleaning of the nozzles: round brush, article no. 7025120-0055 or flat
brush, article no. 7025-120-0053 from Krautzberger GmbH.)
A cloth soaked in detergent is recommended for external cleaning.
9. Disposal
Following dismantling of the automatic spray gun type RA-2 HV3, the metal parts can be
sorted and forwarded to a recycling process; the non-metal parts should be disposed of as
special waste.
10. Technical data
Operating pressures / Operating temperature
Max. material pressure: 1.2 MPa (12 bar)
Max. material temperature: 100°C
Max. atomiser air pressure (R and F): 0.8 MPa (8 bar)
Min. control air pressure: 0.4 MPa (4 bar)
Max. control air pressure: 0.8 MPa (8 bar)
Max. air temperature: 50°C
Connections (see dimension sheet 140-0021)
Material (M): G1/8 IG
Atomiser air (R and F): G1/8 IG
Control air (St): PK-3/5 or M5 IG
Weight
(without add-on parts) approx. 500 g
Material spray zone
Angle of material jet in front of nozzle: up to approx. 180° depending on setting
Length of material jet in front of nozzle: depends on setting (e.g. water with a
material pressure of 4 bar sprayed through a
1 mm material nozzle hits a disc measuring
2 metres in diameter at a distance of 10
metres).
Noise emission
Continuous sound pressure level: nozzle-dependent, 73 to 96 dB(A)
Available nozzles
Material nozzles
Flat/Circular jet:stainless steel 0.3 - 2.5 mm
st. steel, hardened 0.3 - 2.5 mm
tungsten carbide 1.2 - 2.5 mm
10

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
Air nozzles standard design: brass, nickel plated
special design: brass, PTFE coated
Special equipment
Material needle with puncture pin:
to prevent the material nozzle from becoming blocked due to bonding of material particles,
this material needle is fitted with a cylindrical pin (puncture pin) at the tip in front of the
sealing cone.
Pneumatically adjustable needle path limiter:
this is for the purpose of opening and closing the material throughput cross-section in two
stages. This is of advantage if there are frequent changes between circular jet (low material
requirements) and flat jet (generally higher material requirements) during the spraying
process.
Parts in contact with the material
Standard version Version on request
Part designation Made of Art. no. Made of Art. no.
Screw connection plastic 6903-0320-0807 stainless steel 6903-030-0846
Screw connection plastic 6903-030-0725 stainless steel 6903-030-0853
Double nipple brass 6902-030-2230 stainless steel 6920-040-2349
Gasket UHMW-PE 0902-010-0364 PTFE
NBR (for glaze)
0902-010-0365
0902-010-0186
Gasket Viton
0909-010-0145 --- ---
Gasket Viton 0909-010-0497 --- ---
Adapter PA-6
0902-080-0273
0909-080-2325
0909-080-1253
Material nozzle stainless steel 0902-050-.... tungsten
carbide 0902-050-....
Material needle stainless steel 0902-070-.... tungsten
carbide 0902-070-....
11

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
Examples for pneumatic circuitry of the automatic spray gun type RA-2 HV3
Analogue control
St
1
1
3
2
2
3/2 - G1/8
2/2 - G3/8
PDV(e)
G1/4
PDV(e)
G1/4
0,6 MP
a
(6 bar)
O/S(E)
O/
S
FR
Control of flat and circular jet air via
proportional pressure regulating valves
with analogue target value preset to
ensure optimum adjustment of the
spraying parameters to changing spraying
situations.
Preliminary air control is to be assured by
external control of the pressure regulating
valves.
Start of spraying: first activate spraying air
R (and, if applicable, F), then open control
air St!
End of spraying: first shut off St, then
close R and F.
PDV (e) = proportional pressure regulating
valve, electrically controlled
O/S (E) = opener/closer with vent
O/S = opener/closer
Fixed setting
St
13
2
3/2 - G1/8
FR
1
2
2/2 - G1/4
1
2
2/2 - G1/4
0,6 MP
a
(6 bar)
O/S(E) O/S
O/S
DV(D) DV(D)
Control of flat and circular jet air via
pressure regulating valves to ensure
optimum adjustment of the spraying
parameters to a constant spraying
situation.
Preliminary air control is to be assured by
external control of the pressure regulating
valves.
Start of spraying: first activate spraying air
R (and, if applicable, F), then open control
air St!
End of spraying: first shut off St, then
close R and F.
DV (D) = pressure regulating valve,
adjusted to pressure range
O/S (E) = opener/closer with vent
O/S = opener/close
Notes
In particularly critical cases (such as the processing of substances with increased hazard
potential), it is advisable to equip the circular jet air (R) with a pressure monitor, which
should be installed directly in front of the automatic spray gun. This can prevent the
generation of a far-reaching material jet if there is insufficient air. A PE converter is
suitable for this purpose, for example. The accessories required for this (e.g. control
valves, regulators etc.) are available from Krautzberger GmbH
12

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
Special equipment
Nozzle extensions
Nozzle extensions are particularly suitable for the coating of cavities such as pipes,
canisters, cans or other containers. In many cases it is possible to adapt the length and
shape of the nozzle extension to the special requirements on the customer's premises.
Ready-made nozzle extensions are also available (see Krautzberger GmbH order
catalogue).
Caution
When working with a nozzle extension, note that explosive mixtures can be created
extremely easily due to the interaction of flammable materials and air in cavities! Ensure
adequate ventilation!
11. Special designs
iAutomatic spray gun type RA-2 HV3 with circulation connections
The coating substance can be circulation pumped (e.g. in the case of coating
substances which settle during application).
13

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
14
Declaration of conformity
under the terms of the EC Directive 89/392 EEC and the amendment directives 91/368/EEC
and 93/44/EEC
Krautzberger GmbH, Stockbornstrasse 13, D-65343 Eltville
Design of unit: Automatic spray gun
Type designation: RA-2 HV3
Make: Krautzberger GmbH
Serial no.: 0920-000, 0921-000
The automatic spray gun type RA-2 HV3 was developed, designed and produced in
compliance with the EC Directive 89/392/EEC.
The following harmonised standards were applied:
EN 292, Safety of Machines, Plant and Equipment
EN 1953, Spraying Equipment for Coating Substances, Safety Requirements (German
version prEN 1953: 1995)
The following documents are fully available:
Overall diagram of the automatic spray gun type RA-2 HV3
 Detailed and complete diagrams for the checking of compliance of the automatic
spray gun type RA-2 HV3 with the basic safety and health safety requirements
 A list of the basic requirements from EC Directives, standards and specifications
applied during the development, design and production of the automatic spray gun
type RA-2 HV3
 A description of the solutions to prevent hazards arising from use of the automatic
spray gun type RA-2 HV3
A copy of the operating instructions
Head of design at Krautzberger GmbH

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
15
13. Spare parts list for automatic spray gun, type: RA-2 HV3
Item Article no. Designation
1 0902-040-0051 Clamping nut
** 3 0920-060-.... Air cap, HV3 A
** 3 0920-060-.... Air cap, HV3 G
** 3 0920-060-… Air cap HV3 H
** 7 0920-050-.... Material nozzle, HV3
** 7 0920-050-.... Material nozzle, HV3
hardened steel
** 7 0920-050-… Material nozzle, HV3,
tungsten carbide
11 0902-030-3297 Screw (4 pcs)
12 0902-040-0262 Head section (incl. items 13
and 14)
13 0902-040-2711 Ring
14 0902-040-2710 Ring
* 15 0902-010-0362 Gasket
* 16 0902-080-0176 Gasket
17 0902-040-0068 Transition piece (standard)
µ18 0902-040-…. Transition piece no. 1 (for
adapter)
µ19 0902-040-…. Transition piece no. 2 (for
adapter)
µ20 0902-040-…. Transition piece no. 3 (for
adapter)
* 21 0902-010-0364 Gasket, UHMW-PE
(standard) (2 pcs)
* 21 0902-010-0365 Gasket, PTFE (2 pcs)
* 21 0902-010-0186 Gasket, glaze (2 pcs)
22 0902-040-0069 Sealing screw (2 pcs)
23 0902-030-0627 Sealing screw
* 24 0902-040-0049 Guide ring
25 0902-040-0048 Washer
µ26 0902-080-…. Control section
Item Article no. Designation
* 27 0902-010-0512 Gasket
28 0902-040-0047 Seal screw
* 29 0902-010-0186 Gasket
30 0902-020-0074 Spring
31 0902-040-0066 Sealing element (for needle
stroke limiter)
32 0902-040-0043 Cover (without needle
strokelimiter)
33 0902-030-3298 Screw (4 pcs)
34 0902-030-2730 Ball (2 pcs)
35 0902-020-0151 Lock washer
36 0902-040-0067 Adjusting nut
37 0902-080-0207 Screw connection
* 38 0902-010-0144 Gasket
** 39 0902-070-.... Material needle
** 39 0902-070-.... Material needle,
hardened
** 39 0902-070-.... Material needle, hard
chrome-plated
** 39 0902-070-.... Material needle,
tungsten
carbide
** 40 0902-070-.... Material needle, with
puncture pin
41 0902-040-0045 Piston
41 0902-040-0054 Piston (for tungsten carbide
needle)
42 0902-040-0044 Lock nut
42 0902-040-0053 Lock nut (for tungsten
carbide needle)
43 0902-010-0739 Plug
** 0920-090-.... Nozzle set, HV3
(items 1,
3, 7, 39)
0902-010-0478 Gasket set
* contain in the gasket set
** Please state type and size when ordering these parts.
µparts should be replaced in the factory
Material nozzles and material needles are made of stainless steel as standard.
Available nozzle sizes: 0.3, 0.5, 0.8, 1.0, 1.2, 1.5, 1.8, 2.0, 2.5
Available tungsten carbide nozzle sizes: 1.2, 1.5, 1.8, 2.2, 2.5
Nozzles in other sizes and materials on request.

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
140-0603
16

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
17
Dimensions

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
18
Schematic diagram coating substance
F = Filter
DE= pump
RV= pressure regulating valve
RW= Stirrer (optional)
M= coating substance
- - - - circulation connection (optional)

Type RA-2 HV3Operating Instructions
DOK-208-GB.doc No. 0920-.., 0921-...
19
14. Operating malfunctions and spray profile defects
Defect Cause Remedy
Normal spray profile
Excessive spray profile toward
the top and bottom
Soiled air nozzle
Soiled material nozzle Clean nozzles
Spray profile veers markedly to
left or right
Soiled air nozzle
Soiled material nozzle Clean nozzles
Heavy application in the centre
of the spray profile
Two much material
Excessively thick material
Reduce material feed
Dilute material
Split spray profile
Insufficient material
Flat jet air pressure too high
Increase material feed
Reduce flat jet air pressure
Surging or halting material jet
Insufficient material in pressure
vessel
Blocked material path
Loose or damaged material
nozzle
Worn needle packing
Refill pressure vessel
Clean
Tighten or renew
Replace
Material leakage at packing
screw Needle packing defective Replace needle packing
Material nozzle drips
Worn of damaged needle
Soiled or damaged material
nozzle
Replace needle
Clean or replace material nozzle
