Overview
This manual is prepared for users to understand the hardware specifications of SmartNL-RF2000
Reader, maintenance and inspections of the system, and trouble shooting required when you
use it.
NL-RF2000 is a Fixed Type 900MHz RFID Reader, enables user to use RS232 or Ethernet
Interface for efficient and convenient use. It is suitable for various applications such as Logistic,
Asset tracking, Stock management, Parking lot management, Healthcare, Security,
Transportation and bank system.
User can use up to 4 antennas per one reader, perfect for wide range reading application than
longer distance reading application.
1. Checking points when unpacking
1. Please check if the product is broken, transformed or damaged.
2. Please check the types or quantity of the product and setting accessories to check
If there are some missing parts. or not.
2. Check the contents of the carton box:
No. Item Quantity Length Remark
1 Power Cable 1pcs 5ft IP65 Cable(Option)
2 Ethernet Cable 1pcs 15ft IP65 Cable(Option)
3 GPIO(with RS-232) Cable 1pcs 15ft IP65 Cable(Option)
4 Antenna Cable 50ft IP65 Cable/max 4pcs(Option)
5 Antenna with Bracket - Max 4pcs (Option)
6 Cigar jack Adapter Option
7 DC/DC Adapter Option
8 AC/DC Adapter Option
AC Adapter Data Cable LAN Cable Antenna Cable

Leader In Mobile
9
3. Specification with feature
1. Performance Characteristics
Supported Protocols
Operating Frequency
Hopping Channels
Channel Spacing
Channel Dwell Time
Modulation
Communication Interface
GPIO Support
LED Indicators
Power Consumption
RF Output Power
Antenna Interface
Electrical Power
Operating Temperature
Software Support
Compliance Certifications
ISO 18000-6 Type-C, EPC Class 1Gen.2
902.75 MHz ~ 927.25 MHz
50
500KHz
< 0.4 seconds
Phase Reversal-Amplitude Shift Keying (PR-ASK)
RS-232 & GPIO (Circular, TCP/IP (RJ45)
4-Input / 7-Output
ANT1~4, Network, Data, Error, Power
Active Current <2.3A
< 1W (30 dBm)
4-Ports
5V DC Only
-20 ~ +50 ℃
Reader Manager (API)
-
2. Physical Characteristics
Dimensions (LxWxT)
Weight 8.8” x 7.559” x 2.677” 3.462 lb
3. ISO 18000-6 Type-C (EPC Gen.2) Characteristics
Modulation
Encoding method
DATA rate
Modulation Depth
PR-ASK
PIE (TX), Miller (RX)
300 kbps
90% ~100 %

Leader In Mobile
10
4. Physical Connections
Mounting Hall(M4 Size)
LED Indicators
Power Port: Using DC5V/5A adapter to
supply powerto RFID reader.
Data Port: To connect to PC or other device for
data transmission orsoftwareupgrade.
LAN Port: To connect to PC or other device for data transmission or
softwareupgrade.
Antenna Port: Connecting antenna up to 4 using cable.

Leader In Mobile
11
4-1. LED Indicators
LED Description
ANT1 ON: Antenna1 Connected / OFF: Not Connected.
ANT2 ON: Antenna2 Connected / OFF: Not Connected.
ANT3 ON: Antenna3 Connected / OFF: Not Connected.
ANT4 ON: Antenna4 Connected / OFF: Not Connected.
NETWORK ON: Network connected between Reader and HOST PC / OFF : Not Connected
DATA Blinking: Successful tag read/ OFF: Not working
ERROR ON:Errorcondition / OFF:Normal
POWER ON:TurnOn / OFF:TurnOff
4-2. Ports
Port Description
Power Connect the SmarTerminal approved power supply.
LAN
Insert a standard RJ45 Ethernet cable for connection to an Ethernet network. Insert a cross-
connect Ethernet cable for connection to a local PC
Data
Data port have RS-232 and GPIO
RS232 Connection to a local PC
GPIO connection to an external device.
Antenna
Support up to 4 antenna / Connector type is TNC.
If you use an antenna switching at the same time, andActs as a sequential

Leader In Mobile
12
4-2-1. Power Ports Assignments
Pin NO. POWER PORT Operating Ratings Option
1 VDC-
DC 5V(3A)
2 VDC+
3 GND
4-2-2. LAN Ports Assignments
Pin NO. RJ45 Cable Pin No.
1 1
2 2
3 3
4 4
5 5
6 6
7 7

Leader In Mobile
13
4-2-3. Data Ports Assignments
4-2-4. GPIO Interface Specifications
Interface DC Voltage Maximum Current
Input 5V – 24VDC -
Output 5V – 24VDC Single Output 500mA
4-2-5. Data Port Pin Assignments
Pin NO. Description Pin No. Description
1 Common+ 10 GPIO Input 4
2 Common- 11 GPIO Output 5
3 GPIO Output 1 12 GPIO Output 6
4 GPIO Input 1 13 GPIO Output 7
5 GPIO Output 2 14 Ground
6 GPIO Input 2 15 TXD
7 GPIO Output 3 16 RXD
8 GPIO Input 3 17
9 GPIO Output 4 - -

Leader In Mobile
14

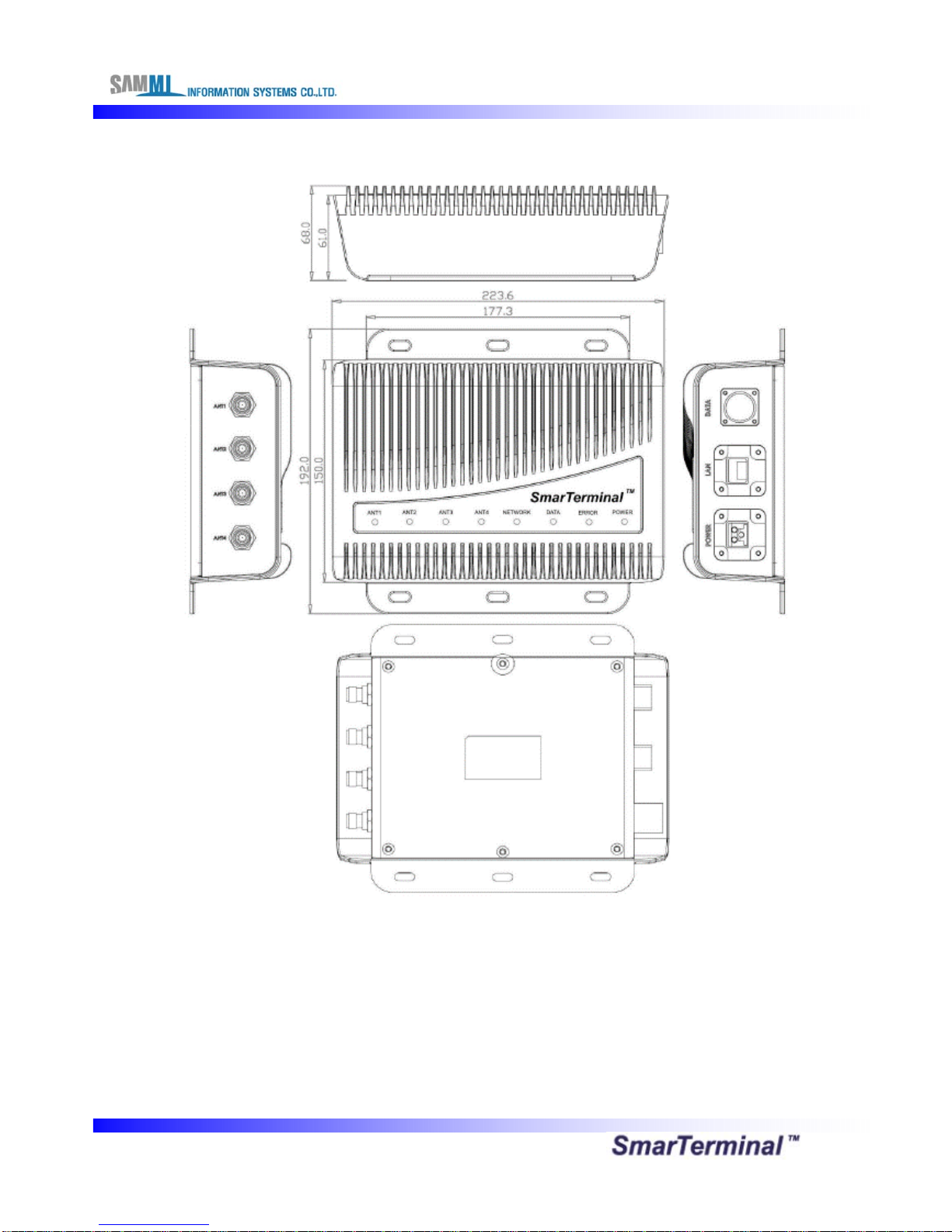

4-3. Reader Physical size

Leader In Mobile
15
5. Installing the SmartNL-RF2000
This section explains how to choose a mounting location for the SmartNL-RF2000
1) Choosing a Mounting Location
You can mount the SmartNL-RF2000 to a wall or a beam using the mounting holes
2) Connecting Cables
2-1) Connect LAN cable to main body LAN port for Ethernet communication.
Connect data cable for serial communication checking with right direction
of the connecter.
Connect adapter with power supply code then connect adapter jack to main body.
2-2) Connecting External Antenna Cable (optional)
If the SmartNL-RF2000 was purchased with external antenna
connector option, screw the connector of the antenna cable.
Antenna cable on the appropriate antenna attachment of the case.
Hand tighten the connector (do not use vice grips for this job).
When tying the coaxial cable, make sure no water can get into it and/or into the
equipment it is attached to.
Note: do not bend the cable straight: you should keep a radius of curvature allowing the
cable to bend without applying force.
Mounting Hall
Ex) Push Pull type connector

Leader In Mobile
16
6. Antenna Specification.
6-1 Macro200 Specification.
6-1-1 Electrical Specifications.
NO. Parameters Spec. Unit Remark
1 Frequency 919 MHz
2 VSWR 1.3 : 1 max. Ratio
3 Impedance 50 Ohms
4 Typical Gain 5.3 dBiL
5 Polarization RHCP
6 Beam Width 70 typical Deg.
6-1-2. Mechanical Dimensions.

Leader In Mobile
17
6-2. Macro250 Specification
6-2-1 Scope
This specification covers the characteristics of the ceramic patch antenna
element for the ISM band
6-2-2 Composition and Materials.
1. Substrate : Air & Insulator
2. Electrode Plating : Copper & Aluninum
3. Terminal pin : Heat-resisting ABS
6-2-3 Mechanical Dimensions.
☞ unit: mm
NO. Parameters Spec. Typical value Unit Remark
1 Frequency 919 MHz
2 Band Width @ - 10 dB R.L. 60 min. 80 MHz
3 VSWR 2.0 : 1 max. 1.1:1 Ratio
4 Impedance 50 Ohms
5 Gain @ Zenith 5.0~6.0 dBiL
6 Axial Ratio 3.0 1.5~2.0 dB
7 Polarization RHCP

Leader In Mobile
18
6-3. How to install the antenna
When installing it on the metal materials which may cause the reduction of read range of Tag.
It is recommended to avoid the metal material (SUS material) for bracket which is needed for the
clearance.
1. Review the locations where the Reader products are placed.
Ensure that you have carefully considered the safe distances for product placement for
workers and any other personnel that may get in the RF path.
If the Antenna was purchased with bracket option, which the bracket you can locate your
antenna to a better or higher position to receive or transmit signals.
2. Mount the antenna that use antenna bracket that it is recommended to use Washers
beneath nuts to increase adhesion.
3. Attach the antenna to one of the four antenna ports on the back of the Reader.
Note
1. Avoid metal material the front side of antenna in 2M due to cause of low performance.
2. Antenna cable per each port should be not tangled and tied up.
7. Trouble shooting
Problem Possible Causes Corrective Action
Reader is not reading tags. The tag is out of its read
range.
1. Ensure antenna is properly connected.
2. Ensure reader is connected to your
computer.
3. Ensure computer is plugged into AC outlet
and computer is On.
4. Ensure tag is within range of antenna.
Reader error LED stays lit on 1.Block read fail
2.Block write fail
3.Abnormal
disconnected
between RF-Reader
and HOST PC
1. Turn LED lights off when receive new
command.
Cannot connect to the reader. IP address mismatched 1.set the proper IP address

Leader In Mobile
19
8. Firmware upgrade
1) Please choose model no. you want to use
2) Please click the search button
3) Please choose the item you want to upgrade
4) Please click the select file button

Leader In Mobile
20
5) Please open the firmware file.
6) Please click the upgrade button
※Please firmware upgrades to all in the same way no.3~6
