EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
EXCALIBUR LINER
Street marking with piston pump
A
C
D
B
E
H
G
F
I
M
N
J
K
L
O
P
Q
R
S
T
U
V
W
X
Y
Z
AA
AB
AC
AD
WE ADVISE THE USE OF THIS EQUIPMENT ONLY BY PROFESSIONAL OPERATORS.
ONLY USE THIS MACHINE FOR USAGE SPECIFICALLY MENTIONED IN THIS MANUAL.
Thank you for choosing a LARIUS S.R.L. product.
As well as the product purchased, you will receive a range of support services
enabling you to achieve the results desired, quickly and professionally.
WARNINGS ............................................................................................................................................................ P. 2
WORKING PRINCIPLE........................................................................................................................................... P. 3
TECHNICAL DATA .................................................................................................................................................. P. 4
DESCRIPTION OF THE EQUIPMENT .................................................................................................................... P. 6
TRANSPORT AND UNPACKING............................................................................................................................ P. 8
CONDITIONS OF GUARANTEE ............................................................................................................................. p. 8
SAFETY RULES...................................................................................................................................................... P. 8
TUBE CONNECTIONS ........................................................................................................................................... P. 9
STARTING THE MOTOR ...................................................................................................................................... P.10
WASHING OF THE NEW EQUIPMENT ................................................................................................................. P.12
PRODUCT PREPARATION ..................................................................................................................................... P.14
REGULATIONS....................................................................................................................................................... P.15
WORKING .............................................................................................................................................................. P.15
CLEANING AT THE END WORK ............................................................................................................................ P.16
GENERAL MAINTENANCE .................................................................................................................................... P.18
ROUTINE MAINTENANCE ..................................................................................................................................... P.18
CORRECT PROCEDURE OF DECOMPRESSION ................................................................................................ P.19
REPLACEMENT OF THE PUMPING GROUP’S GASKETS.................................................................................... P.20
PROBLEMS AND SOLUTIONS .............................................................................................................................. P.29
SPARE PARTS
COMPLETE PUMPING GROUP REF. 56562.......................................................................................................... P.32
COMPLETE STEERING UNIT REF. 4876 ............................................................................................................... P.35
COMPLETE TELAIO REF. COD.4874 ..................................................................................................................... P.36
COMPLETE EXCALIBUR LINER UNIT REF. 4877 .................................................................................................. P.38
COMPLETE 50L TANK REF. 4895 .......................................................................................................................... P.40
COMPLETE 20L TANK REF. 4890 .......................................................................................................................... P.41
COMPLETE BOX REF. 4896................................................................................................................................... P.42
COMPLETE BOX TRASFORMER REF. 4845.......................................................................................................... P.43
FLOW COMPENSATOR ......................................................................................................................................... P.44
RE-CIRCULATION UNIT COMPLETE WITH COVER RIF. 4893.............................................................................. P.45
ACCESSORIES....................................................................................................................................................... P.46
CE DECLARATION OF CONFORMITY................................................................................................................... p.51
INDEX

www.larius.com
2
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
A
The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and
repairing of this equipment.
WARNINGS
A
• Read this operator’s manual carefully before using the equipment.
• An improper use of this machine can cause injuries to people or things.
• Do not use this machine when under the inuence of drugs or alcohol.
• Do not modify the equipment under any circumstances.
• Use products and solvents that are compatible with the various parts of the equipment, and read the manufacturer’s warnings carefully.
• See the Technical Details for the equipment given in the Manual.
• Check the equipment for worn parts once a day. If any worn parts are found, replace them using ONLY original spare parts.
• Keep children and animals away from work area.
• Comply with all safety standards.
• It indicates an accident risk or serious damage to equipment if this warning is not followed.
FIRE AND EXPLOSION HAZARD
• Solvent and paint fumes in work area can ignite or explode.
• To help prevent fire and explosion:
- Use equipment ONLY in well ventilated area.
- Eliminate all ignition sources, such as pilot lights, cigarettes and plastic drop cloths (potential static arc).
- Ground equipment and conductive objects.
- Use only grounded hoses.
- Do not use trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or uids containing such solvents in
pressurized aluminium equipment. Such use can cause serious chemical reaction and equipment rupture, and result in death,
serious injury, and property damage.
- Do not form connections or switch light switches on or off if the air contains inammable fumes.
• If electrical shocks or discharges are encountered the operation being carried out using the equipment must be stopped immediately.
• Keep a re extinguisher at hand in the immediate vicinity of the work area.
• It indicates wound and nger squashing risk due to movable parts in the equipment.
• Tenersi lontano dalle parti in movimento.
• Do not use the equipment without the proper protection.
• Before any inspection or maintenance of the equipment, carry out the decompression procedure explained in this manual, and prevent
any risk of the equipment starting unexpectedly.
• Report any risk of chemical reaction or explosion if this warning has not been given.
• (IF PROVIDED) There is a risk of injury or serious lesion related to contact with the jet from the spray gun. If this should occur, IMME-
DIATELY contact a doctor, indicating the type of product injected.
• (IF PROVIDED) Do not spray before the guard has been placed over the nozzle and the trigger on the spray gun.
• (IF PROVIDED) Do not put your ngers in the spray gun nozzle.
• Once work has been completed, before carrying out any maintenance, complete the decompression procedure.
• It indicates important recommendations about disposal and recycling process of products in accordance with the environmental
regulations.
• Mark any clamps attached to earth cables.
• Use ONLY 3-wire extension cords and grounded electrical outlets.
• Before starting work make sure that the electrical system is grounded and that it complies with safety standards.
• High-pressure uid from gun, hose leaks, or ruptured components will pierce skin.
• To help prevent injection, always:
- (IF PROVIDED) Engage trigger lock when not spraying.
- (IF PROVIDED) Do not put your hand over the spray tip. Do not stop or deect leaks with your hand, body or other.
- (IF PROVIDED) Do not point gun at anyone or at any part of the body.
- (IF PROVIDED) Never spray without tip guard.
- Do pressure relief if you stop spraying or being servicing sprayer and before any maintenance operations.
- Do not use components rated less than sprayer Maximum Working Pressure.
- Never allow children to use this unit
- (IF PROVIDED) Brace yourself; gun may recoil when triggered.
If high pressure fluid pierces your skin, the injury might look like “just a cut”, but it is a serious wound!
Get immediate medical attention.
• It is obligatory to wear suitable clothing as gloves, goggles and face shield.
• Wear clothing that complies with the safety standards in force in the country in which the equipment is used.
• Do not wear bracelets, earrings, rings, chains, or anything else that may hinder the operator’s work.
• Do not wear clothing with wide sleeves, scarves, ties, or any other piece of clothing that could get tangled up in moving parts of the
equipment during the work, inspection, or maintenance cycles.

www.larius.com
3
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
B
Use water or non-refractive solvent filtered paint
specifically designed for airless application.
In the LARIUS models, the paint canister can be loaded directly
upon the undercarriage or else poured into the non-stick, 50 L
tank. In every case, cleaning, maintenance and colour change
operations are facilitated.
WORKING PRINCIPLE
The LARIUS EXCALIBUR unit is dened “piston pump”.
An piston pump is used for high pressure painting without air
(from this process derives the term ”airless”).
Theinternal combustionengine,mounted upon theundercarriage,
powers the alternative piston pump.
A cam shaft and a connecting rod allow to obtain the reciprocating
motion necessary to the working of the “pumping group” piston.
The piston movement produces a “vacuum”.
The product is sucked, pushed towards the pump outlet and then
sent to the gun through the flexible hose.
A electronic device, allows to adjust and control the pressure of
the material coming out of the pump.
A safety valve avoiding overpressure, guarantees the total relia-
bility of the equipment.
The control zone allows for the possibility of:
• Activating the dispensing spray gun;
• Enabling or disabling the frontal steering wheel;
• Adjust the pressure of work;
This type of equipment is capable of painting one line at a time
in a single color.
The line can be either solid or dotted, based on the working
requirements.
SOLID LINE BROKEN LINE
EXCALIBUR LINER is ideal for medium marking and mainte-
nance jobs.
The paint dries quickly and the line is defined in a uniform manner
with a single coat. The airless function requires the use of filtered
paint which is specifically designed for airless application. This
means that the paint is homogeneous, of a smooth and uniform
consistency and will not form crusts, nor will it become gelatinous
or thick. With this airless line-marker, the paint adheres firmly to
all types of pavement, with optimal visibility, and is resistance
to wear caused both by traffic as well as atmospheric agents.
EXCALIBUR LINER allows for the marking and maintaining of all
types lines on highways, freeways, pedestrian crossings, parking
lots and squares, as well as every horizontal marking required by
the highway code.
Airless marking has numerous proven benefits with respect to
line-markers with pressurised tanks, which have been rendered
obsolete by airless-technology line markers.
Airless line-marking guarantees:
• Decreased Environmental Impact;
• Decreased drying time.
The line-marker is equipped with pivoting frontal wheel which
even increases the agility of the larger models.
High yield, high efficiency, high versatility.
This line-marker utilises non-premixed paints. This allows it to
achieve about 30 % more yield with respect to standard line-
markers. Every model is also an airless spray gun which can be
usedinthe construction/decoration sectortogetherwith washable
products, enamels, breathable paints and flooring resins.
A vast assortment of accessories is available to satisfy every
customer demand.
1
Fig. 1B
Fig. 2B
2

www.larius.com
4
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
EXCALIBUR LINER
Internal combustion engine power 4 kW ÷ 5 kW (upon availability)
Max. Delivery 2 l/min
Max. pressure 210 bar
Airless spray-gun AT 250
Sizes of the furnished nozzles 11x40 - 13x40 - 15x40
Tank 50l - 20l
Colours 1
Manual line-marking series
Applications Medium road-marking and maintenance
Multi-use sprayer series
Weight 105 kg
Lenght (A) 160 cm
Height (B) 110 cm
Width (C) 90 cm
Vibrations Leq(8h)=1.8 m/s2
TECHNICAL DATA
C
B
Fig. 1C
A
C

www.larius.com
5
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
SECTORS OF USE
• External orundergroundparking lots(schools,hotels,airports,
supermarkets, train stations, subway stations, ports);
• External public areas;
• Industrial and exhibition building zones;
• Freeway service areas and service stations;
• Pedestrian median lines, intersections, bicycle tracks,
reserved lanes;
• Internal and external logistic area markings;
• Playing elds.
NOZZLES POSITION TABLE
Nozzle height from ground 20-degree angle Line Width 40-degree angle Line Width 60-degree angle Line Width
10 cm ~ 3 cm ~ 5 cm ~ 10 cm
15 cm ~ 7 cm ~ 13 cm
20 cm ~ 6 cm ~ 8 cm ~ 16 cm
25 cm ~ 10 cm ~ 20 cm
30 cm ~ 10 cm ~ 12 cm ~ 23 cm
35 cm ~ 26 cm
Dotazione standard Accessori
N°1 Filter with pressure gauge Ref. 4502
Bead distributor for automatic
spray-guns
N°1 High pressure tube 3/16”, 10 m Ref. 35017
N°1 Recirculation tube
N°1 50 L gravity tank + closure valve and extractible filter
N°1 Manual airless spray-gun AT250 Ref.4038
Laser pointer kit
N°1 Super fast clean base
N°1 Super fast clean nozzle 11-40
N°1 Super fast clean nozzle 13-40 Ref. 4506
Working spotlight
N°1 Super fast clean nozzle 15-40
N°1 Tool pack

www.larius.com
6
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
D

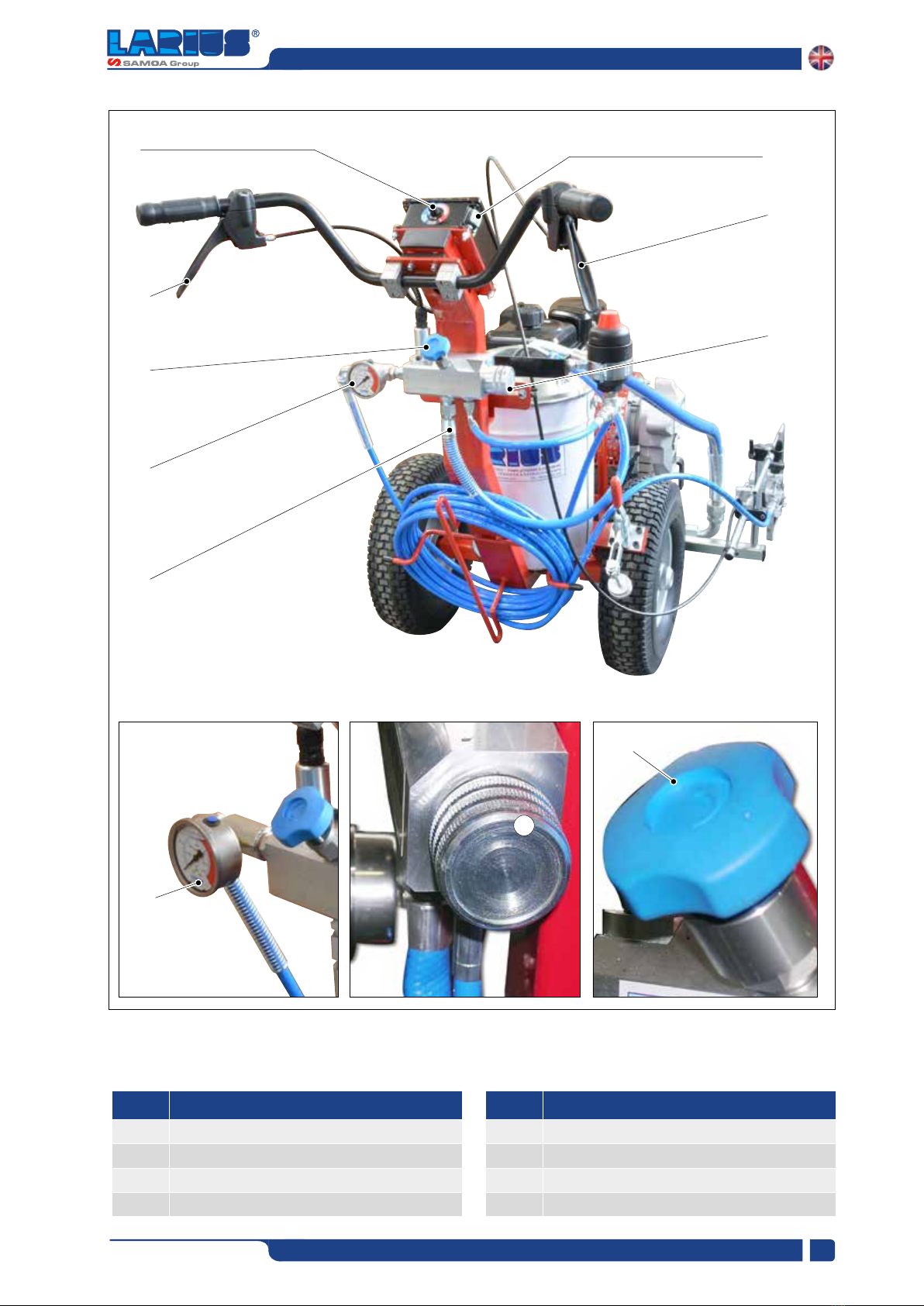

DESCRIPTION OF THE EQUIPMENT
Pos. Description
1 lt. 20 tank
2 Flow compensator
3 Product suction pipe
4 Brake
5 Product supply tube
Pos. Description
6Gun AT250
7 Pumping group
8 Pivoting wheel
9 Gasoline tank
Fig. 1D
1
2
2
3
4
4
6
5
5
67
8
9

www.larius.com
7
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
Pos. Description
9 Potentiometer for adjusting the operating pressure
10 Directional wheel lock/release lever
11 Safety-recirculation valve
12 Manometer
Pos. Description
13 P roduct recirculation tube
14 Plug
15 Gun operating lever
16 ON/OFF switch
Fig. 2D
9
10
12
11
14
15
16
11
13
11
13

www.larius.com
8
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
E
F
G
The disposal of packaging materials is a custo-
mer’s competence and must be performed in
accordance with the regulations in force in the
country where the plant is installed and used.
It is nevertheless sound practice to recycle
packaging materials in an environment-friendly
manner as much as possible.
• The packed parts should be handled as indicated in the
symbols and markings on the outside of the packing.
• Before installing the equipment, ensure that the area to be
used is large enough for such purposes, is properly lit and
has a clean, smooth oor surface.
• The manufacturer will not be responsible for the unloading
operations and transport to the workplace of the machine.
• Checkthepacking isundamagedonreceiptofthe equipment.
Unpack the machine and verify if there has been any damage
due to transportation.
In case of damage, call immediately LARIUS and the
Shipping Agent. All the notices about possible damage or
anomalies must arrive timely within 8 days at least from the
date of receipt of the plant through Registered Letter to the
Shipping Agent and to LARIUS.
• The user is responsible for the operations of unloading and
handling and should use the maximum care so as not to
damage the individual parts or injure anyone. To perform the
unloadingoperation,useonly qualiedandtrainedpersonnel
(truck and crane operators, etc.) and also suitable hoisting
equipment for the weight of the installation or its parts.
Follow carefully all the safety rules.
The personnel must be equipped with the necessary safety
clothing.
TRANSPORT
AND UNPACKING
The conditions of guarantee do not apply in the
following situations:
- improper washing and cleaning of components
causing malfunction, wear or damage to the
equipment or any of its parts;
- improper use of the equipment;
- use that does not conform with applicable
national legislation;
- incorrect or faulty installation;
-modifications,interventionsandmaintenancethat
have not been authorised by the manufacturer;
- use of non-original spare parts or parts that do
not correspond to the specific model;
- total or partial non-compliance with the
instructions provided.
CONDITIONS OF GUARANTEE
SAFETY RULES
•THE EMPLOYER SHALL TRAIN ITS EMPLOYEES ABOUT
ALLTHOSERISKS STEMMING FROMACCIDENTS,ABOUT
THE USE OF SAFETY DEVICES FOR THEIR OWN SAFE-
TY AND ABOUT THE GENERAL RULES FOR ACCIDENT
PREVENTION IN COMPLIANCE WITH INTERNATIONAL
REGULATIONS AND WITH THE LAWS OF THE COUNTRY
WHERE THE PLANT IS USED.
•THE BEHAVIOUR OF THE EMPLOYEES SHALL STRICTLY
COMPLY WITH THE ACCIDENT PREVENTION AND ALSO
ENVIRONMENTAL REGULATIONS IN FORCE IN THE
COUNTRY WHERE THE PLANT IS INSTALLED AND USED.
• KEEP YOUR WORK PLACE CLEAN AND TIDY. DISORDER
WHERE YOU ARE WORKING CREATES A POTENTIAL RISK
OF ACCIDENTS.
• ALWAYS KEEP PROPER BALANCE AVOIDING UNUSUAL
STANCE.
• BEFORE USING THE TOOL, ENSURE THERE ARE NOT
DAMAGED PARTS AND THE MACHINE CAN WORK PRO-
PERLY.
• ALWAYS FOLLOW THE INSTRUCTIONS ABOUT SAFETY
AND THE REGULATIONS IN FORCE.
• KEEP THOSE WHO ARE NOT RESPONSIBLE FOR THE
EQUIPMENT OUT OF THE WORK AREA.
• NEVER EXCEED THE MAXIMUM WORKING PRESSURE
INDICATED.
• NEVER POINT THE SPRAY GUN AT YOURSELVES OR
AT OTHER PEOPLE. THE CONTACT WITH THE CASTING
CAN CAUSE SERIOUS INJURIES. IN CASE OF INJURIES
CAUSED BY THE GUN CASTING, SEEK IMMEDIATE ME-
DICAL ADVICE SPECIFYING THE TYPE OF THE PRODUCT
INJECTED. NEVER UNDERVALUE A WOUND CAUSED BY
THE INJECTION OF A FLUID.
• ALWAYS DISCONNECT THE SUPPLY AND RELEASE
THE PRESSURE IN THE CIRCUIT BEFORE PERFOR-
MING ANY CHECK OR PART REPLACEMENT OF THE
EQUIPMENT.
• NEVER MODIFY ANY PART IN THE EQUIPMENT. CHECK
REGULARLY THE COMPONENTS OF THE SYSTEM. RE-
PLACE THE PARTS DAMAGED OR WORN.
• TIGHTEN AND CHECK ALL THE FITTINGS FOR CONNEC-
TION BETWEEN PUMP, FLEXIBLE HOSE AND SPRAY GUN
Read carefully and entirely the following instruc-
tions before using the product. Please save these
instructions in a safe place.
The unauthorised tampering/replacement of one
or more parts composing the machine, the use
of accessories, tools, expendable materials other
than those recommended by the manufacturer
can be a danger of accident.
The manufacturer will be relieved from tort and
criminal liability.

www.larius.com
9
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
H
BEFORE USING THE EQUIPMENT.
• ALWAYS USE THEFLEXIBLEHOSE SUPPLIED WITHSTAN-
DARD KIT. THE USE OF ANY ACCESSORIES OR TOOLING
OTHER THAN THOSE RECOMMENDED IN THIS MANUAL,
MAY CAUSE DAMAGE OR INJURE THE OPERATOR.
• THE FLUID CONTAINED IN THE FLEXIBLE HOSE CAN BE
VERY DANGEROUS. HANDLE THE FLEXIBLE HOSE CARE-
FULLY. DO NOT PULL THE FLEXIBLE HOSE TO MOVE THE
EQUIPMENT. NEVER USE A DAMAGED OR A REPAIRED
FLEXIBLE HOSE.
• NEVER SPRAY OVER FLAMMABLE PRODUCTS OR SOL-
VENTS IN CLOSED PLACES.
• NEVERUSETHE TOOLINGINPRESENCE OFPOTENTIALLY
EXPLOSIVE GAS.
Pump unit flexible tube connection
• Connect the pump unit’s exible tube
(H3) to the connector
(H4) ensuring to tighten the ttings (the use of two wrenches
is suggested) .
The high speed of travel of the product in the hose
can create static electricity through discharges
and sparks.
It is suggested to earth the equipment.
The gun is earthed through the high pressure
flexible hose.
All the conductors near the work area must be
earthed.
Always check the product is compatible with the
materials composing the equipment (pump, spray
gun, flexible hose and accessories) with which it
can come into contact.
Never use paints or solvents containing halogen
hydrocarbons (as the methylene chloride).
If these products come into contact with alu-
minium parts can provoke dangerous chemical
reactions with risk of corrosion and explosion.
If the product to be used is toxic, avoid inhalation
and contact by using protection gloves, goggles
and proper face shields.
Take proper safety measures for the protection
of hearing in case of work near the plant.

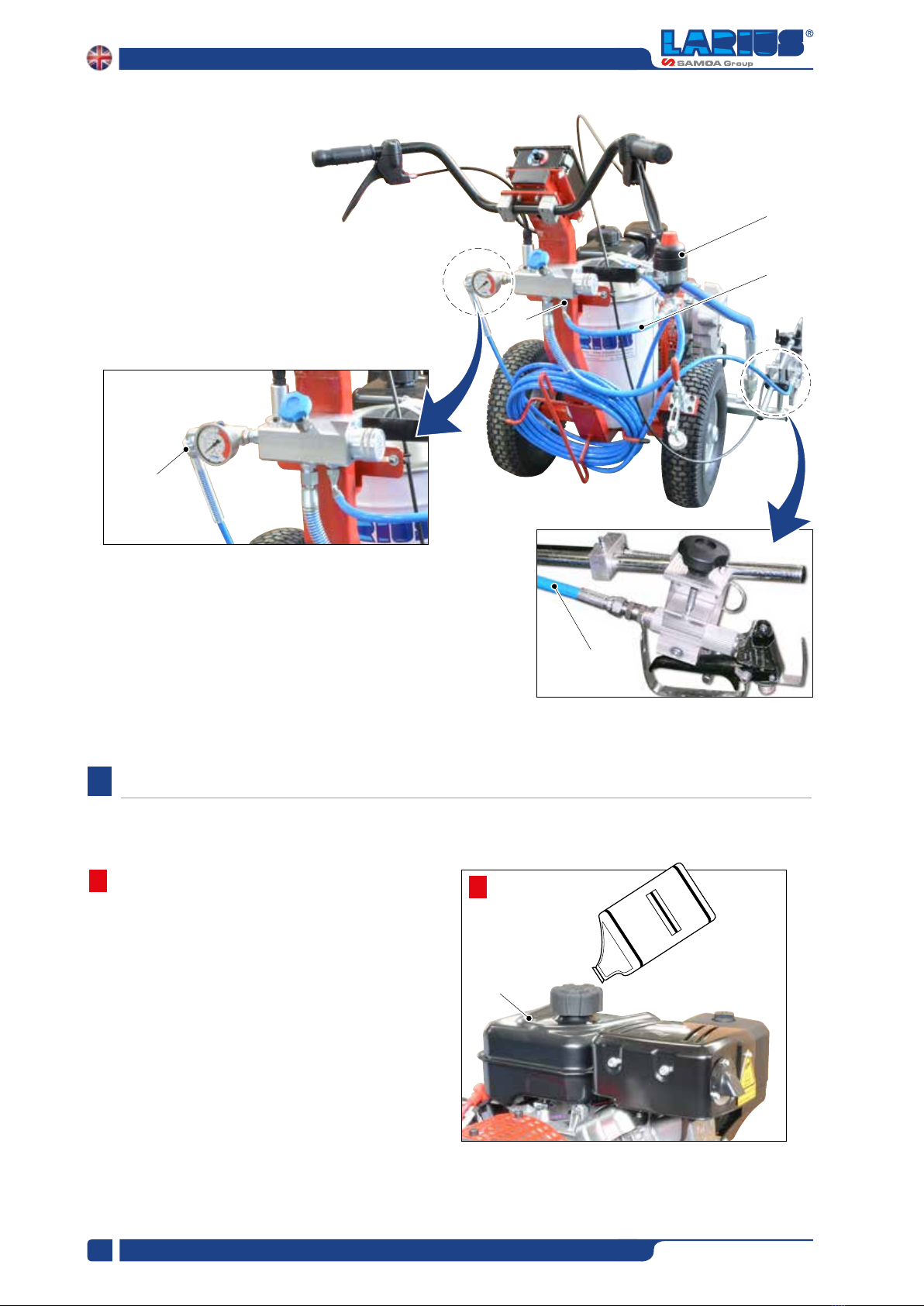

TUBE CONNECTIONS
Flexible re-circulation tube connection
• Connect the exible re-circulation tube (H1) to the connector
(H2) ensuring to tighten the ttings (the use of two wrenches
is suggested) .
Fig. 1H
H2
Fig. 2H
H3
H1
H4
Fig. 3H

www.larius.com
10
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
I
Flexible tube and spray gun connection
• Connect the exible tube (H8) to the connector (H9)
ensuring to tighten the ttings (the use of two wrenches
is suggested) .
• Itisrecommended to usethehoseprovided withthestandard
kit (ref. 18036).
NEVER use a damaged or a repaired exible hose.
NEVER use sealants on ttings’ threads .
ill the gasoline tank (I1) .
In order to start the motor, proceed as follows:
Hose connection to the flow compensator
• Connect the hose (H5) between
theowcompensator (H6)tothe
recirculation group (H7)
(the use
of two wrenches is suggested) .
STARTING THE MOTOR
Fig. 4H
H6
H8
Fig. 5H
Fig. 6H
H9
H5
Fig. 1I
I1
FUEL
1
1
H7

www.larius.com
11
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153

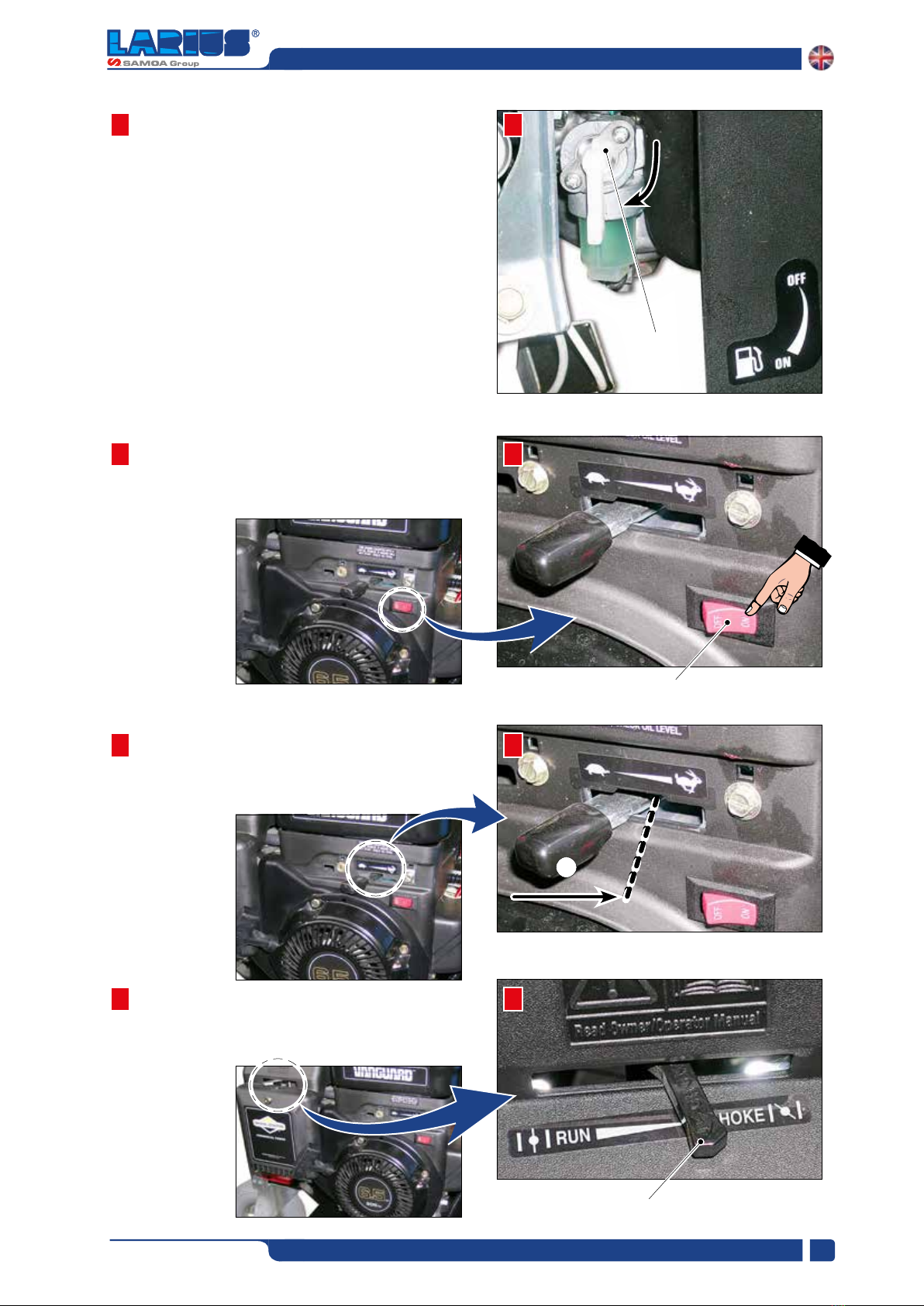

Open the fuel tap (I2) and position it to “ON”.
Put the switch (I3) ON (I) for the equipment.
Bring the accelerator lever (I4) to about 1/2 of its run.
Pull the lever (I5) for the rst cold start up (in position CHOKE).
I2
Fig. 2I
I3
Fig. 4I
I4
22
33
Fig. 3I
44
Fig. 5I
55
I5

www.larius.com
12
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
J
WASHING OF THE NEW EQUIPMENT

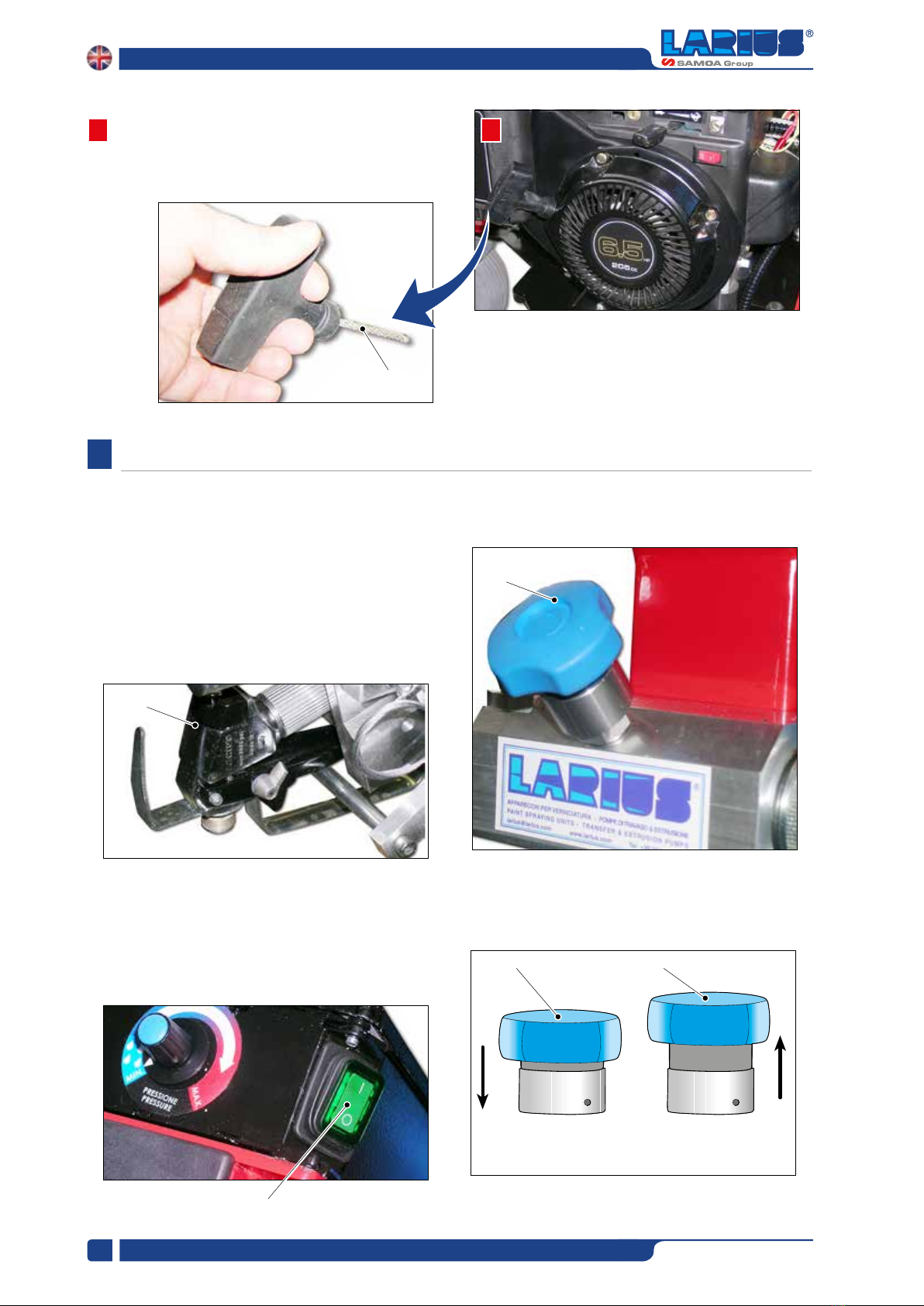

Pull the start up cord (I6).
• The equipment has already been adjusted at our factory with
light mineral oil left inside the pumping group as protection.
Therefore, wash with diluent before sucking the product.
• Lift the suction pipe and dip it into the solvent tank.
• Clean the inside of the tank with a brush.
• Ensure the gun (J1) is without nozzle.
• Start the motor following the indications provided in the
chapter “STARTING THE MOTOR”.
• Press the switch (J2) of the equipment “ON” (I).
• Open the recirculating-safety valve (J3).
Fig. 6I
66
I6
Fig. 1J
J1
Fig. 2L
J2
Fig. 3J
J3
OPEN
It re-circulates back into
the tank without spraying
CLOSED
It sprays out of the spray gun
Fig. 4J
J3 J3

www.larius.com
13
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
PRESSIONE
PRESSURE
MIN MA
X
PRESSIONE
PRESSURE
MIN MA
X

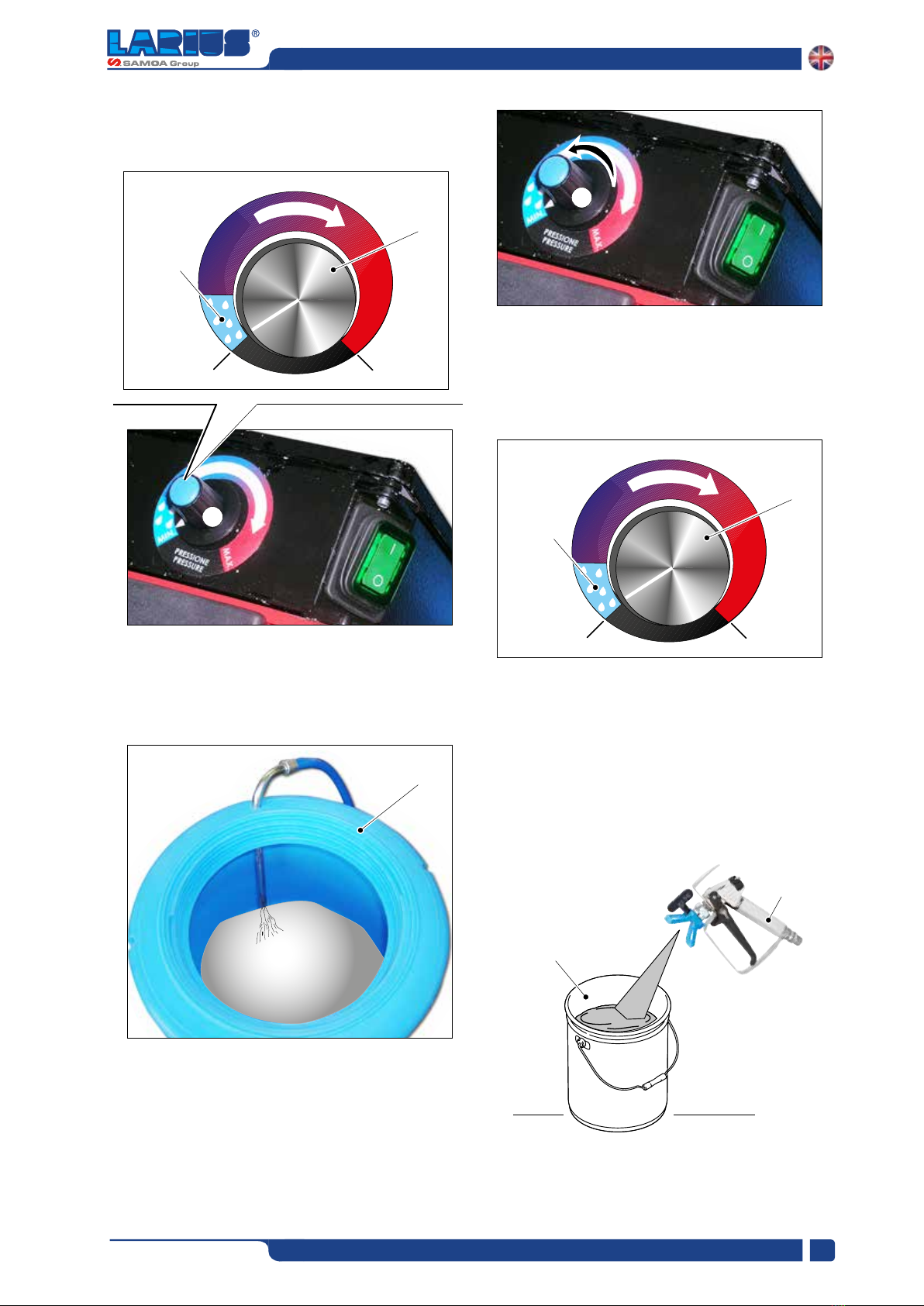

• Turn the pressure adjustment handle (J4) clockwise to stop
the pump.
• Closed the recirculating-safety valve (J3).
• Turn pressure regulating knob (J4) clockwise a little so that
the machine idles.
•Turn the pressure setting knob (J4) clockwise to the “CIR-
CULATION & WASHING” position (drop symbol).
• Visually check that the wash uid starts to re-circulate within
the tank (J5).
•
Remove the gun (J6) from its support and point it into a
container (J7). Holdthetriggerdown (to perform the cleaning)
until clean solvent comes out, or else until all of the wash
uid has been expelled from the tank.
Circulation
and washing
J4
J4
Fig. 5J
Fig. 6J
J5
J4
Fig. 7J
Circulation
and washing
J4
Fig. 8J
J7
J6
Fig. 9J

www.larius.com
14
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
K
Repeat the same operations with clean solvent
if necessary.
Absolutely avoid to spray solvents indoors. In
addition, it is recommended to keep away from
the pump in order to avoid the contact between
the solvent fumes and the motor.
PRODUCT PREPARATION
MAKE SURE THE PRODUCT IS SUITABLE TO BE
USED WITH A SPRAY GUN.
Make sure the product to be used is compatible
with the materials employed for manufacturing
the equipment (stainless steel and aluminium).
Because of that, please contact the supplier of
the product .
• Afterhavingcompletedthe wash operations,bringthe handle
to its MIN position (J4) and point the gun (J6) into a collection
container (J7) and press the trigger to release the residual
pressure. Release the trigger when nished.
• Shut off the equipment by turning the switch to its OFF
position “(O)”.
• Stop the combustion engine.
• At this point the machine is ready. If water-based paints are
to be used, after the wash with solvent wash the tank again
with soap and water, then rinse with clean water (repeating
the previously described procedures).
• Insert the manual gun trigger lock and assemble the nozzle.
• Mix and lter the product before using it. For ltration
use CLOSE-MESH (rif. 214) and LARGE-MESH (rif. 215)
LARIUS METEX braids.
Neveruseproductscontaininghalogenhydrocarbons(as methyle-
ne chloride). If these products come into contact with aluminium
partsofthe equipment,canprovokedangerouschemicalreactions
with risk of explosion
.
• Fill the tank (K1) with the paint.
J4
Fig. 10J
J7
J6
Fig. 11J
Fig. 1K
K1

www.larius.com
15
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
L
M
REGULATIONS
WORKING
• Press the switch (M2) of the equipment “ON” (I).
•Turn the pressure adjustment handle clockwise until the
desired setting has been reached.

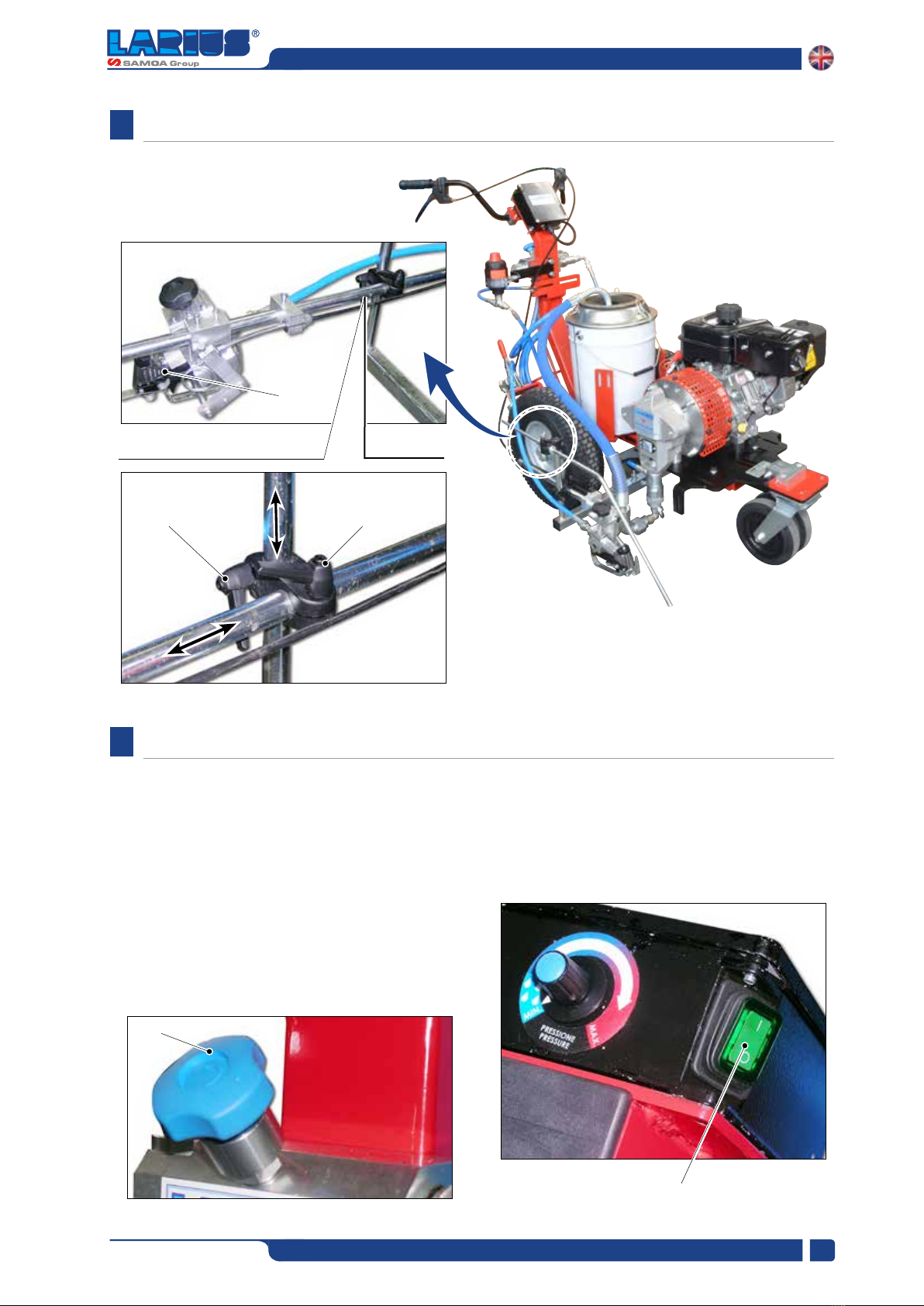

ADJUSTING THE GUN SUPPORT ARM
In order to adjust the position of the spray gun (L1)
use the knobs (L2-L3).
SETUP PROCEDURE
• Use the tooling after performing all the SETTING UP ope-
rations above described.
• Check that there is enough unleaded petrol.
• Start the motor following the indications provided in the
chapter “STARTING THE MOTOR”.
• Make sure that the re-circulation/safety valve (M1) is closed
(spray enabled).
Fig. 1L
Fig. 2L
L1
L2L3
Fig. 1M
M1
Fig. 2M
M2

www.larius.com
16
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
N
NEVER point the spray gun at yourselves or at
other people. The contact with the casting can
cause serious injuries. In case of injuries caused
by the gun casting, seek immediate medical advice
specifying the type of the product injected.
Recirculating-safety valve: when working at the
maximum pressure available, releasing the gun
trigger sudden increases of pressure can occur.
In this case, the recirculating-safety valve opens
automatically eliminating part of the product from
the recirculating tube.
Then it closes so as to go back to the first wor-
king conditions.
CLEANING AT THE END WORK
• Eliminate the paint remaining within the tank (N4) by placing
the re-circulation tube (N5) into a container.
• Open the recirculating-safety valve (N6).
ADJUSTING PUMP UNIT SPEED
• Move the motor acceleration lever (M3) gently to increase
or decrease the speed of the pump.
During the painting operation it is normally recommended to
maintain the position of the accelerator lever (M3) at about 3/4
of its maximum run.
SPRAY ADJUSTMENT
• Slowly turn clockwise the pressure control knob to reach the
pressure value in order to ensure a good atomization of the
product.
• An irregular and marked spray on the sides indicates a low
working pressure. On the contrary, a too high pressure
causes a high fog (“overspray”) and waste of product.
• Pull the lever on the right
(M4) to activate the spray gun
and begin working, advancing the machine in a continuous
manner.
•Reduce pressure to the minimum (turn counterclockwise the
pressure control knob (N1) ).
• Release the residual pressure by holding down the trigger
of the gun (N2) and pointing it into a container (N3).
Fig. 3M
M3
Fig. 4M
M4
N1
Fig. 1N
N3
N2
Fig. 2N
Fig. 3N
N5
N5
N6
N4

www.larius.com
17
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
Follow the washing procedure before using again
the equipment.
• Empty all of the wash uid from the tank and turn off the
equipment.
• Turn the pressure adjustment handle (N1) to minimum (pump
stopped).
• Shut off the motor.
• Turn the pressure adjustment (N1) handle slightly clockwise
to make the machine function at minimum pressure (pump
activated) , until the tank has been completely emptied then
shut off the pump by bringing the handle (N1) to its minimum
position.
• Fill the tank (N4) with wash fluid.
• Clean the walls of the tank with a brush.
• Turn the pressure adjustment (N1) handle slightly clockwise
to make the machine function at minimum pressure (pump
activated).
• Make sure the re-circulation tube
(N5) is inserted into a
container and wait for clean wash uid to come out of it.
• Turn the pressure adjustment handle (N1) to minimum (pump
stopped).
• Place the re-circulation tube back into the tank.
• Keep the gun’s trigger pressed to release any residual pres-
sure.
• Remove the nozzle from the gun and wash it separately.
• Closed the recirculating-safety valve
• Turn the pressure adjustment handle (N1) slightly clockwise
to make the machine function at minimum pressure (pump
activated).
• Point the manual gun (N7) into a container (N8), drain the
residual paint and wait for the wash uid to come out clean
the entire spraying circuit.
• In case of long storage, we recommend you to suck and
to leave light mineral oil inside the pumping group and the
exible hose.
Fig. 4N
N4
N1
Fig. 5N
N8
N7
Fig. 6N
Fig. 7N
N1

www.larius.com
18
EXCALIBUR LINER
ED. 20 - 07/2020 - Cod. 150153
O
P
GENERAL MAINTENANCE
D ischarge the pressure in the pump unit (open
the discharge valve) before carrying out any
maintenance.
ROUTINE MAINTENANCE
Always check that there is oil in the
motor.
At the start of each working day check that the
ring nut is full of hydraulic oil (Ref. 16340). This
oil makes it easier for the piston to slide and
prevents any material that escapes via the seal
gasket drying when the equipment is stopped.
DAILY
• Clean the filters;
• Clean the nozzles;
• Clean all the varnish circuit with a specific product;
• Check the fuel motor (see the maintenance table).
Check the motor oil every 100 working hours via
the relevant measuring caps positioned on the
bottom of the petrol motor.
Top up if necessary.
CHECK ON THE PACKING NUT
Daily check the packing nut is tight in order to avoid wastes but
not excessively to prevent the piston from seizing and the
gaskets from wearing.
• Use the lubricant (P1)supplied (ref. 16340) to allow an easy
sliding of the piston inside the gasket group.
Daily top up the packing nut.
PERIODICALLY
• Checkthepumping gaskets draft(if the product draws, replace
gaskets);
• Clean the mobile parts from the varnish deposits (spray guns,
etc.);
• Check the gun cables tightening, the wheel block;
• Check that the tubes and all the fittings are correctly locked.
Oil ring
Rif. 16340
Fig. 2P
Fig. 1P
P1
