Samsung AG026MN1DEH/EU User manual

Fan Coil Unit
User manual
ĘߢUk²ࢥĘߥUç²ࢥĘߥťç²
• Thank you for purchasing this Samsung fan coil unit.
• Before operating this unit, please read this user manual carefully and retain it for future reference.

2English
Safety Information 3
Safety Information 3
At a Glance 11

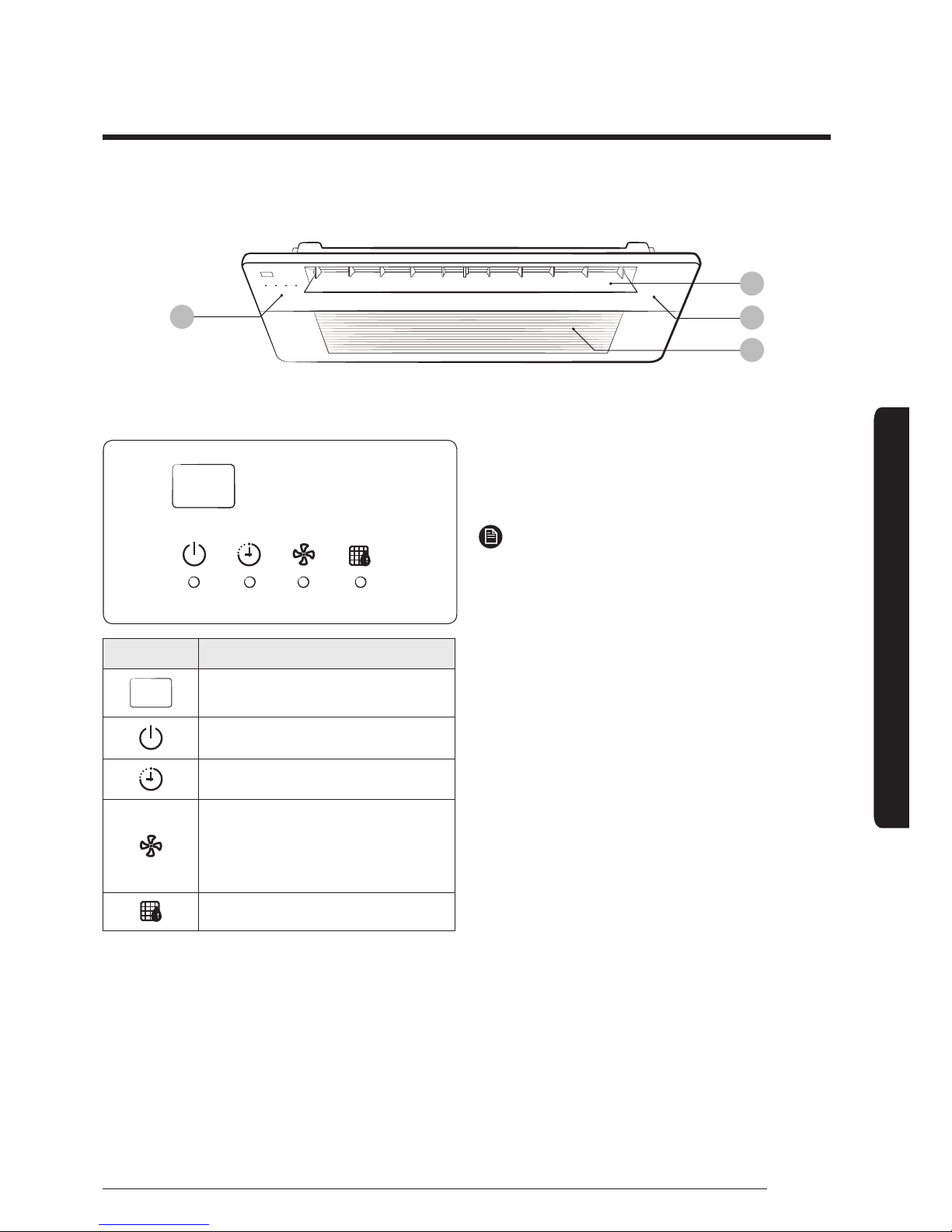

Fan Coil Unit Overview 11
Operation Features 14
Operating temperature and humidity
Cleaning and Maintenance 15
Cleaning and Maintaining 15

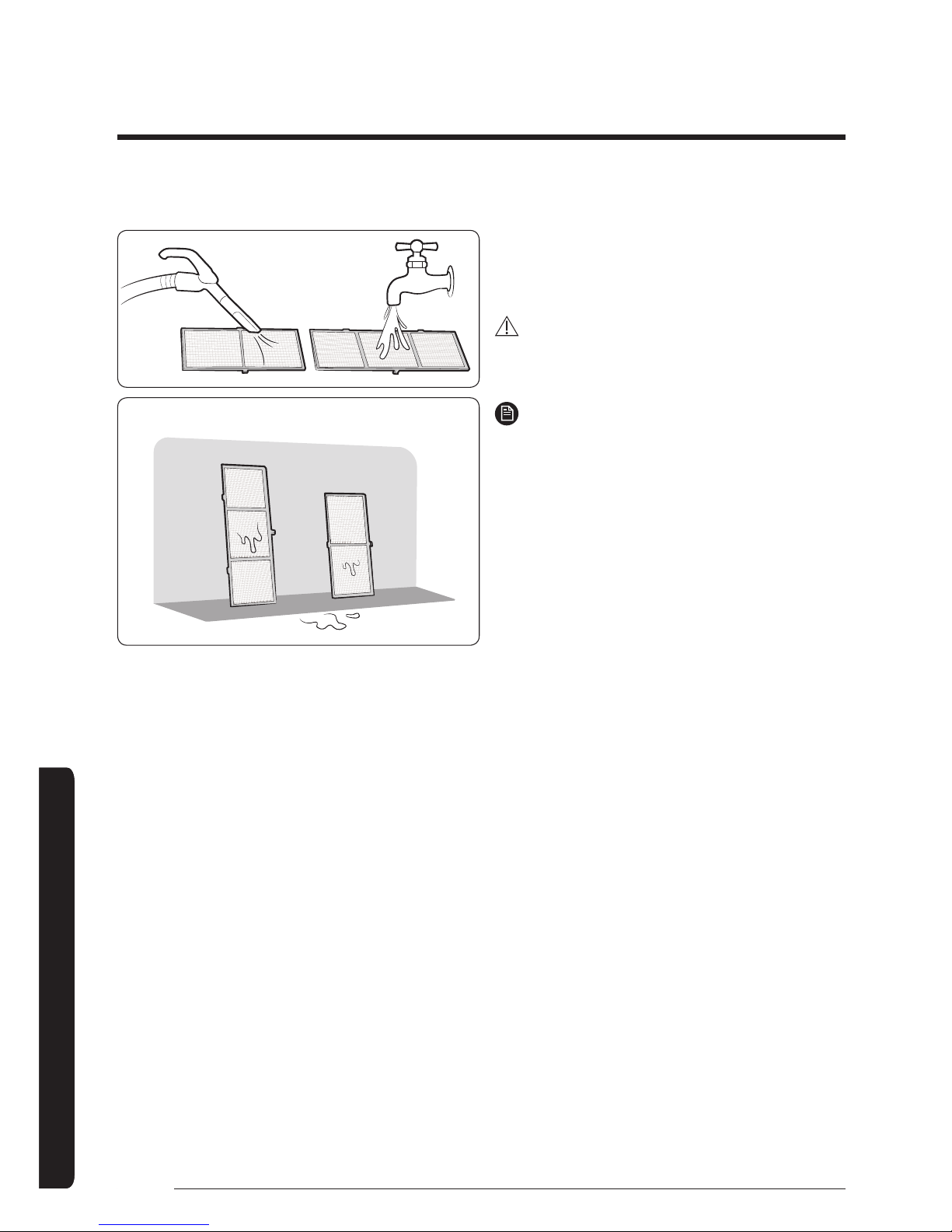

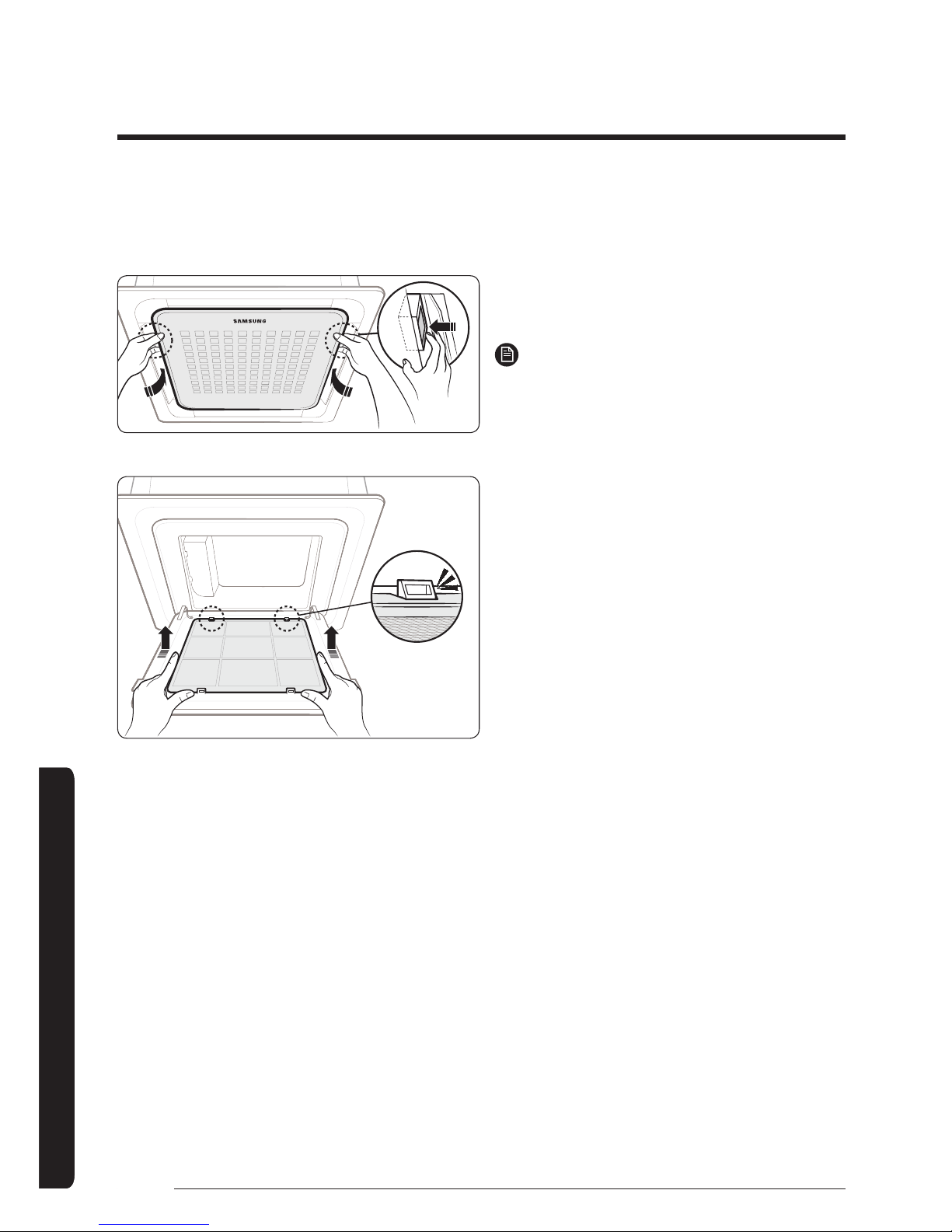

Cleaning the fan coil unit • Cleaning the air filter • Periodical maintenance
Troubleshooting • Technical specifications
Contents
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these
items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for
details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product
and its electronic accessories should not be mixed with other commercial wastes for disposal.
For information on Samsung’s environmental commitments and product specific regulatory obligations e.g. REACH visit:
samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html

Safety Information
3
English
Before using your new fan coil unit, please read this manual thoroughly to
ensure that you know how to safely and efficiently operate the extensive
features and functions of your new appliance.
Because the following operating instructions cover various models, the
characteristics of your fan coil unit may differ slightly from those described in
this manual. If you have any questions, call your nearest contact centre or find
help and information online at www.samsung.com.
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property
damage.
Follow directions.
Do NOT attempt.
Make sure the machine is grounded to prevent electric shock.
Cut-off the power supply.
Do NOT disassemble.
FOR INSTALLATION
WARNING
Use the power line with the power specifications of the product or higher
and use the power line for this appliance only. In addition, do not use an
extension line.
• Extending the power line may result in electric shock or fire.
• Do not use an electric transformer. This may result in electric shock or
fire.
• If the voltage/frequency/rated current condition is different, it may cause
fire.
Safety Information

Safety Information
Safety Information
4English
The installation of this appliance must be performed by a qualified
technician or service company.
• Failing to do so may result in electric shock, fire, explosion, problems with
the product, or injury and may also void warranty on the installed product.
Install a Isolation Switch next to the Fan Coil Unit (but not on the panels of
the Fan Coil Unit)and circuit breaker dedicated to the fan coil unit.
• Failing to do so may result in electric shock or fire.
Do not install this appliance near a heater, inflammable material. Do
not install this appliance in a humid, oily or dusty location, in a location
exposed to direct sunlight and water (rain drops). Do not install this
appliance in a location where gas may leak.
• This may result in electric shock or fire.
This appliance must be properly grounded. Do not ground the appliance to
a gas pipe, plastic water pipe, or telephone line.
• Failure to do so may result in electric shock, fire, an explosion, or other
problems with the product.
• Never plug the power cord into a socket that is not grounded correctly
and make sure that it is in accordance with local and national codes.
CAUTION
Install your appliance on a level and hard floor that can support its weight.
• Failing to do so may result in abnormal vibrations, noise, or problems with
the product.
When installing the product, make sure to install the draining hose
properly, so that water is drained correctly.
• Failing to do so may result in water overflowing and property damage.

Safety Information
5
English
If using the product after being left idle for an extended period of time,
make sure to open the airvent valve to release air.
• Running water noises may occur inside, or cooling/heating performance
may degrade.
• Use a bucket or hose to catch water. If using Cool mode only, in the winter
season, make sure to remove stagnant water to prevent the product from
freezing and bursting. After drainage, lock the valve securely.
To turn on the product, start the fan coil unit first and then start the heat
source device, e.g. chiller or boiler.
To turn off the product, stop the heat source device, e.g. chiller or boiler,
first and then stop the fan coil unit.
If the heat source device, e.g. chiller or boiler, will not be used for more
than four hours when in Cool mode, stop water circulation.
If it is impossible to stop water circulation, decrease the fan speed.
• If cold water runs when the fan of the fan coil unit is off, condensation
may occur on the fan coil unit components, such as the main unit, motor
or grille, and affect the lifespan of the product.
Do not use the product in a hot and humid location with relative humidity
over 80%.
• There is risk of fire and property loss due to water dropping from the
product.
When using the product in the winter, continuously operate the water
pump to circulate water.
If the product will not be used for long periods of time, completely drain
the system.
• The product may freeze and burst, resulting in property loss.

Safety Information
Safety Information
6English
FOR POWER SUPPLY
WARNING
When the circuit breaker is damaged, contact your nearest service centre.
Do not pull or excessively bend the power line. Do not twist or tie the
power line. Do not hook the power line over a metal object, place a heavy
object on the power line, insert the power line between objects, or push
the power line into the space behind the appliance.
• This may result in electric shock or fire.
CAUTION
When not using the fan coil unit for a long period of time or during a
thunder/lightning storm, cut the power at the circuit breaker.
• Failing to do so may result in electric shock or fire.
Cut off the power to the valve before cutting off the power to the product.
• Power is consumed if the power supply is connected.
• Install an electric two-way valve at the inlet of the fan coil unit. If a valve
is not installed, cold and hot water circulation continues. Water flooding
may occur due to condensation water. Either keep supplying power to
enable drainage, or check that cold water is not supplied.

Safety Information
7
English
FOR USING
WARNING
If the appliance is flooded, please contact your nearest service centre.
• Failing to do so may result in electric shock or fire.
If the appliance generates a strange noise, a burning smell or smoke,
unplug the power plug immediately and contact your nearest service
centre.
• Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate
immediately without touching the power line. Do not touch the appliance
or power line.
• Do not use a ventilating fan.
• A spark may result in an explosion or fire.
To reinstall the fan coil unit, please contact your nearest service centre.
• Failing to do so may result in problems with the product, water leakage,
electric shock, or fire.
• A delivery service for the product is not provided. If you reinstall the
product in another location, additional construction expenses and an
installation fee will be charged.
• Especially, when you wish to install the product in an unusual location
such as in an industrial area or near the seaside where it is exposed to salt
in the air, please contact your nearest service centre.
Do not touch the circuit breakerwith wet hands.
• This may result in electric shock.
Do not turn the fan coil unit off with the circuit breakerwhile it is
operating.
• Turning the fan coil unit off and then on again with the circuit breaker
may cause a spark and result in electric shock or fire.

Safety Information
Safety Information
8English
After unpacking the fan coil unit, keep all packaging materials well out
of the reach of children, as packaging materials can be dangerous to
children.
• If a child places a bag over its head, it may result in suffocation.
Do not touch the front panel with your hands or fingers during the heating
operation.
• This may result in electric shock or burns.
Do not insert your fingers or foreign substances into the outlet when the
fan coil unit is operating or the front panel is closing.
• Take special care that children do not injure themselves by inserting their
fingers into the product.
Do not insert your fingers or foreign substances into the air inlet/outlet of
the fan coil unit.
• Take special care that children do not injure themselves by inserting their
fingers into the product.
Do not strike or pull the fan coil unit with excessive force.
• This may result in fire, injury, or problems with the product.
Do not use this fan coil unit for long periods of time in badly ventilated
locations or near infirm people.
• Since this may be dangerous due to a lack of oxygen, open a window at
least once an hour.
If any foreign substance such as water has entered the appliance, cut-off
the power supply and contact the nearest service center.
• Failing to do so may result in electric shock or fire.
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not use any fuse (such as copper, steel wire, etc.)other than the
standard fuse.
• Failing to do so may result in electric shock, fire, problems with the
product, or injury.

Safety Information
9
English
CAUTION
Do not place objects or devices underthe fan coil unit.
• Water dripping from the fan coil unit may result in fire or property
damage.
Max current is measured according to IEC standard for safety and current
is measured according to ISO standard for energy efficiency.
Do not stand on top of the appliance or place objects (such as laundry,
lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.)
on the appliance.
• This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
• This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the
appliance.
• As well as being harmful to humans, it may also result in electric shock,
fire or problems with the product.
Do not drink the water from the fan coil unit.
• The water may be harmful to humans.
Do not apply a strong impact to the remote controller and do not
disassemble the remote controller.
Do not touch the pipes connected with the product.
• This may result in burns or injury.
Do not use this fan coil unit to preserve precision equipment, food,
animals, plants or cosmetics, or for any other unusual purposes.
• This may result in property damage.
Avoid directly exposing humans, animals or plants to the air flow from the
fan coil unit for long periods of time.
• This may result in harm to humans, animals or plants.

Safety Information
Safety Information
10 English
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance.
For use in Europe: This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
FOR CLEANING
WARNING
Do not clean the appliance by spraying water directly onto it. Do not use
benzene, thinner, alcohol or acetone to clean the appliance.
• This may result in discoloration, deformation, damage, electric shock or
fire.
Before cleaning or performing maintenance, cut-off the power supply and
wait until the fan stops.
• Failing to do so may result in electric shock or fire.
CAUTION
Do not clean the inside of the fan coil unit byyourself.
• For cleaning inside the appliance, contact your nearest service center.
• When cleaning the internal filter, refer to the descriptions in the ‘Cleaning
and maintaining’ section.
• Failure to do may result in damage, electric shock or fire.

At a Glance
11
English
Fan Coil Unit Overview
1WAY (PC1NUSMAN / PC1BWSMAN)
02
03
04
01
01 Display
Indication Function
Remote control sensor
Operation indicator
Timer indicator
Model not equipped with
S-Plasma ion: Fan indicator
Model equipped with S-Plasma
ion: Purity indicator
Filter reset indicator
02 Air flow blade
03 Panel
04 Air intake / Front grille / (inside) Air filter
NOTE
• Refer to the remote control user manual for
details on how to use the product.
• The power button will not work. Use the
remote control to turn on or off the product.
• When operating a Fan Coil Unit (including Fan
mode), the S-Plasma Ion function may not
operate automatically. In this case, turn on
the Purity function with your remote control
to activate the function.
The product appearance and labels may differ from the illustrations, depending on the model and
panel type.

At a Glance
12 English
Fan Coil Unit Overview
4WAY (PC4NUSKAN / PC4NUSKEN / PC4NBSKAN)
01
03
02
01 Display
Indication Function
On/Off operation indicator Note 1)
Removing frost indicator Note 2)
Timer indicator
Filter reset indicator
Remote control sensor
02 Air flow blade
03 Air intake / Front grille / (inside) Air filter
NOTE
• Each of the air flow blades can be controlled
separately. Refer to the remote control user
manual for details on how to use the product.
Note 1) The power button will not work.
Use the remote control to turn on or off the
product.
Note 2) The removing frost indicator does not
works.

At a Glance
13
English
01 Display
Operation status Indication on the
display
Power on Ice blue (blinking)
In operation Ice blue
Stopped Off
Timed on/off
function Blue
Requires filter
cleaning Yellow green
Wide
Mid
Spot
Swing
02 Remote control sensor (behind the front
grille)
03 Air outlet
04 Air intake / Front grille / (inside) Air filter
NOTE
• For the AR-KH00E wireless remote control,
the air flow direction indications appear on its
display, too.
• By using the AR-KH00E wireless remote
control, you can turn on or turn off the air
flow direction indications that appear on the
fan coil unit display.
• For the MR-EH00 wired remote control, which
is designed generally for any fan coil unit, the
air flow direction is not shown on the remote
control display. Control the air flow direction
with checking it on the fan coil unit display.
• For information on how to operate the
product, see the user manual for the remote
control.
• By using the AR-KH00E wireless remote
control, which is designed specifically for the
360 cassette fan coil unit, you can operate
them more conveniently. In addition, because
you can check the operation status of each
fan coil unit on the remote control, you can
use the fan coil unit more effectively.
02
03
01
04
Circular panel
Square panel
360CST (PC4NUDMAN / PC4NUNMAN)

At a Glance
14 English
Operation Features
Operating temperature and humidity
Mode Indoor temperature Indoor humidity
Cool 18°C to 32°C 80% or less
Heat 30°C or less -
NOTE
• Condensation may form on the product, if using Cool mode under high humidity conditions for an
extended period of time.
• Ã˙ͱΧʪθɇϩ˝ϩ˵ʪ˙ɇʀͱЇϩЇʒʪθʀͱʒϩͱϑиϩ˵иɇϩʪθϩʪΧʪθɇϩЇθʪͱЭʪθߧߦঐࡡΧθͱϩʪʀϩЭʪ
control (shutdown) mode may activate to protect the product.
If using the product in a location with temperature and humidity outside the standard operating
range, the protective system activates and the product may not operate. Use the product under
conditions with temperature and humidity within the standard operating range.

Cleaning and Maintenance
15
English
Cleaning and Maintenance
Cleaning and Maintaining
CAUTION
• Before cleaning, be sure to turn off the fan coil unit and the auxiliary power switch (MCCB, ELB).
Cleaning the fan coil unit
1WAY Wipe the surface of the unit with a slightly wet
or dry cloth when needed. Wipe off dirt of odd-
shaped areas by using a soft brush.
CAUTION
• Do not use alkaline detergent, sulphuric
acid, hydrochloric acid, or organic solvents
(such as thinner, kerosene, and acetone) to
clean the surfaces.
• Do not attach any stickers on the surfaces
because this may cause damage.
• When you clean the heat exchanger on the
fan coil unit, you need to disassemble the
fan coil unit. Therefore, you must contact
the local service center for help.
4WAY
360CST

Cleaning and Maintenance
16 English
Cleaning and Maintaining
Cleaning and Maintenance
Cleaning the air filter
CAUTION
• Before cleaning, be sure to turn off the fan coil unit and the auxiliary power switch (MCCB, ELB).
• Be sure to hold the grille with a hand to prevent dropping from the opening of the front grille.
1 WAY
1 Detaching and replacing the air filter
PC1NUSMAN
PUSH
Press the Push signs on the front panel, then
open the grille.
Grab the handle of the air filter and lift it
upward while pushing the handle slightly.
Pull out the air filter from the fan coil unit.

Cleaning and Maintenance
17
English
Cleaning and Maintenance
PC1BWSMAN
Insert your hand into the front grille and pull
out the front grille to open it.
Press the Push signs on the air filter.
Grab the handle of the air filter with your hand.
Pull out the air filter from the fan coil unit.

Cleaning and Maintenance
18 English
Cleaning and Maintaining
Cleaning and Maintenance
2 Cleaning the air filter
Clean the air filter with a vacuum cleaner or soft
brush. If dust is too heavy, then rinse it with
running water.
CAUTION
Do not scrub the air filter with a brush or other
cleaning utensil. This may damage the filter.
NOTE
• Unpleasant smells or unusual noises may
come from the filter if it is very dirty. If
this is the case, immerse the filter in warm
water with a neutral detergent for about 30
minutes and then rinse it thoroughly.
• Lean the filter against a wall to maximise
air contact for drying, in the shade with no
direct sunlight, for at least 12 hours.
• If the air filter dries in a humid area, it may
produce offensive odours. Clean it again and
dry it in a well-ventilated area.
• The cleaning period may differ depending on
the usage and environmental conditions, so
clean the air filter every week if the fan coil
unit is in the dusty area.

Cleaning and Maintenance
19
English
Cleaning and Maintenance
3 Reassembling the air filter
CAUTION
• If the fan coil unit is used without the air
filter, it may be damaged due to dust.
4 Resetting the air filter
After cleaning and reassembling the air filter,
be sure to reset the filter-cleaning reminder as
follows:
• Fan coil unit with the wired remote control:
Press the Filter Reset button.
• Fan coil unit with the wireless remote
control: Press the SettingsɵЇϩϩͱ<or >
࣍Filter Reset࣎9˝Χθʪϑϑϩ˵ʪSET
button.
NOTE
• Be sure to reset the filter-cleaning reminder
every time you clean the air filter although
the filter reset indicator ( ) does not blink.

Cleaning and Maintenance
20 English
Cleaning and Maintaining
Cleaning and Maintenance
4 WAY
1 Detaching and replacing the air filter
Open the air flow blades on both sides of
the front grille, then open the front grille by
pushing the two push-buttons.
NOTE
• The push-buttons are located on both sides
of the front grill with the Samsung logo.
• You can find the buttons by opening the air
flow blades with your hands.
Pull out the air filter from the fan coil unit.
