Samsung EH052EAMC User manual

ENGLISH
ENGLISH
E S F I P D G R DB98-26846A(3)
ESPAÑOLFRANÇAISITALIANOPORTUGUÊSDEUTSCH
EΛΛHNIKA
NA
I
S
SU
R
System Air Conditioner
USER’S MANUAL
Indoor Unit
EH052EAMC
EH070EAM(1)C
DH094EAMC
DH105EAMC
DH105EAMC
DH140EAMC
Outdoor Unit
UH052EAMC
UH070EAM(1)C
UH094EAM1C
UH105EAMC
UH105GAMC
UH140GAMC
DB98-26846A_E.indd 17 2007-3-19 18:29:56

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
WARNING
 Users of this product are cautioned not to attempt repair of this product
at their own discretion. Instead, they are requested to directly contact a
designated service center or the outlet at which the product was purchased.
 Never spill any kind of liquid into the unit. Should this happen, unplug or
main switch off the unit and contact an authorized service center.
 Do not insert anything between the air outlet blades because the inner fan
may be damaged and could cause injury. Keep children away from the unit.
 Do not place any obstacles in front of the unit.
 Do not spray liquid of any kind into the indoor unit. Should this happen,
switch off the breaker used for your air conditioner and contact your
installation specialist.
 Make sure that the unit is correctly ventilated at all times:
Do not place clothing or other materials over it.
 If the wireless remote control will not be used for a long time, remove the
batteries. (If applicable)
 When using a wireless remote control, the distance should not be more than
7 meters from the air conditioner. (If applicable)
DURING OPERATION
 Never store or ship the air conditioner upside down or sideways to avoid
damage to the compressor.
 The appliance is not intended for use by young children or infirm persons
without supervision: Young children should be supervised to ensure that
they do not play with the appliance.
 Max current is measured according to IEC standard for safety and current is
measured according to ISO standard for energy efficiency.
 R410a
“Do not vent R410a into atmosphere: R410a is a fluorinated greenhouse gas,
covered by Kyoto Protocol, with a Global Warming Potential (GWP)=1975 ”
OTHERS
 Before throwing out the device, it is necessary to pull back the battery cells
and get rid of them safely for recycling reasons.
 When you need to dispose of the unit, consult your dealer. If pipes are
removed incorrectly, refrigerant may blow out and come into contact with
your skin, causing injury. Releasing refrigerant into the atmosphere also
damages the environments.
 Please recycle or dispose of the packaging material for this product in an
environmentally responsible manner.
DISPOSING OF THE UNIT
• Risk of electric shock Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
Register your product at www.samsung.com/global/register
DB98-26846A_E.indd 2 2007-11-5 15:52:58

ENGLISH
E-3
Contents
 PREPARING YOUR AIR CONDITIONER
 Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
 View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
 Wireless Remote Controller-Buttons and Display . . . . . . . . . . . . . . . . . 6
 The Receiver & Display Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
 Wired Remote Controller-Buttons and Display. . . . . . . . . . . . . . . . . . . . 8
 Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
 Function Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
 RECOMMENDATIONS FOR USE
 Operating Recommendations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
 Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
 Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
 Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
 TECHNICAL SPECIFICATIONS & THE FEATURE OF PRODUCT
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household waste
at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types of waste and recycle it responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they purchased this product, or their local government office,
for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial waste for disposal.
The feature of product
 Easier Installation : Slim Size
 Easier Tuning : Using Phase Control Motor
 Various useful Functions
 Convenient Control Functions
DB98-26846A_E.indd 3 2007-3-19 18:29:44

E-4

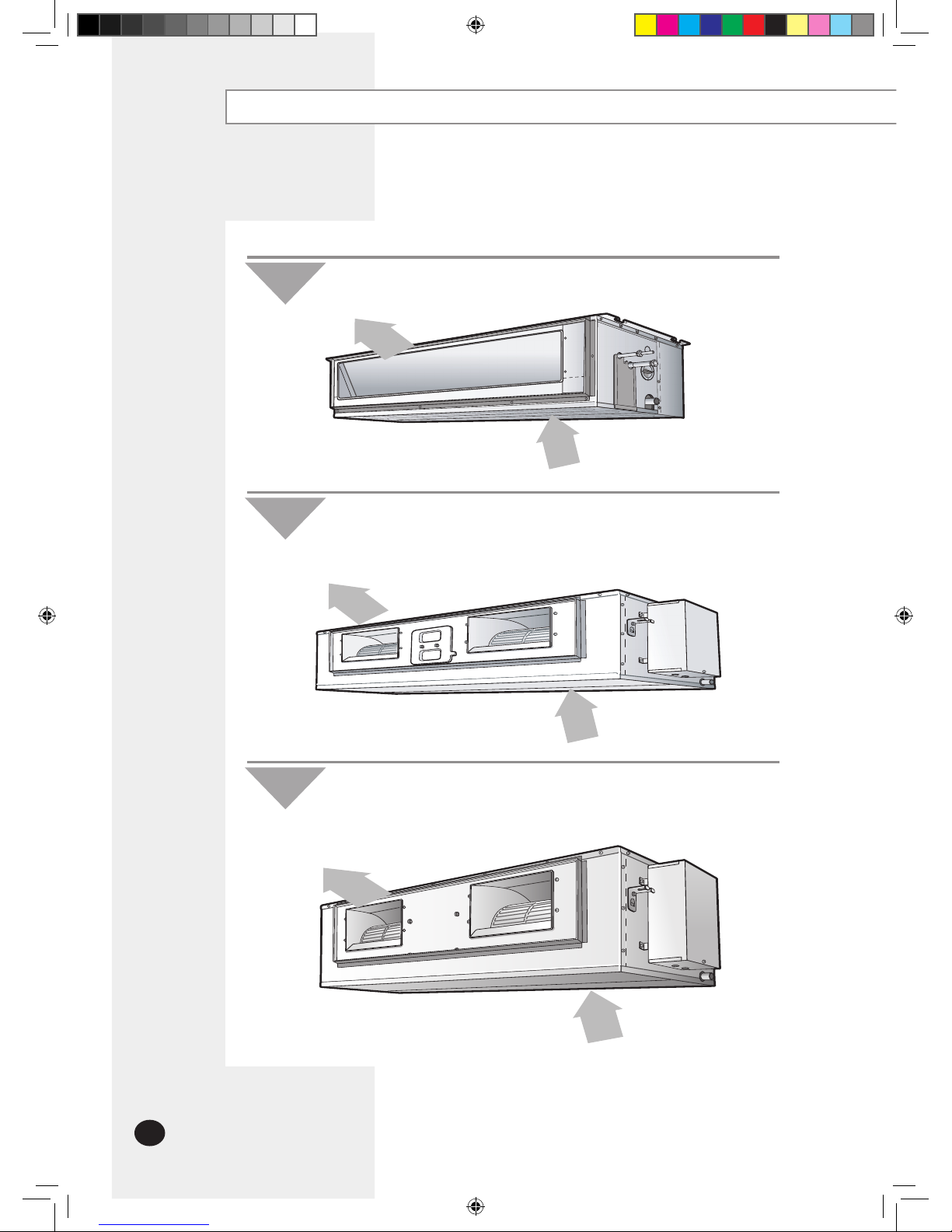

View of the Unit
The figures are shown in this instruction may differ from yours depending on the model.
Indoor Unit
Air
inlet
Air
outlet
Indoor Unit
Indoor Unit
EH052EAMC/EH070EAM(1)C
DH094EAMC/DH105EAMC
DH105/140EAMC
Air
inlet
Air
outlet
Air
inlet
Air
outlet
DB98-26846A_E.indd 4 2007-3-24 10:15:07

ENGLISH
E-5
View of the Unit
 If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall. So clean the heat
exchanger with water when it becomes dirty. However, be careful when you wash the surface of the
heat exchanger because it is very sharp.
Note
Air outlet
Outdoor Unit
Connection valve
Outdoor Unit
Outdoor Unit
Air outlet
Connection valve
Air outlet
Connection valve
UH052EAMC/UH070EAM(1)C
UH094EAM1C
UH140GAMC
Outdoor Unit UH105EAMC/UH105GAMC
Air outlet
Connection valve
DB98-26846A_E.indd 5 2007-3-24 10:15:09

E-6

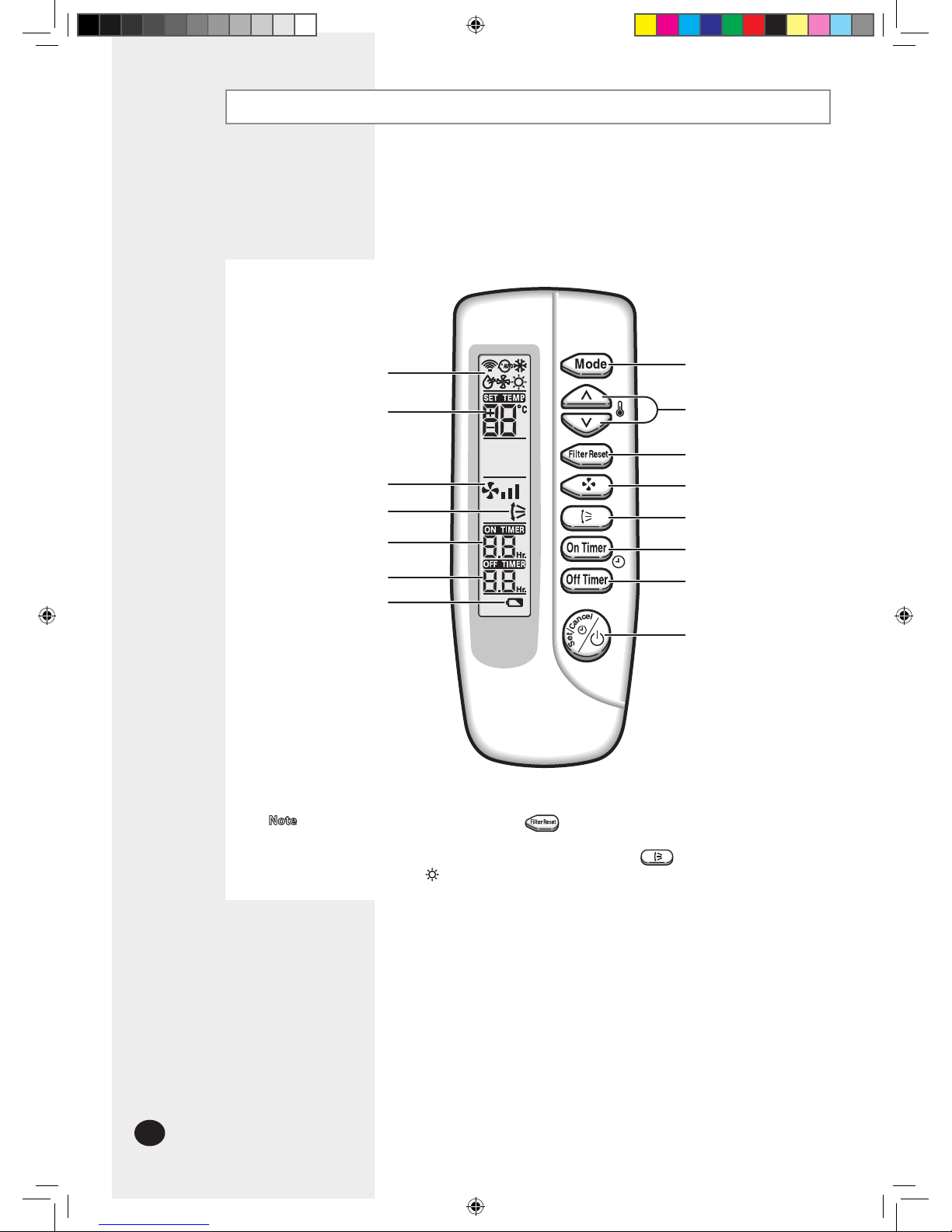

Wireless Remote Controller-Buttons and Display
Operating mode Mode selection button
Filter Reset button
Swing button (Not operated)
On Timer button
Off Timer button
On/Off & Timer
Set/Cancel button
Fan speed adjustment button
Temperature adjustment
buttons
Temperature setting
Fan speed
Air flow direction
On Timer setting
Off Timer setting
Battery discharge indicator
The wireless remote controller is an optional accessory.
To use the wireless remote controller, refer to an appropriate manual.
 After cleaning the air filter, press the button.
 Duct type air conditioner does not have function of adjusting air flow direction.
Therefore, the function is not operated even if you press the button.
 The heat mode( ) is not selected in cooling only models.
Note
DB98-26846A_E.indd 6 2007-3-19 18:29:49

ENGLISH
E-7
The Receiver & Display Unit
The Receiver & Display unit is an optional accessory and it is installed on the wall.
To use the receiver & display unit, refer to an appropriate manual.
Concealed Type
Standard Type
Filter sign indicator
Fan indicator
Timer indicator
Remote control sensor
- Heat Pump Models :
On/Off indicator(Blue) &
Removing frost
indicator(Red)
- Cooling Only Models :
On/Off indicator
Removing frost indicator
(Except Cooling Only Models)
Filter sign indicator
Remote control sensor
On/Off indicator
Fan indicator
On/Off button
Timer indicator
DB98-26846A_E.indd 7 2007-3-19 18:29:49

E-8
Wired Remote Controller-Buttons and Display
To use the wired remote controller, refer to an appropriate manual.
 The button is for your installation specialist. You must NOT press it.
 After cleaning the air filter, press the button. Then the wired remote controller will display the
FILTER SIGN indicator when the time to clean the air filter; refer to page 13.
 Duct type air conditioner does not have function of adjusting air flow direction.
Therefore, the function is not operated even if you press the button.
 The heat mode( ) is not selected in cooling only models.
Note
Mode selection button
Communication error indicator
On Timer setting
Off Timer setting
Test indicator
Timer button
Timer set/cancel button
Test button
Temperature adjustment
buttons
Removing frost indicator
Operating mode
Centralized controller indicator
(In case of installing the Centralized controller)
Filter Reset button
Swing button
(Not operated)
Temperature setting
Fan speed
Air flow direction
Filter Sign indicator
On/Off button
Fan speed
adjustment button
On/Off indicator
DB98-26846A_E.indd 8 2007-3-19 18:29:50

ENGLISH
E-9
The centralized controller is an optional accessory and it is installed on the wall.
To use the centralized controller, refer to an appropriate manual.
Centralized Controller
Operating lamp
All On button
All Off button
On/Off indicators
On/Off buttons
Index
 The operating lamp comes on even when only one air conditioner
connected to the centralized controller is operating.
Note
Front View
Operating Mode Switch
COOL
AUTO
HEA
T
 Choose the appropriate operating mode with the Operating Mode Switch that
enables the user to choose between the Cool/Auto/Heat mode.
Note
Side View
DB98-26846A_E.indd 9 2007-3-19 18:29:52

E-10
Function Controller
The function controller is an optional accessory and it is installed on the wall.
The function controller is an additional controller which is used with the centralized controller.
To use the function controller, refer to an appropriate manual.
Mode selection button
Room number display
Test indicator
Indoor unit selection button
Test button
Temperature adjustment
buttons
Filter Reset button
Swing button
Temperature setting
Fan speed
Air flow direction
Filter Sign indicator
On/Off & Timer Set/
Cancel button
Fan speed adjustment
button
On/Off indicator
Centralized controller indicator
Communication error indicator
Removing frost indicator
Operating mode
Note
 The button is for your installation specialist. You must NOT press it.
 After cleaning the air filter, press the button. Then the wired remote controller will display the
FILTER SIGN indicator when the time to clean the air filter; refer to page 13.
 Duct type air conditioner does not have function of adjusting air flow direction.
Therefore, the function is not operated even if you press the button.
 The heat mode( ) is not selected in cooling only models.
DB98-26846A_E.indd 10 2007-3-19 18:29:53

ENGLISH
E-11
Operating Recommendations
Here are a few recommendations that you should follow when operating
your air conditioner.
Topic Recommendation
The heat pump function of the air conditioner absorbs heat
from outside air and brings it indoors. As the temperature of the
outside air drops, the heating performance of air conditioner will
decrease. If you find that the room is not warm enough, using
an additional heating appliance is recommended.
Heating
performances
When outside temperature is low but humidity is high,
frost may form on the outdoor unit at HEAT mode.
If this happens:
 The heating operation stops.
 The defrost mode will be triggered automatically for 3 to 14
minutes.
No intervention is required ; after about 10 minutes, the air
conditioner operates again normally.
Frost
I f both indoor and outdoor temperatures are high and the air
conditioner is running at HEAT mode, the outdoor unit’s fan and
compressor may stop at times.
This is normal ; simply wait until the air conditioner switches
on again.
High indoor
and outdoor
temperatures
If a power failure occurs while the air conditioner is operating,
the unit will be switched off. When the power returns, the air
conditioner starts up again automatically.
Power failure
DB98-26846A_E.indd 11 2007-3-19 18:29:53

E-12
Temperature and Humidity Ranges
The following table indicates the temperature and humidity ranges,
within which the air conditioner can be used.
If the air conditioner is used at... Then...
The automatic protection feature may be trig-
gered and the air conditioner stopped.
High temperature
A water leakage or some other
malfunction may happen if the heat
exchanger freezes.
Low temperature
Water may condense on and drip from the
surface of the indoor unit if it is used for a
long periods.
High humidity levels
 The standardized temperature for heating is 7°C.
If the outdoor temperature drops to 0°C or below, the heating capacity can be
reduced depending on the temperature condition.
If the cooling operation is used at over 32°C(indoor temperature),
it does not cool at its full capacity.
Mode Outdoor Temperature Indoor Temperature Indoor Humidity
Heating
Cooling
Drying
-5°C to 24°C approx.
-5°C to 43°C approx.
-5°C to 43°C approx.
15°C to 27°C approx
21°C to 32°C approx.
21°C to 32°C approx.
-
80% or less
-
DB98-26846A_E.indd 12 2007-3-19 18:29:54

ENGLISH
E-13

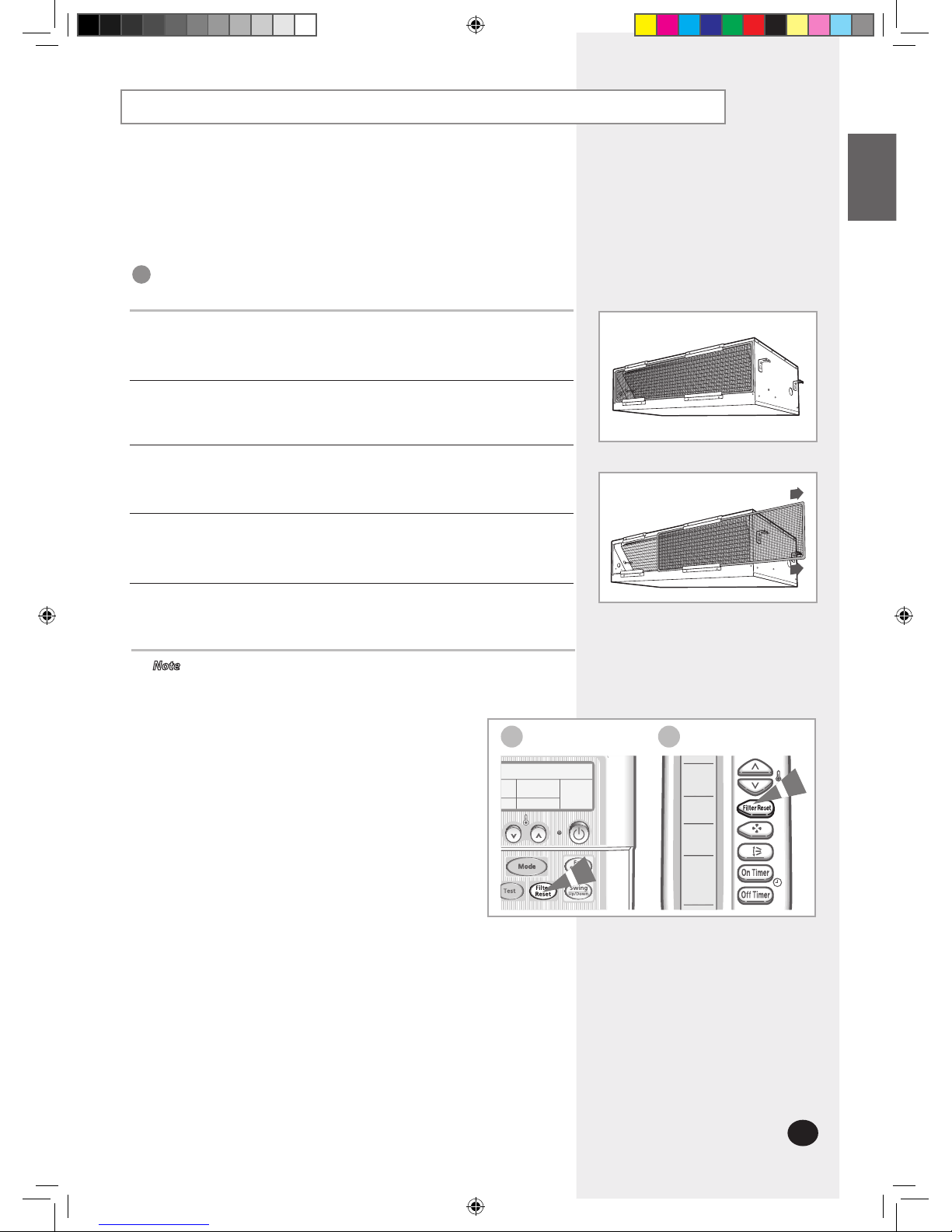

Cleaning Your Air Conditioner
For the best use of your air conditioner, you must clean it every 2 weeks regu-
larly to remove the dust that accumulates on the air filter.
Before cleaning your air conditioner, ensure that you have
switched off the electric circuit breaker used for the unit.
Pull the air filter to the right or left as you want.
1
Pull out the air filter.
2
Remove all dust on air filter with a vacuum cleaner or a brush. In case of
serious dust accumulation, put the air filter in warm detergent water and
shake it vertically.
3
Dry the air filter.
4
When you have finished, insert the filter into the unit.
5
IMPORTANT
 After cleaning the air conditioner, press the Filter Reset button.
 Do not operate the air conditioner without the filter.
Note
Wired Remote Controller Wireless Remote Controller
DB98-26846A_E.indd 13 2007-3-19 18:29:54

E-14
Solving Common Problems
Before contacting the after-sales service, perform the following simple checks. They may
save your time and expense of an unnecessary call.
Explanation/Solution
 Check that the breaker used for the air conditioner is switched on.
Problem
The air conditioner does not
operate at all
 Check that there are no obstacles between you and the remote
control sensor.
 Check the wireless remote controller batteries.
 Check that you are close enough to the remote control sensor.
(7 metres/yards or less).
 Check that you are pointing the remote controller at the remote
control sensor on the indoor unit.
 Replace the remote controller batteries if necessary.
 If there is a strong light around the air conditioner, a three-wavelength light,
a neon sign, etc., for example, the air conditioner may not be operated with
a remote controller. If this happens, use the remote controller close by the
remote control sensor.
The air conditioner does not
operate with the remote
controller
Wireless Remote Controller
Wireless Remote Controller
No beep is heard when you
press (On/Off)
on the remote controller
 Check that the correct operating mode has been selected.
 The room temperature may be too low or too high.
 Dust may be blocking the air filter guard; refer to page 12 for cleaning
instructions.
 Check that there is no obstacle in front of the outdoor unit.
The air conditioner does
not cool or heat
 is displayed on the wired remote controller. In this case,
turn the air conditioner off and contact your dealer.
Wired Remote Controller
The air conditioner does not
operate with the remote
controller
 In case of using the wired remote controller for a group, the air
conditioners connected to the remote controller are turned on/off in order.
Thus, it takes some time(up to 32 seconds).
Wired Remote Controller
When turning on/off the
air conditioner, it is not
turned on/off immediately.
 Check that the required temperature has been set correctly.
 Increase the fan speed.
When heating, the required
room temperature is never
reached and the air
conditioner frequently stops
DB98-26846A_E.indd 14 2007-3-19 18:29:55

ENGLISH
E-15
Technical Specifications & Technology words
MODEL
EH052EAMC/EH070EAM(1)C
UH052EAMC/UH070EAM(1)C
DH094EAMC
UH094EAM1C
DH105EAMC
UH105EAMC
DH105EAMC
UH105GAMC
DH140EAMC
UH140GAMC
CAPACITY(W) COOLING 5500/6800 8800 10000 10000 14700
HEATING 6300/7500 9500 11000 10700 16000
POWER SUPPLY 1Ø, 220-240V~, 50Hz 3Ø, 380-415V~, 50Hz
POWER INPUT(W) COOLING 1950/2420 3650 3830 3700 5500
HEATING 2000/2420 3500 3850 3800 5700
RUNNING CURRENT(A) COOLING 9.0/11.1 16.5 17.5 6.4 9.5
HEATING 9.0/11.1 15.5 17.5 6.5 10.2
MAX INPUT POWER(W) 2400/3050 4330 5100 4390 6500
MAX INPUT CURRENT(A) 10.5/13.5 20.7 23.2 8.1 11.5
REFRIGERANT(g,R410A) 1500/1700 1800 2600 2750 3300
MAX PRESSURE(Mpa) 3.2 3.2 3.17 3.17 3.0
OUTDOOR PBA FUSE 250V,5A,TIME-LAG,GLASS,5x20mm
CCH FUSE 250V ,2A ,Time-Lag
INDOOR POWER PBA FUSE 250V,3.5A,TIME-
LAG,GLASS,5.2x20mm 250V,5A,TIME-LAG,GLASS,5.2x20mm
Technical Specifications
The abbreviated technology words & the definition of technology terms
abbreviated technology words definition of technology terms
COMP ( Full name: compressor ) One that compresses, especially a machine used to compress gases.
BLOWER One that blows, especially a mechanical device, such as a fan, that
produces a current of air.
FAN A device for creating a current of air or a breeze.
ASSY CONTROL BOX
( Full name : assemble control box ) A restraining device of air-condition, measure, or limit.
MOTOR Something, such as a machine or an engine, that produces or imparts
motion.
ASSY EVAP / ASSY COND
( Full name : assemble evaporator /
assemble condenser )
Heat exchanger; A device, used to transfer heat from a fluid on one
side of a barrier to a fluid on the other side without bringing the fluids
into direct contact.
DB98-26846A_E.indd 15 2007-3-19 18:29:55

Contact SAMSUNG WORLD WIDE
If you have any comments or questions regarding a Samsung products, contact the SAMSUNG customer care center.
Samsung Electronics Co., Ltd. All Rights Reserved.
C
Country Customer Care Center Web Site Country Customer Care Center Web Site
BELGIUM 0032 (0)2 201 24 18 www.samsung.com/be KYRGYZSTAN 00-800-500-55-500
CZECH REPUBLIC 844 000 844 www.samsung.com/cz UKRAINE 8-800-502-0000 www.samsung.ua
DENMARK 70 70 19 70 www.samsung.com/dk LITHUANIA 8-800-77777 www.samsung.lt
FINLAND 030-6227 515 www.samsung.com/fi LATVIA 800-7276 www.samsung.com/lv
FRANCE 3260 SAMSUNG(726-7864)
08 25 08 65 65 ( 0,15/min) www.samsung.com/fr ESTONIA 800-7267 www.samsung.ee
GERMANY 01805 - 121213 ( 0,14/min) www.samsung.de CANADA 1-800-SAMSUNG (7267864) www.samsung.com/ca
HUNGARY 06-80-SAMSUNG(726-7864) www.samsung.com/hu MEXICO 01-800-SAMSUNG (7267864) www.samsung.com/mx
ITALIA 800-SAMSUNG(726-7864) www.samsung.com/it U.S.A 1-800-SAMSUNG (7267864) www.samsung.com
LUXEMBURG 0035 (0)2 261 03 710 www.samsung.com/be ARGENTINE 0800-333-3733 www.samsung.com/ar
NETHERLANDS 0900 20 200 88 ( 0.10/min) www.samsung.com/nl BRAZIL 0800-124-421 www.samsung.com/br
NORWAY 815-56 480 www.samsung.com/no CHILE 800-726-7864 (SAMSUNG) www.samsung.com/cl
POLAND 0 801 801 881
022-607-93-33 www.samsung.com/pl COSTA RICA 0-800-507-7267 www.samsung.com/latin
PORTUGAL 80 8 200 128 www.samsung.com/pt ECUADOR 1-800-10-7267 www.samsung.com/latin
SLOVAKIA 0800-SAMSUNG(726-7864) www.samsung.com/sk EL SALVADOR 800-6225 www.samsung.com/latin
SPAIN 902 10 11 30 www.samsung.com/es GUATEMALA 1-800-299-0013 www.samsung.com/latin
SWEDEN 0771-400 200 www.samsung.com/se JAMAICA 1-800-234-7267 www.samsung.com/latin
U.K 0870-SAMSUNG(726-7864) www.samsung.com/uk PANAMA 800-7267 www.samsung.com/latin
IRELAND 0818 717 100 www.samsung.com/ie PUERTO RICO 1-800-682-3180 www.samsung.com/latin
AUSTRIA 0800-SAMSUNG(726-7864) www.samsung.com/at REP. DOMINICA 1-800-751-2676 www.samsung.com/latin
SWITZERLAND 0800-SAMSUNG(726-7864) www.samsung.com/ch TRINIDAD&TOBAGO 1-800-7267-864 www.samsung.com/latin
RUSSIA 8-800-555-55-55 www.samsung.ru VENEZUELA 1-800-100-5303 www.samsung.com/latin
KAZAHSTAN 8-10-800-500-55-500 www.samsung.kz COLOMBIA 01-8000112112 www.samsung.com.co
UZBEKISTAN 8-800-120-0-400 www.samsung.uz AUSTRALIA 1300-362-603 www.samsung.com/au
DB98-26846A_E.indd 16 2007-10-25 15:05:23
