Duct Type
AM✴✴✴HNEPCH✴✴✴
Air Conditioner
installation manual
imagine the possibilities
Thank you for purchasing this Samsung product.
This manual is made with 100% recycled paper.
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGG[X YWX[TWZTXXGGG㝘㤸GXYa[WaZ`

Contents
PREPARATION
Safety precautions ..........................................................................................................3
Accessories .................................................................................................................6
Installation conditions for a fresh duct .......................................................................................7
Selecting the Installation Location...........................................................................................8
INSTALLATION
Indoor Unit Installation....................................................................................................12
Purging the Unit ..........................................................................................................13
Connecting the Refrigerant Pipe...........................................................................................14
Cutting/Flaring the pipes..................................................................................................16
Performing LeakTest & Heat Insulation ....................................................................................17
Air Pipe Installation .......................................................................................................19
Drain Pipe and Drain Hose Installation ....................................................................................20
Wiring Work...............................................................................................................24
OTHERS
Setting an indoor unit address and installation option .....................................................................29
Increasing Fan Speed......................................................................................................36
Final Checks and User Tips.................................................................................................37
Troubleshooting ..........................................................................................................38
MEMO ....................................................................................................................39
ENGLISH-2
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGGY YWX[TWZTXXGGG㝘㤸GXYa[WaX`

Safety precautions
Carefully follow the precautions listed below because they are essential to guarantee the safety of the equipment.
WARNING
• Always disconnect the air conditioner from the power supply before servicing it or
accessing its internal components.
• Verify that installation and testing operations are performed by qualified personnel.
• Verify that the air conditioner is not installed in an easily accessible area.
General information
f Carefully read the content of this manual before installing the air conditioner and store the manual in a safe place in order
to be able to use it as reference after installation.
f For maximum safety, installers should always carefully read the following warnings.
f Store the operation and installation manual in a safe location and remember to hand it over to the new owner if the air
conditioner is sold or transferred.
f This manual explains how to install an indoor unit with a split system with two SAMSUNG units. The use of other types
of units with different control systems may damage the units and invalidate the warranty. The manufacturer shall not be
responsible for damages arising from the use of non compliant units.
f The manufacturer shall not be responsible for damage originating from unauthorized changes or the improper
connection of electric and requirements set forth in the“Operating limits”table, included in the manual. Making such
changes or improper connections may damage the units and invalidate the warranty.
f The air conditioner should be used only for the applications for which it has been designed: the indoor unit is not suitable
to be installed in areas used for laundry.
f Do not use the units if damaged. If problems occur, switch the unit off and disconnect it from the power supply.
f In order to prevent electric shocks, fires or injuries, always stop the unit, disable the protection switch and contact
SAMSUNG’s technical support if the unit produces smoke, if the power cable is hot or damaged or if the unit is very noisy.
f Always remember to inspect the unit, electric connections, refrigerant tubes and protections regularly. These operations
should be performed by qualified personnel only.
f The unit contains moving parts, which should always be kept out of the reach of children.
f Do not attempt to repair, move, alter or reinstall the unit. If performed by unauthorized personnel, these operations may
cause electric shocks or fires.
f Do not place containers with liquids or other objects on the unit.
f All the materials used for the manufacture and packaging of the air conditioner are recyclable.
f The packing material and exhaust batteries of the remote controller(optional) must be disposed of in accordance with
current laws.
f The air conditioner contains a refrigerant that has to be disposed of as special waste. At the end of its life cycle, the air
conditioner must be disposed of in authorized centers or returned to the retailer so that it can be disposed of correctly
and safely.
ENGLISH-3
01 PREPARATION
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGGZ YWX[TWZTXXGGG㝘㤸GXYa[WaX`

Safety precautions
Installing the unit
IMPORTANT:When installing the unit, always remember to connect first the refrigerant tubes, then the electrical lines. Always
disassemble the electric lines before the refrigerant tubes.
f Upon receipt, inspect the product to verify that it has not been damaged during transport. If the product appears
damaged, DO NOT INSTALL it and immediately report the damage to the carrier or retailer (if the installer or the
authorized technician has collected the material from the retailer.)
f After completing the installation, always carry out a functional test and provide the instructions on how to operate the air
conditioner to the user.
f Do not use the air conditioner in environments with hazardous substances or close to equipment that release free flames
to avoid the occurrence of fires, explosions or injuries.
f Our units should be installed in compliance with the spaces shown in the installation manual, to ensure accessibility from
both sides and allow repairs or maintenance operations to be carried out. The unit’s components should be accessible
and easy to disassemble without endangering people and objects.
f For this reason, when provisions of the installation manual are not complied with, the cost required to access and repair
the units (in SAFETY CONDITIONS, as set out in prevailing regulations) with harnesses, ladders, scaffolding or any other
elevation system will NOT be considered part of the warranty and will be charged to the end customer.
Power supply line, fuse or circuit breaker
f Always make sure that the power supply is compliant with current safety standards. Always install the air conditioner in
compliance with current local safety standards.
f Always verify that a suitable grounding connection is available.
f Verify that the voltage and frequency of the power supply comply with the specifications and that the installed power is
sufficient to ensure the operation of any other domestic appliance connected to the same electric lines.
f Always verify that the cut-off and protection switches are suitably dimensioned.
f Verify that the air conditioner is connected to the power supply in accordance with the instructions provided in the
wiring diagram included in the manual.
f Always verify that electric connections (cable entry, section of leads, protections…) are compliant with the electric
specifications and with the instructions provided in the wiring scheme. Always verify that all connections comply with
the standards applicable to the installation of air conditioners.
f Devices disconnected from the power supply should be completely disconnected in the condition of overvoltage
category.
ENGLISH-4
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGG[ YWX[TWZTXXGGG㝘㤸GXYa[WaX`

• Make sure that you earth the cables.
- Do not connect the earth wire to the gas pipe, water pipe, lighting rod or telephone wire. If earthing is not
complete, electric shock or fire may occur.
• Install the circuit breaker.
- If the circuit breaker is not installed, electric shock or fire may occur.
• Make sure that the condensed water dripping from the drain hose runs out properly and safely.
• Install the power cable and communication cable of the indoor and outdoor unit at least 1m away from the
electric appliance.
• Install the indoor unit away from lighting apparatus using the ballast.
- If you use the wireless remote control, reception error may occur due to the ballast of the lighting apparatus.
• Do not install the air conditioner in following places.
- Place where there is mineral oil or arsenic acid. Resin parts flame and the accessories may drop or water may
leak. The capacity of the heat exchanger may reduce or the air conditioner may be out of order.
- The place where corrosive gas such as sulfurous acid gas generates from the vent pipe or air outlet.
- The copper pipe or connection pipe may corrode and refrigerant may leak.
- The place where there is a machine that generates electromagnetic waves. The air conditioner may not
operate normally due to control system.
- The place where there is a danger of existing combustible gas, carbon fiber or flammable dust.
- The place where thinner or gasoline is handled. Gas may leak and it may cause fire.
CAUTION
ENGLISH-5
01 PREPARATION
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGG\ YWX[TWZTXXGGG㝘㤸GXYa[WaX`

Accessories
f The following accessories are supplied with the indoor unit.
f The type may differ depending on the specifications and it is subject to the actual type.
Pattern sheet Insulation cover pipe in Insulation cover pipe out Insulation pipe(A) Insulation pipe(B)
Cable tie Flexible hose (drain) Clamp hose User manual Installation Manual
Washer Sleeve Insulation rubber
ENGLISH-6
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGG] YWX[TWZTXXGGG㝘㤸GXYa[WaX`

Installation conditions for a fresh duct
Installation information on a fresh duct
f A fresh duct can be installed wiith an indoor unit or with another fresh duct.
f A fresh duct should be installed within 50%~100% of outdoor unit's cooling capacity.
f If a fresh duct is installed with an indoor unit, the fresh duct should be installed within 30% of outdoor unit's cooling
capacity.
f A fresh duct can be installed with HEAT PUMP outdoor unit but cannot be installed with HEAT RECOVERY outdoor unit.
- e.g. A fresh duct 28kW + Duct 7.1kW x 9 = 91.9kW
Outdoor unit 33.6 + 61.6kW = 95.2kW
Indoor unit combination rate = 96.5% lO.K
Fresh duct combination rate = 29.4% lO.K

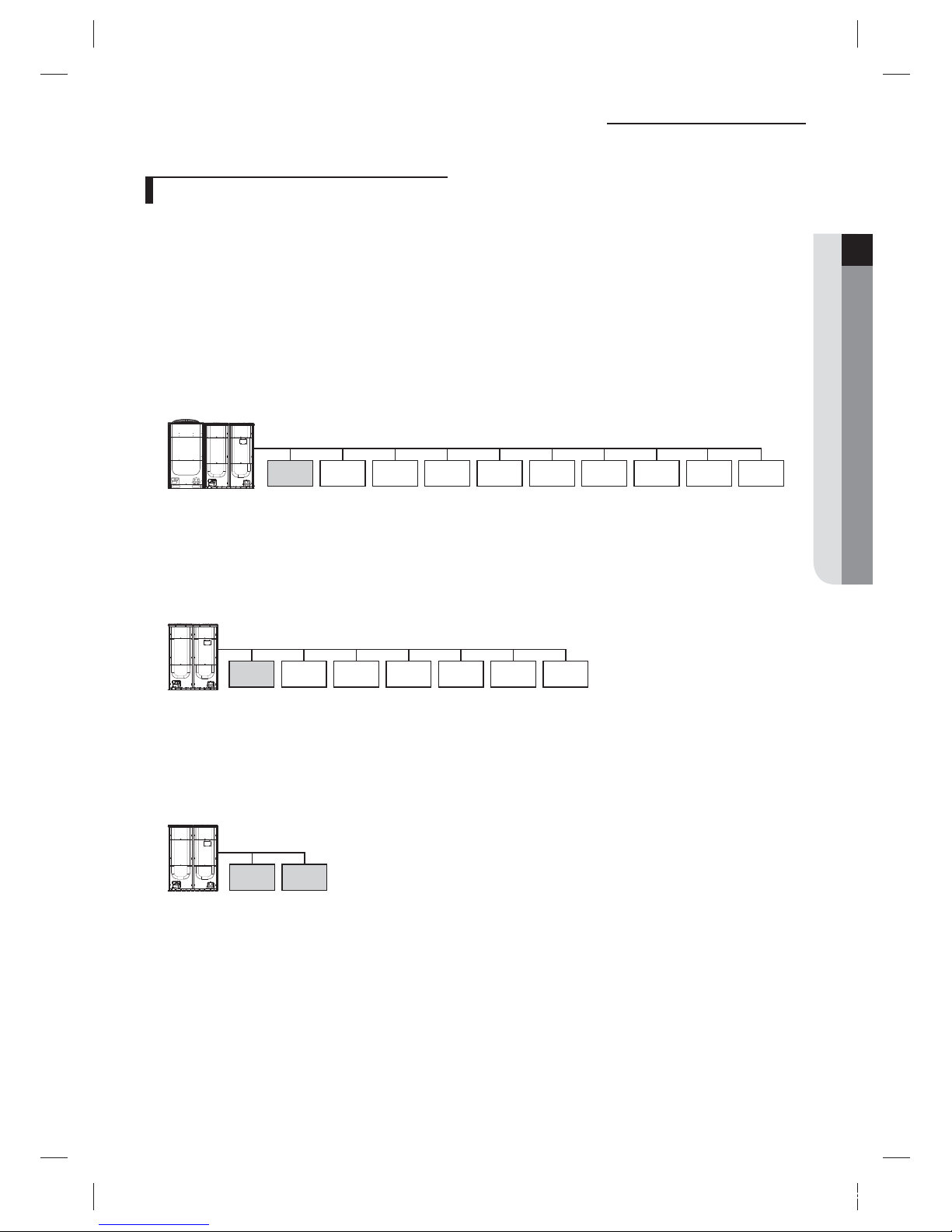

Mixture Install
Outdoor : 95.2kW
Fresh
Duct
28kW 7.1kW 7.1kW 7.1kW 7.1kW 7.1kW 7.1kW 7.1kW 7.1kW 7.1kW
Standard Standard Standard Standard Standard Standard Standard Standard Standard
- Fresh duct 14kW + Duct 5.6kW x 6 = 47.6kW
Outdoor unit 50.4kW = 50.4kW
Indoor unit combination rate = 95.2% lO.K
Fresh duct combination rate = 28.0% lO.K
Mixture Install
Outdoor : 50.4kW
Fresh
Duct
14kW 5.6kW 5.6kW 5.6kW 5.6kW 5.6kW 5.6kW
Standard Standard Standard Standard Standard Standard
- Fresh duct 14 kW + Fresh duct 22.4 kW = 36.4 kW
Outdoor unit 40kW = 40kW
Fresh duct combination rate = 91% lO.K
Indoor unit combination rate = 0% lO.K
Only Fresh Air Intake Unit install
Outdoor : 40kW
Fresh
Duct
14kW 22.4kW
Fresh
Duct
ENGLISH-7
01 PREPARATION
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGG^ YWX[TWZTXXGGG㝘㤸GXYa[WaYX

Selecting the Installation Location
Indoor unit
f There must be no obstacles near the air inlet and outlet.
f Install and mount the indoor unit on a ceiling that can support its weight.
f Maintain sufficient clearance around the indoor unit.
f Make sure that the water drains from the hose properly and safely.
f The indoor unit must be installed in such way that it is out of commonly accessible area. (Not touchable by the users.)
f Durable walls which can’t be shaken.
f Where it is not exposed to direct sunshine.
f Where the air filter can be removed and cleaned easily.
f Cautions on installation
1) Do not install in crowded places. Please install in equipment spaces such as mechanical rooms and adopt measures
to prevent noise and vibration.
2) Adopt preventative measures to accommodate noise and vibration according to the ceiling installation condition
(washroom, corridor).
3) Separate air outlet shall be installed for the Fresh duct. Do not connect with the inlet of other indoor units, otherwise,
the performance of air conditioner will be affected.
4) Please purchase damper to adjust air volume and filter screen for installation.
• In principle, the unit should not be installed at an height of lower than 2.5m from the ground.
• If the unit has proper pipe (300mm in length or more) to avoid contact with the fan motor blower, it is possible
to install the unit at a height of between 2.2~2.5m from the ground.
• If the humidity is over 80%, it is required to add 10mm polyethylene foam or other similar insulation to the
indoor unit when installing belt or pipe type indoor unit on the ceiling.
CAUTION
Insulation Guide
Front
BAC
Back
D
Thickness: over 10mm
Fresh duct A B C D Front / Rear
AM140✴✴✴ 1110 x 390 x 650 1110x650 1110x650 390x650 390x650 Please process the front / rear to sizes
suitable for installation of insulation
materials on the air inlet / outlet pipes.
AM220/280✴✴✴ 1240 x 470 x 1040 1240x1040 1240x1040 470x1040 470x1040
f Use separate insulation cover pipe out for installation of the pipe ends and some bent parts.
ENGLISH-8
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGG_ YWX[TWZTXXGGG㝘㤸GXYa[WaYX

Space requirements for indoor unit
f Construction Standard for Inspection Hole.
5) In case the ceiling is textile, inspection hole is not necessary.
6) In case the ceiling is plaster board, inspection hole depends on the inside height of the ceiling.
a. Height is more than 1m : Only“B”[Inspection for PBA] is applied.
b. Height is less than 1m : Both“A”& ”B”are applied.
c. “A”& ”B”are inspection holes.
20mm or
more
20mm or
more
Width (W)
“A”=W+100mm “B”=500mm
Depth (D)+50mm
• You must have 20mm or more space between the ceiling and the bottom of indoor unit. Otherwise, the noise from the
vibration of indoor unit may bother the user.
• When the ceiling is under construction, the inspection hole must be made to enable servicing, maintenance and
cleaning.
• The indoor unit should be installed at a height of 2.5m and/or above ground.
ENGLISH-9
01 PREPARATION
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGG` YWX[TWZTXXGGG㝘㤸GXYa[WaYX

Selecting the Installation Location

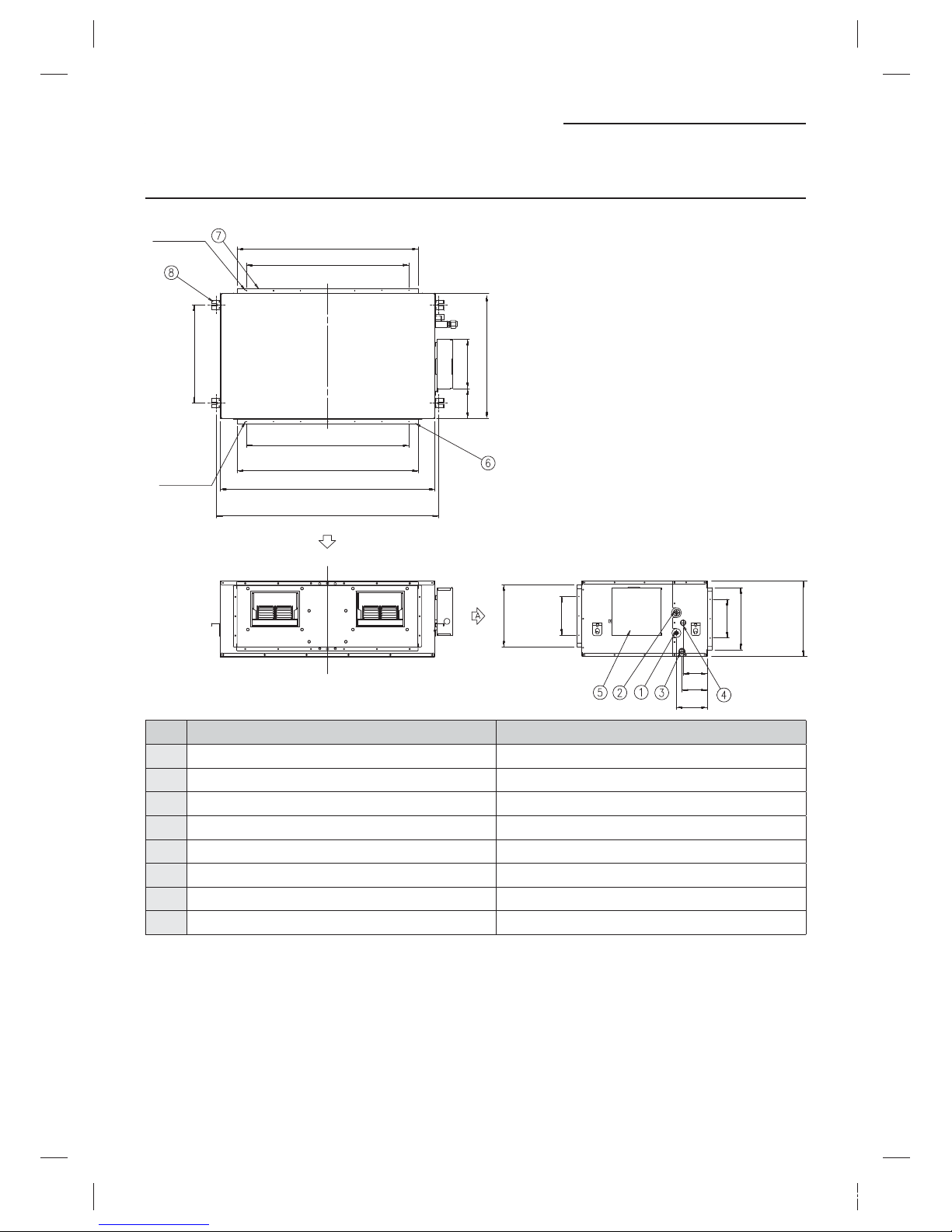

AM140✴✴✴
Unit : mm
20-Ø3.2 hole
20-Ø3.2 hole
(four sides)
508 Suspension position
1160 Suspension position
1110
6X140=840
6X140=840
154 255
650
936 Air discharge grille flange
934 Suction flange
A side
Discharge side Suction side
160
321
323
Suction flange
2X100=200
2X100=200
390
131
124
Air discharge
grille flange
No. Name Description
1Diameter of liquid pipe ø9.52
2Diameter of air pipe ø15.88
3Diameter of drain pipe VP25 (OD ø32, ID ø25)
4Diameter of drain pipe (Option drain pump) VP25 (OD ø32, ID ø25)
5Power supply / Communication connection
6Air discharge grille flange
7Suction flange
8Hook ø9.52 or M10
ENGLISH-10
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGGXW YWX[TWZTXXGGG㝘㤸GXYa[WaYX

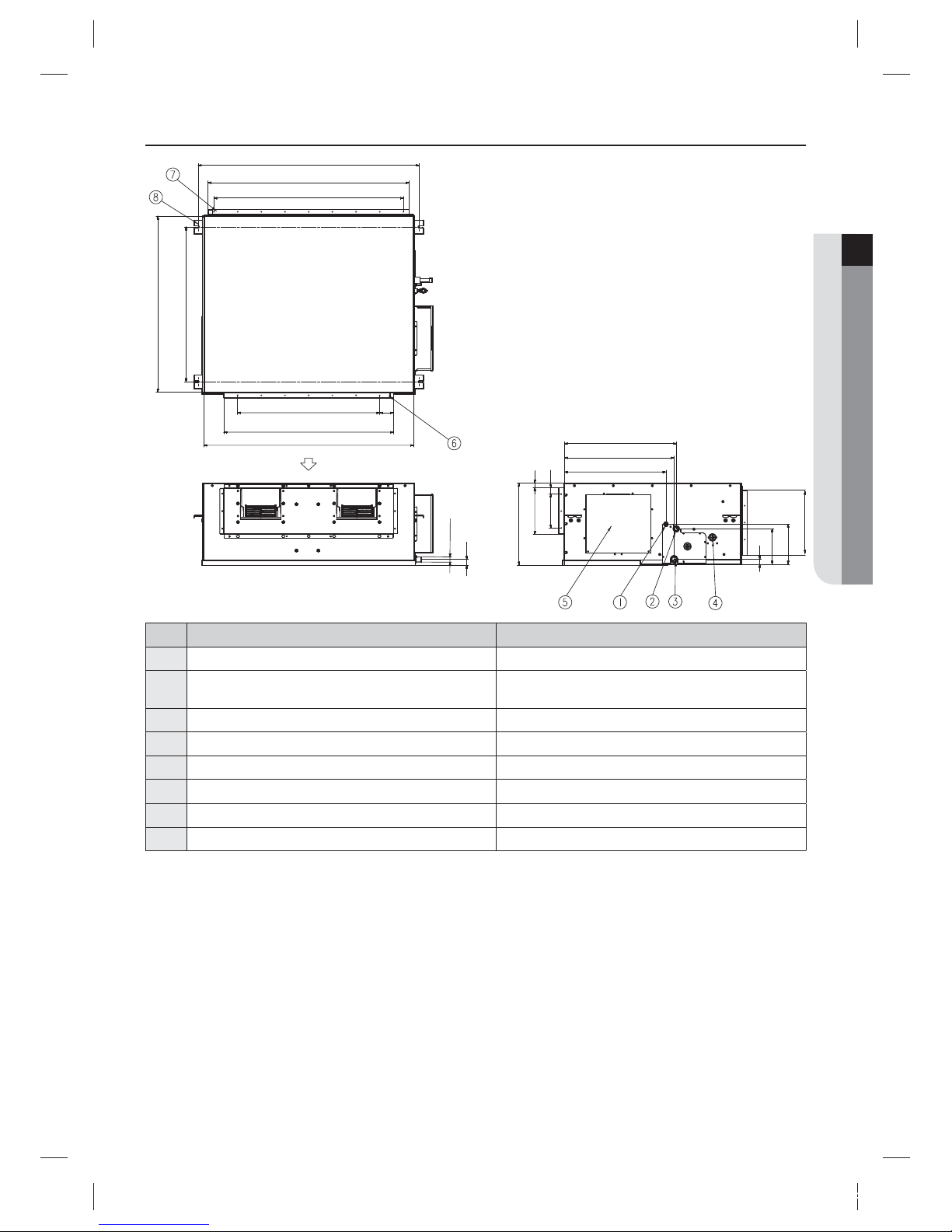

AM220/280✴✴✴
Unit : mm
1306 Suspension position
1188 Suction flange
140X8=1120
1040
914 Suspension position
6X140=840 81
1002 Air discharge grille flange
1240
ODø32
35
470
276 22
100X2=200 33
Discharge side
660
647
598
29
209
236
385
Suction side
No. Name Description
1 Diameter of liquid pipe ø9.52
2 Diameter of air pipe AM220✴✴✴ : ø19.05
AM280✴✴✴ : ø22.22
3 Diameter of drain pipe VP25 (OD ø32, ID ø25)
4 Diameter of drain pipe (Optional drain pump) VP25 (OD ø32, ID ø25)
5 Power supply / Communication connection
6 Air discharge grille flange
7 Suction flange
8 Hook ø9.52 or M10
ENGLISH-11
01 PREPARATION
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGGXX YWX[TWZTXXGGG㝘㤸GXYa[WaYZ

Indoor Unit Installation
• Indoor Unit Lifting
1) Please use such tools as the pulley to lift the indoor unit
to the draw bolts.
2) Please use such tools as the level gauge to adjust the
indoor unit to the level, otherwise, water leak may occur.
• Piping
• When the pipe goes through the wall, wall bushing should be
used to prevent the insulation from being damaged by the wall
which may result in poor insulation and condensate water.
CAUTION
Drain hose port
When drain hose is installed on the right side.
1°
Concrete
Suspension bolt (ø9.52 or M10)
Hole in
anchor
Hole in plug
Insert
Ceiling support
Nut
Hook
Insulation rubber
Cushion ring
Double nut
It is recommended to install the Y-joint before installing the indoor unit.
1. Place the pattern sheet on the ceiling where you want to install the
indoor unit.
• Since the diagram is made of paper, it may shrink or stretch
slightly due to temperature or humidity. For this reason,
maintain the correct measurements between the markings
before drilling the holes.
NOTE
2. Insert bolt anchors, use existing ceiling support or construct a suitable
support as shown in the figure.
3. Install the suspension bolts depending on the ceiling type.
• Ensure that the ceiling is strong enough to support the weight
of the indoor unit. Before hanging the unit, test the strength of
each attached suspension bolt.
• If the suspension bolt length is more than 1.5m, it is required to
deploy vibration prevention measures.
CAUTION
4. Screw eight nuts to the suspension bolts and make space for hanging
the indoor unit.
• You must install more than 4 suspension bolts when installing the
indoor unit.
CAUTION
5. Hang the indoor unit to the suspension bolts between two nuts.
• Piping must be laid and connected inside the ceiling when
installing the indoor unit. If the ceiling is already constructed,
lay the piping into the position for connection to the unit before
placing the unit inside the ceiling.
NOTE
6. Screw the nuts to suspend the indoor unit.
7. Adjust the level of the unit by using measurement plate for all 4 sides.
• For proper drainage of condensate, give a 1° slant to the left or
right side of the unit which will be connected with the drain
hose, as shown in the figure. Make a tilt when you wish to
install the drain pump, too.
NOTE
ENGLISH-12
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGGXY YWX[TWZTXXGGG㝘㤸GXYa[WaYZ

Purging the Unit
On delivery, the indoor unit is loaded with inert gas. All this gas must therefore be purged before connecting the assembly
piping. To purge the inert gas, proceed as follows.
Unscrew the pinch pipe at the end of each refrigerant unit.
Result : All inert gas escapes from the indoor unit.
❋ The design and shape are subject to change
according to the model.
Torque
wrench
Flare nut
Union
Spanner
• Since the diagram is made of paper, it may shrink or stretch
slightly due to temperature or humidity. For this reason,
maintain the correct measurements between the markings
before drilling the holes.
NOTE
In order to perform leak check, the product has been filled with nitrogen.
Discharge all the nitrogen before installation.
The liquid pipe and air pipe are connected by nuts and are welded,
respectively. Unscrew the nuts of liquid pipe to clear the nitrogen and then
disconnect the air pipe with welding flame.
• Welding without unscrewing the nuts of liquid pipe and while
there is nitrogen present will result in explosion.
• Leak may occur when there is no nitrogen present after
unscrewing the liquid pipe.
• Before installation, be sure to perform leak check.
CAUTION
ENGLISH-13
02 INSTALLATION
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGGXZ YWX[TWZTXXGGG㝘㤸GXYa[WaY[

Connecting the Refrigerant Pipe
There are two refrigerant pipes of different diameters:
f A smaller one for the liquid refrigerant
f A larger one for the gas refrigerant
f The inside of copper pipe must be clean and has no dust.
The connection procedure for the refrigerant pipes varies according to the
exit position of the pipes from the indoor unit, as seen when facing the
indoor in the "A" side.
f Liquid refrigerant port
f Gas refrigerant port
f Drain hose port
1. Remove the pinch pipe on the pipes, connect the assembly pipes to
each pipe and tighten the nuts. First tighten the nuts manually and
then with a torque wrench applying the following torque.
Refrigerant oil
Torque
wrench
Flare nut
Union
Spanner
Outer Diameter Torque
kgf•cm N•m
6.35 mm 140~180 14~18
9.52 mm 350~430 34~42
12.70 mm 500~620 49~61
15.88 mm 690~830 68~82
• Must apply refrigerant oil on the flaring area to prevent a leak.
NOTE
2. Be sure that there must be no crak or kink on the bended area.
AM220HNE✴✴✴/AM280HNE✴✴✴
❋ Before connection, unscrew the nuts of liquid pipe first.
- Product is filled with nitrogen.
Liquid pipe
Gas pipe
A
Drain hose port
Welding flame
Wet towel
Liquid pipe Gas pipe Description
AM140HNE✴✴✴ Ø9.52 Ø15.88 Flaring Type
AM220HNE✴✴✴ Ø9.52 Ø19.05 Gas pipe: Welded
AM280HNE✴✴✴ Ø9.52 Ø22.22 Gas pipe: Welded
ENGLISH-14
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGGX[ YWX[TWZTXXGGG㝘㤸GXYa[WaY[

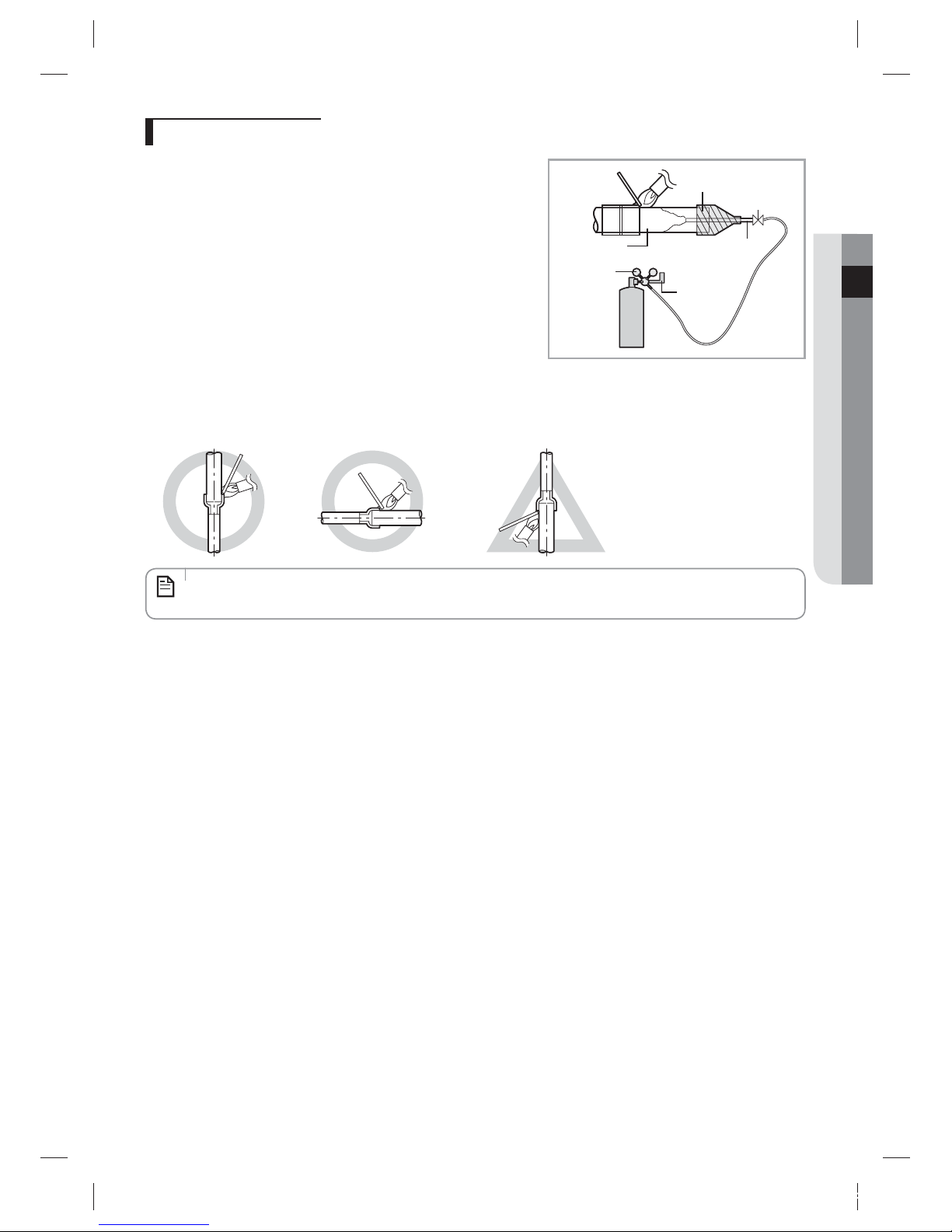

Welding copper pipe
f Make sure that there is no moisture inside the pipe.
f Make sure that there is no foreign substance inside the pipe.
f Make sure that there is no leakage.
f Make sure to follow the instruction while welding the copper pipe.
Fill nitrogen
1. Use nitrogen while welding the copper pipe, as shown in the figure.
2. If nitrogen is not used while welding the copper pipe, oxidation may
be produced inside the pipe, causing damage to the compressor and
valve.
3. Use pressure gage to adjust the filling speed and keep it within
0.05m3/h.
Brazed part
Nitrogen ø6.35 Copper pipe
Stop valve
Wrap with belt
Pressure
gage Flow meter
Pipe direction upon welding of copper pipe
Place the marked side downward or on the level position while welding the copper pipe.
Downward Side Upward
• Avoid welding pipe upward.
NOTE
ENGLISH-15
02 INSTALLATION
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGGX\ YWX[TWZTXXGGG㝘㤸GXYa[WaY[

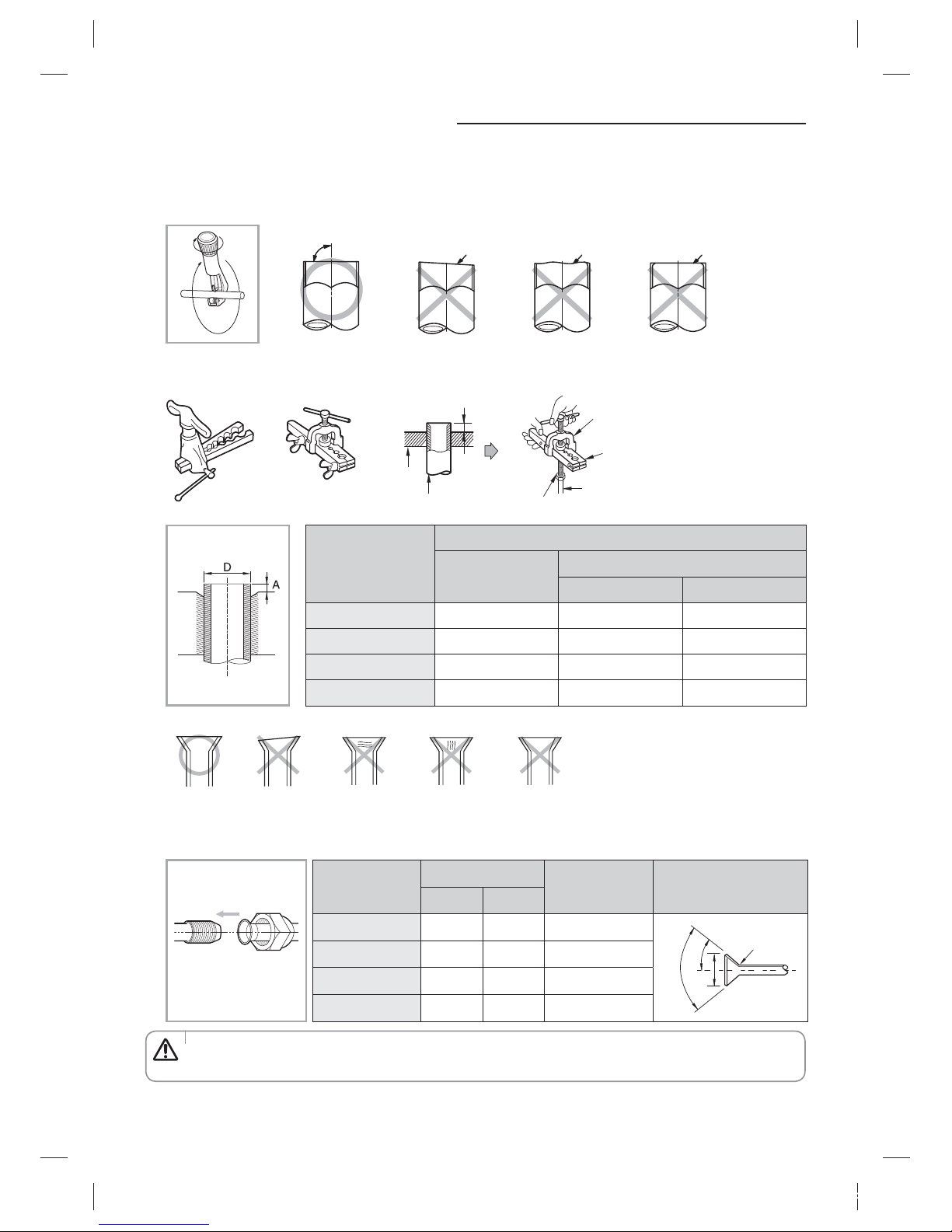

Cutting/Flaring the pipes
1. Make sure that you prepare the required tools (pipe cutter, reamer, flaring tool and pipe holder).
2. If you want to change the length of pipe, cut it using a pipe cutter ensuring that the cut edge remains at a right angle
with the side of the pipe. There are some examples of correctly and incorrectly cut edges below.
Oblique Rough Burr90°
3. To prevent a gas leak, remove all burrs at the cut edge of the pipe using a reamer.
4. Carry out flaring work using flaring tool as shown below.
Flaring tool
Clutch type Wing nut type
A
Die
Copper pipe
Yoke
Die
Copper pipe
Flare nut
Outer Diameter
[D (mm)]
A(mm)
R-410A Flare tool for
clutch type
Conventional flare tool
Clutch type Wing nut type
6.35 0~0.5 1.0~1.5 1.5~2.0
9.52 0~0.5 1.0~1.5 1.5~2.0
12.70 0~0.5 1.0~1.5 1.5~2.0
15.88 0~0.5 1.0~1.5 1.5~2.0
5. Check if you flared the pipe correctly.There are some examples of incorrectly flared pipes below.
Uneven
Thickness
CrackedDamaged
Surface
InclinedCorrect
6. Align the pipes and tighten the flare nuts first manually and then with a torque wrench, applying the following torque.
Outer diameter
(mm)
Torque Flare dimension
(mm) Flare shape
kgf•cm N•m
6.35 140~180 14~18 8.70~9.10
90° ±2°
45° ±2°
R 0.4~0.8
9.52 350~430 34~42 12.80~13.20
12.70 500~620 49~61 16.20~16.60
15.88 690~830 68~82 19.30~19.70
• In case of needing brazing, you must work with Nitrogen gas blowing.
CAUTION
ENGLISH-16
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGGX] YWX[TWZTXXGGG㝘㤸GXYa[WaY\

Performing Leak Test & Heat Insulation
Leak test
In order to detect gas leak from the indoor unit, use nitrogen to check the
connection areas of the refrigerant pipes.
Leak test
• Please refer to the leak test in the installation manual for the
outdoor unit.
NOTE
❋ The design and shape are subject to change
according to the model.
Insulation
1. Insulate the refrigerant pipe.
f Make sure to insulate the refrigerant pipe, connector and connection
area.
- If the pipes are insulated, condensation will not come out from the
piping and the capacity of Fresh duct will be increased.
f Check for cracks in the insulation cover pipe out at the bended area.
Insulation
material
Gas side pipe
Liquid side pipe
Insulation pipe
sleeve
Pipe clamp
Fix without loosing
Insulation material should be
overlapped.
Indoor unit
Insulation material
ENGLISH-17
02 INSTALLATION
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGGX^ YWX[TWZTXXGGG㝘㤸GXYa[WaY\

Performing Leak Test & Heat Insulation

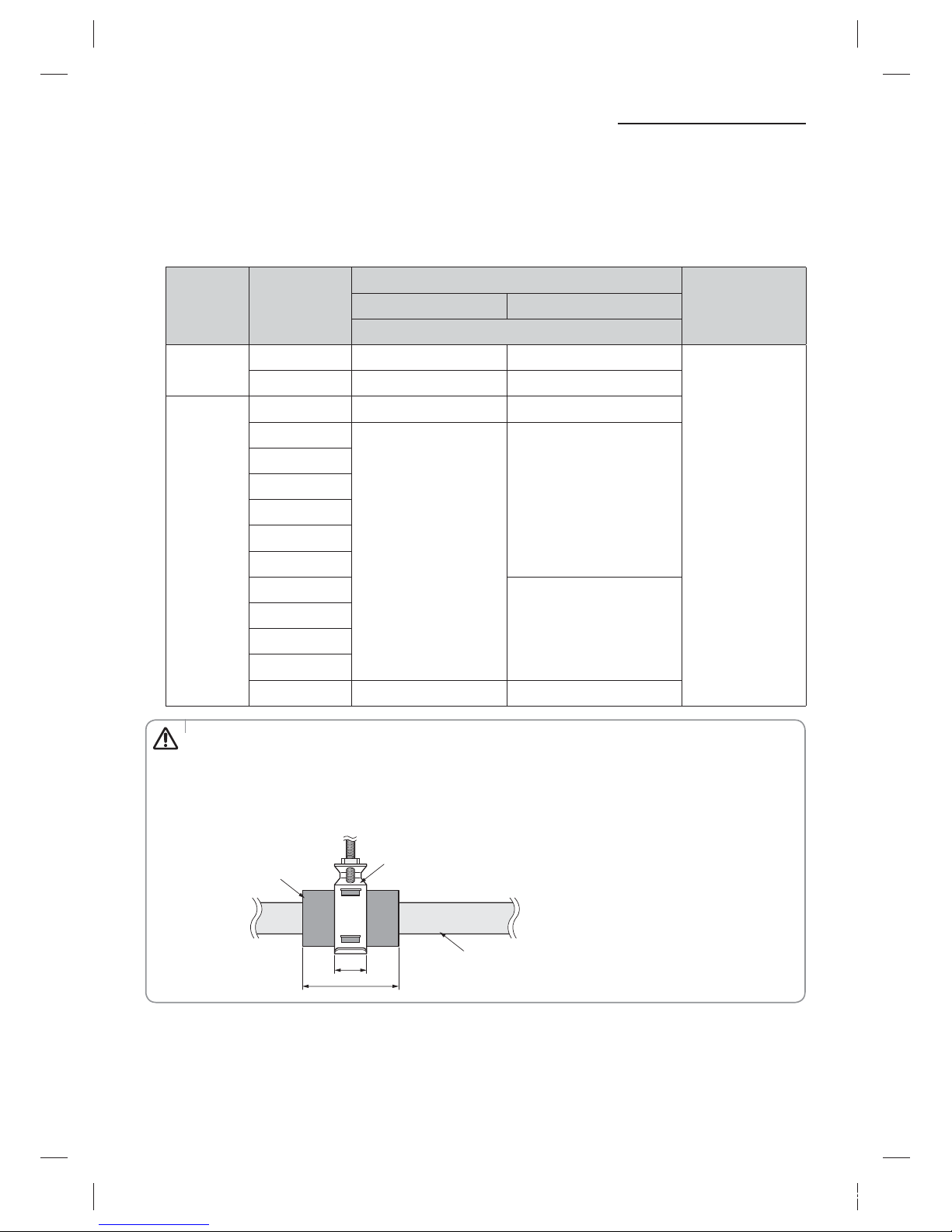

2. Select the insulation of refrigerant pipe.
f Insulate the gas side and liquid side pipe referring to the thickness according to the pipe size.
f Indoor temperature of 30°C and humidity of 85% is the standard condition. If installing in a high humidity condition, use
one grade thicker insulator by referring to the table below. If installing in an unfavorable condition, use thicker insulator.
f Insulation's heat-resistance temperature should be more than 120°C .
Pipe Pipe size
Installation type (Heating/Cooling)
RemarksStandard [30°C,85%] High humidity [30°C, over 85%]
EPDM,NBR
Liquid pipe
Ø6.35 ~ Ø9.52 9t o
Internal temperature is
higher than 120°C
Ø12.7 ~ Ø50.80 13t o
Gas pipe
Ø6.35 13t 19t
Ø9.52
19t
25t
Ø12.70
Ø15.88
Ø19.05
Ø22.23
Ø25.40
Ø28.58
32t
Ø31.75
Ø38.10
Ø44.45
Ø50.80 25t 38t
Additional insulation
Hanger
Refrigerant pipe insulation
a×3
a
• The insulation must be installed diligently and the adhesives should be used on the connecting part to prevent
moisture from entering.
• Wind the refrigerant pipe with insulation tape if it is exposed to outside sunlight.
• Insulation mustn’t become thinner at the bent part or the hanging area of the refrigerant pipe.
• Add the additional insulation if the insulation plate gets thinner.
CAUTION
ENGLISH-18
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGGX_ YWX[TWZTXXGGG㝘㤸GXYa[WaY\

Air Pipe Installation

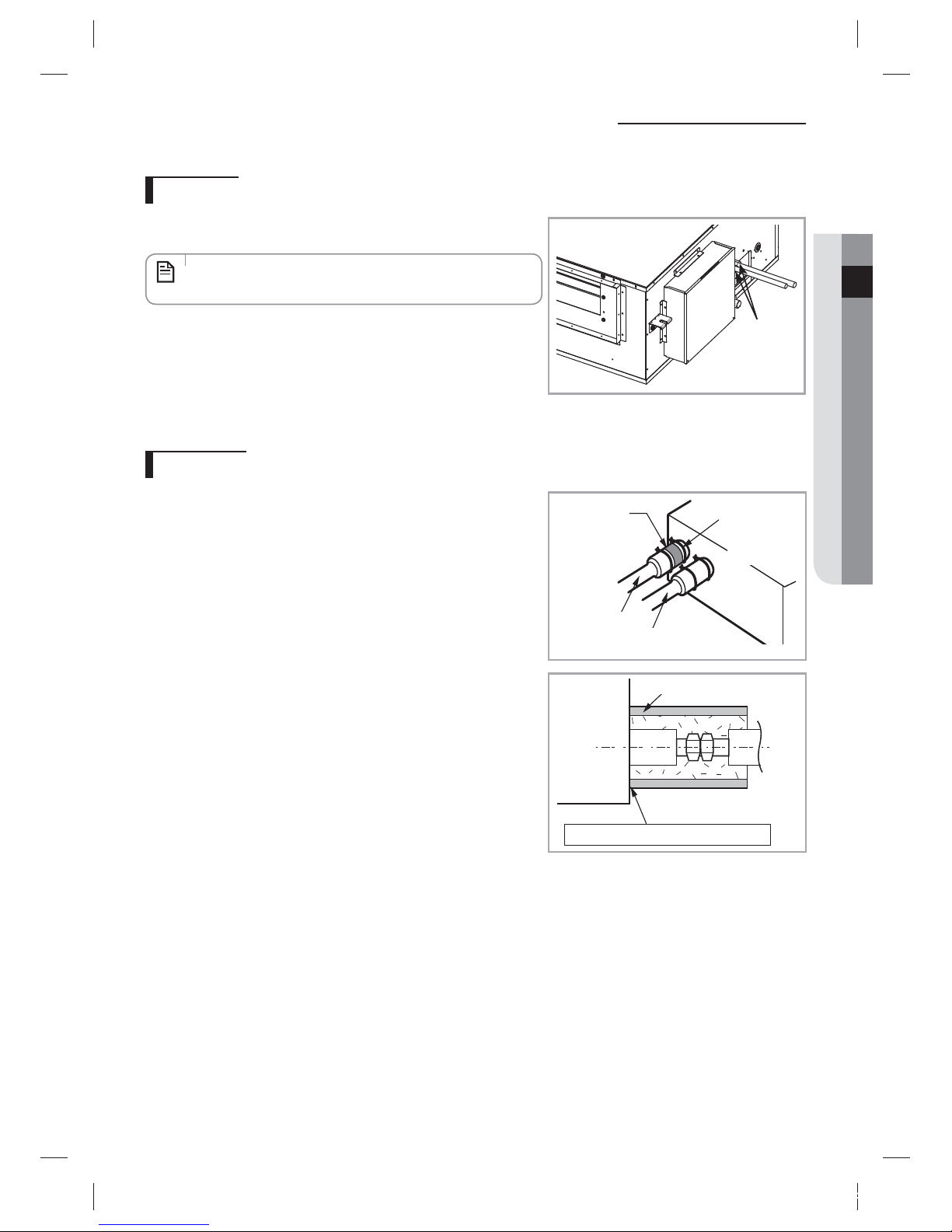

1. Use hose (provided on site) to connect the adapter at the suction/discharge side.
Please use aluminum-foil paper to seal the connection area of air pipe to avoid gas leak.
• For installation, tilt the suction side of air pipe to avoid water accumulation.
CAUTION
2. Insulate the air pipe to avoid condensation. (Select the insulation according to Page 16.)
Insulation cover pipe out
(Please insulate with aluminum tape)
Outdoor suction air pipe
Aluminum-foil paper Aluminum-foil paper
Gradient
(1/100~1/50) Filter
• Filter must be installed at the air inlet. Buy filter with a dust collection efficiency of over 50% (standard of weight
method) and install.
• If the sealing material is not tidy or tight, abnormal situation may occur during operation.
CAUTION

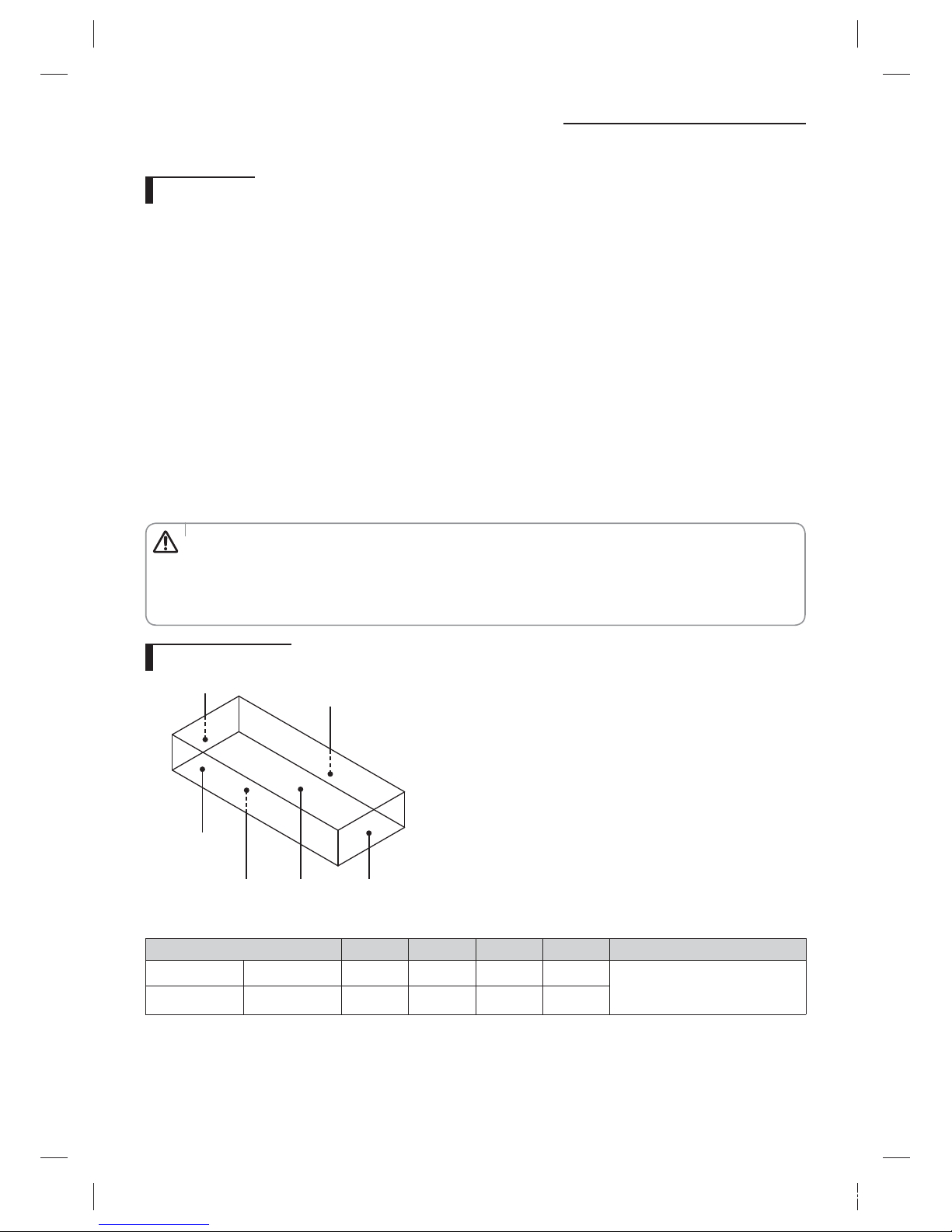

Connection method of external load
1. Damper can be installed if necessary when connecting to the Fresh
duct.
2. Install damper from outside and the damper will work with the Fresh
duct.
/ 1  
Option Damper
(0.5A)
Wiring terminal
L Power
N Power
ENGLISH-19
02 INSTALLATION
mGhGkhtgggoulwlogggGzptluW[]Z^hTWWUGGGX` YWX[TWZTXXGGG㝘㤸GXYa[WaY]
