Samsung AS07A5MA User manual

SERVICE Manual
SPLIT TYPE AIR CONDITIONER
AS07A5(6)MA
AS09A5(6)MAF
AS12AA(B)MCF
Indoor Unit US07A5(6)MA
US09A5(6)MAF
US12AA(B)MCF
Outdoor Unit
EDB98-15774A(1)
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 47

AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 1

2
The following safety precautions must be taken when using your air conditioner.
WARNING
Risk of electric shock. • Can cause injury or death. • Disconnect all remote electric
power supplies before servicing, installing or cleaning. • This must be done by the
manufacturer or its service agent or a similar qualified person in order to avoid a
hazard.
Safety Precautions
◆The unit should not be installed by the user. Ask the dealer or authorized
company to install the units except room air conditioners for the U.S.A and
Canada area.
◆If the unit is installed improperly, water leakage, electric shock or fire may
result.
◆The air conditioner must be installed in accordance with national wiring
regulations and safety regulations wherever applicable.
◆Mount with the lowest moving parts at least 8.2ft(2.5m) above the floor or
grade level. (If applicable)
◆The manufacturer does not assume responsibility for accidents or injury
caused by an incorrectly installed air conditioner. If you are unsure about
installation, contact an installation specialist.
◆When installing the built-in type air conditioner, keep all electrical cables
such as the power cable and the connection cord in pipe, ducts, cable
channels e.t.c to protect them against liquids, outside impacts and so on.
I NSTALLING THE UNIT
◆If the power cord of this air conditioner is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified persons in order to
avoid a hazard.
◆The unit must be plugged into an independent circuit if applicable or
connect the power cable to the auxiliary circuit breaker. An all pole
disconnection from the power supply must be incorporated in the fixed
wiring with a contact opening of >3mm.
◆Do not use an extension cord with this product.
◆If the unit is equipped with a power supply cord and a plug, the plug must
be accessible after installation.
◆This appliance must be installed accordance with the national wiring
regulations.
POWER SUPPLY LINE,
FUSE OR CIRCUIT
BREAKER
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 2

3
AIR CONDITIONER
SPLIT TYPE
Contents
DISASSEMBLE AND REASSEMBLE
1. Indoor unit
2. Outdoor unit 4 6
TROUBLESHOOTING
1. Items to be checked first
2. Abnormal diagnosis by symptom 13 14
ASSEMBLY DRAWING AND PART’SLIST
1. Indoor unit
2. Outdoor unit
3. Assembly control in
4. Assembly control out
22
24
28
29
WIRING DIAGRAMS
1. Indoor unit
2. Outdoor unit 41 42
SCHEMATIC DIAGRAMS
1. Indoor unit
2. Outdoor unit 44 45
REFRIGERATING CYCLE BLOCK DIAGRAM 31
SET UP THE OPTION CODE 10
ΙΙ
ΙΙΙΙ
ΙΙΙΙΙΙ
ΙΙΛΛ
ΛΛ
ΛΛ
ΙΙΙΙ
ΛΛΙΙΙΙΙΙ
PERFORMANCE CURVE 32
ΛΛ ΙΙ
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 3

4

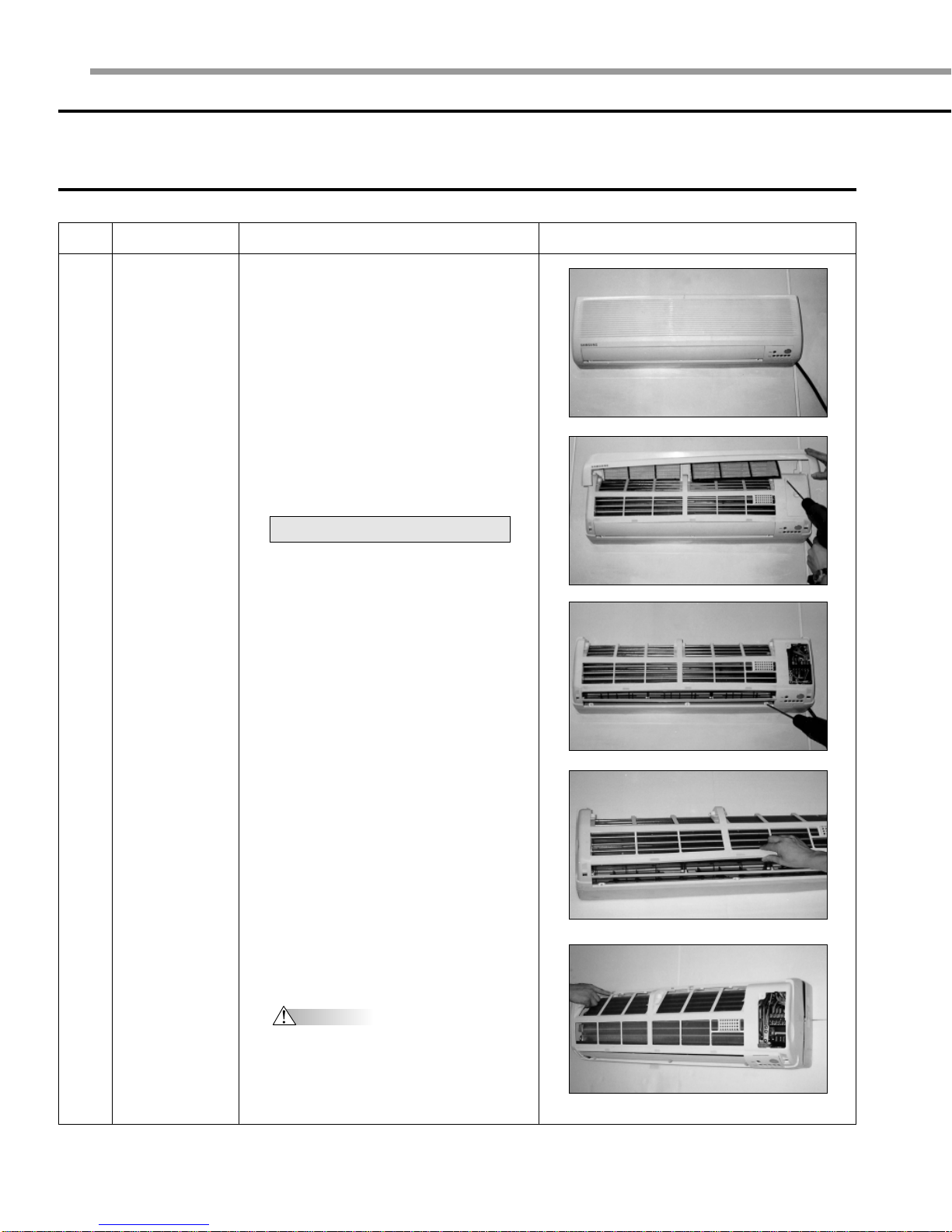

Disassemble and reassemble
1 Indoor unit
Stop operation of the air conditioner and remove the power cable before repairing the unit.
If you disassemble the heat exchanger, you must pump down at first.
No. Part Procedure Remark
Front Panel
11) Stop the operation of the air conditioner
and block the main power.
2)Separate the tape from the front panel.
3)Contract the second finger to the left,
and right handle. And pull the inlet grille
to open.
4)Take the left and right filter out.
5)Loosen one of the right screw and
separate the terminal cover.
6)Loosen three screws of front panel.
7)Pull the upper left, center and right of
discharge softly so that the outside
cover is pulled out.
8)Pull softly the lower part of discharge and
push it up.
Caution
Assemble the front panel and fix the
hooks of left, center and right.
*Taking off the deodorizing filter.
ΙΙ
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 4

5
No. Part Procedure Remark
Electrical
Parts
(Main PCB)
Assembly Tray
Drain
Heat
Exchanger
Fan Motor and
Cross Fan
2
3
4
5
1) Take all the connector of PCB
on the upper part. (Included Power cord)
2) Separate the outdoor unit connection
wire from the terminal block.
3) If you pull out the main PCB up, it will be
taken out.
1) Separate the drain hose from the
extension drain hose.
2) Pull tray drain out from the back body.
1) Loosen two ground screws at the
right side.
2) Separate the connection pipe.
3) Separate the holder pipe at the rear side.
4) Loosen three screws at the right and
left side.
5) Lift the heat exchanger up a little to push
the upper side to separate it from the
indoor unit.
1) Loosen two screws and separate the
motor holder.
2) Loosen the screw of fan motor.
(By use of M3 wrench)
3)Separate the fan motor from the fan.
4)Separate the fan from the left holder
bearing.
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 5

6

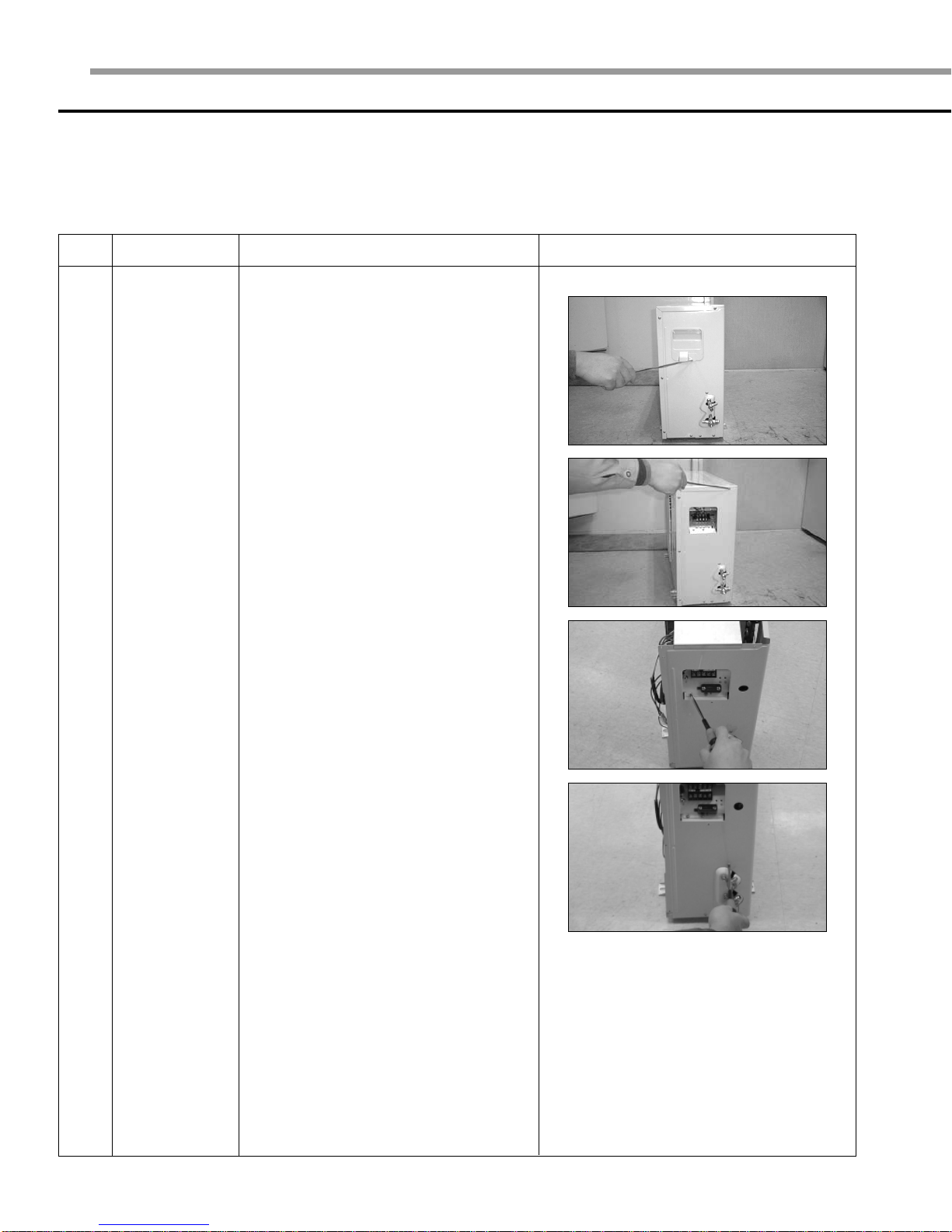

2 Outdoor unit
No. Part Procedure Remark
Common Work
Fan Motor
1
2
1)Loosen screws and separate the cover
E-part.
2)Separate the connection wire from the
terminal block.
3)Loosen five screws and separate the
upper cabinet.
4) Loosen the screw of the control box.
5) Loosen nine screws and separate the
side cabinet.
1) Loosen four screws and separate
Guard Fan from the front cabinet.
■ US07A5(6)MA/US09A5(6)MAF
Disassemble and reassemble (cont’d)
ΙΙ
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 6

7

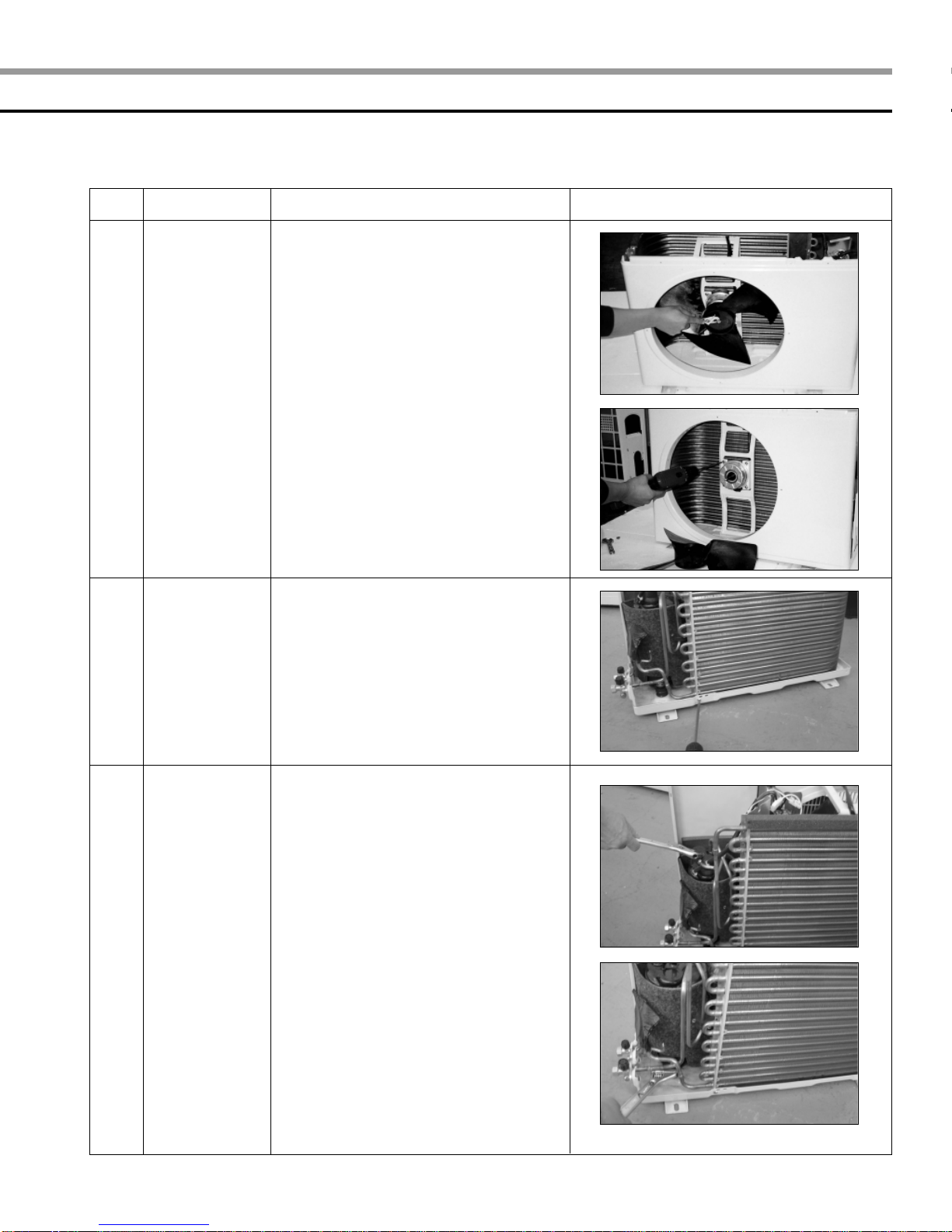

No. Part Procedure Remark
Compressor
Heat
Exchanger
3
4
2) Remove the nut flange
(Turn to the clockwise).
3)Separate the fan.
4)Loosen four screws to separate the motor.
1)Release the refrigerant.
2)Loosen two screws of left and right side.
3)Disassemble the inlet and outlet pipe by
welding.
4)Separate the heat exchanger.
1)Release the refrigerant.
2)Loosen the nut on the terminal cover
and open the terminal cover.
3)Separate the OLP and the compressor
wire.
4)Disassemble the inlet and outlet pipe
of compressor by welding.
5)Disassemble the inlet and outlet pipe
of condenser by welding.
6) Loosen three bolts of the lower part.
7)Separate the compressor.
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 7

8
Disassemble and reassemble(cont’d)
ΙΙ
■US12AA(B)MCF
No. Part Procedure Remark
Common Work 1) Loosen a screw and separate the cover
E-part.
2)Separate the connection wire from the
terminal block.
3) Loosen thirteen screws and separate
the front cabinet.
4) Loosen a screw of the control box.
5) Loosen four screws and separate the
side cabinet.
1
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 8

9
No. Part Procedure Remark
Fan and Motor
Heat Exchanger
Compressor
2
3
4
1) Remove the nut flange
(Turn to the clockwise).
2) Separate the fan.
3) Loosen four screws to separate the motor.
4) Loosen five screws and separate the
motor bracket from the base.
1)Release the refrigerant.
2)Loosen screws of left and right side.
3)Disassemble the inlet and outlet pipe by
welding.
4)Separate the heat exchanger.
1)Release the refrigerant.
2)Open the terminal cover of compressor
and unscrew the connection terminal.
3)Separate the OLP and the compressor
wire.
4)Disassemble the inlet and outlet pipe of
compressor by welding.
5) Loosen three bolts of the lower part.
6) Separate the compressor.
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 9

10

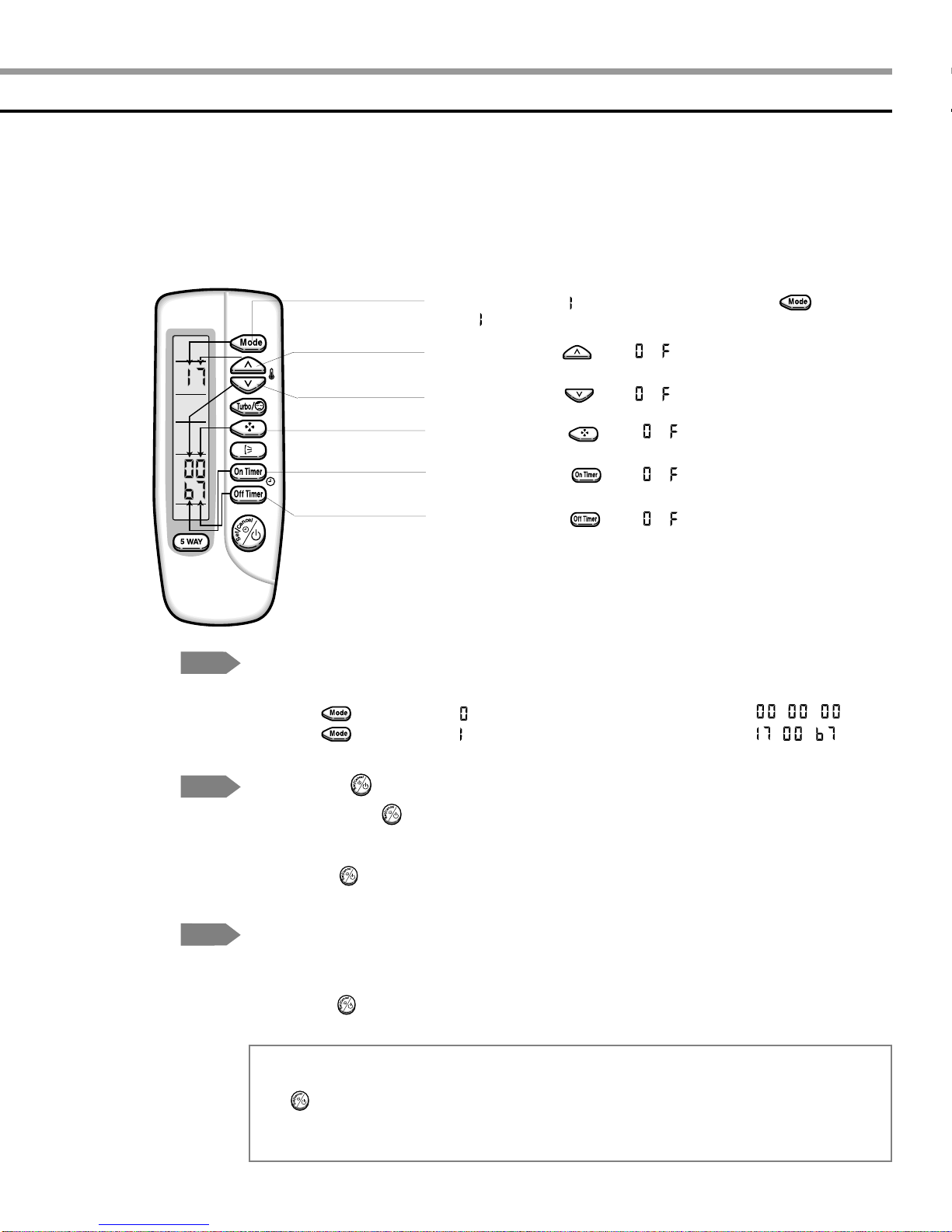

Set up the option code
ΙΙΙΙ
The method for setting up the model option with the remote control
◆ It is necessary to set up option codes after replacing the main PCB with service parts.
Make sure that you can set up option codes of the remote control after replacing the main PBA.
Otherwise, the unit won’t be working properly and all LED lamps on display will be flickering.
1. Remove the battery from the remote control.
2. Press the temperature button simultaneously and insert the battery again.
3. Make sure the remote control display shown as .
Step 1 Preparing for the remote control to the main PCB option set.
Step 2 Preparing for the remote control option set.
NN
NNoo oott ttee ee
1) If the first number is , it is correct. Otherwise, press the button
until appears.
2) When pressing the button ~ on the display, select one of them.
3) When pressing the button ~ on the display, select one of them.
4) When pressing the button ~ on the display, select one of them.
5) When pressing the button ~ on the display, select one of them.
6) When pressing the button ~ on the display, select one of them.
In case that the wrong letter has been selected; continue to press the button until the
correct letter appears.
1. If the number “ ”appears on the display, proceed to the second stage.
2. Every time you press the 1) and 7) button, “ ” and “ ” continue to appear.
3. Every time you press the 2), 3), 4), 5), 6), 8), 9), 10), 11), 12) button, the number increases
from ~ ( , , , , , , , , , ) and , , , , , in order.
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 10

11
Press the button for the “ ” mode and the display will be shown as .
Press the button for the “ ” mode and the display will be shown as .
Step 3 Reconfirming the option set after completing
Example : 000000-1700b7
7) If the first number is , it is correct. Otherwise, press the button
until appears.
8) When pressing the button ~ on the display, select one of them.
9) When pressing the button ~ on the display, select one of them.
10) When pressing the button ~ on the display, select one of them.
11) When pressing the button ~ on the display, select one of them.
12) When pressing the button ~ on the display, select one of them.
NN
NNoo oott ttee ee
1 Remove the battery from the remote control.
2. Insert the battery into the remote control.
3. Press the (On/Off)button in the direction of the remote control for set.
Step 5 Testing the unit
When pressing the (On/Off)button in the direction of the remote control for unit,
it sounds beep or ringing and the first LED lamp on the left side is flickering at the
same time, then the input option is completed. If it doesn’t sound ringing, try again by
pressing the (On/Off)button.
Step 4 Pressing the (On/Off)button
Error mode
1. If all lamps of the indoor units are flickering, plug out and in again and press the
(On/Off)button again.
2. If the unit doesn’t work properly or all lamps are continuously flickering after setting the option
code, check that the option code is set properly for its own model.
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 11

12
A table of the option code
Set up the option code(cont’d)
ΙΙΙΙ
Model
AS07A5MA
AS07A6MA
AS09A5MAF
AS09A6MAF
AS12AAMCF
AS12ABMCF
010000-1700b7
000000-1700b7
010000-1700Fb
000000-1700Fb
010000-170340
000000-170340
Option code
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 12

13
Troubleshooting
ΙΙΙΙΙΙ
1 Items to be checked first
1) The input voltage should be voltage rating within ±10% range.
The air conditioner may not operate properly if the voltage is out of this range.
2) Is the connection cable linking the indoor unit and the outdoor unit properly?
The indoor unit and the outdoor unit shall be linked by five cables.
Check the terminals if the indoor unit and outdoor unit are properly linked by the same number of cables.
Otherwise the air conditioner may not operate properly.
3) When a problem occurs due to the contents illustrated in the table below, it is not a symptom related
to the malfunction of the air conditioner.
4) Indoor unit observes operation condition of the air conditioner and displays self diagnosis on the
display panel.
No.
Operation of air conditioner
The STD operation indicator, LED blinks when a
power plug of the indoor unit is plugged in at first.
1It indicates power is on. The LED stops blinking if the
On/Off button on the remote control is pushed.
In the Cool mode, the compressor does not operate
at a room temperature higher than the setting
temperature while the indoor fan operates.
2
3
4
5
6
It happens after three minutes when the compressor is
reoperated. The same phenomenon occurs when a power
is on. As a phenomenon that the compressor is
reoperated after three minutes, the indoor fan is adjusted
automatically with reference to a temperature of the air.
The Fan speed operating is not allowed in the Auto
or Dry mode. The speed of the indoor fan is set to LL in the Dry mode. The Fan speed is five steps are selected automatically in
the Auto mode.
Compressor stops operating intermittently in the Dry
mode. The compressor is controlled automatically in the Dry mode depending on the room temperature and humidity.
Timer LED of the indoor unit lights up
and the air conditioner does not operate. The timer is being activated and the unit is in the ready
mode. The unit operates normally if the timer operation is
cancelled.
The compressor stops intermittently in the Cool or
Dry mode, and the fan speed of the indoor unit
decreases.
The compressor stops intermittently or the fan speed of the
indoor unit decreases to prevent inside/outside air from
freezing depending on the inside/outside air temperature.
Explanation
No. Display
STD LED blinking (1Hz)
TIMER LED blinking (1Hz)
STD and TIMER LED blinking (1Hz)
NATURE LED blinking (1Hz)
All LED blinking (1Hz)
1
2
3
4
5
Restore from power failure (input initial power)
Indoor unit Room sensor Error (open or short)
Indoor unit heat exchanger temperature sensor Error (open or short)
Indoor fan malfunctioning (for speed is below 450rpm)
Option Error
Self Diagnosis
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 13

14
Troubleshooting (cont’d)
ΙΙΙΙΙΙ
2 Abnormal diagnosis by symptom

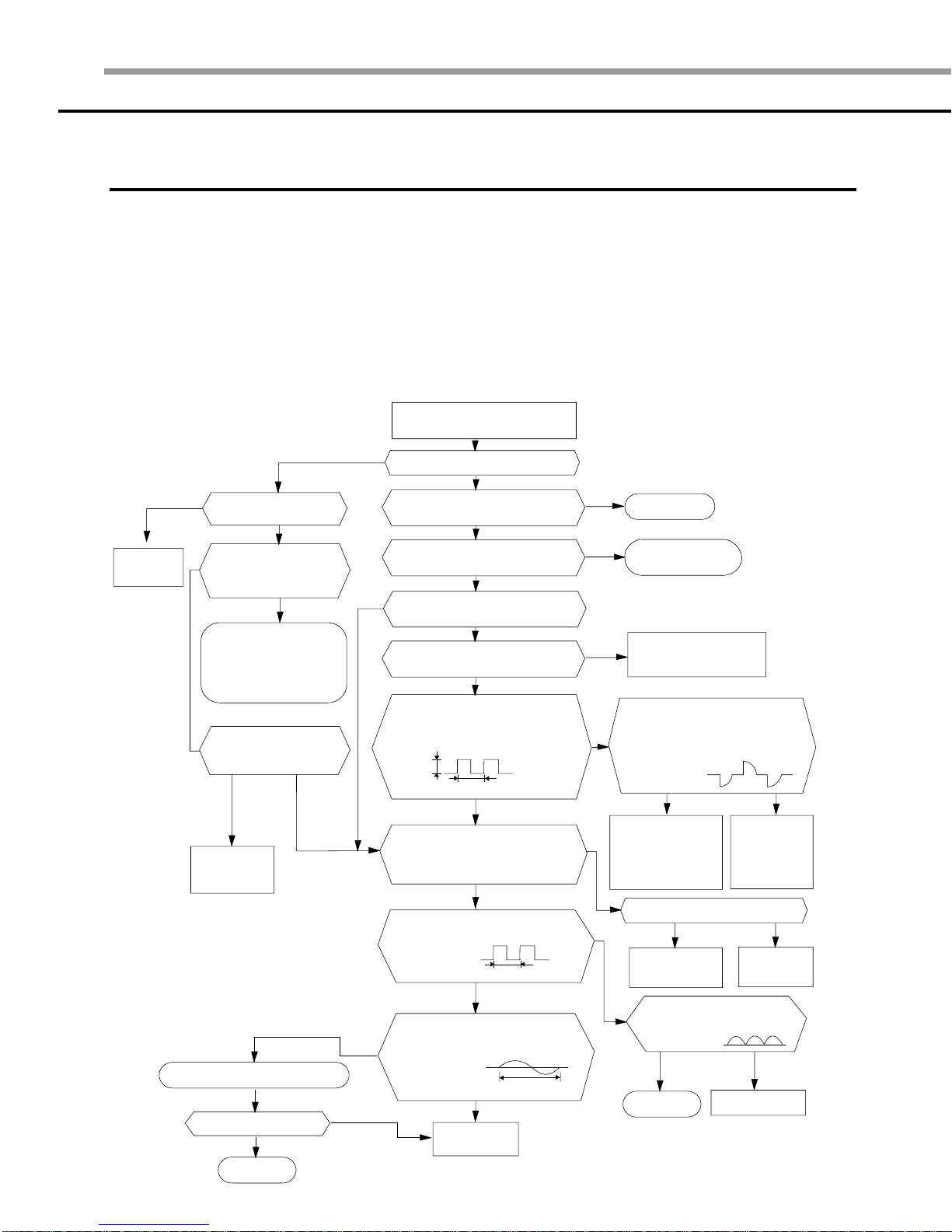

1. No Power - Initial diagnosis
1. No Power - Initial diagnosis
1) Checklist :
(1) Is input voltage normal?
(2) Is AC power linked correctly?
(3) Is output voltage of DC regulator IC KA78L05 (IC02) normal? (4.5VDC-5.5VDC)
2) Troubleshooting procedure
Replace PCB
display
Is DC voltage of PCB
display normal?
Remove the power cord and plug in
again in approx. five seconds
Does the lamp blink?
Does it start operating when
you push the On/Off button
on the remote control?
Is transmission display of the
remote control unit blinking?
Does the ‘beep’ sound from the
main unit?
Is DC voltage of the PCB module
normal?
Are voltages of #33 (IC04 : compressor)
of Micom normal? 5VDC
Is voltage of #32 (IC04 : indoor fan) of
Micom normal?
Is voltage of #10(IC04) terminal of Micom normal?
0VDC
Is voltage of #9(IC04) terminal of Micom normal?
5VDC
Is voltage rating within ±10%
range applied to the primary
side(~,~) of the “BD71”?
Check linkage between
a power cord and
a terminal tap
Check fuse
Does 325VDC appear in
the secondary side (+, -)
of “BD71”?
Replace
SMPS PARTS
YES
NO YES
NO
YES
YES
YES
NO
YES
YES
YES
DC5V
10ms
10ms
250ns
NO
NO
OK
YES
YES
YES
YES
NO
NO
YES
Normal
Refer to remote control
unit abnormal diagnosis
Replace PCB
module .
Is output voltage of ICO2 normal?
Check connections
of compressor
and indoor fan.
Are voltages of RY71(Compressor)
normal? DC12V
Is voltage of SS71(indoor fan)?
Replace
RY71 and
SS71
NO
NO
NO
Is voltage output terminal of
PC814A(PC02) normal?
Replace ICO2
Check PCB pattern
Replace the main PCB
Replace PC814A(PC02)
Replace
Micom
Is voltage of #3(IC04) terminal of
Micom normal?
Are voltages of #12(IC04) and
#11(IC04) of Micom normal?
NO
NO NO
YESNO
NO
NO
YES
OK
Is operation normal?
Replace resonator (X301)
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 14

15
1) Checklist :
(1) Is AC voltage between “L1” and “1” of outdoor terminal block is normal?
(Input voltage within ±10% range)
If the Output is not checked, check “L1” and “1” of Indoor Terminal Block.
(2) Are connectors linked correctly to the outdoor PCB?
(CN71, CN76, CN72, CN11)
2) Troubleshooting procedure
1-1 No Power-Initial diagnosis in case of the Outdoor Unit PCB of US12AA(B)MCF
Check AC Output between “L1” and “1” of the outdoor terminal block
Is voltage rating between #1 and #3 (CN72) normal?
Is AC voltage between #1 and #3 (CN11) ( = )AC 17V?
Is DC voltage between “I” and “G” (IC01) normal?
Is DC voltage between “G” and “O” (IC01) ( = ) DC 12V?
Is DC voltage between “G” and “O” (IC02) ( = ) DC 5V?
Is the power supply normal?
Check the other connection parts
Check F701, F702 is open
Replace PCB
TRANS is abnormal.
Replace TRANS
BD71 or D101 is abnormal.
Replace PCB
IC01(KA7812) is abnormal.
Replace PCB
IC02 is abnormal.
Replace PCB
MICOM or LED is abnormal.
:
:
:
YES
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
NO
Is LED 01 (GRN) on?
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 15

16
Troubleshooting (cont’d)
ΙΙΙΙΙΙ
2. When the Indoor Unit Fan Does Not Operate - Initial Diagnosis
2. When the Indoor Unit Fan Does Not Operate - Initial Diagnosis
1) Checklist :
(1) Is the indoor unit fan motor properly connected with the connector (CN72)?
(2) Is the AC voltage correct?
(3) Is HALL IC in the indoor fan motor properly connected with the connector (CN42)?
(4) Is the running capacitor (CR71) properly connected with PCB board?
2) Troubleshooting procedure
After unplugging out, the power cord should
be reconnected within five seconds.
Does the STD lamp(Green) blink?
Does the Solid State Relay(SS71) work
properly?
Is the supply voltage of the fan
motor sufficient?
Test rod location
PCB CN72 Condition
Fan operate about AC
180V
Normal
voltage
pin #3 and #5
YES
YES
YES
NO
NO
NO
Check as the procedure “No power”
Refer to page 14
Micom is abnormal
PCB is
abnormal Replace PCB
Replace MFC
Replace Fan motor
Fan motor
is abnormal.
MFC is abnormal
YES
-
Test rod location
+
SS71- SS71- 12V
Normal
Voltage
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 16

17
3. When the Outdoor Unit Does Not Operate - Initial Diagnosis
3. When the Outdoor Unit Does Not Operate - Initial Diagnosis
1) Checklist :
(1) Is input voltage normal?
(2) Is the set temperature of the remote control higher than room temperature in the Cool mode?
(3) Is the POWER IN connector (CN71) linked correctly?
(4) Is the outdoor unit properly connected with the terminal block connector?
2) Troubleshooting procedure
After unplugging out, the power cord
should be reconnected within five seconds.
Does the STD lamp blink?
YES
YES
NO
NO
NO
NO
NO
YES
YES
Outdoor unit is
abnormal.
Power relay
is abnormal. Replace the
Power relay
Check PCB
Micom is
abnormal.
Check PCB
Room temperature sensor is
abnormal.
Check as the procedure "No Power"
Refer to page 14
Is the room sensor registered normal?
50°F(10°C) 68°F(20°C) 86°F(30°C)
17.96k Ω12.09k Ω8.3k Ω
Does the timer lamp blink during operation ?
Is the power relay RY71 operated by adjusting
the room temperature?
Is voltage rating within ±10% range applied relay
between the terminal block?
3
1
1
2
3
2
NO
YES
Test rod location
+
#33(IC04)
-
GND
Condition
RY71 ON
Normal
Voltage
DC 4.8V
3-1 US07A5(6)MA/US09A5(6)MAF
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 17

18
Troubleshooting (cont’d)
ΙΙΙΙΙΙ
3-2 US12AA(B)MCF
1) Checklist :
(1) Is LED 01(GRN) on?
(2) Are all connectors linked correctly?
2) Troubleshooting procedure
Check the power supply between “L1” and “L2” of the
outdoor terminal block
Is voltage rating between “L1” and “1” ?
Is LED 01 of the indoor PCB on?
Is the compressor on?
Is the Outdoor fan on?
Is AC voltage between “L1” and “1” (CN76)?
Normal
Check the indoor PCB again
Check the connection wire and No Power
Refer to page 14
Check the compressor lead wire again
Check the indoor PCB and connection wire again
YES
YES
YES
YES
NO
NO
NO
NO
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 18

19
4. When the UP/DOWN Louver Motor Does Not Operate - Initial Diagnosis
4. When the UP/DOWN Louver Motor Does Not Operate - Initial Diagnosis
1) Checklist :
(1) Is input voltage normal?
(2) Is the UP/DOWN louver motor properly connected with the connector (CN61)?
2) Troubleshooting procedure
Remove the power cord and plug it in again in approx. five seconds
Does STD lamp blink?
Does it start operating when you push the swing
button of the remote control?
Is voltage of #58 ~ #61 of Micom (ICO4)
changed?(Squarewave)
Is voltage of #13 ~ #16 of IC06 (ULN2003A)
changed?(Squarewave)
The UP/DOWN louver motor is abnormal.
Driver IC06 (ULN2003A) is abnormal.
Micom (IC04) is abnormal.
Normal
Check as the procedure "No
Power". Refer to page 14
NO
NO
NO
YES
YES
YES
NO
YES
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 19
