Samsung AW05MDYEA/XFO User manual

DB98-08575A(1)
AW05MDYEA
Window-type Room Air Conditioner
(Cool)
ER
OWNER’S
INSTRUCTIONS

E-2
The following safety precautions must be taken when installing
and using your air conditioner.
Safety Precautions
1The air conditioner must be plugged into its own specific power source, which must be
installed in compliance with national wiring, earthing and safety regulations.
Depending on national regulations and your specific installation, you may need to install:
◆ A circuit breaker
For further information on electrical requirements, contact a professional electrician.
This device must be installed according to the national electrical rules.
2Make sure that the unit is correctly ventilated at all times;
do NOT place clothing or other materials over it.
4Do NOT insert anything between the air outlet blades, as it may damage the inner fan
and you may be hurt. Keep children away from the unit.
5If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:
◆ An authorized service center
◆ The dealer from whom you purchased the air conditioner.
7Do NOT place any blocking objects in front of the unit.
3NEVER spill liquids of any kind into the unit.
Should this happen, unplug the unit and contact your installation specialist.
8If the remote control will not be used for a long time, remove the batteries.
9Before throwing out the device, it is necessary to pull back the battery cells
and get rid of them safely.
10 The appliance is not intended for use by young children or infirm person without supervision;
young children should be supervised to ensure that they do not play with the appliance.
11 Do NOT use an extension cord with this product.
The manufacturer does not assume responsibility for accidents or injury
caused by an incorrectly installed air conditioner. If you are unsure about
installation, contact an installation specialist.
CC
CCAA AAUU UUTT TTII IIOO OONN NN

E-3
Contents
◆PREPARING YOUR AIR CONDITIONER
■Safety Precautions ......................................................................................... 2
■Description of Each Component .................................................................... 4
■Getting Started ............................................................................................... 5
◆OPERATING YOUR AIR CONDITIONER
■Cooling Your Room ........................................................................................ 6
■Airing Your Room ........................................................................................... 7
■Removing Excess Humidity ............................................................................ 8
■Adjusting the Air Flow Direction Horizontally .................................................. 9
◆PROGRAMMING YOUR AIR CONDITIONER
■Setting the On Timer ...................................................................................... 10
■Setting the Off Timer ...................................................................................... 11
■Setting the Sleep Timer .................................................................................. 12
■Selecting Energy Saving mode ...................................................................... 13
◆RECOMMENDATIONS FOR USE
■Temperature and Humidity Ranges ................................................................ 13
■Cleaning Your Air Conditioner ........................................................................ 14
■Solving Common Problems ............................................................................ 15
■Technical Specifications ................................................................................. 15
◆INSTALLATION

E-4

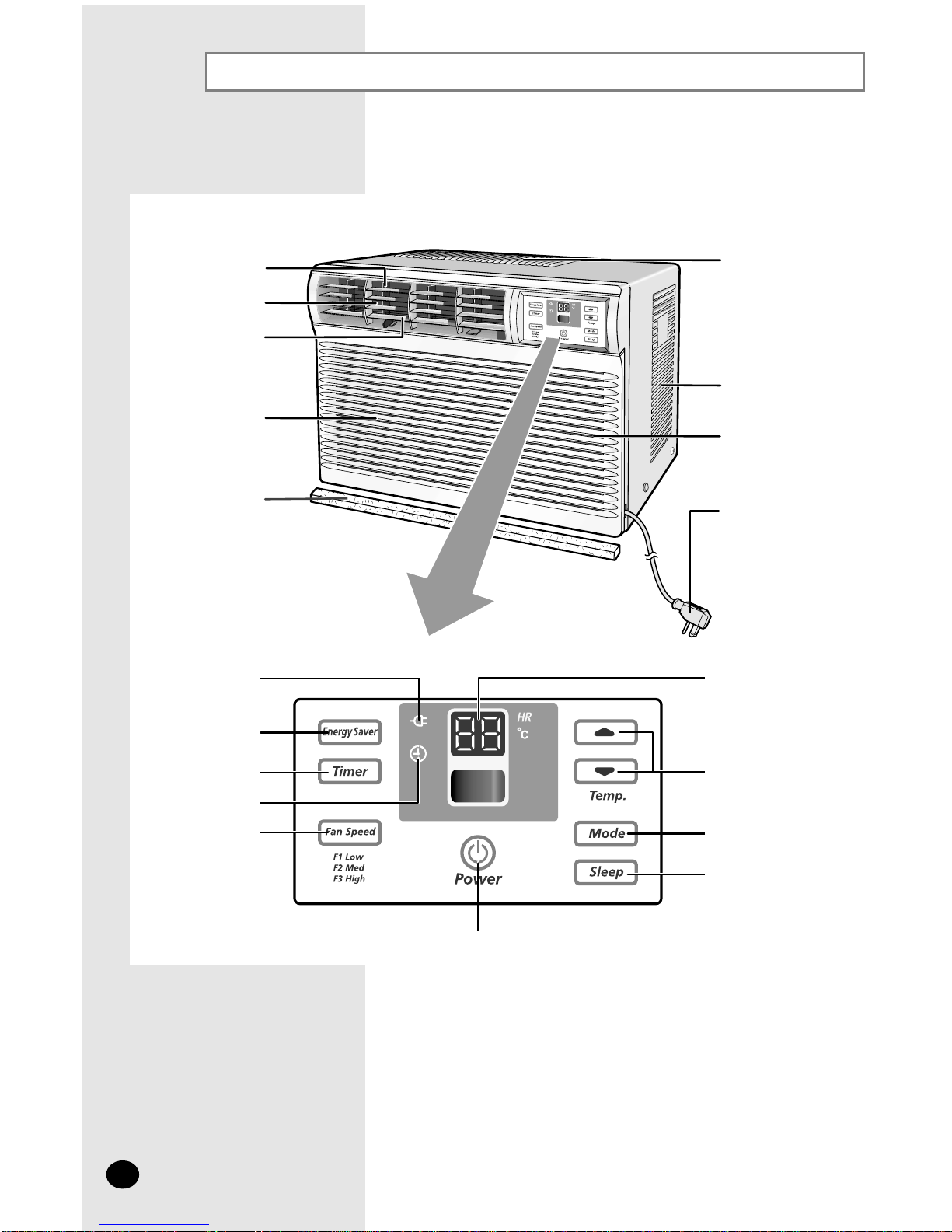

Description of Each Component
Inner air flow blades
(right/left orientation)
Air outlet
Outer air flow blades
Air inlet (Inside)
Adhesive bottom
gasket
(Refer to page 17)
Air inlet (Outside)
Air outlet
Air filter (Inside)
Power plug
(The type of power plug
may differ, depending on
the local power supply.)
Temperature/
Timer settings
Temperature adjustment
buttons
Fan speed
adjustment button
On/Off button
Energy Saver
indicator
Sleep timer setting button
Timer indicator
Energy Saver
button
Mode selection button
(Cool, Fan, Dry)
Timer setting button

E-5
Getting Started
IMPORTANT NOTE
You have just purchased a Samsung window-type room air conditioner which should be installed
following your installation manual.
Your Owner’s Instructions contain much valuable information on using your air conditioner.
Please take the time to read them as they will help you take full advantage of the unit’s features.
The booklet is organized as follows.
◆The following figures are shown on pages 4 :
-Description of Each Component
They will help you find the buttons and understand the symbols displayed.
◆In the manual, you will find a series of step-by-step procedures for each
function available.
The illustrations in the step-by-step procedures use four different symbols:
☛
➢
PRESS PUSH

E-6
c

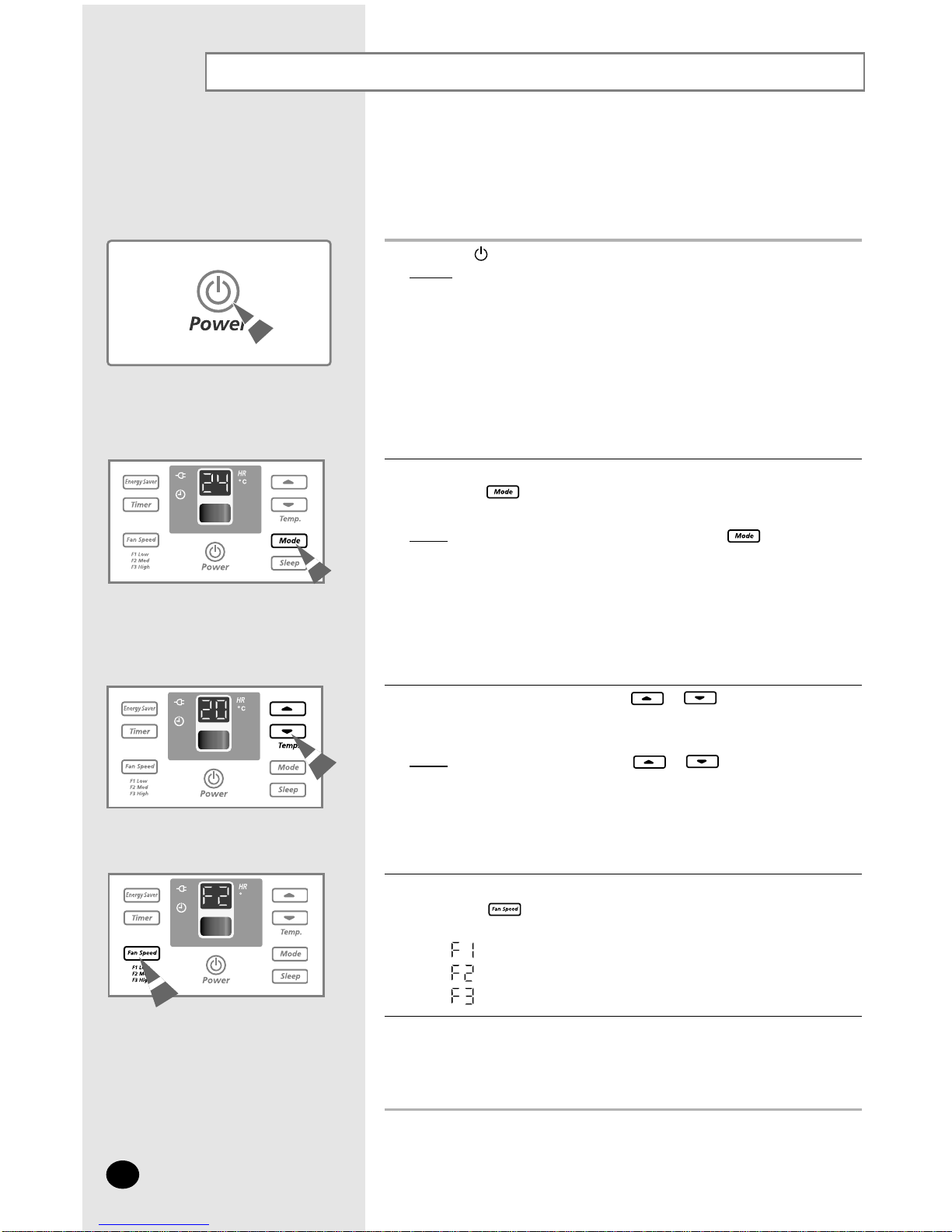

Cooling Your Room
To adjust the temperature, press the or buttons on the unit one
or more times until the desired temperature is displayed.
The temperature can be set between 18°C and 30°C.
Result:
◆ Each time you press the or buttons:
– The temperature is adjusted by 1°C and displayed on
the control panel
– The unit beeps
◆ The air conditioner starts cooling, if the room temperature is
higher than the selected temperature.
3
Press the (On/Off) button.
Result: ◆ The air conditioner starts up in the mode selected when the
unit was last used.
◆ The unit beeps twice.
☛The air conditioner is fitted with a protection mechanism to prevent
the unit from being damaged when it is started immediately after
being:
◆ Plugged in
◆ Stopped
It will start up normally after three minutes.
If the temperature is not displayed on the control panel:
◆ Press the button on the unit one or more times until the
temperature is displayed.
Result:
◆ The unit beeps each time you press the button.
◆ The air conditioner starts up in the Cool mode.
➢
You can change modes at any time.
You must select the Cool mode if you wish to lower the temperature
in your room. You can also set the Fan speed.
1
2
To set the fan speed:
◆ Press the button on the unit one or more times until the
desired Fan speed(F1, F2 or F3) is displayed.
Low
Medium
High
4
To control the direction of the air flow, refer to page 9.
5

E-7

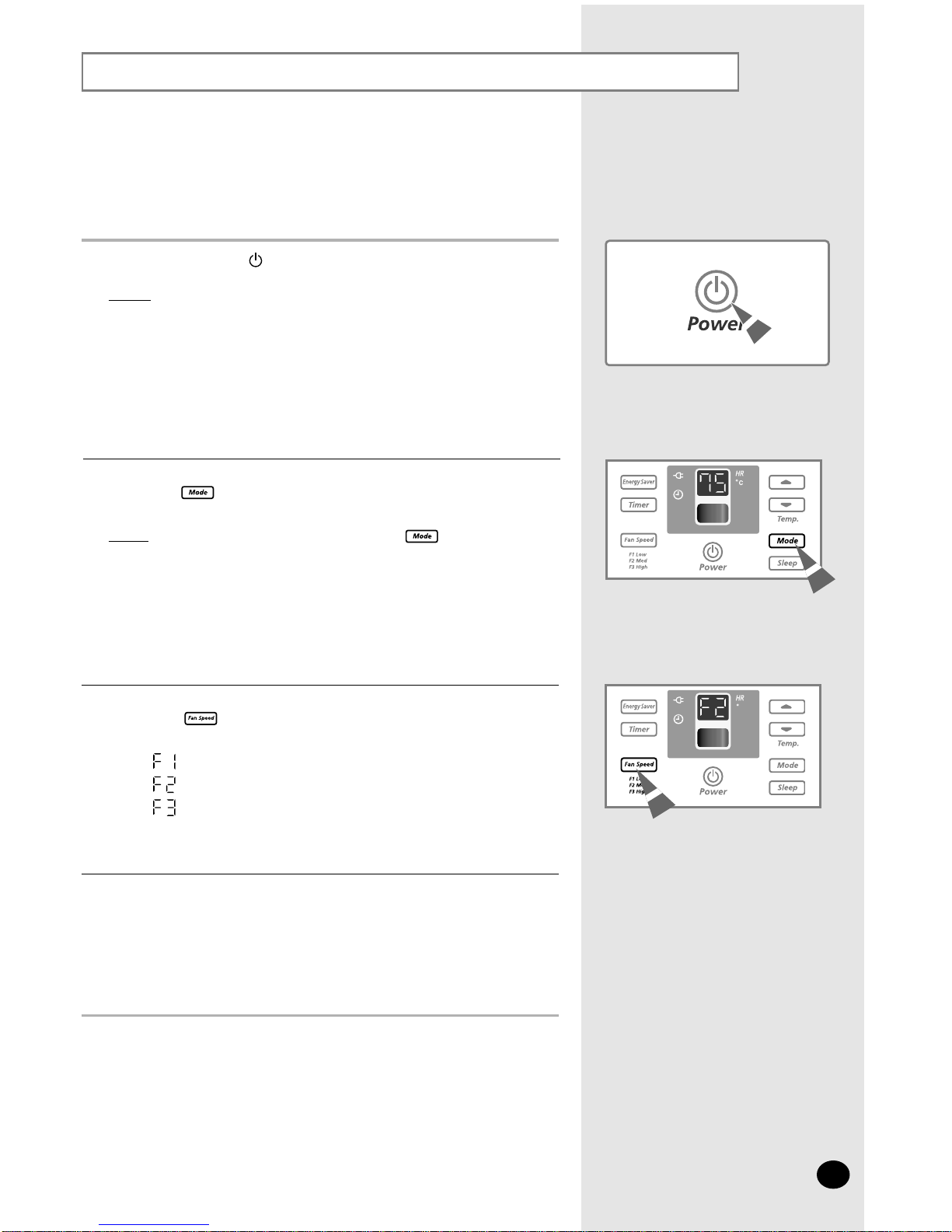

Airing Your Room
If you want to provide air circulation without cooling, you can use
the Fan mode.
If necessary, press the (On/Off) button.
Result: ◆ The air conditioner starts up in the mode selected when
the unit was last used.
◆The unit beeps twice.
1
To set the fan speed:
◆ Press the button on the unit one or more times until the
desired fan speed(F1, F2 or F3) is displayed.
Low
Medium
High
3
To control the direction of the air flow, refer to page 9.
4
If the fan speed(F1, F2 or F3) is not displayed on the control panel:
◆ Press the button on the unit one or more times until the fan speed
(F1, F2 or F3) is displayed.
Result: ◆ The unit beeps each time you press the button.
◆The air conditioner starts up in Fan mode.
➢ You can change modes at any time.
When the air conditioner is in the Fan mode, the temperature
cannot be set or displayed.
2
c

E-8

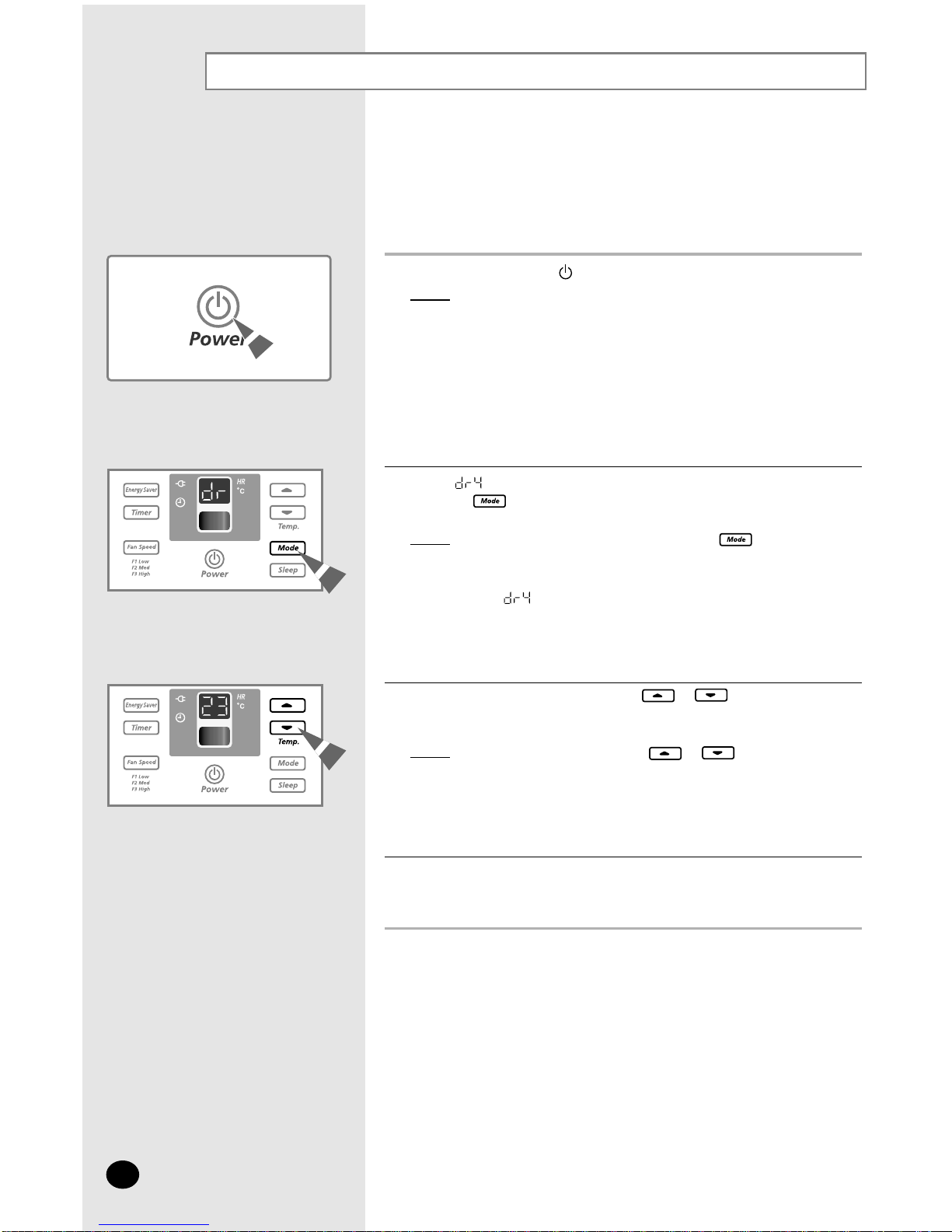

Removing Excess Humidity
If the atmosphere in your room is very humid or damp, you can remove
excess humidity without lowering the room temperature too much.
You can operate the Dry mode only by using the control panel.
1If necessary, press the (On/Off) button.
Result: ◆The air conditioner starts up in the mode selected when
the unit was last used.
◆The unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
It will start up normally after three minutes.
2If the
“ ” indicator is not displayed at the top of the control panel,
press the button on the control panel one or more times until it
appears.
Result:◆
The unit beeps each time you press the button.
◆ The air conditioner runs in Dry mode.
➢
You can change modes at any time.
The “ ” passes through the control panel.
3To adjust the temperature, press the or buttons one or
more times until the required temperature is displayed.
Possible temperatures are between
18°C and 30°C inclusive.
Result:◆Each time you press the
or buttons:
- The temperature is adjusted by 1°C
- The unit beeps
◆The air conditioner starts removing the excess humidity;
the quantity of air is adjusted automatically.
4To control the direction of the air flow, refer to page 9.
☛

E-9

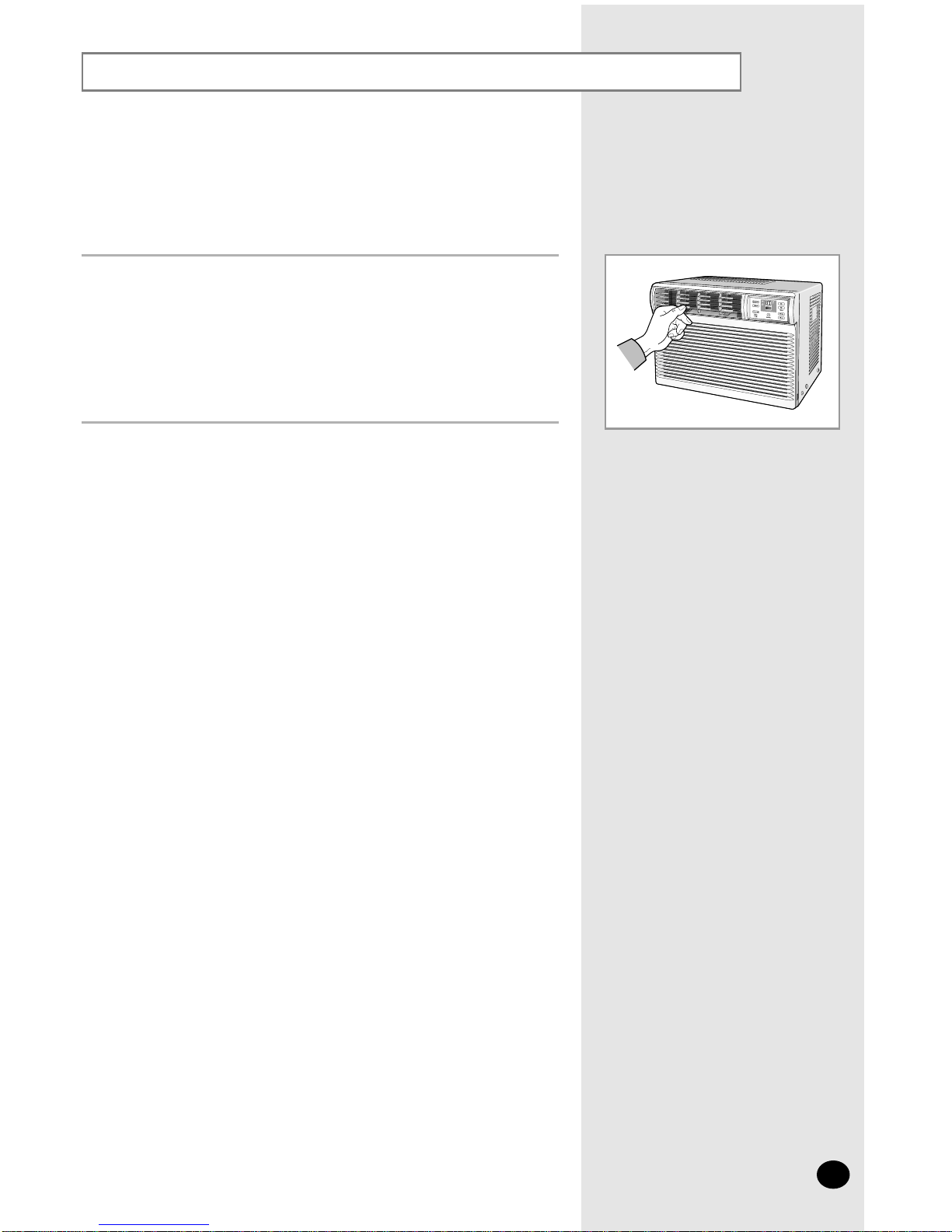

Adjusting the Air Flow Direction Horizontally
Depending on the position of the unit in your room, you can adjust
the orientation of the inner air flow blades on the unit.
Adjust the air flow blades to the desired position by pushing them side to side.

E-10

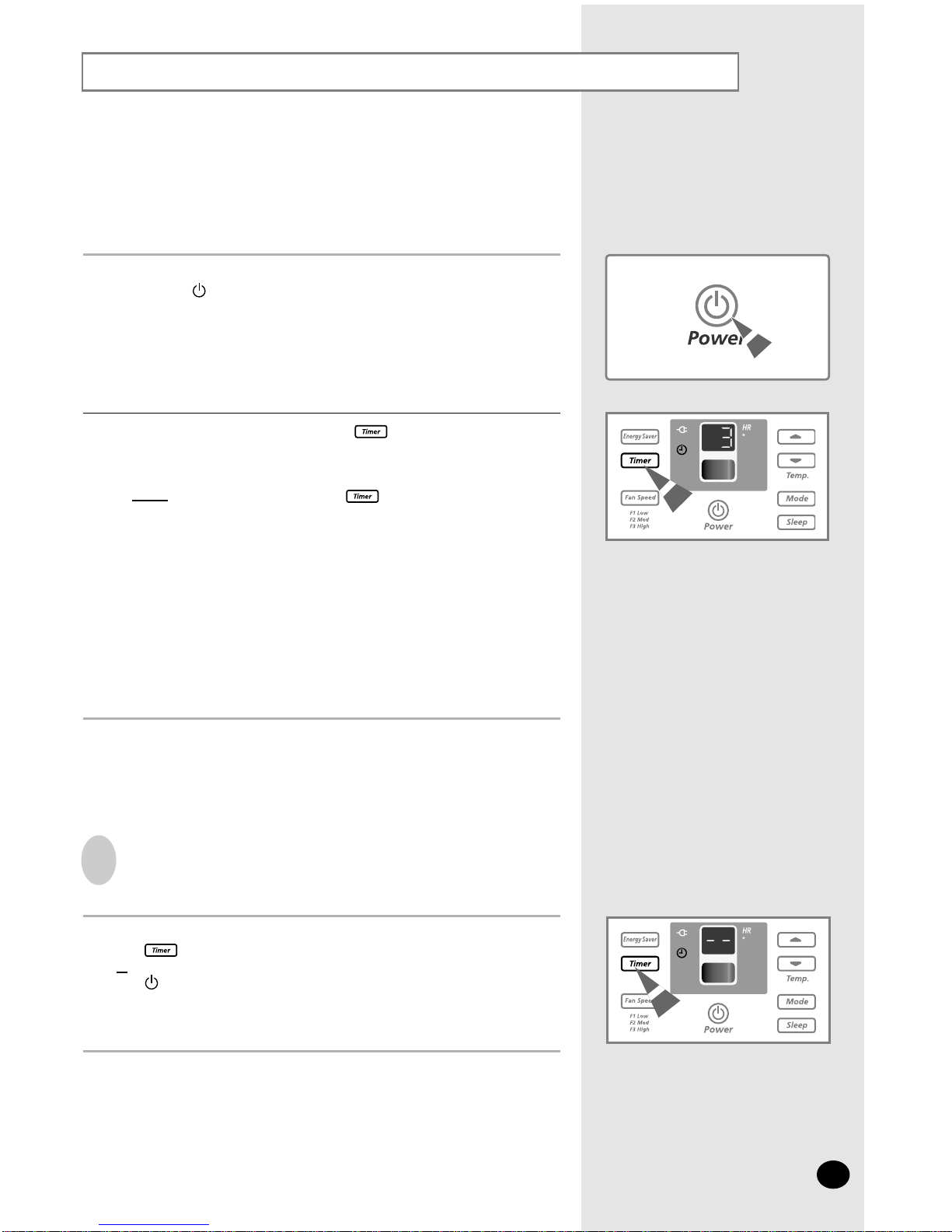

Setting the On Timer
c
c
The On Timer enables you to switch on the air conditioner automatically after a
given time. You can select the On timer only when the air conditioner is off. You
can select the On timer only when the air conditioner operates in the Cool mode.
1Check that the air conditioner has been switched off; if necessary,
press the (On/Off) button.
2 Set the operating time by pressing the button on the unit one or
more times until the desired time is displayed. The operating time can be
set between 1 and 24 hours.
Result: ◆Each time you press the button:
– The time is adjusted by 1 hour and displayed on the control
panel
– The unit beeps
◆The operating time is displayed and decreases automatically to
indicate the remaining time.
◆The air conditioner starts up in the Cool mode automatically
when the operating time reaches zero.
➢
You can select the fan speed, temperature and Energy saving mode
after setting the On timer and Off timer mode. However, when you
change the mode, the On timer and Off timer mode is canceled.
To cancel the timer, press:
◆The button on the unit one or more times until "--" is displayed.
or
◆The (On/Off) button on the unit (The air conditioner operates in the mode
selected when the unit was last used.)
To Cancel the On Timer

E-11
Setting the Off Timer
The Off Timer enables you to switch off the air conditioner automatically after a
given time. You can select the Off timer only when the air conditioner is on. You
can select the Off timer only when the air conditioner operates in the Cool mode.
1Check that the air conditioner has been switched on; if necessary,
press the (On/Off) button.
2 Set the operating time by pressing the button on the unit one or
more times until the desired time is displayed. The operating time can be
set between 1 and 24 hours.
Result: ◆Each time you press the button:
– The time is adjusted by 1 hour and displayed on the control
panel
– The unit beeps
◆The operating time is displayed and decreases automatically to
indicate the remaining time.
◆The air conditioner switches off automatically when the
operating time reaches zero.
➢
You can select the fan speed, temperature and Energy saving mode
after setting the On timer and Off timer mode. However, when you
change the mode, the On timer and Off timer mode is canceled.
To Cancel the Off Timer
To cancel the timer, press:
◆The button on the unit one or more times until "--" is displayed.
or
◆The (On/Off) button on the unit.
c
c

E-12
Setting the Sleep Timer
The Sleep Timer can be used when you are cooling your room to switch
the air conditioner off automatically after 8 hours.
➢If you wish to switch the unit off at a specific time, refer to page 11.
1Make sure that you have selected the Cool mode.
2 Press the button on the unit.
Result:◆Each time you press a button, the unit beeps.
◆The “SLEEP” passes through the control panel for about
15 seconds and the " " will be displayed.
◆The remaining time is displayed and decreased by 1 hour
automatically to indicate the remaining time.
◆The air conditioner will be controlled as illustration below.
To cancel the timer, press:
◆The button on the unit.
Result: ◆The unit beeps.
◆The SLEEP indicator is no longer displayed.
◆The air conditioner operates in the mode selected last.
➢
If you select the Energy Saving mode in the Sleep Timer mode,
the Sleep Timer will be cancelled and the air conditioner will start up
in the Energy Saving mode.
To Cancel the Sleep Timer
Cooling When the temperature has
been increased by 1°C (after
1 hour), it is maintained
for 7 hours.

E-13
Selecting Energy Saving Mode
To select the energy saving mode, press the button on the unit one
or more times until the Energy Saver indicator lights up.
Result:
◆ The fan and compressor cycle on and off together.
◆ The fan will continue to run for a short time after the
compressor cycles off.
➢ If you would like the air conditioner to run in Fan mode, do not press
the button. You cannot use the Fan mode in the energy saving
mode.
To stop the energy saving mode, press the button on the unit
again.
Result: The fan runs at all times, while the compressor cycles on and off.
➢ If you select the Sleep Timer in the Energy Saving mode, the Energy
Saving will be cancelled and the air conditioner will start up in the
Sleep Timer mode.
If you wish to save energy when using your air conditioner,
select the energy saving mode.
1
2
Temperature and Humidity Ranges
If the air conditioner is used at... Then...
Higher temperature The automatic protection feature may be triggered and the air
conditioner stopped.
Lower temperature A water leakage or some other malfunction may happen if the
heat exchanger freezes.
Higher humidity levels Water may condense on and drip from the surface of the
unit if it is used for long periods.
The following table indicates the temperature and humidity ranges
within which the air conditioner can be used.
Mode Indoor Temperature Outdoor Temperature Indoor Humidity
Cooling 21°C to 32°C approx. 21°C to 43°C approx. 80% or less

E-14

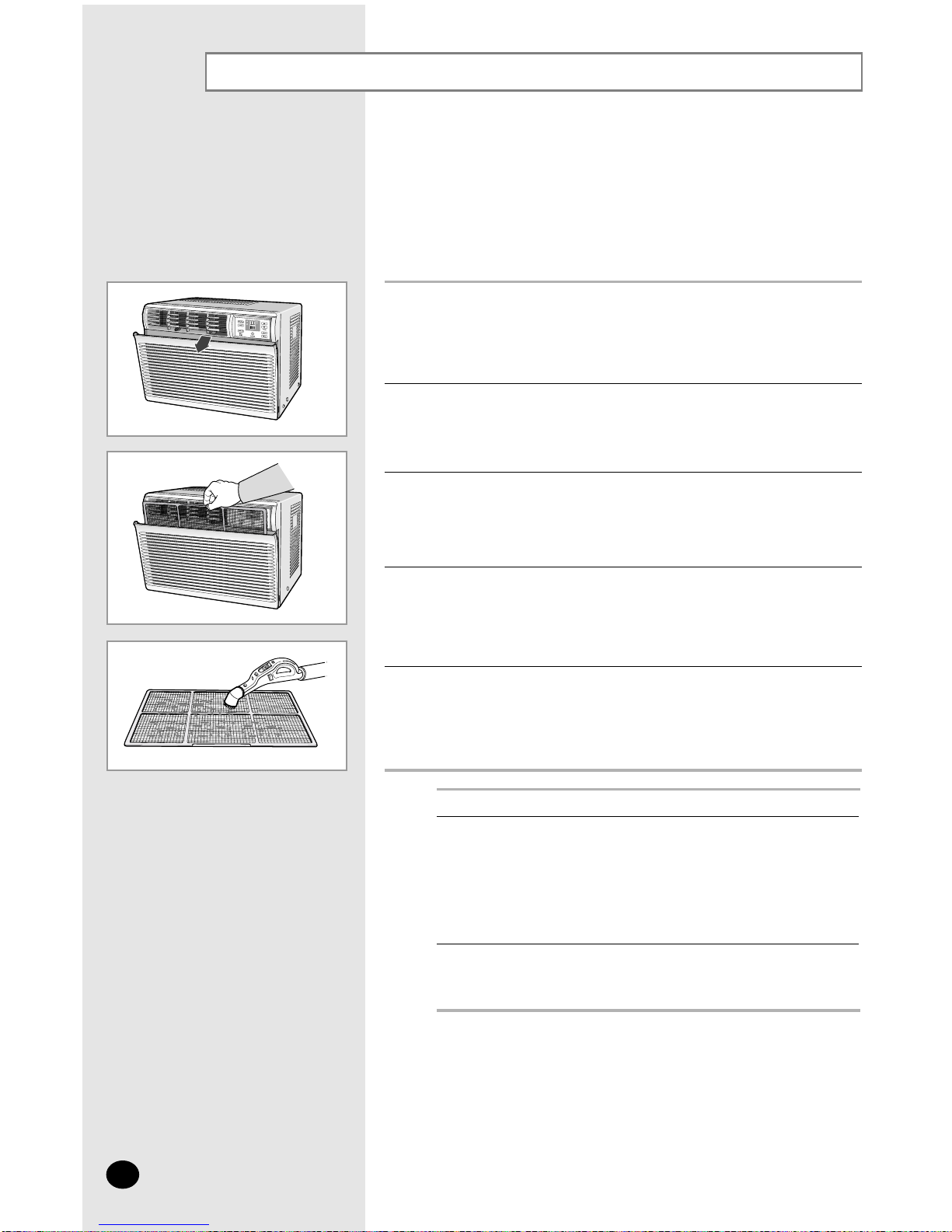

Cleaning Your Air Conditioner
Open the front grille by pulling the tabs on both sides of the grille.
Then lift it up slightly to open the front grille completely.
1
Remove all dust on the air filter with a vacuum cleaner or brush. 3
Grab the tabs on the filter and pull it up and out. 2
When you have finished, insert the air filter back into its original position. 4
Wipe the surface of the unit with a neutral detergent and then wipe it again
with dry cloth. (Be sure not to use benzene, solvent or other chemical
products.)
5
Be sure to clean the air filter periodically to maintain the air conditioner
in the best condition for a long period of time.
When cleaning the air conditioner, turn it off and pull out the
power plug.
Set the fan to “F1” and let it run for
a few hours to dry the inside of the air
conditioner thoroughly.
If you... Then...
Will not be using the
air conditioner for a
long period of time
◆ Set the fan to “F1” and let it for a few
hours to dry the inside of the air
conditioner thoroughly.
◆ Switch the air conditioner off and
unplug it from the wall socket.
◆ Clean the filter and outer surfaces.
Have not used the air
conditioner for a long
period of time
➢
☛

E-15
Solving Common Problems
Explanation / Solution
◆Check that the circuit breaker used for the air conditioner has not been
triggered.
◆ Check that the power cable is plugged into a wall socket and the socket is
switched on, if necessary.
◆ Check that the temperature indicator on the unit is lit; if necessary,
press the (On/Off) button on the remote control or unit.
◆Check that there are no obstacles between you and the unit.
◆ Replace the remote control batteries if necessary.
◆ Check that you are close enough to the unit (seven metres/yards or less).
◆
Ventilate the room.
Problem
The air conditioner does
not operate at all
The air conditioner does not
operate with the remote
control
Odors are permeating the
room during air conditioning
◆Check that you are pointing the remote control at the remote control sensor
on the unit.
◆ Replace the remote control batteries if necessary.
No beep is heard when you
press the (On/Off) button
on the remote control
◆Check that the correct operating mode has been selected(Cool).
◆ The room temperature may be too low.
◆Dust may be blocking the air filter; refer to page 16 for cleaning instructions.
◆Check that there is no obstacle blocking the air flow into or out of the unit.
The air conditioner does not
cool
◆Check that the timer has been programmed correctly; refer to page 10~12.
The timer is not correctly
triggered
Before contacting an authorized service center, perform the following simple checks.
They may save you the time and expense of an unnecessary call.
Technical Specifications
Model Power Supply
AW05MDYEA
Design and specifications are subject to change without notice.
220-240V~, 50Hz
➢
Max current is measured according to IEC standard for safety and
current is measured according to ISO standard for energy efficiency.
This condition belongs to the above model.

E-16

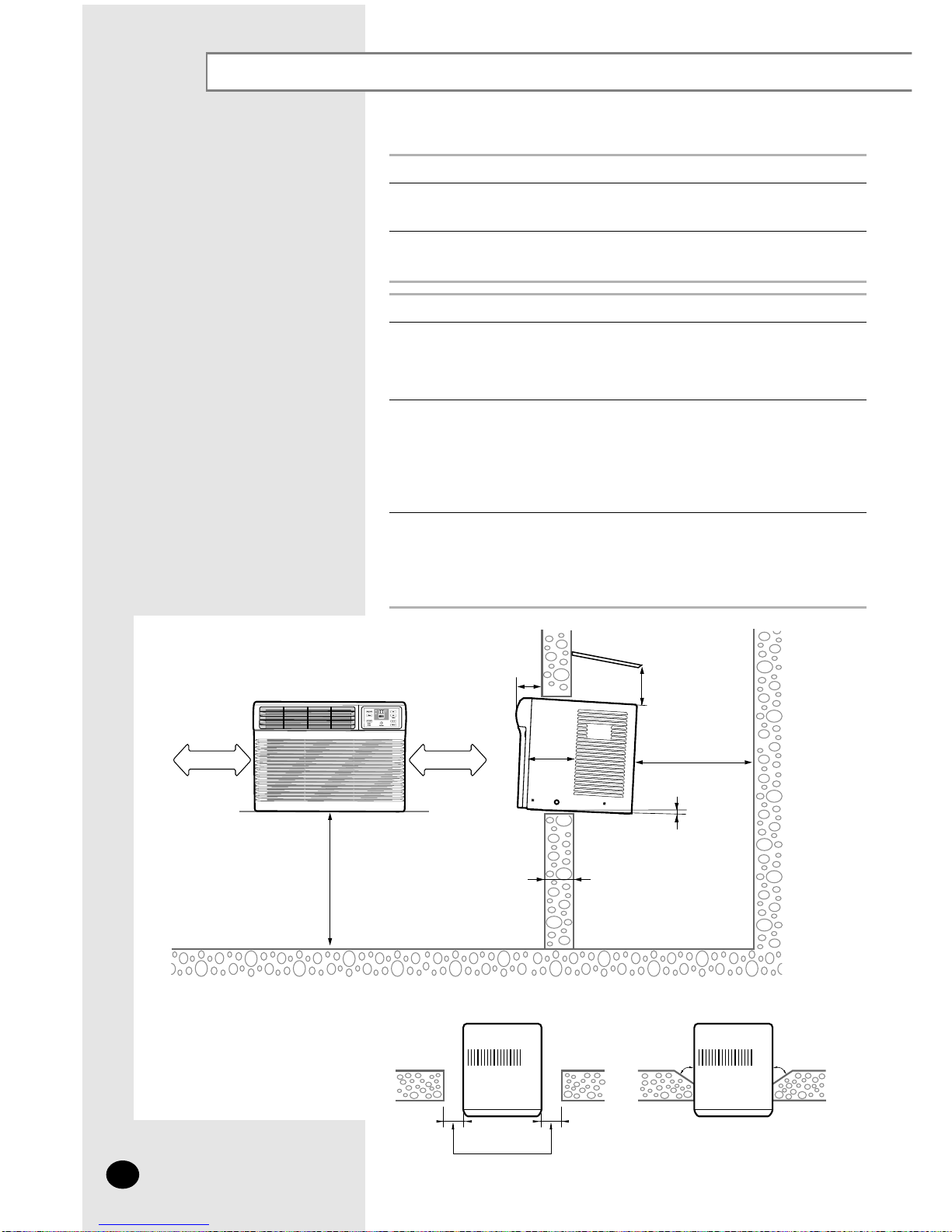

Installation
500mm 500mm
30mm
min.
300mm
500mm Fence, wall
or other
obstacle
110mm min.
Outdoor side
Indoor side
110mm
Approx.3˚
Awning
750mm
➢ ◆ If the wall is greater than 110mm thick,
cut the wall back on a 45˚ angle if possible.
100mm or more
45˚45˚
Before installation, be sure to check the installation area or the air
conditioner, and drain hose.
Checkpoints prior to installation
Check the cabinet and front grille of the unit for any harmful defects
such as scratches.
1
Be sure to check the power supply.
- Refer to the specifications on the label attached to the unit.
2
Installation Conditions
As the unit is heavy, the wall or window of the installation area should
have sufficient strength and durability for operation of the air conditioner,
and for prevention of any vibration or noise.
If it is weak, reinforcement work should be performed separately.
1
It is advisable to install the air conditioner in the north or west side to
prevent the effect of direct sunlight.
When installing it in the south or east side due to unavoidable
circumstances, it is advisable to install the sunshade to prevent the
direct sunlight.
In this case, take care not to cause any hindrance to the flow of outside air.
2
When installing the air conditioner, be sure to obtain sufficient space on
the rear side of the unit for smooth flow of air.
When operating the air conditioner in closed areas such as inner building
with cooling operation, and result in trouble with the unit.
See the illustration below.
3

E-17

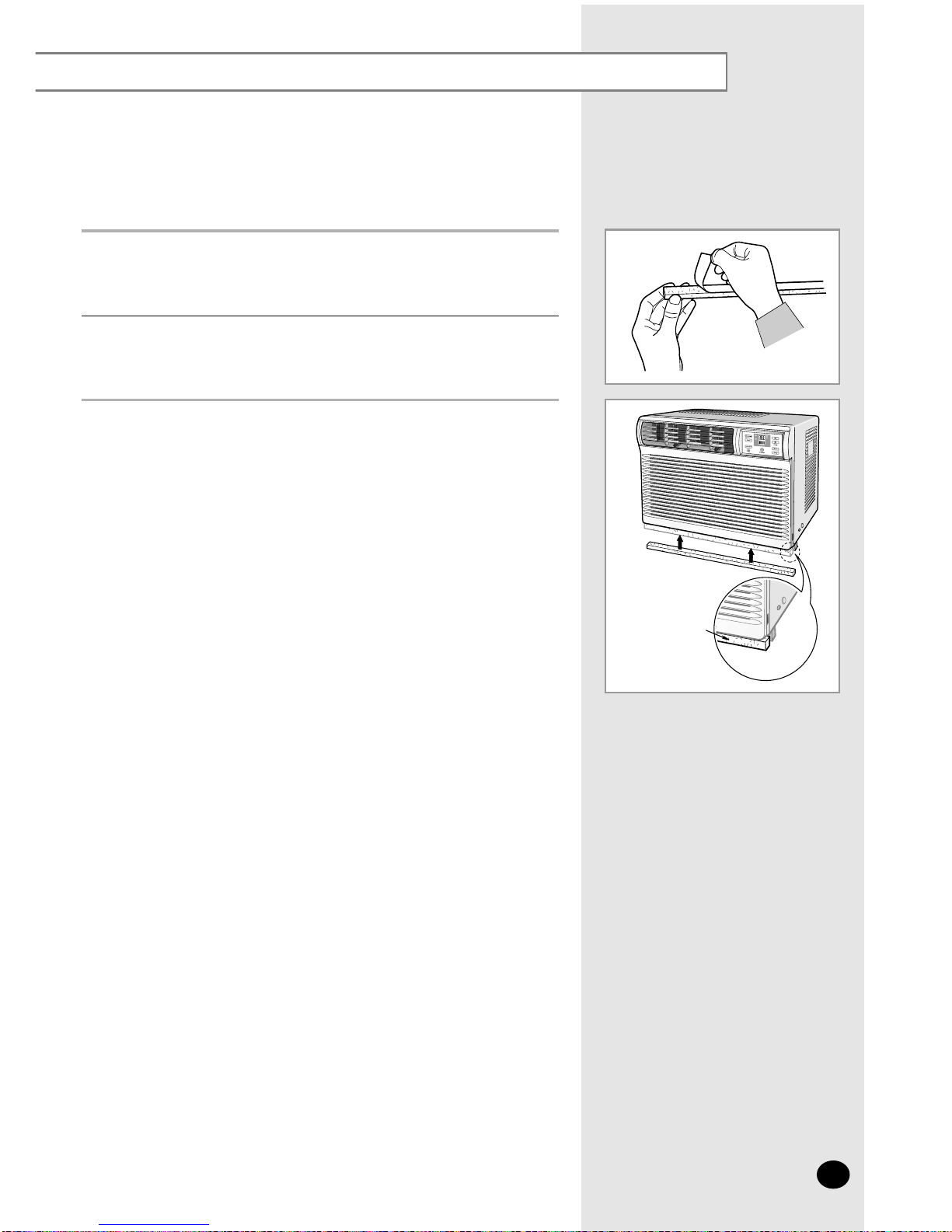

Strip an adhesive bottom gasket off.1
Seal an adhesive bottom gasket to the bottom of the air conditioner.2
Install an adhesive bottom gasket to prevent air and insects from
getting into the room.
Adhesive bottom
gasket

ELECTRONICS
THIS AIR CONDITIONER IS MANUFACTURED BY:
Printed in China
