Samsung AW2492L User manual

DB98-15119A
AW2492L
Window-type Room Air Conditioner
(Cool)
ES
OWNER'S
INSTRUCTIONS

E-2
The following safety precautions must be taken when installing
and using your air conditioner.
Safety Precautions
1 The air conditioner must be plugged into its own specific power source, which must be
installed in compliance with national wiring, earthing and safety regulations.
Depending on national regulations and your specific installation, you may need to install:
A circuit breaker
For further information on electrical requirements, contact a professional electrician.
This device must be installed according to the national electrical rules.
2 Make sure that the unit is correctly ventilated at all times;
do NOT place clothing or other materials over it.
4 Do NOT insert anything between the air outlet blades, as it may damage the inner fan
and you may gethurt. Keep children away from the unit.
5 If the supply cord is damaged, it must be replaced by the manufacturer , its service agent
or similarly qualified persons in order to avoid a hazard.
6 Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:
An authorized service center
The dealer from whom you purchased the air conditioner .
7 Do NOT place any blocking objects in front of the unit.
3 NEVER spill liquids of any kind into the unit.
Should this happen, unplug the unit and contact your installation specialist.
8 If the remote control will not be used for a long time, remove the batteries.
9 Before throwing out the device, it is necessary to pull back the battery cells
and get rid of them safely .
10 The appliance is not intended for use by young children or infirm person without supervision;
young children should be supervised to ensure that they do not play with the appliance.
11 Do NOT use an extension cord with this product.
The manufacturer does not assume responsibility for accidents or injury
caused by an incorrectly installed air conditioner. If you are unsure about
installation, contact an installation specialist.
CC
CCAA AAUU UUTT TTII IIOO OONN NN

E- 3
Contents
PREPARING YOUR AIR CONDITIONER
Safety Precautions ......................................................................................... 2
Description of Each Component .................................................................... 4
Remote Control - Buttons and display ............................................................ 5
Getting Started ............................................................................................... 6
Inserting the Remote Control Batteries .......................................................... 7
UU
UU
SS
SSII IINN NNGG GGTT TTHH HHEE EECC CCOO OONN NNTT TTRR RROO OOLL LLPP PPAA AANN NNEE EELL LLOO OONN NNTT TTHH HHEE EEUU UUNN NNII IITT TT
OPERATING YOUR AIR CONDITIONER
Cooling Your Room ........................................................................................ 9
Ventilating Your Room .................................................................................... 10
Removing Excess Humidity ............................................................................ 11
PROGRAMMING YOUR AIR CONDITIONER

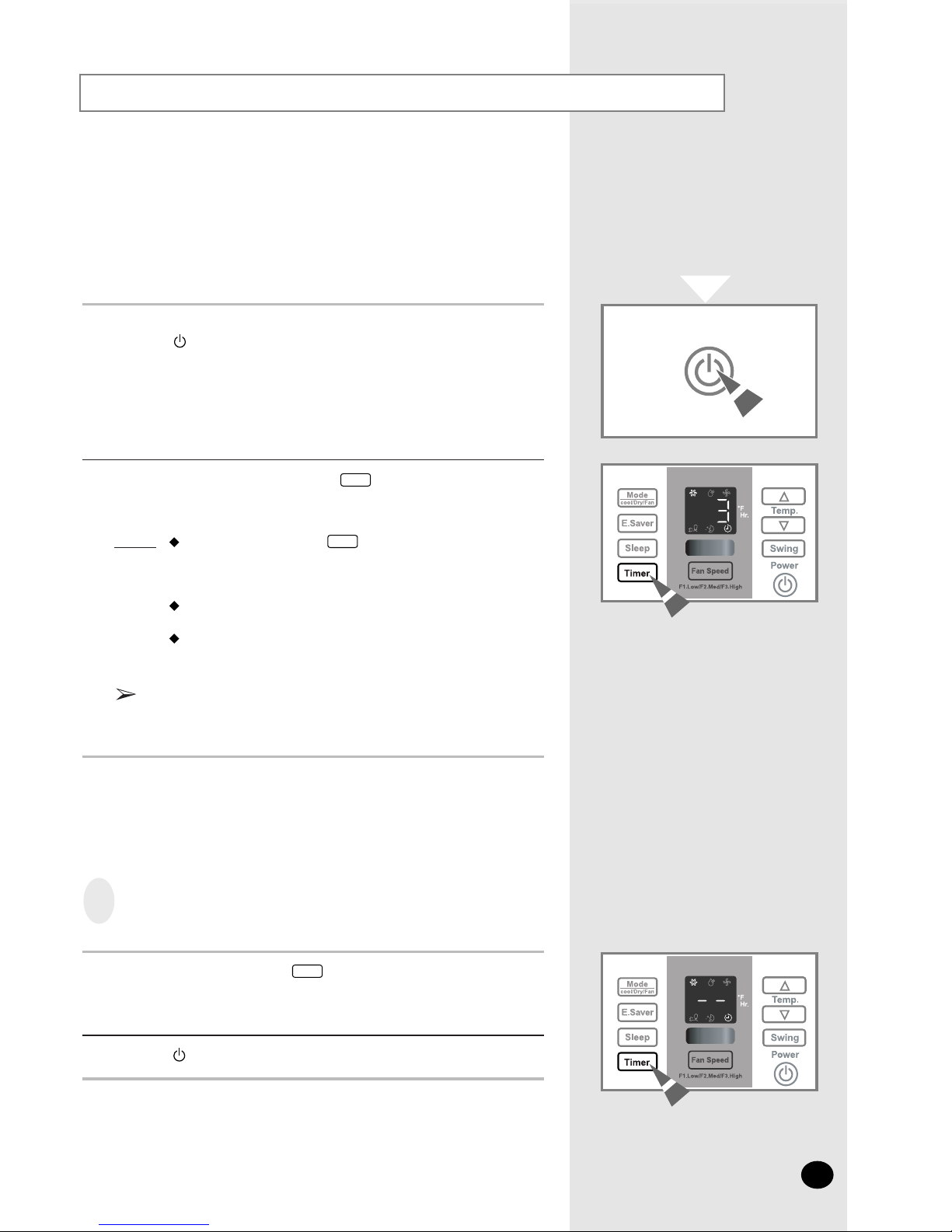

Setting the On Timer ...................................................................................... 12
Setting the Off Timer ...................................................................................... 13
Setting the Sleep Timer .................................................................................. 14

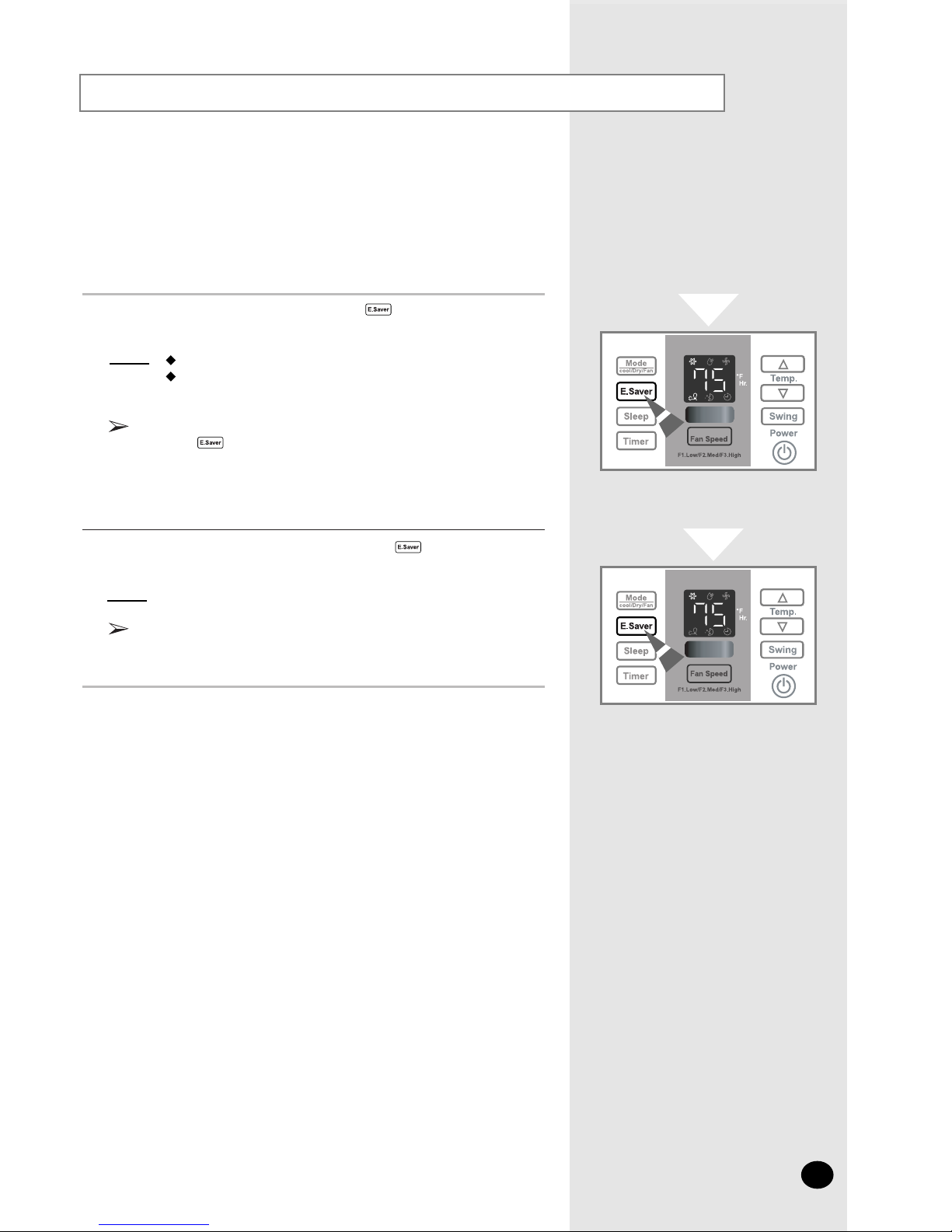

Selecting Energy Saving mode ...................................................................... 15
UU
UU
SS
SSII IINN NNGG GGTT TTHH HHEE EEWW WWII IIRR RREE EELL LLEE EESS SSSS SSRR RREE EEMM MMOO OOTT TTEE EECC CCOO OONN NNTT TTRR RROO OOLL LL
OPERATING YOUR AIR CONDITIONER
Cooling Your Room ........................................................................................ 17
Ventilating Your Room .................................................................................... 18
Removing Excess Humidity ............................................................................ 19
PROGRAMMING YOUR AIR CONDITIONER
Setting the On Timer ...................................................................................... 20
Setting the Off Timer ...................................................................................... 21
Setting the Sleep Timer .................................................................................. 22
Selecting Energy Saving mode ...................................................................... 23
Adjusting the Air Flow Direction Horizontally .................................................. 24
Adjusting the Air Flow Direction Vertically ...................................................... 24
RECOMMENDATIONS FOR USE
Temperature and Humidity Ranges ................................................................ 25
Cleaning Your Air Conditioner ........................................................................ 26
Solving Common Problems ............................................................................ 27
Technical Specifications ................................................................................. 27

Temp.
Power
Swing
Fan Speed
Mode
Cool/Dry/Fan
E.Saver
Sleep
Timer
E-4
Temperature/Timer
settings
Temperature adjustment
buttons
On/Off button
Mode selection button
(Cool,Fan, Dry)
Sleep timer setting button
Timer setting button
Fan speed adjustment button Remote control sensor
Energy Saver button

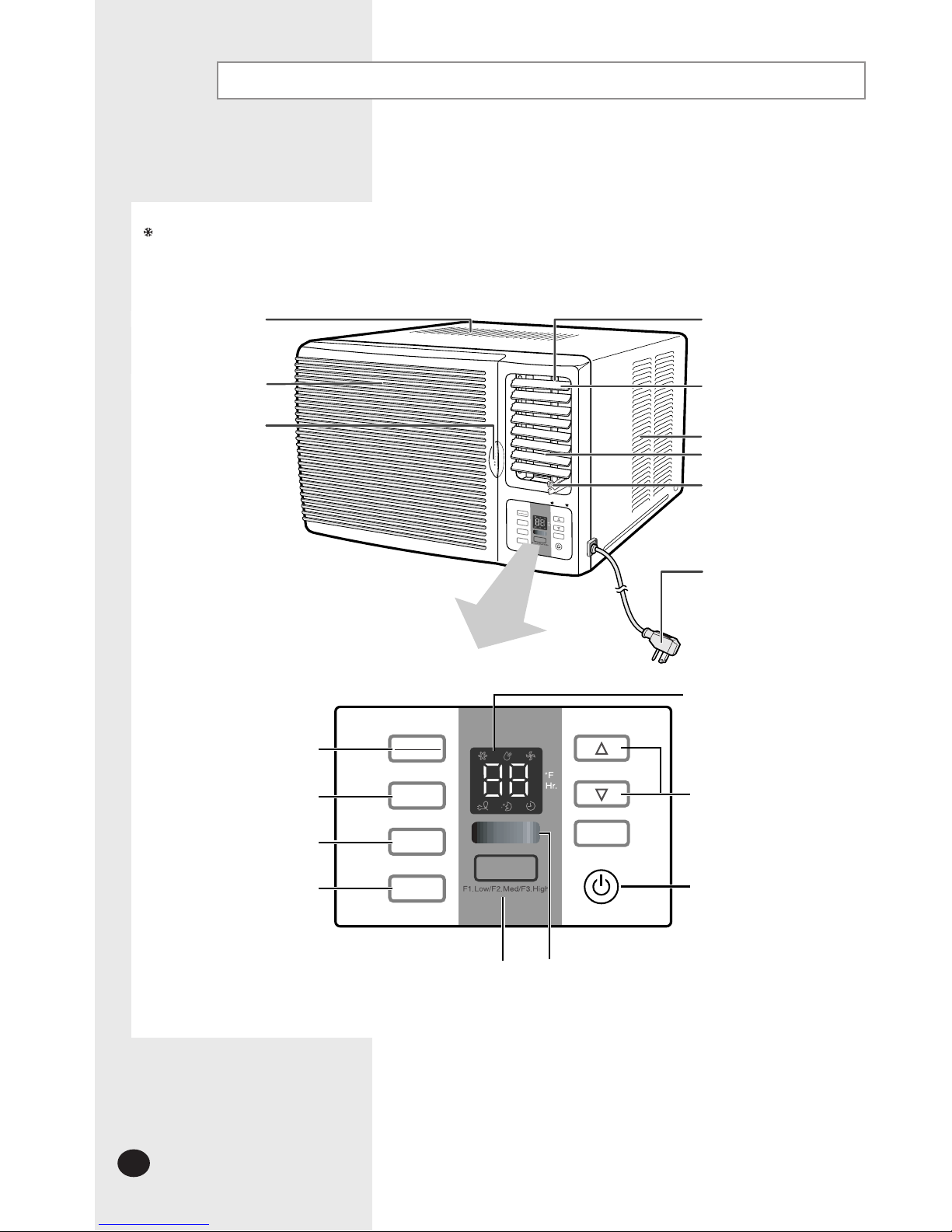

Description of Each Component
The design and shape are subject to
change.
Air filter
(The air filter is
located in inside.)
Air inlet (Inside)
Air outlet
Outer air flow blades
(up/down orientation)
Air inlet (Outside)
Air outlet
Ventilation lever
Power plug (The type of
power plug may differ,
depending on the local
power supply.)
Inner air flow blades
(right/left orientation)
Temp.
Power
Swing
Mode
Cool/Dry/Fan
E.Saver
Sleep
Timer
FanSpeed

E-5

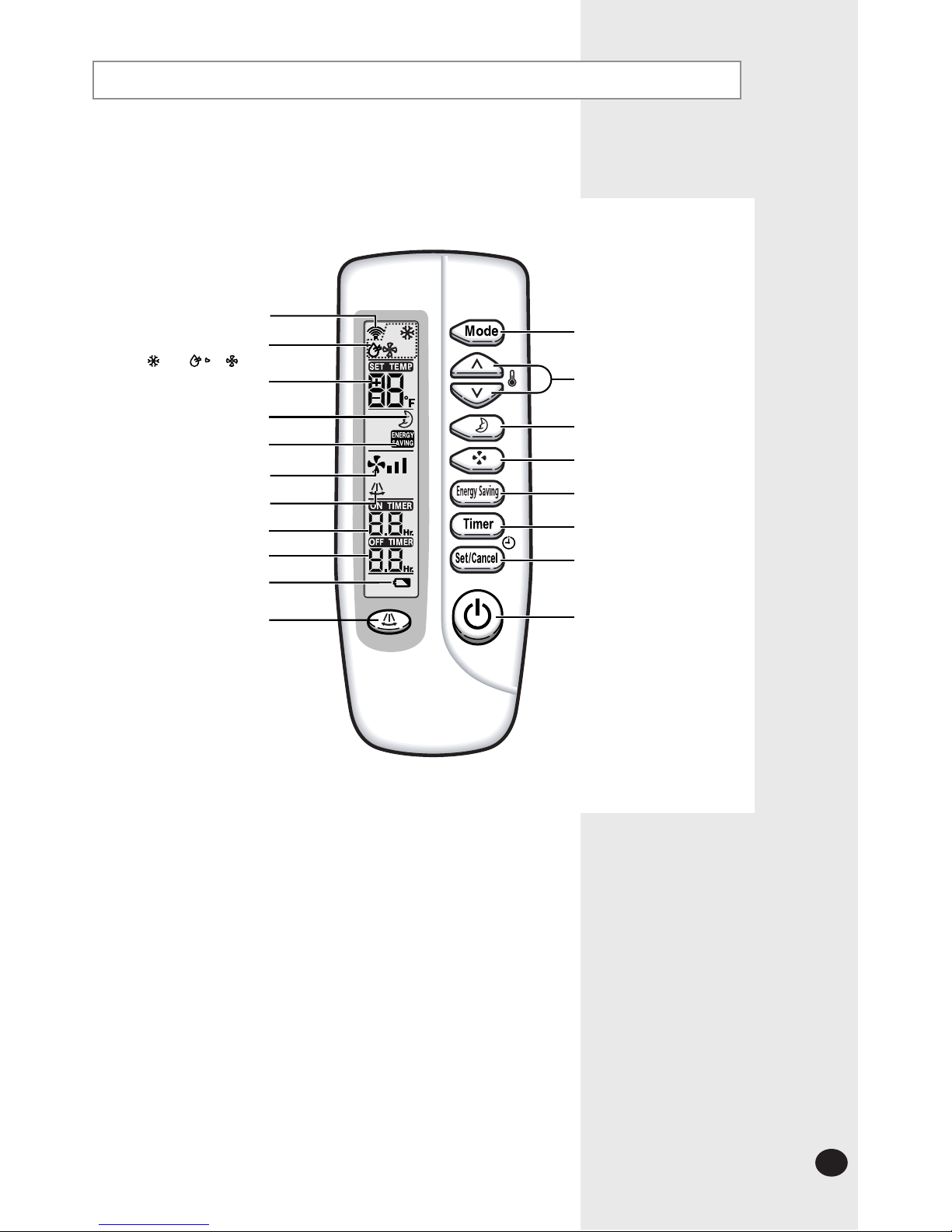

Remote Control - Buttons and display
Operating mode
( Cool, Dry, Fan)
Remote control
transmission indicator Mode selection button
(Cool, Fan, Dry)
Sleep timer setting button
Energy Saving button
Timer setting button
Timer Set/Cancel button
On/Off button
Fan speed adjustment
button
Temperature adjustment
buttons
Temperature setting
Sleep mode
Energy Saving mode
Fan speed
Air flow direction
On Timer setting
Off Timer setting
Battery discharge indicator
Air flow blade swing button

PRESS PUSH IMPORTANT NOTE
Getting Started
You have just purchased a Samsung window-type r oom air conditioner which should be installed
following your installation manual.
Your Owner’s Instructions contain much valuable information on using your air conditioner.
Please take the time to r ead them as they will help you take full advantage of the unit’ s features.
The booklet is organized as follows.
The following figures are shown on pages 4 and 5:
-Description of Each Component
-Remote control (buttons & display)
They will help you find the buttons and understand the symbols displayed.
In the manual, you will find a series of step-by-step pr ocedures for each function
available.
The illustrations in the step-by-step procedures use four different symbols:
E-6

E- 7
Inserting the Remote Control Batteries
Push the battery cover on the rear of the remote control with your thumb
in the direction of the arrow and remove it.
Insert the two batteries, taking care to respect the polarities :
+ on the battery with + on the remote control.
- on the battery with - on the remote control.
1
2
Close the cover by sliding it back until it clicks into place.
3
Use two AAA, LR03 1.5V batteries.
Do not use old batteries or different kinds of batteries together.
Batteries may be completely discharged after 12 months, even
if they have not actually been used.
You must insert or replace the remote control batteries when :
You purchase the air conditioner
The remote control does not work correctly

E-8
This chapter indicates how to operate and program
your air conditioner with the control panel on the unit.
UU
UUss ssii iinn nngg gg tt tthh hhee ee
CC
CCoo oonn nntt ttrr rroo ooll ll PP PPaa aann nnee eell ll
oo
oonn nn tt tthh hhee ee UU UUnn nnii iitt tt
Temp.
Power
Swing
FanSpeed
Mode
Cool/Dry/Fan
E.Saver
Sleep
Timer

E- 9

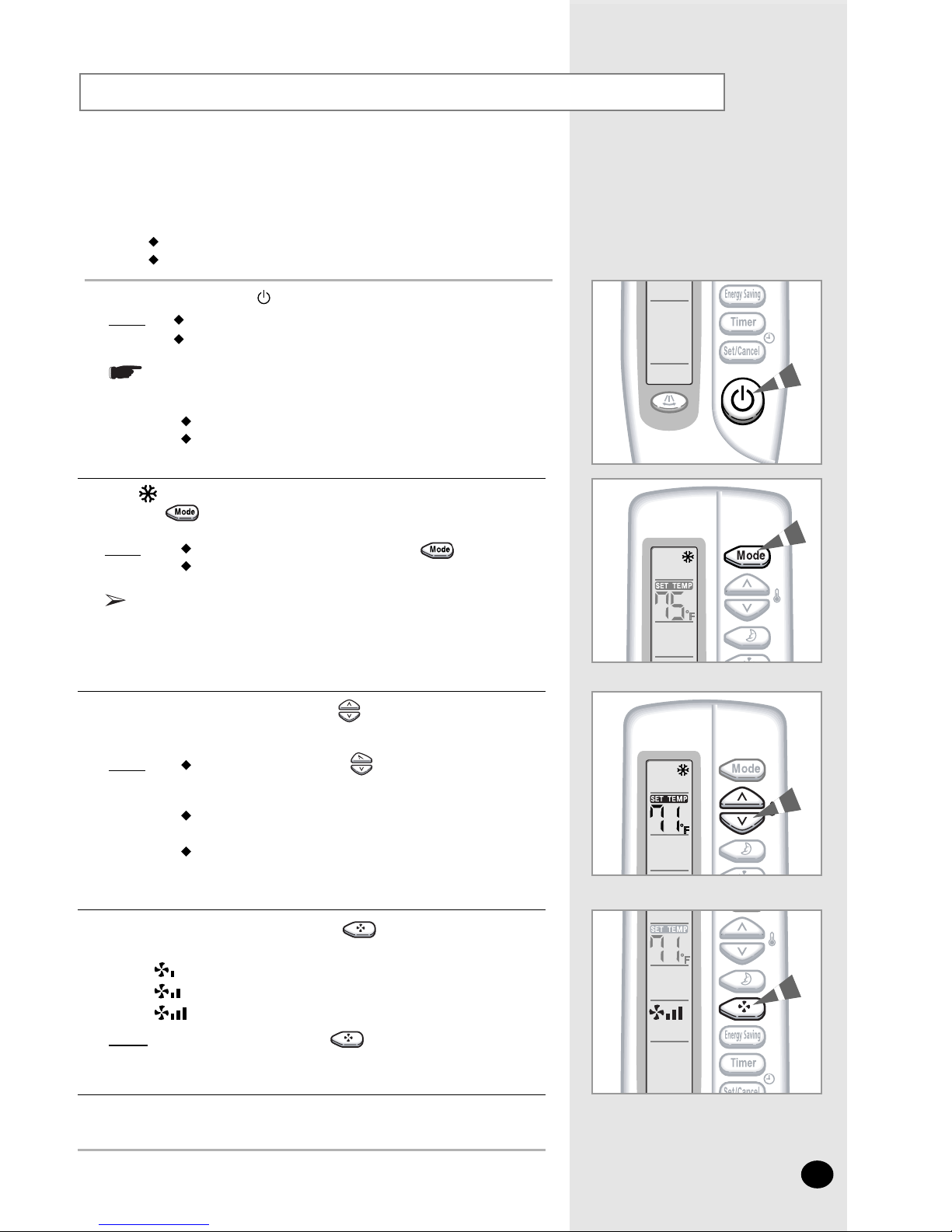

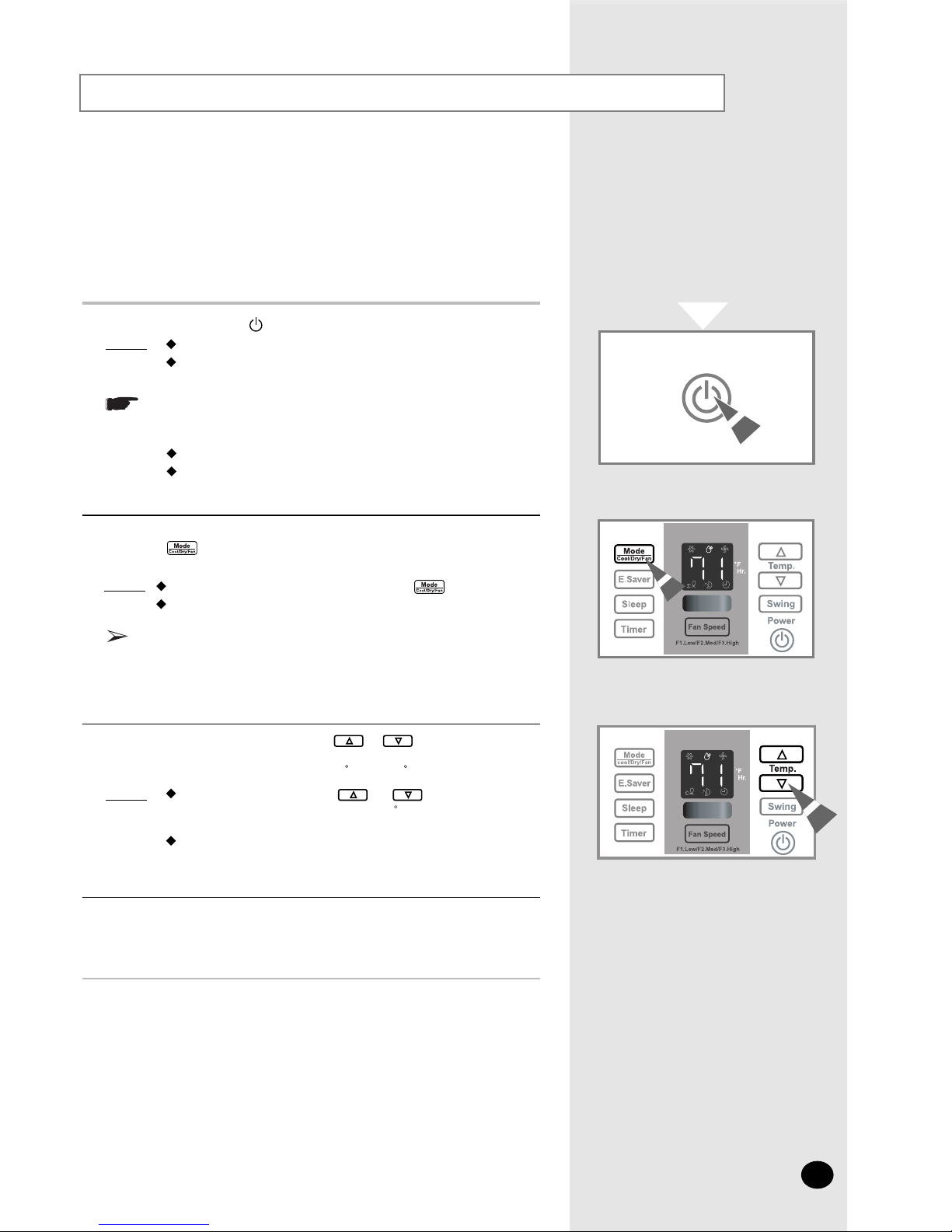

Cooling Your Room
Power
Control Panel
You must select the Cool mode if you wish to lower the temperature
in your room. You can also set the Fan speed.
Press the (On/Off) button.
Result:
The air conditioner is fitted with a protection mechanism to prevent
the unit from being damaged when it is started immediately after
being:
Plugged in
Stopped
It will start up normally after three minutes.
If the temperature is not displayed on the control panel:
Press the button on the unit one or more times until the
temperature is displayed.
The unit beeps each time you press the button.
The air conditioner starts up in the Cool mode.
You can chang modes at any time.
Each time you press the or buttons:
- The temperature is adjusted by 1 F and displayed on
the control panel
- The unit beeps
To set the fan speed:
Press the button on the unit one or more times until the
desired the Fan speed(F1, F2 or F3) is displayed.
To control the direction of the air flow, refer to page 24.
To adjust the temperature, press the or buttons on the unit one
or more times until the desired temperature is displayed.
The temperature can be set between 64 Fand 86 F.
Result:
Result:
The air conditioner starts up in the cool mode.
The unit beeps twice.
1
2
3
4
5
Mode
Cool/Dry/Fan
Mode
Cool/Dry/Fan
Fan Speed
The air conditioner starts cooling, if the room temperature is
higher than the selected temperature.
If the room temperature reaches the set temperature, the air
conditioner stops cooling, but the fan is still operating.
Low
Medium
High

Power
Control Panel
E-10
To set the fan speed:
Press the button on the unit one or more times until the
desired fan speed(F1, F2 or F3) is displayed.
Low
Medium
High
4
To control the direction of the air flow, refer to page 24.
5
If the fan speed(F1, F2 or F3) is not displayed on the control panel:
Press the button on the unit one or more times until the fan speed
(F1, F2 or F3) is displayed.
Result: The unit beeps each time you press the button.
The air conditioner starts up in the Fan mode.
You can change modes at any time.
When the air conditioner is in the Fan mode, the temperature
cannot be set or displayed.
3
If the air in your room is stale, you can ventilate the room using the Fan feature.
1
If necessary, press the (On/Off) button.
Result: The air conditioner starts up in the mode selected when
the unit was last used.
The unit beeps twice.
2
If you wish to discharge stale air, push the ventilation lever on the front of the
unit to the right and open position ( ).
Result: The air inside the room circulates and stale air is discharged
outside.
Otherwise, push the ventilation lever to the left and closed position ( ).
Result: The air simply circulates inside the room.
Temp.
Power
Swing
Mode
Cool/Dry/Fan
E.Saver
Sleep
Timer
Fan Speed
Temp.
Power
Swing
Mode
Cool/Dry/Fan
E.Saver
Sleep
Timer
Fan Speed
Ventilating Your Room

E- 11
Removing Excess Humidity
The air conditioner starts up in the Cool mode.
If the atmosphere in your room is very humid or damp,you can remove
excess humidity without lowering the room temperature too much.
If necessary, press the (On/Off) button.
Result:
The unit beeps twice.
1
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
Plugged in
Stopped
It will start up normally after three minutes.
To adjust the temperature, press the or buttons one or
more times until the required temperature is displayed.
Possible temperatures are between 64 F and 86 F inclusive.
2
3
4To control the direction of the air flow, refer to page 24.
Result: Each time you press the or buttons:
- The temperature is adjusted by 1 F
- The unit beeps
The air conditioner starts removing the excess humidity;
the quantity of air is adjusted automatically.
If the temperature is not displayed on the control panel:
press the button the unit one or more times until the
temperature is displayed.
You can change modes at any time.
Result:
Power
Control Panel
The air conditioner starts up in the cool mode.
The unit beeps each time you press the button.

E-12
The On Timer enables you to switch on the air conditioner automatically after a
given time,You can select the On Timer only when the air conditioner is off.You
can select t he On timer when the air conditioner operates in the Cool or Dry mode.
Check that the air conditioner has been switched off; if necessary,
press the (On/Off) button.
Set the operating time by pressing the button on the unit one or
more times until the desired time is displayed. The operating time can be
set between 1 and 24 hours.
Result: Each time you press the buton:
- The time is adjust by 1 hour and displayed on the control
panel
- The unit beeps
The operating time is displayed and decreases automatically to
indicate the remaining time.
The air conditioner starts up in the Cool mode automatically
when the operating time reaches zero.
You can select the fan speed, temperature and Energy saving mode
after setting the On timer and Off timer mode. However, when you
change the mode, the On timer and Off timer mode is cancelled.
1
2
To Cancel the On Timer
To cancel the timer, press the button on the unit one or more times
until "--" is displayed.
1
Timer
Timer
Timer
2Press the (On/Off) button on the unit.
Setting the On Timer
Power
Control Panel

E- 13
Setting the Off Timer
2
2
Each time you press the button:
- The time is adjusted by 1 hour and displayed on the control
panel
- The unit beeps
The operating time is displayed and decreases automatically to
indicate the remaining time.
The air conditioner switches off automatically when the
operating time reaches zero.
To cancel the timer, press the button on the unit one or more
times until "--" is displayed.
Press the (On/Off) button on the unit.
2
1
You can select the fan speed, temperature and Energy saving mode
after setting the On timer and Off timer mode. However, when you
change the mode, the On timer and Off timer mode is cancelled.
Set the operating time by pressing the button on the unit one or
more times until the desired time is displayed. The operating time can be
set between 1 and 24 hours.
The Off Timer enables you to switch off the air conditioner automatically after a
given time.You can select the On timer only when the air conditioner is on.You
can select the Off timer when the air conditioner operates in the Cool or Dry mode.
Check that the air conditioner has been switched on; if necessary,
press the (On/Off) button.
1
Result:
To Cancel the Off Timer
Timer
Timer
Power
Control Panel
Timer

E-14
Setting the Sleep Timer
The Sleep Timer can be used when your are cooling your room to switch
the air conditioner off automatically after 8 hours.
If you wish to switch the unit off at a specific time, refer to page 13.
1 Make sure that you have selected the Cool mode.
2 Press the button on the unit.
Result:Each time you press a button, the unit beeps.
The " " will be displayed.
The remaining time is displayed and decreased by 1 hour
automatically to indicate the remaining time.
The air conditioner will be controlled as illustration below
.
To cancel the timer, press:
The button on the unit.
Result: The unit beeps.
The SLEEP indicator is no longer displayed.
The air conditioner operates in the mode selected last.
If you select the Energy Saving mode in the Sleep Timer mode,
the Sleep Timer will be cancelled and the air conditioner will start
up in the Energy Saving mode.
To Cancel the Sleep Timer
Cooling When the temperature has
been increased by 2 F
(after 1 hour), it is maintained
for 7 hours.
Power
Control Panel

E- 15
Setting Energy Saving Mode
If the wish to save energy when using your air conditioner,
select the energy saving mode.
To select the energy saving mode, press the button on the unit one
or more times until the Energy Saver indicator lights up.
1
To stop the energy saving mode, press the the button
on the unit again.
2
The fan and compressor cycle on and off together.
The fan will continue to run for a short time after the
compressor cycles off.
Result: The fan runs at all times, while the compressor cycles on and off.
If you select the Sleep Timer in the Energy Saving Mode, the Energy
Saving will be cancelled and the air conditioner will start up in the
Sleep Timer mode.
If you would like the air conditioner to run in the Dry mode, do not
press the button.You cannot use the Dry mode in the energy
saving mode.
Result:
Control Panel
Control Panel

E-8
This chapter indicates how to operate and program
your air conditioner with the control panel on the unit.
E- 16
UU
UUss ssii iinn nngg gg tt tthh hhee ee
WW
WWii iirr rree eell llee eess ssss ss
RR
RRee eemm mmoo oott ttee ee
CC
CCoo oonn nntt ttrr rroo ooll ll

E- 17
Cooling Your Room
1If necessary, press the (On/Off) button.
Result: The air conditioner starts up in the Cool mode.
The unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
Plugged in
Stopped
lt will start up normally after three minutes.
If the is not displayed at the top of the remote control,
press the button on the remote control one or more times until it
appears.
Result:The unit beeps each time you press the button.
The air conditioner runs in the Cool mode.
2
You can change modes at any time.
To adjust the temperature, press the buttons one or more times
until the required temperature is displayed.
Possible temperatures are between 64°F and 86°F inclusive.
Result: Each time you press the buttons:
- The temperature is adjusted by 1°F
- The unit beeps
The air conditioner starts cooling, if the room temperature is
higher than the selected temperature.
If the room temperature reaches the set temperature, the air
conditioner stops cooling, but the fan is still operating.
3
Select the fan speed by pressing the button one or more times
until the required setting is displayed:
Low
Medium
High
Result: Each time you press the button, the unit beeps.
4
To control the direction of the air flow, refer to page 24.
5
You must select the Cool mode if you wish to adjust the:
Cooling temperature
Fan speed when cooling

E-18
Ventilating Your Room
3If the is not displayed at the top of the remote control,
press the button on the remote control one or more times until it
appears.
Result: The unit beeps each time you press the button.
The air conditioner runs in the Fan mode.
The temperature is set automatically.
You can change modes at any time.
4Select the fan speed by pressing the button one or more times
until the required setting is displayed:
Low
Medium
High
Result: Each time you press the button, the unit beeps.
5To control the direction of the air flow, refer to page 24.
If the air in your room is stale, you can ventilate the room using the Fan feature.
1
If necessary, press the (On/Off) button.
Result: The air conditioner starts up in the Cool mode.
The unit beeps twice.
2
If you wish to discharge stale air, push the ventilation lever on the front of the
unit to the right and open position ( ).
Result: The air inside the room circulates and stale air is discharged
outside.
Otherwise, push the ventilation lever to the left and closed position ( ).
Result: The air simply circulates inside the room.
Temp.
Power
Swing
Mode
Cool/Dry/Fan
E.Saver
Sleep
Timer
Fan Speed
Temp.
Power
Swing
Mode
Cool/Dry/Fan
E.Saver
Sleep
Timer
Fan Speed

E- 19
Removing Excess Humidity
If the atm osphere in your room is very humid or dam p, you can rem ove
exces s hum idity w ithout low ering the room temperature too m uch.
1If necessary, press the (On/Off) button.
Result: The air conditioner starts up in the Cool mode.
The unit beeps.
The air conditioner is fitted with a protection mechanism
to prevent the unit from being damaged when it is started
immediately after being:
Plugged in
Stopped
It will start up normally after three minutes.
2If the is not displayed at the top of the remote control, press the
button on the remote control one or more times until it appears.
Result:
The unit beeps each time you press the button.
The air conditioner runs in the Dry mode.
You can change modes at any time.
3To adjust the temperature, press the buttons one or more times
until the required temperature is displayed.
Possible temperatures are between 64°F and 86°F inclusive.
Result: Each time you press the buttons:
- The temperature is adjusted by 1°F
- The unit beeps
The air conditioner starts removing the excess humidity;
the quantity of air is adjusted automatically.
4To control the direction of the air flow, refer to page 24.

E-20
Setting the On Timer
If you want to turn on the air conditioner before the timer reaches
the setting time, press the (On/Off) button.
The On Timer enables you to switch on the air conditioner automatically after a
given time. You can select the On timer only when the air conditioner is off. You
can select the On timer when the air conditioner operates in the Cool or Dry mode.
To set the operating time, press the button one or more times until
the required time is displayed. Possible time is between 1 hour and
24 hours inclusive.
1
Press the (Set/Cancel) button to complete the setting.
Result: The remaining time is displayed.
Blinking of the timer indicator stops.
The air conditioner will switch on automatically when the
counter displayed on the remote control reaches the set time
and disappears the On timer setting.
You can select the temperature, Energy saving mode after setting
the On timer mode.
2
Press the (Set/Cancel) button.1
To Cancel the On Timer
