Samsung AZ09A0KE User manual

ENGLISH
ESPAÑOL
FRANÇAIS
PORTUGUÊS
ITALIANO
OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’UTILISATIO
MANUAL DE INSTRUÇÕES
ISTRUZIONI PER L’USO
AZ09A1KE
WH09ZA
WH09ZA1A
Window-type Room Air Conditioner ( Cool and Heat )
Acondicionador de aire doméstico sistema de tipo ventana ( Refrigeración y Calefacción )
Climatiseur de type Fenêtre ( Refroidissement et Chauffage )
O ar Condicionado de Window-Type ( Refrigeração e Aquecimento )
Condizionatore d’aria per ambienti da finestra ( Raffreddamento e Riscaldamento )
E S F P I
DB68-00941B(2)

The following safety precautions must be taken when installing
and using your air conditioner.
Safety Precautions
1 The air conditioner must be plugged into its own specific power source, which must be
installed in compliance with national wiring, earthing and safety regulations.
Depending on national regulations and your specific installation, you may need to install:
◆ A circuit breaker
For further information on electrical requirements, contact a professional electrician.
This device must be installed according to the national electrical rules.
2 Make sure that the unit is correctly ventilated at all times;
do NOT place clothing or other materials over it.
4Do NOT insert anything between the air outlet blades, as the inner fan may be damaged
and you may be hurt. Particularly, keep children away from the unit.
5ALWAYS ensure that the power cable is in good condition.
Make sure that it is not walked on or damaged by items placed on or against it.
If the power cord is damaged in any way, it must be replaced by an approved
power cord available from the manufacturer or its service agent.
6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:
◆ An approved service center
◆ The outlet at which the air conditioner was purchased
7Do NOT place any obstacles in front of the unit.
3NEVER spill liquids of any kind into the unit.
Should this happen, unplug the unit and contact your installation specialist.
8The appliance is not intended for use by young children or infirm person without
supervision; young children should be supervised to ensure that they do not play with
the appliance.
The manufacturer do not take the responsibility of the accident happened
because the air conditioner is not fixed firmly or installed securely, during
installing or using the product. In case you have difficulty in installation,
you must ask for an installation specialist help. The accident will be hap-
pened in case of installing improperly.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
E-2

Contents
◆PREPARING YOUR AIR CONDITIONER
■Safety Precautions ......................................................................................... 2
■Air Conditionin Unit - Main Parts and Control Panel .................................... 4
■Gettin Started ............................................................................................... 5
◆OPERATING YOUR AIR CONDITIONER
■Coolin Your Room ........................................................................................ 6
■Heatin Your Room ........................................................................................ 7
■Airin Your Room ........................................................................................... 8
■Switchin the Air Conditioner Off .................................................................... 8
■Adjustin the Air Flow Direction Horizontally .................................................. 9
■Adjustin the Air Flow Direction Vertically ...................................................... 9
◆RECOMMENDATIONS FOR USE
■Operatin Recommendations ......................................................................... 10
■Temperature and Humidity Ran es ................................................................ 11
■Cleanin Your Air Conditioner ........................................................................ 11
■Solvin Common Problems ............................................................................ 12
■Technical Specifications ................................................................................. 13
◆METHOD OFINSTALLATION ................................................................................. 14
E-3
ENGLISH

Air Conditioning Unit - Main Parts and Control Panel
Outer air flow blades
(up/down orientation)
Air inlet (Inside)
Air filter
(The air filter is located in inside )
Ventilation lever
Power plu
(The type of power plu may
differ, dependin on the local
power supply.)
Air Outlet
Air inlet (Outside)
Temperature
control dial
Operatin mode
selection dial
Air flow blade swin switch
Inner air flow blades
(ri ht/left orientation)
❄The desi n and shape are subject to
chan e accordin to the model.
E-4

Getting Started
You have just purchased a window-type room air conditioner and it has been installed
by your installation specialist.
Your Owner’s Instructions contain much valuable information on using your air conditioner.
Please take the time to read them as they will help you take full advantage of the unit’s features.
The booklet is organised as follows.
◆The illustration on page 4 shows the air conditioning unit;
it indicates the location and purpose of the main parts and controls on the unit.
◆ In the main part of the document, you will find a series of step-by-step
procedures for each function available.
The illustrations in the step-by-step procedures use four different symbols:
PRESS PUSH IMPORTANT NOTE
☛
➢
E-5
ENGLISH

Select the operatin mode and fan speed.
To cool your room with a... Set the operating mode
selection dial to...
Hi h fan speed HI COOL
Low fan speed LOW COOL
Result: ◆ The air conditioner starts up in Cool mode.
◆ The fan starts up at the speed selected.
You can chan e modes at any time.
Cooling Your oom
You must select the Cool mode if you wish to lower the temperature
in your room. You can also set the fan speed.
1
2
To control the direction of the air flow, refer to pa e 9.
3
To adjust the temperature, turn the temperature control dial towards
the ri ht and the blue position.
Possible temperatures: Between 18°C and 25°C inclusive.
Result: The air conditioner starts coolin if the room temperature
is hi her than the selected temperature.
29˚C
~ 27˚C
27˚C ~ 23˚C
23˚C
~ 18˚C
➢
E-6

Select the operatin mode and fan speed.
To heat your room with a... Set the operating mode
selection dial to...
Hi h fan speed HI HEAT
Low fan speed LOW HEAT
Result: ◆ The air conditioner starts up in Heat mode.
◆ The fan starts up at the speed selected.
You can chan e modes at any time.
You must select the Heat mode if you wish to heat your room
to a specific temperature. You can also select the fan speed.
To adjust the temperature, turn the temperature control dial towards
the left and the red position.
Possible temperatures: Between 25°C and 29°C inclusive.
Result: The air conditioner starts heatin if the room temperature
is lower than the selected temperature.
2
To control the direction of the air flow, refer to pa e 9.
3
Heating Your oom
1
29˚C
~ 27˚C
27˚C ~ 23˚C
23˚C
~ 18˚C
➢
E-7
ENGLISH

To switch the unit off, simply set the operatin mode selection dial
to the OFF position.
Result: The air conditioner stops operatin .
Airing Your oom
Switching the Air Conditioner Off
If the atmosphere in your room is stale, you can air it using
the Fan feature and if necessary, evacuate the stale air outside.
You can switch the air conditioner off whenever you want.
1
Set the operatin mode selection dial to the FAN position.
Both fan settin s (left and ri ht) have the same function.
Result:
The air conditioner starts up in Fan mode.
2
To control the direction of the air flow, refer to pa e 9.
3
➢
If you wish to evacuate stale air outside, pull the ventilation lever on the front
of the unit and the open position ( ).
Result: The air inside the room circulates and stale air is evacuated outside.
Otherwise, push the ventilation lever and the closed position ( ).
Result: The air simply circulates inside the room.
Open
Position Closed Position
E-8

Adjusting the Air Flow Direction Horizontally
Adjusting the Air Flow Direction Vertically
Depending on the position of the unit in your room, you can adjust the
orientation of the inner air flow blades on the right-hand side of the
unit, thus increasing the efficiency of the air conditioner.
1
To stop the blades movin left and ri ht, set the air flow blade swin switch
to the position.
To stop the blades in a specific position and orient the air flow in the
correspondin direction, simply set the switch to the position
when the blades are in the required position.
2
Set the air flow blade swin switch to the position .
Result: The inner blades swin automatically left and ri ht.
The blades may stop swin in momentarily when the Deice function
is activated (see pa e 10 for further details on this function).
They will start swin in a ain automatically as soon as the Deice
function stops.
Again depending on the position of the unit in your room, you can
adjust the orientation of the outer air flow blades on the right-hand
side of the unit.
RECOMMENDATION When...
Coolin
Heatin
Adjust the blades to face...
Upwards.
Downwards.
Adjust the air flow blades to the required position, by pushin them
upwards or downwards.
If you orient the air flow blades downwards and the unit operates
in Cool mode for a lon period of time, dew may:
◆ Form on the surface of the blades
◆ Drip from the blades
➢
➢
➢
E-9
ENGLISH

Here are a few recommendations that you should follow when using
your air conditioner.
Topic ecommendation
The heat pump inside the air conditioner absorbs heat from
outside air and brin s it indoors. If the temperature of the outside
air drops, the air conditioner will heat less. If you find that the
room is not warm enou h, use an additional heatin appliance.
Heating
performances
The air conditioner circulates warm air to heat your room;
as a result, some time will be required after startin
the air conditioner to warm the entire room. If necessary,
set the air conditioner oin a short time before you wish
to use the room.
Warm air
circulation
When outside temperatures are low and humidity is hi h,
frost may form in the unit’s condenser when heatin with your
air conditioner.
If this happens:
◆ The unit stops heatin
◆ The air flow blades stop swin in
◆ The Deice mode is tri ered automatically for about
five minutes.
No intervention is required from you; after about five minutes,
the air conditioner starts operatin a ain normally.
Frost
If both the indoor and outdoor temperatures are hi h and you
select the Heat mode, the fan and compressor in the unit may
stop at times. This is normal; simply wait until the air conditioner
switches on a ain.
High indoor
and outdoor
temperatures
If a power failure occurs when the air conditioner is operatin ,
the unit is switched off. When the power returns,
the air conditioner starts up a ain automatically.
Power failure
Operating ecommendations
E-10

If the air conditioner is used at... Then...
Hi her temperature The automatic protection feature may be tri ered
and the air conditioner stopped.
Lower temperature A water leaka e or some other malfunction may happen
if the heat exchan er freezes.
Hi her humidity levels Water may condense on and drip from the surface of the unit
if it is used for lon periods.
The following table indicates the temperature and humidity ranges,
within which the air conditioner can be used.
Mode Indoor
Temperatures Outdoor Temperature Indoor Humidity
Heatin
Coolin
28°C or less
21°C to 32°C approx.
0°C to 21°C approx.
21°C to 43°C approx.
-
80% or less
Temperature and Humidity anges

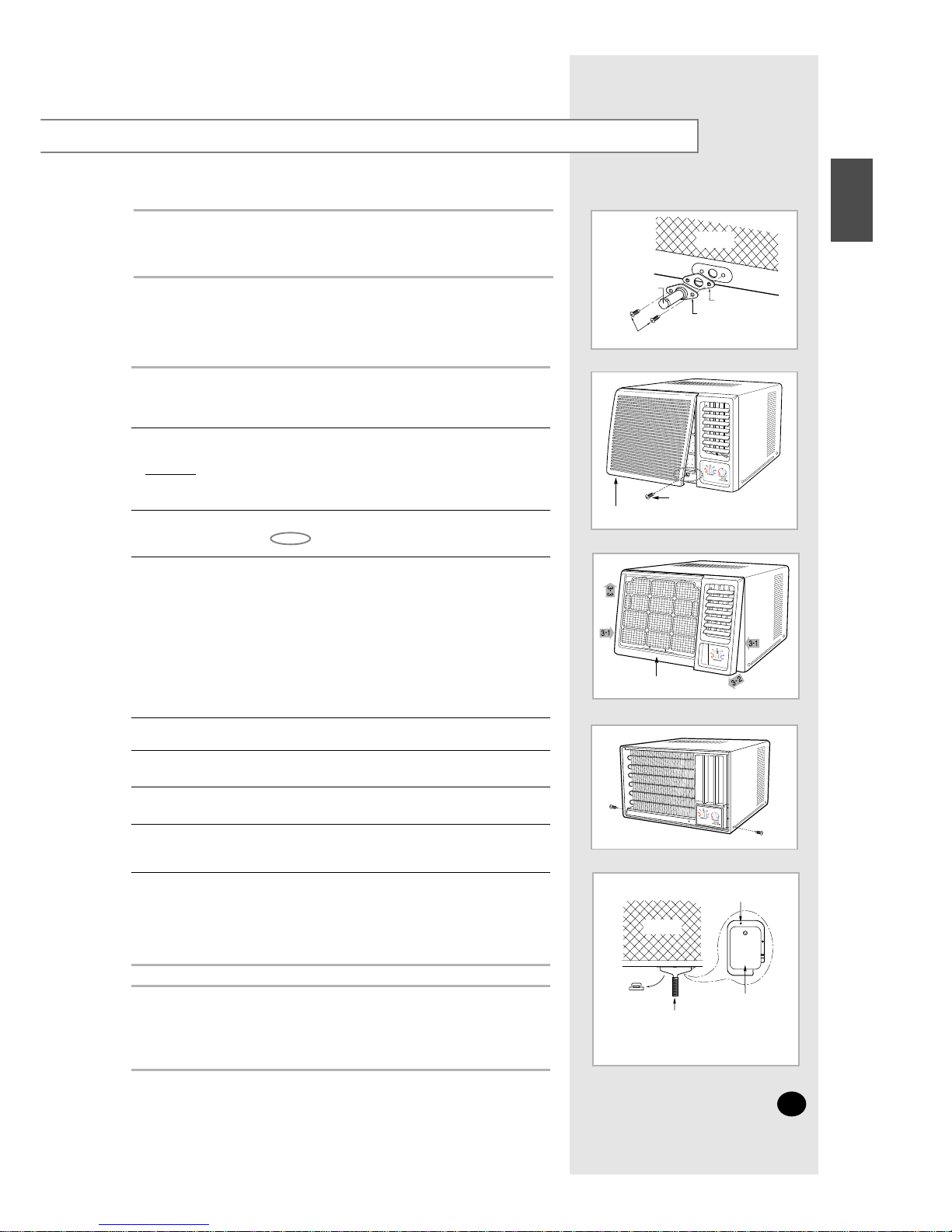

Cleaning Your Air Conditioner
If you... Then...
Will not be usin the ◆ Set the fan oin for a few hours
air conditioner for a to dry the inside of the air conditioner
lon period of time thorou hly.
◆ Switch the air conditioner off and
unplu it from the wall socket.
◆ Clean the filter and outer surfaces.
Have not used the air Set the fan oin for a few hours to
conditioner for a lon dry the inside of the air conditioner
period of time thorou hly.
To get the best possible use out of your air conditioner,
you must clean it regularly by two weeks to remove the dust on the air filter.
Before cleanin your air conditioner, ensure that it is
switched off and unplu ed from the wall socket.
Open the front rille by pullin on the tabs of the unit.
The removal of the front rille makes it easier to clean the air conditioner.
After openin the front rille, lift up as much as possible, and pull down
to release it.
1
Grasp the handle on the air filter and lift it sli htly and then out to the front.
2
Remove all dust on the air filter with a vacuum cleaner or brush.
3
When you have finished, slide the air filter back into position.
4
Clean the outer surfaces with a damp cloth and mild deter ent
(do NOT use benzene, solvents or other chemicals).
Wipe them dry with a clean, soft cloth.
5
☛
➢
➢
Front rille
Front rille
Grille roove
Body uide
E-11
ENGLISH

Solving Common Problems
EXPLANATION / SOLUTION
◆ Check that the circuit breaker used for the air conditioner
has not been tri ered.
◆ Check that the power cable is plu ed into a wall socket and the
socket is switched on, if necessary.
◆ Check that the correct operatin mode has been selected
(coolin , heatin or airin ).
◆ Check that the correct operatin mode has been selected, COOL or HEAT.
◆ The room temperature may be too low or too hi h.
◆ Dust may be blockin the air filter;
refer to pa e 11 for cleanin instructions.
◆ Check that there is no obstacle blockin the air flow into or out of the unit.
P OBLEM
The air conditioner does not
operate at all
The air conditioner does not
cool or heat
◆ Check that the air conditioner has been switched on;
if necessary, turn the operatin mode selection dial.
The air flow direction does not
chan e when you set the air flow
blade swin switch to the
position
◆ Check that the required temperature has been set correctly.
◆ Increase the fan speed.
◆ If the air flow is directed downwards, direct it upwards.
When heatin , the required room
temperature is never reached
and the air conditioner
frequently stops
◆ Air the room.
Odours are permeated in the
room durin air conditionin
Before contacting the after-sales service, perform the following simple checks.
They may save you the time and expense of an unnecessary call.
E-12

Technical Specifications
E-13
ENGLISH
Design and specifications are subject to change without
notice.
Power Supply
220-240V~, 50Hz
Model
AZ09A1KE
WH09ZA
WH09ZA1A

Method of Installation
Before installation, be sure to check the installation area
for the air conditioner, and installation method of the drain hose.
Checkpoints prior to installation
Check the cabinet and front rille of the unit for any harmful defects
such as scratches.
1
Be sure to check the power supply.
- Refer to the specifications on the label attached to the unit.
2
Installation Conditions
As the unit is heavy, the wall or window of the installation area should
have sufficient stren th and durability for operation of the air conditioner,
and for prevention of any vibration or noise.
If it is weak, reinforcement work should be performed separately.
1
It is advisable to install the air conditioner in the north or west side to
prevent the effect of direct sunli ht.
When installin it in the south or east side due to unavoidable
circumstances, it is advisable to install the sunshade to prevent the
direct sunli ht.
In this case, take care not to cause any hindrance to the flow of outside air.
2
When installin the air conditioner, be sure to obtain sufficient space on
the rear side of the unit for smooth flow of air.
When operatin the air conditioner in closed areas such as inner buildin
with coolin operation, and result in trouble with the unit.
See the illustration below.
3
500mm 500mm
85mm
min.
300mm
500mm Fence, wall
or other
obstacle
150mm min.
200mm
Approx.3 ˚
Awnin
750mm
100mm or more
45˚45˚
E-14
➢
◆ If the wall is reater than 150mm thick,
cut the wall back on a 45˚ an le if possible.

Installation of the Drain Pan
The procedure for installin the drain pan should be determined by the
condition of the installin area.
◆ In the case of an area where the drain pan can not be directly
installed on the rear side of the unit after installing the air conditioner.
Example: Hi h stora e
◆ In the case of an area where the drain pan can be directly installed
on the rear side of the unit after installing the air conditioner.
Remove two screws on the lower, ri ht and left sides of the unit.
4
Open the front rille ; refer to pa e 11.
1
emove the screw located at the lower section of the front grille.
It is secured in the section depending on the model.
2
Remove the chassis from the cabinet.
5
Remove the rubber cap inserted into the basepan.
6
Fix the drain pan as shown in the fi ure, and then connect the drain hose.
(You can use any commercially-available drain hose.)
7
Install the cabinet at the specified area after installin the drain pan,
and then re-assemble it in the ori inal condition.
8
Follow steps 6 and 7 only
1
Remove the front panel.
3-1 Press both sides of the cabinet in the direction of the arrow
as shown in the fi ure.
3-2 Pull the lower part of the front panel sli htly forward.
(below three inches/7cm)
3-3 Lift the front panel upward.
3
Applyin excessive force to remove the front panel
may cause dama e to the tab ; be sure not to use
excessive force.
Screw
Front rille
☛Front panel
Rear
Drain Pan
Screw
Rubber cap
Drain Hose
Bottom-Side View with
Drain Pan and Hose in Place
Installation of the Drain Tube
Fix the drain tube as shown in the fi ure.
Rubber cap
Screws(2EA)
Gasket
Rear
Drain Tube
E-15
ENGLISH
Secure the front panel to the case by replacin the screw removed in
step 2. If a screw not removed in step 2, secure the panel with a
supplied screw.
➢

ELECTRONICS
THIS AIR CONDITIONER IS MANUFACTURED BY:
ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR:
CE CLIMATISEUR EST FABRIQUE PAR:
ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR:
QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA:
Printed in Korea
