Samsung CH EAMC Series User manual

ENGLISH
System Air Conditioner (Cooling and Heating)
E S F I P D G R DB98-26330A(4)
CHEAM(1)C Series
ENGLISH
ESPAÑOLFRANÇAISITALIANOPORTUGUÊSDEUTSCH
EΛΛHNIKA
RUSSIAN
INSTALLATION
MANUAL

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
WARNING
 The unit should not be installed by the user. Ask the dealer or autho-
rized company to install the units except room air conditioners for the
U.S.A and Canada area.
 If the unit is installed improperly, water leakage, electric shock or fire
may result.
 Mount with the lowest moving parts at least 2.5 m above the floor or
grade level. (If applicable)
 The manufacturer does not assume responsibility for accidents or injury
caused by an incorrectly installed air conditioner. If you are unsure about
installation, contact an installation specialist.
 When installing the built-in type air conditioner, keep all electrical
cables such as the power cable and the connection cord in pipe, ducts,
cable channels e.t.c to protect them against liquids, outside impacts
and so on.
Installing the unit
 If the power cord of this air conditioner is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
 The unit must be plugged into an independent circuit if applicable or
connect the power cable to the auxiliary circuit breaker. An all pole
disconnection from the power supply must be incorporated in the fixed
wiring with a contact opening of >3mm.
 Do not use an extension cord with this product.
 If the unit is equipped with a power supply cord and a plug, the plug
must be accessible after installation.
 The air conditioner must be installed in accordance with national wiring
regulations and safety regulations wherever applicable.
Power supplyline,
fuse or circuit breaker
Risk of electric shock. • Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.

ENGLISH
E-3
 Preparation for Installation ............................................................................................................... 4
 Deciding Where to Install the Indoor Unit ................................................................................ 5
 Indoor Unit Installation ........................................................................................................................ 7
 Purging the Unit ..................................................................................................................................... 8
 Connecting the Refrigerant Pipe ................................................................................................... 9
 Cutting / Flaring the Pipes ................................................................................................................ 10
 Performing Leak Test & Insulation .............................................................................................. 11
 Connecting the Cables to the Outdoor Unit ............................................................................. 11
 Drainpipe and Drain Hose Installation ....................................................................................... 12
 Connecting the Connection Cord ................................................................................................. 14
 Assigning Address to Indoor Unit ................................................................................................. 15
 Installing the Safety Net ..................................................................................................................... 16
 Troubleshooting ...................................................................................................................................... 17
 Parts List (Optional) ............................................................................................................................. 20
Contents

E-4
Preparation for Installation
When deciding on the location of the air conditioner with the
owner, the following restrictions must be taken into account.
General
Do NOT install the air conditioner in a location where it will
come into contact with the following elements:
 Combustible gases
 Saline air
 Machine oil
 Sulphide gas
 Special environmental conditions
If you must install the unit in such conditions, first consult your dealer.

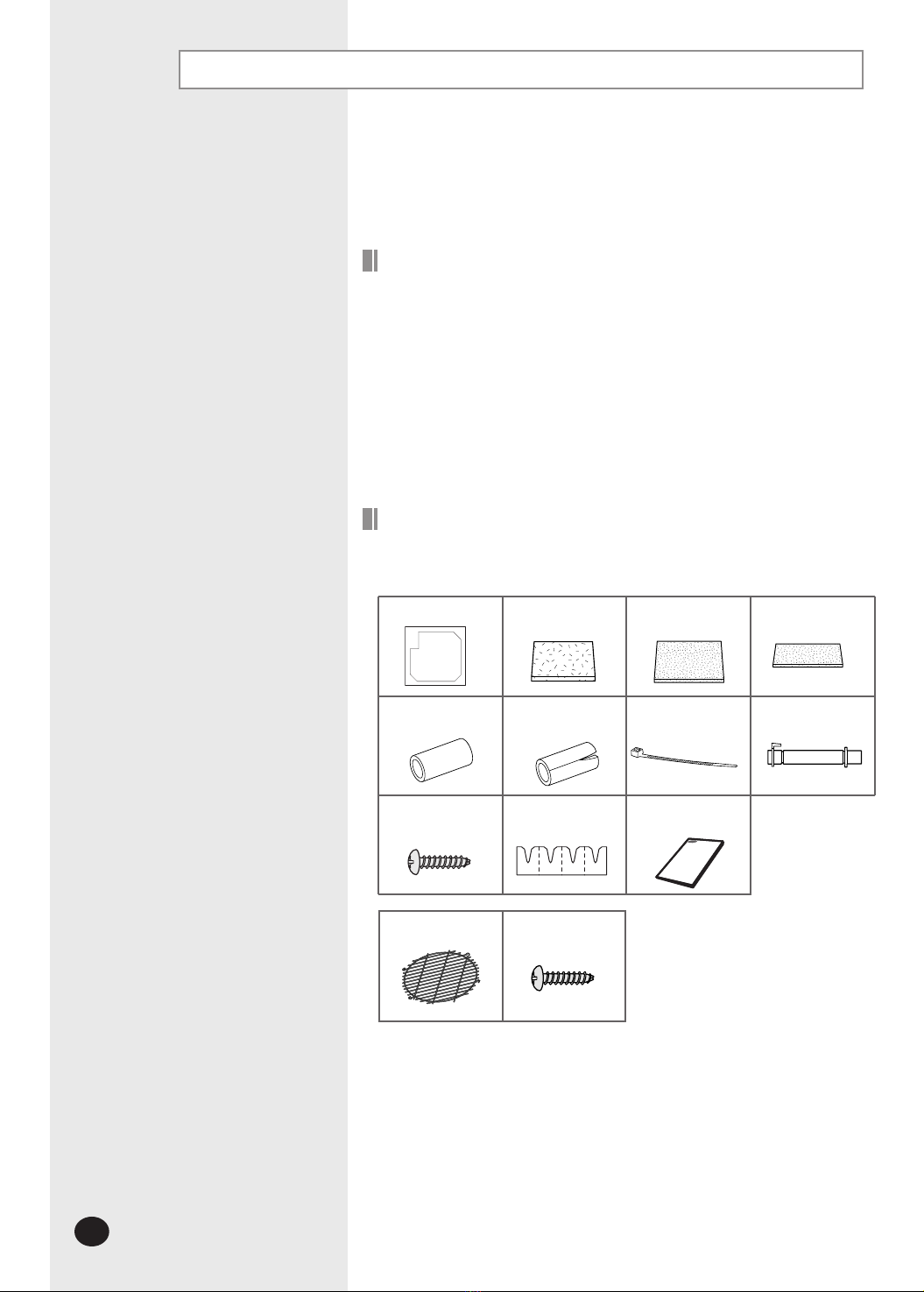

Accessories
 The following accessories are supplied with the indoor unit.
The type and quantity may differ depending on the specifications.
Installation manualM4x12 tapped Screw Pad stopper
Pattern sheet InsulationInsulation cover drain Insulation cover band
Insulation pipe Insulation drain hose Cable-tie Flexible hose
Safety net M4x12 tapped Screw

ENGLISH
E-5
Deciding Where to Install the Indoor Unit
Indoor Unit
 There must be no obstacles near the air inlet and outlet.
 Install the indoor unit on a ceiling that can support its weight.
 Maintain sufficient clearance around the indoor unit.
 Make sure that the water dripping from the drain hose runs away correctly
and safely.
 The indoor unit must be installed in this way, that they are out of public
access. (Not touchable by the users)
Space Requirements for Indoor Unit

E-6
Deciding Where to Install the Indoor Unit (continued)

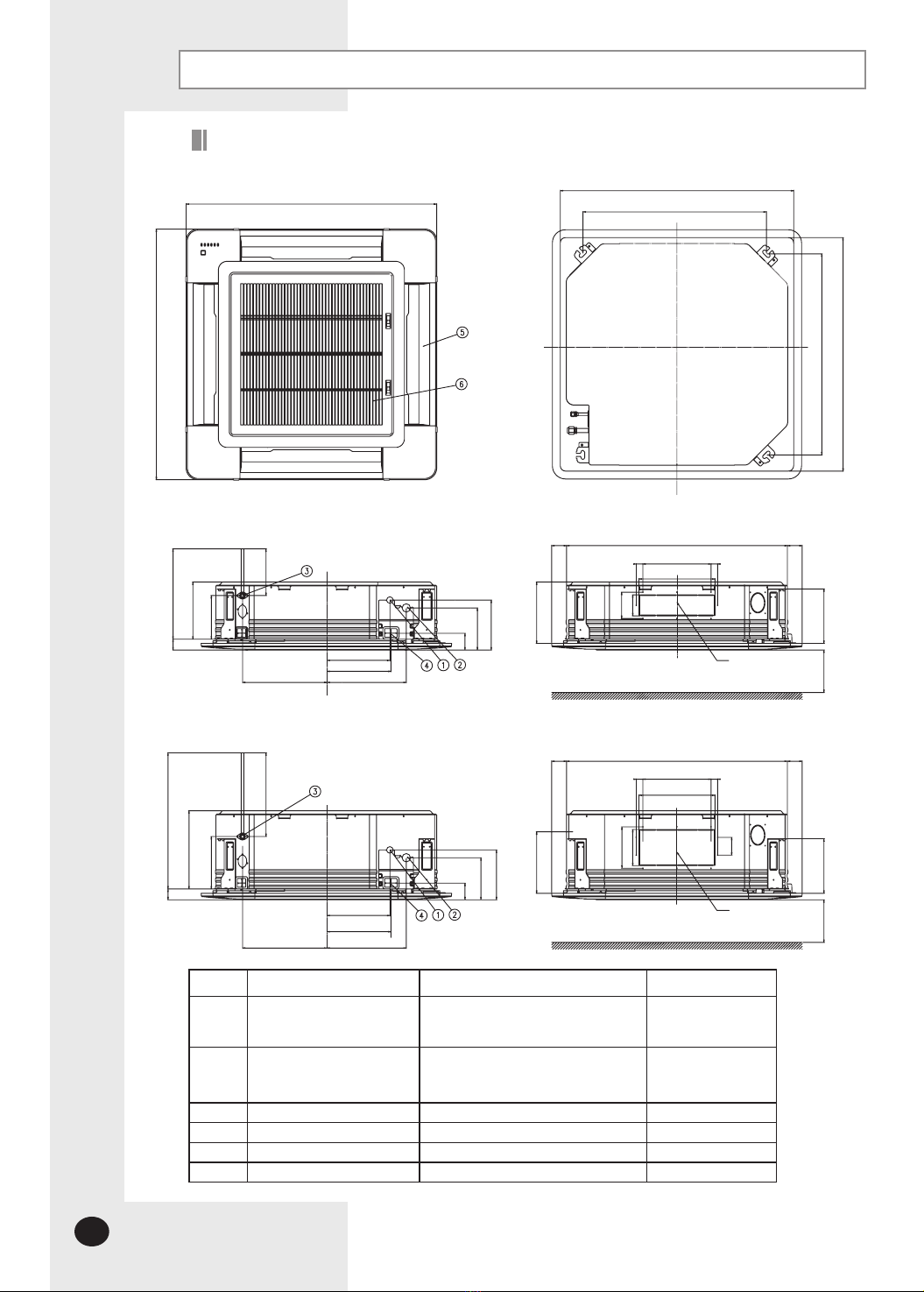

Drawing of the indoor unit
Unit : mm
No. Name "A"Model "B"Model
1
Liquid pipe connection
CH052EAMC/CH070EAM1C: ø 6.35(1/4")
CH070EAMC: ø 9.52(3/8")
CH094EAMC: ø 9.52(3/8")
ø 9.52(3/8")
2
Gas pipe connection
CH052EAMC:ø 12.7(1/2")
CH070EAM(1)C: ø 15.88(5/8")
CH094EAMC: ø 15.88(5/8")
ø 19.05(3/4")
3
Drain pipe connection
4
Power supply connection
5
Air discharge grille
6
Air suction grille
950
059
242
4
43
81
2
1
4
661
46
061
322
246
305
09
1
840
57 57
80
2
754
1
4
892
0
02
322
242
246
305
4
6
0
61
091
840
0
1
30
3
2
001
08
260
25 25
290
57 57
85
1
83
1
8
6
25 25260
290
80
2
Branch duct
connection
mm0
00
1
e
ro
m r
o
der
iuqe
R
ec
a
ps
1e
lba
tsu
jdA
87
el
b
ats
uj
dA8
5
2
mm
00
01
ero
m
ro
de
riuqe
R
e
caps
Branch duct
connection
“A” Model: CH052/070/094EAMC
CH070EAM1C
“B” Model: CH105/140EAMC
860~690 (Ceiling opening)
699(Suspension position)
860~690(Ceiling opening)
766(Suspension)

ENGLISH
E-7
1
Place the pattern sheet on the ceiling at the spot where you want to
install the indoor unit.
2
Insert bolt anchors, use existing ceiling supports or construct a suitable
support as shown in figure.
3
Install the suspension bolts depending on the ceiling type.
4
Screw eight nuts to the suspension bolts making space for hanging
the indoor unit.
5
Hang the indoor unit to the suspension bolts between two nuts.
6
Screw the nuts to suspend the unit. Cut a pad stopper and place it on the
bracket at this time.
7
Adjust the unit to the appropriate position considering the installation area for the
front panel.
7-1 Place the pattern sheet on the indoor unit.
7-2 Adjust a space between the ceiling and the indoor unit by using the gauge of
dimensions.
7-3 Fix the indoor unit securely after adjusting level of the unit by using a leveler.
7-4 Remove the pattern sheet, connect the other cables and install the front panel.
 Ensure that the ceiling is strong enough to support
the weight of the indoor unit.
Before hanging the unit, test the strength of each
attached suspension bolt.
 If the length of suspension bolt is more than 1.5m,
it is required to prevent vibration.
IMPORTANT
You must install the suspension bolts more than four
when installing the indoor unit.
IMPORTANT
 Piping must be laid and connected inside the ceiling when
suspending the unit. If the ceiling is already constructed,lay
the piping into position for connection to the unit before
placing the unit inside the ceiling.
Note
 Since the diagram is made of paper, it may shrink or stretch
slightly due to temperature or humidity. For this reason, before
drilling the holes maintain the correct dimensions between the
markings; refer to page 5 or 6.
Note
Concrete
Suspension bolt(M8)-field supply
Hole in anchor
Hole in plug
Insert
Ceiling support
Pad stopper
Bracket
20mm
Indoor Unit
Ceiling
Gauge of
Dimensions
17mm
Indoor Unit Installation
It is recommended to install the piping joint before installing the indoor unit.

E-8
 To prevent dirt or foreign objects from getting into the pipes
during installation, do NOT remove the pinch pipe completely
until you are ready to connect the piping.
Note
On delivery, the indoor unit is loaded with refrigerant gas.
All this gas must therefore be purged before connecting the
assembly piping. To purge the inert gas, proceed as follows.
Unscrew the pinch pipe at the end of each refrigerant pipe.
Result: All inert gas escapes from the indoor unit.
Purging the Unit
Liquid refrigerant
port
Gas refrigerant port

ENGLISH
E-9
Connecting the Refrigerant Pipe
There are two refrigerant pipes of differing diameters:
 A smaller one for the liquid refrigerant
 A larger one for the gas refrigerant
 The inside of copper pipe must be clean & has no dust.
Remove the pinch pipe on the pipes and connect the assembly pipes to
each pipe, tightening the nuts, first manually and then with a torque
wrench, a spanner applying the following torque.
1
Must use insulator which is thick enough to cover the refrigerant pipe to
protect the condensate water on the outside of pipe falling onto the floor
and the efficiency of the unit will be better.
2
Cut off any excess foam insulation.
3
Be sure that there must be no crack or wave on the bended area.
4
It would be necessary to double the insulation thickness (10mm or more)
to prevent condensation even on the insulator when if the installed area is
warm and humid.
5
 If the pipes must be shortened refer to page10.
Note
Outer Diameter Torque (kgf•cm)
6.35 mm (1/4") 140~170
9.52 mm (3/8") 250~280
12.70 mm (1/2") 380~420
15.88 mm (5/8") 440~480
19.05 mm (3/4") 990~1210
22.23 mm (7/8") 990~1210
Refrigerant oil
Torque wrench
Flare nut
Union
Spanner

E-10

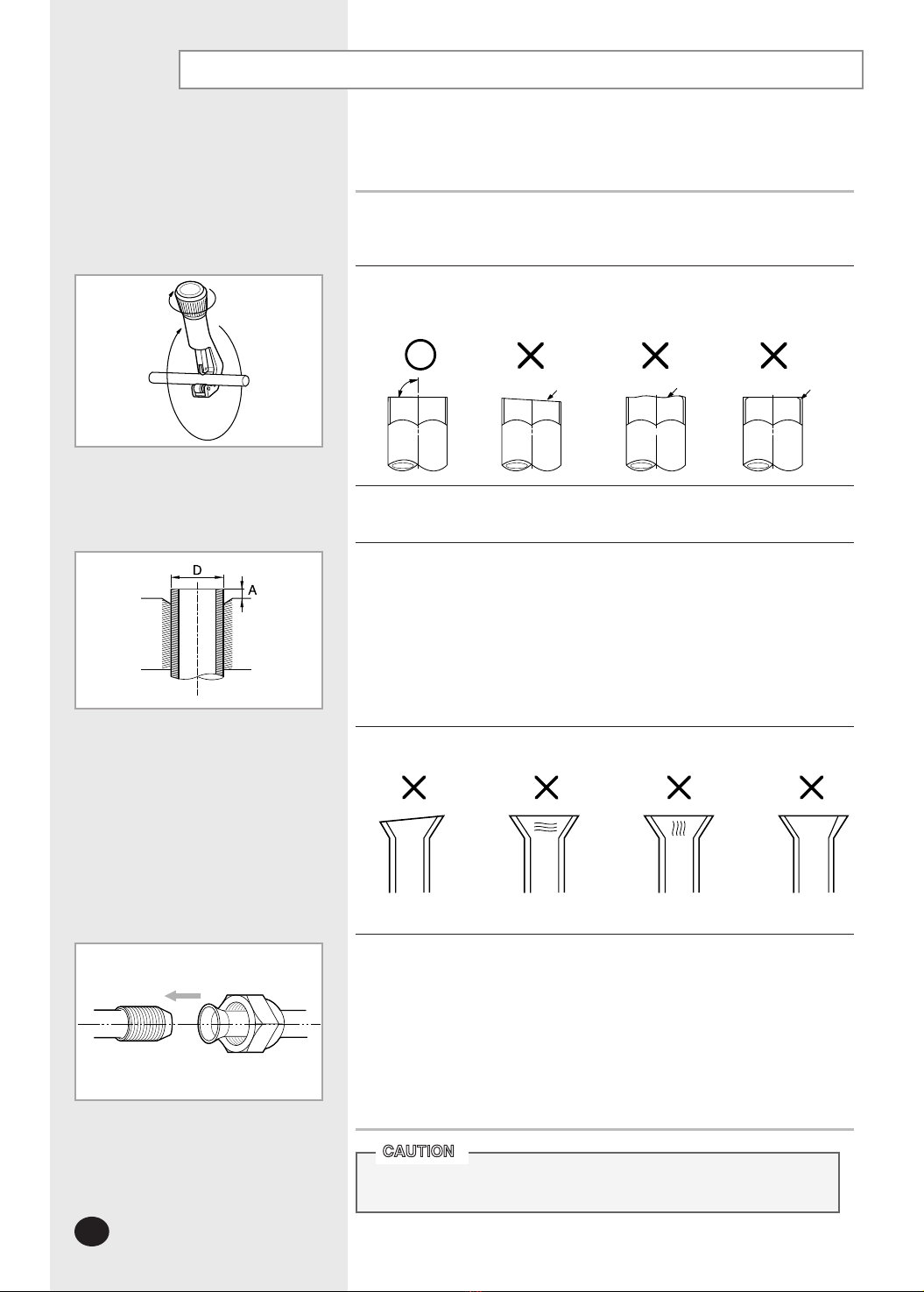

Cutting/Flaring the Pipes
Make sure that you have the required tools available (pipe cutter, reamer,
flaring tool and pipe holder).
1
If you wish to shorten the pipes, cut it with a pipe cutter, taking care to ensure
that the cut edge remains at a 90° angle with the side of the pipe. Refer to the
illustrations below for examples of edges cut correctly and incorrectly.
2
To prevent any gas from leaking out, remove all burrs at the cut edge of the
pipe, using a reamer.
3
Slide a flare nut on to the pipe and modify the flare.
4
Check that the flaring is correct, referring to the illustrations below for
examples of incorrect flaring.
5
Align the pipes and tighten the flare nuts first manually and then with
a torque wrench, applying the following torque.
6
Outer Diameter (D) Depth (A)
6.35 mm (1/4") 1.3mm
9.52 mm (3/8") 1.8mm
12.70 mm (1/2") 2.0mm
15.88 mm (5/8") 2.2mm
19.05 mm (3/4") 2.2mm
22.23 mm (7/8") 2.2mm
90
O
Oblique Rough Burr
Inclined Damaged Surface Cracked Uneven Thickness

CAUTION
In case of welding the pipe, you must weld with nitrogen
gas blowing.
Outer Diameter Torque (kgf•cm)
6.35 mm (1/4") 140~170
9.52 mm (3/8") 250~280
12.70 mm (1/2") 380~420
15.88 mm (5/8") 440~480
19.05 mm (3/4") 990~1210
22.23 mm (7/8") 990~1210

ENGLISH
E-11
Performing Leak Test & Insulation
To check for gas leaks on the indoor unit, check the connec-
tion part of each refrigerant pipe by using a leak detector.
Once you have checked that there are no leaks in the system,
you can insulate the piping and hose.
To avoid condensation problems, place T13.0 or thicker Acrylonitrile
Butadiene Rubber around each refrigerant pipe.
1
Wind insulating tape around the pipes and drain hose.
2
Finish wrapping insulating tape around the rest of the pipes leading to the
outdoor unit.
3
 Always make the seam of pipes face upwards.
Note
Leak Test
Insulation
Insulation
cover pipe
Be sure to overlap
the insulation
Indoor Unit
Insulation pipe
CAUTION
Must fit tightly against
body without any gap.
No gap
NBR(T13.0 or thicker)
Connecting the Cables to the Outdoor Unit
Two electric cables must be connected to the outdoor unit.
 The connection cord connecting the indoor unit to the outdoor unit
 The power cable connecting the auxiliary circuit breaker to the outdoor unit
1.Remove the terminal board cover on the side of the outdoor unit.
2.Connect the connection cord and power cable to terminals as shown in the dia-
gram.
3.Connect the power cable to the auxiliary circuit breaker.
4.Replace the terminal board cover, carefully tightening the screw.

CAUTION
Keep the power cable and the connection cord in a steel
pipe to protect them against liquids, outside impacts and
so on.
Note:
 The connect cables should be incert from the front,use rubber-wire to protect
the cables.
 Use hold-wire to fasten the cables,ensure the cables can not touch the comp
and pipes

E-12

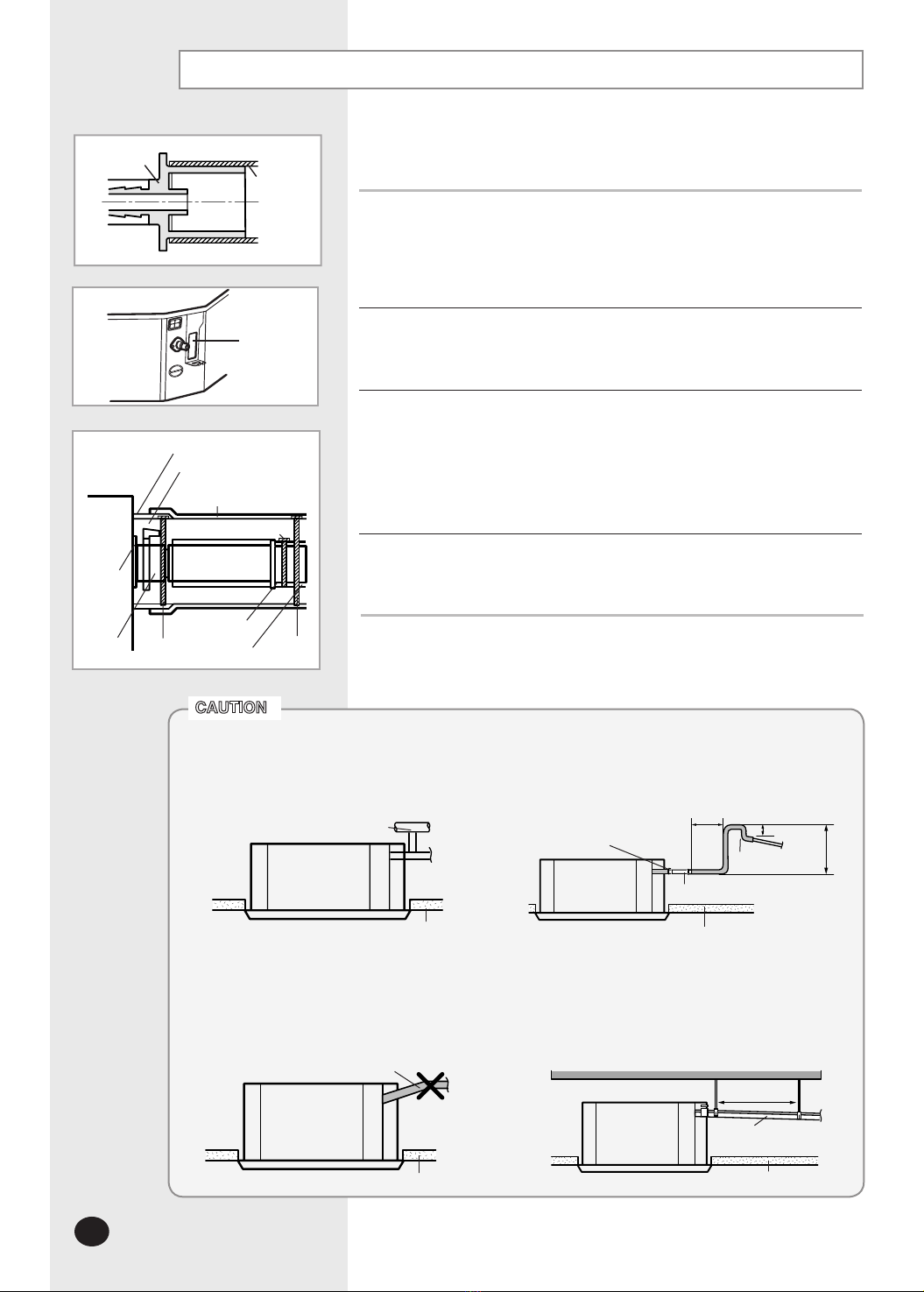

Drain pipe and Drain Hose Installation
Care must be taken when installing the drainpipe and drain hose
for the indoor unit so that condensate water is drained correctly
outside.
Fix the flexible hose to the drainpipe.
 The connection port of the flexible hose and PVC drainpipe must be
fixed with PVC adhesives.
 Check out that the connected part doesn’t leak.
1
Connect the flexible hose to the flexible hose port.
 Make sure that a rubber ring is installed on the drain hose port.
2
Install the drainpipe as shortly as possible.
 Give a slightly slant to the drainpipe for proper drainage of condensate
water.
 There must be no gap on the connected part so that the drainpipe is
not separated from the flexible hose .
3
Insulate the drainpipe, and then fix it as indicated.
4
CAUTION
Install air ventilation to drain condensate water
smoothly.
Check that the indoor unit is level with the ceiling by using the leveler.
Air ventilation
Ceiling
Do not give the hose and upward gradient
after the connection port.
This will cause water to flow backwards when
the unit is stopped, resulting in water leaks.
Do not apply force to the piping on the unit side when
connecting the drain hose. The hose should not be
allowed to hang loose from its connection to the unit.
Fasten the hose to a wall, frame or other support as
close to the unit as possible.
Support pieces
1~1.5m
1/100 or more
Upward gradient
Ceiling Ceiling
If it is necessary to increase the height of the drain pipe,
install the drainpipe straightly within 300 mm from the
flexible hose port. If it is raised higher than 550 mm,there
can be water leaks.
300mm or less
1/100 or more
Flexible hose
Band joint
Ceiling
550mm or less
20mm or more
Drain hose
port
Insulation drainpipe
Band
Band
Flexible
hose
Drain
hose
port
Drain hose
Adhesives
Insulation cover band
Insulation cover drain
Band(Not supplied)
Indoor
Unit
Drainpipe
Flexible hose

ENGLISH
E-13
Drain pipe and Drain Hose Installation (continued)
You should test the drainage after completing the installation.
Prepare a little water about 2.0 liters.
Turn the cover drain pump, then pull it out.
1
Pour water into the indoor unit as shown in figure.
2
Confirm that the water flows out through the drain hose.
3
Reassemble the cover drain pump.
4
 You can check the drainage only when the air conditioner
is in cool mode.
Note
 If you do not pour water inside the water supply intake,
water may spill from the indoor unit.
Note
Testing the drainage
Air ventilation
 If a concentrated drain hose is installed, refer to the figure below.
Note
Drain clamp
Concentrated drain hose
1/100 or
more slope
100mm or
more
Cover drain pump

E-14
Connecting the Connection Cord
The indoor unit is powered from the outdoor unit via the connection cord.
Remove the screw on the electrical component box and remove the cover
plate.
1
Route the connection cord through the side of the indoor unit and connect
the cable to terminals; refer to the figure below.
2
Route the other end of the cable to the outdoor unit through the ceiling &
the hole on the wall.
3
Reassemble the electrical component box cover, carefully tightening the
screw.
4
Wiring Diagram
Note :
1. Connect the Connection Cord as seen in picture , and the torque of screw is 40~70 kgf•cm .
2. The Split Type Air Conditioner
CH EAM(1)C (CH EAM(1)C/ UH AM(1)C) can be connected
only to a supply with system impedance no more than 0.177Ω. In case necessary, please con-
sult your supply authority for system impedance information.
CH105EAMC CH140/105EAMC
CH052/070EAMC
CH070EAM1C
CH094EAMC
UH105EAMC UH140/105GAMC
UH052/070EAMC
UH070EAM1C
UH094EAM1C

ENGLISH
E-15
Assigning Address to Indoor Unit
Before installing the indoor unit, assign an address to the indoor unit
according to the air conditioning system plan.
1
The address of the indoor unit is assigned by adjusting MAIN(SW02) and
RMC(SW04) rotary switches.
2
The MAIN address is for communication between the indoor unit and the out
door unit. Therefore, you must set it to operate the air conditioner properly.
3
It is required to set the RMC address if you install the wired remote control
ler and/or the centralized controller.
4
If you install optional accessories such as the wired remote controller, cen
tralized controller, etc. see an appropriate installation manual.
5
If an optional accessory is not installed, you do not have to set the RMC
address. However, adjust K1 and K2 switches of the SW05 DIP switch to
"ON" position in this case.
6
SW07 SW06
SW04 RMC
Set the MAIN address by adjusting the rotary switch(SW02) from 0 to 9.
Each indoor unit connected to the same outdoor unit must have different
address.
If an indoor unit does not have an optional accessory
and its MAIN address is "0"
7
SW02 MAIN SW04 RMC
SW05
K1 K2 K3 K4
K5 K6 K7 K8
K9 K10 K11 K12
SW02 MAIN
SW07 SW06 SW05
K1 K2 K3 K4
K5 K6 K7 K8
K9 K10 K11 K12

E-16
Installing the Safety Net
Install the safety net after installing the connection cord and fixing
electric component box cover. For your safety, you must install the safety
net.For details about installing the panel, refer to the manual for the panel.
Fix the safety net to the electric component cover box with four screws as
indicated.
2
Uncover the wrap of safety net.
1
The electric
component
box cover
The safety net

ENGLISH
E-17

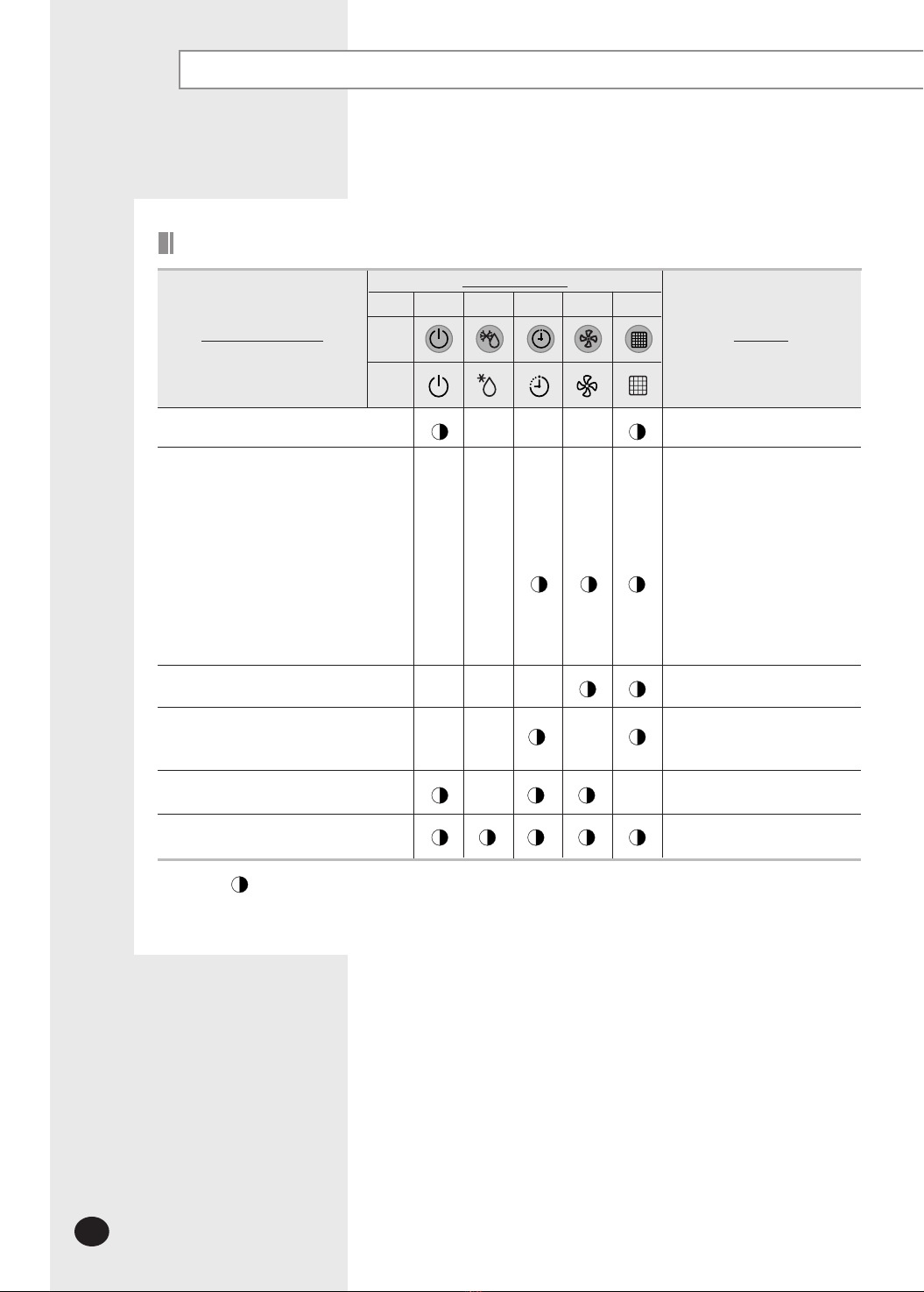

Troubleshooting
Detection of errors
 If an error occurs during the operation, one or more LED flickers and the operation is stopped except the LED.
 If you re-operate the air conditioner, it operates normally at first, then detect an error again.
LED Display
LED Display on the receiver & display unit
1. Indoor unit error
(Display is unrelated
with operation)
2. Outdoor unit error
(Display is unrelated
with operation)
Error of temperature sensor
in the indoor unit (Open/Short)
Error of heat exchanger sensor
in the indoor unit
Error of the outdoor temperature sensor
Error of the condensor temperature sensor
Error of the discharge temperature sensor
1. No communication for 2 minutes
between indoor units
(Communication error for more than 2 minutes)
2. Indoor unit receiving the communication
error from outdoor unit
3. Outdoor unit tracking 3 minutes error
4. When sending the communication error
from the outdoor unit, the mismatching
of the communication numbers and
installed numbers after completion of
tracking
(Communication error for more than 2 minutes)
Power reset
XX X
XXXX
XX X
X X XX
 On Flickering X Off
 If you turn off the air conditioner when the LED is flickering, the LED is also turned off.
X X X
Remarks
LED lamp display
Operation
Type A
Type B
Defrost Timer Air flow Filter
Abnormal conditions

E-18
Troubleshooting (continued)
Error of setting option switches for optional
accessories
1. Error of electronic expansion valve close
2. Error of electronic expansion valve open
3. 2’nd detection of high temperature cond
4. 2’nd detection of high temperature
discharge
5. Error of reverse phase
6. Compressor down due to 6’th detection
of freezing
X
LED Display
 On Flickering X Off
 If you turn off the air conditioner when the LED is flickering, the LED is also turned off.
X X
Communication error between indoor units XXX
X
Detection of the float switch X
X
EEPROM error X
EEPROM option error
Remarks
LED lamp display
Operation
Type A
Type B
Defrost Timer Air flow Filter
Abnormal conditions
XX
X

ENGLISH
E-19

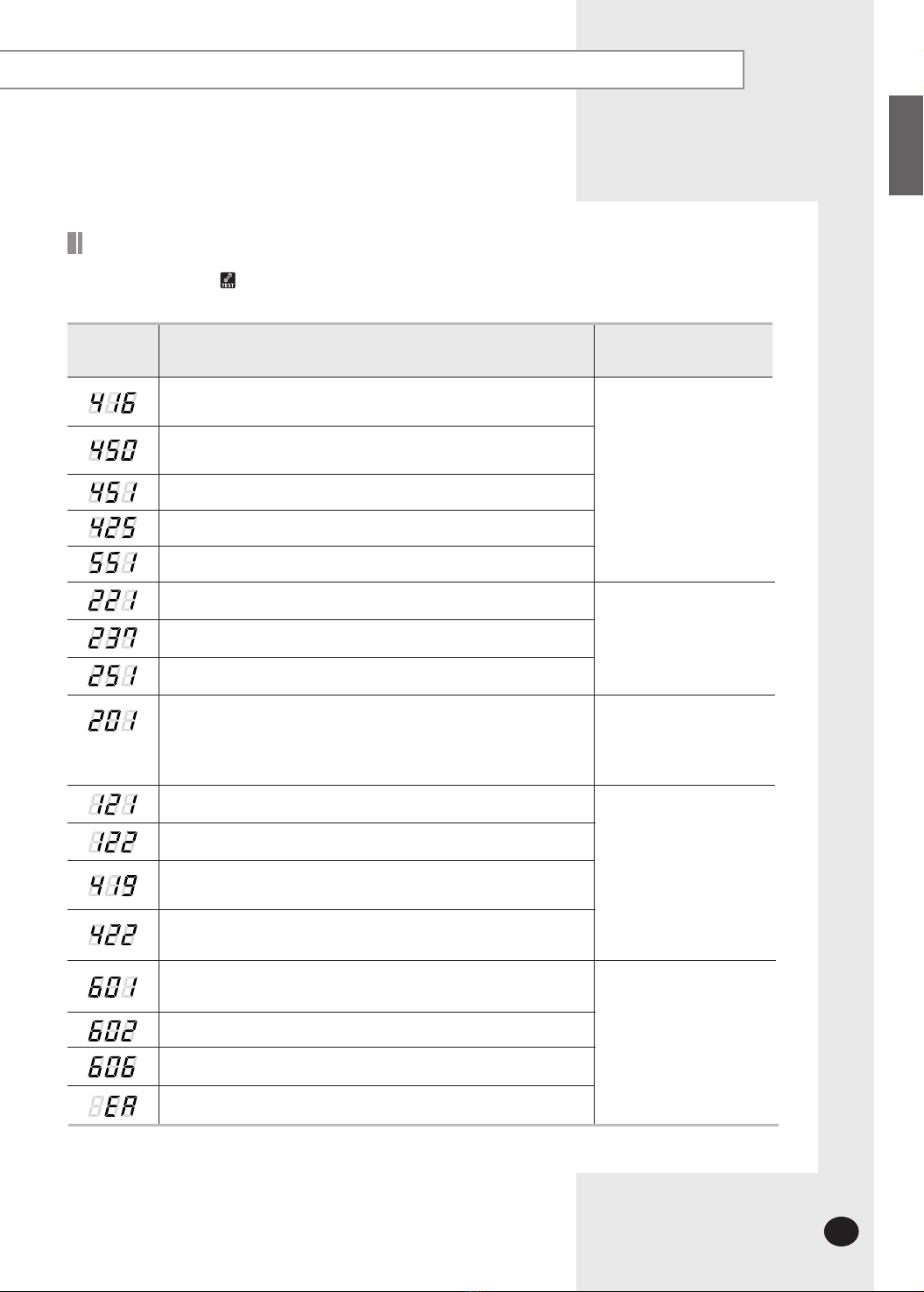

Troubleshooting (continued)
Wired remote controller
 If an error occurs, is displayed on the wired remote controller.
u If you would like to see an error code, press the Test button.
Explanation
Display
Compressor down due to protection control of the discharge
temperature sensor
Control due to the condenser temperature sensor when cooling
mode
Error about protection
control of the outdoor
unit
Communication and the
indoor unit errors
Error about the outdoor unit sen-
sor (Open/Short)Detection dur-
ing the operation of the indoor
unit (sensing and sending errors
into the communication data)
Remark
Error of the low pressure switch (Protection control)
Reverse phase error (Protection control)
In removing frost
Error of the outdoor temperature sensor (Open/Short)
Error of condensor temperature sensor (Open/Short)
Error of discharge temperature sensor (Open/Short)
- System down caused by communication error after completion
of tracking
- Mismatching of the indoor unit numbers set with those
communication after completion of 5 times tracking
Self-diagnosis of the
indoor and outdoor unit
Wired remote controller
errors
Master wired remote controller Slave wired remote controller
COM1/COM2 Cross-installed error
Error of setting option for wired remote controller COM2
Error of electronic expansion valve close in the outdoor unit (when
it is detected more than once)
Error of communication between the indoor unit and the wired
remote controller
Error of temperature sensor in the indoor unit (Open/Short)
Error of the heat exchanger sensor in the indoor unit (Open/Short)
Error of electronic expansion valve open in the outdoor unit (when
it is detected more than once)

E-20
Wired Remote Controller Accessories
Wired
remote controller
1
Cable-tie
2
Cable clamp
5
M4x16 tapped
screw
7
Indoor unit power
drawing cable
1
Communication
cable of the wired
remote controller
1
Wire joint
1
Owner’s
instructions
1
Installation
manual
1
Wireless Remote Controller Accessories
Wireless
remote controller
1
Battery
2
Remote
control holder
1
STS 2S-2x10
tapped screw
2
Owner’s
instructions
1
Installation
manual
1
Centralized Controller Accessories
Cable-tie
2
Cable clamp
5
M4x16 tapped
screw
7
Owner’s
instructions
1
Installation
manual
1
Centralized
controller
1
Parts List (Optional)
