Samsung SINGLE AF50MS3MCEENHC Instruction manual

SINGLE
Technical
Data Book
SINGLE PAC for IRAN
(R410A, 50Hz, HP/CO)
Model : AF50MS3MCEENHC, AF50MV3MCEENHC (Indoor Unit)
AF50MS3MCEEXHC, AF50MV3MCEEXHC (Outdoor Unit)

2
History
Version Modification Date Remark
Ver.1.0
Release Single PAC TDB for Iran ‘17. 02. 07
Ver.1.1
Revised Compressor Oil type of outdoor unit ‘18. 10. 30

3
(1) Classification
AR RAC
AF FAC/PAC
AW WAC
(2) Capacity
X 1000 Btu/h
(3) Version
H2014
J2015
K2016
M2017
(4) Product Type
SInverter HP
VInverter CO
(5) Feature
1
2
3
4
(6) Series
MC Mirage
(7) Color
EE Santorini beige
(8) Mode
NIndoor unit
XOutdoor unit
Installation
Nomenclature
Indoor Unit
Model Name
AF
(1)
50
(2)
M
(3)
S
(4)
3
(5)
MC
(6)
EE
(7)
N
(8)
HC
Buyer

4
Nomenclature
Outdoor Unit
Model Name
AF
(1)
50
(2)
M
(3)
S
(4)
3
(5)
MC
(6)
EE
(7)
X
(8)
HC
Buyer
(1) Classification
AR RAC
AF FAC/PAC
AW WAC
(2) Capacity
X 1000 Btu/h
(3) Version
H2014
J2015
K2016
M2017
(4) Product Type
SInverter HP
VInverter CO
(5) Feature
1
2
3
4
(6) Series
MC Mirage
(7) Color
EE Santorini beige
(8) Mode
NIndoor unit
XOutdoor unit

5

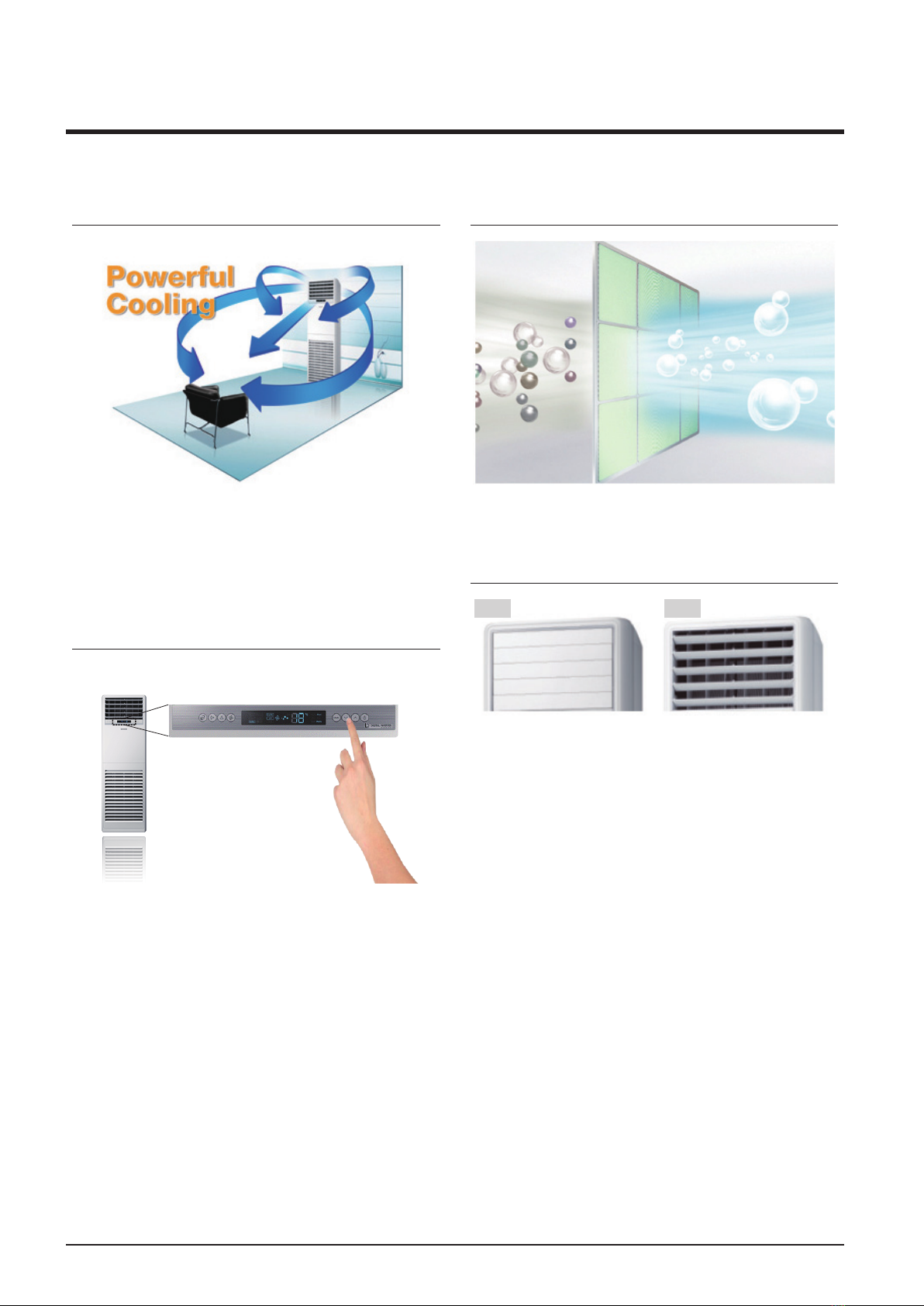

Long Distance Air Flow
As a result of the horizontal and vertical flaps that move
independently of one another, a greater diversity of air-
flow is available depending upon your needs: direct air
flow in one direction, long-range cooling, broad left-right
airflow, and three-dimensional cooling.
Easy Control thanks to Touch Display Panel
You need not find Remote controller anymore.
It lets you control the temperature and air flow more
easily.
Full HD Filter (MAX60%)
The full high density filter collects up t0 60% of dust and
allergy causing bacteria
Auto shutter
OFF ON
The auto shutter opens and closes smoothly, revealing
the flaps of the air conditioner only when it is turned
on. The auto shutter protects the air conditioner from
unwanted dust particles, making an unattractive air
conditioner cover unnecessary.
Features & Benefits

6
Contents
1. Line-up 7
2. Specification 8
3. Summary Table 10
4. Capacity Table 11
5. Capacity Correction 13
6. Dimensional Drawing 15
7. Center of Gravity 17
8. Electrical Wiring Diagram 19
9. Sound Data 21
10. Temperature and air flow distribution 23
11. Operation Range 25
12. Piping Diagram 26
13. Installation 28
14. Accessory 53

7
1. Line-up1. Line-up
1-1. Indoor unit
Model
Capacity (kW)
13.4 (HP) 13.4 (CO)
PAC
1-2. Outdoor Unit
Model Type
Capacity (kW)
13.4 (HP) 13.4 (CO)
3Φ

8
2. Specification
Type PAC( for Iran) PAC( for Iran)
Model Name Indoor Unit AF50MV3MCEENHC AF50MS3MCEENHC
Outdoor Unit AF50MV3MCEEXHC AF50MS3MCEEXHC
System
Mode -Cooling Only HEAT PUMP
Performance Capacity
(Min/Std/Max)
Cooling kW 4.2 / 13.4 / 16.7 4.2 / 13.4 / 16.7
Btu/h 14,300 / 45,700 / 57,000 14,300 / 45,700 / 57,000
US RT 1.19 / 3.81 / 4.75 1.19 / 3.81 / 4.75
Cooling (46℃) kW - -
Btu/h - -
US RT - -
Heating kW -4.0 / 15.5 / 20.0
Btu/h -13,600 / 52,900 / 68,200
US RT -1.14 / 4.41 / 5.69
Power Power Input
(Min/Std/Max)
Cooling kW 0.90 / 4.32 /5.90 0.90 / 4.32 /5.90
Cooling (46℃) kW - -
Heating kW -0.70 / 4.50 / 6.60
Current Input
(Min/Std/Max)
Cooling A1.9 / 6.8 / 9.5 1.9 / 6.8 / 9.5
Cooling (46℃) A- -
Heating A-1.4 / 6.7 / 10.7
Current MCA A17.6 1 7. 6
MFA A20.1 20.1
Efficiency EER Cooling -3.10 3.10
COP Heating --3.44
Energy Grade Cooling B B
Heating - B
Piping
Connections
Liquid Pipe Type Flare connection Flare connection
Φ, mm (inch) 9.52 (3/8") 9.52 (3/8")
Gas Pipe Type Flare connection Flare connection
Φ, mm (inch) 15.88 (5/8") 15.88 (5/8")
Heat Insulation -Both liquid and gas pipes Both liquid and gas pipes
Piping length
(ODU-IDU)
Standard m5 5
Max. m75 75
Elevation m30 30
Chargeless m5 5
Wiring
connections
Communication Min. mm Min 0.75 Min 0.75
Remark -F1,F2 F1,F2
Power supply intake -Both indoor and ourdoor unit Both indoor and ourdoor unit
Refrigerant Type -R-410A R-410A
Factory Charging kg 2.9 3.5
lbs 6.39 7.72
Indoor Unit
PowerSupply Ø, #, V, Hz 1,2,220-240,50 1,2,220-240,50
Heat
Exchanger
Type -PFE PFE
Material Fin -AL AL
Tube -AL AL
Fin Treatment -- -
Fan Type -Sirocco Fan Sirocco Fan
Quantity EA 1 1
Air Flow Rate Turbo/High/Mid CMM 35.5 / 31.0 / 28.0 35.5 / 31.0 / 28.0
l/s 591.7 / 516.7 / 466.7 591.7 / 516.7 / 466.7
External
Static Pressure
Min/Std/Max mmAq - -
Pa - -
In Wg - -
Fan Motor Type -BLDC BLDC
Output W x n 154 x 1 154 x 1
Drain Drain Pipe Φ, mm ID 13 ID 13
Sound Sound Pressure Level H/M/L/(Silent) dB(A) 51 / 48 / 45 51 / 48 / 45
Sound Power Level dB(A) - -
External
Dimension
Net Weight kg 46.0 46.0
Shipping Weight kg 53.0 53.0
Net Dimensions (WxHxD) mm 610 x 1,850 x 400 610 x 1,850 x 400
inch 24 x 72 13/16 x 15 3/4 24 x 72 13/16 x 15 3/4
Shipping Dimensions (WxHxD) mm 705 x 1,963 x 493 705 x 1,963 x 493
inch 27 3/4 x 77 5/16 x 19 7/16 27 3/4 x 77 5/16 x 19 7/16

9
2. Specification
Type PAC( for Iran) PAC( for Iran)
Model Name Indoor Unit AF50MV3MCEENHC AF50MS3MCEENHC
Outdoor Unit AF50MV3MCEEXHC AF50MS3MCEEXHC
Indoor Unit
Casing Material -ABS ABS
Drain Pump Drain Pump -- -
Max. lifting Height / Displacement mm / Liter/h - -
Additional
Accessories
Drain Pump External Model -- -
Internal Model -- -
Max. lifting Height /
Displacement mm / Liter/h - -
Air Filter -- -
Virus Doctor -- -
Outdoor Unit
PowerSupply Ø, #, V, Hz 3,4,380-415,50 3,4,380-415,50
Heat
Exchanger
Type -Fin & Tube Fin & Tube
Material Fin -AL AL
Tube -CU CU
Fin Treatment -- -
Compressor Model Name UG5TK1450FJX UG5TK1450FJX
Type -Twin BLDC Rotary Twin BLDC Rotary
Output kW 4.19 4.19
Oil Type -POE POE
Initial charge cc 1,700 1,700
Fan
Type -Propellar Propellar
Discharge direction -Front Front
Quantity EA 2 2
Air Flow Rate CMM 110 110
l/s 1,833 1,833
Fan Motor Type -BLDC BLDC
Output W x n 125 x 2 125 x 2
Sound Sound Pressure Level Cooling dB(A) 53 53 Heating dB(A) -54
Sound Power Level dB(A) - -
External
Dimension
Net Weight kg 84.5 85.0
Shipping Weight
Net Dimensions (WxHxD)
kg 93.5 94.0
mm 940 x 1210 x 330 940 x1210 x 330
inch 37 x 47 5/8 x 13 37 x 47 5/8 x 13
Shipping Dimensions (WxHxD) mm 995 x 1388 x 426 995 x 1388 x 426
inch 39 3/16 x 54 5/8 x 16 3/4 39 3/16 x 54 5/8 x 16 3/4
Casing Material Body -EGI steel plate EGI steel plate
Operating
Temp. Range
Cooling ℃ (℉)  
Heating ℃ (℉) -
NOTE
• Specification may be subject to change without prior notice.
1) Capacities are based on (Equivalent refrigerant piping 5m, Level differences 0m);
- Cooling : Indoor temperature 27°C DB, 19°C WB / Outdoor temperature 35°C DB, 24°C WB
- Heating : Indoor temperature 20°C DB, 15°C WB / Outdoor temperature 7°C DB, 6°C WB
2) Select wire size based on the value of MCA
3) Sound pressure level is obtained in an anechoic room.
- Sound pressure level based on T1 condition (Indoor temperature 27°C DB, 19°C WB / Outdoor
temperature : 35°C DB, 24°C WB)
- Sound pressure level is a relative value, depending on the distance and acoustic environment.
- Sound pressure level may differ depending on operation condition.
- dBA = A-weighted sound pressure level
- Reference acoustic pressure 0 dB = 20uPa
4) Sound power level is an absolute value that a sound source generates.
- dBA = A-weighted sound power level
- Reference power : 1pW
- Measured according to ISO 3741
5) hese products contain R410A which is fluorinated greenhouse gas.

10
3. Summary Table
Performance characteristics
Indoor unit
Model Code
Net
Weight
(kg)
Capacity Airflow
(CMM)
Sound Pressure Level
(dBA)
Cooling Heating
(kW) (kW)
AF50MS3MCEENHC 46
Max. 16.7 20 Turbo 35.5 High 51
Std. 13.4 15.5 High 31.0 Mid 48
Min. 4.2 4Mid 28.0 Low 45
AF50MV3MCEENHC 46
Max. 16.7 -Turbo 35.5 High 51
Std. 13.4 -High 31.0 Mid 48
Min. 4.2 -Mid 28.0 Low 51
Outdoor unit
Capacity
(kW) Model Code Net Size (WxHxD , mm)
Net Weight
(kg)
Airflow
(CMM)
Sound Pressure Level (dBA)
Cooling Heating
13.4 AF50MS3MCEEXHC 940 x 1210 x 330 85 110 53 54
13.4 AF50MV3MCEEXHC 940 x 1210 x 330 84.5 110 53 -
NOTE
• Sound data is based on cooling operation.
Electrical Characteristics
Model Code Outdoor Unit Input Current(Amperes) Power Supply
Indoor Unit Outdoor Unit
Rated Voltage range Outdoor Unit Indoor
Unit Total MCA (A)
MFA
(A)
Hz Volts Min. Max. Cooling Heating
AF50MS3MCEENHC AF50MS3MCEEXHC 50 380 to 415 342 457 16.1 16.1 1.5 1 7. 6 1 7. 6 20.1
AF50MV3MCEENHC AF50MV3MCEEXHC 50 380 to 415 342 457 16.1 -1.5 17. 6 1 7.6 20.1
NOTE
• MCA : Minimum circuit amperes
• MFA : Maximum fuse amperes
• Select wire size based on the value of MCA

11
4. Capacity Table
(1) AF50MS3MCEENHC+AF50MS3MCEEXHC
Cooling
TC : Total Capacity, SHC : Sensible Heat Capacity, PI : Power Input
Outdoor
Temperature
(℃, DB)
Indoor Temperature (℃, DB / WB)
20 / 14 22 / 16 25 / 18 27 / 19 28 / 20 30 / 22 32 / 24
TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
kW kW kW kW kW kW kW kW kW kW kW kW kW kW kW kW kW kW kW kW kW
-15 13.1 10.1 3.09 13.8 10.4 3.15 14.3 10.7 3.22 14.8 11.1 3.28 15.1 11.0 3.32 15.8 10.9 3.35 16.6 10.6 3.42
21 12.4 9.6 3.25 13.1 9.9 3.32 13.6 10.2 3.39 14.1 10.6 3.46 14.4 10.4 3.49 15.1 10.3 3.53 15.8 10.1 3.60
35 11.9 9.2 4.07 12.5 9.5 4.15 13.0 9.7 4.23 13.4 10.1 4.32 13.7 9.9 4.36 14.4 9.9 4.41 15.1 9.7 4.49
46 10.1 9.1 3.66 10.6 9.4 3.73 11.0 9.7 3.81 11.4 10.0 3.89 11.6 9.9 3.93 12.2 9.8 3.97 12.8 9.6 4.05
48 8.9 8.3 3.46 9.4 8.5 3.53 9.7 8.8 3.60 10.1 9.1 3.67 10.3 9.0 3.71 10.8 8.9 3.75 11.3 8.7 3.82
52 7.7 7. 6 3.25 8.1 7.8 3.32 8.4 8.0 3.39 8.7 8.3 3.46 8.9 8.2 3.49 9.3 8.1 3.53 9.8 7.9 3.60
Heating
TC : Total Capacity, PI : Power Input
Outdoor Temperature
(℃, DB)
Indoor Temperature (℃, DB)
16 18 20 21 22 24
TC PI TC PI TC PI TC PI TC PI TC PI
kW kW kW kW kW kW kW kW kW kW kW kW
-20 (Minimum operation range) 5.97 10.8 5.91 10.7 5.85 10.6 5.79 10.5 5.73 10.4 5.68
-15 6.89 13.6 6.82 13.5 6.75 13.4 6.68 13.2 6.62 13.1 6.55
-5 6.43 15.3 6.36 15.2 6.30 15.0 6.24 14.9 6.17 14.7 6.11
05.51 16.0 5.45 15.8 5.40 15.7 5.35 15.5 5.29 15.3 5.24
74.59 15.7 4.55 15.5 4.50 15.3 4.46 15.2 4.41 15.0 4.37
24 (Maximum operation range) 5.28 20.4 5.23 20.2 5.18 19.9 5.12 19.7 5.07 19.6 5.02
NOTE
• Capacities are based on following conditions; Refrigerant pipe length : 5m / Level difference : 0m.

4. Capacity Table
12
(2) AF50MV3MCEENHC+AF50MV3MCEEXHC
Cooling
TC : Total Capacity, SHC : Sensible Heat Capacity, PI : Power Input
Outdoor
Temperature
(℃, DB)
Indoor Temperature (℃, DB / WB)
20 / 14 22 / 16 25 / 18 27 / 19 28 / 20 30 / 22 32 / 24
TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
kW kW kW kW kW kW kW kW kW kW kW kW kW kW kW kW kW kW kW kW kW
-15 13.1 10.1 3.09 13.8 10.4 3.15 14.3 10.7 3.22 14.8 11.1 3.28 15.1 11.0 3.32 15.8 10.9 3.35 16.6 10.6 3.42
21 12.4 9.6 3.25 13.1 9.9 3.32 13.6 10.2 3.39 14.1 10.6 3.46 14.4 10.4 3.49 15.1 10.3 3.53 15.8 10.1 3.60
35 11.9 9.2 4.07 12.5 9.5 4.15 13.0 9.7 4.23 13.4 10.1 4.32 13.7 9.9 4.36 14.4 9.9 4.41 15.1 9.7 4.49
46 10.1 8.8 3.66 10.6 9.1 3.73 11.0 9.4 3.81 11.4 9.6 3.89 11.6 9.6 3.93 12.2 9.5 3.97 12.8 9.3 4.05
48 8.9 7.9 3.46 9.4 8.2 3.53 9.7 8.4 3.60 10.1 8.7 3.67 10.3 8.6 3.71 10.8 8.5 3.75 11.3 8.3 3.82
52 7. 7 7. 2 3.25 8.1 7.4 3.32 8.4 7.6 3.39 8.7 7.8 3.46 8.9 7.8 3.49 9.3 7.7 3.53 9.8 7.5 3.60
NOTE
• Capacities are based on following conditions; Refrigerant pipe length : 5m / Level difference : 0m.

13

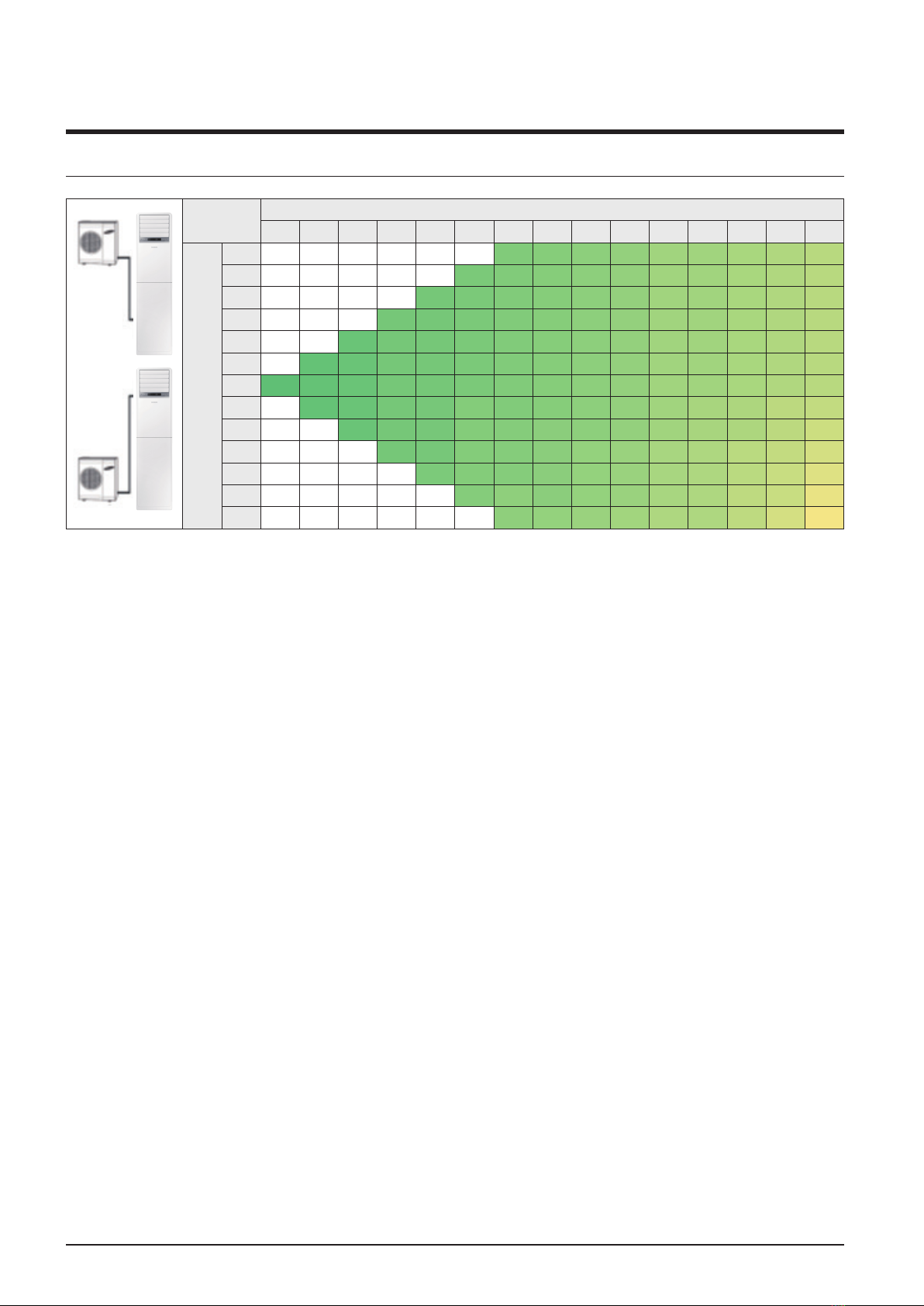

5. Capacity Correction
(1) AF50MV3MCEENHC+AF50MV3MCEEXHC
Pipe Length (m)
510 15 20 25 30 35 40 45 50 55 60 65 70 75
Level Difference (m)
30 ------0.95 0.94 0.93 0.92 0.91 0.91 0.90 0.89 0.88
25 -----0.96 0.95 0.94 0.93 0.92 0.91 0.91 0.90 0.89 0.88
20 ----0.97 0.96 0.95 0.94 0.93 0.92 0.91 0.91 0.90 0.89 0.88
15 ---0.97 0.97 0.96 0.95 0.94 0.93 0.92 0.91 0.91 0.90 0.89 0.88
10 - - 0.98 0.97 0.97 0.96 0.95 0.94 0.93 0.92 0.91 0.91 0.90 0.89 0.88
5-0.99 0.98 0.97 0.97 0.96 0.95 0.94 0.93 0.92 0.91 0.91 0.90 0.89 0.88
01.00 0.99 0.98 0.97 0.97 0.96 0.95 0.94 0.93 0.92 0.91 0.91 0.90 0.89 0.88
-5 -0.99 0.98 0.97 0.96 0.95 0.95 0.94 0.93 0.92 0.91 0.90 0.89 0.88 0.87
-10 - - 0.98 0.97 0.96 0.95 0.94 0.93 0.93 0.92 0.91 0.90 0.89 0.88 0.86
-15 ---0.97 0.96 0.95 0.94 0.93 0.92 0.91 0.90 0.89 0.88 0.87 0.85
-20 ----0.95 0.95 0.94 0.93 0.92 0.91 0.90 0.89 0.88 0.86 0.84
-25 -----0.94 0.93 0.93 0.92 0.91 0.90 0.89 0.87 0.86 0.83
-30 ------0.93 0.92 0.91 0.90 0.89 0.88 0.87 0.85 0.82

5. Capacity Correction
14
(2) AF50MS3MCEENHC+AF50MS3MCEEXHC
Cooling
Pipe Length (m)
510 15 20 25 30 35 40 45 50 55 60 65 70 75
Level Difference (m)
30 ------0.95 0.94 0.93 0.92 0.91 0.91 0.90 0.89 0.88
25 -----0.96 0.95 0.94 0.93 0.92 0.91 0.91 0.90 0.89 0.88
20 ----0.97 0.96 0.95 0.94 0.93 0.92 0.91 0.91 0.90 0.89 0.88
15 ---0.97 0.97 0.96 0.95 0.94 0.93 0.92 0.91 0.91 0.90 0.89 0.88
10 - - 0.98 0.97 0.97 0.96 0.95 0.94 0.93 0.92 0.91 0.91 0.90 0.89 0.88
5-0.99 0.98 0.97 0.97 0.96 0.95 0.94 0.93 0.92 0.91 0.91 0.90 0.89 0.88
01.00 0.99 0.98 0.97 0.97 0.96 0.95 0.94 0.93 0.92 0.91 0.91 0.90 0.89 0.88
-5 -0.99 0.98 0.97 0.96 0.95 0.95 0.94 0.93 0.92 0.91 0.90 0.89 0.88 0.87
-10 - - 0.98 0.97 0.96 0.95 0.94 0.93 0.93 0.92 0.91 0.90 0.89 0.88 0.86
-15 ---0.97 0.96 0.95 0.94 0.93 0.92 0.91 0.90 0.89 0.88 0.87 0.85
-20 ----0.95 0.95 0.94 0.93 0.92 0.91 0.90 0.89 0.88 0.86 0.84
-25 -----0.94 0.93 0.93 0.92 0.91 0.90 0.89 0.87 0.86 0.83
-30 ------0.93 0.92 0.91 0.90 0.89 0.88 0.87 0.85 0.82
Heating
Pipe Length (m)
510 15 20 25 30 35 40 45 50 55 60 65 70 75
Level Difference (m)
30 ------0.96 0.95 0.94 0.94 0.93 0.92 0.91 0.91 0.90
25 -----0.96 0.96 0.95 0.94 0.94 0.93 0.92 0.91 0.91 0.90
20 ----0.97 0.96 0.96 0.95 0.94 0.94 0.93 0.92 0.91 0.91 0.90
15 ---0.98 0.97 0.96 0.96 0.95 0.94 0.94 0.93 0.92 0.91 0.91 0.90
10 - - 0.99 0.98 0.97 0.96 0.96 0.95 0.94 0.94 0.93 0.92 0.91 0.91 0.90
5-0.99 0.99 0.98 0.97 0.96 0.96 0.95 0.94 0.94 0.93 0.92 0.91 0.91 0.90
01.00 0.99 0.99 0.98 0.97 0.96 0.96 0.95 0.94 0.94 0.93 0.92 0.91 0.91 0.90
-5 -0.99 0.99 0.98 0.97 0.96 0.96 0.95 0.94 0.94 0.93 0.92 0.91 0.91 0.90
-10 - - 0.99 0.98 0.97 0.96 0.96 0.95 0.94 0.94 0.93 0.92 0.91 0.91 0.90
-15 ---0.98 0.97 0.96 0.96 0.95 0.94 0.94 0.93 0.92 0.91 0.91 0.90
-20 ----0.97 0.96 0.96 0.95 0.94 0.94 0.93 0.92 0.91 0.91 0.90
-25 -----0.96 0.96 0.95 0.94 0.94 0.93 0.92 0.91 0.91 0.90
-30 ------0.96 0.95 0.94 0.94 0.93 0.92 0.91 0.91 0.90

15
6. Dimensional Drawing
Indoor unit
AF50MS3MCEENHC, AF50MV3MCEENHC
Unit: mm[inches]
400
[1'-3 3/4"]
1850
[6'-0 3/4"]
610
[2']
No. Name Description
1Liquid pipe connection 9.52 (3/8")
2Gas pipe connection 15.88 (5/8")
3Drain pipe connection -
4Power supply & Communication wiring conduit -

6. Dimensional Drawing
16
Outdoor unit
AF50MS3MCEEXHC, AF50MV3MCEEXHC
Unit: mm[inches]
No. Name Description
1Liquid pipe connection 9.52 (3/8")
2Gas pipe connection 15.88 (5/8")
3Drain pipe connection -
4Power supply & Communication wiring conduit -

17
7. Center of Gravity
Indoor unit
AF50MS3MCEENHC, AF50MV3MCEENHC
Units : mm [inches]
1851
940
400
200
306
613
910
1850

7. Center of Gravity
18
Outdoor unit
AF50MS3MCEEXHC, AF50MV3MCEEXHC
Units : mm [inches]
1210
[47-5/8]
530
[20-7/8]
328[12-7/8]
620[24-3/8]
Hold location of foundation bolt
Hold location of foundation bolt
160
[6-5/16]
210
[8-1/4]

19
8. Electrical Wiring Diagram
Indoor unit
ASSY PCB MAIN Print circuit board(MAIN) M-BLDC BLDC Motor EVA-IN TEMP Thermistor EVAPORATE
ASSY PCB POWER Print circuit board(POWER) U/D STEP MOTOR Up/Down louver DC Motor ROOM-TEMP Thermistor AMBIENT
ASSY PCB DISPLAY Print circuit board(DISPLAY) L/R STEP MOTOR Left/Right louver DC Motor
NOTE
• This wiring diagram applies only to the indoor unit.
• Colors blk: black, red: red, blu: blue, wht: white, yel: yellow, brn: brown, sky: skyblue
• When operating, don’t shortcircuit the protection device (High Pressure switch)
• For connection wiring indoor-outdoor transmission F1-F2, outdoor-outdoor transmission OF1-OF2, refer to
the installation manual.
• Protective earth(screw), : connector, : The wire quantity

8. Electrical Wiring Diagram
20
Outdoor unit
MAIN PCB Print circuit board(MAIN) EEV Electronic Expention Valve DIS-TEMP Thermistor DISCHARGE
INVERTER PCB Print circuit board(INVERTER) M-BLDC BLDC Motor OUT-TEMP Thermistor AMBIENT
EMI PCB Print circuit board(EMI) OLP-TEMP Thermistor OLP COND-TEMP Thermistor CONDENSOR
NOTE
• This wiring diagram applies only to the outdoor unit.
• Colors blk: black, red: red, blu: blue, wht: white, yel: yellow, brn: brown, sky: skyblue
• When operating, don’t shortcircuit the protection device (High Pressure switch)
• For connection wiring indoor-outdoor transmission F1-F2, outdoor-outdoor transmission OF1-OF2, refer to
the installation manual.
• Protective earth(screw), : connector, : The wire quantity
