Samsung FH052EAMC User manual

ENGLISH
ENGLISH
System Air Conditioner (Cooling and Heating)
E S F I P D G R
DB98-27138A(2)
Indoor Unit
FH052EAMC
Outdoor Unit
UH052EAMC
FH070EAM(1)C UH070EAM(1)C
OWNER’S MANUAL
ESPAÑOLFRANÇAISITALIANOPORTUGUÊSDEUTSCH
EΛΛHNIKA
RUSSIAN
DB98-26331A_E_48k.indd 17 2006-7-11 11:21:11

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
◆Users of this product are cautioned not to attempt repair of this product
at their own discretion. Instead, they are requested to directly contact a
designated service center or the outlet at which the product was
purchased.
◆Never spill any kind of liquid into the unit. Should this happen, unplug
or main switch off the unit and contact an authorized service center.
◆Do not insert anything between the air outlet blades because the inner
fan may be damaged and could cause injury. Keep children away from
the unit.
◆Do not place any obstacles in front of the unit.
◆Do not spray liquid of any kind into the indoor unit. Should this happen,
switch off the breaker used for your air conditioner and contact your
installation specialist.
◆Make sure that the unit is correctly ventilated at all times:
Do not place clothing or other materials over it.
◆If the wireless remote control will not be used for a long time, remove
the batteries. (If applicable)
◆When using a wireless remote control, the distance should not be more
than 7 meters from the air conditioner. (If applicable)
WARNING
DURING OPERATION
Never store or ship the air conditioner upside down or sideways to
avoid damage to the compressor.
The appliance is not intended for use by young children or infirm
persons without supervision: Young children should be supervised to
ensure that they do not play with the appliance.
Max current is measured according to IEC standard for safety and
current is measured according to ISO standard for energy efficiency.
R410a
“Do not vent R410a into atmosphere: R410a is a fluorinated
greenhouse gas, covered by Kyoto Protocol, with a Global Warming
Potential (GWP)= 1975”
OTHERS
◆Before throwing out the device, it is necessary to pull back the battery
cells and get rid of them safely for recycling reasons.
◆When you need to dispose of the unit, consult your dealer. If pipes are
removed incorrectly, refrigerant may blow out and come into contact
with your skin, causing injury. Releasing refrigerant into the atmosphere
also damages the environments.
◆Please recycle or dispose of the packaging material for this product in
an environmentally responsible manner.
D ISPOSING OF THE UNIT
Risk of electric shock. • Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
Register your product at www.samsung.com/global/register

Contents
◆
P REPARING YOUR AIR CONDITIONER
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
■ Wireless Remote Controller-Buttons and Display . . . . . . . . . . . 6
■ Wired Remote Controller-Buttons and Display . . . . . . . . . . . . . 7
■ Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
■ Function Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
◆
R ECOMMENDATIONS FOR USE
◆
T ECHNICAL SPECIFICATIONS & T HE FEATURE OF PRODUCT
◆
T he feature of product
■ Adjusting the Air Flow Direction . . . . . . . . . . . . . . . . . . . . . . . . 10
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 11
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . 12
■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . 13
■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 14
E-3
ENGLISH
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.

View of the Unit
The figures are shown in this instruction may differ from yours depending on the model.
E-4
Indoor Unit
Air flow blade(up / down)
Air flow blade(right / left)
Air filter
Front grille
Remote control sensor
Filter sign indicator
Defrosting indicator
Fan indicator
Auto indicator
Timer indicator
Operation indicator
On / Off button

Air outlet
Connection valve
Outdoor Unit
E-5
HS
I
LGNE
◆If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall.
◆Disconnect all remote electric power supplies before cleaning.
So clean the heat exchanger with water when it becomes dirty. However, be careful when you
wash the surface of the heat exchanger because it is very sharp.
NN
NNoo oott ttee ee

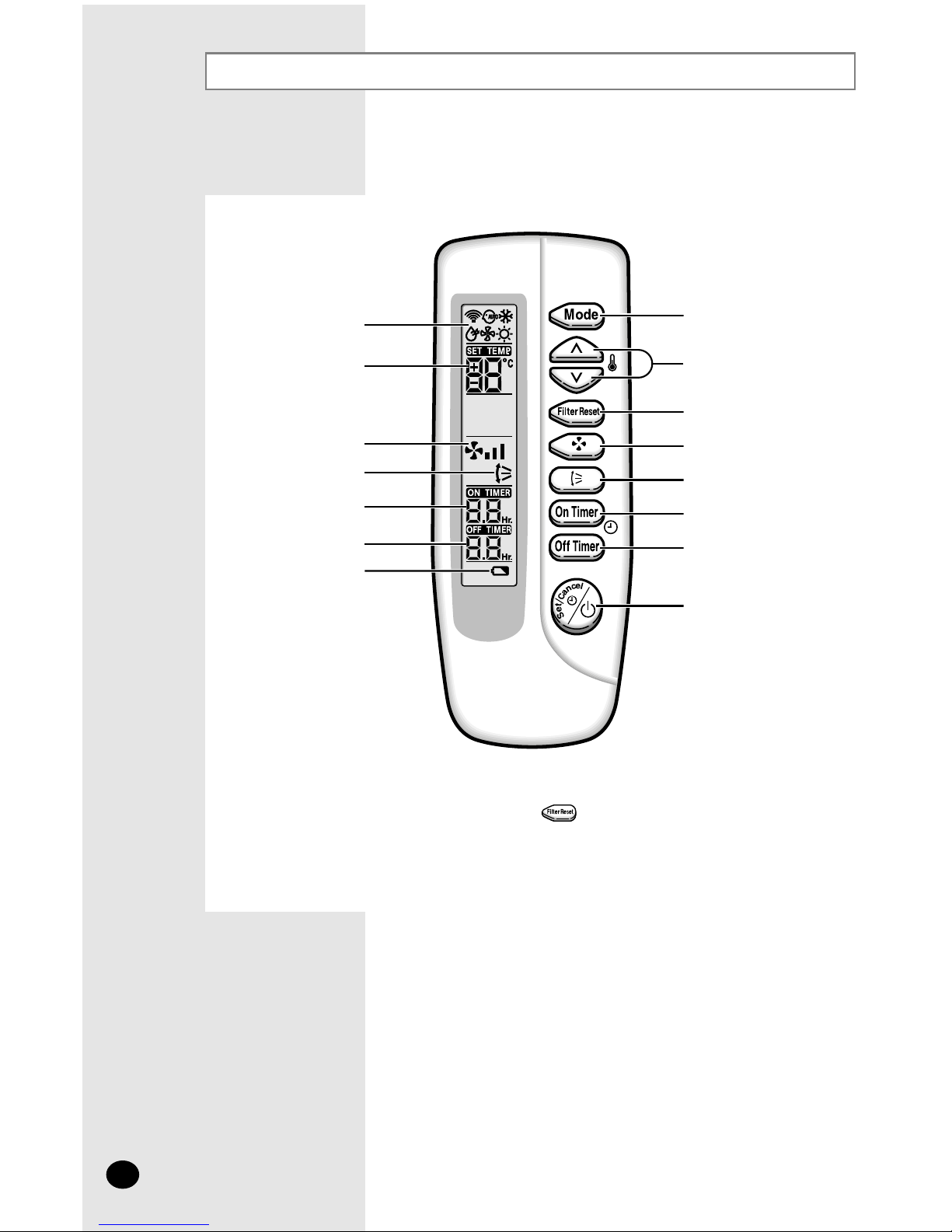

Wireless Remote Controller-Buttons and Display
◆After cleaning the air filter, press the button.
NN
NNoo oott ttee ee
Operating mode Mode selection button
Filter Reset button
Swing button
On Timer button
Off Timer button
On/Off & Timer
Set/Cancel button
Fan speed adjustment
button
Temperature adjustment
buttons
Temperature setting
Fan speed
Air flow direction
On Timer setting
Off Timer setting
Battery discharge indicator
E-6
To use the wireless remote controller, refer to an appropriate manual.

E-7
ENGLISH
Wired Remote Controller-Buttons and Display
The wired remote controller is an optional accessory and it is installed on the wall.
To use the wired remote controller, refer to an appropriate manual.
◆The button is for your installation specialist. You must NOT press it.
◆After cleaning the air filter, press the button. Then the wired remote
controller will display the FILTER SIGN indicator when the time to clean the air filter;
refer to page 13.
NN
NNoo oott ttee ee
Mode selection button
Communication
error indicator
On Timer setting
Off Timer setting
Test indicator
Timer Set/Cancel button
Test button
Temperature adjustment
buttons
Removing frost indicator
Operating mode
Centralized controller indicator
(In case of installing the Centralized controller)
Filter Reset button
Swing button
(Not operated)
Temperature setting
Fan speed
Air flow direction
Filter Sign indicator
On/Off button
Fan speed
adjustment button
On/Off indicator
On Timer button

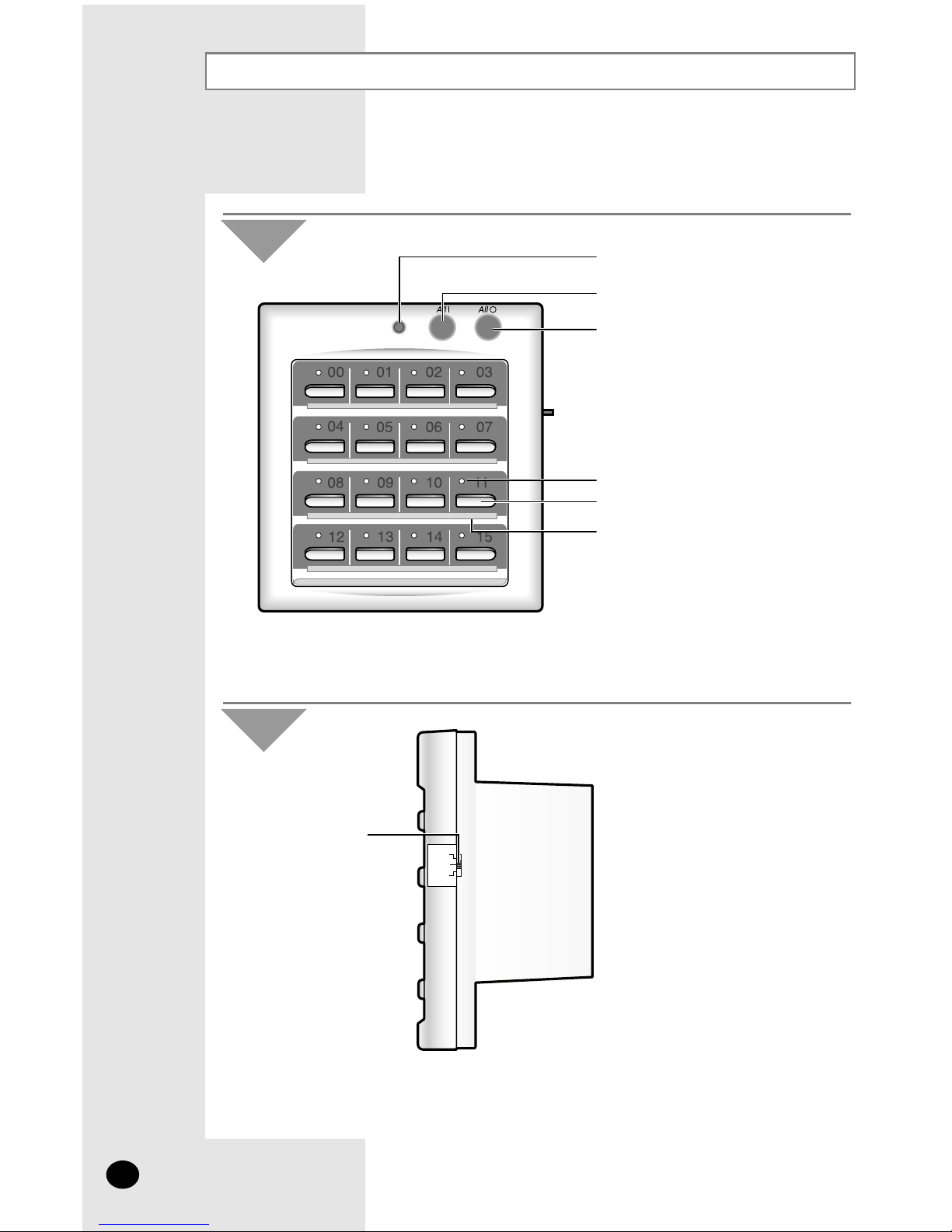

Centralized Controller
The centralized controller is an optional accessory and it is installed on the wall.
To use the centralized controller, refer to an appropriate manual.
E-8
Operating lamp
All On button
All Off button
On/Off indicators
On/Off buttons
Index
◆The operating lamp comes on even when only one air conditioner
connected to the centralized controller is operating.
NN
NNoo oott ttee ee
Front View
Operating Mode Switch
COOL
AUTO
HEAT
◆Choose the appropriate operating mode with the Operating Mode Switch
that enables the user to choose between the Cool/Auto/Heat mode.
NN
NNoo oott ttee ee
Side View

Function Controller
The function controller is an optional accessory and it is installed on the wall.
The function controller is an additional controller which is used with the centralized controller.
To use the function controller, refer to an appropriate manual.
◆The button is for your installation specialist. You must NOT press it.
◆After cleaning the air filter, press the button. Then the wired remote controller will
display the FILTER SIGN indicator when the time to clean the air filter.
NN
NNoo oott ttee ee
Mode selection button
Room number display
Test indicator
Indoor unit selection button
Test button Filter Reset button
Swing button
Temperature adjustment
buttons
Temperature setting
Fan speed
Air flow direction
Filter Sign indicator
On/Off & Timer
Set/Cancel button
Fan speed adjustment
button
On/Off indicator
Centralized controller indicator
Communication error indicator
Removing frost indicator
Operating mode
E-9
ENGLISH

Adjusting the Air Flow Direction
E-10
There are two sets of inner air flow blades. Just as the outer air flow blade
can be adjusted vertically, the inner blades can be adjusted horizontally.
Adjust each set of inner blades to the required position, by pushing or
pulling them sideways.

E-11
ENGLISH
Operating Recommendations
Here are a few recommendations that you should follow when operating
your air conditioner.
Topic Recommendation
The heat pump function of the air conditioner absorbs heat
from outside air and brings it indoors. As the temperature of the
outside air drops, the heating performance of air conditioner will
decrease. If you find that the room is not warm enough, using
an additional heating appliance is recommended.
Heating
performances
When outside temperature is low but humidity is high,
frost may form on the outdoor unit at HEAT mode.
If this happens:
◆ The heating operation stops.
◆ The defrost mode will be triggered automatically for about
10 minutes.
No intervention is required ; after about 10 minutes, the air
conditioner operates again normally.
Frost
If both indoor and outdoor temperatures are high and the air
conditioner is running at HEAT mode, the outdoor unit’s fan
and compressor may stop at times.
This is normal ; simply wait until the air conditioner switches
on again.
High indoor
and outdoor
temperatures
If a power failure occurs while the air conditioner is operating,
the unit will be switched off. When the power returns, the air
conditioner starts up again automatically.
Power failure

Temperature and Humidity Ranges
E-12
The following table indicates the temperature and humidity ranges,
within which the air conditioner can be used.
If the air conditioner is used at... Then...
The automatic protection feature may be
triggered and the air conditioner stopped.
High temperature
A water leakage or some other
malfunction may happen if the heat
exchanger freezes.
Low temperature
Water may condense on and drip from
the surface of the indoor unit if it is used
for a long periods.
High humidity levels
❇ The standardized temperature for heating is 7°C.
If the outdoor temperature drops to 0°C or below, the heating capacity
can be reduced depending on the temperature condition.
If the cooling operation is used at over 32°C(indoor temperature),
it does not cool at its full capacity.
Mode Indoor TemperatureOutdoor Temperature Indoor Humidity
Heating
Cooling
Drying
27°C or less
21°C to 32°C approx.
21
°C to 32°C approx.
-5°C to 24°C approx.
-5°C to 43°C approx.
-5°C to 43°C approx.
-
80% or less
-

E-13
ENGLISH
Cleaning Your Air Conditioner
To get the best possible use out of your air conditioner, you must to
clean it to remove the dust that accumulates on the air filters.
Before cleaning your air conditioner, ensure that you
have switched off the breaker used for the unit.
1 Open the front grille by pushing on both sides and center.
2 Pull the air filters in upward direction to remove them.
Remove all dust from the air filters by vacuum cleaner, brush or by
washing them with a detergent and warm water below 40
°C .
After washing, allow them to dry thoroughly in an area protected from
sunlight.
3
Insert the air filters to the front grille.
4 Close the front grille by pushing both sides and center.
NN
NNoo oott ttee ee◆If you have not used the air conditioner for a long period of time,
set the fan going for three or four hours to dry the inside of the
air conditioner thoroughly.
◆If you don't clean the air filter at least every two weeks, its performance
may be reduced and noise may increase.
◆After cleaning the air conditioner, press the Filter Reset button.
IMPORTANT
Wired Remote Controller Wireless Remote Controller

Solving Common Problems
E-14
Before contacting the after-sales service, perform the following simple checks.
They may save your time and expense of an unnecessary call.
Explanation/Solution
◆Check that the breaker used for the air conditioner is switched on.
Problem
The air conditioner does not
operate at all
◆Check that there are no obstacles between you and the remote
control sensor.
◆Check the wireless remote controller batteries.
◆Check that you are close enough to the remote control sensor.
(7 metres/yards or less).
◆Check that you are pointing the remote controller at the remote
control sensor on the indoor unit.
◆Replace the remote controller batteries if necessary.
◆If there is a strong light around the air conditioner,
a three-wavelength light, a neon sign, etc., for example,
the air conditioner may not be operated with a remote controller.
If this happens, use the remote controller close by the remote
control sensor.
◆Check that the correct operating mode has been selected.
◆The room temperature may be too low or too high.
◆Dust may be blocking the air filter guard; refer to page 13
for cleaning instructions.
◆Check that there is no obstacle in front of the outdoor unit.
The air conditioner does not
operate with the remote
controller
Wireless Remote Controller
Wireless Remote Controller
No beep is heard when you
press (On/Off) on the
remote controller
The air conditioner does
not cool or heat
◆ is displayed on the wired remote controller. In this case,
turn the air conditioner off and contact your dealer.
Wired Remote Controller
The air conditioner does not
operate with the remote
controller
◆In case of using the wired remote controller for a group, the air
conditioners connected to the remote controller are turned on/off in
order. Thus, it takes some time(up to 32 seconds).
Wired Remote Controller
When turning on/off the
air conditioner, it is not
turned on/off immediately.
◆Check that the required temperature has been set correctly.
◆Increase the fan speed.
When heating, the required
room temperature is never
reached and the air
conditioner frequently stops

Technical Specifications & Technology words
E-15
HSILGNE
Power Supply
Model
1Ø, 220-240V~, 50Hz
FH052EAMC
FH070EAM(1)C
Technical Specifications
The abbreviated technology words & the definition of technology terms
abbreviated technology words definition of technology terms
COMP ( Full name： compressor ) One that compresses, especially a machine used to compress gases.
BLOWER One that blows, especially a mechanical device, such as a fan, that
produces a current of air.
FAN A device for creating a current of air or a breeze.
ASSY CONTROL BOX
( Full name : assemble control box ）A restraining device of air-condition, measure, or limit.
MOTOR Something, such as a machine or an engine, that produces or imparts
motion.
ASSY EVAP / ASSY COND
( Full name : assemble evaporator /
assemble condenser )
Heat exchanger; A device, used to transfer heat from a fluid on one
side of a barrier to a fluid on the other side without bringing the fluids
into direct contact.
The feature of product
Auto Changeover
Long Lasting Outdoor Unit
Anti Corrosion Cabinet & Heat Exchanger are applied.
4 directions piping installation are possible.
Free Installation

Contact SAMSUNG WORLD WIDE
If you have any comments or questions regarding a Samsung products, contact the SAMSUNG customer care center.
Samsung Electronics Co., Ltd. All Rights Reserved.
C
Country Customer Care Center Web Site Country Customer Care Center Web Site
BELGIUM 0032 (0)2 201 24 18 www.samsung.com/be KYRGYZSTAN 00-800-500-55-500
CZECH REPUBLIC 844 000 844 www.samsung.com/cz UKRAINE 8-800-502-0000 www.samsung.ua
DENMARK 70 70 19 70 www.samsung.com/dk LITHUANIA 8-800-77777 www.samsung.lt
FINLAND 030-6227 515 www.samsung.com/fi LATVIA 800-7276 www.samsung.com/lv
FRANCE 3260 SAMSUNG(726-7864)
08 25 08 65 65 ( 0,15/min) www.samsung.com/fr ESTONIA 800-7267 www.samsung.ee
GERMANY 01805 - 121213 ( 0,14/min) www.samsung.de CANADA 1-800-SAMSUNG (7267864) www.samsung.com/ca
HUNGARY 06-80-SAMSUNG(726-7864) www.samsung.com/hu MEXICO 01-800-SAMSUNG (7267864) www.samsung.com/mx
ITALIA 800-SAMSUNG(726-7864) www.samsung.com/it U.S.A 1-800-SAMSUNG (7267864) www.samsung.com
LUXEMBURG 0035 (0)2 261 03 710 www.samsung.com/be ARGENTINE 0800-333-3733 www.samsung.com/ar
NETHERLANDS 0900 20 200 88 ( 0.10/min) www.samsung.com/nl BRAZIL 0800-124-421 www.samsung.com/br
NORWAY 815-56 480 www.samsung.com/no CHILE 800-726-7864 (SAMSUNG) www.samsung.com/cl
POLAND 0 801 801 881
022-607-93-33 www.samsung.com/pl COSTA RICA 0-800-507-7267 www.samsung.com/latin
PORTUGAL 80 8 200 128 www.samsung.com/pt ECUADOR 1-800-10-7267 www.samsung.com/latin
SLOVAKIA 0800-SAMSUNG(726-7864) www.samsung.com/sk EL SALVADOR 800-6225 www.samsung.com/latin
SPAIN 902 10 11 30 www.samsung.com/es GUATEMALA 1-800-299-0013 www.samsung.com/latin
SWEDEN 0771-400 200 www.samsung.com/se JAMAICA 1-800-234-7267 www.samsung.com/latin
U.K 0870-SAMSUNG(726-7864) www.samsung.com/uk PANAMA 800-7267 www.samsung.com/latin
IRELAND 0818 717 100 www.samsung.com/ie PUERTO RICO 1-800-682-3180 www.samsung.com/latin
AUSTRIA 0800-SAMSUNG(726-7864) www.samsung.com/at REP. DOMINICA 1-800-751-2676 www.samsung.com/latin
SWITZERLAND 0800-SAMSUNG(726-7864) www.samsung.com/ch TRINIDAD&TOBAGO 1-800-7267-864 www.samsung.com/latin
RUSSIA 8-800-555-55-55 www.samsung.ru VENEZUELA 1-800-100-5303 www.samsung.com/latin
KAZAHSTAN 8-10-800-500-55-500 www.samsung.kz COLOMBIA 01-8000112112 www.samsung.com.co
UZBEKISTAN 8-800-120-0-400 www.samsung.uz AUSTRALIA 1300-362-603 www.samsung.com/au
DB98-26846A_E.indd 16 2007-10-25 15:05:23
