Contents
◆PREPARING THE INSTALLATION
■Deciding on Where to Install the Air Conditioner .......................................... 4
■Air Conditioner and Accessories ................................................................... 6
◆INSTALLING THE INDOOR UNIT
■Fixing the Installation Plate........................................................................... 7
■Purging the Unit............................................................................................. 8
■Connecting the Assembly Cable ................................................................... 8
■Installing and Connecting the Indoor Unit Drain Hose.................................. 9
■Installing and Connecting the Indoor Unit Assembly Piping ......................... 10
■Cutting/Extending the Piping ........................................................................ 11
◆INSTALLING THE OUTDOOR UNIT
■Connecting the Cables to the Outdoor Unit.................................................. 12
■Checking Correct Earthing............................................................................ 14
■Installing and Connecting the Outdoor Unit Drain Hose............................... 15
■Fixing the Unit in Position ............................................................................ 15
◆COMPLETING THE INSTALLATION
■Connecting Up and Purging the Circuit......................................................... 16
■Refrigerant Refill............................................................................................ 16
■Performing Leak Tests................................................................................... 17
■Placing the Indoor Unit in Position................................................................ 17
■Checking and Testing Operations ................................................................. 18
■Explaining Operations to the Owner ............................................................. 20
◆TECHNICAL SPECIFICATIONS

E-4
Deciding on Where to Install the Air Conditioner
When deciding on the location of the air conditioner with the owner, the following restrictions
must be taken into account.
General
Do NOT install the air conditioner in a location where it will come into contact with the following elements:
◆Combustible gases
◆Saline air
◆Machine oil
◆Sulphide gas
◆Special environmental conditions
If you must install the unit in such conditions, first consult your dealer.
Indoor Unit
◆There must be no obstacles near the air inlet and outlet.
◆Install the indoor unit on a surface that can support its weight.
◆Choose a position that enables the piping and cables to be easily connected to the outdoor unit and the
recommended length of 5 metres to be respected.
◆Leave enough clearance beneath the indoor unit to enable the filters to be removed without hindrance.
◆Maintain sufficient clearance around the indoor unit, as indicated in the diagram on the page opposite.
◆Make sure that the water dripping from the drain hose runs away correctly and safely.
Outdoor Unit
◆The outdoor unit must NEVER be placed on its side or upside down, as the compressor lubrication oil will run into the
cooling circuit and seriously damage the unit.
◆Choose a location that is dry and sunny, but not exposed to direct sunlight or strong winds.
◆Do not block any passageways or thoroughfares.
◆Choose a location where the noise of the air conditioner when running and the discharged air do not disturb any
neighbours.
◆Choose a position that enables the piping and cables to be easily connected to the indoor unit and the recommended
length of 5 metres to be respected.
◆Install the outdoor unit on a flat, stable surface that can support its weight and does not generate any unnecessary
noise and vibration.
◆Position the outdoor unit so that the air flow is directed towards the outside, as indicated by the arrows on the top of
the unit.
◆Maintain sufficient clearance around the outdoor unit, as indicated in the diagram on the page opposite.
◆If the outdoor unit is installed at a height, ensure that its base is firmly fixed in position; the maximum height
is 7 metres.
◆Make sure that the water dripping from the drain hose runs away correctly and safely.
◆You have just purchased a multi-split type room air conditioner and it
has been installed by your installation specialist.
◆This device must be installed according to the national electrical rules.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
PREPARING THE INSTALLATION

E-5
ENGLISH
PREPARING THE INSTALLATION
◗ Piping length and the height
◗ Chargeless
Demension
Composition
1 Room max
length
20 m
(A) or (B)
2 Room total max
length
30 m
(A) + (B)
Max height between
indoor unit & outdoor unit
7 m
(C)
Max height between
indoor unit A & B
3 m
(D)
2 Room total max length
Within 30m
(A) + (B)
1 Room max length
Within 20m
(A) or (B)
A
B
160 mm
or more
20 mm
or more
◗ 14,000Btu/h
100 mm
or more
300 mm
minimum
600 mm
minimum
600 mm
minimum
300 mm
minimum
A-unit 7,000(2.05kW) or
9,000 Btu/h(2.63kW)
B-unit 9,000(2.63kW) or
12,000Btu/h(3.51kW)
Circuit breaker
(20A) Main power switch
(B)
(D)
(C)
(A)
1,220-240~,50
Indoor unit Outdoor unit Power supply
Ø, V, Hz
MH14VA1(A2)(C1)(C2) MH14VA1(A2)(C1)(C2)X
◗ 14,000Btu/h 18,000Btu/h
Unit Pipe size
Liquid
A- Unit
1/4”
Gas
3/8”
B-
Unit
1/4” 3/8”
◗ 18,000Btu/h
1,220-240~,50
Indoor unit Outdoor unit Power supply
Ø, V, Hz
MH18VA1(A2)(C1)(C2)
MH18VA1(A2)(C1)(C2)X
◗ 19,000Btu/h
1,220-240~,50
Indoor unit Outdoor unit Power supply
Ø, V, Hz
MH19VA1(A2)(C1)(C2)
MH19VA1(A2)(C1)(C2)X
❋ The designs of the unit and the connection valve are subject to change according to the model.
◗ 19,000Btu/h
Unit Pipe size
Liquid
A- Unit
1/4”
Gas
3/8”
B-
Unit
1/4” 1/2”

E-6
Air Conditioner and Accessories
The following accessories are supplied with the air conditioner.
Accessories in the Indoor Unit Case
OWNER'SINSTRUCTIONS
MANUALDEINSTRUCCIONES
ISTRUZIONIPERL'USO
MANUALDEINSTRUÇÕES
MANUELD'UTILISATION
GEBRAUCHSANWEISUNG
Splut-typeRoomAirConditioner
AireacondicionadodomésticosistemaSplit
Condizionatored'ariaperambientiadunitàSeparate
AparelhodearcondicionadotipoSplit
Climatiseurdetypeséparé
Geteilteraumklimaanlage
OWNER'SINSTRUCTIONS
MANUALDEINSTRUCCIONES
ISTRUZIONIPERL'USO
MANUALDEINSTRUÇÕES
MANUELD'UTILISATION
GEBRAUCHSANWEISUNG
Splut-typeRoomAirConditioner
AireacondicionadodomésticosistemaSplit
Condizionatored'ariaperambientiadunitàSeparate
AparelhodearcondicionadotipoSplit
Climatiseurdetypeséparé
Geteilteraumklimaanlage
Accessories in the Outdoor Unit Case
The following connection accessories may be supplied, depending on the option. If they are not
supplied, it is recommended that you collect them together before starting to install the air
conditioner.
➢The 3-wire power cable and the 4-wire assembly cable are optional. If these cables are not
supplied, use the standard cable approved by IEC standard.
➢The flare nuts are only included when the air conditioner is supplied without the assembly
piping illustrated below.
➢The drain plug is supplied for heat pump model to drain the water condensed in the
outdoor heat exchanger. (for installation, see page 15)
➢If these accessories are supplied, they are located in the accessory box.
Installation Plate Remote Control
3-wire
Power Cable
(option)
Rubber LegDrain Plug
4-wire Assembly
Cable
(option)
Flare Nuts, 6.35mm
outer pipe diameter Flare Nuts, 9.52mm outer pipe diameter Flare Nuts, 12.70mm outer pipe diameter
Batteries for
Remote Control
Owner’s Instruction
Booklet Installation Manual
PREPARING THE INSTALLATION
Pipe Clamps B M3.8 x 20 Screws
for Wood Putty 100gM4 x 16 Tapped Screws Drain Hose,
length 2m
Pipe Clamps A
Assembly Piping,
Ø6.35mm by 5m Assembly Piping, Ø9.52mm by 5m Assembly Piping, Ø12.70mm by 5m PE T3 Foam Tube Insulation
Vinyl Tape,
Width 50mm
The specification for cables
Three-wire power cable
Four-wire assemble cable
AWG
14 or more
17 or more
Cross sectional area (mm2)
2.0 or more
1.0 or more

E-7
ENGLISH

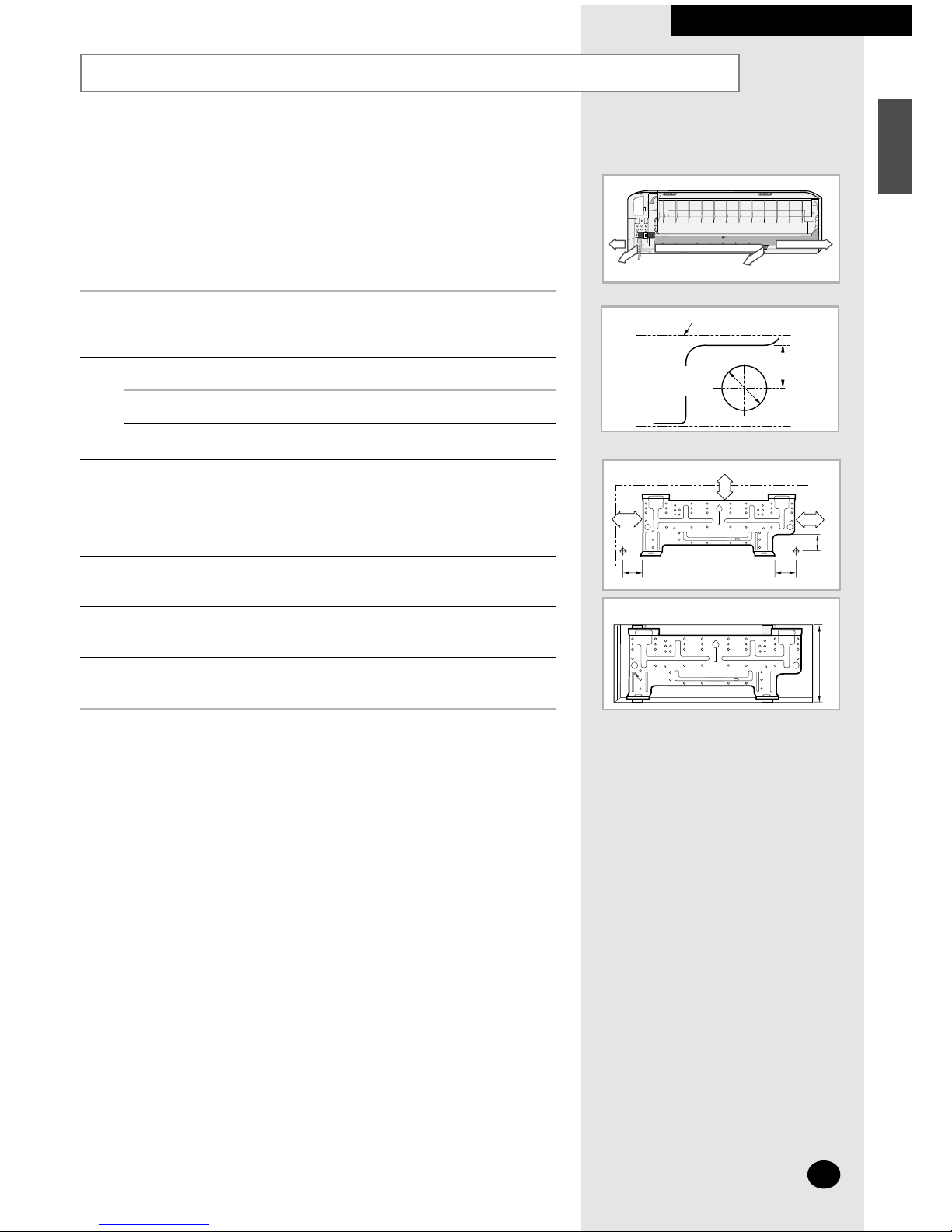

Fixing the Installation Plate
60
30
252 275
14090
410~730
Before fixing the installation plate to a wall or window frame, you
must determine the position of the 65 mm hole through which the
cable, piping and hose pass to connect the indoor unit up to the
outdoor unit. When facing the air conditioner in position on the wall,
the piping and cable can be connected from the:
◆Right
◆Left
◆Rear (right or left)
1Determine the position of the pipe and drain hose hole using the right
figure and drill the hole with an inner diameter of 65 mm so that it slants
slightly downwards.
2 If you are fixing the indoor unit to a... Then follow Steps...
Wall 3.
Window frame 4to 6.
3Fix the installation plate to the wall in a manner appropriate to the weight
of the indoor unit.
➢If you are mounting the plate on a concrete wall with anchor
bolts, the anchor bolts must not project by more than 20 mm.
4Determine the positions of the wooden uprights to be attached to the
window frame.
5Attach the wooden uprights to the window frame in a manner appropriate
to the weight of the indoor unit.
6Using tapped screws, attach the installation plate to the wooden uprights,
as illustrated in the last figure opposite.
30mm
Installation plate
Pipe hole
(
Ø 65mm)
(Unit : mm)
(Unit : mm)
INSTALLING THE INDOOR UNIT

E-8

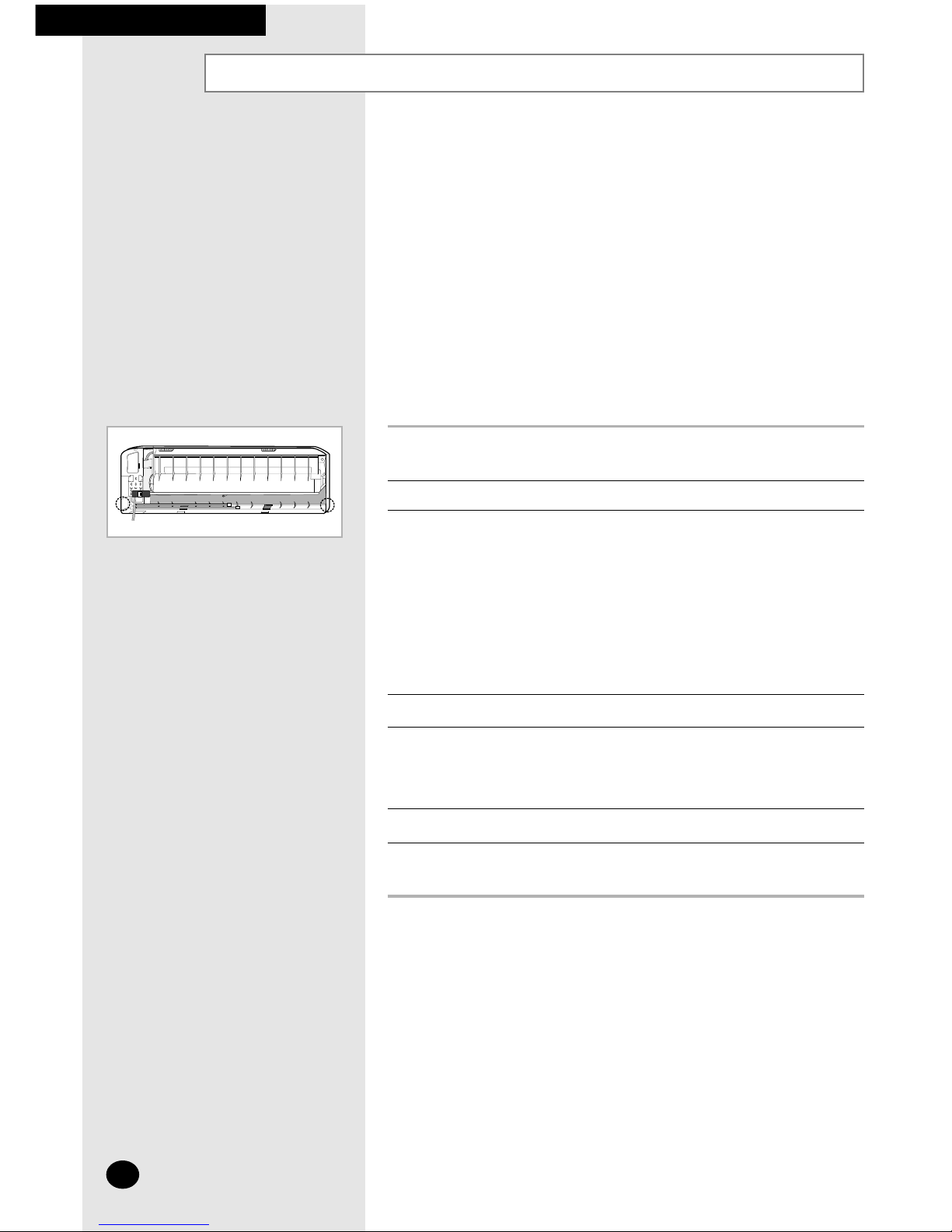

Purging the Unit
On delivery, the indoor unit is loaded with an inert gas. All this gas
must therefore be purged before connecting the assembly piping.
To purge the inert gas, proceed as follows.
Unscrew the caps at the end of each pipe.
Result: All inert gas escapes from the indoor unit.
➢To prevent dirt or foreign objects from getting into the pipes
during installation, do NOT remove the caps completely
until you are ready to connect the piping.
Connecting the Assembly Cable
The indoor unit is powered from the outdoor unit via the assembly cable.
1Extend the assembly cable if necessary.
2Open the front grille by pulling on the tabs on the lower right and left sides
of the indoor unit.
3Remove the screw securing the connector cover.
4Pass the assembly cable through the rear of the indoor unit and connect the
assembly cable such as figure.
➢Each wire is labelled with the corresponding terminal number.
5Pass the other end of the cable through the 65 mm hole in the wall.
6Replace the connector cover, carefully tightening the screw.
7Close the front grille.
8For further details on how to plug the other end of the assembly cable into
the outdoor unit, refer to pages 12 and 13.
INSTALLING THE INDOOR UNIT
E
E
Indoor
unit
Outdoor
unit
Earth
terminal
Earth
terminal

E-9
ENGLISH
To install the drain hose, proceed as follows.
1If necessary, connect the 2-metre extension to the drain hose.
2If you are using the extension, insulate the inside part of the extension
drain hose with a shield.
3Pass the drain hose under the refrigerant piping, taking care to keep the
drain hose tight.
4Pass the drain hose through the hole in the wall, making sure that it is
sloping downwards, as shown in the illustrations above.
➢The hose will be fixed permanently into position once the
whole installation has been tested for gas leaks; refer to
page 17 for further details.
Installing and Connecting the Indoor Unit Drain Hose
Care must be taken when installing the drain hose for the indoor unit to ensure that any condensation
water is correctly drained outside. When passing the drain hose through the 65 mm hole drilled in the
wall, check that none of the following situations occur.
The hose must
NOT slope
upwards.
The end of the drain
hose must NOT be
placed in water.
Do NOT bend the
hose in different
directions.
Keep a clearance of
at least 5 cm between
the end of the hose
and the ground.
Do NOT place the
end of the drain hose
in a hollow.
5 cm
less Ditch
Shield
Drain hose Extension drain hose
INSTALLING THE INDOOR UNIT

E-10
There are two refrigerant pipes of different diameters:
◆A smaller one for the liquid refrigerant
◆A larger one for the gas refrigerant
A short length of piping is already fitted to the air conditioner. You
must extend this piping using assembly piping (optionally supplied).
The connection procedure for the refrigerant piping varies according
to the exit position of the piping from the indoor unit, as seen when
facing the air conditioner in position on the wall:
◆Right (A)
◆Left (B)
◆Rear
1With a knife, cut out the appropriate knock-out piece on the rear of the
indoor unit (unless you are connecting directly from the rear).
2Smooth the cut edges.
3Remove the protection caps on the pipes and connect the assembly piping
to each pipe, tightening the nuts, first manually and then with a wrench,
applying the following torque.
Pipe Outer Diameter Torque (kg•cm)
Liquid refrigerant 6.35 mm 160
Gas refrigerant 9.52 mm 300
Gas refrigerant 12.70 mm 500
➢ If the piping must be shortened or extended, refer to page 11.
4Cut off any excess foam insulation.
5If necessary, bend the pipe round, along the bottom of the indoor unit and
out through the appropriate hole, taking care to ensure that:
◆The piping does not jut out from the rear of the indoor unit
◆The bending radius is 100 mm or more
6Pass the piping through the hole in the wall.
7For further details on how to connect up to the outdoor unit and purge the
circuit, refer to page 16.
➢The piping will be insulated and fixed permanently into
position once the whole installation has been tested for
gas leaks; refer to page 17 for further details.
Installing and Connecting the Indoor Unit Assembly Piping
A
B
INSTALLING THE INDOOR UNIT

E-11
ENGLISH
Five metres of piping is supplied with the air conditioner(Optional).
This length can if necessary be:
◆Extended to a maximum length
◆Shortened as required
☛If more than five metres of piping is required:
◆The assembly cable must also be extended
◆Refrigerant must be added to the circuit by an
approved installer; otherwise, the indoor unit may
freeze
1Make sure that you have the required tools available (pipe cutter, reamer,
flaring tool and pipe holder).
2If you wish to shorten the piping, cut it using a pipe cutter, taking care to
ensure that the cut edge remains at a 90°angle with the side of the pipe,
and referring to the illustrations below for examples of edges cut correctly
and incorrectly. Oblique Rough Burr
3To prevent any gas from leaking out, remove all burrs at the cut end of the
pipe, using a reamer.
4Slide a flare nut on to the pipe and modify the flare.
Pipe Outer Diameter (D) Depth (A)
Liquid refrigerant 6.35 mm 1.3 mm
Gas refrigerant 9.52 mm 1.8 mm
Gas refrigerant 12.70 mm 2.0 mm
5Check that the flaring is correct, referring to the illustrations below for
examples of incorrect flaring.
Inclined Damaged Surface Cracked Uneven Thickness
6Align the pipes to be connected and tighten the flare nuts first manually
and then with a wrench, applying the following torque.
Pipe Outer Diameter Torque (kg•cm)
Liquid refrigerant 6.35 mm 160
Gas refrigerant 9.52 mm 300
Gas refrigerant 12.70 mm 500
7For further details on how to connect up to the outdoor unit and purge the
circuit, refer to page 16.
Cutting/Extending the Piping
90O
Ox x x
xx xx
INSTALLING THE INDOOR UNIT

E-12

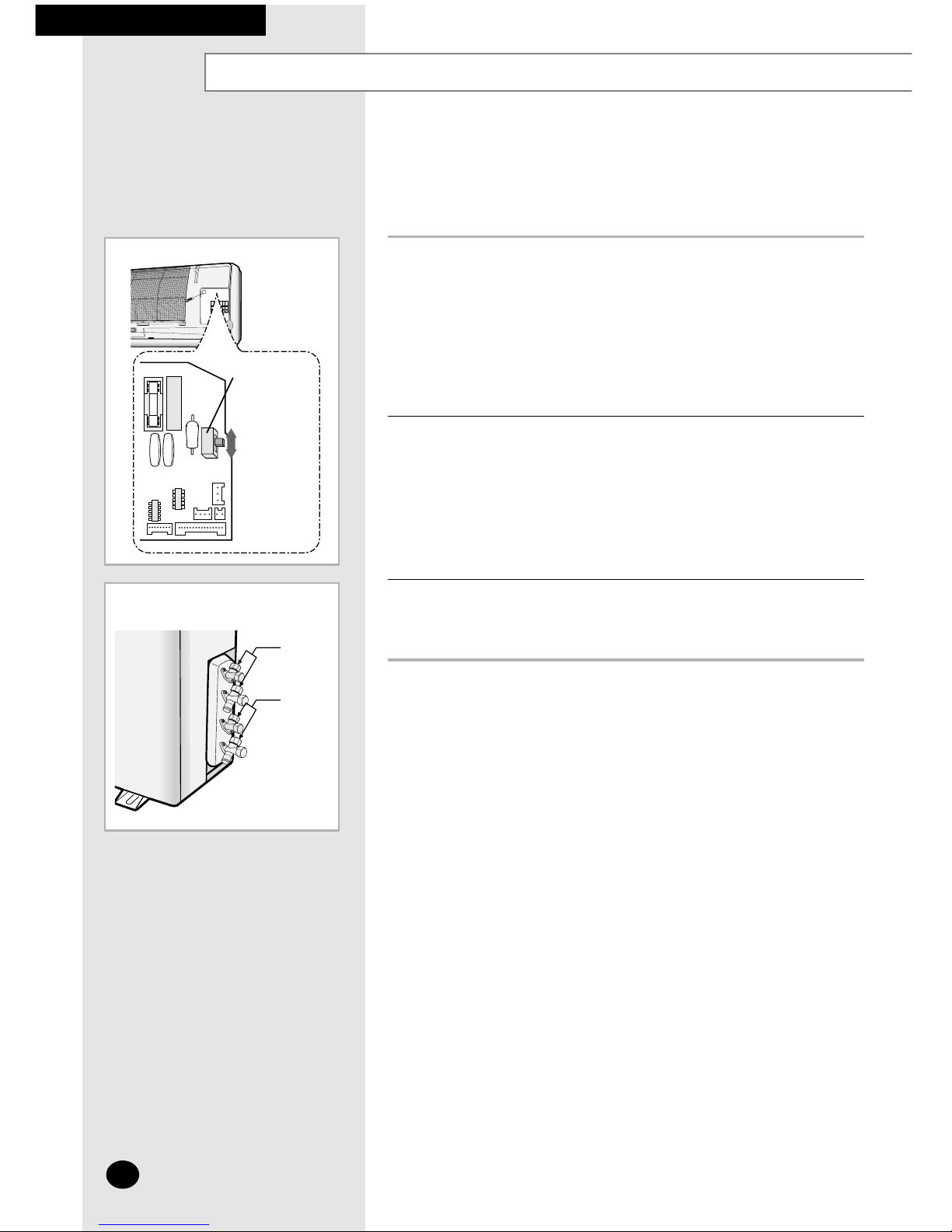

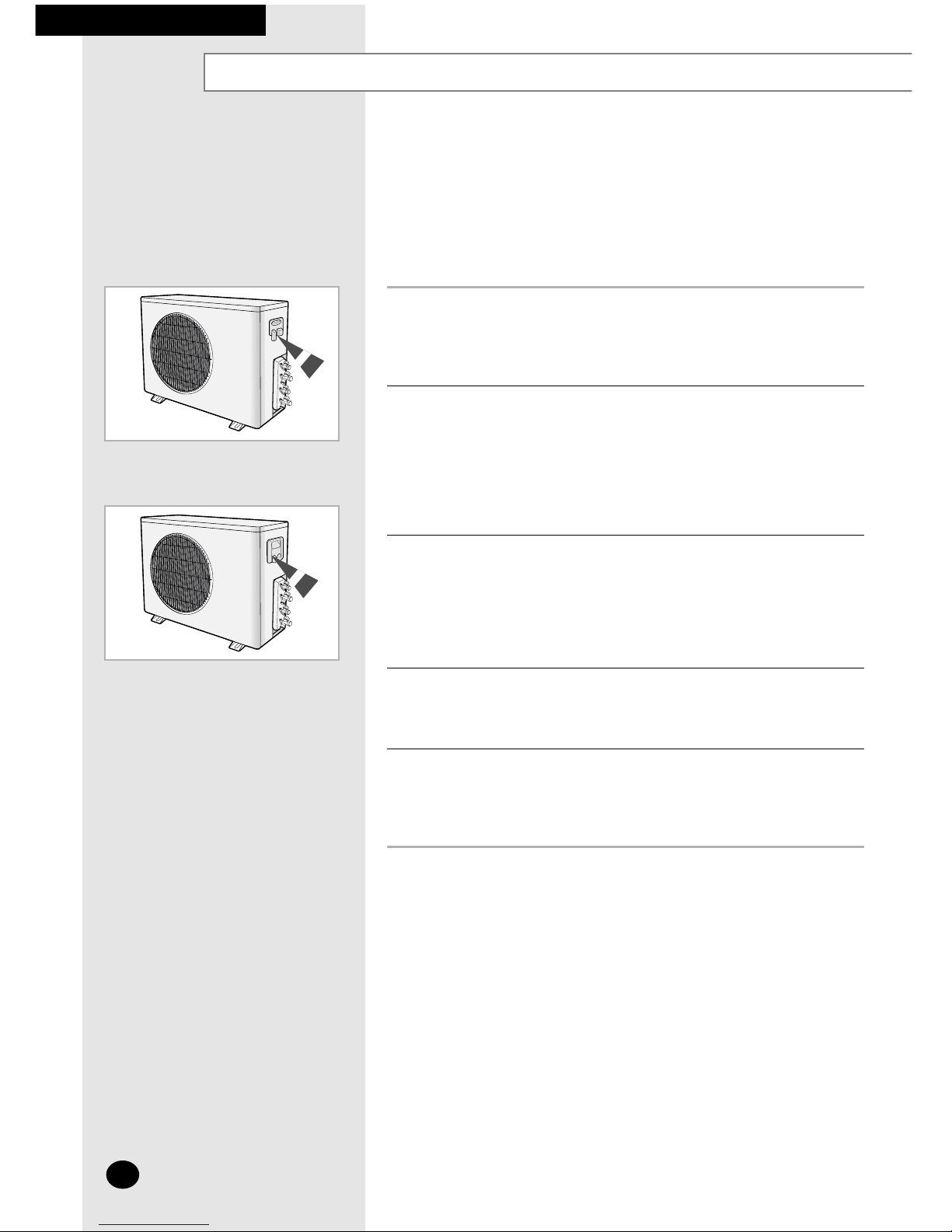

Connecting the Cables to the Outdoor Unit
Two electric cables must be connected to the outdoor unit:
◆
The assembly cable connecting the indoor unit to the outdoor unit.
◆ The power cable connecting the auxiliary circuit breaker to the
outdoor unit.
1Remove the terminal board cover on the side of the outdoor unit.
2Connect the assembly cable with the power cable such as figure.
➢Each wire is labelled with the corresponding terminal number.
➢Ensure the wire number of the indoor unit and the terminal
number of the outdoor unit.
3Connect the earth wires to the earth terminals.
➢Refer to the page 14 for further details on how to check
that earthing is correct.
4Replace the terminal board cover, carefully tightening the screw.
5Connect the power cable to the auxiliary circuit breaker.
I NSTALLING THE O UTDOOR U NIT
MH14VA1(A2)(C1)(C2)X
MH18VA1(A2)(C1)(C2)X
MH19VA1(A2)(C1)(C2)X

E-13
ENGLISH
INSTALLING THE OUTDOOR UNIT
(N1)
12
(N1)
12
E
N L E
LN
21(N1)21(N1)
(N1)
E
E
E
12
(N1)
12
(N1)
12
(N1)
12
Indoor unit
Outdoor unit
Earth
terminal
A-unit B-unit
Earth terminal
Earth
terminal
Earth
terminal Earth
terminal
Terminal block
Assembly cable
Circuit Breaker
(Main Power supply cable)

E-14
Checking Correct Earthing
If the power distribution circuit does not have an earth or the earth
does not comply with specifications, an earthing electrode must be
installed. The corresponding accessories are not supplied with the air
conditioner.
1Select an earthing electrode that complies with the specifications given in
the illustration opposite.
2Determine a suitable location for the earthing electrode:
◆In damp hard soil rather than loose sandy or gravel soil that has a
higher earthing resistance
◆Away from underground structures or facilities, such as gas pipes,
water pipes, telephone lines and underground cables
◆At least two metres away from a lightening conductor earthing
electrode and its cable
➢The earthing wire for the telephone line cannot be used to
earth the air conditioner.
3Dig a hole of the size indicated in the illustration opposite, drive the
earthing electrode into position and cover the top of the electrode
with the excavated soil.
4Install a green/yellow insulated earthing wire (
Ø 1.6 mm, section 2 mm
2
or
greater):
◆If the earthing wire is too short, connect an extension lead, soldering
the connection and wrapping it with insulating tape (do not bury the
soldered connection)
◆Secure the earthing wire in position with staples
➢If the earthing electrode is installed in an area of heavy traffic,
its wire must be connected securely.
5Carefully check the installation, by measuring the earthing resistance with
an earthing resistance tester. If the resistance is above the required level,
drive the earthing electrode deeper into the ground or increase the number
of earthing electrodes.
6Connect the earthing wire to the earthing screw on the air conditioner.
I NSTALLING THE O UTDOOR U NIT
Carbon
plastic Steel core
PVC-insulated green/
yellow wire, 2mm2x 3.5 m
To
earthing
screw
50 cm
30 cm

E-15
ENGLISH
Installing and Connecting the Outdoor Unit Drain Hose
When using the air conditioner in the heating mode, ice may
accumulate. During de-icing, the condensed water must be drained
off safely. Consequently, you must install a drain hose on the outdoor
unit, following the instructions below.
1Insert the drain plug into the drain hole on the underside of the outdoor
unit.
2Connect the drain hose to the drain plug.
3Ensure that the drained water runs off correctly and safely.
INSTALLING THE OUTDOOR UNIT
❊ The designs and shape are subject to
change according to the model.
“X”mm
Rubber leg
“Y”mm
Drain hole
Fixing the Unit in Position
The outdoor unit must be installed on a rigid and stable base to
avoid any increase in the noise level and vibration, particularly if the
outdoor unit is to be installed close to a neighbour.
If it is to be installed in a location exposed to strong winds or at a height,
the unit must be fixed to an appropriate support (wall or ground).
1Position the outdoor unit so that the air flow is directed towards the
outside, as indicated by the arrows on the top of the unit.
2Attach the outdoor unit to the appropriate support using anchor bolts.
3If the outdoor unit is exposed to strong winds, install shield plates around
the outdoor unit, so that the fan can operate correctly.
❇Certainly fix up its rubber leg, in order to prevent its vibration and noise.
Model
✴✴14✴✴
✴✴18/19✴✴
X
555
582
Y
295
340

E-16

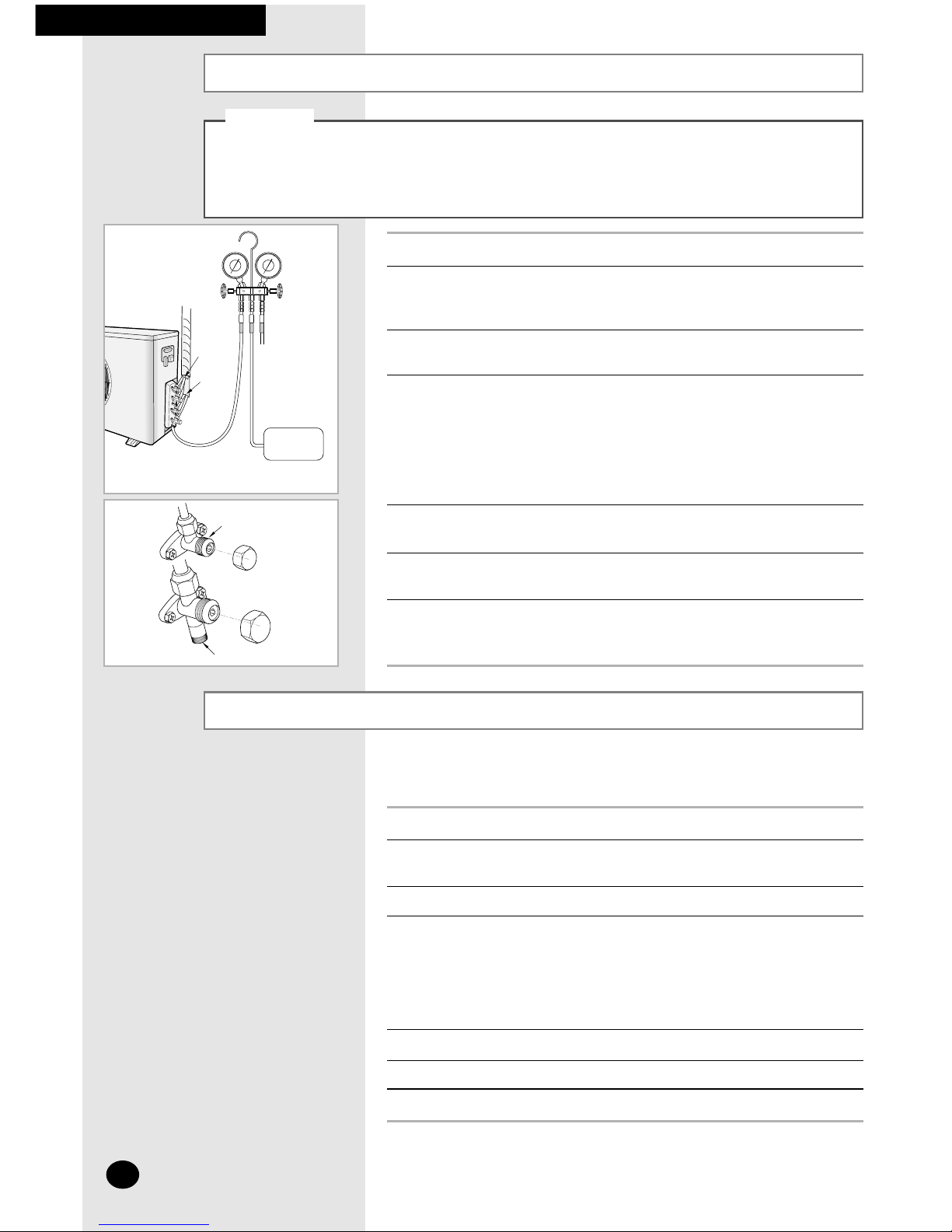

Connecting Up and Purging the Circuit
1Check the piping connections.
2Connect the charging hose of low pressure side of manifold gauge to the
packed valve having a service port (3/8”or 1/2”Packed valve) as shown
at the right figure.
3Open the valve of the low pressure side of manifold gauge counter-
clockwise.
4Purge the air from the system using vacuum pump for about 10 minutes.
- Close the valve of the low pressure side of manifold gauge clockwise.
- Make sure that pressure gauge show -0.1MPa(-76cmHg) after about
10minutes.
This procedure is very important in order to avoid gas leak.
- Turn off the vacuum pump
-
Remove the hose of the low pressure side of manifold gauge.
5Set valve cork of both liquid side and gas side of packed valve to the open
position.
6Mount the valve stem nuts and the service port cap to the valve, and
tighten them at the torque of 18N
•m with a torque wrench.
7Check for gas leakage.
- At this time, especially check for gas leakage from the 3-way valve’s
stem nuts, and from the service port cap.
Refrigerant Refill
If total pipe length(A+B room) is more than 30 metres, additional
refrigerant should be charged by extra metre. You don't have to
charge additional refrigerant up to total 30 metres of connecting pipe.
1Remove the valve stem cap and service port of 3-way valve.
2Connect the charging hose of low pressure side of manifold gauge to the
packed valve having a charging port (3/8”or 1/2”Packed valve).
3Operate the unit at the cooling mode.
4Slowly open the valve of the low pressure side of manifold gauge
counterclockwise until the low pressure of manifold gauge indicates 4.3 to
4.8kg/cm
2
at the high cool operation (2-unit operation) and the standard
temperature of indoor 27°C and outdoor 35°C.
It is recommend that refrigerant should be slowly put in. If the refrigerant is
put in too quickly, compressor will be damaged.
5Stop operation of the air conditioner.
6Disconnect the charge hose of manifold gauge.
7Close the cap of each valve.
C OMPLETING THE I NSTALLATION
Stem cap
Service port
Valve stem
A
B
Indoor
A-unit
Indoor
B-unit
Liquid side
Gas side
Vacuum Pump
The air in the indoor unit and in the pipe must be purged. If air remains in the
refrigeration pipes, it will affect the compressor, reduce to cooling/heating capacity and
could lead to a malfunction. Refrigerant for air purging is not charged in the outdoor unit.
Use Vacuum Pump as shown at the right figure. Each unit must be purged in turn.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
❊ The designs and shape are subject
to change according to the model.

E-17
ENGLISH

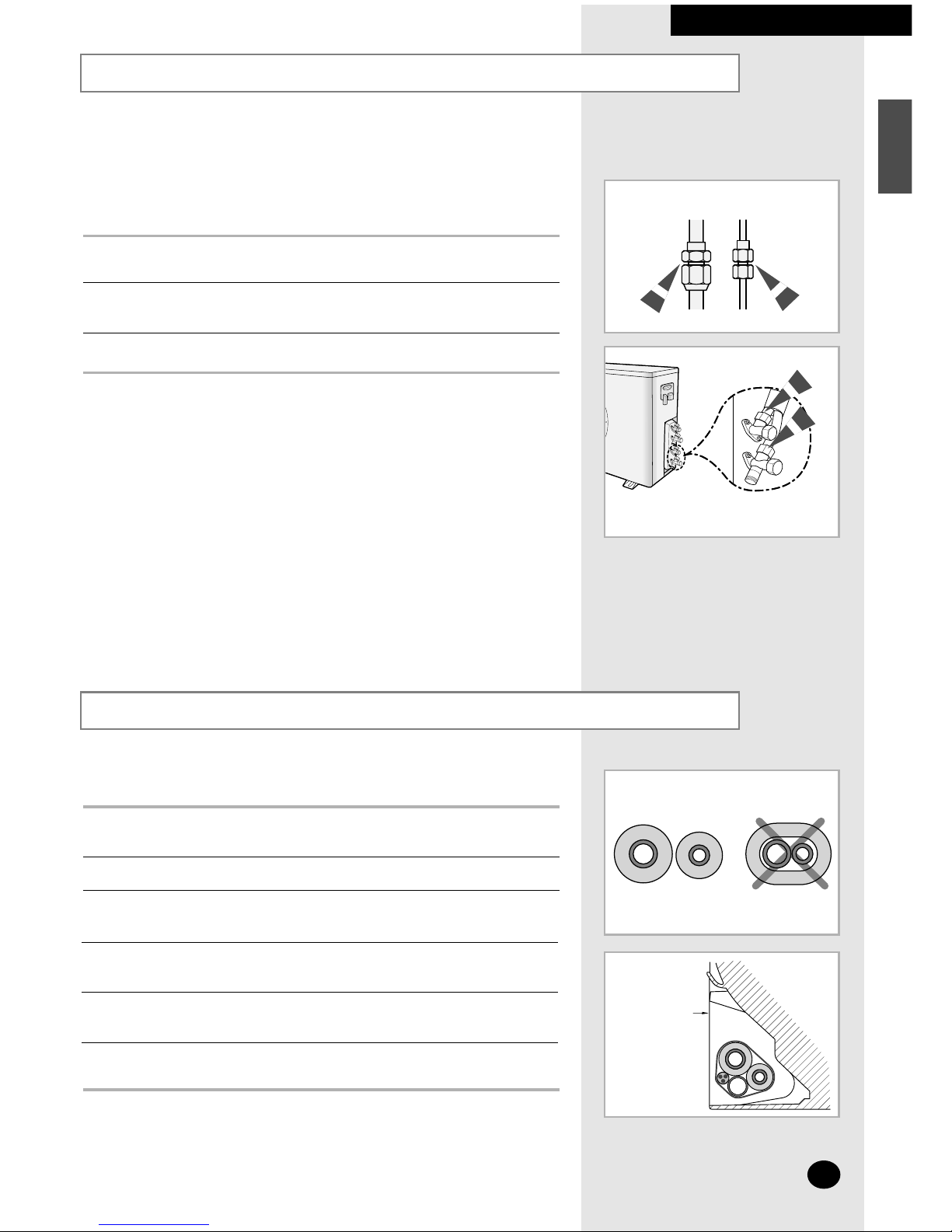

Performing Leak Tests
COMPLETING THE INSTALLATION
To check for gas leaks on the... Then, using a leak detector,
check the...
Indoor unit Flare nuts at the end of sections
C and D.
Outdoor unit Valves on sections A and B.
Before completing the installation (insulation of the cables, hose and
piping and fixing of the indoor unit to the installation plate), you
must check that there are no gas leaks.
Placing the Indoor Unit in Position
Once you have checked that there are no leaks in the system, you can insulate
the piping, hose and cables and place the indoor unit on the installation plate.
1To avoid condensation problems, place heat-resistant polyethylene foam
separately around each refrigerant pipe in the lower part of the indoor unit.
2Wind insulating tape around the pipes, assembly cable and drain hose.
3Place the resulting bundle carefully in the lower part of the indoor unit,
making sure that it does not jut out from the rear of the indoor unit.
4Hook the indoor unit on to the installation plate and move the unit to the
right and left until you are sure that it is securely in place.
5Finish wrapping vinyl tape around the rest of the piping leading to the
outdoor unit.
6Using clamps (optionally supplied), attach the piping to the wall wherever
possible.
B
A
CD
Installation plate
❊ The designs and shape are subject to
change according to the model.

E-18
To complete the installation, perform the following checks and tests to
ensure that the air conditioner is operating correctly.
Step 1 Review all the following elements in the installation:
◆Installation site strength
◆Piping connection tightness to detect any gas leakages
◆Connection wiring
◆Heat-resistant insulation of the piping
◆Drainage
◆Earthing wire connection
Step 2 ◆Check the room select switch in the indoor unit:
Move the room select switch downward in the A unit and move
the switch upward in the B unit.
◆Set an indoor unit connected to upper service valves to the A unit, then
set the other indoor unit connected to lower service valves to the B
unit. The liquid and gas refrigerant pipes should not be crossed with
each other.
Step 3 Apply the power to the outdoor unit.
C OMPLETING THE I NSTALLATION
Checking and Testing Operations
OUTDOOR UNIT
A unit
B unit
B unit
A unit
INDOOR UNIT
Room select
switch

E-19
ENGLISH
COMPLETING THE INSTALLATION
If the indicators display an error, check the following items.
◆Room select switch
- Check that you have set the switch to the proper position.
◆Quantity of refrigerant
- The error can be occurred when the refrigerant is insufficient.
◆Connection of refrigerant pipes
- Upper service valves on the outdoor unit are for the A unit and the others
(lower service valves) are for the B unit.
- Refrigerant pipe should not be crossed with each other.

E-20
C OMPLETING THE I NSTALLATION
Explaining Operations to the Owner
Before leaving the premises on which you have installed the air conditioner,
you should explain the following operations to the owner, making
reference to the appropriate pages in the owner’s instruction booklet.
1How to start and stop the air conditioner.
2How to select the operating mode and adjust the temperature and fan
settings.
3How to adjust the air flow direction.
4How to set the timers.
5How to remove and clean the filters.
Once the owner is happy with the basic operations, hand over the owner’s
instruction booklet and this installation manual for storage in a handy and safe
place.
