Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/global/register
Wall Mounted Type Series
Neo Forte : AVXWN
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 35 2008-03-27 ｿﾀﾈﾄ 6:52:50

02_ features
For easy future reference write the model and serial number
down. You will find your model number on the right side of
the air conditioner.
Model #
Serial #
features of your new
air conditioner
• Cool Summer Offer
On those hot sweltering summer days and long restless nights, there is no better escape
from the heat than the cool comforts of home. Your new air conditioner brings an end to
exhausting hot summer days and lets you rest. This summer, beat the heat with your own
air conditioner.
• Cost Efficient System
Your new air conditioner not only provides maximum cooling power in the summer, but can
also be an efficient heating method in the winter with the advanced “Heat pump” system.
This technology is up to 300% more efficient than electrical heating, so you can further
reduce its running cost. Now, meet year-round needs with one air conditioner.
• A Look for Everywhere
The elegant and harmonious design gives priority to the esthetics of your space and
complements any of your existing interior décor. With its soft color and rounded-edge shape,
the new air conditioner adds class to any room. Enjoy what your air conditioner offers both
functionally and esthetically.
• function
mode allows you to set a comfortable sleep temperature while saving energy and
having sound sleep.
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 2 2008-03-27 ｿﾀﾈﾄ 6:51:43

safety information _03
ENGLISH
safety information
To prevent electric shock, disconnect the power before servicing, cleaning, and installing the unit.
SAFETY INFORMATION
Before using your new air conditioner, please read this manual thoroughly to ensure that you know how to
safely and efficiently operate the extensive features and functions of your new appliance.
Because the following operating instructions cover various models, the characteristics of your air
conditioner may differ slightly from those described in this manual. If you have questions, call your nearest
contact center or find help and information online at www.samsung.com.
What the icons and signs in this user manual mean:
WARNING
Risk of death or serious personal injury.
CAUTION
Potential risk of personal injury or material damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when
using your air conditioner, follow these basic safety instructions:
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions carefully.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the contact center for help.
Recommended instructions or useful information for use.
These warning signs are here to prevent injury to you and others.
Please follow them carefully.
After reading this section, keep it in a safe place for future reference.
SEVERE WARNING SIGNS
Do not cut the power plug and connect to a different power cable.
Never attempt to lengthen the power cable.
• Potential risk of fire or electric shock.
Do not yank the power cable and touch the power plug with wet hands.
• Potential risk of fire or electric shock.
Never use a damaged power plug, power cable, or loosened power
receptacle.
• Potential risk of fire or electric shock.
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 3 2008-03-27 ｿﾀﾈﾄ 6:51:43

04_ safety information
safety information
SEVERE WARNING SIGNS
Do not place the air conditioner near hazardous substances or equipment
that releases free flames to avoid fires, explosions or injuries.
• Potential risk of fire hazard or explosion.
Do not spray flammable gases such as insecticide near the air conditioner.
• Potential risk of electric shock, fire or unit malfunction.
Do not block or place items in front of the air conditioner. Do not step, hang
onto, or place heavy items on the air conditioner.
• Potential risk of personal injury.
Do not insert anything such as fingers or branches into the air conditioner
vents.
• Keep children away from the air conditioner. Potential risk of personal injury.
Do not install the air conditioner in areas exposed to the inflammable gas
leakage or the potential risk of gas leakage.
• Potential risk of fire hazard or explosion.
Do not install the outdoor unit at an unstable place such as outer high wall of
an apartment or building and on a outside of terrace to avoid falling.
• If the outdoor unit falls, it may cause personal injury or loss of property.
Consult the place of purchase or a contact center to disassemble or reinstall
the air conditioner.
• Potential risk of unit malfunction, water leakage, electric shock, or fire.
Do not connect the air conditioner with heating apparatus or do not attempt
to disassemble, remodel or repair it by yourself.
• Potential risk of malfunction, electric shock or fire. If repairs are needed, consult the
contact center.
Consult the place of purchase or a contact center to install the air
conditioner.
• Improper installation carries a risk of unit malfunction, water leakage, electric shock or
fire.
• If installing in specialty areas, such as a factory complex or saline coastal area, consult
the place of purchase or contact center for specific installation details.
Install the air conditioner with the support bracket securely fastened to use
for an extended period of time.
• If the air conditioner falls, it may cause personal injury or loss of property.
Ensure the air conditioner is installed in compliance with current national
safety standards.
Use a rated circuit breaker only.
• Never use steel wires or copper wires as a circuit breaker. It may cause fire or unit
malfunction.
Use an exclusive power source for the air conditioner.
• Potential risk of electric shock or fire.
Do not put undue stress on the power cable or place heavy objects on it.
Do not bend the power cable excessively.
• Potential risk of fire or electric shock.
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 4 2008-03-27 ｿﾀﾈﾄ 6:51:44

safety information _05
ENGLISH
If the air conditioner becomes wet, turn the power off immediately and call
your nearest contact center.
• Potential risk of fire or electric shock.
Install an exclusive circuit breaker and short-circuit breaker for the air
conditioner.
• Potential risk of electric shock or fire.
If the power cable or cord is damaged, the manufacturer, a qualified service
technician must replace it to avoid a potential risk.
Disconnect the air conditioner from power supply before it is repaired or
disassembled.
Use a receptacle that has a ground terminal. The receptacle must be used
exclusively for the air conditioner.
• Improper electrical grounding may cause electric shock or fire.
Ensure proper ground has been established when installing the air
conditioner. Do not connect the ground cable of the unit to a gas pipe, a
water pipe or a telephone line.
• Potential risk of electric shock.
CAUTION SIGNS
Ensure no water gets into the air conditioner.
• Potential risk of fire or electric shock.
Do not install the air conditioner close to heating appliances to avoid damage.
Turn off the air conditioner using the provided remote control or control
accessory (if provided). Do not unplug to turn off the unit (unless there is an
immediate danger).
Do not open the front grille during operation.
• Potential risk of electric shock or unit malfunction.
Cool air should not flow directly towards people, pets, and plants.
• It is harmful to your health, pets, and plants.
Do not run the air conditioner for an extended period of time in a room with
the door closed or with babies, elderly or disabled people.
• Open the door or windows to ventilate your room at least once an hour to prevent oxygen
shortage.
Do not use the air conditioner as a cooling precision instrument for food,
pets, plants, cosmetics or machinery.
• Potential risk of property loss.
Do not drink water from the air conditioner.
• Potential risk of health hazard.
Do not give excessive shock to the air conditioner.
• Potential risk of fire or unit malfunction.
Do not expose the dust filter to direct sunlight while drying.
• Strong direct sunlight may deform the dust filter.
Do not spray water directly on the air conditioner or use benzene, thinner or
alcohol to clean the surface of the unit.
• Potential risk of electric shock or fire.
• Potential risk of damage to the air conditioner.
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 5 2008-03-27 ｿﾀﾈﾄ 6:51:44

06_ safety information
safety information
CAUTION SIGNS
Do not place containers with liquid or other objects on the unit.
Do not touch the pipe connected to the air conditioner.
• Potential risk of personal injury or burn.
The air conditioner is composed of moving parts. Keep children away from
the unit to avoid physical injury.
Check for damage on delivery. If damaged, do not install the air conditioner
and call the place of purchase immediately.
Make sure the voltage and frequency of the electric system are compatible
with the air conditioner.
Insert the dust filter before operating the air conditioner.
• If there is no dust filter inside the air conditioner, accumulated dust may shorten the life of
the air conditioner and cause electricity waste.
Keep indoor temperatures stable and not extremely cold, especially where
there are children, elderly or disabled people.
Clean the conditioner after the inner fan stops operating.
• Potential risk of injury or electric shock.
Clean the dust filter every 2 weeks. Clean the filter more frequently if the air
conditioner is operated in dusty areas.
Inspect the condition, electric connections, pipes and external case of the
air conditioner regularly by a qualified service technician.
Do not open doors and windows in the room being cooled during operation
unless necessary.
Do not block air conditioner vents. If objects block the air flow, it may cause
unit malfunction or poor performance.
The packaging material and used batteries of the remote control(optional)
must be disposed of in accordance with the national standards.
The refrigerant used in the air conditioner must be treated as chemical
waste. Dispose the refrigerant following national standards.
Have a qualified service technician install the air conditioner and perform a
trial operation.
Install the air conditioner away from direct exposure to sunlight, heating
apparatus, and humid places.
• Hang a curtain to boost cooling efficiency and to avoid the risk of electric shock.
Firmly connect the drain hose to the air conditioner for a proper water
drainage.
• If it is not drain well, the condensed-water from the indoor unit may overflow and leak into
the room.
Install the outdoor unit where operating noise and vibration will not disturb
your neighbor and be well-ventilated with no obstacle.
• Potential risk of malfunction.
• Operating noise may disturb your neighbor.
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 6 2008-03-27 ｿﾀﾈﾄ 6:51:44

safety information _07
ENGLISH
Install the shortest possible length of pipe.
• If the length of pipe is long, the air conditioner life can be shorten and become inefficient.
If a power outage occurs while the air conditioner is working, turn off the
power source immediately.
When cleaning the outdoor unit, touch the heat exchanger radiator fins with
extreme care.
• Wearing thick gloves can protect your hands.
Make sure there are no obstacles under the indoor unit.
• Potential risk of fire or loss of property.
Make sure that children take precautions against access to the air
conditioner and they do not play with the unit.
The maximum input power & current and the input power & current are
measured in accordance with the rules given in the IEC/ISO.
Ensure to use the wireless remote control up to a distance of about 7m from
the remote control sensor of the air conditioner.
• The air conditioner may not work over the distance of 7m.
Make sure the cover or any obstacle is not near the air conditioner. Allow
sufficient space for air circulation.
• Insufficient ventilation may result in poor performance.
Batteries should be removed from the wireless remote control and be kept
separate when unused for long period of time.
If failure or damage occurs on the conditions of improper use not followed
by the installation manual, there will be an extra labor charge for installing
and construction.
• Potential risk of malfunction, electric shock or fire if repairs or installations are attempted
by a non-qualified service technician.
Ensure the off-on and protection switches are properly installed.
Do not use the air conditioner if damaged. If problems occur, immediately
stop operation and disconnect the plug from the power supply.
If the air conditioner will not be used for an extended period of time (for
example, over several months), unplug the power from the wall.
Call the place of purchase or a contact center if repairs are needed
• Potential risk of fire or electric shock if disassembly or repairs are attempted by a
non-qualified service technician.
If you smell burning plastic, hear strange sounds, or see smoke coming from
the unit, unplug the air conditioner immediately and call a contact center.
• Potential risk of fire or electric shock.
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 7 2008-03-27 ｿﾀﾈﾄ 6:51:44

08_ contents
contents
VIEWING YOUR AIR CONDITIONER
10
10 Checking the indoor unit and display
10 Main parts
10 Indoor unit display
11 Removing the front panel
11 Power button and Room temperature sensor
12 Checking the remote control
13 Remote control display
13 Using the remote control
13 Installing the batteries
OPERATING BASIC FUNCTION
14
14 Turning the air conditioner on and off
14 Selecting operation mode
14 Auto
15 Cool
16 Dry
17 Fan
18 Heat
19 Adjusting the air flow direction
19 Vertical air flow
19 Horizontal air flow
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 8 2008-03-27 ｿﾀﾈﾄ 6:51:44

contents _09
ENGLISH
USING ADVANCED FUNCTIONS
20
20 Using the Turbo function
21 Setting timer
21 On timer
22 Off timer
23 Combining On timer and Off timer
24 mode
CLEANING AND MAINTAINING
THE AIR CONDITIONER
26
26 Cleaning the exterior
26 Cleaning the filter
26 Air filter
27 Anti-allergy filter
28 Replacing the filter
28 Deodorizing filter
29 Maintaining your air conditioner
29 Periodical checks
30 Internal protections via the unit control
system
APPENDIX
31
31 Troubleshooting
32 Operation ranges
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes
at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they purchased this product, or their local government office,
for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 9 2008-03-27 ｿﾀﾈﾄ 6:51:44

10_ viewing
viewing your air conditioner
Congratulations on the purchase of the air conditioner. We hope you will enjoy the features of your air
conditioner and stay cool or warm with optimal efficiency.
Please read the user manual to get started and to make the best use of the air conditioner.
CHECKING THE INDOOR UNIT AND DISPLAY
Carefully unpack your air conditioner, and check the unit to make sure it is not damaged.
Main parts
Display
Your air conditioner may slightly look different from illustration shown above depending on
your model.
Air flow blade
Air intake
Blade pin lever
Power button
Air filter(under the panel)
Display
Air flow blade
Air flow blade
Blade pin lever
Air flow blade
Operation indicator
Timer indicator
Turbo indicator
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 10 2008-03-27 ｿﾀﾈﾄ 6:51:46

viewing _11
ENGLISH
REMOVING THE FRONT PANEL
Tightly grab both side of the front panel and lift up the panel to open. Then slide the panel towards to
remove the panel.
Power button and Room temperature sensor
You may locate the Power button on the right bottom side of the air conditioner. If the front
panel is open, you can check the room temperature sensor.
You can turn on the air conditioner without the remote control by pressing the Power button.
The room temperature sensor measures indoor room temperature.
Room temperature
sensor
Power button
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 11 2008-03-27 ｿﾀﾈﾄ 6:51:49

12_ viewing
viewing your air conditioner
CHECKING THE REMOTE CONTROL
You can activate the air conditioner by pointing the remote control away from it. When using the remote
control, always point it directly at the air conditioner.
Each time you press the button, a short beep will sound and a transmit indicator appears
on the remote control display.
Mode
Set one of the 5 operating modes.
(See pages14~18 for instructions.)
Fan speed
Adjust how much air flows through the
air conditioner with the
4 different fan speeds such as Auto/
Low/Medium/High.
Power & Set/Cancel
Turn on/off the air conditioner and
set/cancel the timer function.
Turbo
Operate in maximum fan speed to
cool/warm quickly.
Air swing
Activate/Deactivate air flow blade
movement automatically up and down. On timer
Set the on timer on.
Adjust the time for On timer.
Set the mode on/off.
Remote control display
Temperature 
Increase/decrease the temperature
by 1˚C.
Off timer
Set the off timer on.
Adjust the time for Off timer.
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 12 2008-03-27 ｿﾀﾈﾄ 6:51:51

viewing _13
ENGLISH
Remote control display
Installing the batteries
Using the remote control
• Point the remote control towards the remote control sensor of the unit.
• When properly pressing the button on the remote control, you will hear beep sound
from the unit.
• The signal may not be received well of electronic lighting style fluorescent lamps,
such as inverter fluorescent lamps are in the same space.
• If other electrical products operate by the remote control, call your nearest contact
center.
Operation mode indicator
Auto
Cool
Dry
Fan
Heat
Transmit indicator
1. Slide the cover, on
the rear of the remote
control, down to open.
2. Install two AAA
batteries.
Check and match the “+”
and “-” signs accordingly.
Make sure you have
installed the batteries in
correct position.
3. Close the cover by
sliding it back to its
original position.
You should hear click
sound when the cover is
locked properly.
Set temperature indicator
Turbo indicator
Air swing indicator
indicator
Fan speed indicator
Auto
Low
Medium
High
Turbo
On Timer indicator
/ Off Timer
indicator
Low battery indicator
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 13 2008-03-27 ｿﾀﾈﾄ 6:51:55

14_ operating
operating basic function
TURNING THE AIR CONDITIONER ON AND OFF
Press the Power & Set/Cancel button on the remote control.
You will hear a ringing sound and the air flow blade will move up and
down automatically when the air conditioner is properly on.
The air conditioner will operate in the most recent operation mode
used or Auto mode.
When you turn off the air conditioner, air flow blade will stop moving
and remain closed.
Turning on/off your air conditioner without the remote control.
You can operate your air conditioner by pressing the Power button on the right bottom side of the
air conditioner.
SELECTING OPERATION MODE
Auto
In Auto mode, the air conditioner will automatically set the temperature and fan speed depending
on the room temperature detected by the room temperature sensor.
1. Turn on the air conditioner.
Press the Power & Set/Cancel button on the remote control.
2. Set the operating mode.
Press the Mode button on the remote control until
Auto mode and Auto fan speed indicator appear on the
remote control display.
The air conditioner will automatically set the operation
mode to Cool or Heat depends on the room
temperature.
When you press the Mode button, mode will change in order of Auto, Cool, Dry, Fan and
Heat.
3. Set the Temperature.
Press the Temperature or button on the
remote control to increase or decrease the desired
temperature.
You can set the desired temperature between the
range of 16˚C~30˚C.
You can increase/decrease the temperature by 1˚C.
• When the air conditioner is already operating in another mode, press the Mode button
until Auto mode indicator appears on the remote control display.
• When you are using the remote control, make sure correct indicator which matches your
selection appears on the remote control display.
• Air flow can be adjusted manually. (See page 19 for instructions.)
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 14 2008-03-27 ｿﾀﾈﾄ 6:52:00

operating _15
ENGLISH

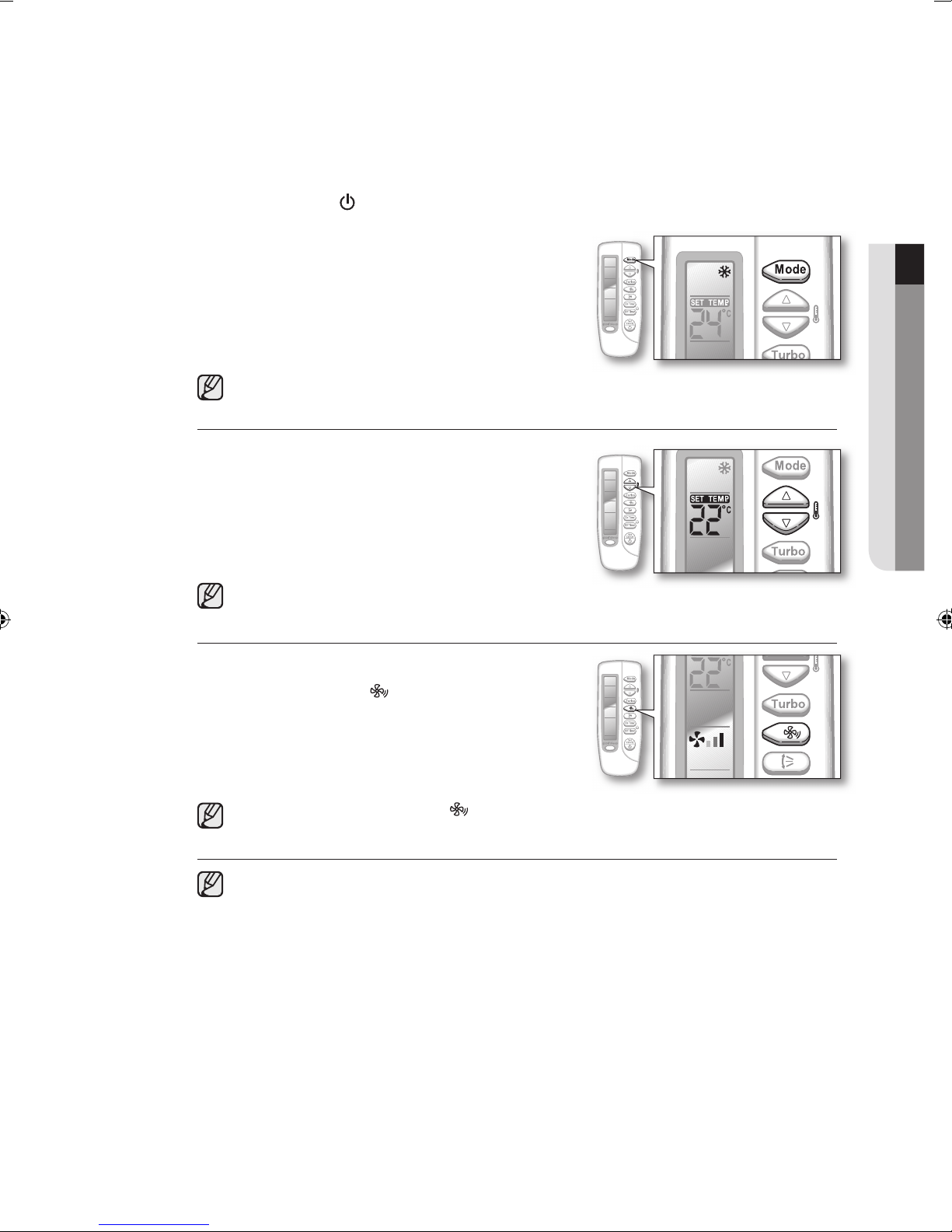

Cool
In Cool mode, the air conditioner will cool your room. You can adjust the temperature and the fan
speed to feel cooler in hot season.
1. Turn on the air conditioner.
Press the Power & Set/Cancel button on the remote control.
2. Set the operating mode.
Press the Mode button on the remote control until
Cool mode indicator appears on the remote control
display.
The air conditioner operates in Cool mode and it will
lower the temperature in your room.
When you press the Mode button, mode will change in order of Auto, Cool, Dry, Fan and
Heat.
3. Set the temperature.
Press the Temperature or  button on the
remote control to increase or decrease the desired
temperature.
You can set the desired temperature between
the range of 16˚C~30˚C.
You can increase/decrease the temperature by 1˚C.
4. Set the fan speed.
Press the Fan Speed button on the remote control
to set the desired fan speed.
If room temperature reaches desired value, the air
conditioner will shut off cooling for a while and just the
fan runs.
When you press the Fan Speed button, fan speed will change in order of Auto, Low,
Medium and High.
• When you are using the remote control, make sure correct indicator which matches your
selection appears on the remote control display.
• Air flow can be adjusted manually. (See page 19 for instructions.)
• If current outside temperatures are much higher than the selected indoor temperature,
it may take time to bring the inner temperature to the desired coolness.
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 15 2008-03-27 ｿﾀﾈﾄ 6:52:05

16_ operating
operating basic function

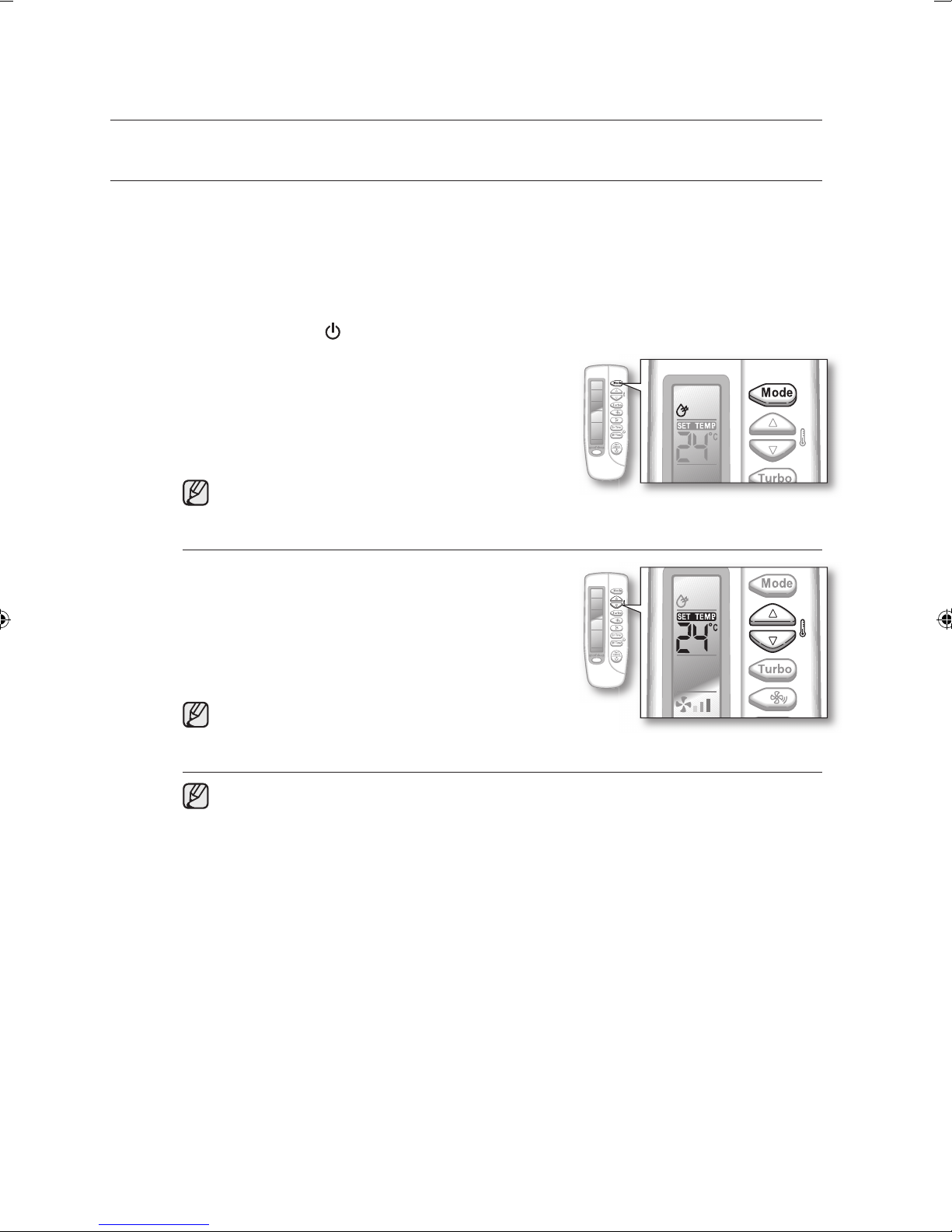

SELECTING OPERATION MODE
Dry
The air conditioner in Dry mode acts like a dehumidifier by removing moisture from the indoor air.
Dry mode makes the air feel refreshing in a humid climate.
1. Turn on the air conditioner.
Press the Power & Set/Cancel button on the remote control.
2. Set the operating mode.
Press the Mode button on the remote control until Dry
mode indicator appears on the remote control display.
The air conditioner operates in Dry mode and
automatically adjusts the fan speed to Auto.
When you press the Mode button, mode will change
in order of Auto, Cool, Dry, Fan and Heat.
3. Set the temperature.
Press the Temperature or  button on the
remote control to increase or decrease the desired
temperature.
You can set the desired temperature between
the range of 18˚C~30˚C.
You can increase/decrease the temperature by 1˚C.
• When you are using the remote control, make sure correct indicator which matches your
selection appears on the remote control display.
• Air flow can be adjusted manually. (See page 19 for instructions.)
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 16 2008-03-27 ｿﾀﾈﾄ 6:52:08

operating _17
ENGLISH

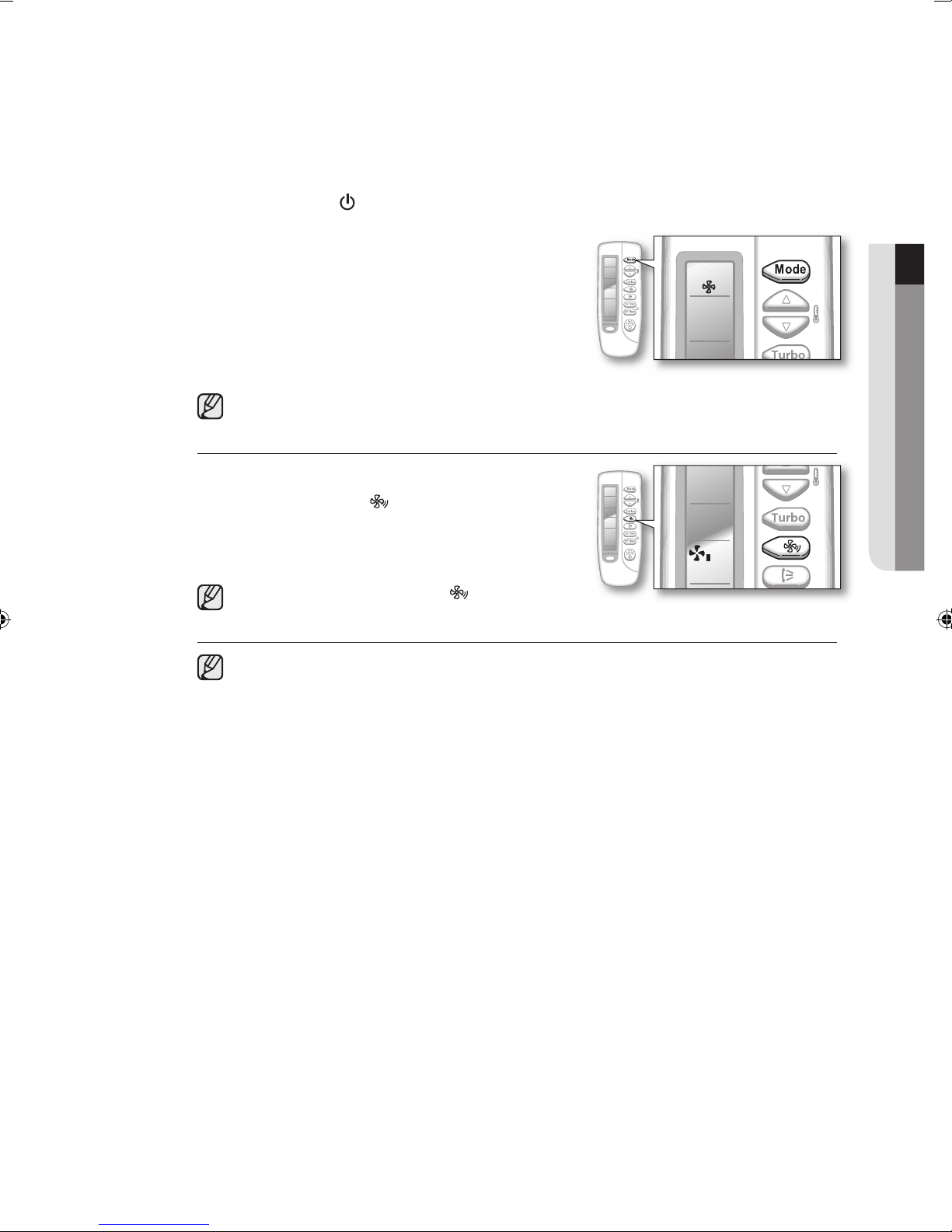

Fan
Fan mode can be selected to ventilate your room. Fan mode will be helpful to refresh the stale air
in your room.
1. Turn on the air conditioner.
Press the Power & Set/Cancel button on the remote control.
2. Set the operating mode.
Press the Mode button on the remote control until
Fan mode indicator appears on the remote control
display.
The air conditioner operates in Fan mode and
automatically adjusts the temperature according to the
current room temperature.
When you press the Mode button, mode will change
in order of Auto, Cool, Dry, Fan and Heat.
3. Set the fan speed.
Press the Fan Speed button on the remote control
to set the desired fan speed.
When you press the Fan Speed button, fan
speed will change in order of Auto, Low, Medium and High.
• When you are using the remote control, make sure correct indicator which matches your
selection appears on the remote control display.
• Air flow can be adjusted manually. (See page 19 for instructions.)
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 17 2008-03-27 ｿﾀﾈﾄ 6:52:11

18_ operating
operating basic function
SELECTING OPERATION MODE
Heat
The air conditioner heats as well as cools. Warm your room with this versatile appliance in the
cold of winter.
1. Turn on the air conditioner.
Press the Power & Set/Cancel button on the remote control.
2. Set the operating mode.

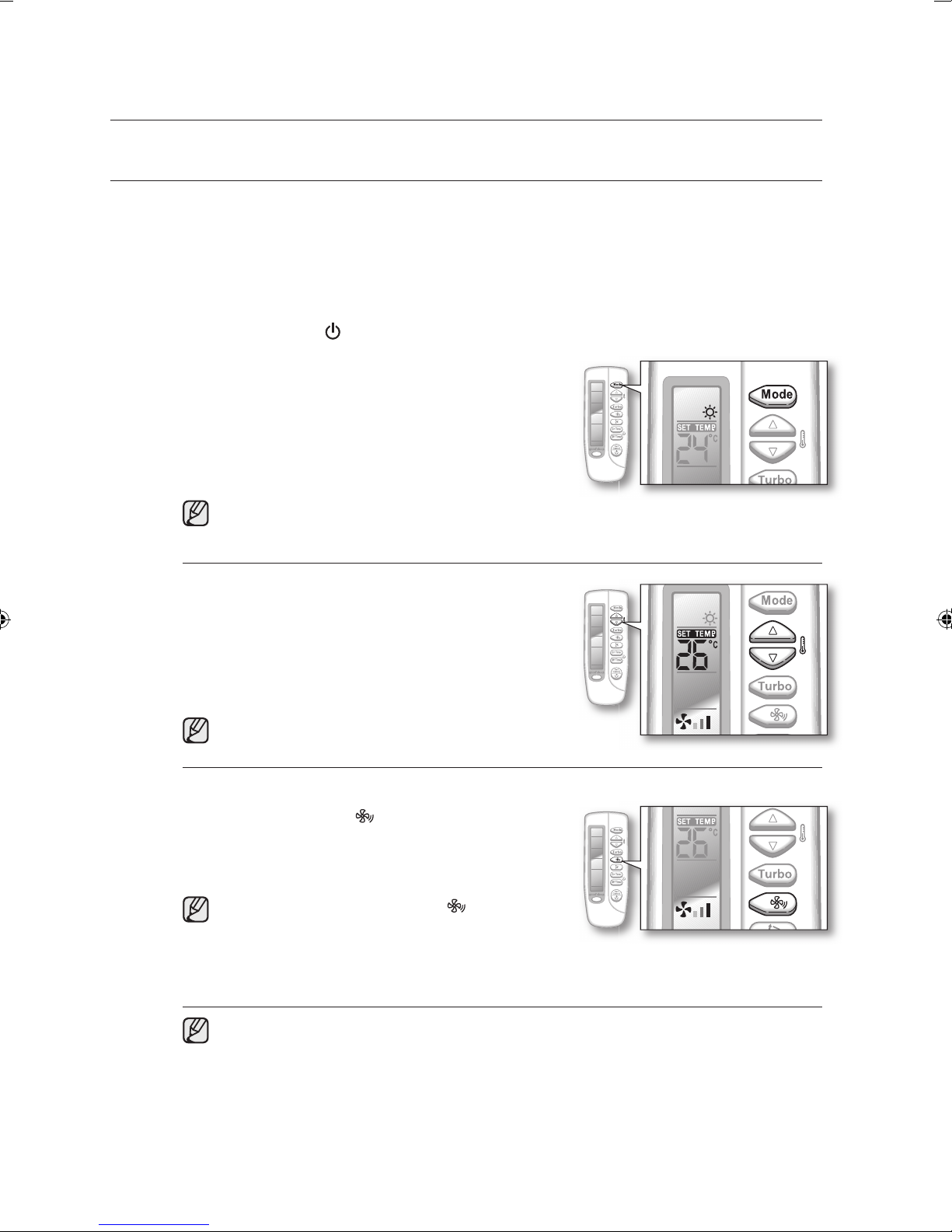

Press the Mode button on the remote control until
Heat mode indicator appears on the remote control
display.
The air conditioner operates in Heat mode and warms
your room.
When you press the Mode button, mode will change
in order of Auto, Cool, Dry, Fan and Heat.
3. Set the temperature.
Press the Temperature or  button on the
remote control to increase or decrease the desired
temperature.
You can set the desired temperature between
the range of 16˚C~30˚C.
You can increase/decrease the temperature by 1˚C.
4. Set the fan speed.
Press the Fan Speed button on the remote control
to set the desired fan speed.
If room temperature reaches desired value, heating will
stop for a while.
• When you press the Fan Speed button, fan
speed will change in order of Auto, Low, Medium
and High.
• Fan may not operate for about 3~5 minutes at the beginning to prevent any cold blasts
while the air conditioner is warming up.
• Air flow can be adjusted manually. (See page 19 for instructions.)
• Since the air conditioner heats the room by taking heat energy from outdoor air, the
heating capacity may decrease when outdoor temperatures are extremely low. If you
feel the air conditioner insufficiently heats, using an additional heating appliance in
combination with the air conditioner is recommended.
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 18 2008-03-27 ｿﾀﾈﾄ 6:52:15

operating _19
ENGLISH
ADJUSTING THE AIR FLOW DIRECTION
Air flow can be directed to your desired position.
Vertical air flow
Air flow blades move up and down.
1. Press the Air swing button on the remote control.
Air swing indicator will be on and air flow blades move up and down continuously to circulate
the air.
To keep the air flow direction in a constant position, press the Air swing button on the
remote control again.
Horizontal air flow
Make sure one of the blade pins that stick out of the air flow blades are not broken.
1. Move the blade pin lever left or right to keep the air flow direction in a constant position you
prefer.
Be extremely careful with your fingers while adjusting the Horizontal air flow direction.
There is a potential risk of personal injury when the unit is mishandled.
CAUTION
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 19 2008-03-27 ｿﾀﾈﾄ 6:52:19

20_ using advanced functions
using advanced functions
USING THE TURBO FUNCTION
Turbo function will be helpful to cool or heat your room quickly and effectively by operating at the maximum
fan speed for 30 minutes.
1. Turn on the air conditioner.
Press the Power & Set/Cancel button on the remote control.
2. Set the operating mode.
Press the Turbo button on the remote control until
Turbo indicator appears on the remote control display.
The air conditioner operates in Turbo fan speed and
automatically adjusts the temperature according to the
current room temperature. The unit operates for
30 minutes and then operates in last used mode, or in
Auto mode if Dry/Fan mode is most recent mode used.
Turbo function is only available in Auto/Cool/Heat mode. If Turbo function is selected in
Dry/Fan mode, operating mode changes to Auto.
To deactivate Turbo function
1. Press the Turbo button on the remote control again.
The air conditioner operates in last used mode, or in Auto mode if Dry/Fan mode is most
recent mode used.
• When you are using the remote control, make sure corresponding indicator appears on
the remote control display.
• Temperature/Fan speed cannot be adjusted while using this function.
• Air flow can be adjusted manually. (See page 19 for instructions.)
• When the Turbo function is activated, pressing Mode button will automatically cancel the
function.
AVXWN｣ｪ｣ｪ_IB_E_29217.indd 20 2008-03-27 ｿﾀﾈﾄ 6:52:21
