Samsung SCX-RD100 User manual

English 1
ENG
SCX-RD100
COAXIAL REMOTE
CONTROLLER
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsungsecurity.com
ENG FRE
GER SPA
ITA JAP RUS CZE TUR

2– COAXIAL REMOTE CONTROLLER
Safety information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of
electric shock is present within this unit.
This exclamation point symbol is intended to alert the user to
the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING
To reduce the risk of fire or electric shock, do not expose this appliance to rain
or moisture.
WARNING
Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
Incorrectly connecting the power supply or replacing battery may cause
explosion, fire, electric shock, or damage to the product.
Do not connect multiple controllers to a single adapter. Exceeding the capacity
may cause abnormal heat generation or fire.
Securely plug the power cord into the power receptacle. Insecure connection
may cause fire.
When installing the controller, fasten it securely and firmly. The fall of controller
may cause personal injury.
Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or
containers filled with water on top of the controller. Doing so may cause personal
injury due to fire, electric shock, or falling objects.
Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire
or electric shock.
If any unusual smells or smoke come from the unit, stop using the product. In
such case, immediately disconnect the power source and contact the service
center. Continued use in such a condition may cause fire or electric shock.
•
1.
2.
3.
4.
5.
6.
7.
8.
C
9
1
1
2
3
4
5
6
7
8
9

English 3
ENG
Safety information
e
If this product fails to operate normally, contact the nearest service center. Never
disassemble or modify this product in any way. (SAMSUNG is not liable for
problems caused by unauthorized modifications or attempted repair.)
When cleaning, do not spray water directly onto parts of the product. Doing so
may cause fire or electric shock.
CAUTION
Do not drop objects on the product or apply strong blows to it. Keep away from a
location subject to excessive vibration or magnetic interference.
Do not install in a location subject to high temperature (over 50°C), low
temperature (below -10°C), or high humidity. Doing so may cause fire or electric
shock.
If you want to relocate the already installed product, be sure to turn off the power
and then move or reinstall it.
Remove the power plug from the outlet when there is a lighting storm. Neglecting
to do so may cause fire or damage to the product.
Keep out of direct sunlight and heat radiation sources. It may cause fire.
Install it in a place with good ventilation.
Avoid aiming the controller directly towards extremely bright objects such as sun.
Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily operable at
any time.
9.
10.
1.
2.
3.
4.
5.
6.
7.
8.
9.

4– COAXIAL REMOTE CONTROLLER
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, or other
apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the
manufacturer.
Use only with cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
Unplug this apparatus when a card is used. Use caution
when moving the cart/ apparatus combination to avoid
injury from tip-over.
Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as powersupply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Important Safety Instructions

English 5
ENG
Contents
Introduction
Introduction 6
Part names and functions 7
Installation
Checking Installation Environment 11
Installation precautions 11
Connection & Control

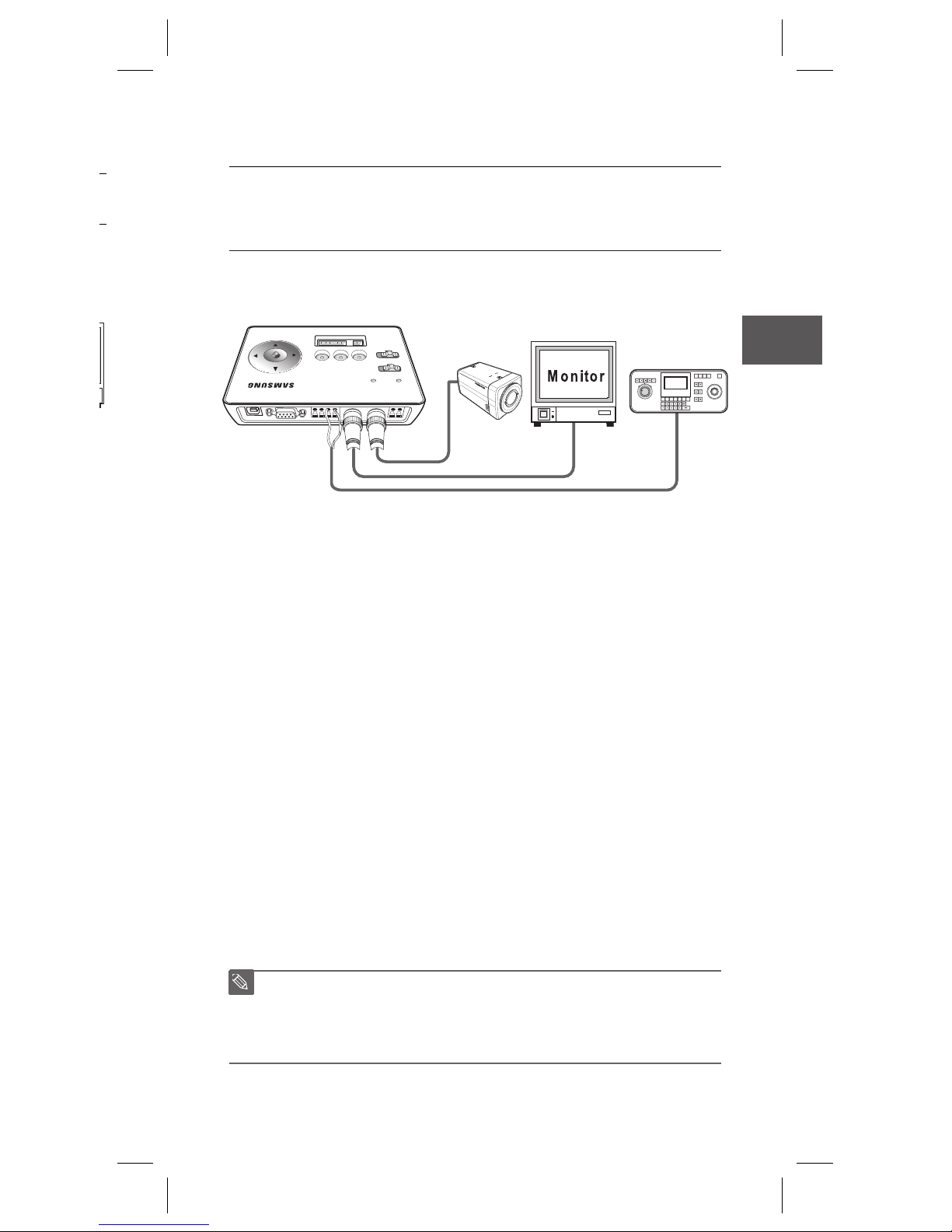

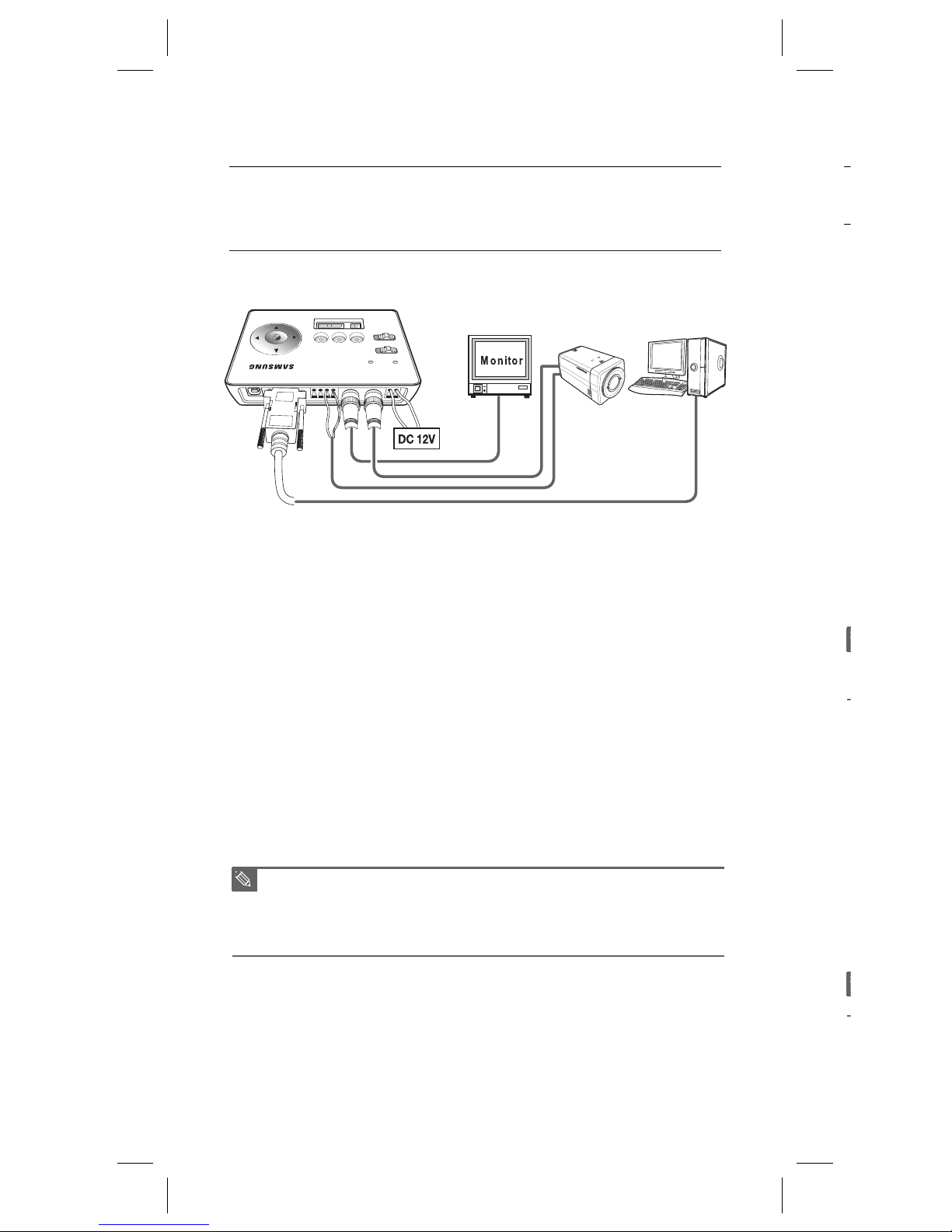

To Control the camera coaxial communications 12
To control the camera using RS-485 device
via coaxial communications 13

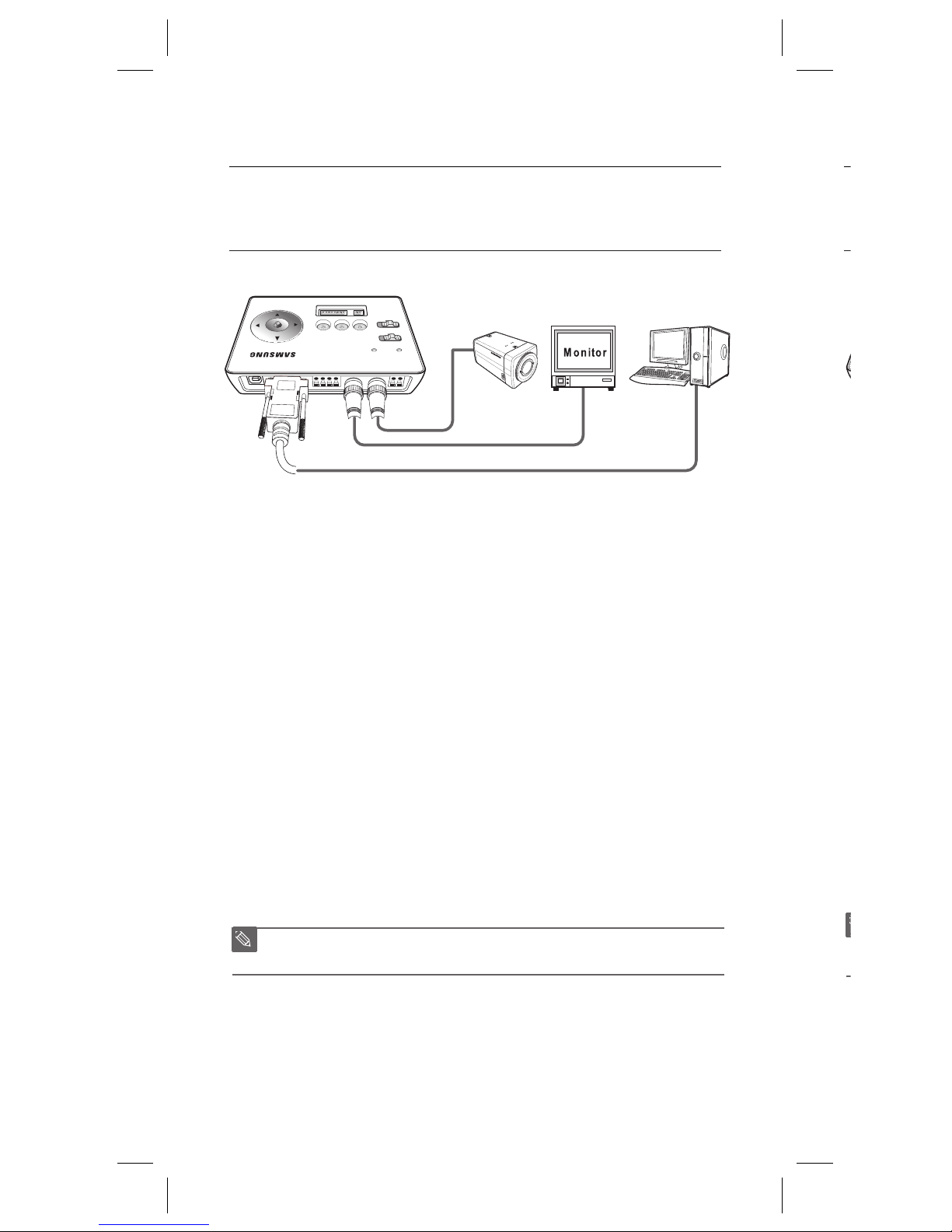

To control the camera using RS-232 device
via coaxial communications 14
To control the camera using RS-485 signal output 15
To control the camera using RS-485 signal
output via RS-232 communications 16

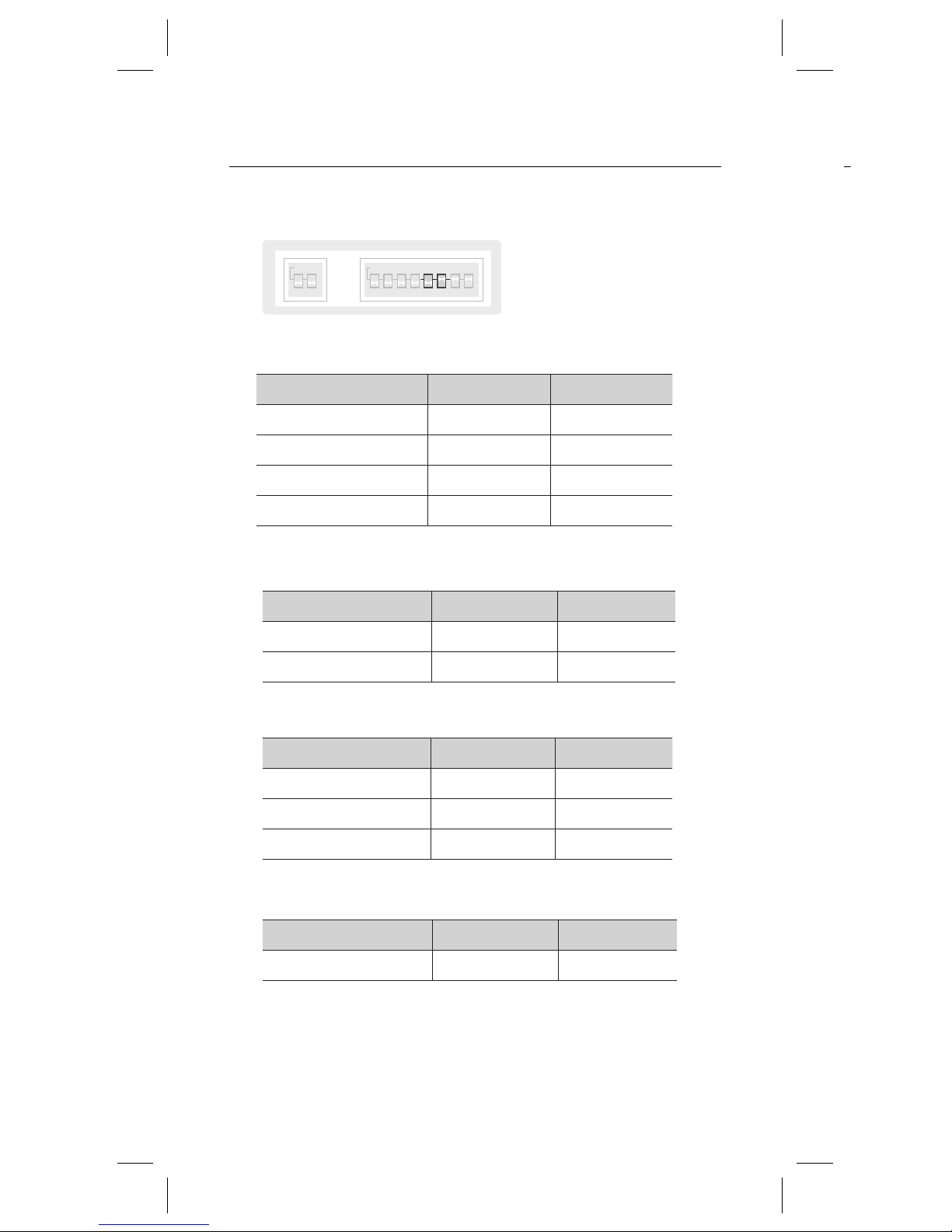

Switch Setting Table 17
Specifications
Specifications 20
Dimensions 21

6– COAXIAL REMOTE CONTROLLER
Introduction
INTRODUCTION
This product is a remote controller for Samsung’s CCTV cameras of New-generation
DSP, via coaxial cable not requiring additional control wirings.
Features
Long-distance remote control
Through RS-485 communication, remote control is possible up to 1.2
kilometers.
Easy Control
Easy and simple 5-way keys for controlling the camera.
System’s Expandability
It is possible to implement an integrated system by using the system controller
(SSC-5000 or similar) through RS-485 communication.
Portability
Its small size and light weight maximizes the portability, as well as its power
source adopting standard battery for outdoor use.
List of controllable models
You can control Samsung’s cameras supporting coaxial communications.
Samsung’s RS-485 supporting cameras can be controlled through RS-485
communication. (For supported 3rd-party protocols, refer to page 17.)
What’s Included
❖
•
•
•
•
❖
•
•
❖
P
❶
❷
❸
❹
❖
q
r
p
o
n
G
<Controller> <User Guide>

English 7
ENG
Introduction

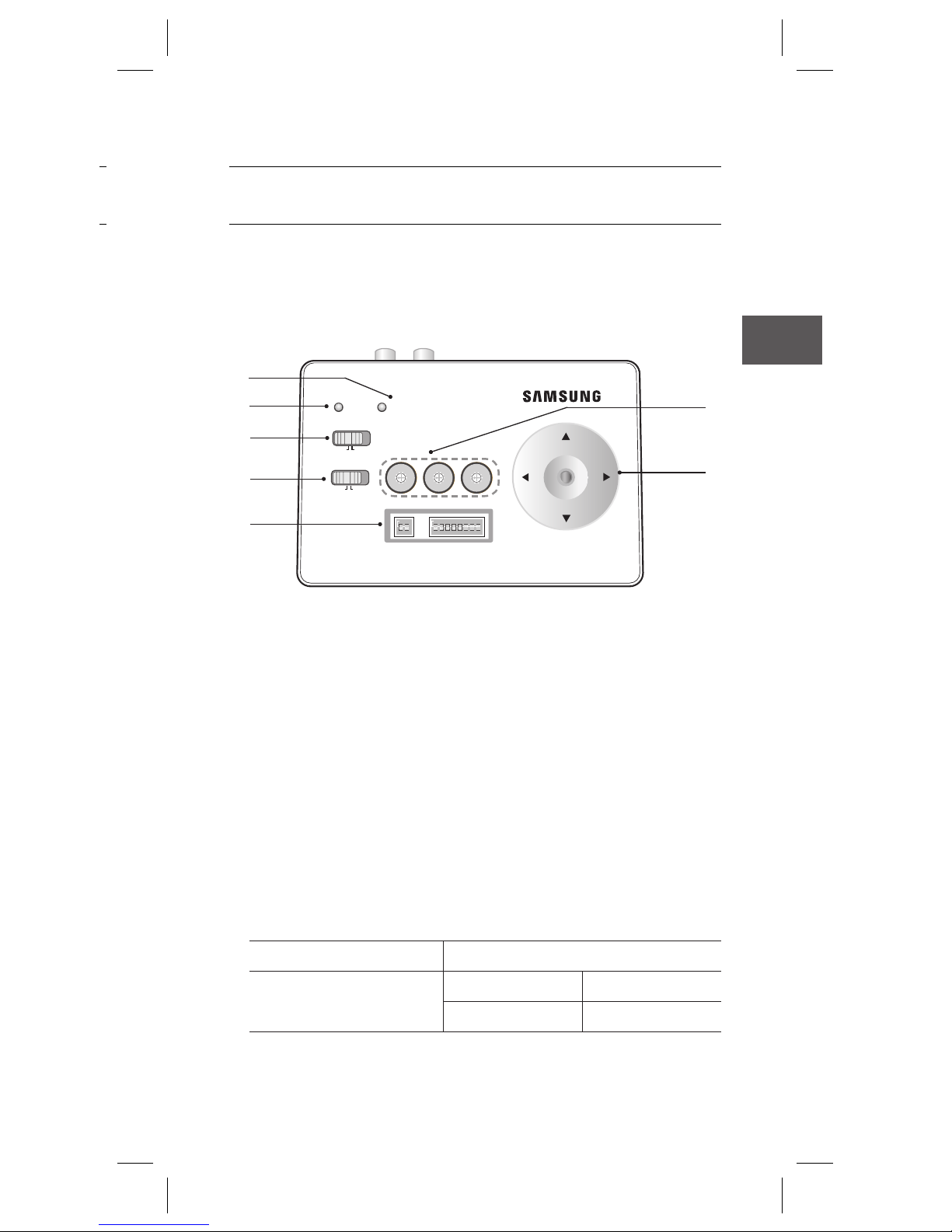

PART NAMES AND FUNCTIONS
STATUS LED
- Displays the status of the current operation.
POWER LED
- When the controller turns on, it will be turn light.
POWER Switch
- If you slide it to ON, the controller turns on.
CABLE COMPENSATION Switch
- For long distance coaxial communications, you can use this switch for amplifying
the control signal.
Cable SPEC Compensation
5C-HFBT
SL
250M or less 200M ~ 500M
❶
❷
❸
❹
Front Panel❖
POWER
POWER
ADDRESS
(X)100 (X)10
TERMINATION PROTOCOL
1
ON
2345678
(X)1
OFF ON
STATUS
CABLE
COMPENSATION
SL
5
0
4
9
3
8
2
7
1
6
5
0
4
9
3
8
2
7
1
6
5
0
4
9
3
8
2
7
1
6
1
ON
2
REMOTE CONTROLLER SCX-RD100
t
q
r
p
s
o
n

8– COAXIAL REMOTE CONTROLLER
Introduction
RS-485 TERMINATION & PROTOCOL Setting Switch
- You can select to set the RS-485 termination.
- Turn this switch ON, if RS-485 termination is required.
TERMINATION
1
ON
2
PROTOCOL
1
ON
2345678
1
ON
2
3
4
5
6
7
8
P
R
O
T
OCOL
- For multi-protocol settings, you can set the protocol and baud rate, and
selection of COAXIAL/RS-485 or RS-232.
TERMINATION
1
ON
2
PROTOCOL
1
ON
2345678
1
ON
2
TERMINATI
O
N
- Use pin 1,2,3,4 of the Protocol setting switch to select a protocol.
- Use pin 5,6 of the Protocol setting switch to select a baud rate.
- Use pin 7 of the Protocol setting switch to select COAXIAL/RS-485 output.
- Use pin 8 of the Protocol setting switch to select RS-232 input.
Address Switch
-
For RS-232 / RS-485 communications, you can use this switch to set the address.
ADDRESS
(X)100 (X)10 (X)1
5
0
4
9
3
8
2
7
1
6
5
0
4
9
3
8
2
7
1
6
5
0
4
9
3
8
2
7
1
6
- Set the address by using three switches shown above.
- From the left, the number is hundreds, tens and ones place, respectively.
The effective range of valid address is between 0 and 255 (1~255 for multi-
protocol).
Menu Navigation Key
Use this to navigate through the menus.
❺
❻
❼
❖
P
N
If you specify the address as other than between 0 and 255, it will be set to 0. 
NOTE

English 9
ENG
Introduction
.
Rear Panel❖
PART NAMES AND FUNCTIONS
- AA BATTERY
You can use 4 AA-sized batteries for the power.
- The average operation time is 20 hours based on the alkaline battery.
(If the battery is discharged, it can cause a distortion of the video signal, or
electric interference.)
Remove the battery if you do not use the controller for a longer period. Otherwise, it
may cause damage to the controller from a leak of the battery solution.
Take caution not to change the specified polarity.
Do not use a new battery with an old one.
For storing used batteries, keep out of reach of children. Wasted batteries are to be
collected separately.




NOTE

10 – COAXIAL REMOTE CONTROLLER
Introduction

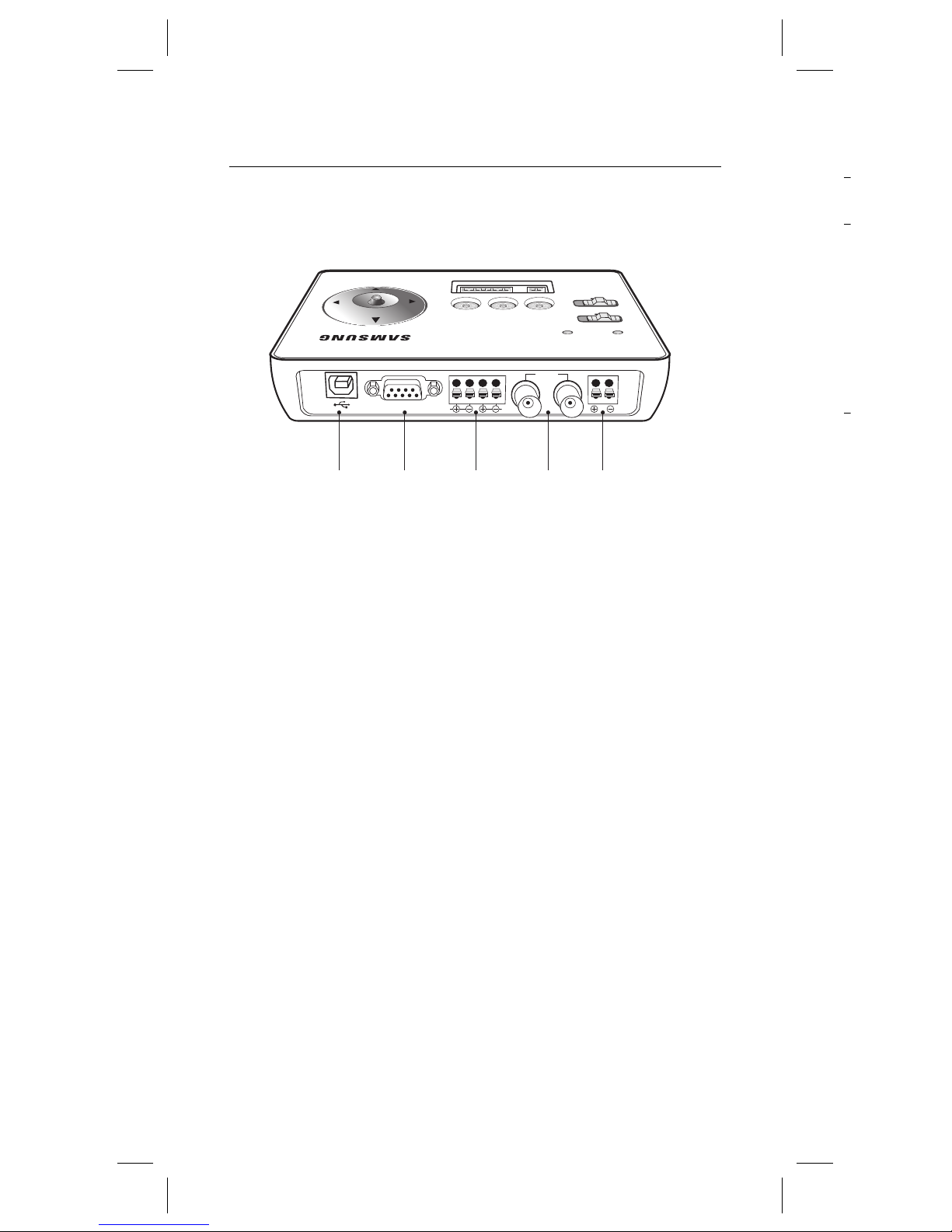

Top❖
USB Port
-This terminal is used for updating the product’s firmware.
RS-232 Port (9-pin D SUB)
- Used to control remotely using RS-232 communication.
RS-485 Port (4-pin)
- Used to control remotely using RS-485 communication.
VIDEO IN/OUT Connector (BNC)
- VIDEO IN receives coaxial communication from cameras, and VIDEO OUT
outputs the video signal.
DC12V Power Connector (2-PIN)
- Used for connecting DC12V power source.
❶
❷
❸
❹
❺
OUT IN
TX RX
ADDRESS
(X)100 (X)10 (X)1
POWER
OFF ON
CABLE
COMPENSATION
SL
REMOTE CONTROLLER SCX-RD100
POWER STATUS
TERMINATION PROTOCOL
1
ON
23456781
ON
2
RS-232C
VIDEO DC 12VRS-485
nop qr
C
I
N

English 11
ENG
Installation
CHECKING INSTALLATION ENVIRONMENT
Please check the following instructions before installation for your safety.
The way of connecting the main product with external devices (COAXIAL BNC)
is very important to build up a proper system.
Do not disassemble the unit; doing so could expose you to dangerous high
voltage points.
INSTALLATION PRECAUTIONS
Make sure you turn off the product before installation.
Do not put a strong force on or shake the product; otherwise it may cause
malfunction.
Keep the product away from areas of strong magnetic field or electric
interference, or wireless devices such as radio or TV set.
Keep clean the installation place during and after the installation.
An abnormal smells from the product is a sign of abnormal condition, which
may cause fire or electric shock. In this case, disconnect the product from
the main power immediately and contact the retailer for technical help from
authorized servicing.
Keep the product away from a wet floor, do not use an unearthed power
extension cable, worn-out power cord, neither forget earth-grounding.
Use a dry cloth only to dirt off the product. If the product is badly dirty, apply
neutral detergent on a cloth that is used to dirt off, and wipe it out with a dry
cloth.
Do not use volatile substances such as alcohol, benzene or thinner as these
may damage the finish.
•
•
•
•
•
•
•
•
•
•
•

12 – COAXIAL REMOTE CONTROLLER
Connection & Control
TO CONTROL THE CAMERA COAXIAL COMMUNICATIONS
Connect the product to DC 12V power source or insert 4 AA-sized
batteries into the battery compartment.
Set the protocol switch 7 to ON.
Connect the VIDEO IN of the unit and VIDEO OUT of the AI Camera
directly.
For proper data communication, the unit and AI camera should be connected directly.
(If you connect a DVR or keyboard in the middle of the main unit and AI camera,
bidirectional communication will not be established.)
Connect VIDEO OUT of the main unit to a monitor’s video input terminal.
Turn the Power switch ON.
When it is powered on for the first time, initialization begins and the status LED blinks
once completed. During the initialization, no operation is enabled.
Now you can control the camera by using the menus.
You can use the menu as following :
Press and hold [ENTER]: Moves to the main menu screen.
Press [ENTER] briefly: Used to confirm the current settings.
Four Direction Keys: Used to move the cursor up/down or left/right.
For proper coaxial communication, AI camera should be set to Samsung protocol.
Refer to the switch settings. (See page 17)
Control of pan/tilt/zoom using the keys is not supported.
1.
2.
3.
–
4.
5.
–
6.
❖
–
–
–
–
–
ADDRESS
(X)100 (X)10 (X)1
POWER
OFF ON
CABLE
COMPENSATION
SL
REMOTE CONTROLLER SCX-RD100
POWER STATUS
TERMINATION PROTOCOL
1
ON
23456781
ON
2
T
V
1
2
3
4
5
6
N

English 13
ENG
Connection & Control
S
TO CONTROL THE CAMERA USING RS-485 DEVICE
VIA COAXIAL COMMUNICATIONS
Connect the product to DC 12V power source or insert 4 AA-sized
batteries into the battery compartment.
Set the protocol switch 7 to ON.
Connect the VIDEO IN of the unit and VIDEO OUT of the AI Camera
directly.
For proper data communication, the unit and AI camera should be connected directly.
(If you connect a DVR or keyboard in the middle of the main unit and AI camera,
bidirectional communication will not be established.)
Connect VIDEO OUT of the main unit to a monitor’s video input terminal.
Connect TX(+/-) of RS-485 device to RX(+/-) of the main unit.
(For a full duplex system, connect RX(+/-) of RS-485 device to TX (+/-) of
main unit additionally.)
Using RS-485 device, you can control the camera menu.
For proper coaxial communication, AI camera should be set to Samsung protocol.
Refer to the switch settings. (See page 17)
1.
2.
3.
–
4.
5.
6.
–
ADDRESS
(X)100 (X)10 (X)1
POWER
OFF ON
CABLE
COMPENSATION
SL
REMOTE CONTROLLER SCX-RD100
POWER STATUS
TERMINATION PROTOCOL
1
ON
23456781
ON
2
By factory default, protocols of SAMSUNG and PANASONIC are supported.
For additional protocols, update the following software program via the web.
Input of video signal is required to control RS-485.



NOTE

14 – COAXIAL REMOTE CONTROLLER
Connection & Control
TO CONTROL THE CAMERA USING RS-232 DEVICE
VIA COAXIAL COMMUNICATIONS
Connect the product to DC 12V power source or insert 4 AA-sized
batteries into the battery compartment.
Set the protocol switches 7 and 8 to ON.
Connect the VIDEO IN of the unit and VIDEO OUT of the AI Camera
directly.
For proper data communication, the unit and AI camera should be connected directly.
(If you connect a DVR or keyboard in the middle of the main unit and AI camera,
bidirectional communication will not be established.)
Connect VIDEO OUT of the main unit to a monitor’s video input terminal.
Connect the RS-232 device’s cable to the RS-232 port of the main unit.
Using RS-232 device, you can control the camera menu.
The RS-232 device is the same as RS-485 regarding the protocol setting, but
supports only the Samsung protocol.
For proper coaxial communication, AI camera should be set to Samsung protocol.
Refer to the switch settings. (See page 17)
1.
2.
3.
–
4.
5.
6.
–
–
ADDRESS
(X)100 (X)10 (X)1
POWER
OFF ON
CABLE
COMPENSATION
SL
REMOTE CONTROLLER SCX-RD100
POWER STATUS
TERMINATION PROTOCOL
1
ON
23456781
ON
2
T
O
1
2
3
4
5
❖
RS-232 and RS-485 communications cannot be used for simultaneous input. 
NOTE
N

English 15
ENG
Connection & Control
TO CONTROL THE CAMERA USING RS-485 SIGNAL
OUTPUT
Connect the product to DC 12V power source or insert 4 AA-sized
batteries into the battery compartment.
Set the protocol switches 7 and 8 to OFF.
Connect the RX(+/-) of the unit to the RS-485 (+/-) port of the camera.
Match the camera’s address, baud rate, and protocol to the same to
those of the unit.
Now you can control the camera by using the menus.
You can use the menu as following :
Press and hold [ENTER]: Moves to the main menu screen.
To exit the menu screen, press and hold the key again.
Press [ENTER] briefly: Used to confirm the current settings.
Four Direction Keys: Used to move the cursor up/down or left/right.
Control of pan/tilt/zoom using the buttons is not supported.
1.
2.
3.
4.
5.
❖
–
–
–
–
ADDRESS
(X)100 (X)10 (X)1
POWER
OFF ON
CABLE
COMPENSATION
SL
REMOTE CONTROLLER SCX-RD100
POWER STATUS
TERMINATION PROTOCOL
1
ON
23456781
ON
2
Input of video signal is required to control RS-485.
The next time you access the menu, press and hold the [ENTER] key twice.


NOTE

16 – COAXIAL REMOTE CONTROLLER
Connection & Control
TO CONTROL THE CAMERA USING RS-485 SIGNAL
OUTPUT VIA RS-232 COMMUNICATIONS
Connect the product to DC 12V power source or insert 4 AA-sized
batteries into the battery compartment.
Set the protocol switch 8 to ON.
Connect the RX(+/-) of the unit to the RS-485(+/-) port of the camera.
Match the camera’s address, baud rate, and protocol to the same to
those of the unit.
RS-232 can be controlled using the Samsung protocol alone.
Connect the RS-232 device’s cable to the RS-232 port of the main unit.
Using RS-232 device, you can control the camera menu.
1.
2.
3.
4.
–
5.
6.
ADDRESS
(X)100 (X)10 (X)1
POWER
OFF ON
CABLE
COMPENSATION
SL
REMOTE CONTROLLER SCX-RD100
POWER STATUS
TERMINATION PROTOCOL
1
ON
23456781
ON
2
RS-232 and RS-485 communications cannot be used for simultaneous input.
For the switch settings, see the switch setting table. (See page 17)
Input of video signal is required to control RS-485.



NOTE
S
N
❖
❖
N

English 17
ENG
Connection & Control
SWITCH SETTING TABLE
Use a combination of pin 1,2,3,4 of the Protocol setting switch to select a protocol.
TERMINATION
1
ON
2
PROTOCOL
1
ON
23456781
ON
234
Protocol Setting Switch (0 :r, 1 :q)Protocol HALF/FULL
Pin 1 Pin 2 Pin 3 Pin 4
0 0 0 0 SAMSUNG HALF
1 0 0 0 SAMSUNG FULL
1 1 0 0 PANASONIC HALF
0 0 1 0 PANASONIC FULL
1 1 1 0 PHILIPS HALF
1 0 0 1 KALATEL HALF
0 1 0 1 ERNA HALF
1 1 0 1 DIAMOND HALF
0 0 1 1 VCL TP HALF
By default, it is configured to support SAMSUNG and PANASONIC.
For other protocols, you can find assistance from our website at:
http://www.samsungsecurity.com

NOTE
Use pin 7 and 8 of the Protocol setting switch to set the coaxial output.
PROTOCOL
1
ON
23456787
PIN 7 Output Selection
ON COAXIAL out
OFF RS-485 out
PROTOCOL
1
ON
23456788
PIN 8 RS-232 input
ON RS-232 input
OFF RS-232 No use
❖
❖
RS-232 and RS-485 communications cannot be used for simultaneous input. 
NOTE
HALF : half-duplex
FULL : full-duplex

18 – COAXIAL REMOTE CONTROLLER
Connection & Control
See the following table to set the baud rate.
TERMINATION
1
ON
2
PROTOCOL
1
ON
234567856
1. SAMSUNG
BAUD RATE PIN 5 PIN 6
38400 BPS OFF OFF
19200 BPS ON OFF
9600 BPS OFF ON
4800 BPS ON ON
2. PHILIPS
BAUD RATE PIN 5 PIN 6
38400 BPS OFF OFF
9600 BPS ON OFF
3. PANASONIC
BAUD RATE PIN 5 PIN 6
19200 BPS OFF OFF
9600 BPS ON OFF
4800 BPS OFF ON
4. DIAMOND, VCL TP
BAUD RATE PIN 5 PIN 6
9600 BPS OFF ON
ÂOnly supports 9600 bps
–

English 19
ENG
Connection & Control
5. ERNA
BAUD RATE PIN 5 PIN 6
2400 BPS ON ON
ÂOnly supports 2400 bps
6. KALATEL
BAUD RATE PIN 5 PIN 6
9600 BPS OFF ON
4800 BPS ON ON

20 – COAXIAL REMOTE CONTROLLER
Specifications
SPECIFICATIONS
Item Description
COAXIAL
Communication Method COAXIAL INTERFACE
Range Max. 500m (with 5C-HFBT cable)
RS-232
Connector Type D-SUB 9P
Port 1 Port
BAUD RATE 4800/9600/19200/38400bps
(Only Samsung protocol supported)
RS-485
Connector Type 4P Terminal Type
Port 1 Port
BAUD RATE 2400/4800/9600/19200/38400bps
(Supports each protocol)
USB PORT(USB2.0) S/W PROGRAM UPLOAD
VIDEO IN/OUT
Composite Video
1.0Vp-p, 75ohm,
Cable Compensation out
(Select:S/L)
Environmental
Conditions
Operating Temp. -10˚C ~ +50˚C
Humidity Less than 90%
POWER DC12V ± 10%
DIMENSIONS (WxHxD) 150(W) X 36(H) X 102(D)
WEIGHT NET 200 g
D
