Samsung STH-330POV User manual

Before attempting to operate this product, please read the
instructions carefully.
P/No. : 6806-0711-01B
VAN 07. 02
www.samsungtechwin.com
www.samsungcctv.com
•SAMSUNG TECHWIN CO., LTD.
333-1,Sangdaewon1-dong,Jungwon-gu,Seongnam-si,
Gyeonggi-do462-807,Korea
TEL :[phone]~3 FAX:[phone]
•SAMSUNG OPTO-ELECTRONICS UK, LTD.
SamsungHouse,1000HillswoodDrive,HillswoodBusinessPark
Chertsey,SurreyKT16OPS
TEL :[phone] FAX:[phone]
•TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD.
7PingchangRd,NankaiDist.Tianjin300190,P.RChina
TEL :[phone](33821) FAX:[phone]
SALES NETWORK

3
SPEED DOME CAMERA ACCESSORIES
2
SPEED DOME CAMERA ACCESSORIES
Cautions and Warnings for Use Contents
Thank you for purchasing our products.
This product is to be used for the installation of the Samsung 30x optical zoom
Speed Dome Camera series and the 23x optical zoom Speed Dome camera.
Before application, please read the user s manual carefully.
Note that you need to read carefully all contents related to safety and application
methods before application.
When using the product, the precautions/warnings, usage directions, operating
methods, and instructions must all be observed.
The power and cable connections should be made by a product installation
specialist.
Do not connect and use these accessories to products other than the Samsung
Speed Dome Camera Series.
The locations for installing the Accessory housing should be strong enough to fully
secure the accessories, and all installations need to be carried out by experienced
engineers.
Do not use it for purposes other than for the installation mentioned above.
Cautions and Warnings for Use .................................................... 2
Product Category .......................................................................... 4
Installation Guide .......................................................................... 8
Component Name.........................................................................18
External Dimensions .....................................................................20
Specification..................................................................................22
Samsung Techwin cares for the environment at all product manufacturing
stages to preserve the environment, and is taking a number of steps to
provide customers with more environment-friendly products.The Eco mark
represents Samsung Techwin s will to create environment-friendly products,
and indicates that the product satisfies the EU RoHS Directive.

5
SPEED DOME CAMERA ACCESSORIES
4
SPEED DOME CAMERA ACCESSORIES
Product Category
STH-330POV/320PO
: “Outdoor Housing” for the Samsung Speed Dome Camera.
- STH-330POV: STH-320PIV+Cooling Fan/Heater
- STH-320PO : Lightweight model
STH-330PIV
: “Indoor Housing” for the Samsung Speed Dome Camera.
STH-330PEV
: “Embedded Indoor Housing” for the Samsung Speed Dome Camera.
STH-270PWV
:This “Wall TypeMount” isused for the installation of indoor or outdoor housing (STH-330POV /
STH-330PIV/ STH-320PO) of Samsung Speed Dome Camera.
STB-496PPV
: This “Ceiling Type Mount” is used for the installation of indoor or outdoor housing (STH-
330POV / STH-330PIV / STH-320PO) of Samsung Speed Dome Camera.
STB-330PC
:“On-Ceiling Installation” Mount for the Samsung Speed Dome Camera.

7
SPEED DOME CAMERA ACCESSORIES
6
SPEED DOME CAMERA ACCESSORIES
Product Category

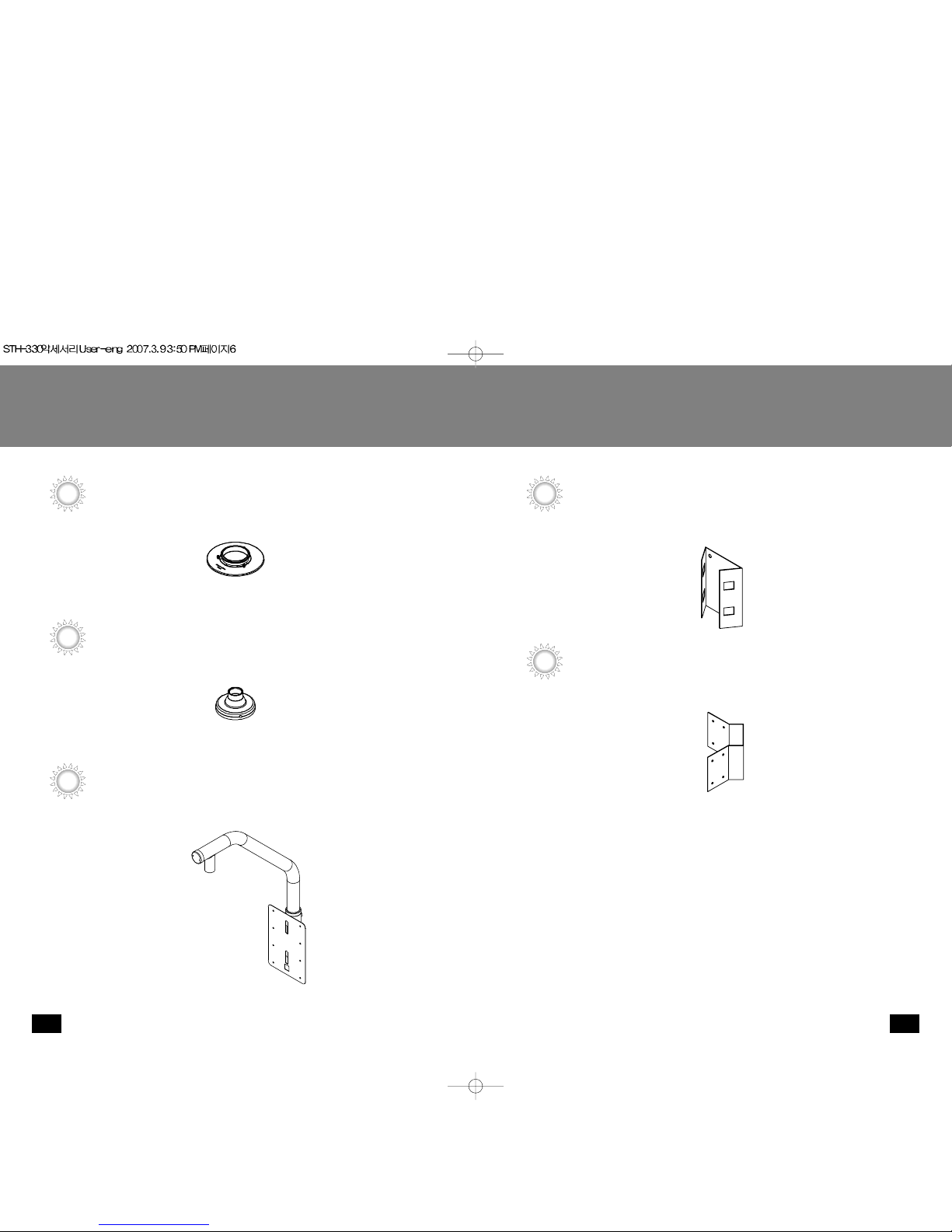

STB-350PPM
: It is the “Parapet mount” used to install the indoor/outdoor housing for Samsung Speed Dome
cameras.
STB-20PF
: It is the “Flange for indoor installation” for Samsung Speed Dome cameras.
STB-330PPM
: It is the “Paul Mount” for Samsung Speed Dome cameras.
STB-340PCM
: It is the “Coner mount” for Samsung Speed Dome cameras.
STB-30PF
: It is the “Ceiling Flange” for Samsung Speed Dome cameras.

9
SPEED DOME CAMERA ACCESSORIES
8
SPEED DOME CAMERA ACCESSORIES
Installation Guide

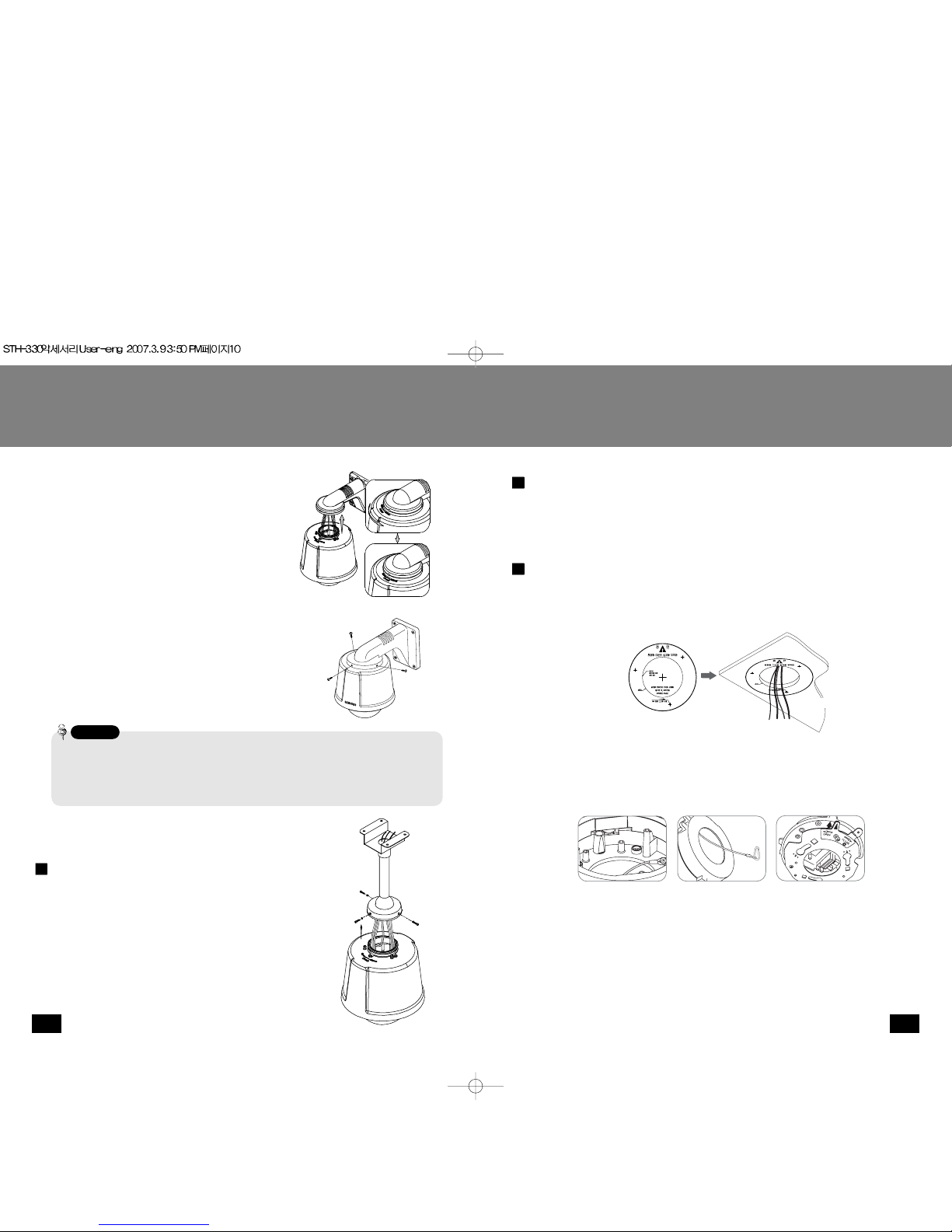

1. Use the four screws found in the same packaging as the wall
type mount(STH-270PWV) as illustrated to secure the
bracket on where the speed dome camera is to be installed.
The STH-330POV is an STH-330PIV (Indoor housing) with a cooling fan and heater added. The STH-
320PO (Outdoor housing) is a lightweight model. (Both indoor and outdoor housings shall be referred
to as the "housing" from here on)
STH-330POV/320PO(Outdoor Housing), STH-330PIV(Indoor Housing)
2. Pull outside of the housing the safety cable
fastened to the housing.
3. Connect the fan-heater PCB connector of the camera holder to the
fan-heater PCB attached to the inside of the housing. (Applicable only
to indoor housings)
4. Match the arrow sign marked on the camera holder to the arrow marked
inside the housing and then install the camera holder in the housing.
5. Check that the fan cable attached to the housing dome cover and the
heater cable attached to the inside of the housing are connected to the
fan-heater PCB. If not, make sure they are connected. (Applicable only
to outdoor housings/Products are sold with the cables connected)
•Pull the connection cable out of the wall type mount through the hole in
advance.
Caution
Arrows
marke
Camera Dome Cover Housing Cover
6. Adjust the direction of the camera by aligning the two
arrows at the bottom of the camera body, and then
mount the camera body on the housing
7. Aligning the arrows, insert the protrusion on the bottom of the camera
into the fixing hole inside the housing. Turn the camera body
clockwise to fix the camera and fasten the locking screw.
8. Remove the camera dome cover from the camera body, position the housing cover, and then fasten
the 4 screws attached
9. Connect the housing safety cable to the fixture
inside the mount(STH-270PWV) installed on
the Wall.
Safety cable Wall Type
Mount
Indoor/
Outdoor
Housing

11
SPEED DOME CAMERA ACCESSORIES
10
SPEED DOME CAMERA ACCESSORIES
Installation Guide
STB-496PP(Ceiling Type Mount)
1. Fix the ceiling type mount STB-496PPV at the desired installation
location on the ceiling using 4 screws.
2. The remaining installation methods are the same as those for
indoor/outdoor housing.
10. Connect the video cable, the controller cable, the power
adapter cable and ID cable to the Camera Holder.
11. Fix the camera-mounted housing onto the inside groove
of the wall mount (STH-270PWV) and adjust the
direction so that the “SAMSUNG” logo faces the front.
12. After checking that all devices are properly connected to the
camera, check the camera function. If no error is found, fix the
housing to the Wall Type Mount using 3 screws.
•Check out the input voltage of the power adapter before connecting the power.
•It is necessary to tighten the screw to prevent unfastening.
•If the screw to prevent unfastening is not tight, the camera installed may fall due to vibration or shock from the environment.
•Set up the Camera ID, the Termination Resistance and the Protocol Selection Switch before installing the outdoor housing on
the ceiling type mount.
Note
STB-330PC(On-Ceiling Installation Mount)
1. Attach the enclosed template to the desired location on the ceiling where you want to install the
Samsung 30x optical zoom Speed Dome Camera. Make an 88mm hole following the circular line
on the template, to allow space for the external cabling to be drawn through.
2. Fix the safety cable to the mount and pull the cable out of the hole at the bottom of the mount.
Then, match the arrow of the camera holder and the arrow (direction) on the surface within the
mount and assemble with 3 screws.
Ceiling
Template
Template
Extermal Service Cable
1. The installation method for the ceiling type flange STB-30PF is the same as for the ceiling type
mount. The use of a separate pipe and ceiling bracket is optional.
STB-30PF(Ceiling Flange)

13
SPEED DOME CAMERA ACCESSORIES
12
SPEED DOME CAMERA ACCESSORIES
Installation Guide
Arrow
5. Insert the camera into the mount by matching
the fastening screw parts at the bottom of
Samsung Speed Dome Camera to the arrow of
the camera holder and assemble by turning
clockwise .Attach the fastening screws to
prevent the camera from dropping.
4. Assemble the mount to the template attached
on the ceiling and then fix it with the 3 one
body type screws built in the mount.
3. Fix the safety cable pulled out of the mount to the
connecting part within the ceiling and connect the
external service cable pulled out of the ceiling
(video cable, controller cable power adapter cable,
ID setup cable) to the camera holder.
Extermal
Service Cable Safety Cable
Camera Holder
Mount Cover
(B) Mount Cover
(A)
6. Assemble the front mount cover (A) on the
installed mount first and then the (B) cover
later. Fasten the cover by driving the built-in
one body type screws.
1. This is a flange for interior installation, which is used in
combination with the surface mounted ceiling version, the
STB-330PC.
STB-20PF(Flange for indoor installation)

15
SPEED DOME CAMERA ACCESSORIES
14
SPEED DOME CAMERA ACCESSORIES
Installation Guide
STH-330PEV(Embedded indoor Housing)
1 .Attach the enclosed template to the desired installation location on the ceiling. Make 3 small holes
with a diameter of 50mm, at 120° intervals, according to the marks on the template. Then make a
200mm hole in the center, following the circular line on the template, to allow space for the
external cabling to be drawn through.
2. Match the arrow located on the protruding part
on the side of the installation bracket with the
arrow on the inside of the embedded indoor
housing. Use the 3 screws to secure it as
shown in the illustration on the right.
3. Connect the video cable, the controller cable, the power adapter
cable and ID cable to the Camera Holder
•Ensure that the arrow located on the protruding section of
the camera holder points in the same direction as the arrow
located inside the the outdoor housing when securing the
cameraholder.
Caution
4.Install Eyebolts to the embedded indoor housing and attach the the anti-drop cable to within the
ceiling structure. Then use the three included screws to secure the embedded indoor housing to the
ceiling.
5. Assemble the dome camera with the embedded indoor housing by aligning the respective arrows
and then twisting the dome camera in right-handed direction. Then secure the two units using the
Anti-untied screw that's located in the protruding section.
6. Check to see if the dome camera is functional and that the unit is securely locked in place.
Assemble the decoration ring cover to the embedded indoor housing by rotating in counter-
clockwise direction. Installation is complete.

17
SPEED DOME CAMERA ACCESSORIES
16
SPEED DOME CAMERA ACCESSORIES
Installation Guide

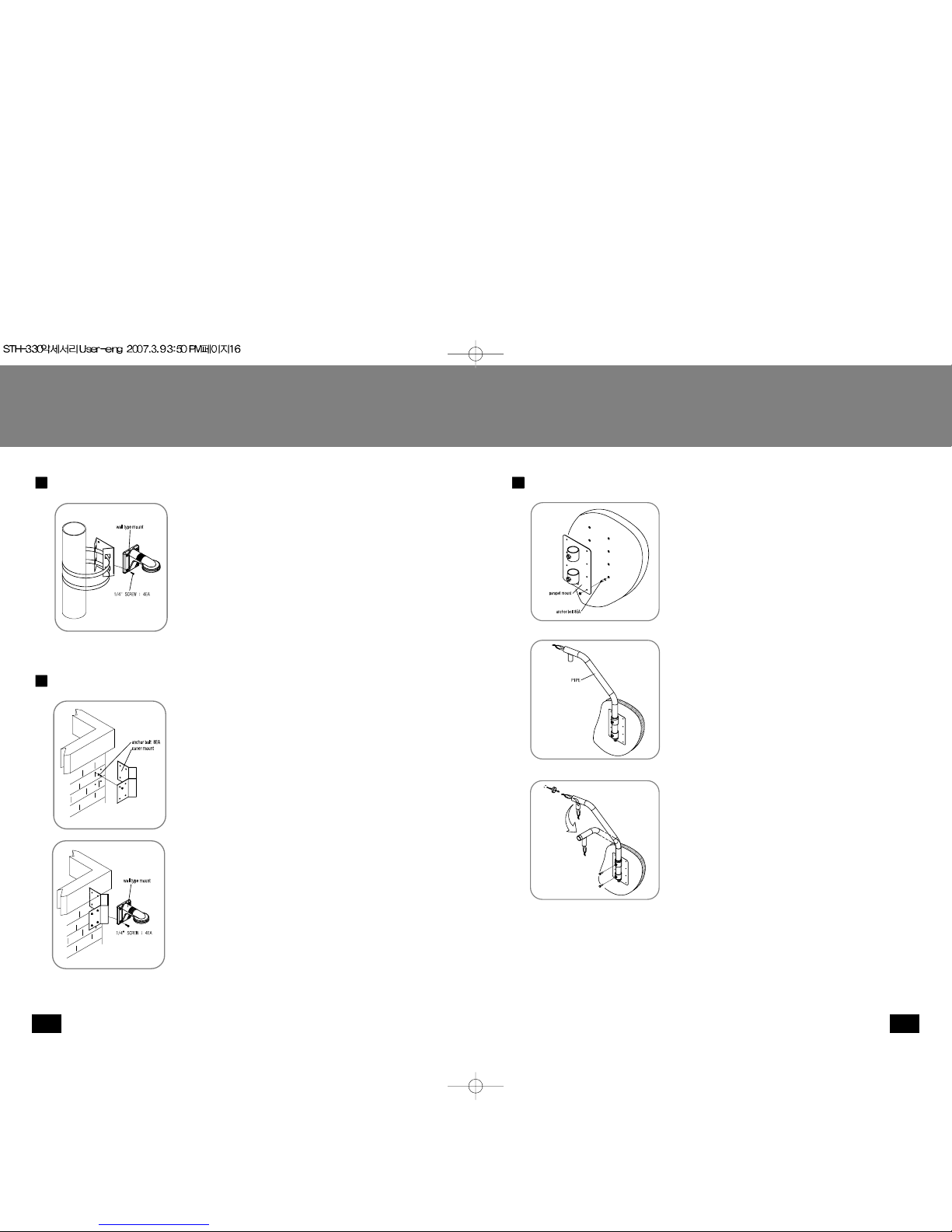

1. Drill 8 holes in the wall to insert anchor bolts with spaces
between the holes in the wall matching those in the parapet
mount.
2. Insert the anchor bolts into the holes using a tool. Place the
parapet mount through the anchor bolts. Fix the parapet
mount by fastening the 8 nuts.
3. Insert the cables into the pipe through the opposite end of the
pipe.
4. Place the pipe on the parapet mount.
5. Arrange the cables as shown in the picture and adjust the
pipe cover with the screw.
6. Adjust the direction of the pipe and then fix it with screws.
7. Install the product.
STB-350PPM (Parapet Mount)
1. Drill holes in the wall to insert anchor bolts with spaces between
the holes in the wall matching those in the corner mount.
2. Insert the anchor bolts into the holes using a tool. Place the corner
mount through the anchor bolts. Fix the corner mount by
fastening the 8 nuts.
3. Fix the wall type mount(STH-270PWV) with four 1/4 inch screws.
1. Fix the paul mount by using wires.
2. Fix the wall type mount(STH-270PWV) with four 1/4 inch screws.
STB-340PCM (Coner Mount)
STB-330PPM (Paul Mount)

19
SPEED DOME CAMERA ACCESSORIES
18
SPEED DOME CAMERA ACCESSORIES

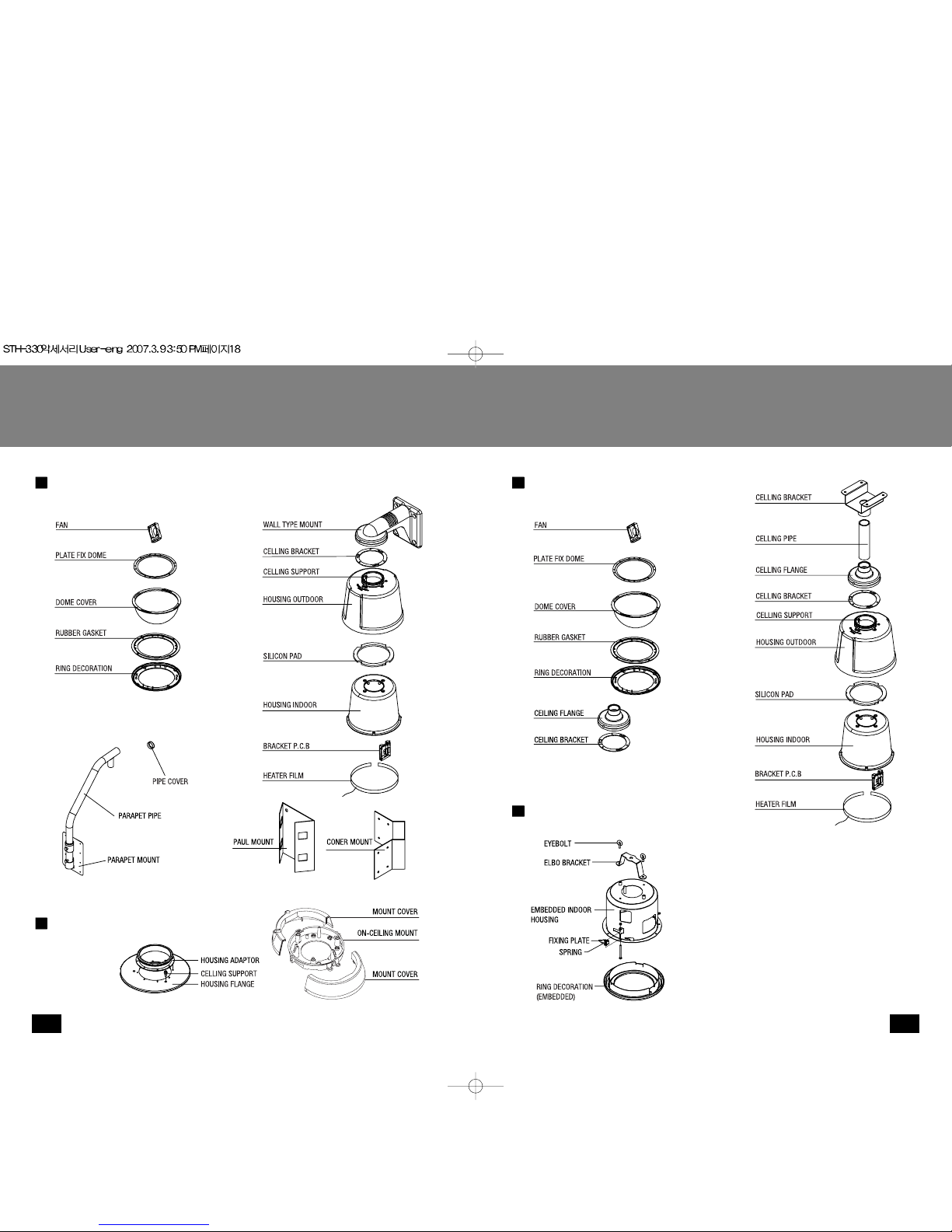

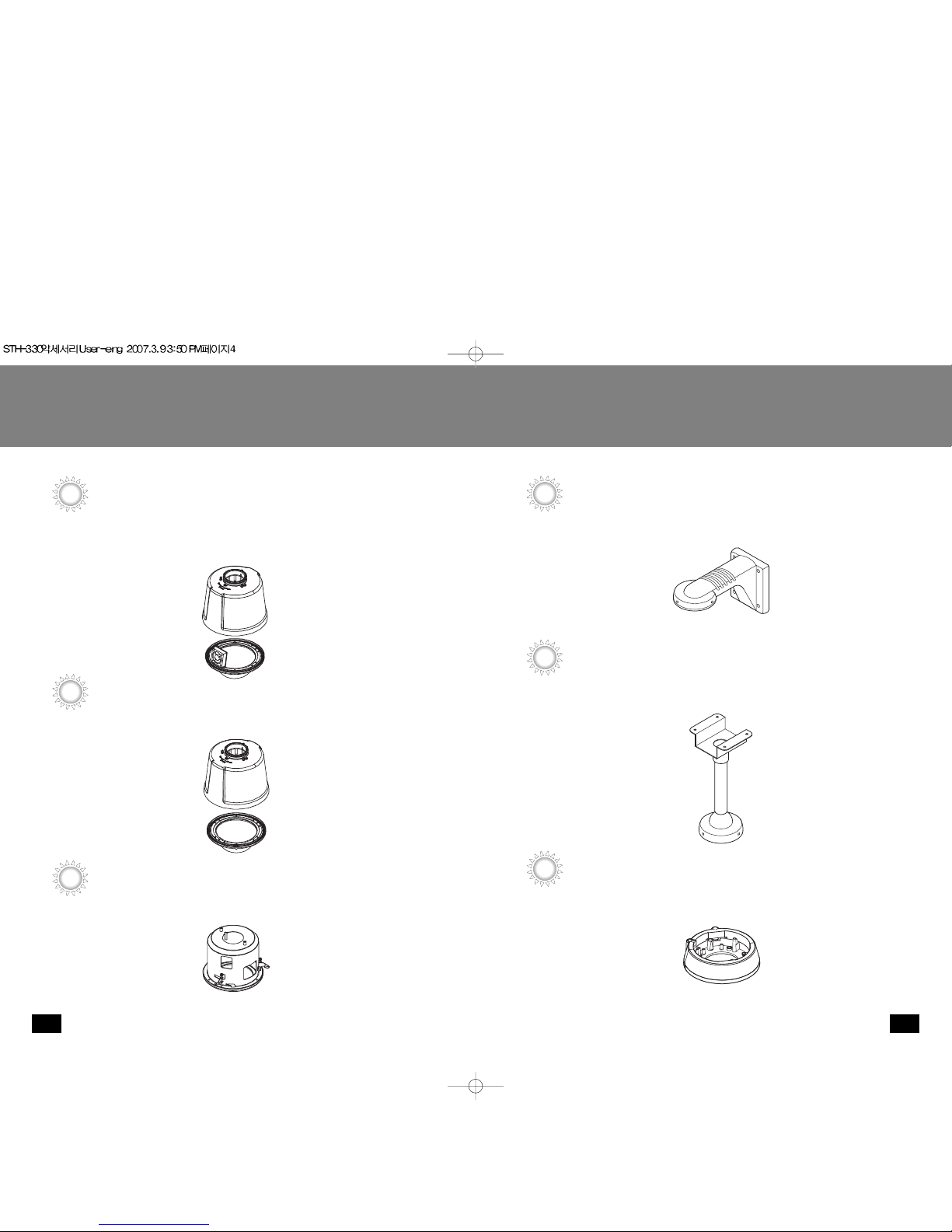

Component Name
Wall Mounting Ceiling Mounting
Embedded Mounting
On-Ceiling Installation Mounting

21
SPEED DOME CAMERA ACCESSORIES
20
SPEED DOME CAMERA ACCESSORIES
External Dimensions
Unit : mmUnit : mm
Wall Mounting Ceiling Mounted Housing
On-Ceiling Installation Mounting Embedded Indoor Housing

Specification
22
SPEED DOME CAMERA ACCESSORIES
23
SPEED DOME CAMERA ACCESSORIES
STH-330POV
-20˚C~50˚C
0 to 90%RH
Housing Outdoor ALDC 12
Ring Decoration ALDC 12
Dome Cover POLY
CARBONATE
SCREW BH MS
(4EA) M3 x L6
FAN
HEATER
IP67
3,200g
4,100g
Ø 242 x 284.5
DC 24V
0.06A
Operating
Temp.:
more than
45˚C
DC 24V
0.06A
Operating
Temp.:
more less
10˚C
STH-320PO
-20˚C~50˚C
0 to 90%RH
Housing Outdoor AL
Ring Decoration ALDC 12
Dome Cover POLY
CARBONATE
SCREW BH MS
(4EA) M3 x L6
FAN
HEATER
IP66
2,080g
3,160g
Ø 242 x 284.5
DC 24V
0.06A
Operating
Temp.:
more than
45˚C
DC 24V
0.06A
Operating
Temp.:
more less
10˚C
STH-330PIV
-10˚C~50˚C
0 to 90%RH
(non-condensing)
Housing Outdoor ALDC 12
Ring Decoration ALDC 12
Dome Cover POLY
CARBONATE
SCREW BH MS
(4EA) M3 x L6
IP67
3,200g
4,100g
Ø 242 x 284.5
STH-330PEV
-10˚C~50˚C
1 to 90%RH
(non-condensing)
Embedded Housing E.G.I (1.2t)
Ring Decoration ABS
SAFETY WIRE
SUS( Ø 1.2x2000)
Turn Buckle1EA) cast iron
WIRE JOINT(4EA) Ø 4.5 X L8
SCREW(5EA) BH MS M3xL5
SCREW(3EA) Tap3.5X L20
SCREW(2EA) Eye-Bolt
-
1,060g
1,670g
Ø 235 x 188.5
Model
Item
Humidity
Materials
Accessories
(mm)
Others
Antivibration/Waterproot
Weight (Net)
Weight (Gross)
Dimensions
STB-270PWV
-20˚C~50˚C
1to 90%RH
(non-condensing)
WallType Mount ALDC 12
CeilingBracket E.G.I 2.0t
Screw SelfDrilling
(4EA) Screw
#8xL38(FZY)
Screw PHMS
(3EA) M4x L14
-
1,130g
1,320g
270x 175 x 140
STB-20PF
-10 ~50
1to 90%RH
(non-condensing)
HousingFlange E.G.I 2.0t
Adaptor AL
Housing
Ceiling SUS
Support
Screw PHMS
(3EA) M4x 14
SUS
-
420g
490g
183x 37
STB-496PPV
-20˚C~50˚C
1to 90%RH
(non-condensing)
CeilingFlange ALDC 12
CeilingPipe SPPS 32A
/Sch40
CeilingBracket E.G.I 2.0t
CeilingPlate SPCC
Screw SelfDrilling
(4EA) Screw
#8xL38(FZY)
Screw PHMS
(3EA) M4x L14
-
1,750g
1,970g
150x 496
STB-330PC
-10˚C~50˚C
1to 90%RH
(non-condensing)
ABS
COVER ABS
COVER ABS
Screw OneBody
(4EA)
Screw PHMS
(3EA) M4x L14
-
935g
1,435g
Ø 183x 48.5
On-Ceiling
Installation
Operating Temperature
Range
Model
Item
Humidity
Materials
Accessories
(mm)
Others
Antivibration/Waterproot
Weight (Net)
Weight (Gross)
Dimensions
Operating Temperature
Range

24
SPEED DOME CAMERA ACCESSORIES
Specification
STB-30PF
-20˚C~50˚C
1 to 90%RH
(non-condensing)
Ceiling Flange ALDC 12
Ceiling Bracket E.G.I 2.0t
Screw PH MS
(3EA) M4 x 14
SUS
-
380g
126 x 66
STB-350PPM
-20 ~50
1 to 90%RH
(non-condensing)
Parapet Pipe
PF 1 1/4
(32A)
Parapet Plate SUS
Pipe Cover SUS
Set Anchor -6
(8EA)
1/4
Screw
M16x20(SUS)
(2EA)
Screw PH MS
(2EA)
M3x10(SUS)
-
8,000g
680 x 920 x 63
STB-340PCM
-20˚C~50˚C
1 to 90%RH
(non-condensing)
Coner Bracket SPCC
Screw
(4EA)
1/4
Set Anchor -6
(8EA)
1/4
-
1,300g
306 x 194 x 185
STB-330PPM
-10 ~50
1 to 90%RH
(non-condensing)
Paul Bracket SPCC
Screw
(4EA)
1/4
-
580g
185 x 155 x 48
Model
Item
Humidity
Materials
Accessories
(mm)
Others
Antivibration/Waterproot
Weight (Net)
Weight (Gross)
Dimensions
Operating Temperature
Range
