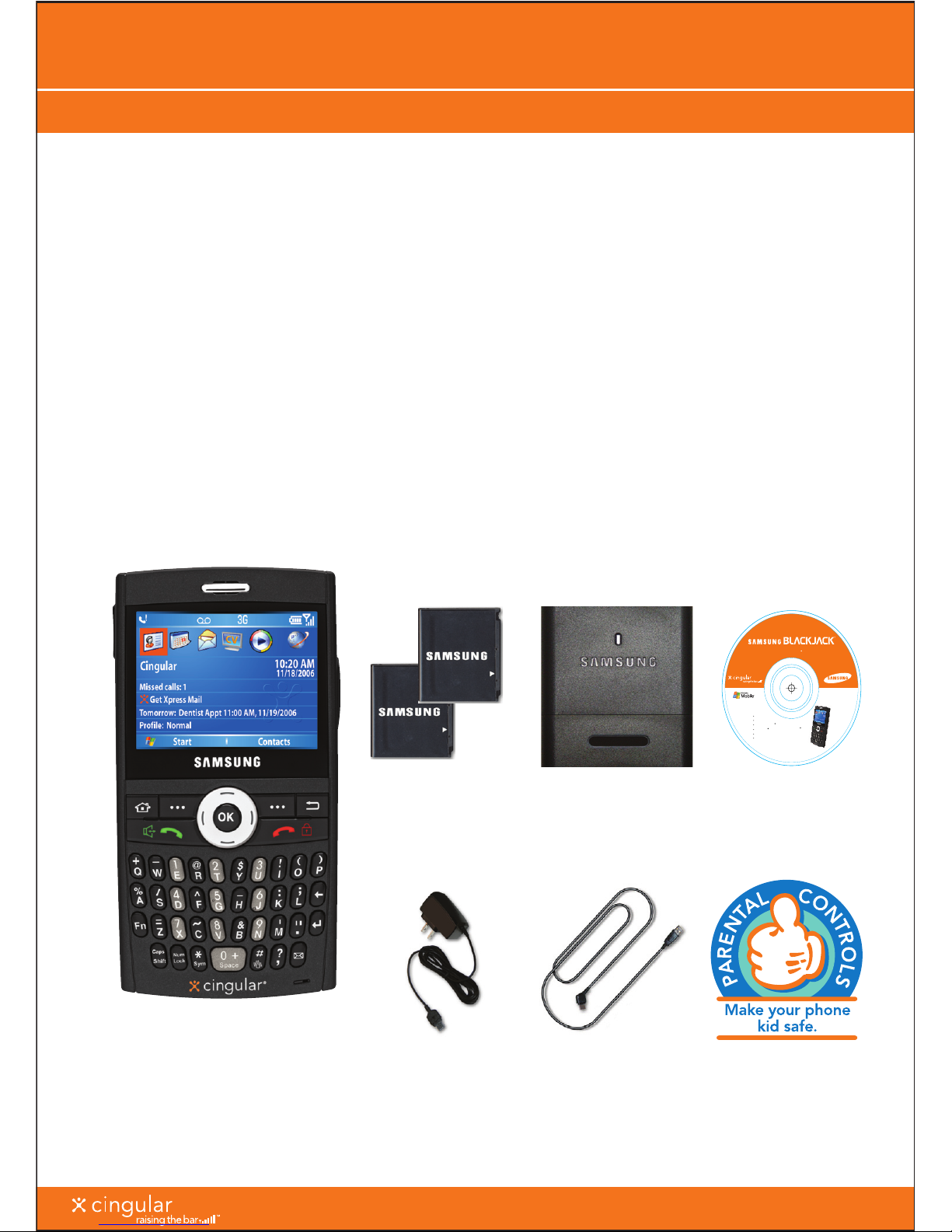

Batteries x 2 Battery Charger Getting Started CD
Travel Adapter Data Cable
Samsung BlackJack™
Parental Controls
WHITEVERSIONREVERSEDWHITEVERSIONREVERSED
4
What’s in the Box?
^ white (reversed)
Welcome to Cingular
Remove These Items From the Box
Thank you for purchasing the Samsung BlackJackTM.
To get started, we recommend the following:
• Carefully follow the step-by-step instructions below to set up your Samsung BlackJack TM
device.
• Review the User Manual on the Getting Started CD to learn the full power of what you
can do with the Samsung BlackJack TM.
Take note of the following components included in the box:

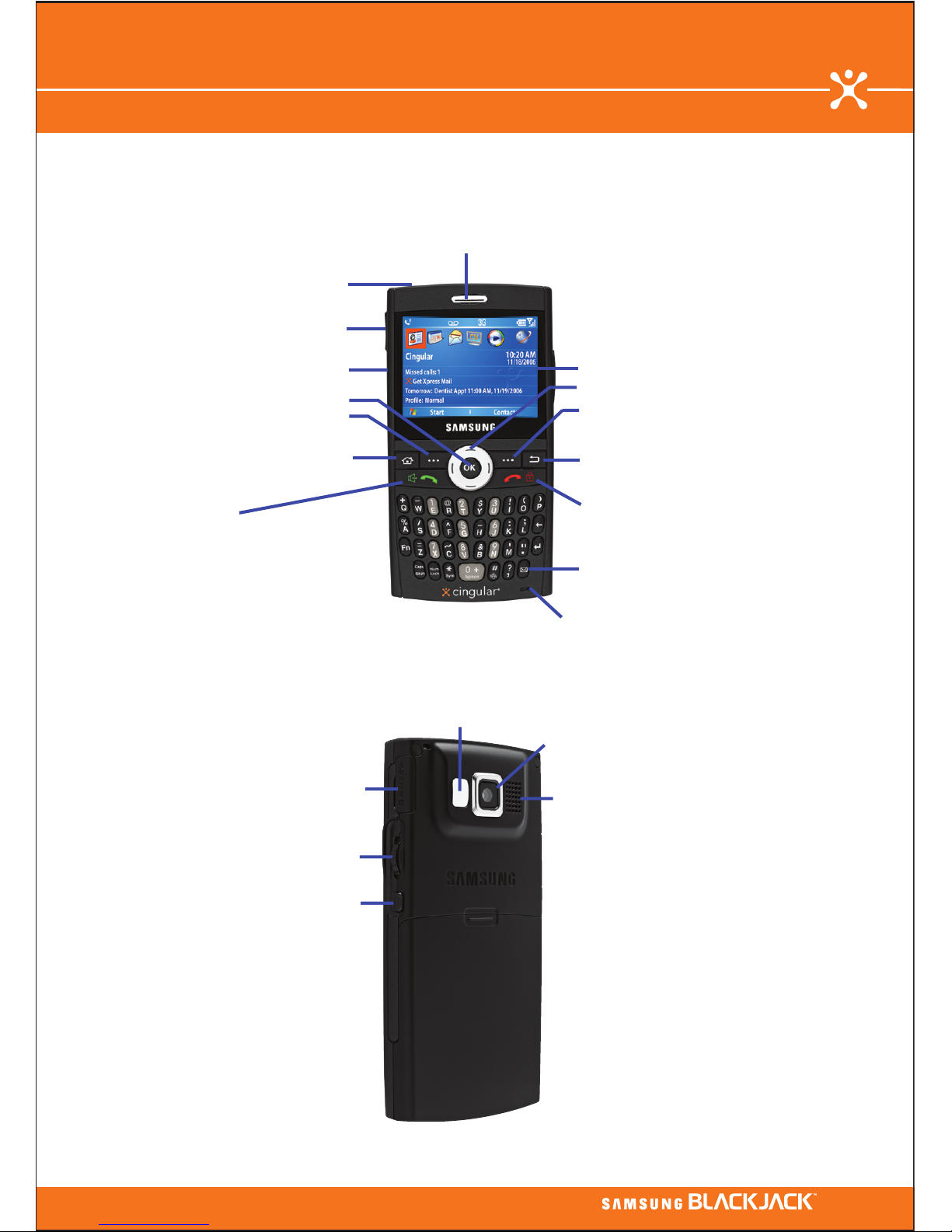

Power on/off key
Quick List key
Volume keys
Headset/Power adapter jack/
USB or data cable OK key
Left soft key (LSK)
Home key (short press)/
Task Manager key (long press)
Send (short press)/
Speakerphone key (long press)
Hold/Unhold (short press during a call)
Microphone
End key (short press)/
Lock key (long press)
Back/Clear key
Right soft key (RSK)
Display
4-Way Navigation key
Earpiece
Messaging (short press)
Backlight on/off (long press)
microSD card slot
Thumbwheel
Select/execute (short press)
Run a quick launcher (long press)
External Speake
r
Camera lens
Mirror
Back/Clear key (short press)
Camera (long press)
™
WHITEVERSIONREVERSED
Samsung BlackJack
WHITEVERSIONREVERSED
5
Samsung BlackJackTM Features
Samsung BlackJackTM Features

WHITEVERSIONREVERSEDWHITEVERSIONREVERSED
Set Up Your Samsung BlackJackTM
Use the travel adapter to charge
the battery, and use only Samsung
approved batteries and chargers.
Plug the connector of the travel
adapter into the jack on the left side
of the phone.
Plug the adapter into a standard
AC wall outlet. When charging is
finished, unplug the adapter from
the power outlet.
^ white (reversed)

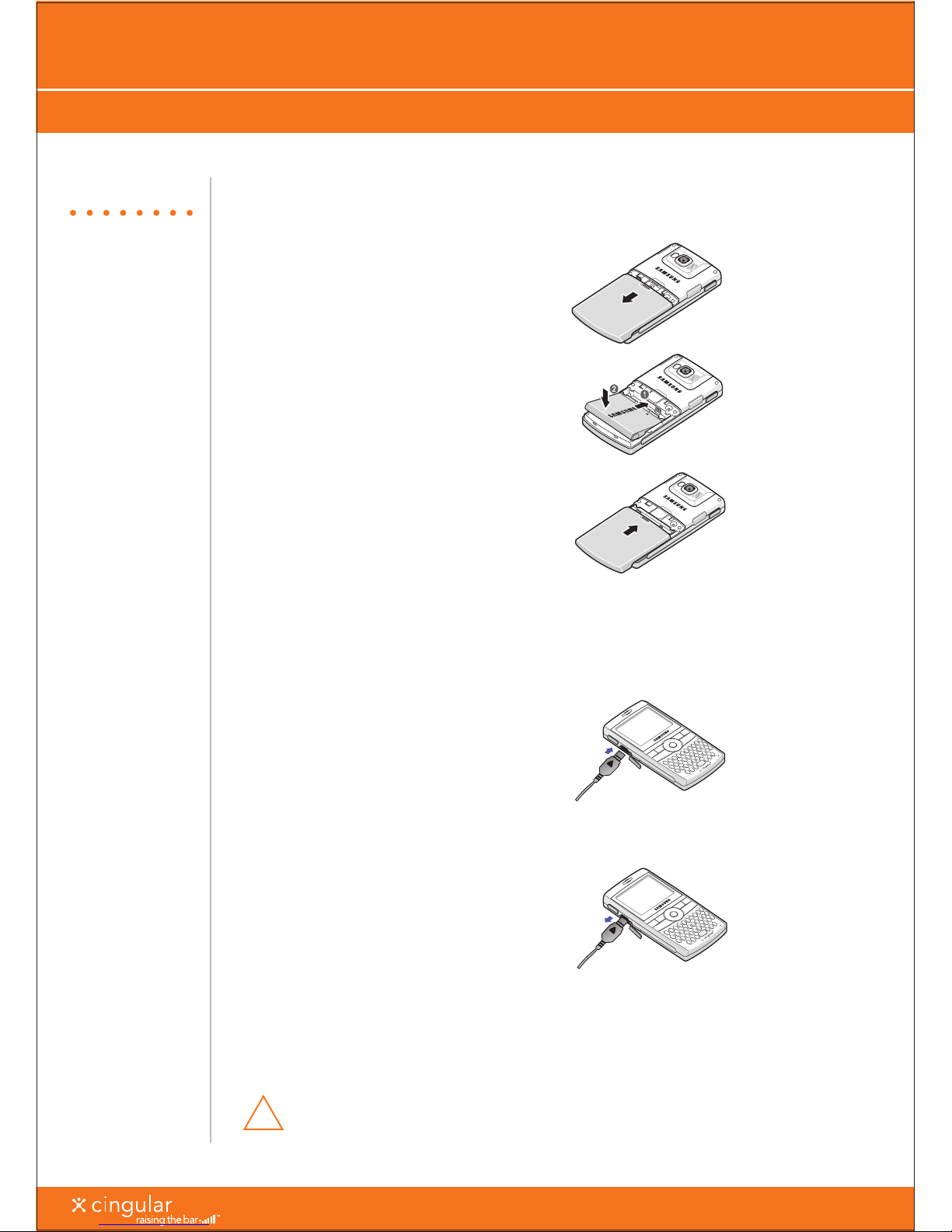

Remove the battery cover by
pressing the battery lock down
and slide the battery cover away, as
shown.
Place the battery with the gold
tabs aligned into the phone (1)
and then press the bottom of the
battery down until (2) it snaps into
place.
With the battery in position on the
phone, place the cover back on
the handset and slide it in until it
clicks.
!
Insert and Charge the Battery
Steps?
3
Takes?
1 minute
6
Steps?
2
Takes?
1 minute
Note:
Your battery
comes
partially
charged.
Warning: Use only Samsung approved batteries for your
handset.
Insert the Battery
Charge the Battery
1.
2.
3.
1.
2.

If you have locked your device keypad (and the device goes dim) to access the
screen, you must first quick press the Power ON/OFF Button to display the
screen. Then press the Left Soft Key (Unlock). And finally you press the key to
unlock the device.
Sym
WHITEVERSIONREVERSED
Samsung BlackJack
WHITEVERSIONREVERSED
7
Getting to Know Your Samsung BlackJackTM
Get to Know your Samsung BlackJackTM
To turn your Samsung BlackJackTM
device on, press and hold the
Power ON/OFF Button.
The Home screen displays with
time and date/status indicators
and any appointments you may
have set.
Power ON/OFF Button
The Home Screen display
Turn on Your Device
Backlight
Backlight with Keypad Locked
After 10 seconds your screen will dim to save battery usage. To turn your screen
on, short press any key.
Lock Your Device Keypad
To lock your device keypad, press and hold on the key.

WHITEVERSIONREVERSEDWHITEVERSIONREVERSED
Steps?
3
Takes?
1 minute
Make Phone Calls
Use the Samsung BlackJackTM
^ white (reversed)
Make Phone Calls
8
Full wireless coverage
Full wireless coverage using data in 3G coverage
No wireless coverage
Wireless in turned off
Wireless Network Coverage Indicator
x
G
3
To connect to the wireless network successfully, your Samsung
BlackJackTM must be powered on, your wireless service must be active,
and you must be in a coverage area. On the top right corner of the
home screen, you will find the network coverage indicator.
On the Home screen, access the Phone screen by pressing the
button or by directly pressing numeric keys on the keypad.
When you enter the phone number completely, press the
button.
To end the call, press the button.
1.
2.
3.
Note: During a call, to activate the speakerphone, press and hold the
key for 2 seconds.
Note: During a call, you can place a call on hold or unhold with a short
press on the key.

WHITEVERSIONREVERSED
Samsung BlackJack
WHITEVERSIONREVERSED
Set Up Voicemail
Steps?
3
Takes?
2 minutes
Set Up Voicemail
9
Create your password.
Record your name.
Record a greeting.
1.
2.
3.
1.
2.
Press and hold the key.
Follow the voice prompts.
From another phone, dial your 10-digit wireless number.
Press the * key when you hear your personal greeting.
Enter your personal password.
Follow the voice prompts.
1.
2.
3.
4.
Check Your Voicemail Messages
Check Your Voicemail Messages From Another Phone
Press and hold the key on your Samsung BlackJackTM. You will be
connected to the voicemail system, which will then ask you to:
Note: You can check messages from other phones.
• For all locations except Puerto Rico: Dial your 10-digit wireless
number and press the * key when you hear your personal
greeting. Then, enter your personal passcode and follow the
voice prompts.
• For users in Puerto Rico: Dial your 10-digit wireless number and
press the # key when you hear your personal greeting. Then, enter
your personal passcode and follow the voice prompts.

Learn to Navigate & Type
Your Samsung BlackJackTM is equipped with an innovative keyboard. You
can easily and accurately type words with the phone keypad. When you
select a field that requires text or numbers, the phone automatically
selects the appropriate input mode. However, if you need to switch
between modes, press one of the keys listed in the following illustration.
See the indicator at the top of the Home Screen to identify the current
text mode setting.
Input Mode Information
This information will be useful when entering a text message or email.
You can enter text, numbers and symbols by using the keypad. The
phone supports four input modes for entering text and numbers:
Press the key to change the text input mode to Upper/Lower case
mode
ABC
123
@ & %
Press the
Sym
key to change the text input mode to Symbols
: !
/
Press the key to change the text input mode to the symbols above
the letter
Note: To save a keystroke, you can also press and hold the key with the letter
associated to insert the symbol.
Press the key to change the text input mode to Numeric input
mode
Num
Lock
WHITEVERSIONREVERSEDWHITEVERSIONREVERSED
Learn to Send Text Messages
Use the Samsung BlackJackTM
^ white (reversed)
Steps?
4
Takes?
1 minute
10

Press the message button or from the Main screen, press the Left Soft
Key (Start). Select Messaging > SMS/MMS. Press .
Press the Left Soft Key (New) > SMS. Press the Left Soft Key (Select).
In the “To:” field, enter the recipients’ phone numbers, separating
them with a semicolon (;). You can retrieve numbers from the contact list by
pressing to select the recipient’s from your Contacts list.
Press the Down key and enter the message text.
Note: To add frequently used text, press Menu > My Text to select from
the available text messages. Highlight the text and press Insert or
enter the corresponding number to enter the text.
When you have finished composing the message, press the Left Soft Key
(Send).
1.
2.
3.
4.
5.
MMS Text Messaging
Press the message button or from the Main screen, press the Left
Soft Key (Start). Select Messaging > SMS/MMS. Press .
Press the Left Soft key (New) > MMS. Press the Left Soft key (Select).
In the “To:” field, enter the recipients’ phone numbers, separating
them with a semicolon (;).
Press the Right Soft Key (Menu) and select Attach. Press . To send a
picture select File. Select My Pictures folder. Use the 4-way Navigation
key to highlight the photo you wish to select and press Select.
When you have finished composing the message, press the Left Soft
Key (Send). Your MMS message is sent.
Note: If your memory is full, a pop-up message will display stating you
cannot save or send the message.
1.
2.
3.
4.
5.
SMS Text Messaging
WHITEVERSIONREVERSED
Samsung BlackJack
WHITEVERSIONREVERSED
11
TIP!
When entering
text, you can
change from
alpha to numeric
modes by
pressing and
holding the
associated key
to access the
number assigned
to the alpha key.

Browse the Web
1.
2.
1.
2.
WHITEVERSIONREVERSEDWHITEVERSIONREVERSED
Browse the Web
Use the Samsung BlackJackTM
^ white (reversed)
12
Steps?
2
Takes?
2 minutes
To connect to a wireless network successfully, your device must be powered on,
your wireless service must be active, and you must be in a coverage area.
Open Internet Explorer
On the Home screen, press the Left Soft Key (Start)
and then press the Left soft key (More). Select Internet
Explorer and press .
Highlight web address, and press the Left Soft Key
(Go) or press the Right Soft Key (Menu) to access the
Address Bar and enter an internet address. Press the
key to clear the text in the Internet Address Bar.
Go to a Link
While on a Web page, scroll vertically or horizontally to see all available links.
Press to select the link.
MEdiaTM Net from Cingular
MEdiaTM Net, only from Cingular, brings your favorite
web pages, downloads and more to your wireless
phone.
1. On the Home screen, press the Left Soft Key (Start)
then select MEdiaTM Net and press .
Note:
For web
browsing,
Cingular
recommends
a data plan.
If you do not
have a data plan
associated with
your account,
please visit
www.cingular.
com
or call
1-866-CINGULAR

•
•
WHITEVERSIONREVERSED
Samsung BlackJack
WHITEVERSIONREVERSED
Set Up Your Samsung BlackJackTM Email
13
Set Up Email on Your Device
Choose an Email Setup Option
Your Windows Mobile®powered device can connect to:
Personal email accounts such as Yahoo! Premium, AOL, Comcast, and
Gmail. To setup a Personal email account, go to Personal Email Setup on
page 14.
Corporate email accounts (such as Microsoft®Exchange or Lotus Notes).
To set up your corporate account, flip to page 16, Corporate Email Setup
Note:
For email,
Cingular
recommends
a data plan.
If you do not
have a data plan
associated with
your account,
please visit
www.cingular.
com
or call
1-866-CINGULAR

1.
2.
1.
2.
3.
4.
WHITEVERSIONREVERSEDWHITEVERSIONREVERSED
Set Up Your Samsung BlackJackTM Email
Personal Email
^ white (reversed)
Xpress Mail (recommended)
- OR -
Microsoft Mobile®Outlook®Mobile (Manual setup)
Cingular recommends Xpress Mail because it:
• Automates the setup process
• Includes features such as email synchronization. (This means that changes
made on the Samsung BlackJackTM , includes deletes, are automatically
reflected in your in your personal email account.)
Personal Email Setup on your Samsung BlackJackTM
Personal email accounts include accounts you have with services
like Yahoo!, Comcast or Bellsouth.
There are two ways to get personal email on your Samsung
BlackJackTM.
14
Note:
Some personal
email services
require a
premium
subscription to
access email
from a mobile
device. If you
complete this
setup process
and your email
does not start
arriving on
your device,
check with
your provider
to validate
eligibility.
Xpress Mail
(Will work with the majority of email services)
Click “Get Xpress Mail” on the Home
Screen and press .
Click “Install Now” to launch the Xpress
Mail download site.
Click “Download Now” on the download
page.
Click “Yes” to continue the download.
Note:
MSN and AOL
Email Users
Please visit
http://www.
cingular.
com/xpressmail
for the latest
on support and
alternate setup
instructions for
MSN and AOL
email.

5.
6.
7.
8.
9.
10.
11.
WHITEVERSIONREVERSED
Samsung BlackJack
WHITEVERSIONREVERSED
Xpress Email
15
Click “OK” to accept the license
agreement.

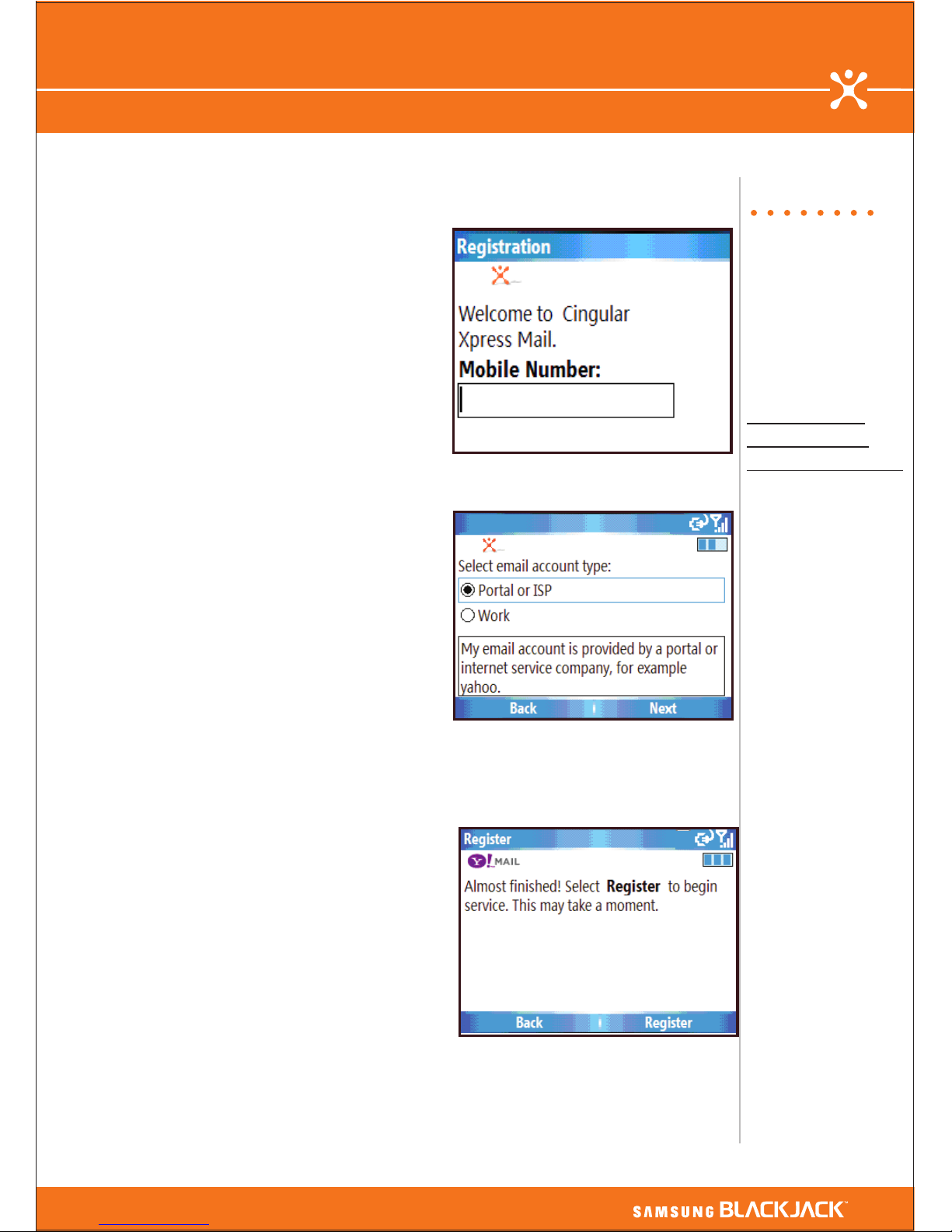

Enter your 10-digit mobile (cell) number
(numbers only) and click Next.
Select “Portal or ISP” and click Next.
Choose your provider and click Next. (If
your provider is not listed click “More”
to view an additional list of personal email
providers.)
Enter your User Name and Password and
click Next.
Click Register and wait for the registration
process to complete.
After successfully registering, your Samsung
BlackJackTM will automatically display the
Messaging section with your personal
email account.
Note:
If your email
provider is not
listed on the two
screens described
here, go to
www.cingular.
com/tutorials/
samsungblackjack
for additional
provider
information.

1.
2.
3.
4.
WHITEVERSIONREVERSEDWHITEVERSIONREVERSED
Corporate Email
Set Up Your Samsung BlackJackTM Email
^ white (reversed)
On the Home screen click Start, then click Messaging, and select Yahoo (or
your personal email provider).
Click Menu and click Receive to synchronize your email.
Click New to compose a new email.
When you are done composing your message click Send.
16
Send and Receive Personal Email
Corporate Email Setup
A corporate email account (like Microsoft®Exchange or Lotus Notes) is an
account managed by a company’s IT organization.
There are two ways to access your corporate email on your Samsung
BlackJackTM:
1. Self Service – Xpress MailTM is a self service option for accessing your
corporate email from your Samsung BlackjackTM without support from
IT.
2. IT Managed – Good Mobile MessagingTM and Microsoft®Direct Push
require that your IT organization install software centrally and provide
you access.

WHITEVERSIONREVERSED
Samsung BlackJack
WHITEVERSIONREVERSED
Self-Service (Xpress Mail)
17
Xpress MailTM can provide wireless access to your corporate email from your
Samsung BlackJackTM without support from IT.
To set up Xpress MailTM, you will need:
A. A work email address.
B. The type of mail server your company runs (Microsoft®Exchange, Lotus
Notes or IMAP).
C. The computer you use to access your corporate email (must be connected
to the Internet).
Start on your desktop or laptop computer
1. Open Internet Explorer to the following page:
http://xpressmailpe.cingular.com

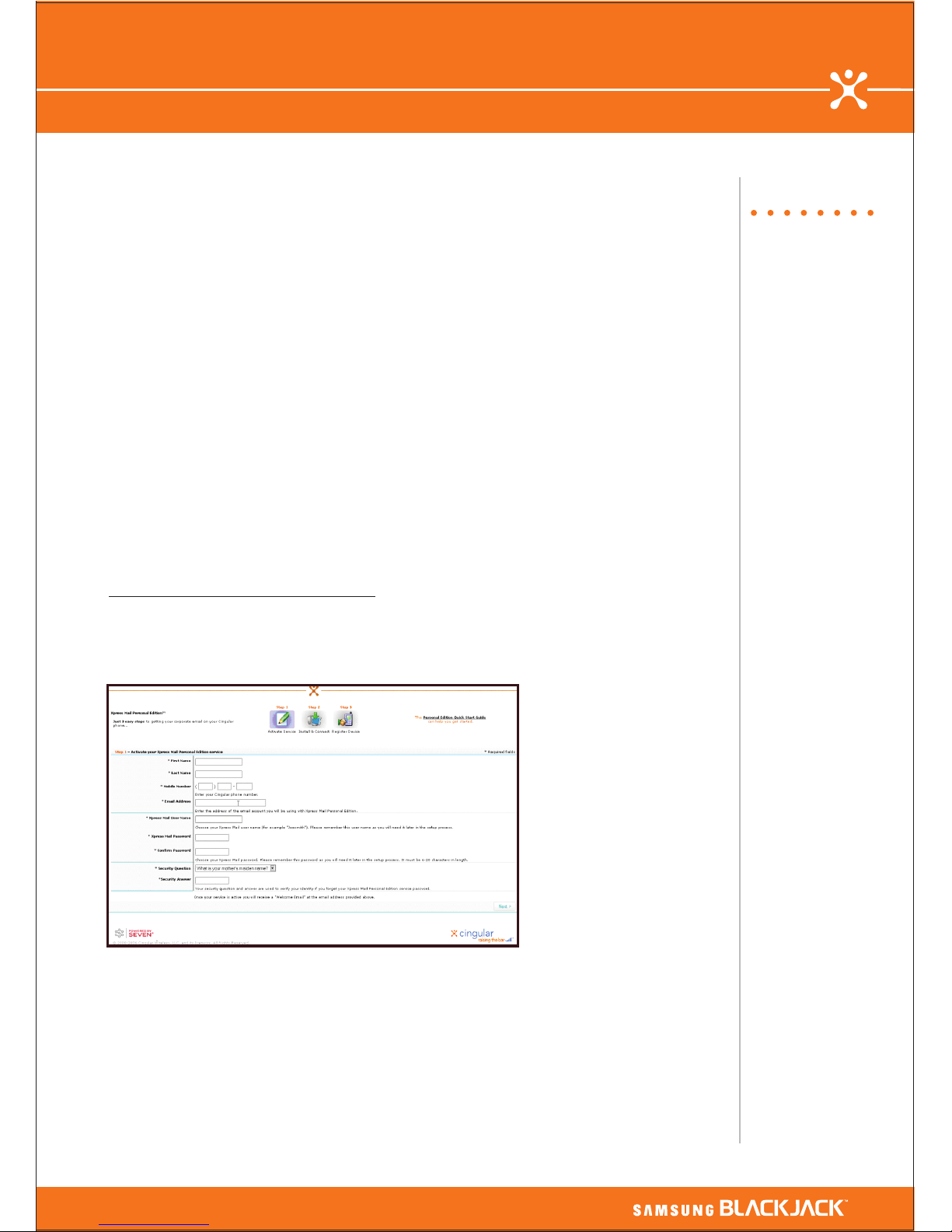

2. Click on Register Now and fill in the required form fields.
Note: You will create an Xpress MailTM user name and password in this step. You
will need to remember and use this username and password later in the
set up.
Self-Service (Xpress MailTM)

WHITEVERSIONREVERSEDWHITEVERSIONREVERSED
Set Up Your Samsung BlackJackTM Email
^ white (reversed)

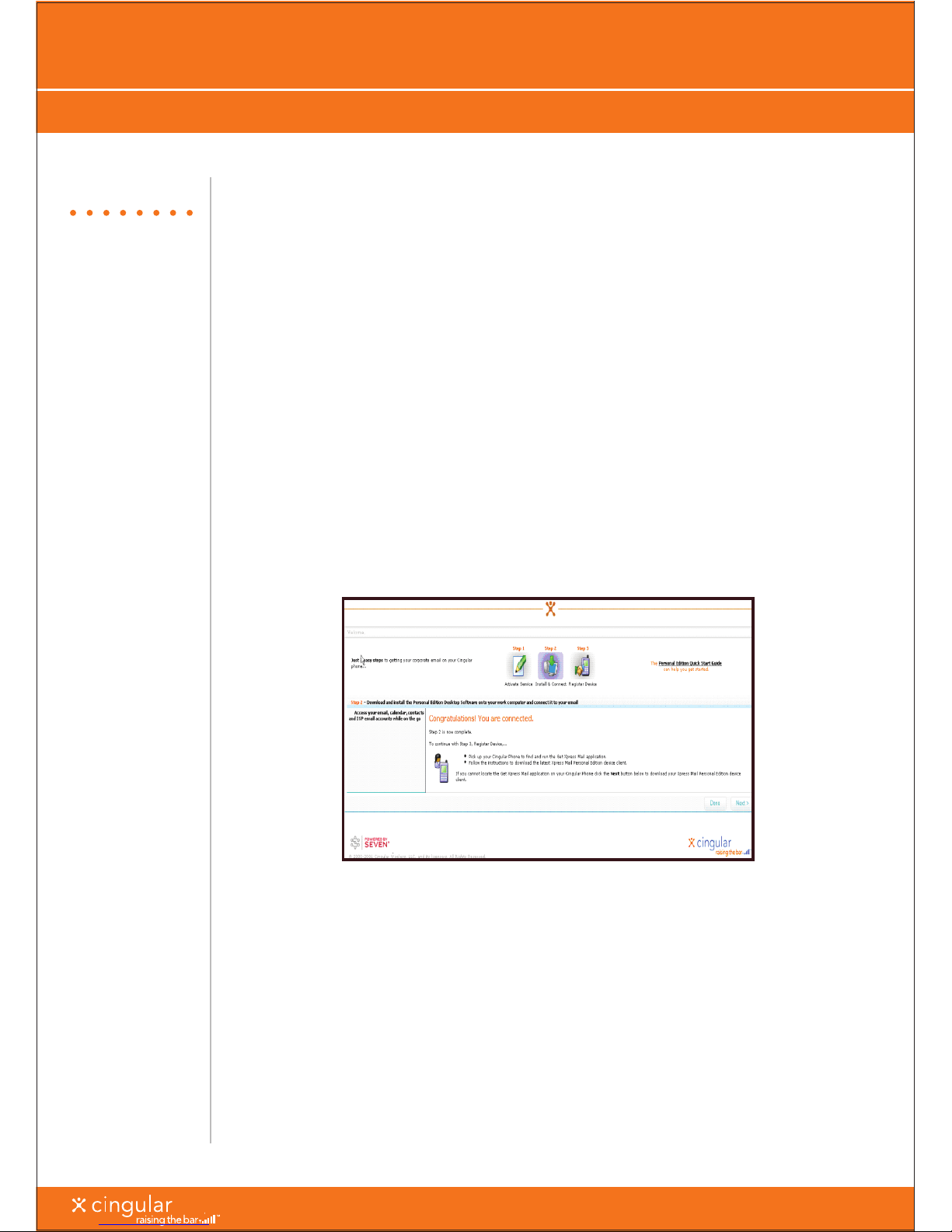

3. On the download page, click Download.
4. Click the Open or Run button and the desktop software will begin to
download.
5. Click Yes when asked whether or not you want to install the desktop
software.
6. Click Next to begin setup and follow the on screen instructions. When
promoted for a user name and password, use those created in step 3 above
7. When Xpress MailTM has successfully connected to your corporate email
account, you will receive a message confirming that your software is installed
and you are now connected to Xpress MailTM.
18

WHITEVERSIONREVERSED
Samsung BlackJack
WHITEVERSIONREVERSED
19
1. Click Get Xpress MailTM on your
Home Screen.
2. Click “Install Now” to launch the
Xpress MailTM download site.

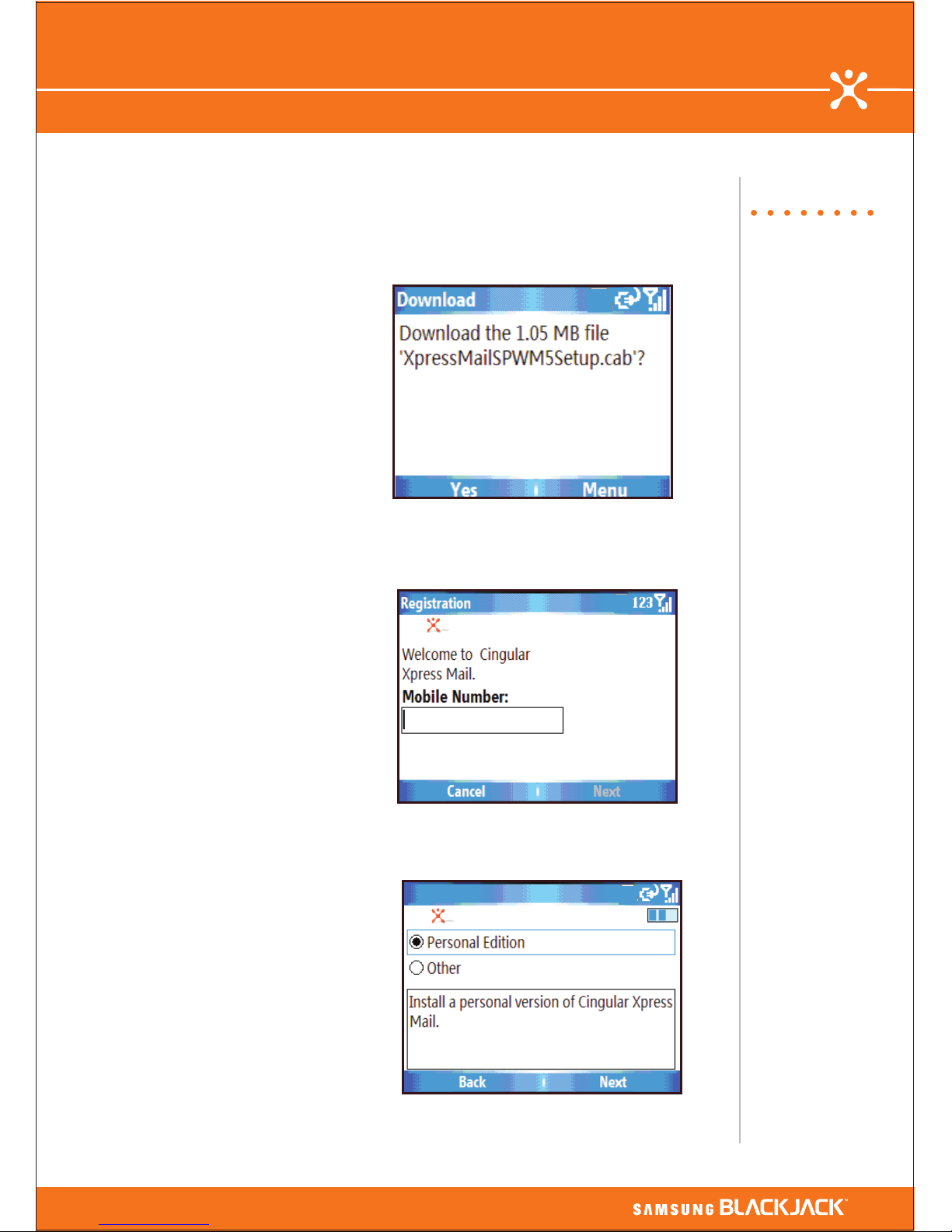

3. Click “Download Now” on the
download page.

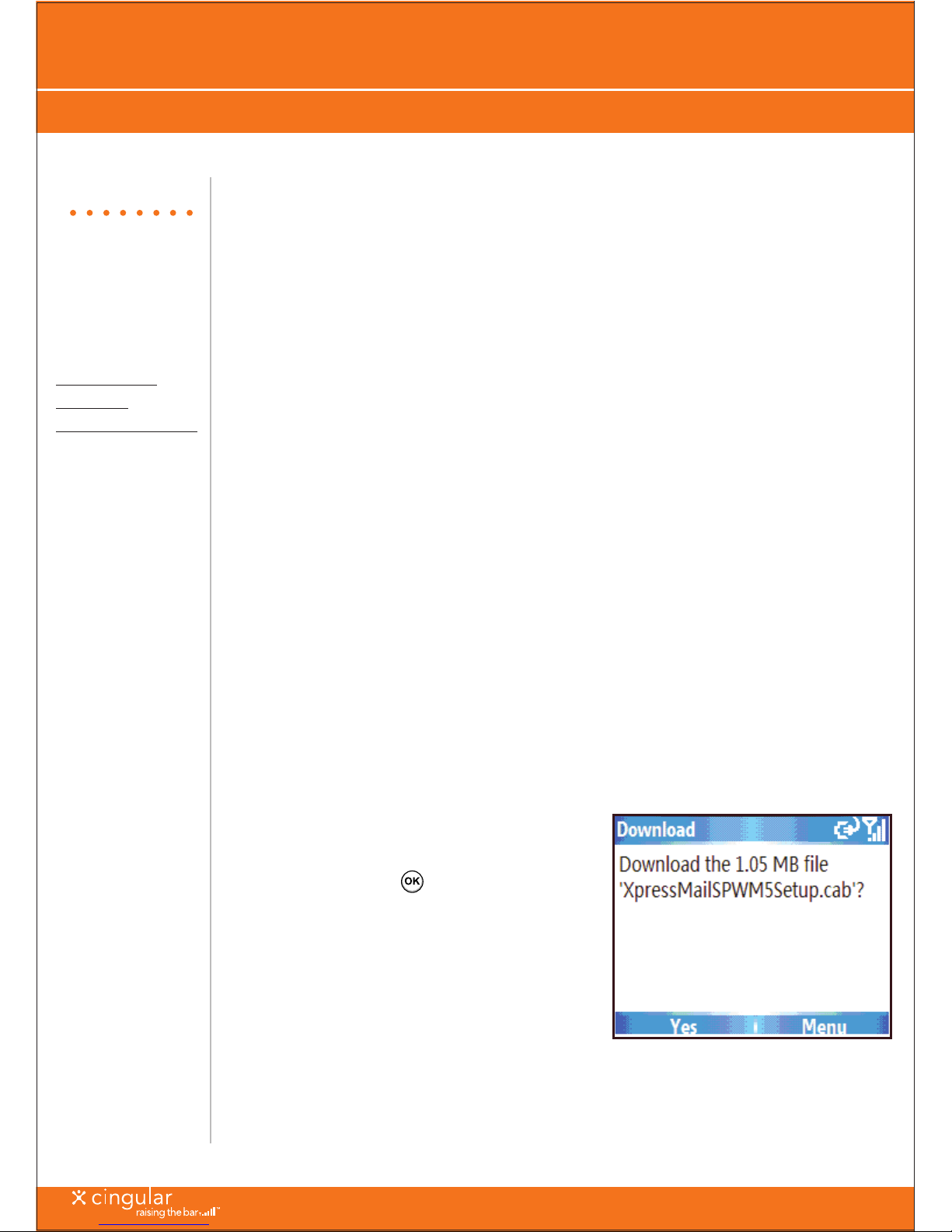

4. Click “Yes” to continue the
download.
5. Click “OK” to accept the license
agreement.
6. Enter your 10-digit mobile (cell)
number (numbers only) and click
Next.
7. Select Work and click Next.
8. Select Personal Edition and click
Next.
Complete the Setup Process on your BlackJackTM

WHITEVERSIONREVERSEDWHITEVERSIONREVERSED
Set Up Your Samsung BlackJackTM Email
^ white (reversed)
20
9. Select Register Device and click
Next.
10. Enter the User Name and Password
you created online earlier and click
Next.
11. Click Register.
12. After successfully registering, your
Samsung BlackJackTM will automatically
display the Messaging section with
your corporate email account labelled
Xpress MailTM.
