Samsung GT-B5510 User manual

GSM TELEPHONE
GT-B5510
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Disassembly and Assembly
Instructions
8. Chart of Troubleshooting
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2011. 09. Rev.1.0
ⓒ

2. Specification
2-1
2-1. GSM General Specification
GSM850
Phase 1 EGSM 900 Phase 2 DCS1800 Phase 1 PCS1900 WCDMA2100 WCDMA850 WCDMA1900
Freq.
Band[MHz]
Uplink/Dow
nlink
824~849
869~894 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990 1922~1977 2112~2167 826~846
871~891
1852~1907
1932~1987
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810 UL:9612~988
8DL:10562~1
0838
UL:4132~423
3
DL:4357~445
8
UL:9262~953
8
DL:9662~993
8
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 45MHz 80MHz
Mod. Bit
rate/
Bit Period
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kb
ps
3.692us
270.833kb
ps
3.692us 3.84Mcps 3.84Mcps 3.84Mcps
Time Slot
Period/Fram
ePeriod
576.9us
4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
FrameLength
:
10ms
Slotlength:
0.667ms
FrameLength:
10ms
Slotlength:
0.667ms
FrameLength:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPSK QPSKHQPSK QPSKHQPSK
MS Power 33dBm~5dB
m33dBm~5dB m30dBm~0d Bm 30dBm~0d Bm 24dBm~- 50dBm 24dBm~- 50dBm 24dBm~- 50dBm
Power
Class 5pcl ~
19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dBm) 3(max+24dBm) 3(max+24dBm)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -104.7dBm -104.7dBm
TDMA Mux 8 8 8 8 888
Cell
Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
•GSM/EDGE 850/900/1800/1900 , 3G(900/2100)
•HSDPA 7.2 Mbps
•2.6” LQVGA 240x320
•OS Version -Gingerbread
•Full Touch Qwerty BAR Phone
•3MFF Camera
•FM Radio Receiver
•Bluetooth v3.0
•USB v2.0 /Wi-Fi b/g/n
•SMS/MMS/Email

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. Software Download

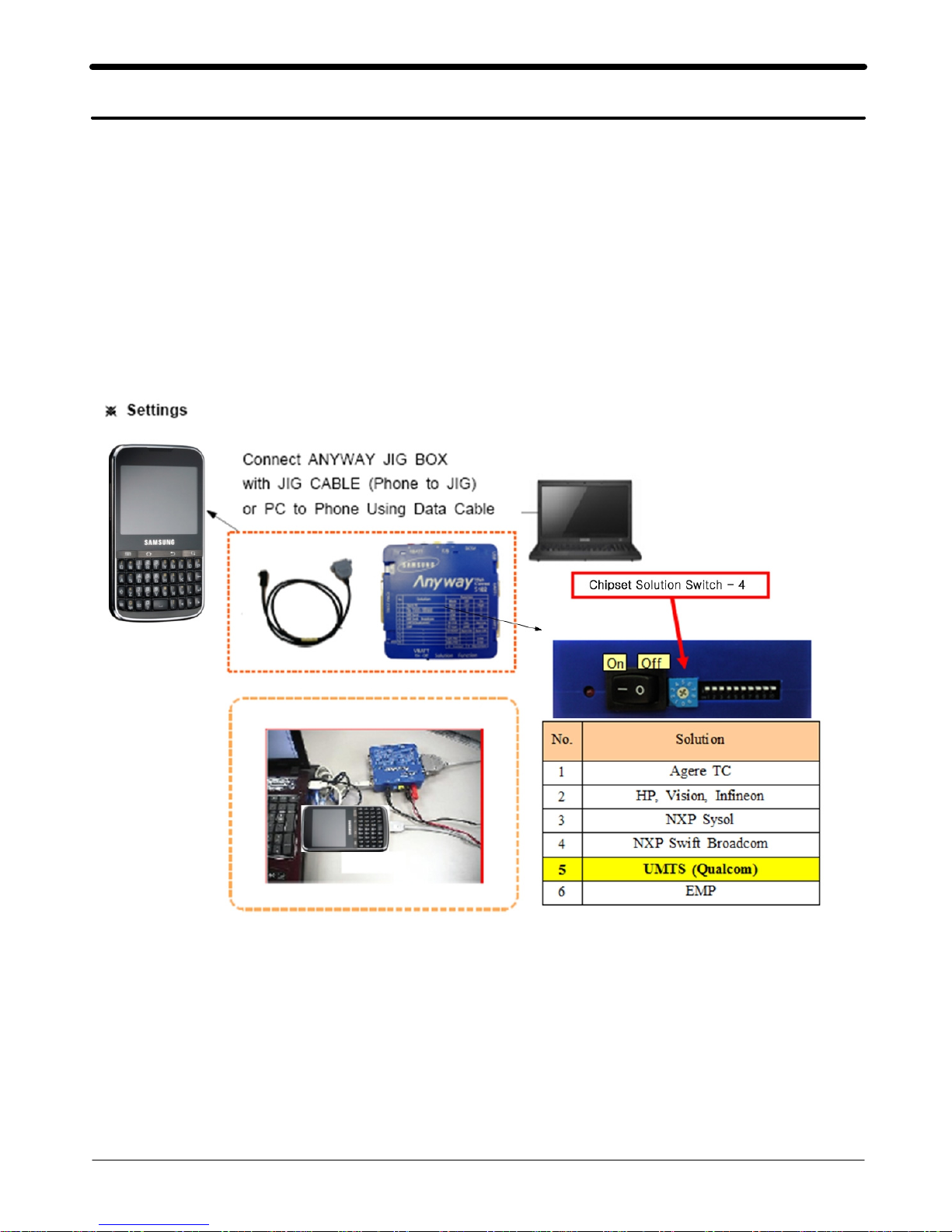

6-1-1. Required items in order to install S/W
ㆍInstallation program: Downloader Program (Odin3_v1.84)
ㆍGT-B5510 Mobile Phone
ㆍData Cable
ㆍJIG BOX (GH99-36900B)
ㆍJIG Cable (GH39-01339A)
ㆍAdapter (GH99-38251A)
ㆍRF test cable (GH39-00985A)
ㆍSerial Cable
ㆍMobile device specific S/W: Binary files

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization
6-1-2. S/W Download Process
1. Load the binary download program by executing the "Odin3_v1.84"

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization
2. Click the PIT Button and Insert "pit" binary file

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization

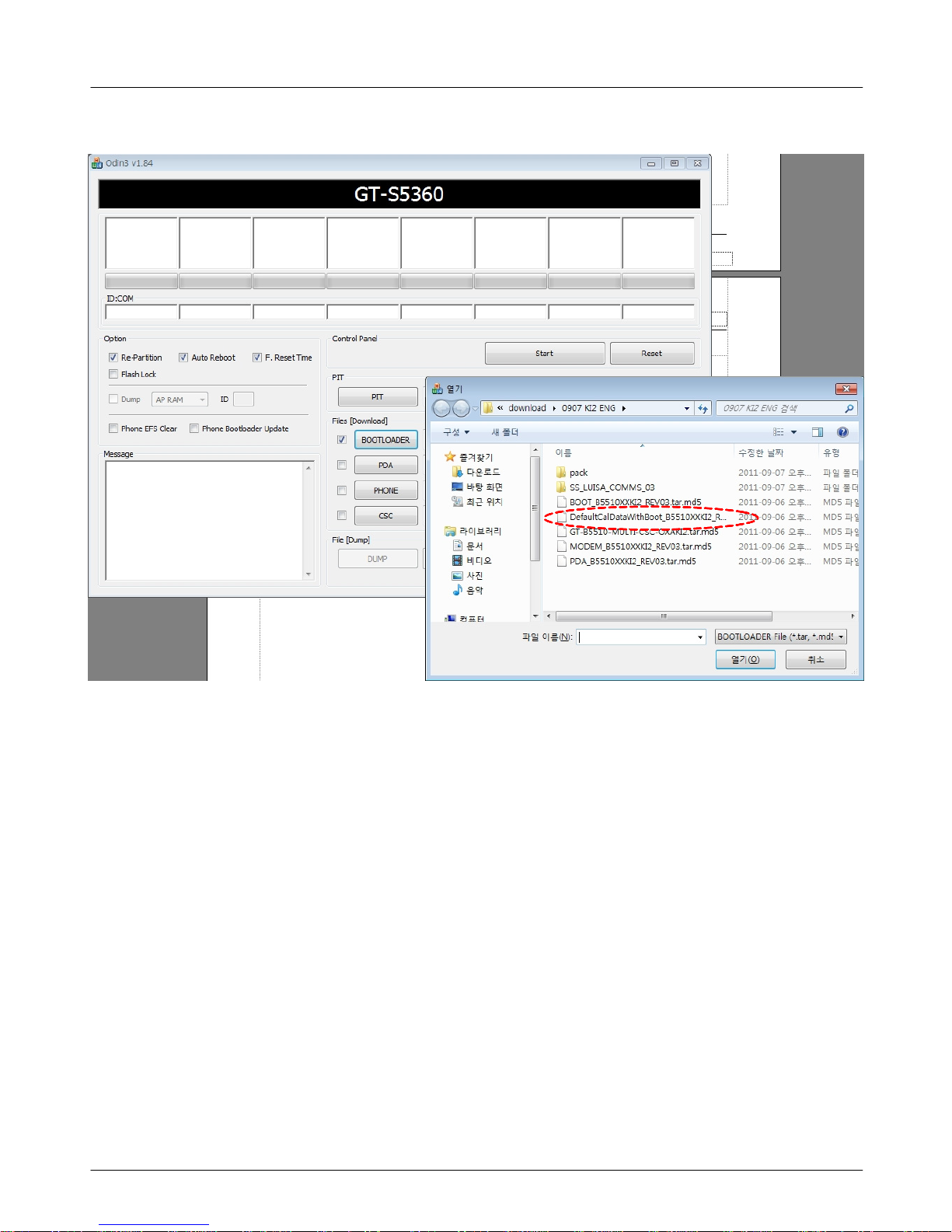

3. Click the BOOTLOADER Button and Insert "DefaultCalDataWithBoot_...." md5 file

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-5
This Document can not be used without Samsung's authorization

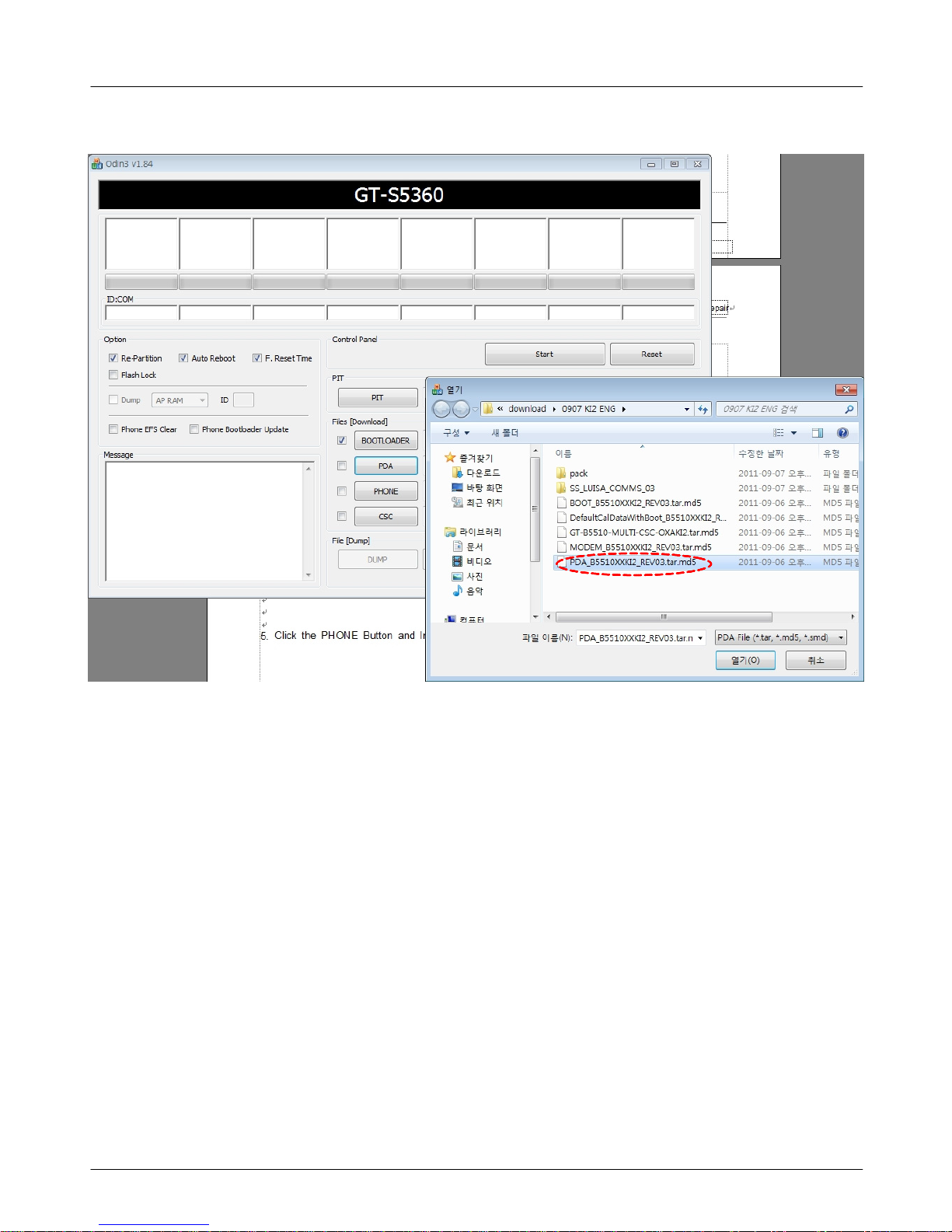

4. Click the PDA Button and Insert "PDA_...." md5 file

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-6
This Document can not be used without Samsung's authorization
5. Click the PHONE Button and Insert "MODEM_...." md5 file

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-7
This Document can not be used without Samsung's authorization
6. Click the CSC Button and Insert "GT-B5510-MULTI-CSC-...." md5 file

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-8
This Document can not be used without Samsung's authorization
7. Connect phone to PC
You have to set the phone as adownload mode by pressing Volume down +Middle Key
+Power on key simultaneously before connecting to PC.
Color will be changed to yellow if PC recognize phone properly.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-9
This Document can not be used without Samsung's authorization
8. If you Click Start Button, download is started.
Andyoucansee"PASS!" with green when download is done.
9. Confirm the downloaded version name and etc. :
*#1234#

SAMSUNG Proprietary-Contents may change without notice
9. Reference Abbreviate
This Document can not be used without Samsung's authorization
9-1
Reference Abbreviate
―AAC:Advanced Audio Coding.
―AVC :Advanced Video Coding.
―BER :Bit Error Rate
―BPSK:Binary Phase Shift Keying
―CA :Conditional Access
―CDM :Code Division Multiplexing
―C/I :Carrier to Interference
―DMB :Digital Multimedia Broadcasting
―EN :European Standard
―ES :Elementary Stream
―ETSI:European Telecommunications Standards Institute
―MPEG:Moving Picture Experts Group
―PN :Pseudo-random Noise
―PS :Pilot Symbol
―QPSK:Quadrature Phase Shift Keying
―RS :Reed-Solomon
―SI :Service Information
―TDM :Time Division Multiplexing
―TS :Transport Stream

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization

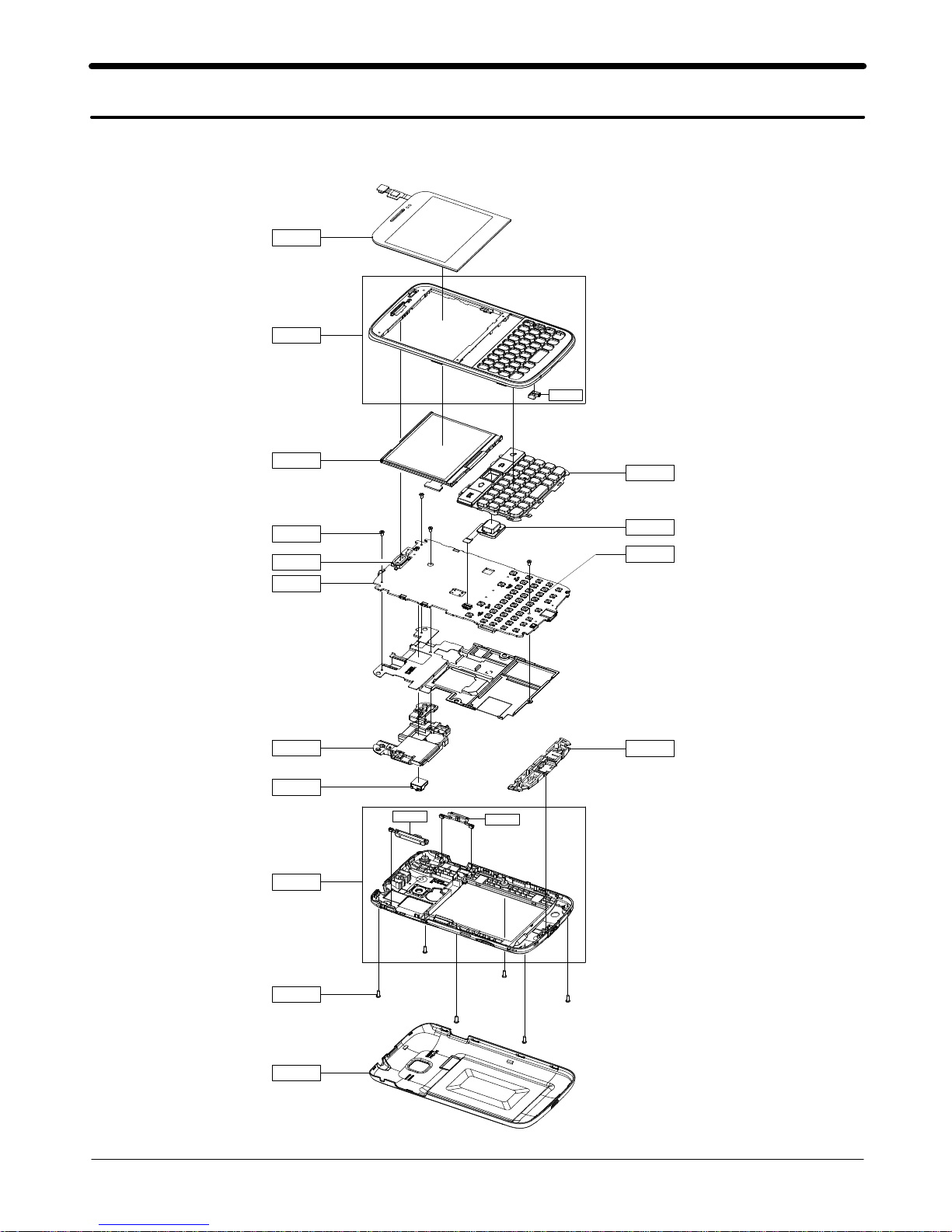

4-1. Cellular phone Exploded View
QFR01
QRE01
QCR67
QBC00
QLC01
QCR92
QAR01
QMP01
QSP01
QCA01
QME03
QCK01
QKP01
QJK01
QME01
QAN02
QMI03
QVO01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAR01 AUDIO-RECEIVER 3009-001569
QCR67 SCREW-MACHINE 6001-002083
QCR92 SCREW-MACHINE 6001-002261
QAN02 INTENNA-MAIN (GT-B5510) GH42-03180A
QCA01 CAMERA MODULE-3M 1/5" FF SONY SOCKET GH59-09965A
QJK01 MODULE-OPTICAL FINGER MOUSE GH59-11299A
QME01 DOME SHEET-GT-B5510 GH59-11317A
QME03 TOUCH/PANEL-GT-B5510 GH59-11331A
QSP01 MODULE-SPK/MOT (GT-B5510) GH59-11371A
QMP01 A/S ASSY-PBA MAIN (COMM) GH82-06029A
QLC01 ELA MODULE-GT-B5510 LCD CKD GH96-05394A
QBC00 ASSY COVER-BATT GH98-20991A
QKP01 ASSY KEYPAD-(DUTCH/BLACK) GH98-21613A
QRE01 ASSY CASE-REAR GH98-20990A
QVO01 PMO KEY-VOLUME GH72-64964A
QCK01 PMO KEY-POWER GH72-64968A
QFR01 ASSY CASE-FRONT GH98-20989A
QMI03 ASSY RUBBER-MIC HOLDER GH98-21652A
4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
5. MAIN Electrical Parts List
5-1
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
D401 0401-001110 SDS511Q
ZD400 0403-001870 TDZ5V6J
D600 0404-001646 PMEG4005EJ
ZD500,ZD509,ZD600 0406-001286 PESD5V0L5UV
ZD501,ZD502,ZD503 0406-001446 RD1301
ZD504,ZD505,ZD506 0406-001446 RD1301
ZD507,ZD510 0406-001446 RD1301
Q600 0505-001325 2SK3019
LED400,LED401,LED402 0601-002995 AEOWL-VODE
LED403 0601-002995 AEOWL-VODE
U300 0801-003016 NC7SV08L6X
U200 1001-001715 XM2400SB-DL1201
UME300 1108-000411 KAT007012C-BRTT
PAM101 1201-003092 SKY77705
U201 1201-003261 BGU7007
U100 1201-003266 RF3242
PAM100 1201-003303 RF7221
U604 1202-001088 NCS2220AMUT1G
U401 1203-005512 MIC5365-3.3YMT
U603 1203-005521 MIC5365-2.8YMT
U602 1203-006589 AAT1401IUQ-T1
U400 1203-006878 STC3105IQT
U402 1203-006913 MAX8986EWG-T
U403 1203-006938 RT9829GQW
U203 1205-003966 BCM4751IUB2G
U202 1205-004204 BCM4330XKFFBG
U101 1205-004267 BCM2091C0IFBG
UCP300 1205-004271 BCM21552KFFBG
U600 1209-002023 BMA222
U500 1209-002065 GP2AP002S00F
U601 1209-002079 MMC3280MA
V100 1404-001221 NCP15WB473J04RC
R618 2007-000138 RC1005J101CS
R300 2007-000140 RC1005J102CS
R321,R322,R336,R337 2007-000141 RC1005J222CS
C221,R504,R613 2007-000148 RC1005J103CS
