Samsung GT-C3200L User manual

GSM TELEPHONE
GT-C3200L
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice
All functionality, features, specifications and o
ther product information provided in this docu
ment including, but not limited to, the benefit
s, design, pricing, components, performance,
availability, and capabiliti-es of the product
are subject to change without notice or oblig
ation. Samsung reserves the right to make
changes to this document and the product
described herein, at anytime, without
obligation on Samsung to provide notification
of such change.

SAMSUNG Proprietary-Contents may change without notice
5. MAIN Electrical Parts List
5-1
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
D400 0401-001141 DIODE-SWITCHING
ZD303 0403-001688 DIODE-ZENER
ZD307 0406-001167 DIODE-TVS
ZD403 0406-001167 DIODE-TVS
ZD409 0406-001223 DIODE-TVS
ZD306 0406-001231 DIODE-TVS
ZD308 0406-001231 DIODE-TVS
ZD404 0406-001231 DIODE-TVS
ZD405 0406-001231 DIODE-TVS
ZD406 0406-001231 DIODE-TVS
ZD407 0406-001231 DIODE-TVS
ZD400 0406-001256 DIODE-TVS
ZD401 0406-001261 DIODE-TVS
ZD301 0406-001281 DIODE-TVS
ZD305 0406-001286 DIODE-TVS
ZD100 0406-001375 DIODE-TVS
ZD300 0406-001375 DIODE-TVS
ZD408 0406-001375 DIODE-TVS
Q300 0501-002606 TR-SMALL SIGNAL
Q305 0501-002663 TR-SMALL SIGNAL
Q303 0502-001322 TR-POWER
U302 0504-001151 TR-DIGITAL
LED300 0601-002846 LED
LED301 0601-002846 LED
LED302 0601-002846 LED
LED303 0601-002846 LED
LED304 0601-002846 LED
LED305 0601-002846 LED
U100 1201-002944 IC
PAM100 1201-003025 IC
U402 1202-001068 IC
U306 1203-005310 IC
U401 1203-005501 IC
U305 1203-005851 IC
U304 1203-006098 IC
U102 1205-003517 IC
TH200 1404-001224 THERMISTOR
R100 2007-000138 R-CHIP
R101 2007-000138 R-CHIP
R103 2007-000138 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R104 2007-000138 R-CHIP
R330 2007-000138 R-CHIP
R337 2007-000138 R-CHIP
R338 2007-000138 R-CHIP
R339 2007-000138 R-CHIP
R340 2007-000138 R-CHIP
R341 2007-000138 R-CHIP
R342 2007-000138 R-CHIP
R343 2007-000138 R-CHIP
R345 2007-000138 R-CHIP
R346 2007-000138 R-CHIP
R431 2007-000138 R-CHIP
R102 2007-000140 R-CHIP
R316 2007-000140 R-CHIP
R318 2007-000140 R-CHIP
R322 2007-000140 R-CHIP
R408 2007-000140 R-CHIP
R409 2007-000140 R-CHIP
R410 2007-000140 R-CHIP
R109 2007-000143 R-CHIP
R213 2007-000143 R-CHIP
R214 2007-000143 R-CHIP
R215 2007-000143 R-CHIP
R304 2007-000143 R-CHIP
R305 2007-000143 R-CHIP
R319 2007-000143 R-CHIP
R329 2007-000143 R-CHIP
R406 2007-000143 R-CHIP
R200 2007-000148 R-CHIP
R204 2007-000148 R-CHIP
R209 2007-000148 R-CHIP
R310 2007-000148 R-CHIP
R331 2007-000148 R-CHIP
R332 2007-000148 R-CHIP
R333 2007-000148 R-CHIP
R334 2007-000148 R-CHIP
R335 2007-000148 R-CHIP
R336 2007-000157 R-CHIP
R413 2007-000157 R-CHIP
R201 2007-000162 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R210 2007-000162 R-CHIP
R211 2007-000162 R-CHIP
R216 2007-000162 R-CHIP
R434 2007-000166 R-CHIP
R430 2007-000170 R-CHIP
R403 2007-000172 R-CHIP
R404 2007-000172 R-CHIP
R312 2007-000242 R-CHIP
R418 2007-000242 R-CHIP
R423 2007-000242 R-CHIP
R309 2007-000831 R-CHIP
R303 2007-000932 R-CHIP
R108 2007-001119 R-CHIP
R419 2007-001119 R-CHIP
R439 2007-001307 R-CHIP
R440 2007-001307 R-CHIP
R110 2007-001307 R-CHIP
R325 2007-003010 R-CHIP
R326 2007-003010 R-CHIP
R327 2007-003010 R-CHIP
R328 2007-003010 R-CHIP
R347 2007-003010 R-CHIP
R348 2007-003010 R-CHIP
R107 2007-003015 R-CHIP
R302 2007-007001 R-CHIP
R205 2007-007142 R-CHIP
R401 2007-008736 R-CHIP
R315 2007-008780 R-CHIP
C116 2203-000254 C-CERAMIC,CHIP
C132 2203-000254 C-CERAMIC,CHIP
C107 2203-000278 C-CERAMIC,CHIP
C324 2203-000278 C-CERAMIC,CHIP
C409 2203-000311 C-CERAMIC,CHIP
C410 2203-000311 C-CERAMIC,CHIP
C119 2203-000386 C-CERAMIC,CHIP
C421 2203-000386 C-CERAMIC,CHIP
C422 2203-000386 C-CERAMIC,CHIP
C320 2203-000425 C-CERAMIC,CHIP
C123 2203-000438 C-CERAMIC,CHIP
C212 2203-000438 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C215 2203-000438 C-CERAMIC,CHIP
C228 2203-000627 C-CERAMIC,CHIP
C229 2203-000627 C-CERAMIC,CHIP
C131 2203-000679 C-CERAMIC,CHIP
C115 2203-000812 C-CERAMIC,CHIP
C306 2203-000812 C-CERAMIC,CHIP
C307 2203-000812 C-CERAMIC,CHIP
C400 2203-000812 C-CERAMIC,CHIP
C411 2203-000812 C-CERAMIC,CHIP
C412 2203-000812 C-CERAMIC,CHIP
C414 2203-000812 C-CERAMIC,CHIP
C429 2203-000812 C-CERAMIC,CHIP
C413 2203-000854 C-CERAMIC,CHIP
C305 2203-000940 C-CERAMIC,CHIP
C304 2203-000995 C-CERAMIC,CHIP
C121 2203-002443 C-CERAMIC,CHIP
C133 2203-002443 C-CERAMIC,CHIP
C234 2203-002443 C-CERAMIC,CHIP
C224 2203-002487 C-CERAMIC,CHIP
C236 2203-002487 C-CERAMIC,CHIP
C108 2203-002668 C-CERAMIC,CHIP
C243 2203-002668 C-CERAMIC,CHIP
C319 2203-002668 C-CERAMIC,CHIP
C118 2203-002709 C-CERAMIC,CHIP
C222 2203-002709 C-CERAMIC,CHIP
C102 2203-005057 C-CERAMIC,CHIP
C112 2203-005234 C-CERAMIC,CHIP
C122 2203-005234 C-CERAMIC,CHIP
C128 2203-005281 C-CERAMIC,CHIP
C100 2203-005395 C-CERAMIC,CHIP
C227 2203-005480 C-CERAMIC,CHIP
C129 2203-005481 C-CERAMIC,CHIP
C130 2203-005481 C-CERAMIC,CHIP
C207 2203-005481 C-CERAMIC,CHIP
C223 2203-005481 C-CERAMIC,CHIP
C425 2203-005483 C-CERAMIC,CHIP
C426 2203-005483 C-CERAMIC,CHIP
C140 2203-005552 C-CERAMIC,CHIP
C105 2203-006048 C-CERAMIC,CHIP
C200 2203-006048 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-5
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C203 2203-006048 C-CERAMIC,CHIP
C210 2203-006048 C-CERAMIC,CHIP
C214 2203-006048 C-CERAMIC,CHIP
C225 2203-006048 C-CERAMIC,CHIP
C230 2203-006048 C-CERAMIC,CHIP
C232 2203-006048 C-CERAMIC,CHIP
C239 2203-006048 C-CERAMIC,CHIP
C325 2203-006048 C-CERAMIC,CHIP
C416 2203-006048 C-CERAMIC,CHIP
C417 2203-006048 C-CERAMIC,CHIP
C204 2203-006190 C-CERAMIC,CHIP
C213 2203-006257 C-CERAMIC,CHIP
C218 2203-006257 C-CERAMIC,CHIP
C217 2203-006260 C-CERAMIC,CHIP
C237 2203-006260 C-CERAMIC,CHIP
C238 2203-006260 C-CERAMIC,CHIP
C220 2203-006324 C-CERAMIC,CHIP
C221 2203-006324 C-CERAMIC,CHIP
C419 2203-006348 C-CERAMIC,CHIP
C211 2203-006361 C-CERAMIC,CHIP
C209 2203-006399 C-CERAMIC,CHIP
C226 2203-006399 C-CERAMIC,CHIP
C231 2203-006399 C-CERAMIC,CHIP
C233 2203-006399 C-CERAMIC,CHIP
C240 2203-006399 C-CERAMIC,CHIP
C303 2203-006399 C-CERAMIC,CHIP
C309 2203-006399 C-CERAMIC,CHIP
C311 2203-006399 C-CERAMIC,CHIP
C321 2203-006399 C-CERAMIC,CHIP
C327 2203-006399 C-CERAMIC,CHIP
C428 2203-006399 C-CERAMIC,CHIP
C431 2203-006399 C-CERAMIC,CHIP
C432 2203-006399 C-CERAMIC,CHIP
C219 2203-006562 C-CERAMIC,CHIP
C308 2203-006562 C-CERAMIC,CHIP
C404 2203-006562 C-CERAMIC,CHIP
C408 2203-006681 C-CERAMIC,CHIP
C328 2203-006841 C-CERAMIC,CHIP
C329 2203-006841 C-CERAMIC,CHIP
C418 2203-006841 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-6
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C117 2203-006872 C-CERAMIC,CHIP
C120 2203-006872 C-CERAMIC,CHIP
C310 2203-006872 C-CERAMIC,CHIP
C316 2203-006872 C-CERAMIC,CHIP
C317 2203-006872 C-CERAMIC,CHIP
C405 2203-006890 C-CERAMIC,CHIP
C235 2203-007269 C-CERAMIC,CHIP
C106 2203-007279 C-CERAMIC,CHIP
C323 2203-007279 C-CERAMIC,CHIP
BAT200 2409-001172 CAPACITOR
L121 2703-000213 INDUCTOR-SMD
L127 2703-001178 INDUCTOR-SMD
L128 2703-001178 INDUCTOR-SMD
L107 2703-001726 INDUCTOR-SMD
L131 2703-001726 INDUCTOR-SMD
L113 2703-002176 INDUCTOR-SMD
L129 2703-002198 INDUCTOR-SMD
L102 2703-002199 INDUCTOR-SMD
L106 2703-002199 INDUCTOR-SMD
L100 2703-002204 INDUCTOR-SMD
L122 2703-002204 INDUCTOR-SMD
L115 2703-002208 INDUCTOR-SMD
L116 2703-002208 INDUCTOR-SMD
L108 2703-002369 INDUCTOR-SMD
L109 2703-002369 INDUCTOR-SMD
L110 2703-002369 INDUCTOR-SMD
L111 2703-002369 INDUCTOR-SMD
L117 2703-002369 INDUCTOR-SMD
L130 2703-002708 INDUCTOR-SMD
L403 2703-003485 INDUCTOR-SMD
L124 2703-003781 INDUCTOR-SMD
L201 2703-003869 INDUCTOR-SMD
OSC200 2801-004551 CRYSTAL-UNIT
OSC201 2801-004896 CRYSTAL-UNIT
F101 2904-001923 FILTER-SAW
F100 2904-001924 FILTER-SAW
F102 2909-001283 FILTER-DUPLEXER
MIC400 3003-001138 MIC-CONDENSOR
L404 3301-001729 CORE-FERRITE BEAD
L405 3301-001729 CORE-FERRITE BEAD

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-7
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
L400 3301-001812 CORE-FERRITE BEAD
L401 3301-001812 CORE-FERRITE BEAD
L402 3301-001812 CORE-FERRITE BEAD
L406 3301-001812 CORE-FERRITE BEAD
L407 3301-001917 CORE-FERRITE BEAD
L408 3301-001917 CORE-FERRITE BEAD
L200 3301-002000 CORE-FERRITE BEAD
TAC300 3404-001303 SWITCH-TACT
TAC301 3404-001303 SWITCH-TACT
RFS100 3705-001503 CONNECTOR-COAXIAL
SIM300 3709-001447 CONNECTOR-CARD EDGE
SD300 3709-001570 CONNECTOR-CARD EDGE
IFC400 3710-002683 CONNECTOR-SOCKET
CN400 3710-003235 CONNECTOR-SOCKET
HEA401 3711-005643 CONNECTOR-HEADER
BTC300 3711-007437 CONNECTOR-HEADER
ANT102 4202-001463 ANTENNA-CHIP
SC101 GH70-03349A IPR SHIELD-CAN CLIP
SC102 GH70-03349A IPR SHIELD-CAN CLIP
UCP200 1205-004030 IC
UME200 1108-000309 MEMORY
EAR400 3722-003082 JACK-PHONE
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-1
This Document can not be used without Samsung's authorization
1) Loosen screws at 4points.
Caution
1) Be careful not to make scratch and molding damage!
1) Separate the rear using separation tool.
Caution
1) Be careful not to make scratch and molding damage!
1)      
 
Caution
1) Be careful not to make scratch and molding damage!
1) Separate window and LCD.
Caution
1) Be careful not to make scratch and molding damage!
7-1. Disassembly and Assembly Instructions
7-1-1. Disassembly
Loosen screws
1
4
3
2
Remove hook at the
bottom
Remove LCD connector
and separate FRONT
and PBA
Separate
window

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-2
This Document can not be used without Samsung's authorization
7-1-2. Assembly
1
4
3
2
1)         
Caution
1) Be careful not to make scratch and molding damage!
1)     
Caution
1) Be careful not to make scratch and molding damage!
1)      
Caution
1) Be careful not to make scratch and molding damage!
1)     
Caution
1) Be careful not to make scratch and molding damage!

SAMSUNG Proprietary-Contents may change without notice
8. Level 3Repair
8-1
This Document can not be used without Samsung's authorization

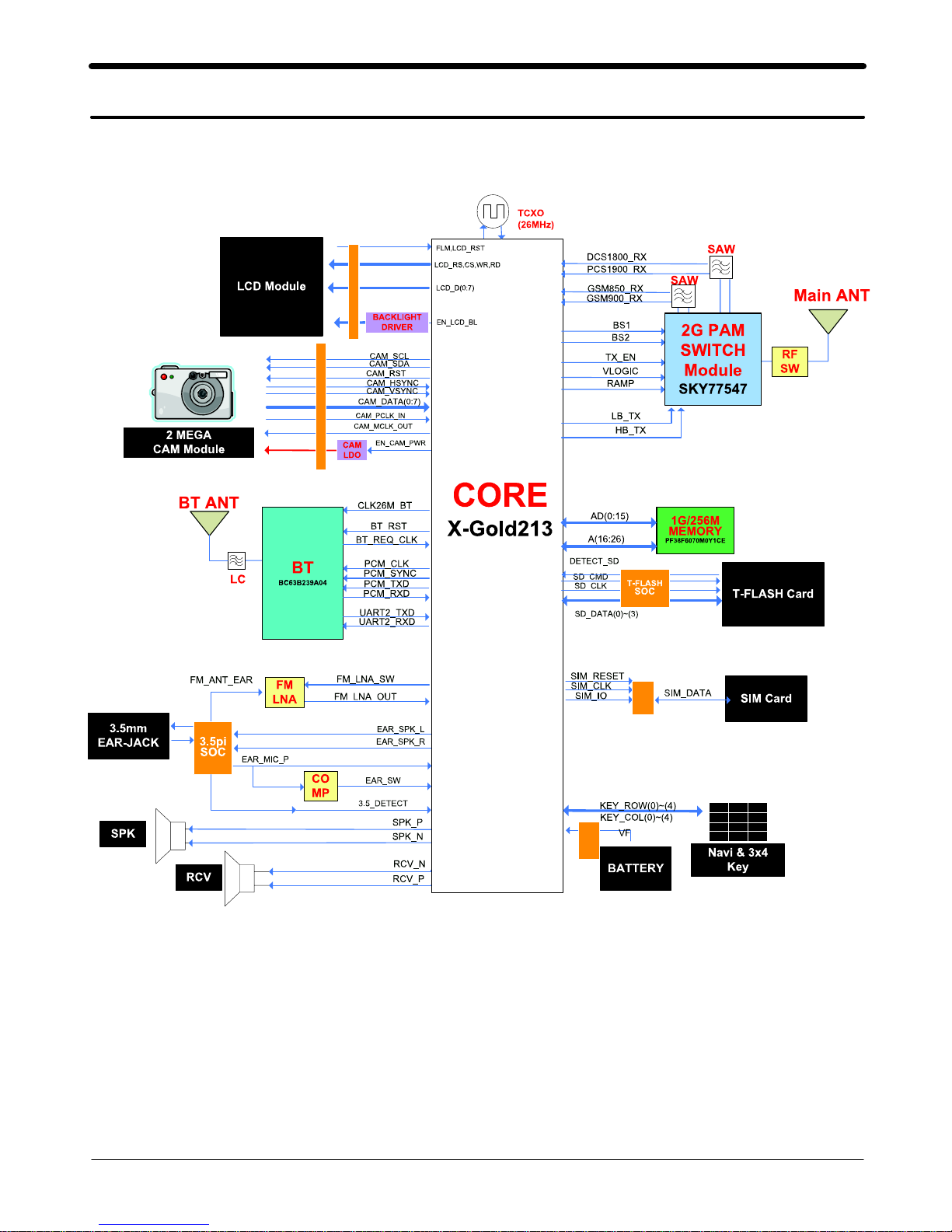

8-1. Block Diagram

SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-2
This Document can not be used without Samsung's authorization
8-2. PCB Diagrams
8-2-1. Top
3710-002683
IFC400
HY20-AB0310

SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-3
This Document can not be used without Samsung's authorization

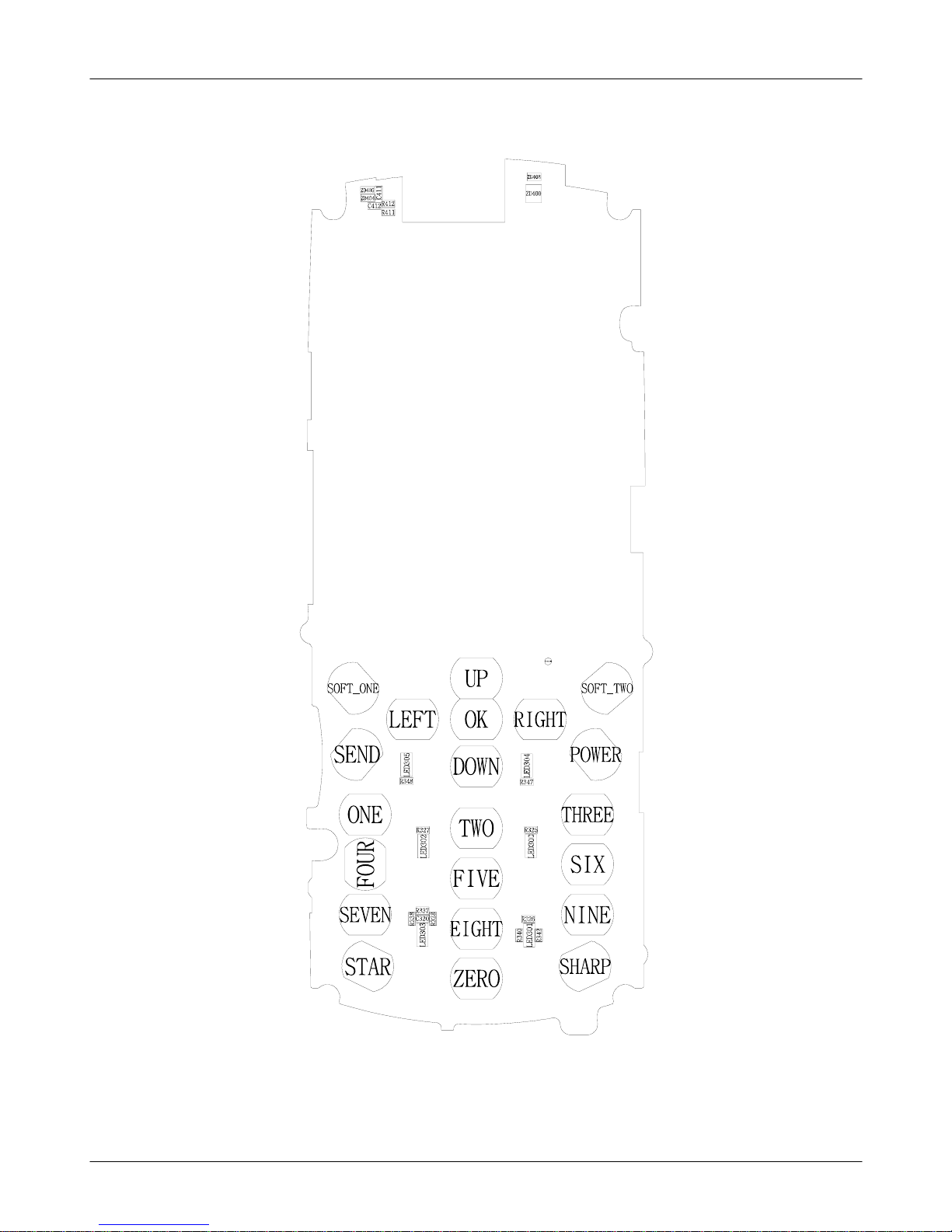

8-2-1. Bottom

SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-6
This Document can not be used without Samsung's authorization
8-3-1. Power On
Check the Battery Voltage
is more than 3.7V
(TP:C106, C220, C323)
'Power On 'does not work
Change the Battery
(Because of batt. power low)
END
No
Yes
VDD_1.8V =1.8V?
(TP: C235)
Check the Main Chip related to
SD1_FB=1.8V (TP:C235)
(to lookover the Chip damage)
No
Yes
Check the Clock at
UCP200 A11pin
(CLK26M)=26MHZ
(TP:OSC201 1,3pin)
Check the Main Chip
(to lookover the Chip damage)
(TP :OSC201 1,3pin /look over the
waverform
using the oscilloscope)
No
Yes
Yes

SAMSUNG Proprietary-Contents may change without notice

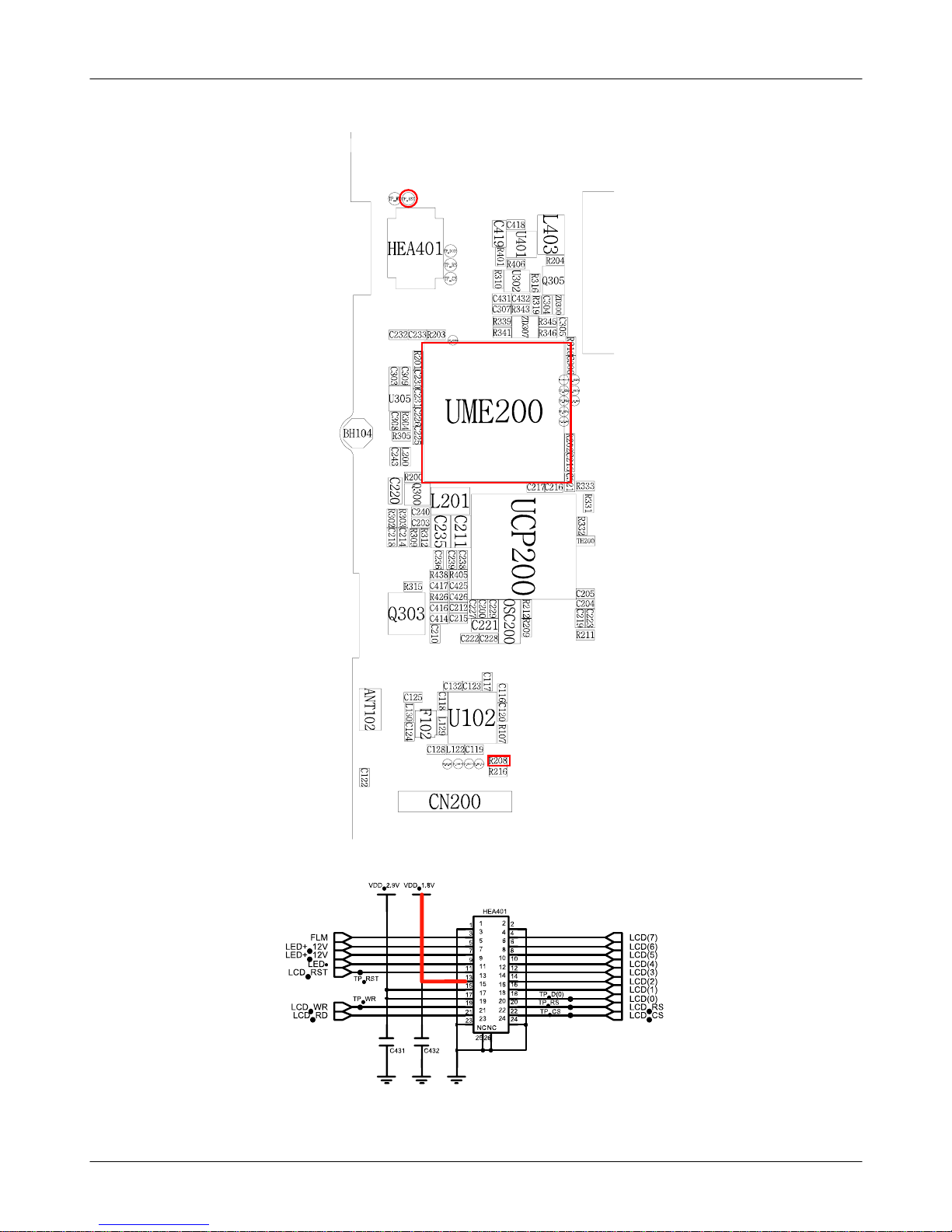

Level 3Repair
8-7
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-8
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-9
This Document can not be used without Samsung's authorization
8-3-2. Initial
R208 (RST_BB)>1.7V?
using the oscilloscope GND &
SHORT PAD.
Initial Failure
Resolder R208, must be higher than 1.7V.
END
No
Yes
UCP200 pin D2 >1.7V?
(TP:TP_RST)
Yes
Yes
No Change PBA to check TP_RST.
Check the 16bit data signals.
Yes

SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-10
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-11
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-12
This Document can not be used without Samsung's authorization

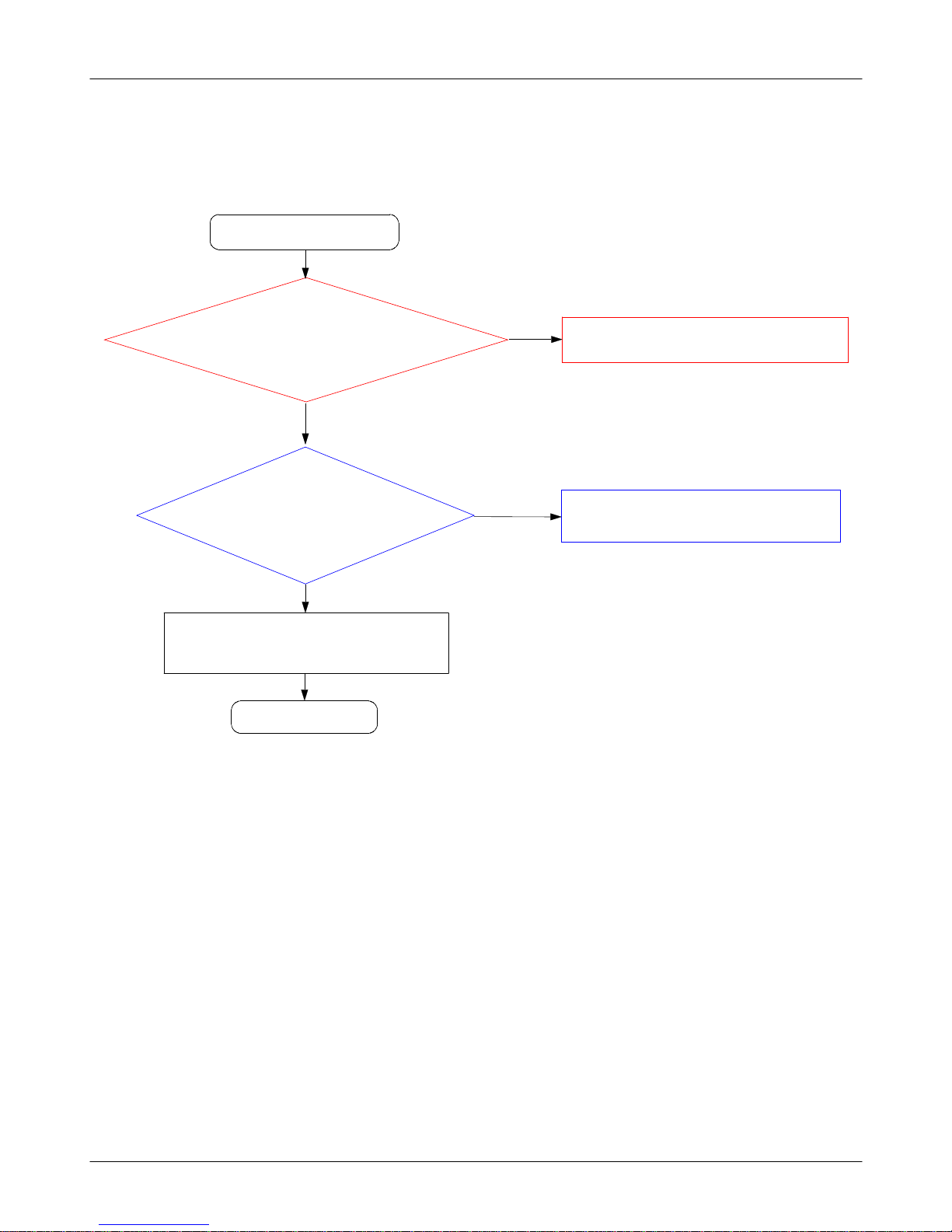

8-3-3. Charging Part
Check the Battery &TA
connection.
Abnormal charging part
END
No
Yes
R309 > 4.9V?No
Yes
Check the Q303 pin4
>4.9V ? No
Yes
Reinsert the Battery or TA.
Resolder R309
(be possible that it's not soldering well)
Replace Q303 using aHeatgun
Yes
