Samsung GT-C3222W User manual

GSM TELEPHONE
GT-C3222W
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
2-1. GSM General Specification
GSM 850 EGSM 900 DCS1800 PCS1900
Freq. Band[MHz]
Uplink/Downlink 824~849 869~894 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990
ARFCN range 128~25 0~124 & 975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period 270.833kbps
3.692us 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us
Time Slot
Period/Frame
Period
576.9us
4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm
~5dBm 33dBm ~5dBm 30dBm ~0dBm 30dBm ~0dBm
Power Class 4
(max +33dBm) 4 (max +33dBm) 1 (max +30dBm) 1 (max +30dBm)
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km 2Km

SAMSUNG Proprietary-Contents may change without notice
Specification
2-2
This Document can not be used without Samsung's authorization
TX Power
control level GSM850
GSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM Tx Power Class

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
•Dual SIM Function
•2GQuad band (GSM850/EGSM900/DCS1800/PCS1900)
•BT 2.1 + EDR
•WIFI Support
•USB 2.0
•WAP 2.0, JAVA
•MMS, SMS
•Camera :1.3Mega Pixel, CMOS
•LCD :2.2"LQCIF
•Battery : 1000mAh
•Size :109.5
x60x12.3(mm)
•MicroSD Card Support
•FM Radio Support

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization
4-1. Cellular phone Exploded View
QFR01
QMW01
QLC01
QAR01
QMP01
QCA01
QBR05
QMO01
QSP01
QVO01
QAN02
QMI01
QME01
QCR72
QJK01
QKP01
QCR67
QBC00
QRE01
QCK02
QRF06

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QSP01 SPEAKER 3001-002529
QAR01 AUDIO-RECEIVER 3009-001523
QCR72 SCREW-MACHINE 6001-002051
QCR67 SCREW-MACHINE 6001-002083
QMI01 MICROPHONE-ASSY-GT-C3222 GH30-00708A
QMO01 MOTOR DC-SPHM500 GH31-00242A
QAN02 INTENNA-MAIN(GT_C3222) GH42-02770A
QJK01 ASSY ETC-OPTICAL TRACK PAD(GT_C3222) GH59-10379A
QCA01 CAMERA MODULE-SGH-T340 GH59-10511A
QME01 DOME SHEET-Q/K,GT-C3222(WHT) GH59-10644A
QMP01 A/S ASSY-PBA MAIN(GT-C3222W) GH82-05575A
QLC01 ELA MODULE-LCD MOD ASSY(GT-C3222) GH96-04968A
QBC00 ASSY COVER-BATT GH98-18433A
QFR01 ASSY CASE-FRONT GH98-18435A
QKP01 ASSY KEYPAD-BLACK (RUSSIA) GH98-18437A
QBR05 ASSY BRACKET-MOTOR GH98-18775A
QMW01 ASSY COVER-MAIN WINDOW(W,DUOS,BLK) GH98-19311A
QRE01 ASSY CASE-REAR GH98-18434A
QVO01 ASSY KEY-VOLUME(BLK) GH98-19125A
QCK02 ASSY KEY-SIM(BLK) GH98-19126A
QRF06 ASSY COVER-USB(BLK) GH98-19127A
4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
5. MAIN Electrical Parts List
5-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
0403-001688 ZD303 USFZ5.6V-RTK/H
0406-001231 ZD200,ZD201,ZD202 DF2S5.6FS(TPL3)
0406-001231 ZD300,ZD302,ZD306 DF2S5.6FS(TPL3)
0406-001231 ZD307,ZD308,ZD329 DF2S5.6FS(TPL3)
0406-001231 ZD330 DF2S5.6FS(TPL3)
0406-001235 ZD318,ZD319,ZD324 RSB6.8CS
0406-001235 ZD325,ZD326,ZD327 RSB6.8CS
0406-001235 ZD328 RSB6.8CS
0406-001286 ZD305 PESD5V0L5UV
0406-001390 ZD320 PESD24VS1UL
0406-001413 ZD309,ZD310,ZD311 PESD5V0F1BL
0406-001413 ZD312,ZD313,ZD315 PESD5V0F1BL
0406-001413 ZD316,ZD317,ZD321 PESD5V0F1BL
0406-001413 ZD322,ZD323 PESD5V0F1BL
0407-001002 D302 DAN222TL
0505-001325 Q300 2SK3019
0505-002712 TR201 PMGD780SN
0601-002268 LED300,LED301,LED302 AEOWU-VOYY
0601-002268 LED303,LED304 AEOWU-VOYY
1001-001607 U104 XM2400SN-AL0901
1001-001677 U309 MAX14577EEWA-T
1108-000355 UME200 KAP202N00M-BWEW
1201-002985 PAM100 SKY77548
1202-001068 U300 TC75S56FE
1203-004776 U306,U310 RP103K331D-TR
1203-004819 U100,U304,U308 RP103K281D-TR
1203-005020 U301 AAT3151BIWP-T1
1203-005770 U307 RP152L003B
1204-003208 U102 AR1210
1205-003517 U101 BC63B239A04-IYB-E4S
1205-004070 U108 NRX600CSPB11-T
1205-004139 UCP200 G4906ET1UM
1404-001221 TH200 NCP15WB473J04RC
2007-000138 R231,R309 RC1005J101CS
2007-000140 R326 RC1005J102CS
2007-000141 R217,R218,R301 RC1005J222CS

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
2007-000143 R202,R203,R229,R230 RC1005J472CS
2007-000143 R320 RC1005J472CS
2007-000148 R204,R205,R210,R227 RC1005J103CS
2007-000148 R345 RC1005J103CS
2007-000149 R215,R216 RC1005J123CS
2007-000151 R324,R325 RC1005J153CS
2007-000157 R220,R221,R316 RC1005J473CS
2007-000162 C188,R101,R102,R104 RC1005J104CS
2007-000162 R127,R200,R201,R206 RC1005J104CS
2007-000162 R207,R212,R213,R214 RC1005J104CS
2007-000162 R300,R347 RC1005J104CS
2007-000165 R314 RC1005J204CS
2007-000170 R308,R311 RC1005J105CS
2007-000173 R302,R303 RC1005J220CS
2007-000566 R116 RC1005J224CS
2007-000758 R310,R315 RC1005J334CS
2007-001305 R328,R329,R331 RC1005J121CS
2007-001311 R346 RC1005J271CS
2007-003015 R100,R103 MCR01MZP5J2R2
2007-007009 R327,R330 MCR01MZP5J750
2007-007156 R208,R222,R343 RC1005J1R0CS
2007-007538 R219 RK73H1ETP5602F
2007-008766 R209 ERJ2RKF6041X
2203-000233 C147,C340,C341,C344 GRP1555C1H101J
2203-000233 C347,C348 GRP1555C1H101J
2203-000254 C116,C225,C234 GRP155R71C103K
2203-000278 C197 GRP1555C1H100D
2203-000386 C103,C313 GRP1555C1H150J
2203-000425 C315 GRP1555C1H180J
2203-000438 C109,C132,C235 GRP155R71H102K
2203-000466 C113,C128,C130,C137 GRP1555C1H1R0C
2203-000489 R305,R306 GRP155R71H222K
2203-000627 C365,C366 GRM1555C1H220J
2203-000696 C198 GRP1555C1H2R0C
2203-000812 C117,C121,C127,C136 GRP1555C1H330J
2203-000812 C144,C237,C238 GRP1555C1H330J

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
2203-001124 C141 GRP155R71H681KD01E
2203-001153 C300,C312 GRP1555C1H680J
2203-002443 C321,C323 GRP155R71H331KD01E
2203-002677 C140 CL05CR75BB5NNNC
2203-005050 C124,C125,C138,C139 GRP1555C1H1R8CZ01E
2203-005050 C142,C143 GRP1555C1H1R8CZ01E
2203-005052 C110 GRP1555C1H3R3CZ01E
2203-005234 C108,C114 GRP1555C1H1R2CZ01E
2203-005288 C118 GRP1555C1H1R0BZ01E
2203-005344 C102,C303 GRM155R71E223KA61D
2203-005395 C122 C1005CG1H4R7BT
2203-005450 C174,C199 GRP1555C1H5R6BZ01E
2203-006048 C100,C126,C131,C134 GRM155R71A104K
2203-006048 C153,C154,C155,C156 GRM155R71A104K
2203-006048 C157,C159,C160,C204 GRM155R71A104K
2203-006048 C207,C208,C209,C210 GRM155R71A104K
2203-006048 C211,C212,C213,C218 GRM155R71A104K
2203-006048 C231,C232,C233,C325 GRM155R71A104K
2203-006048 C342,C354,C355,C364 GRM155R71A104K
2203-006190 C337,C338,C339 GRM155R60J224KE01E
2203-006208 C203 CM105X5R475M06AT
2203-006260 C227 GRM155R61A224KE19E
2203-006324 C302 GRM188R61A225KE19D
2203-006348 C307 CV105X5R105K25AT
2203-006399 C104,C167,C200,C201 GRM155R60J105KE19D
2203-006399 C202,C206,C214,C215 GRM155R60J105KE19D
2203-006399 C216,C221,C222,C223 GRM155R60J105KE19D
2203-006399 C224,C228,C236,C239 GRM155R60J105KE19D
2203-006399 C308,C309,C314,C317 GRM155R60J105KE19D
2203-006399 C333,C343,C349,C352 GRM155R60J105KE19D
2203-006562 C164,C306,C318,C319 CV05X5R105K10AH
2203-006562 C320,C335,C336,C345 CV05X5R105K10AH
2203-006562 C346 CV05X5R105K10AH
2203-006824 C163,C217,C219,C240 CV105X5R475K10AT
2203-006824 C328,C353 CV105X5R475K10AT
2203-006841 C149,C150,C151 CV05X5R105K16AH

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
2203-006872 C101,C105,C107,C205 GRM155R60J225ME15D
2203-006890 C226 CV105X5R106M06AT
2203-007240 C220 CL10A226MQ8NRNE
2203-007279 C119,C324 CV105X5R106M10AT
2203-007754 L102 CL05C010BBNC
2703-001178 L125 LL1005-FH3N3S
2703-001708 L105 HK1005-5N6K-T
2703-001737 L114 LL1005-FH2N7S
2703-002170 L109,L113 CIH05T6N8JNC
2703-002200 L115 CIH05T18NJNC
2703-002203 L119 CIH05T15NJNC
2703-002204 L107,L111 CIH05T22NJNC
2703-002281 L101 CIH05T5N6SNC
2703-002313 L310 CIH05TR10JNC
2703-002314 L104,L110 CIH05T47NJNC
2703-002367 L120,L128,L129 CIH05T1N0SNC
2703-002369 L117 CIH05T1N5SNC
2703-002608 L116 LQW15AN6N8H00D
2703-003297 L201 APIS08G4R7MT
2703-003476 L303 LQG15HSR27J02D
2703-003698 L124 LQM2HPN3R3MG0L
2801-004769 OSC201 CXC6X260000GHVRP70
2801-004786 OSC100 FA-20H(40MHZ,10PPM)
2801-004902 OSC200 ST3215SB32768E0HPWBB
2901-001516 F300,F301,F302 AVRC-5S-03Q-050-100R
2904-001920 F102 SFRG42MY002
2904-001980 F101 SAWEN881MCB0F00
2909-001337 F104 LCB10B2450K4
3301-001158 L200 BLM18PG300SN1D
3301-001438 L305 BLM15BB750SN1D
3301-001659 L202,L313,L314 BLM15AG601SN1
3301-001885 L300,L301,L302,L312 BLM15HD182SN1D
3404-001369 TACT300,TACT301 EVQP4203M
3404-001369 TACT302 EVQP4203M
3705-001731 RFS100 KMS-560-002-BEF
3708-002283 HDC301 FH26-13S-0.3SHBW(21)

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-5
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
3709-001605 CD300 104070-0811
3709-001627 SIM300,SIM301 5000-6P-1.9SB
3710-003306 SOC300 3D1201087-ST32-7H
3711-006882 HDC300 AXT630124AW1
3711-007437 BTC300 KQ03SB1-3R-BEF
3722-003115 IF300 KQ20AX-7P-4D
3722-003145 EAR300 IJAN4-74
4709-001927 F103 LDM152G4505HC012
4709-001972 F100 HHM17121A1
GH80-03320A R225 PB-SHORT-1005
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. Software Download
6-1-1. Pre-requisite for Download
•Download Program (there are 2ways to download.)
-Flash loader 7.4.7_SSG_v0.0_Lite.exe :Flash loader 7.4.7_SSG_v0.0_Lite
•USB Driver
-Samsung USB Modem driver
•GT-C3222 Mobile Device
•Data Cable
•JIG BOX (GH99-36900A)
•RF Test Cable (GH39-00985A)
•JIG Cable (GH39-01339A)
•Adapter (GH99-38251A)
•Binary files
•ActiveSync Setting
•Driver Installation.
1) USB Cable :Because of supporting USB 2.0 cable,
he device manager of your PC may not recognize the cable
that does not support USB 2.0.
2) Battery :AB463651BU
-Diagram of connection
PC
Mobile Phone(with Battery)
Data Cable

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization
6-1-2. Driver Installation
-Make sure that you install the driver for aphone.
-You have to install the driver of Samsung USB Modem of downloading aphone image
-Restart your host PC after you install the phone driver.
6-1-3. S/W Download Process

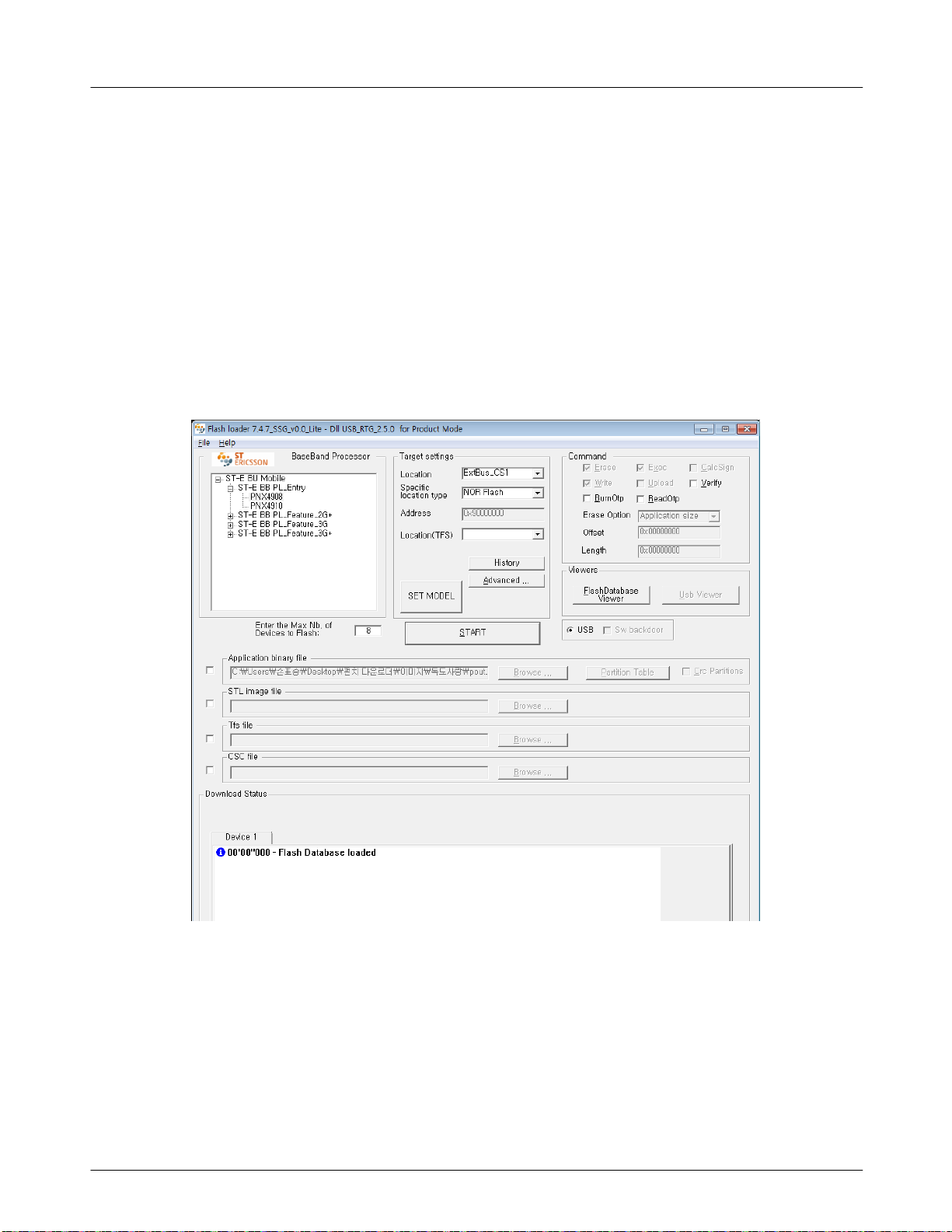

1) Execute the downloader
Execute the ‘Flash loader 7.4.7_SSG_v0.0_Lite.exe’program.
(Notice :Flash loader supports only Single-CSC.)

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization
2) Set Model
Click "SET MODEL", and you can select appropriate model.
You should choice "C3222W_PUNCH_WIFI_Setting_v00.mdl" for further advance.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization
3) Select the binary, TFS, and CSC files
Click "Partition Table", and you can select acertain binary.
With browsing files, you can choice appropriate Flash-loader partition table all at once.
After that, you should activate TFS, CSC.
Also you can select the TFS files, and CSC files.
(Notice :The buttons of TFS and CSC need to be activated not only after phone image
is added first)

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-5
This Document can not be used without Samsung's authorization
4) Select the download mode
Click "START" to ready to download binary.
(Notice :In this step, the mobile device actually don’t download the binary yet.)
5) Connect the device
First, power off the device with battery.
After that, connect PC with device using USB cable.
(Don’t detach your finger from two keys.)
In that case the device will power on and downloader recognize the device automatically
.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-6
This Document can not be used without Samsung's authorization
6) Complete download
The download process is automatically executed.
If "Slot freed for new download" message was shown without any problems, you now do
wnloads the binary successfully.
(Notice :After download process is completed, take care of the abnormal power off situ
ation(ex. mount/demount battery) within the first booting time. It may causes malfunction)
7) Confirm Download
-Reboot the device and confirm whether the device do normal operation.
-When completing download, downloader is automatically initialized and ready for
connecting next device.

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-1
This Document can not be used without Samsung's authorization
7-1. Disassembly
Remove screws at 7points.
11) Separate rear after disassemble hook to
below Order using tool.
2
31) Disassemble LCD CONNECTOR
2) Disassemble MIC FPCB
3) Disassemble aHOOK
1) Pushing front right and left side up
2) Disassemble LCD from Front
4
1) Be careful not to make scratch and molding damage 1) Be careful not to make scratch and molding damage
1) Be careful of FPCB damage 1) Be careful of LCD damage when you push
FRONT
