Samsung GT-C3330 User manual

GSM TELEPHONE
GT-C3330
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice: All functionality, features, specifications, and
other product information provided in this document,
including but not limited to, benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice. Samsung reserves the right to alter this doc
-ument or the product described herein at anytime,
without obligation to provide notification of such
changes.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2011. 09. Rev.1.0
ⓒ

2. Specification
2-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2-1. GSM General Specification
GSM 850 EGSM 900 DCS1800 PCS1900
Freq. Band[MHz]
Uplink/Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 128~251 0~124 & 975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot
Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm
~5dBm
33dBm
~5dBm
30dBm
~0dBm
30dBm
~0dBm
Power Class 5pcl ~ 19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km 2Km

Specification
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

3. Operation Instruction and Installation
3-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Main Function
－EDGE, GPRS
－64 Poly Melody
－BT 2.1
－USB 2.0
－WAP2.0, JAVA
－MMS /SMS
－Camera: 2.0 Mega Pixel, CMOS
－LCD :2.4"TFT (LCD)
－Size: 96x52.6x12.15mm
－Battery: 1,000 mAh
－Memory: 1G OneNand + 512M DDR SDRAM
－Band: GSM 850/900/1800/1900
－BB: Infineon CatFish X-Gold215
－RF: Skyworks SKY77548
－1-Speaker

6. Level 6Repair
6-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-1. Software Download
6-1-1. Required items in order to install S/W
Installation program: Downloader Program (FlashTool_E2.exe)
GT-C3330 Mobile Phone
Data Cable
Mobile device specific S/W: Binary files
•Download Program
-FlashTool_E2_XMM2150.ZIP :Version v.4.68.3.44
•USB Driver
-Samsung_USB_Driver_for_Mobile_Phones_1.3.1650.0.exe
•GT-C3330 Mobile Device
•Data Cable
•Binary files
•ActiveSync Setting
•Driver Installation.
6-1-2. Driver Installation
-Make sure that you install the driver for aphone.
-You have to install the driver of Samsung USB Modem of downloading aphone image
-Restart your host PC after you install the phone driver.
6-1-3. S/W Download Process

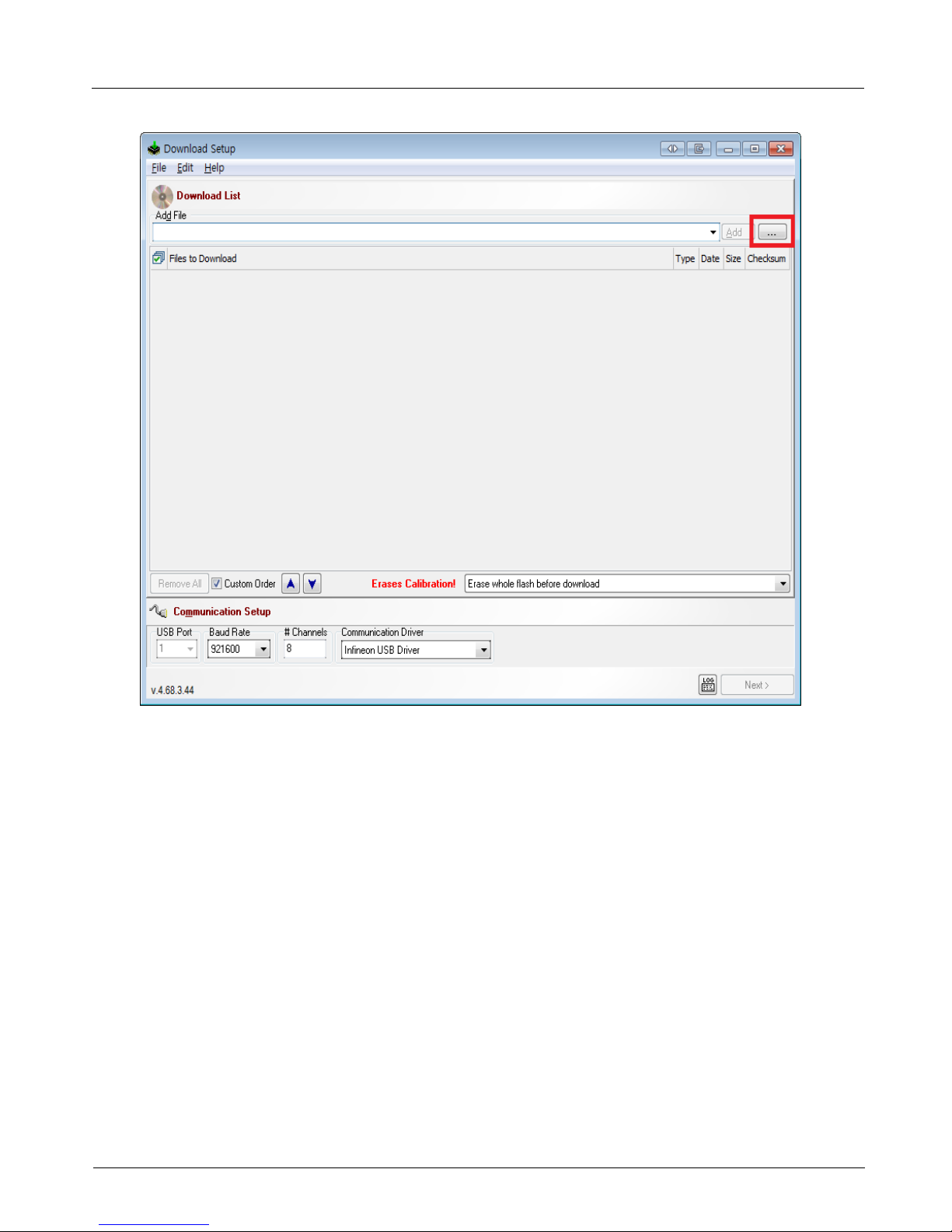

1) Execute the downloader
-Execute the ‘FlashTool_E2_XMM2150.zip\FlashTool_E2.exe’program.

Level 6Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-2

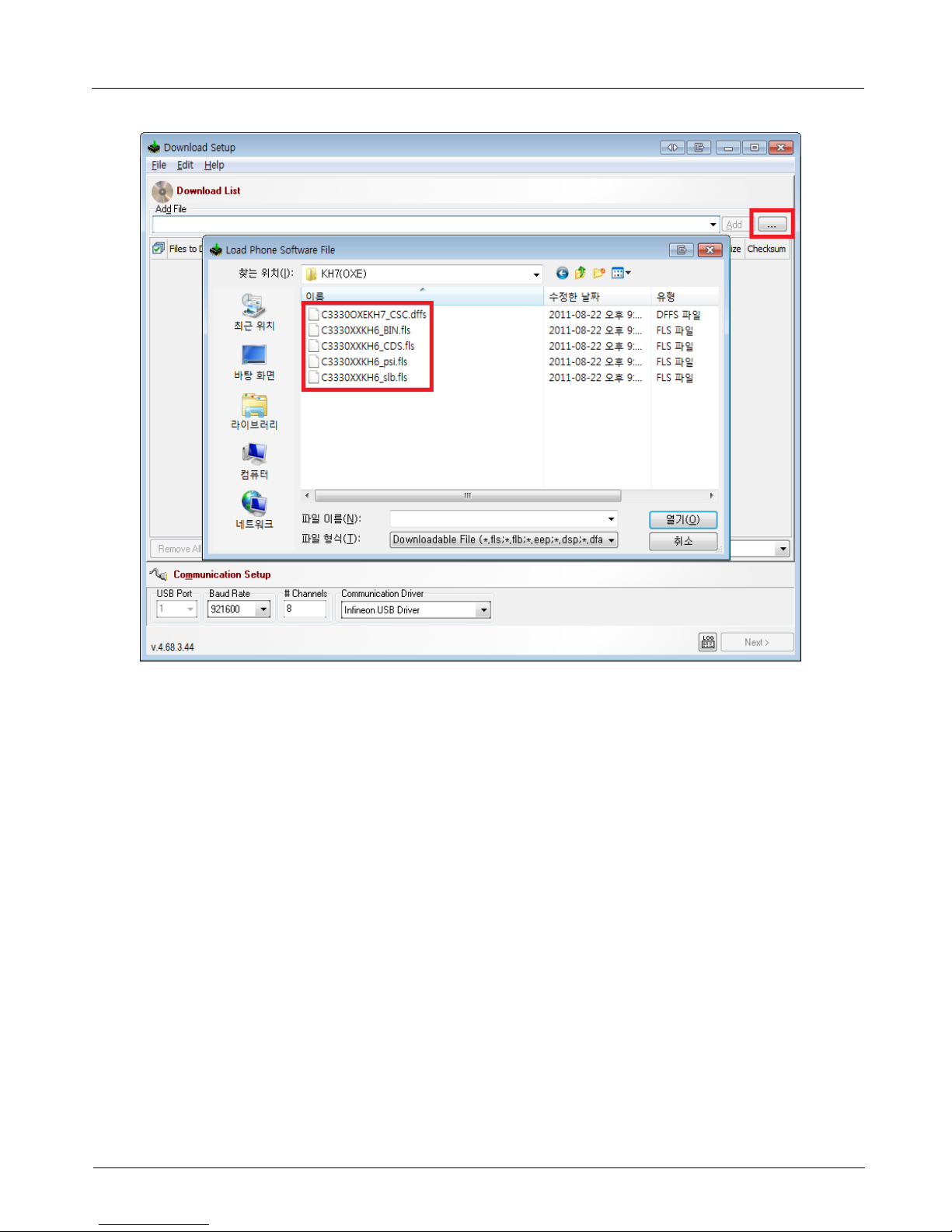

2) Add binary file
-Click "...", and you can select appropriate binary files.
These can be added via “Drag &Drop"

Level 6Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-3
[Target Software ]
-C3330OXXKXX_psi.fls (Type :Bootcore (PSI))
-C3330OXXKXX_slb.fls (Type :Bootcore)
-C3330OXXKXX_BIN.fls (Type :Code)
-C3330OXXKXX_CDS.fls (Type :Code)
[Resource File ]
-C3330OXXKXX_CSC.dffs (Type :Cust)

Level 6Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-4

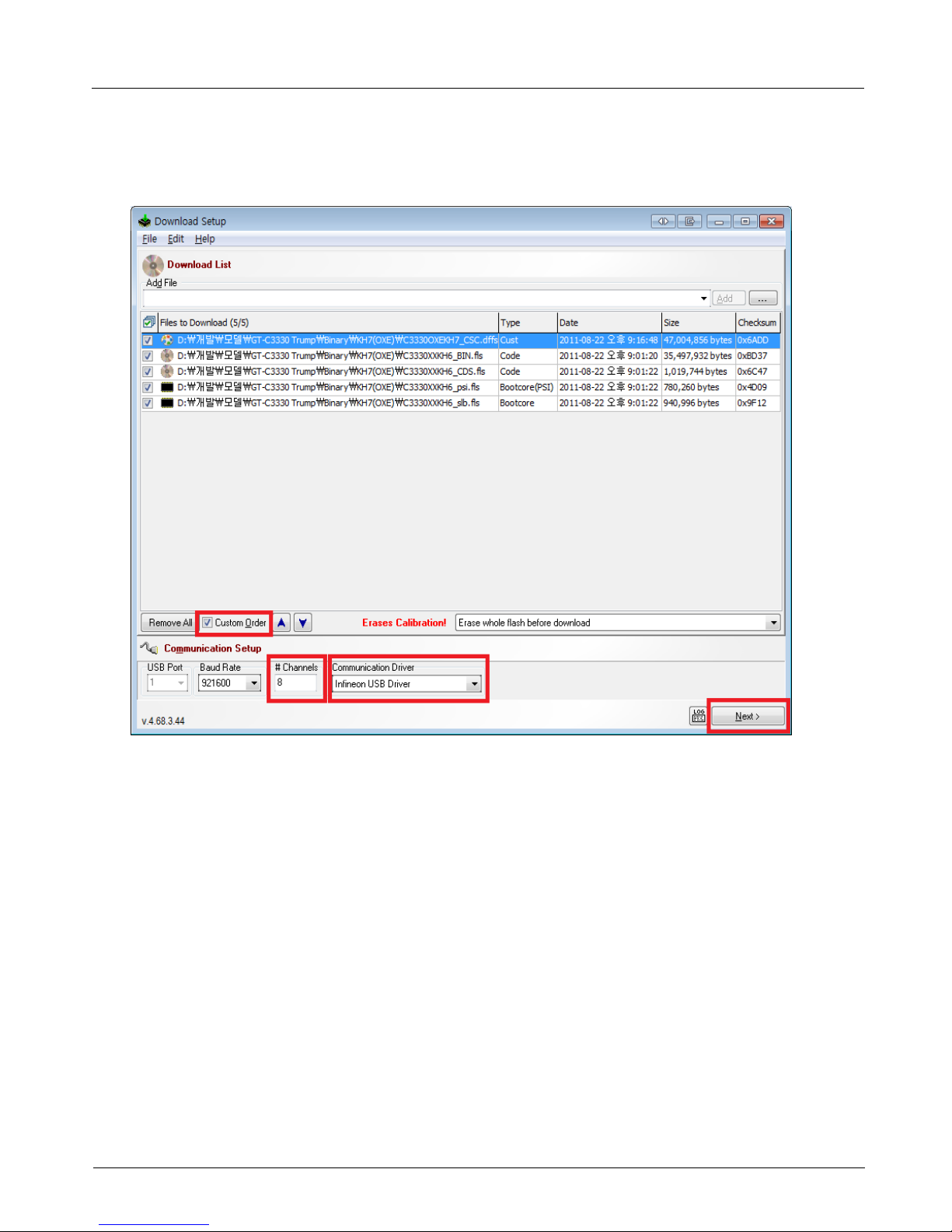

a.Binary sequence should be set as
C3330OXXKXX_psi..fls →C3330OXXKXX_slb.fls →C3330OXXKXX_BIN.fls →
C3330OXXKXX_CDS.fls →C3330OXXKXX_CSC.dffs
b. This can be done automatically if ‘Customer Order’not checked and check
c. Communication Driver should be set as Infineon USB Driver
d. Choose the ‘Erase whole flash before download [default]’
e. You can change quantity as "#Channels" (Max 8)
f. Click "NEXT" button

Level 6Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-5
3) Connect the device
a. Click "Start USB1" button.
b. Connect the target without battery via USB cable.
c. The download will start automatically.
4) Complete download
-The download process is automatically executed.

Level 6Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-6
a. If succeeds, you can see the previous page's image (Left side)
b. If "Failed" message was shown the right side image, you should check and rearrange the
order of binary files after click "x" box on top right. (refer to 2-a)
5)Confirm Download
-When completing download, downloader is automatically ready mode for next.
Click "Start USB1" button, and repeat above process.
-You can check the version as pushing [*#1234#] after booting.

9. Reference Abbreviate
9-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Reference Abbreviate
―AAC: AdvancedAudioCoding.
―AVC: AdvancedVideoCoding.
―BER: BitErrorRate
―BPSK: BinaryPhaseShiftKeying
―CA: ConditionalAccess
―CDM: CodeDivisionMultiplexing
―C/I: CarriertoInterference
―DMB: DigitalMultimediaBroadcasting
―두:EuropeanStandard
―ES: ElementaryStream
―ETSI: EuropeanTelecommunicationsStandardsInstitute
―MPEG: MovingPictureExpertsGroup
―PN: Pseudo-randomNoise
―PS: PilotSymbol
―QPSK: QuadraturePhaseShiftKeying
―RS: Reed-Solomon
―SI: ServiceInformation
―TDM: TimeDivisionMultiplexing
―TS: TransportStream

1. Safety Precautions
1-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
1-1. Repair Precaution
Before attempting any repair or detailed tuning, shield the device from RF noise or static
electricity discharges.
Use only demagnetized tools that are specifically designed for small electronic repairs,
as most electronic parts are sensitive to electromagnetic forces.
Use only high quality screwdrivers when servicing products. Low quality screwdrivers can
easily damage the heads of screws.
Use only conductor wire of the properly gauge and insulation for low resistance, because of
the low margin of error of most testing equipment.
We recommend 22-gauge twisted copper wire.
Hand-soldering is not recommended, because printed circuit boards (PCBs) can be easily
damaged, even with relatively low heat. Never use asoldering iron with apower rating of
more than 100 watts and use only lead-free solder with a melting point below 250°C (482°F).
Prior to disassembling the battery charger for repair, ensure that the AC power is disconnected.
Always use the replacement parts that are registered in the SEC system. Third-party replac
ement parts may not function properly.

Safety Precautions
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
1-2
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Many semiconductors and ESDs in electronic devices are particularly sensitive to static discha
rge and can be easily damaged by it. We recommend protecting these components with cond
uctive anti-static bags when you store or transport them.
Always use an anti-static strap or wristband and remove electrostatic buildup or dissipate
static electricity from your body before repairing ESDs.
Ensure that soldering irons have AC adapter with ground wires and that the ground wires are
properly connected.
Use only desoldering tools with plastic tips to prevent static discharge.
Properly shield the work environment from accidental electrostatic discharge before opening
packages containing ESDs.
The potential for static electricity discharge may be increased in low humidity environments,
such as air-conditioned rooms. Increase the airflow to the working area to decrease the
chance of accidental static electricity discharges.

4. Exploded View and Parts List
4-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
4-1. Cellular phone Exploded View
QME03
QFR01
QLC01
QAR01
QMP01
QBR05
QCA01
QMO01
QRE01
QCR67
QBC00
QKP01
QCR92
QME01
QSP01
QRF06
QCK01
QCK02
QVO01
QST01

Exploded View and Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
4-2
Design LOC Description SEC CODE
QAR01 AUDIO-RECEIVER 3009-001564
QCR67 SCREW-MACHINE 6001-002083
QCR92 SCREW-MACHINE 6001-002261
QMO01 MOTOR DC-GT_C3330 GH31-00548A
QME01 DOME SHEET-GT_C3330 GH59-11366A
QME03 TOUCH/PANEL-GT_C3330 GH59-11367A
QSP01 MODULE-GT_C3330 SPK+INT GH59-11369A
QBC00 PMO COVER-BATT_V2 GH72-65578A
QMP01 A/S ASSY-PBA MAIN(COMM)GT_C3330 GH82-06051A
QLC01 ELA MODULE-GT_C3330 LCD GH96-05290A
QCA01 ASSY CAMERA-2M 1/5" GT_C3330 GH96-05307A
QKP01 ASSY KEYPAD-HOME GH98-21050A
QFR01 ASSY CASE-FRONT GH98-21051A
QBR05 ASSY BRACKET-CAMERA GH98-21186A
QRE01 ASSY CASE-REAR GH98-21052A
QVO01 PMO KEY-VOLUME_V2 GH72-65579A
QCK01 PMO KEY-CAMERA_V2 GH72-65580A
QCK02 PMO KEY-HOLD_V2 GH72-65581A
QRF06 PMO COVER-USB_V2 GH72-65582A
QST01 PMO ACCE-STYLUS PEN_V2 GH72-65583A
4-2. Cellular phone Parts list

5. MAIN Electrical Parts List
5-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
SEC CODE Design LOC Description
0403-001688 ZD300 DIODE-ZENER
0404-001172 D300 DIODE-SCHOTTKY
0406-001286 D501 DIODE-TVS
0406-001361 ZD407 DIODE-TVS
0406-001369 D301 DIODE-TVS
0406-001413 ZD404,ZD405,ZD406 DIODE-TVS
0406-001446 ZD601 DIODE-TVS
0406-001459 ZD301,ZD400,ZD406 DIODE-TVS
0406-001459 ZD402,XF403 DIODE-TVS
0406-001465 D400 DIODE-TVS
0407-001002 D600 DIODE-ARRAY
0501-002680 Q100 TR-SMALL SIGNAL
1001-001635 U402 IC
1001-001706 U300 IC
1108-000406 UME201 IC
1201-002985 PAM100 IC
1201-003208 U403 IC
1202-001088 U401 IC
1203-005580 U601 IC
1203-005848 U600 IC
1203-006604 U301 IC
1205-003288 U502 IC
1205-004116 U101 IC
1205-004215 UCP201 IC
1404-001224 TH200 THERMISTOR
1405-001317 V301,V600,V601,V602 VARISTOR
1405-001317 V603 VARISTOR
2007-000138 R210,R313,R408,R416 R-CHIP
2007-000138 R601 R-CHIP
2007-000140 R507 R-CHIP
2007-000141 R513,R517 R-CHIP
2007-000143 R206,R207,R315,R508 R-CHIP
2007-000143 R606 R-CHIP
2007-000146 R200 R-CHIP
2007-000148 R201,R205,R303,R304 R-CHIP
2007-000148 R500,R503,R504,R505 R-CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-2
2007-000154 R414,R417 R-CHIP
2007-000155 R114 R-CHIP
2007-000157 R407 R-CHIP
2007-000162 R111 R-CHIP
2007-000166 R420 R-CHIP
2007-000168 R501 R-CHIP
2007-000169 R406 R-CHIP
2007-000170 R424 R-CHIP
2007-000242 R305,R306,R401 R-CHIP
2007-001288 R404,R405 R-CHIP
2007-002970 R109 R-CHIP
2007-007008 R115 R-CHIP
2007-007142 R202 R-CHIP
2007-007197 R412,R413 R-CHIP
2007-007528 R409 R-CHIP
2007-007798 R311,R312,R317 R-CHIP
2007-007942 R415 R-CHIP
2007-008045 R102,R103,R106 R-CHIP
2007-008055 R204,R310,R314 R-CHIP
2007-008403 R419 R-CHIP
2007-008419 R104 R-CHIP
2007-008516 R203,R301,R302 R-CHIP
2007-008648 R307 R-CHIP
2007-009804 R400 R-CHIP
2203-000233 C106,C118,C316,C411 C-CERAMIC,CHIP
2203-000233 C610 C-CERAMIC,CHIP
2203-000278 C107 C-CERAMIC,CHIP
2203-000330 C403,C415 C-CERAMIC,CHIP
2203-000425 C228,C229 C-CERAMIC,CHIP
2203-000438 C124,C131,C222,C225 C-CERAMIC,CHIP
2203-000489 C125,C130 C-CERAMIC,CHIP
2203-000679 C423 C-CERAMIC,CHIP
2203-000812 C129,C314,C404,C406 C-CERAMIC,CHIP
2203-000812 C416,C418,C419,C420 C-CERAMIC,CHIP
2203-000812 C422,C426,C501,C502 C-CERAMIC,CHIP
2203-000812 C503,C508 C-CERAMIC,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-3
2203-001153 C414 C-CERAMIC,CHIP
2203-001385 C115 C-CERAMIC,CHIP
2203-001412 C109 C-CERAMIC,CHIP
2203-002443 C230 C-CERAMIC,CHIP
2203-002668 C108,C231 C-CERAMIC,CHIP
2203-005057 C102 C-CERAMIC,CHIP
2203-005288 C101,C128 C-CERAMIC,CHIP
2203-005382 R112 C-CERAMIC,CHIP
2203-005481 C202,C210 C-CERAMIC,CHIP
2203-005682 C110 C-CERAMIC,CHIP
2203-006048 C104,C113,C204,C207 C-CERAMIC,CHIP
2203-006048 C307,C401,C402,C421 C-CERAMIC,CHIP
2203-006048 C509,C608 C-CERAMIC,CHIP
2203-006190 C201,C215 C-CERAMIC,CHIP
2203-006257 C211 C-CERAMIC,CHIP
2203-006324 C213,C214 C-CERAMIC,CHIP
2203-006379 C218,C219 C-CERAMIC,CHIP
2203-006399 C203,C206,C208,C407 C-CERAMIC,CHIP
2203-006399 C410,C424,C425,C511 C-CERAMIC,CHIP
2203-006399 C605,C611 C-CERAMIC,CHIP
2203-006423 C200,C216,C233,C234 C-CERAMIC,CHIP
2203-006423 C237,C315 C-CERAMIC,CHIP
2203-006462 C227 C-CERAMIC,CHIP
2203-006562 C212,C308,C311,C405 C-CERAMIC,CHIP
2203-006841 C303 C-CERAMIC,CHIP
2203-006844 C114,C223 C-CERAMIC,CHIP
2203-006872 C111,C112,C117,C317 C-CERAMIC,CHIP
2203-006872 C601,C602,C609 C-CERAMIC,CHIP
2203-006890 C400 C-CERAMIC,CHIP
2203-007210 C235,C236 C-CERAMIC,CHIP
2203-007269 C232 C-CERAMIC,CHIP
2203-007271 C116,C306,C603 C-CERAMIC,CHIP
2203-007279 C105,C221,C305,C313 C-CERAMIC,CHIP
2203-007371 C604 C-CERAMIC,CHIP
2203-007342 C408,C409 C-CERAMIC,CHIP
2203-007449 C209,C238,C302,C304 C-CERAMIC,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-4
2203-007449 C309 C-CERAMIC,CHIP
2203-007456 C300 C-CERAMIC,CHIP
2203-007687 C310 C-CERAMIC,CHIP
2203-007693 C312 C-CERAMIC,CHIP
2203-007754 C121,C122 C-CERAMIC,CHIP
2203-007786 C103,C123 C-CERAMIC,CHIP
2203-008097 C205,C217,C220,C224 C-CERAMIC,CHIP
2703-001729 R113 INDUCTOR-SMD
2703-001734 L110,L114 INDUCTOR-SMD
2703-001749 L115,L116 INDUCTOR-SMD
2703-001752 L101 INDUCTOR-SMD
2703-002200 L100,L104 INDUCTOR-SMD
2703-002204 L102 INDUCTOR-SMD
2703-002207 L106,L112 INDUCTOR-SMD
2703-002208 L109 INDUCTOR-SMD
2703-002309 L119 INDUCTOR-SMD
2703-002314 L111 INDUCTOR-SMD
2703-002367 L107,L120 INDUCTOR-SMD
2703-002369 L117 INDUCTOR-SMD
2703-003476 L118,L121 INDUCTOR-SMD
2703-003479 L113 INDUCTOR-SMD
2703-003485 L300 INDUCTOR-SMD
2703-003781 L411 INDUCTOR-SMD
2703-003869 L202 INDUCTOR-SMD
2801-004902 OSC200 CRYSTAL-SMD
2801-004931 OSC201 CRYSTAL-SMD
2901-001422 F603,F604 FILTER-EMI SMD
2901-001435 F600,F601 FILTER-EMI SMD
2901-001454 F602 FILTER-EMI SMD
2904-001987 F100 FILTER-SAW
2909-001337 F101 FILTER-LC
3003-001136 MIC400 MIC MEMS
3003-001138 MIC401 MIC MEMS
3301-002000 L201 BEAD-SMD
3301-002065 L402,L403,L404,L405 BEAD-SMD
3301-002065 L406,L407,L408,L409 BEAD-SMD
