Samsung GT-E1130/B User manual

GSM TELEPHONE
GT-E1130B
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List

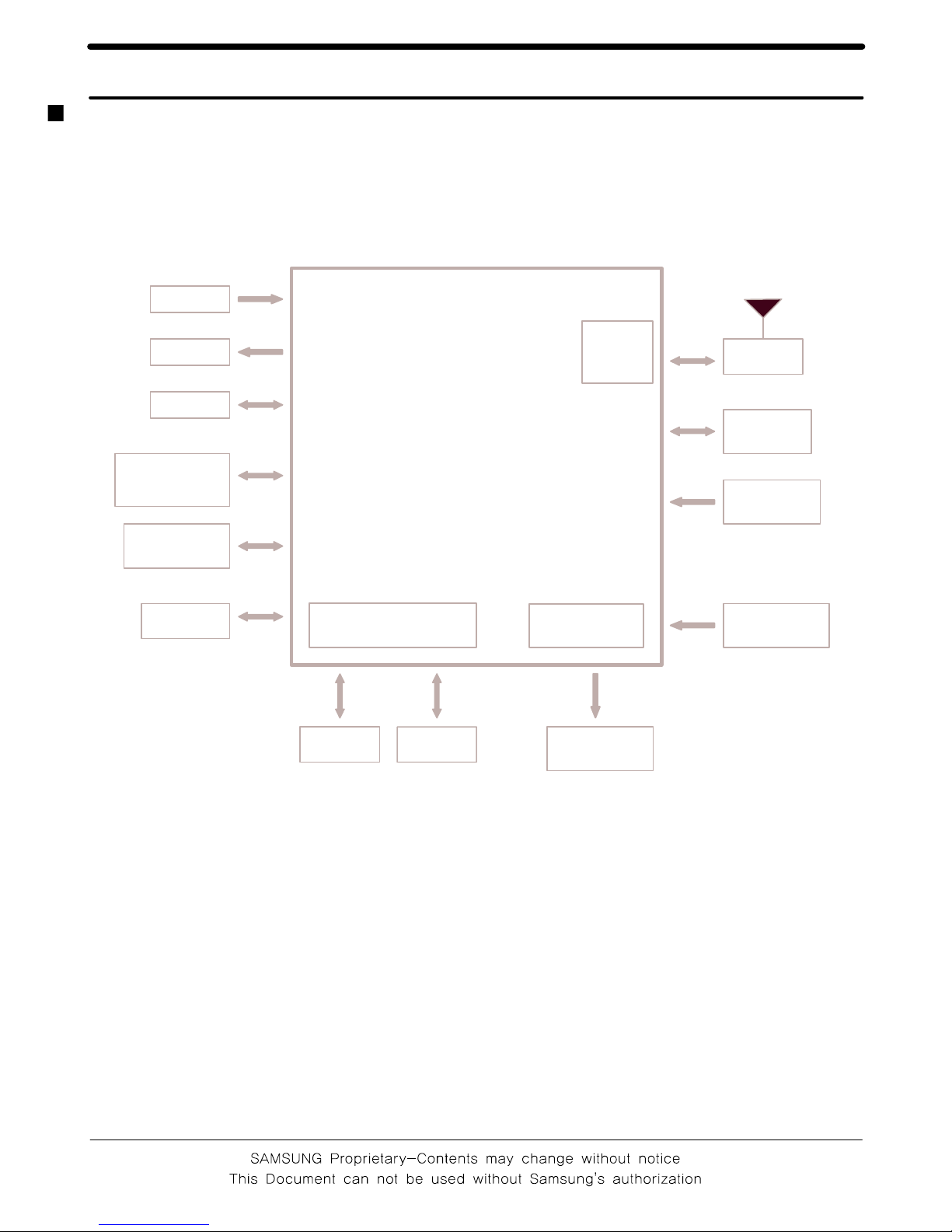

7. Block Diagrams

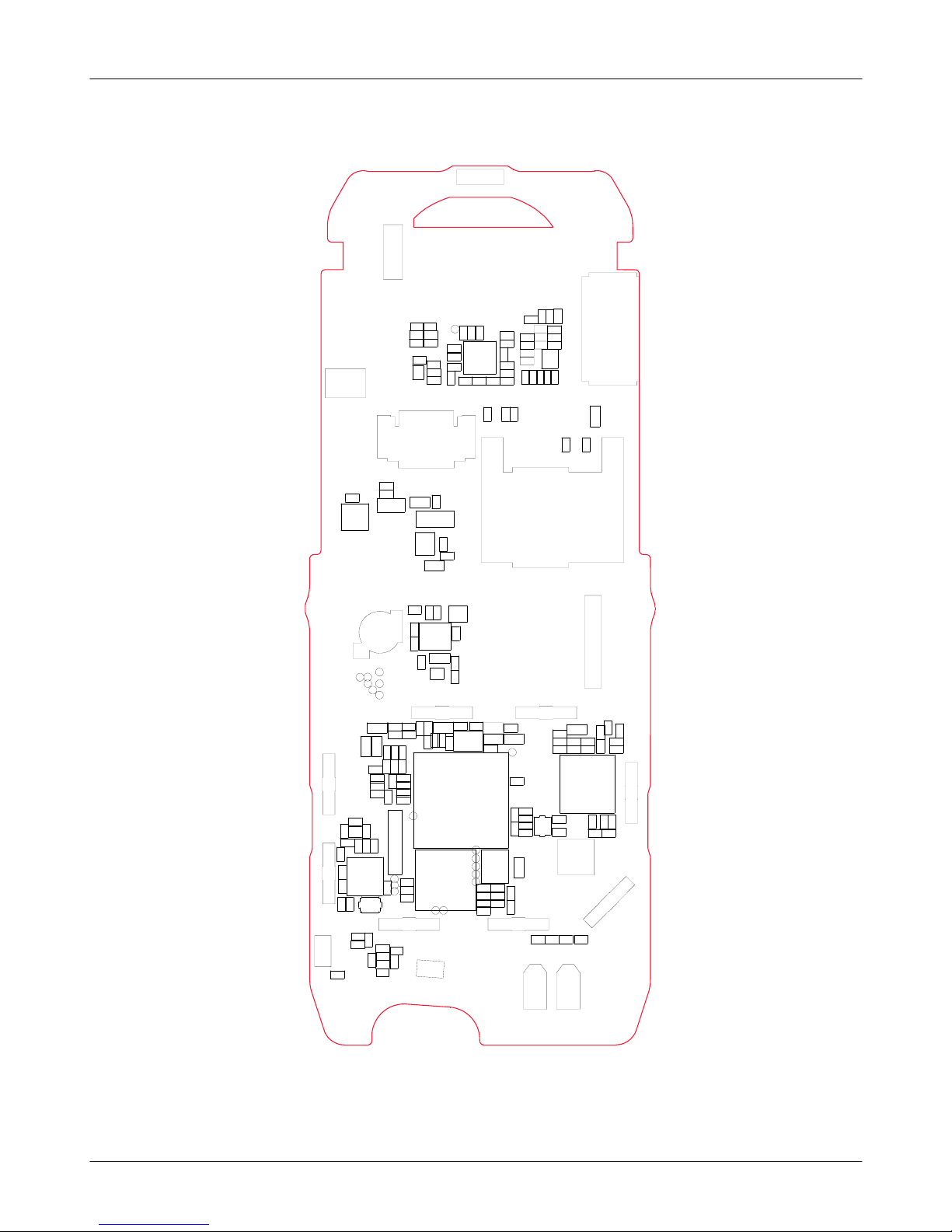

8. PCB Diagrams
9. Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
2-1
This Document can not be used without Samsung's authorization
2-1. GSM/DCS1800/PCS1900 General Specification
EGSM 900
Phase 2
DCS1800
Phase 1
Freq.
Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
ARFCN range 0~124 & 975~1023 512~885
Tx/Rx spacing 45MHz 95MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot
Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 30dBm~0dBm
Power Class 5pcl ~19
pcl 0pcl ~15 pcl
Sensitivity -102dBm -100dBm
TDMA Mux 88
Cell Radius 35Km 2Km

SAMSUNG Proprietary-Contents may change without notice
Specification
2-2
This Document can not be used without Samsung's authorization
2-2. GSM TX power class
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level GSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-Simple and modern bar design
-Living waterproof Phone
-GPRS, Dual Band(GSM 900/1800 Mhz)
-FM Radio
-Bluetooth 2.0
-Speaker Phone Function

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

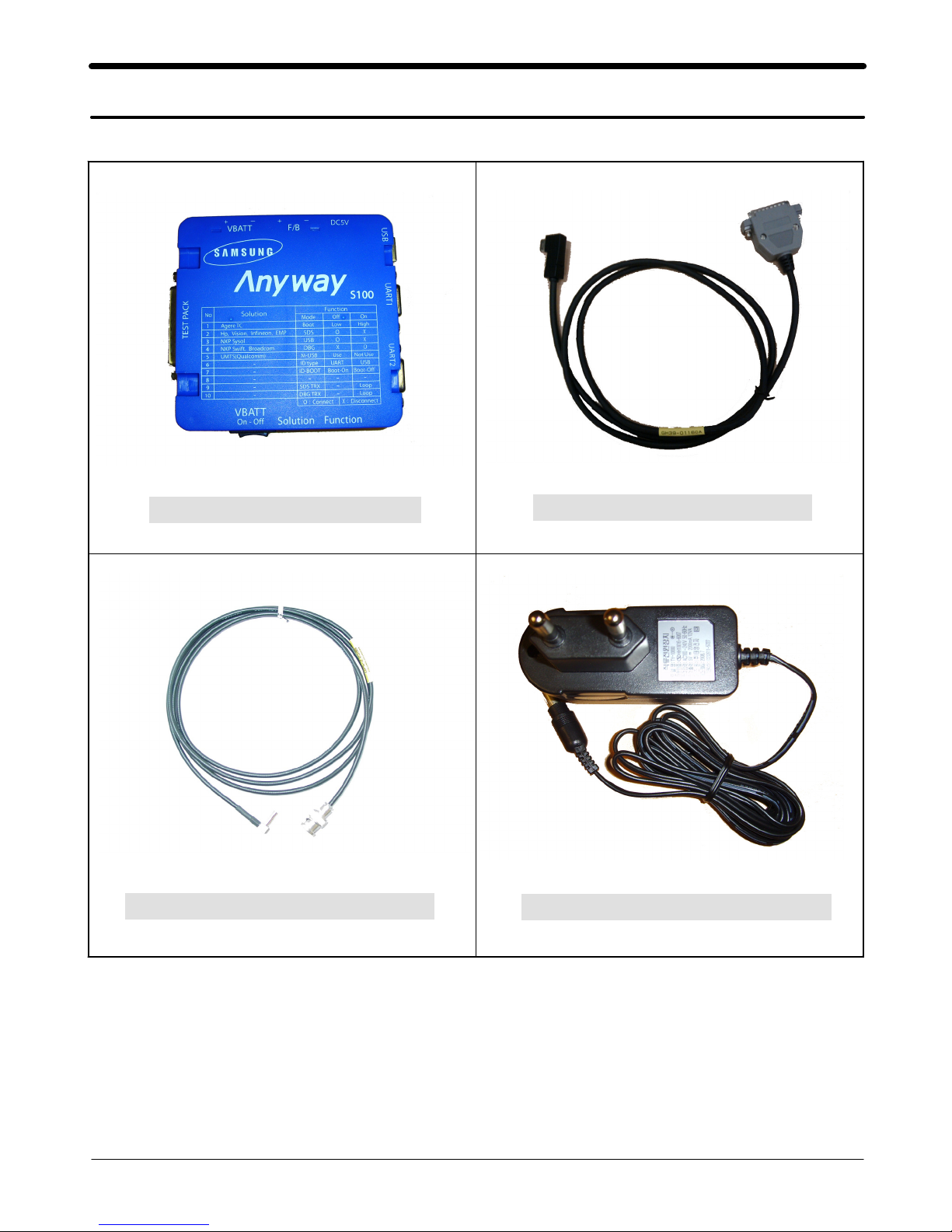

4-1. Software Adjustments
Test Jig (GH99-36900A)
Adapter (GH99-38251A)
RF Test Cable (GH39-00985A)
Test Cable (GH39-01290A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Downloading Binary Files
•4binary files for downloading E1130B.
–E1130BXXIH2.cla
–E1130BXXIH2.tfs
–E1130BOXAIH2.LPD
–E1130BOXAIH2.csc
4-2-2. Pre-requsite for Downloading
•Downloader Program(Rocky Downloader v0.6 for SAMSUNG.exe)
•E1130B Mobile Phone
•JIG BOX
•Test Cable
•Serial Cable
•Binary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization

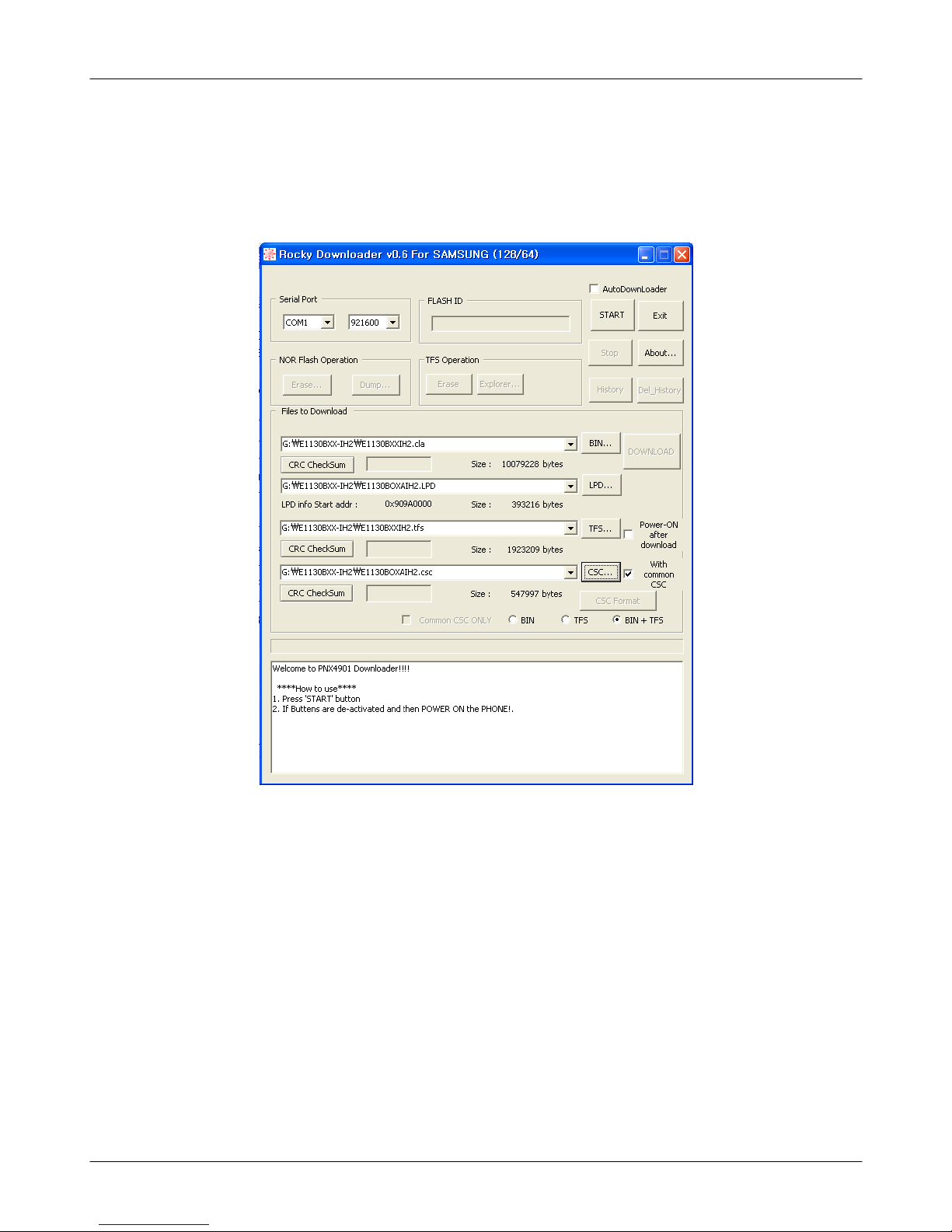

4-2-3. S/W Downloader Program
1. Load the binary download program by executing the
“Rocky Downloader v0.6 for SAMSUNG.exe”.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

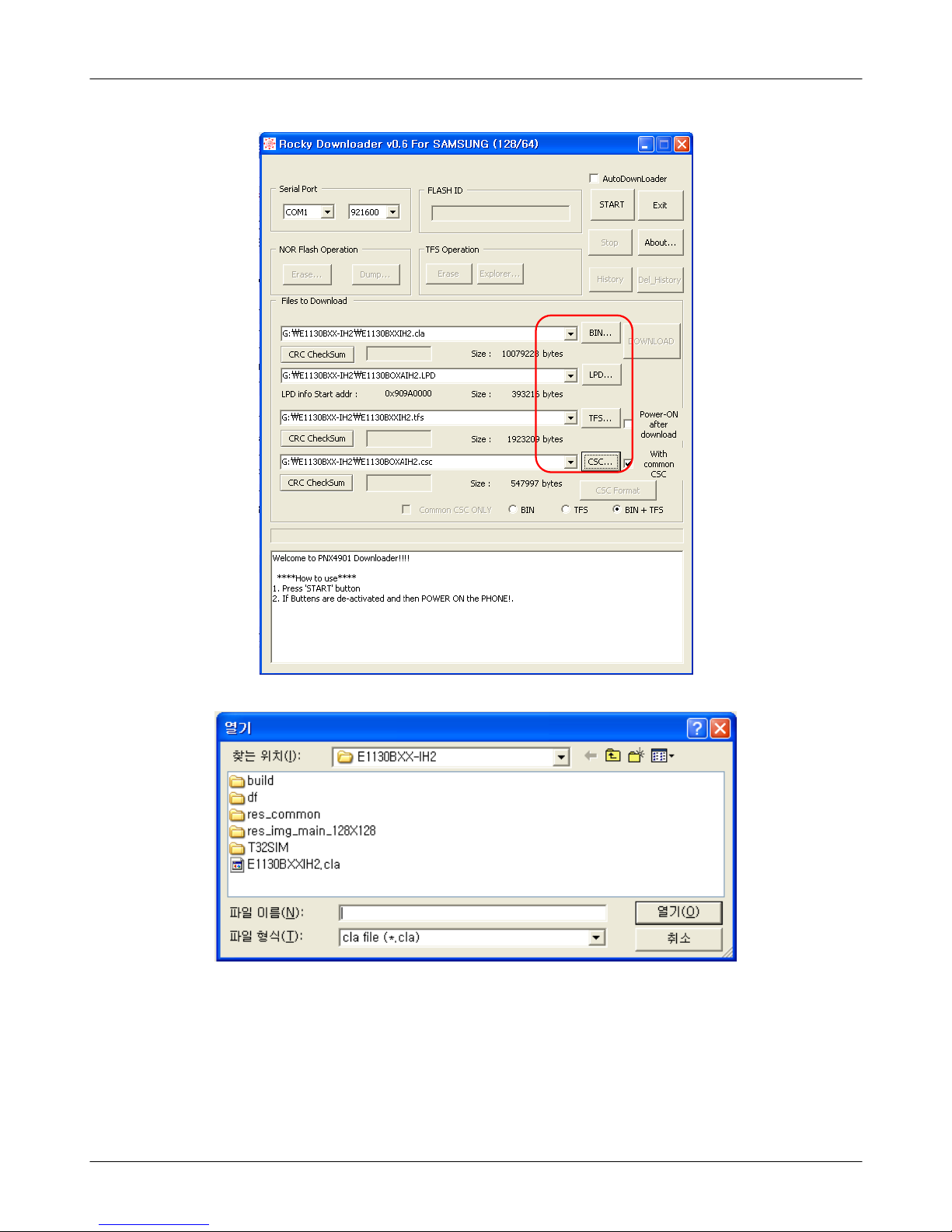

2. Select the Port, Baud Rate and Mode.
3. Select the binary fileswhat you want to download

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
4. Press the "Start" button and connect the Handset.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
Then Press the "Download" button.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QRE01
QLC01
QSP01
QCR91
QMP01
QFR01
QKP01
QMI01
QSH01
QMO01
QBA01
QBC00
QME01
QIF01
QAN02

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QBA01 INNER BATTERY PACK-1000MAH,BLK,ENG,EU GH43-03184A
QBC00 PMO COVER-BATTERY GH72-56290A
QCR91 SCREW-MACHINE 6001-002260
QFR01 ASSY CASE-FRONT GH98-15057A
QKP01 ASSY KEYPAD-(EU) GH98-14993A
QLC01 ASSY LCD-MODULE ASSY(GT-E1100) GH96-03565A
QME01 DOME SHEET-GT-E1130 GH59-08110A
QMI01 MICROPHONE-ASSY-GT-E1130 GH30-00614A
QMO01 MOTOR DC-SCH-S369 GH31-00392A
QMP01 ASSY PBA MAIN-E1130/B GH92-06553A
QSH01 ICT SHIELD-CAN GH70-05756A
QSP01 SPEAKER 3001-002509
QRE01 ASSY CASE-REAR GH98-15058A
QAN02 INTENNA-GT-E1130 GH42-02163A
QIF01 PMO COVER-IF GH72-56493A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
D200,D201 0401-001110 SDS511Q
ZD200 0403-001749 PZU5.6B
ZD301 0406-001267 RCLAMP0521P
D302,D303,D304,D307 0406-001288 PESD5V0S1UL
D308 0406-001288 PESD5V0S1UL
D305,ZD300 0406-001361 PESD5V0U5BV
LED301,LED302,LED303 0601-002199 AOT-TABL-XXYY
LED304 0601-002199 AOT-TABL-XXYY
TR100 1003-001440 MDC3105LT1
UME200 1108-000220 K5N2866ATB-AT80
PAM100 1201-002984 TQM6M4048
U301,U302 1203-005512 MIC5365-3.3YMT
U104 1203-005521 IMIC5365-2.8YMT
U101 1203-005686 AHK3292IGU-T1
U202 1203-005957 BQ24352
U103 1204-003105 SR2301D
UCP200 1205-003662 PNX4902ET
U105 1205-003816 E-STLC2584TR
TH200 1404-001221 NCP15WB473J04RC
R313 2007-000139 RC1005J221CS
R300,R305,R311,R312 2007-000141 RC1005J222CS
R119,R122 2007-000143 RC1005J472CS
R207 2007-000144 RC1005J512CS
R112,R200,R201 2007-000148 RC1005J103CS
R111 2007-000151 RC1005J153CS
R115,R121 2007-000154 RC1005J243CS
C131,R205 2007-000162 RC1005J104CS
R107,R203,R302,R306 2007-000172 RC1005J100CS
R307 2007-000172 RC1005J100CS
R310 2007-000174 MCR01MZP5J470
R123,R124 2007-000775 RC1005J333CS
R206 2007-001290 RC1005J240CS
R104,R303,R304 2007-001298 RC1005J510CS
R208 2007-001333 MCR01MZP5J183
R308,R309 2007-003006 TSR16GJ160V
R109,R301 2007-003025 RMC16S-6R8J-TP
R125,R314,R315 2007-007156 RC1005J1ROCS

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R202 2007-010071 MCR10EZHFLR100
C215,C216,C217,C218 2203-000386 GRP1555C1H150J
C228,C231,C314 2203-000386 GRP1555C1H150J
C222,C224 2203-000425 GRP1555C1H180J
C103 2203-000438 GRP155R71H102K
C115 2203-000654 GRP155R71H271KD01E
C302,C313,C315 2203-000679 GRP1555C1H270J
C125,C128,C225 2203-000812 GRP1555C1H330J
C308,C309,C310 2203-000836 GRP155R71H391KD01E
C130 2203-000995 GRP1555C1H470J
C152,C153,C323 2203-001072 GRP1555C1H560JD01E
C105,C318 2203-001153 GRP1555C1H680J
C149 2203-001259 GRP1555C1H8R0DZ01E
C127,C129 2203-001385 GRP1555C1H1R5CZ01E
C220 2203-001405 04023G223ZAT2A
C151 2203-002443 GRP155R71H331KD01E
C100,C104,C136,C137 2203-002709 C1005Y5V1C104ZT
C138,C202,C203,C204 2203-002709 C1005Y5V1C104ZT
C205,C211,C213,C214 2203-002709 C1005Y5V1C104ZT
C226 2203-002709 C1005Y5V1C104ZT
C124,C126 2203-005234 GRP1555C1H1R2CZ01E
L103 2203-005288 GRP1555C1H1R0BZ01E
C329 2203-005383 CL05C070JBNC
C227,C301,C303,C321 2203-005482 GRP155R61A104KA01E
C322 2203-005482 GRP155R61A104KA01E
C101 2203-005496 GRP155F51A224ZD02E
C102,C135 2203-005993 CL05B683KONC
C141,C143,C144,C145 2203-006190 GRM155R60J224KE01E
C146,C147,C148 2203-006190 GRM155R60J224KE01E
C207,C208,C330 2203-006208 CM105X5R475M06AT
C134 2203-006257 GRM155R60J474KE19E
C221 2203-006348 CV105X5R105K25AT
C206,C209,C210,C319 2203-006399 GRM155R60J105KE19D
C320 2203-006399 GRM155R60J105KE19D
C112,C139,C140,C212 2203-006562 CV05X5R105K10AH
C305,C306,C311,C312 2203-006562 CV05X5R105K10AH
C200,C201,C223 2203-006824 CV105X5R475K10AT

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C142 2203-006838 CL05A225KQ5NSNC
C219 2203-006841 CV05X5R105K16AH
C113,C328,C331 2203-007279 CV105X5R106M10AT
L112 2703-001729 LL1005-FH1N8S
L108 2703-001734 LL1005-FH6N8J
L109,L302,L303 2703-002204 CIH05T22NJNC
L102 2703-002268 CIH05T8N2JNC
L101 2703-002308 CIH05T68NJNC
L313,L314 2703-002313 CIH05TR10JNC
R100 2703-002314 CIH05T47NJNC
C150 2703-002710 LQW15AN2N7C00
L300 2703-003121 MLG1005SR15J
L202 2703-003297 APIS08G4R7MT
OSC200 2801-004353 MS3V-T1R
OSC201 2801-004769 CXC6X260000GHVRP70
F300,F301,F302 2901-001435 AVR14S-03Q-030-200R
F102 2903-001404 DEA202450BT-7112E1
F101 2904-001879 SFR942PY002
L200 3301-001158 BLM18PG300SN1D
L304,L305,L306,L311 3301-001885 BLM15HD182SN1D
L312 3301-001885 BLM15HD182SN1D
RFS100 3705-001503 KMS-560
SIM200 3709-001384 5000-6P-2.3M
IFC300 3710-002683 HY20-AB0310
BTC200 3711-006228 2005-03-261A
ANT102 4202-001463 ODBTP3015
LED300 GH59-08422A GTE1130-HIPOL
SC100,SC101,SC102 GH70-03276A ONBOARD-CLIP-4
SC103,SC104,SC105 GH70-03276A ONBOARD-CLIP-4
SC106,SC107 GH70-03276A ONBOARD-CLIP-4
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's
part list.

7. Block Diagrams
7-1
7-1. MAIN Block Diagram
GGTT--EE11113300BB BBLLOOCCKK DDIIAAGGRRAAMM
PPNNXX44990022
--GGSSMM//GGPPRRSS CCllaassss1100 ssiinnggllee cchhiipp
--3322--bbiitt AARRMM992266EEJJ--SS™™ccoonnttrrooll
--CCeevvaa--TTeeaakk™™,, 1166--bbiitt ffiixxeedd--ppooiinntt DDSSPP
--SSAAIICC//TTTTYY//CCTTMM
--IInnt
teerrggrraatteeddDDCCXXOO aanndd AAFFCC ccoorrrreeddiioonn
--SSIIMM ccaarrddiinntteerrffaaccee
--II22CC//UUAARRTT//PPCCMM//PPWWMM
--BBlluueettooootthh//FFMM ssuuppppoorrtt
--AAnnaalloogg aacccceesssso
orryy ddeetteeccttiioonn
--CCoolloorr LLCCDD,, uupp ttoo 117766XX222200 ppiixxeellss,, 6655KK ccoolloorrss
--TThhrreeee cclloocckk oouuttppuuttss((3322KKhhzz,, 2266MMhhzz,, 2266MMhhzz//nn))
--UUPP t
too 4422 GGPPIIOO ss((11..88VV//22..88VV))
--7788MMhhzz bbuurrsstt mmeemmoorryy aacccceessss
MEMORY(SEC)
128MB NOR Flash
64MB UtRAM
PPMMUU
((PPoowweerr mmaannaaggeemmeenntt uunniitt))
KEY PAD
MIC
(4Φ, 1.5T,44dB)
EAR MIC
Speaker
(13X18, 3.5T)
EAR Speaker
FM RADIO
70Mhz~ 108Mhz
BLUE TOOTH
(V2.1 + E DR)
SIM CARD
BATTERY
(100 0mA)
MOTOR
RRFF SSUUBB
SSYYSSTTEEMM
((AAeerroo 44221100
RRFFIICC))
OVP
IF Conne ctor
(20pin)
LCD(1.52inch,
128* RGB*12 8)
RF SYSTEM
AAUUDDIIOO SSUUBB
SSYYSSTTEEMM

SAMSUNG Proprietary-Contents may change without notice
8. PCB Diagrams
8-1
This Document can not be used without Samsung's authorization
Top
DIGIT300 DIGIT301 DIGIT302
DIGIT303 DIGIT304 DIGIT305
DIGIT306 DIGIT307 DIGIT308
DIGIT309
DOWN END
HDC300
INT
LED301
LED302
LED303
LED304
LEFT
RIGHT
SEND
SHARP
103TFOS003TFOS
STAR
TP210
UP

SAMSUNG Proprietary-Contents may change without notice
PCB Diagrams
8-2
This Document can not be used without Samsung's authorization
Bottom
ANT100
ANT101
ANT102
BAT200
BTC200
C100
C101
C102
C103
C104
C105
C108
C112
C113
C115
C117
C118
C119
C120
C124 C125
C126
C127 C128
C129
C130
C131
C134
C135
C136
C137
C138
C139
C140
C141
C142
C143
C144
C145
C146
C147
C148
C149
C150
C151
C200 C201
C202
C203
C204
C205
C206
C207
C208
C209
C210
C211
C212
C213
C214
C215
C216 C217
C218
C219
C220
C221
C222
C223
C224
C225
C226
C227
C228
C229
C231
C300
C301
C302
C303 C304
C305
C306
C307
C308
C309
C310
C311
C312
C313
C314
C315
C318
C319
C320
C321
C322
C323
C324 C325
C326
C327
C328
C329
C330
C331
CN201
D200
D201
D302
D303
D304
D305
D30 7 D308
F101
F102
IFC300
L100
L101
L102L103
L108
L109
L110
L111
L112
L113
L200
L202
L300
L302
L303
L304
L305
L306
L311
L312
LED300
MIC300
MOT100
OSC200
OSC201
PAM100
R100
R103
R104
R105
R106
R107
R108
R109
R110
R111
R112
R115
R119
R121
R122
R123R124
R125
R126
R200
R201
R202
R203
R204
R205
R206
R207
R208
R210
R300
R301
R302
R303
R304
R305
R306
R307
R308
R309
R310
R311
R312
R313
R314 R315
R316
R317
RFS100
SC100
2
0
1
C
S
1
0
1
C
S
SC103
SC104
SC105
SC106
SC107
SIM200
SPK300
TH200
TP101
TP102
TP103
TP104
TP105
TP106
TP107
TP108
TP109
TP110
TP111
TP112
TP200
TP201
TP202
TP203
TP204
TP205
TP206
TP207
TR100
U101
U103
U104
U105
U202
U301
U302
UCP200
UME200
ZD200
ZD300
ZD301
