Samsung GT-E2120 User manual

GSM TELEPHONE
GT-E2120
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2009. 07. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
EGSM 900 DCS1800
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
ARFCN range 0~124 & 975~1023 512~885
Tx/Rx spacing 45MHz 95MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 30dBm~0dBm
Power Class 4
(max +33dBm)
1
(max +30dBm)
Sensitivity -102dBm -100dBm
TDMA Mux 8 8
Cell Radius 35Km 2Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level GSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
-GPRS, Dual Band(GSM 900/1800, 850/1900 Mhz)
-1.52” CSTN, 65K
-VGA Camera &Video Recording
-MP3 Player with Micro-SD
-FM intenna with Recording
-Bluetooth 2.0 (SWA Only)
-40 Poly Sound &MP3 Ringtone
-WAP 2.0 / MMS /E-mail
- Java Games, Native Game

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
Test Cable (GH39-01160A)
Test Jig (GH99-36900A)
RF Test Cable (GH39-00985A) Adapter (GH99-38251A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Downloading Binary Files
•2binary files for downloading GT-E2120
–XAIF2.cla
–XAIF2.tfs
4-2-2. Pre-requsite for Downloading
•Downloader Program(Garua Downloader v1.0 for SEC_Lite)
•GT-E2120 Mobile Phone
•JIG BOX
•Test Cable
•Serial Cable
•Binary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-2-3. S/W Downloader Program
1. Load the binary download program by executing the “Garua Downloader v1.0 for SEC_Lite”.
Select the Port.
2. Select the binary fileswhat you want to download

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
3. Press the "Start" button and connect the Handset, then press "확인".
.4.P
ress the "Download" button.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization

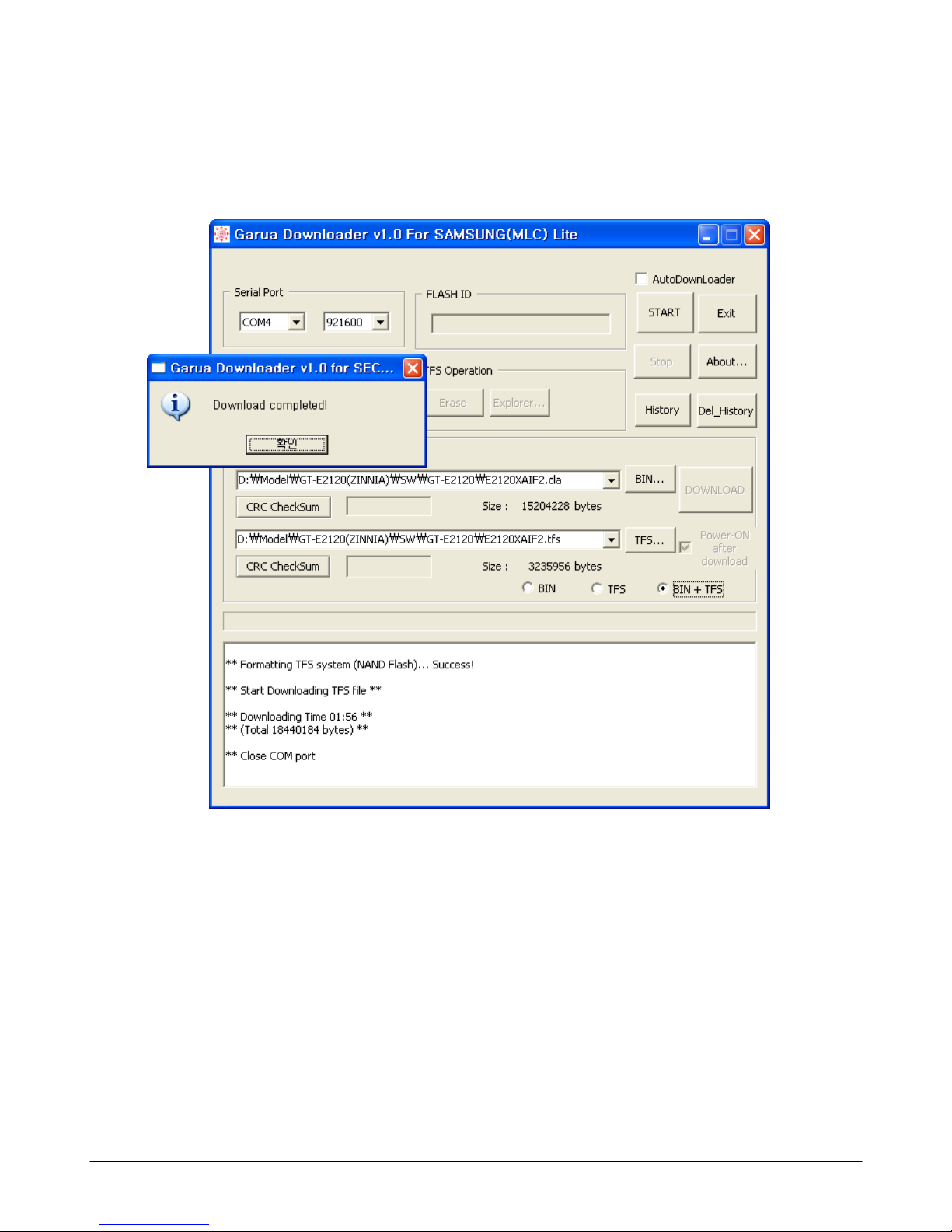

6. When downloading is complete, automatically the small window was showed up.

SAMSUNG Proprietary-Contents may change without notice
10.Reference data
10-1
This Document can not be used without Samsung's authorization
Reference Abbreviation
-AAC:Advanced Audio Coding.
-AVC :Advanced Video Coding.
-BER :Bit Error Rate
-BPSK:Binary Phase Shift Keying
-CA :Conditional Access
-CDM :Code Division Multiplexing
-C/I :Carrier to Interference
-DMB :Digital Multimedia Broadcasting
-EN :European Standard
-ES :Elementary Stream
-ETSI:European Telecommunications Standards Institute
-MPEG:Moving Picture Experts Group
-PN :Pseudo-random Noise
-PS :Pilot Symbol
-QPSK:Quadrature Phase Shift Keying
-RS :Reed-Solomon
-SI :Service Information
-TDM :Time Division Multiplexing
-TS :Transport Stream

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QFR01
QLC01
QMP01
QSP01
QCA01
QMO01
QRE01
QCR89
QKP01
QMI01
QME01
QSH01
QAN02
QBA01
QBC00
QCW01
QIF01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAN02 INTENNA-GTE2120 GH42-02119A
QBA01 INNER BATTERY PACK-1000MAH,BLK,ENG,EU GH43-03184A
QBC00 ASSY COVER-BATT(ORG) GH98-14645A
QCA01 CAMERA MODULE-GT-E2120 GH59-07682A
QCR89 SCREW-TAPPING 6002-001428
QKP01 ASSY KEYPAD-MAIN(ORG/AR) GH98-14646A
QLC01 LCD-MODULE SGHB110L GH07-01241A
QME01 DOME SHEET-GTE2120_21 KEY GH59-07876A
QMI01 MICROPHONE-ASSY-GTE2120 GH30-00601A
QMO01 MOTOR DC-SCH-S369 GH31-00392A
QMP01 ASSY PBA MAIN-GTE2120 GH92-06213A
QSH01 IPR SHIELD-CAN GH70-05437A
QSP01 SPEAKER 3001-002509
QFR01 ASSY CASE-FRONT(ORG) GH98-14648A
QIF01 PMO COVER-IF GH72-55269A
QRE01 ASSY CASE-REAR(ORG) GH98-14647A
QCW01 PCT WINDOW-CAMERA GH72-55275A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
0403-001547 D201 TDZ5.6
0406-001286 ZD104 PESD5V0L5UV
0406-001286 ZD105 PESD5V0L5UV
0406-001286 ZD300 PESD5V0L5UV
0406-001288 ZD100 PESD5V0S1UL
0406-001288 ZD101 PESD5V0S1UL
0406-001288 ZD102 PESD5V0S1UL
0406-001293 ZD106 ESD9B3.3ST5G
0407-001002 D200 DAN222TL
0505-002341 Q100 SI1013X-T1-GE3
0601-002070 LED300 AOT-0603P-W03-BC
0601-002070 LED301 AOT-0603P-W03-BC
0601-002070 LED302 AOT-0603P-W03-BC
0601-002070 LED303 AOT-0603P-W03-BC
0601-002070 LED304 AOT-0603P-W03-BC
0601-002070 LED305 AOT-0603P-W03-BC
0801-002237 U305 TC7SH04FU-TE85L
0801-003213 U105 TC7SG08AFS(TPL3)
1003-001440 U307 MDC3105LT1
1108-000228 UME201 K5N5629ATA-AT80
1201-002931 PAM100 RF7168
1201-002944 U100 BGB707L7ESD
1203-005512 U300 MIC5365-3.3YMT
1203-005512 U302 MIC5365-3.3YMT
1203-005686 U303 AHK3292IGU-T1
1203-005848 U304 MIC5370-MGYMT
1203-005957 U200 BQ24352
1204-003080 U102 SI4703-B16-GMR
1205-003662 UCP201 PNX4902ET
1205-003835 U301 AIT701U
1404-001221 TH200 NCP15WB473J04RC
2007-000138 R136 RC1005J101CS
2007-000138 R320 RC1005J101CS
2007-000139 R120 RC1005J221CS
2007-000141 R117 RC1005J222CS
2007-000141 R118 RC1005J222CS
2007-000141 R119 RC1005J222CS

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
2007-000143 R100 RC1005J472CS
2007-000143 R130 RC1005J472CS
2007-000143 R201 RC1005J472CS
2007-000143 R312 RC1005J472CS
2007-000143 R313 RC1005J472CS
2007-000144 R129 RC1005J512CS
2007-000147 R127 RC1005J822CS
2007-000148 R200 RC1005J103CS
2007-000148 R203 RC1005J103CS
2007-000148 R206 RC1005J103CS
2007-000148 R306 RC1005J103CS
2007-000151 R325 RC1005J153CS
2007-000157 R307 RC1005J473CS
2007-000157 R308 RC1005J473CS
2007-000157 R309 RC1005J473CS
2007-000157 R310 RC1005J473CS
2007-000162 R212 RC1005J104CS
2007-000164 R321 RC1005J154CS
2007-000164 R322 RC1005J154CS
2007-000172 R211 RC1005J100CS
2007-000172 R311 RC1005J100CS
2007-000173 R122 RC1005J220CS
2007-000173 R123 RC1005J220CS
2007-000242 R124 RC1005J152CS
2007-001119 R107 RC1005J681CS
2007-001288 R114 MCR01MZP5J180
2007-001298 R314 RC1005J510CS
2007-001298 R315 RC1005J510CS
2007-001298 R316 RC1005J510CS
2007-001298 R317 RC1005J510CS
2007-001298 R318 RC1005J510CS
2007-001298 R319 RC1005J510CS
2007-001301 R210 MCR01MZP5J680
2007-001311 R101 RC1005J271CS
2007-001333 R111 MCR01MZP5J183
2007-001333 R112 MCR01MZP5J183
2007-001333 R213 MCR01MZP5J183
2007-002970 R113 MCR01MZP5J560

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
2007-003025 R324 RMC16S-6R8J-TP
2007-003112 R125 MCR01MZP5J270
2007-003112 R126 MCR01MZP5J270
2007-007008 R115 RC1005J301CS
2007-007008 R116 RC1005J301CS
2007-007698 R207 RK73H1ETP5101F
2007-007942 R128 RC-1005F105CS
2007-008500 R214 SR73H2BTDR100F
2203-000233 C121 GRP1555C1H101J
2203-000278 C116 GRP1555C1H100D
2203-000386 C133 GRP1555C1H150J
2203-000386 C136 GRP1555C1H150J
2203-000386 C138 GRP1555C1H150J
2203-000386 C140 GRP1555C1H150J
2203-000386 C217 GRP1555C1H150J
2203-000425 C131 GRP1555C1H180J
2203-000425 C147 GRP1555C1H180J
2203-000425 C149 GRP1555C1H180J
2203-000425 C150 GRP1555C1H180J
2203-000585 C148 GRP155R71H221KD01E
2203-000679 C132 GRP1555C1H270J
2203-000679 C135 GRP1555C1H270J
2203-000679 C139 GRP1555C1H270J
2203-000812 C120 GRP1555C1H330J
2203-000812 C123 GRP1555C1H330J
2203-000812 C130 GRP1555C1H330J
2203-000812 C143 GRP1555C1H330J
2203-000812 C230 GRP1555C1H330J
2203-000812 C233 GRP1555C1H330J
2203-000812 C315 GRP1555C1H330J
2203-002443 C102 GRP155R71H331KD01E
2203-002443 C105 GRP155R71H331KD01E
2203-002443 C153 GRP155R71H331KD01E
2203-002668 C103 C1005CG1H0R5BT
2203-002709 C134 C1005Y5V1C104ZT
2203-002709 C137 C1005Y5V1C104ZT
2203-002709 C141 C1005Y5V1C104ZT
2203-002709 C145 C1005Y5V1C104ZT

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
2203-002709 C200 C1005Y5V1C104ZT
2203-002709 C201 C1005Y5V1C104ZT
2203-002709 C202 C1005Y5V1C104ZT
2203-002709 C203 C1005Y5V1C104ZT
2203-002709 C204 C1005Y5V1C104ZT
2203-002709 C205 C1005Y5V1C104ZT
2203-002709 C300 C1005Y5V1C104ZT
2203-002709 C304 C1005Y5V1C104ZT
2203-002709 C311 C1005Y5V1C104ZT
2203-005234 C106 GRP1555C1H1R2CZ01E
2203-005281 C117 GRP1555C1H1R5BZ01E
2203-005281 C122 GRP1555C1H1R5BZ01E
2203-005281 C125 GRP1555C1H1R5BZ01E
2203-005281 C127 GRP1555C1H1R5BZ01E
2203-005481 C100 GRP155R71A473KA01E
2203-005481 C101 GRP155R71A473KA01E
2203-006048 C229 GRM155R71A104K
2203-006048 C232 GRM155R71A104K
2203-006137 C129 CL05B223KONC
2203-006208 C208 CM105X5R475M06AT
2203-006208 C209 CM105X5R475M06AT
2203-006208 C234 CM105X5R475M06AT
2203-006257 C307 GRM155R60J474KE19E
2203-006348 C237 CV105X5R105K25AT
2203-006361 C119 GRM21BR61A106K
2203-006399 C206 GRM155R60J105KE19D
2203-006399 C207 GRM155R60J105KE19D
2203-006399 C210 GRM155R60J105KE19D
2203-006399 C211 GRM155R60J105KE19D
2203-006399 C212 GRM155R60J105KE19D
2203-006399 C213 GRM155R60J105KE19D
2203-006399 C214 GRM155R60J105KE19D
2203-006399 C303 GRM155R60J105KE19D
2203-006399 C305 GRM155R60J105KE19D
2203-006399 C312 GRM155R60J105KE19D
2203-006399 C316 GRM155R60J105KE19D
2203-006438 C124 GRM155R60J334KE01D
2203-006438 C126 GRM155R60J334KE01D

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-5
This Document can not be used without Samsung's authorization
2203-006562 C301 CV05X5R105K10AH
2203-006562 C302 CV05X5R105K10AH
2203-006562 C306 CV05X5R105K10AH
2203-006562 C308 CV05X5R105K10AH
2203-006562 C309 CV05X5R105K10AH
2203-006562 C310 CV05X5R105K10AH
2203-006562 C313 CV05X5R105K10AH
2203-006562 C317 CV05X5R105K10AH
2203-006824 C215 CV105X5R475K10AT
2203-006824 C216 CV105X5R475K10AT
2203-006824 C228 CV105X5R475K10AT
2203-006841 C236 CV05X5R105K16AH
2203-007279 C231 CV105X5R106M10AT
2404-001377 C142 F980J226MMA
2703-000213 L100 LQM18NNR47K00
2703-002170 L102 CIH05T6N8JNC
2703-002201 L108 CIH05T33NJNC
2703-002201 L109 CIH05T33NJNC
2703-002201 L110 CIH05T33NJNC
2703-002204 L106 CIH05T22NJNC
2703-002267 L114 CIH05T4N7SNC
2703-002367 L112 CIH05T1N0SNC
2703-003064 L119 LQG15HSR22J02D
2703-003297 L202 APIS08G4R7MT
2703-003476 L105 LQG15HSR27J02D
2801-004353 OSC201 MS3V-T1R
2801-004805 OSC200 SQ3D02600C2LJA
2901-001435 F301 AVRC-14S-03Q-030-200R
2901-001435 F302 AVRC-14S-03Q-030-200R
2901-001435 F303 AVRC-14S-03Q-030-200R
2904-001879 F100 SFR942PY002
3301-001158 L200 BLM18PG300SN1D
3301-001534 L201 BLM15AG121SN1D
3301-001534 L300 BLM15AG121SN1D
3301-001729 L301 BLM15AG102SN1D
3301-001756 L111 BLM15HG102SN1D
3301-001756 L113 BLM15HG102SN1D
3301-001756 L115 BLM15HG102SN1D
