Samsung GT-E2550 Monte Slider User manual

1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions
GSM TELEPHONE
GT-E2550
(E2550D and E2558 Common)
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
EGSM900 DCS1800
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
ARFCN range 0~124 & 975~1023 512~885
Tx/Rx spacing 45MHz 95MHz
Mod. Bit rate
/BitPeriod
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot Period
/ Frame Period
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 30dBm~0dBm
Power Class 5~19(class4) 0~15(class1)
Sensitivity -102dBm -100dBm
TDMA Mux 8 8
Cell Radius 35Km 2Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level GSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-GSM900,DCS1800
-GSM, GPRS, EDGE(RX only)
- 2.01" 262K 128*160 TFT/QQVGA LCD
-1.3M Camera
-Bluetooth V.2.1+EDR
-Stereo Bluetooth Headset
-Music player
-MP3, AAC, MP4, 3GPP Decoding
-SMS/MMS/E-Mail
-FM Radio &Recording
-Wap 2.0
-Java Games

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

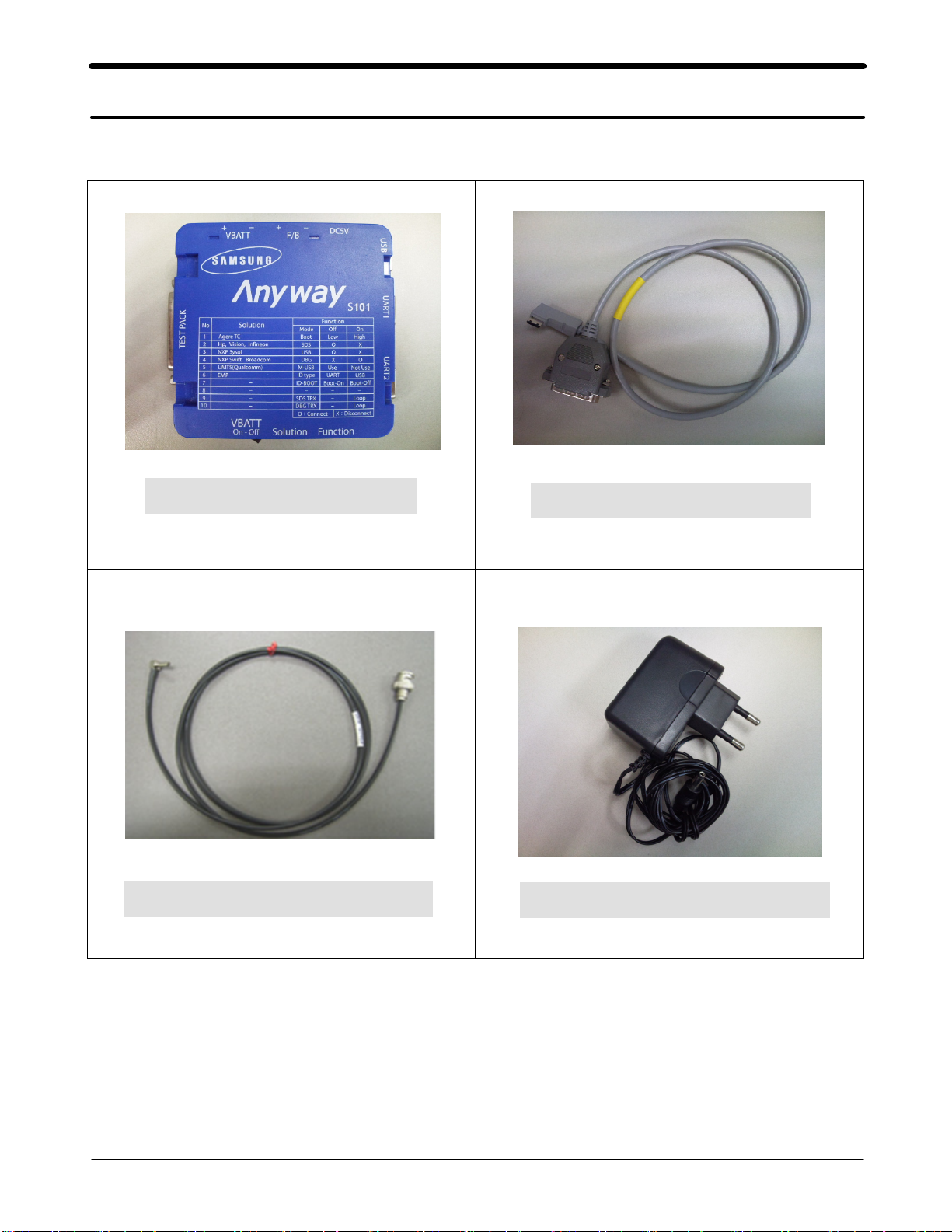

4-1. Software Downloading
Test Cable (GH39-01211A)
Test Jig (GH99-36900A)
RF Test Cable (GH39-00985A) Adapter (GH99-38251A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Pre-requsite for S/W Downloading
ㆍDownloder Program
(Nor Downloader v0.3 For PNX6608(TFFS&PRAM&NORSLC))
ㆍGT-E2550 Mobile Phone
ㆍTest jig, Test jig cable
ㆍBinary File, TFS file, CSC file.

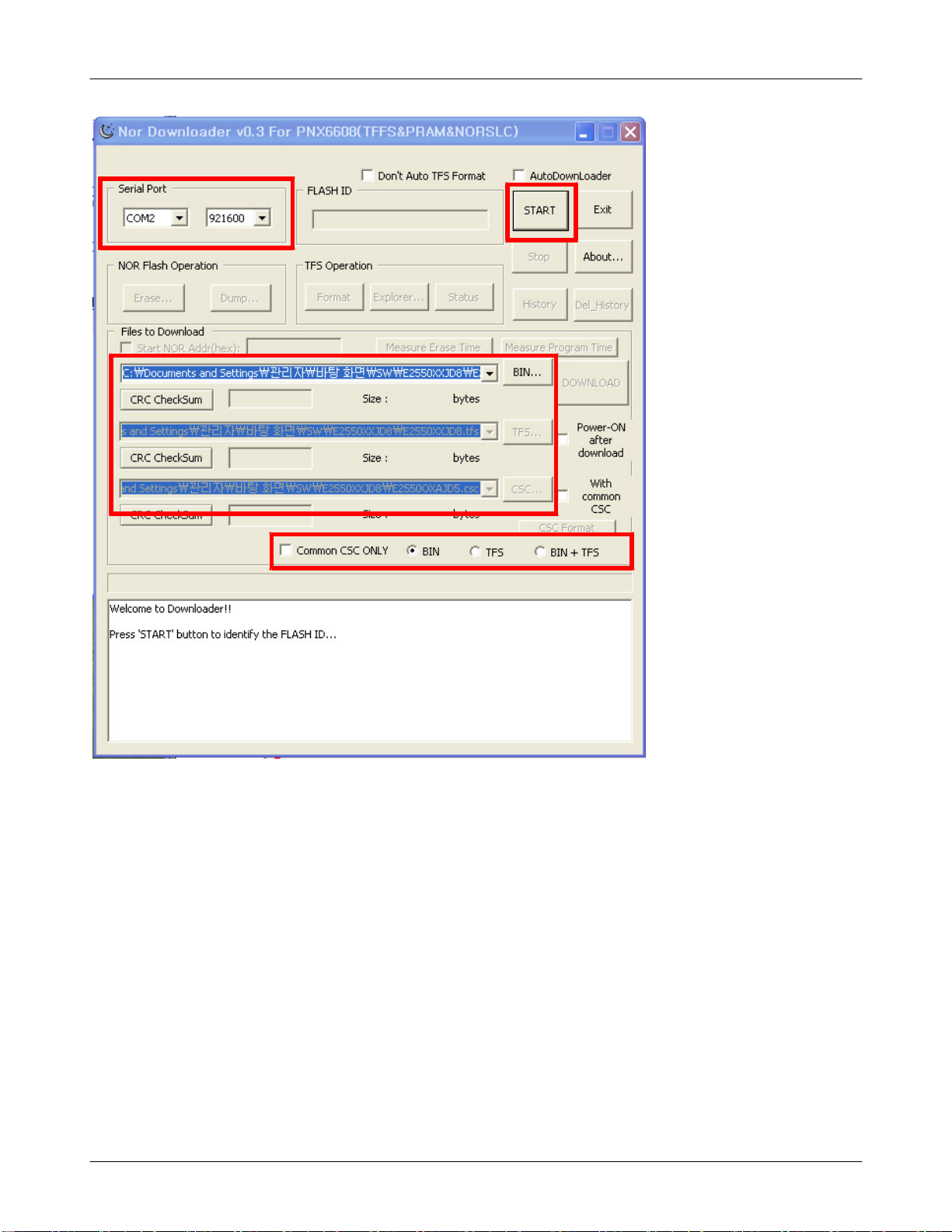

4-2-2. S/W Downloader Program (Nor Downloader)
■Load the binary download program by executing the
(Nor Downloader v0.3 For PNX6608(TFFS&PRAM&NORSLC))
1.Select the connected serial Port and the Rate of speed
2.Select the check box, the mode you want to download.
-If the binary file wanted, check only 'BIN'
-If the tfs file wanted, check only 'TFS'
-If the csc file wanted, check only 'withcommonCSC '
-If all the files wanted, check 'BIN+TFS'and 'with commom CSC'
3.Select the file(s) what you want to download
4. Press START and connect GT-E2550 to the JIG BOX.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
1
2
3
4

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

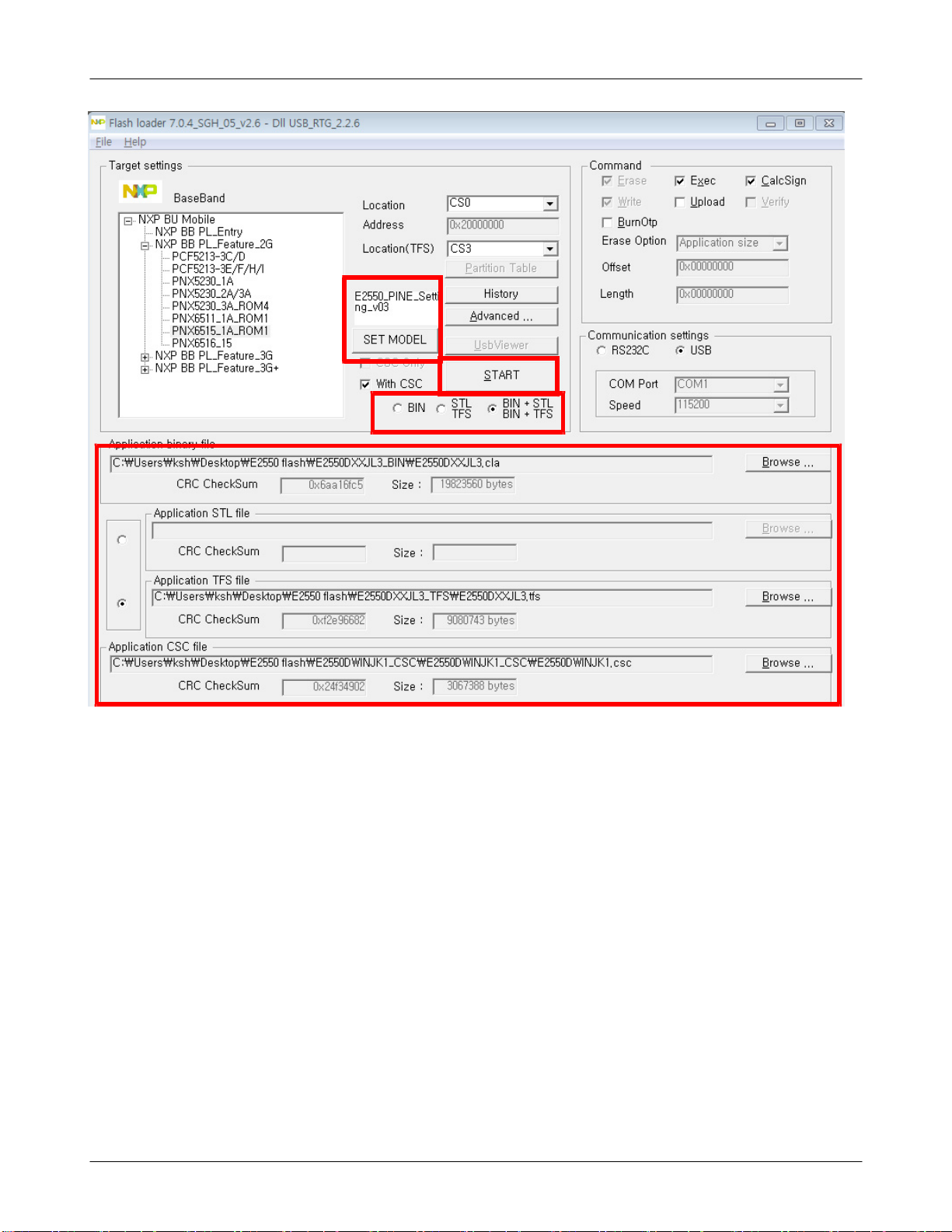

4-2-3. S/W Downloader Program (Flash loader)
■Load the binary download program by executing the
(Flash loader 7.0.4_SGH_v2.6)
1.Click "SET MODEL" and Select E2550_PINE_setting_v03 file.
2.Select the check box, the mode you want to download.
-If the binary file wanted, check only 'BIN'
-If the tfs or stl file wanted, check only 'TFS and STL'
-If the csc file wanted, check only 'with CSC'
-If all the files wanted, check 'BIN+TFS and BIN+STL'and 'with CSC'
3.Select the file(s) what you want to download
-Click "Browse" and select files.
4. Press START and connect GT-E2550 to the JIG BOX with pressing any two keys.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
1
2
3
4

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

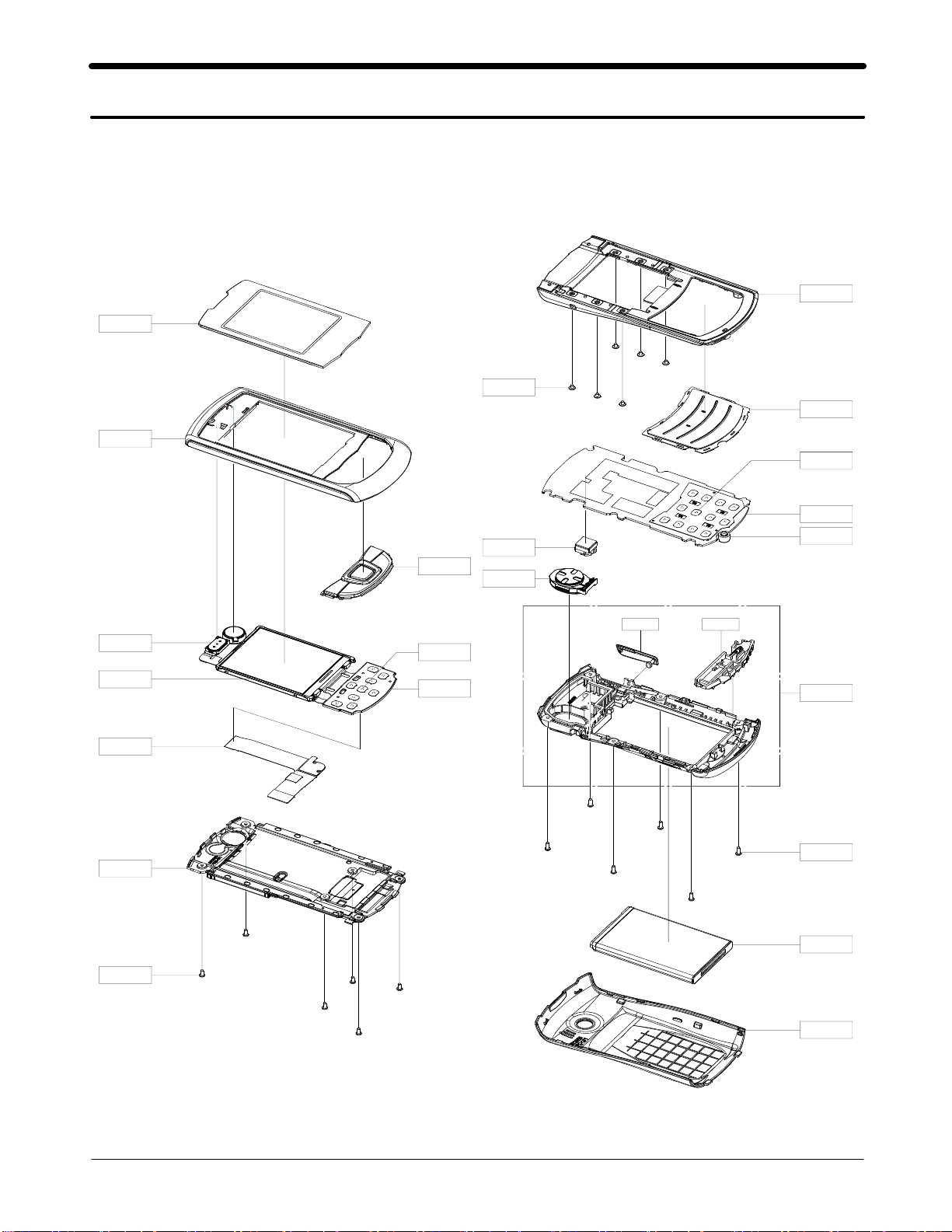

5-1. Cellular phone Exploded View
QFU01
QMO01
QLC01
QME16
QCR17
QFL01
QMW01
QCR93
QSP01
QCA01
QRE01
QFR01
QKP01
QMI01
QCR12
QBA01
QBC00
QMP01
QME01
QKP02
QLC02
QME02
QIF01 QAN02

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QSP01 SPEAKER 3001-002587
QCR17 SCREW-MACHINE 6001-001460
QCR12 SCREW-MACHINE 6001-001530
QCR93 SCREW-MACHINE 6001-002263
QMI01 MICROPHONE-ASSY-GT-E2550 GH30-00656A
QBA01 INNER BATTERY PACK-800MAH,BLK,UNI,MAIN GH43-03257A
QCA01 CAMERA MODULE-GT-C5010(1.3M) GH59-09031A
QLC02 ASSY ETC-LCD SUB PBA(GT-E2550) GH59-09170A
QME16 ASSY ETC-CON TO CON FPCB(GT-E2550) GH59-09171A
QMO01 MODULE-MOT/RCV FPCB(GT-E2550) GH59-09178A
QME01 DOME SHEET-GT-E2550 MAIN GH59-09200A
QME02 DOME SHEET-GT-E2550 SUB GH59-09201A
QMP01 A/S ASSY-GTE2550_PBA MAIN (SVC) GH82-04897A
QLC01 ASSY LCD-2.0" QQVGA STD SLIDE LCM WINTE GH96-04490A
QFU01 ASSY CASE-SLIDE UPPER GH98-16574A
QKP02 ASSY KEYPAD-SUB GH98-16579A
QKP01 ASSY KEYPAD-MAIN(3X4) GH98-16580A
QFR01 ASSY CASE-FRONT GH98-16838A
QMW01 ASSY COVER-MAIN WINDOW GH98-16840A
QFL01 ASSY CASE-SLIDE LOWER GH98-16917A
QBC00 ASSY COVER-BATTERY GH98-17273A
QRE01 ASSY CASE-REAR GH98-16839A
QAN02 INTENNA-MAIN(GT-E2550) GH42-02471A
QIF01 PMO COVER-IF GH72-59679A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6-1
This Document can not be used without Samsung's authorization
6. MAIN Electrical Parts List
6-1. GT-E2550 Main
SEC CODE Design LOC Description
4202-001512 ANT101 LDA212G4410K-283
3711-007393 BTC200 KQ03SB2-3R
2703-002207 C100 CIH05T3N3SNC
2203-001385 C101 GRP1555C1H1R5CZ01E
2703-002201 C102 CIH05T33NJNC
2203-000995 C103 GRP1555C1H470J
2203-007270 C104 CL10A106KP8NNNC
2203-005552 C110 GRP1555C1H2R2BZ01E
2203-000425 C111 GRP1555C1H180J
2203-005552 C112 GRP1555C1H2R2BZ01E
2203-006048 C113 GRM155R71A104K
2203-006399 C114 GRM155R60J105KE19D
2203-006399 C115 GRM155R60J105KE19D
2703-001728 C116 HK1005-1N5S-T
2203-005446 C118 GRP1555C1H2R7BZ01E
2203-005446 C120 GRP1555C1H2R7BZ01E
2203-005281 C125 GRP1555C1H1R5BZ01E
2203-005281 C126 GRP1555C1H1R5BZ01E
2203-006137 C127 CL05B223KONC
2203-005395 C128 C1005CG1H4R7BT
2203-006399 C129 GRM155R60J105KE19D
2203-006399 C130 GRM155R60J105KE19D
2203-006137 C131 CL05B223KONC
2203-000386 C132 GRP1555C1H150J
2203-000438 C133 GRP155R71H102K
2203-000627 C134 GRM1555C1H220J
2203-006872 C135 GRM155R60J225ME15D
2203-006208 C136 CM105X5R475M06AT
2203-006399 C137 GRM155R60J105KE19D
2203-006872 C138 GRM155R60J225ME15D
2203-000233 C140 GRP1555C1H101J
2203-002677 C143 CL05CR75BBNC
2203-005288 C144 GRP1555C1H1R0BZ01E
2203-000254 C145 GRP155R71C103K
2203-006048 C148 GRM155R71A104K
2203-006048 C149 GRM155R71A104K

SAMSUNG Proprietary-Contents may change without notice
MAIN Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-005052 C152 GRP1555C1H3R3CZ01E
2203-005053 C153 GRP1555C1H3R9CZ01E
2203-006348 C200 CV105X5R105K25AT
2203-006324 C201 GRM188R61A225KE19D
2203-007279 C202 CV105X5R106M10AT
2203-007279 C203 CV105X5R106M10AT
2203-006048 C204 GRM155R71A104K
2203-006825 C206 JMK107BJ106KA-T
2203-005450 C207 GRP1555C1H5R6BZ01E
2203-006048 C208 GRM155R71A104K
2203-005450 C209 GRP1555C1H5R6BZ01E
2203-006048 C210 GRM155R71A104K
2203-006048 C211 GRM155R71A104K
2203-000679 C212 GRP1555C1H270J
2203-006048 C213 GRM155R71A104K
2203-005450 C214 GRP1555C1H5R6BZ01E
2203-006048 C215 GRM155R71A104K
2203-006048 C216 GRM155R71A104K
2203-006048 C217 GRM155R71A104K
2203-006890 C218 CV105X5R106M06AT
2203-006399 C219 GRM155R60J105KE19D
2203-006399 C220 GRM155R60J105KE19D
2203-006257 C221 GRM155R60J474KE19E
2203-006257 C222 GRM155R60J474KE19E
2203-006257 C223 GRM155R60J474KE19E
2203-006474 C224 GRM21BR60J226ME
2203-007317 C225 CV05X5R475M06AH
2203-006257 C226 GRM155R60J474KE19E
2203-006824 C227 CV105X5R475K10AT
2203-006257 C228 GRM155R60J474KE19E
2203-006257 C229 GRM155R60J474KE19E
2203-006257 C230 GRM155R60J474KE19E
2203-006048 C231 GRM155R71A104K, 10V
2203-007279 C232 CV105X5R106M10AT
2203-006562 C233 CV05X5R105K10AH
2203-006048 C234 GRM155R71A104K
2203-000233 C235 GRP1555C1H101J

SAMSUNG Proprietary-Contents may change without notice
MAIN Electrical Parts List
This Document can not be used without Samsung's authorization
6-3
SEC CODE Design LOC Description
2203-000812 C236 GRP1555C1H330J
2203-006890 C237 CV105X5R106M06AT
2203-000854 C238 GRP1555C1H390J
2203-006824 C239 CV105X5R475K10AT
2203-006048 C240 GRM155R71A104K
2203-000386 C241 GRP1555C1H150J
2203-000386 C242 GRP1555C1H150J
2203-006048 C243 GRM155R71A104K
2203-000330 C244 GRP1555C1H120J
2203-006562 C245 CV05X5R105K10AH
2203-006257 C246 GRM155R60J474KE19E
2203-005483 C247 GRP155R61A683KA01E
2203-002709 C248 C1005Y5V1C104ZT
2203-006348 C251 CV105X5R105K25AT
2203-006399 C252 GRM155R60J105KE19D
2203-006562 C253 CV05X5R105K10AH
2203-006399 C254 GRM155R60J105KE19D
2203-000278 C300 GRP1555C1H100D
2203-000812 C301 GRP1555C1H330J
2203-000585 C302 GRP155R71H221KD01E
2203-006048 C303 GRM155R71A104K
2203-000995 C304 GRP1555C1H470J
2203-006048 C305 GRM155R71A104K
2203-000812 C306 GRP1555C1H330J
2203-006260 C307 GRM155R61A224KE19E
2203-000585 C308 GRP155R71H221KD01E
2203-006562 C309 CV05X5R105K10AH
2203-006048 C314 GRM155R71A104K
2203-000812 C317 GRP1555C1H330J
2203-006048 C320 GRM155R71A104K
2203-003054 C321 GRP1555C1H9R0C
2203-003054 C322 GRP1555C1H9R0C
2203-005057 C325 GRP1555C1H8R2CZ01E
2203-005057 C326 GRP1555C1H8R2CZ01E
2203-003054 C331 GRP1555C1H9R0C
2203-002709 C332 C1005Y5V1C104ZT
2203-000812 C333 GRP1555C1H330J

SAMSUNG Proprietary-Contents may change without notice
MAIN Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-005482 C334 GRP155R61A104KA01E
2203-005482 C335 GRP155R61A104KA01E
2203-006562 C339 CV05X5R105K10AH
2203-000311 C340 GRP1555C1H121JD01E
2203-006399 C341 GRM155R60J105KE19D
2203-001239 C342 GRP1555C1H820JD01E
2203-001239 C343 GRP1555C1H820JD01E
2203-000995 C345 GRP1555C1H470J
3709-001575 CD200 SCHA4B0301
0401-001141 D100 1SS400G
2904-001879 F101 SFR942PY002
2903-001424 F103 TBB-2012-245-C1E
2901-001408 F300 ICVE10054E250R201FR
2901-001408 F301 ICVE10054E250R201FR
2901-001408 F302 ICVE10054E250R201FR
3711-006865 HDC301 AXT634124AW1
3710-003148 IFC300 HY20-AB0315
2703-002269 L100 CIH05T56NJNC
2703-002281 L101 CIH05T5N6SNC
2703-001613 L102 HK1005-18NK-T
2703-002267 L103 CIH05T4N7SNC
2703-001708 L104 HK1005-5N6K-T
2703-003121 L106 MLG1005SR15J
2703-003297 L200 APIS08G4R7MT
2703-003546 L201 CIG22L6R8MNE
3301-001812 L202 BLM15HD102SN1
2703-003476 L300 LQG15HSR27J02D
3301-001756 L301 BLM15HG102SN1D
3301-001756 L302 BLM15HG102SN1D
3301-001917 L306 BLM15BD182SN1
3301-001917 L307 BLM15BD182SN1
3301-001970 L308 BLM15BA330SN1
0601-002846 LED300 19-217UTD/S759/TR8
0601-002846 LED301 19-217UTD/S759/TR8
0601-002846 LED302 19-217UTD/S759/TR8
0601-002846 LED303 19-217UTD/S759/TR8
2801-004787 OSC100 CXC6X260000GHVRN00

SAMSUNG Proprietary-Contents may change without notice
MAIN Electrical Parts List
This Document can not be used without Samsung's authorization
6-5
SEC CODE Design LOC Description
2801-004953 OSC200 Q13MC1462000400
1201-002985 PAM100 SKY77548
2007-000162 R101 RC1005J104CS
2007-000162 R102 RC1005J104CS
2007-003015 R104 MCR01MZP5J2R2
2007-003112 R105 MCR01MZP5J270
2007-000162 R106 RC1005J104CS
2007-000162 R108 RC1005J104CS
2007-000148 R201 RC1005J103CS
2007-000152 R202 RC1005J203CS
2007-001333 R203 MCR01MZP5J183
2007-007589 R204 RK73H1ETP6802F
2007-008354 R205 ERJ2RKF224X
2007-000148 R206 RC1005J103CS
2007-000141 R207 RC1005J222CS
2007-000166 R208 RC1005J304CS
2007-000143 R209 RC1005J472CS
2007-000159 R210 RC1005J563CS
2007-000159 R211 RC1005J563CS
2007-000159 R212 RC1005J563CS
2007-000159 R213 RC1005J563CS
2007-000149 R214 RC1005J123CS
2007-007573 R215 RK73H1ETP3303F
2007-008354 R216 ERJ2RKF224X
2007-001319 R217 RC1005J122CS
2007-001319 R218 RC1005J122CS
2007-000162 R219 RC1005J104CS
2007-001319 R220 RC1005J122CS
2007-001319 R221 RC1005J122CS
2007-000140 R222 RC1005J102CS
2007-007132 R223 RC1005F153CS
2007-000148 R225 RC1005J103CS
2007-001333 R226 MCR01MZP5J183
2007-000148 R300 RC1005J103CS
2007-000170 R301 RC1005J105CS
2007-001333 R302 MCR01MZP5J183
2007-000242 R304 RC1005J152CS

SAMSUNG Proprietary-Contents may change without notice
MAIN Electrical Parts List
6-6
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2007-000242 R305 RC1005J152CS
2007-000172 R307 RC1005J100CS
2007-002796 R308 MCR01MZP5J511
2007-002796 R309 MCR01MZP5J511
2007-000172 R310 RC1005J100CS
2007-000172 R314 RC1005J100CS
2007-000242 R315 RC1005J152CS
2007-000172 R316 RC1005J100CS
2007-000148 R319 RC1005J103CS
2007-000170 R320 RC1005J105CS
2007-001333 R321 MCR01MZP5J183
2007-001292 R324 RC1005J330CS
2007-001292 R325 RC1005J330CS
2007-001292 R326 RC1005J330CS
2007-001292 R327 RC1005J330CS
2007-000155 R328 RC1005J273CS
2007-000242 R329 RC1005J152CS
2007-001333 R331 MCR01MZP5J183
3301-001762 R332 BLM15BD471SN1D
2007-000138 R333 RC1005J101CS
2007-000168 R334 RC1005J474CS
2007-000146 R335 RC1005J682CS
2007-000146 R336 RC1005J682CS
2007-000168 R337 RC1005J474CS
2007-001333 R343 MCR01MZP5J183
2007-001292 R344 RC1005J330CS
2007-001292 R345 RC1005J330CS
3705-001731 RFS100 KMS-560-002-BEF
GH70-03349A SC100 ONBOARD-CLIP-6
GH70-03349A SC101 ONBOARD-CLIP-6
GH70-03349A SC102 ONBOARD-CLIP-6
GH70-03349A SC103 ONBOARD-CLIP-6
GH70-03349A SC104 ONBOARD-CLIP-6
GH70-03349A SC105 ONBOARD-CLIP-6
GH70-03349A SC106 ONBOARD-CLIP-6
GH70-03349A SC107 ONBOARD-CLIP-6
3709-001447 SIM200 5000-6P-1.9S

SAMSUNG Proprietary-Contents may change without notice
MAIN Electrical Parts List
This Document can not be used without Samsung's authorization
6-7
SEC CODE Design LOC Description
3710-003235 SOC300 3D1201087-ST31-7H
2203-007279 TA200 CV105X5R106M10AT
2404-001377 TA300 F980J226MMA
1205-003682 U100 QS520-0RFI
1205-003517 U101 BC63B239A04-IYB-E4S
1204-003022 U102 TEA5996UK
1009-001050 U200 S-5711ACDL-I4T1G
1203-005907 U201 MIC5365-1.5YMT
1001-001508 U300 NLAS5213A
0406-001286 U305 PESD5V0L5UV
1201-002675 U306 G1442RD1U
1205-003934 UCP200 PNX6608
1108-000343 UME100 K571229ACM-BQ12
1404-001221 VR200 NCP15WB473J04RC
0403-001688 ZD200 USFZ5.6V-RTK/H
0406-001281 ZD300 ESDALC6V1-1M2
0406-001281 ZD301 ESDALC6V1-1M2
0406-001281 ZD302 ESDALC6V1-1M2
0406-001281 ZD303 ESDALC6V1-1M2
0406-001201 ZD304 uClamp0501H
0406-001286 ZD305 PESD5V0L5UV
0406-001201 ZD306 uClamp0501H
0403-001832 ZD307 BZX884-C5V6
