Samsung GT-I5800 User manual

GSM TELEPHONE
GT-i5800
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2010. 06 Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

2. Specification
2-1
2-1. GSM General Specification
GSM850
Phase 1
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900 WCDMA210 0WCDMA900
Freq.
Band[MHz]
Uplink/Downlin
k
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1922~1977
2112~2167
880~915
925~960
ARFCN range 128~251 0~124 &
975~1023 512~885 512~810
UL:9612~98
88DL:10562
~10838
UL:2712~28
63,DL:2937
~3088
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz 190MHz 45MHz
Mod. Bit rate/
Bit Period
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
3.84Mcps 3.84Mcps
Time Slot
Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPS
K
QPSKHQPS
K
MS Power 33dBm~5dB
m
33dBm~5dB
m
30dBm~0dB
m
30dBm~0dB
m
24dBm~-
50dBm
24dBm~-
50dBm
Power Class 5pcl ~
19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dB
m)
3(max+24dB
m)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 88
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
•GSM(2G EDGE/GPRS) 850/900/1800/1900
•WCDMA(3G HSDPA 3.6) 900/2100
•3.2"
WQVGA 16M TFT LCD
•667
MHz Application Processor
•Seamless Onebody
•3M
pixel AF Camera
•FM Radio with RDS and real time recording
•Bluetooth v2.1
•USB 2.0 FS /Wi-Fi 802.11n / GPS
•Music player :MP3/AAC/AAC+/eAAC+/WMA/AMR/MIDI/SP-MIDI/i-melody/WAV/MMF
•Accelerator Sensor /Proximity Sensor /G-sensor
•Touch WIZ 3.0 UI ,Application store
•SMS/MMS/Email
•Multi-touch
•Multi-task manager
•Voice recording

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. S/W Download
6-1-1. Pre-requsite for S/W Downloading
•Downloader Program(Odin Multi Downloader v4.17)
•Binary files (Bootloader, PDA, Phone, CSC)
•OPS files
•USB Device Driver Files
•GT-I5800 Mobile Phone
•Data Cable
•JIG BOX (GH99-36900A)
•RF Test Cable (GH39-00985A)
•JIG Cable (GH39-01290A)
•Adapter (GH99-38251A)
•USB Cable

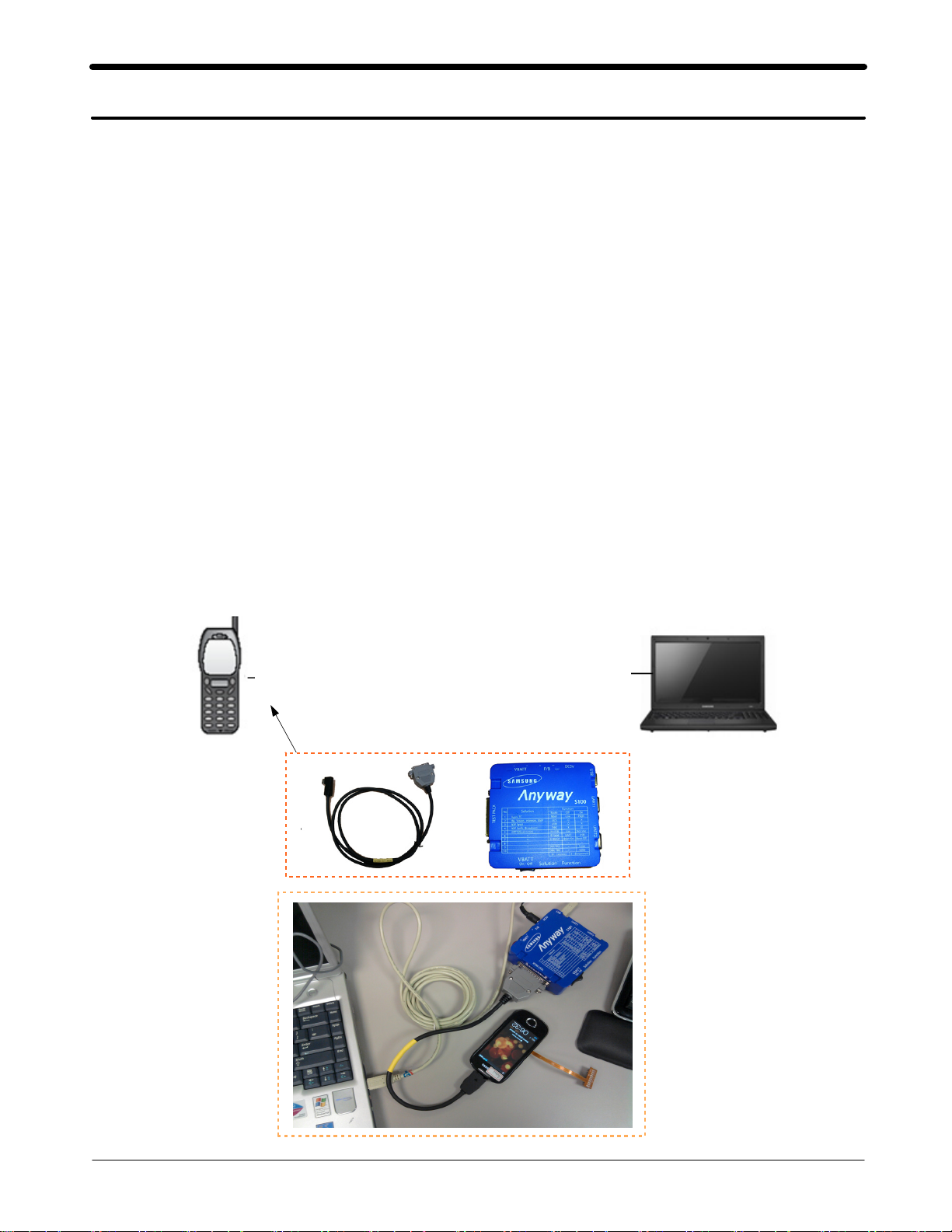

※Settings
Connect to ANYWAY JIG BOX
&JIG CABLE (Phone to JIG)

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization
6-1-2. S/W Downloader Program
1.Driver setup (when using first)
Unzip “Swallowtail_v4440_WHQL_Certified.zip”file. Execute “Setup.exe”file.
Unzip “shrewsbury-V5_02_0_3-WHQLed-with-ADB-customer-free.zip”.
Execute Setup.exe file.
After connecting USB cable to device, then booting.
Device driver will be installed automatically.
If you have aproblem to install or driver are not installed.
Execute “Swallowtail_v4440_WHQL_Certified \\ i386 \\ SSCDUninstall.exe”.
And rebooting.
Execute “shrewsbury-V5_02_0_3-WHQLed-with-ADB-customer-free.zip\\i386 \\
SSCDUninstall.exe”.
And rebooting.
2.Select OPS Open button and select apollo.ops. OPS file setup is only need first
time.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization

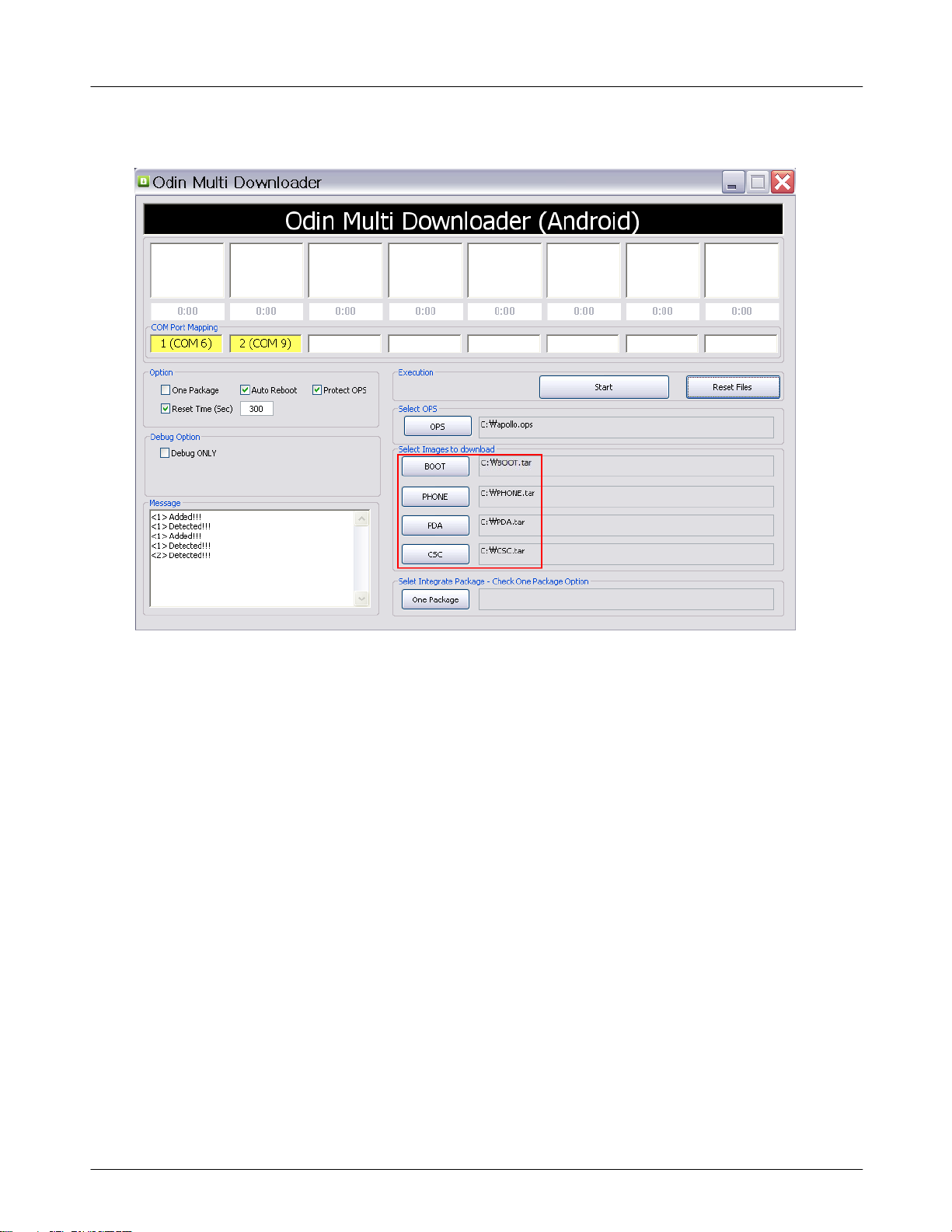

3.Select aimage to be updated.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization

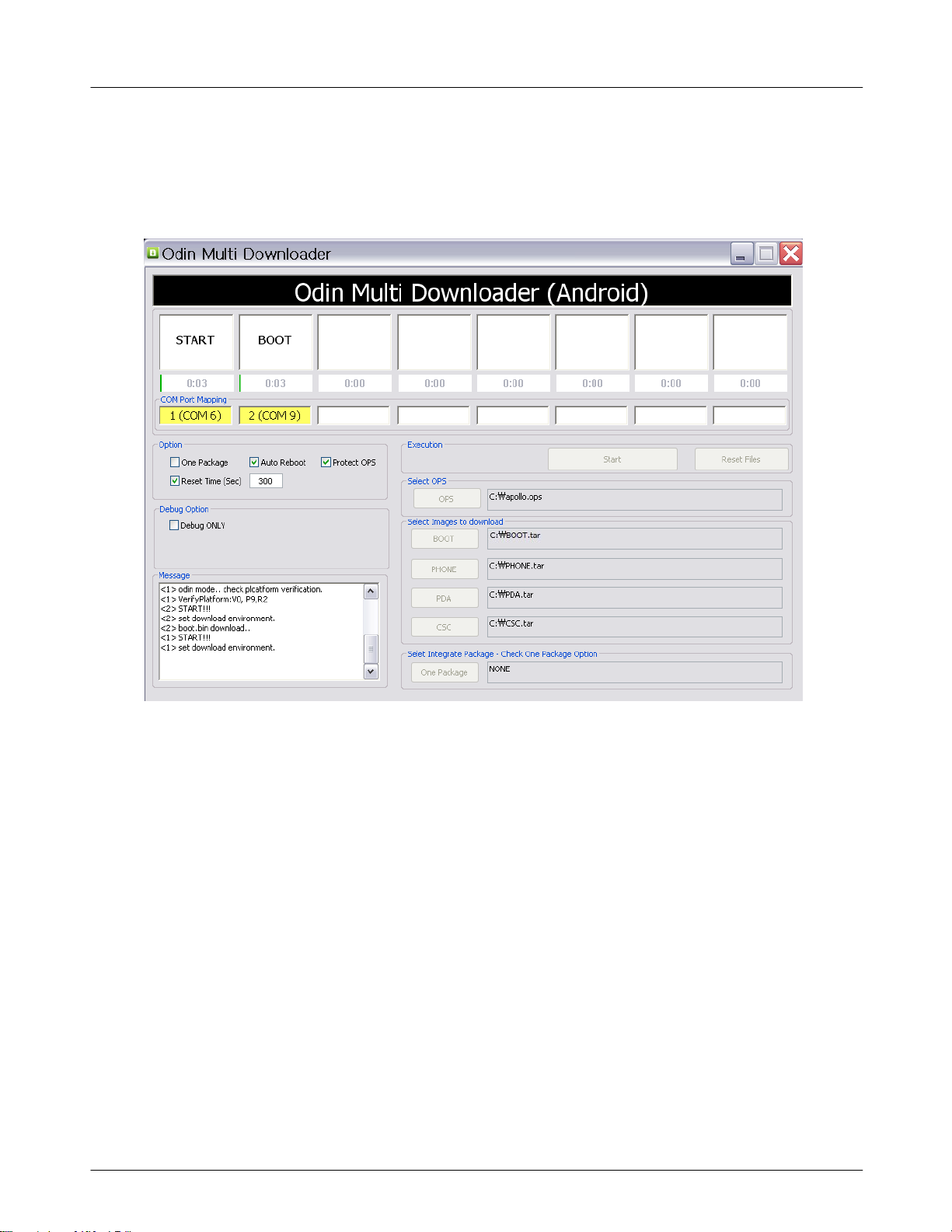

4.After turn off the cell phone.
And enter the download mode. [Volume Down key +OK key +POWER key].
After changing the mode, connect USB cable to device.
Then click Start to download!

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-5
This Document can not be used without Samsung's authorization
5.Confirm “8/8 Finished”text message.
If you can see “SAMSUNG”logo, Download was complete.
6.Confirm the downloaded version name and etc. :*#1234#
Full Reset :*2767*3855#

SAMSUNG Proprietary-Contents may change without notice
9. Reference Abbreviate
This Document can not be used without Samsung's authorization
9-1
Reference Abbreviate
―AAC:Advanced Audio Coding.
―AVC :Advanced Video Coding.
―BER :Bit Error Rate
―BPSK:Binary Phase Shift Keying
―CA :Conditional Access
―CDM :Code Division Multiplexing
―C/I :Carrier to Interference
―DMB :Digital Multimedia Broadcasting
―EN :European Standard
―ES :Elementary Stream
―ETSI:European Telecommunications Standards Institute
―MPEG:Moving Picture Experts Group
―PN :Pseudo-random Noise
―PS :Pilot Symbol
―QPSK:Quadrature Phase Shift Keying
―RS :Reed-Solomon
―SI :Service Information
―TDM :Time Division Multiplexing
―TS :Transport Stream

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization
4-1. Cellular phone Exploded View
QRE01
QME03
QFR01
QLC01
QAR01
QME05
QBR05
QMO01
QCA01
QVK01
QCR03
QBC00
QVO01
QKP01
QME01
QLB01
QMP01
QSP01
QBA01
QCK02
QIF01

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-1
This Document can not be used without Samsung's authorization
1) Be careful not to make scratch and molding damage! 1) Be careful not to make scratch and molding damage!
1) Push out REAR to both side. 1) Lift REAR upward.
7-1. Disassembly and Assembly Instructions
7-1-1. Disassembly
Release Screw 6Point at REAR
1 2
3Disjoint hook on the both side of the REAR Disassemble REAR
4
Disjoint Hook on the bottom of the REAR

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-2
This Document can not be used without Samsung's authorization
8

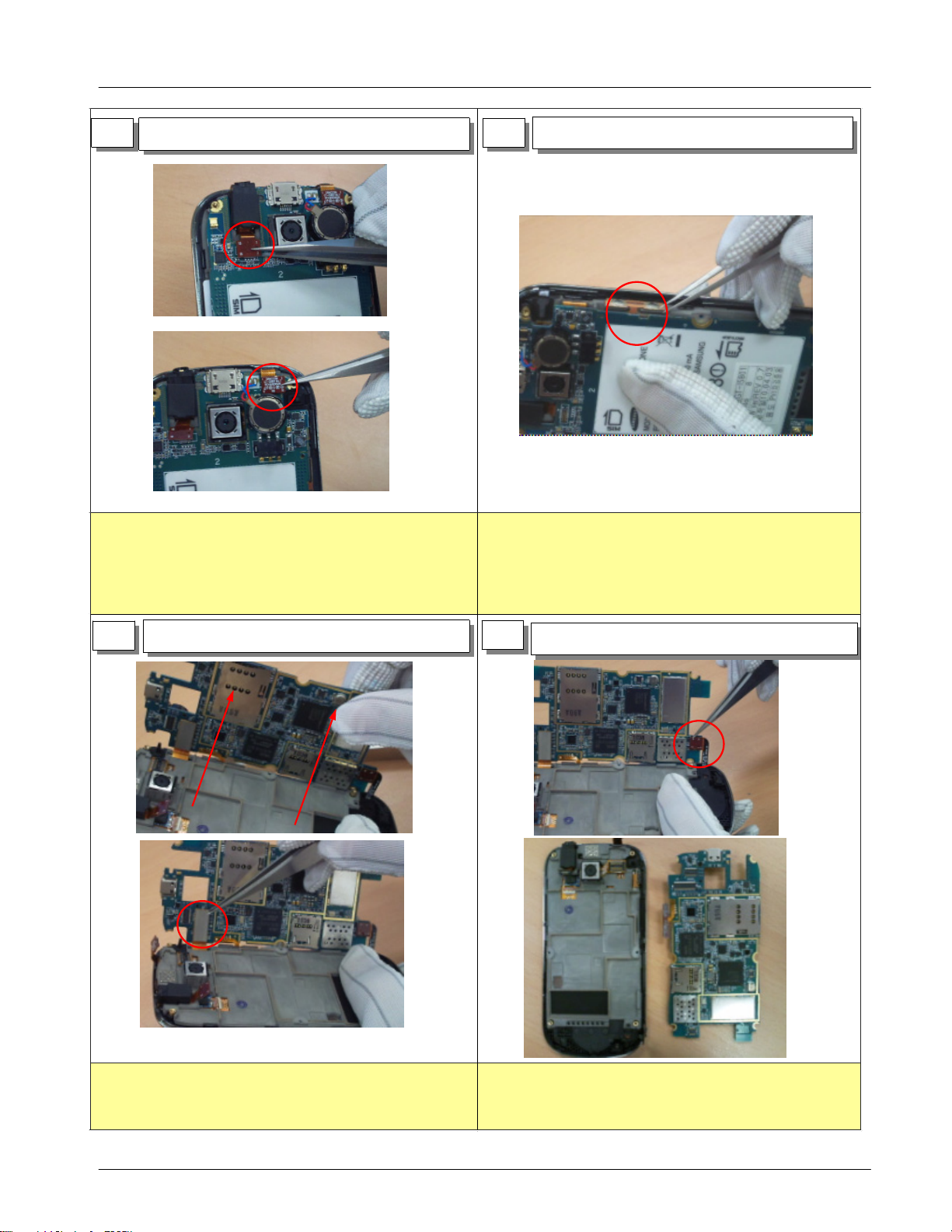

7Disassemble Main PBA from the FRONT Ass'y.
5Disassemble FPCB. Detach Side key FPCB
6
Disassemble Main PBA from the FRONT Ass'y.
1) Detach Ear jack FPCB with tweezer.
2) Detach Power key FPCB with tweezer. 1) Be careful not to damage to FPCB (Use tweezer!)
1) Hold up Main PBA.
2) Detach LCD FPCB with tweezer. 1) Detach Sub-key FPCB with tweezer.

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-3
This Document can not be used without Samsung's authorization
7-1-1. Assembly
12
34
Set aPBA and FRONT Ass'y
Assemble PBA on FRONT Ass'y
Assemble LCD FPCB/ Sub-key FPCB
Assemble Camera module
1) Detach Camera module from Bracket with tweezer.
2) Assemble Camera module on PBA.
1) Be careful not to make damage to FPCB 1) Assemble Ear jack FPCB/ Power key FPCB.

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-4
This Document can not be used without Samsung's authorization
56Assemble the hooks on the bottom of the rear
Assemble the hook on the top of the rear
Drive Screws at 6points with torque
1.2 +/- 0.1 Kgf/㎠.
7Assemble the hook on both side of the rear 8
1) Be careful not to make scratch and molding damage! 1) Be careful not to make scratch and molding damage!
1) Be careful not to make scratch and molding damage!

SAMSUNG Proprietary-Contents may change without notice
8. Level 3Repair
8-1
This Document can not be used without Samsung's authorization
8-1. Block Diagram
8-1-1
SAW
Out In
SAW
Out In
RTx
Tx
Rx

SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-2
This Document can not be used without Samsung's authorization
8-1-2
RTxTx
Rx
GT-I5800 RF BlOCK DIAGRAM #2
