Samsung GT-S6802 User manual

GSM TELEPHONE
GT-S6802
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Disassembly and Assembly
Instructions
8. Chart of Troubleshooting
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2012. 04. Rev.1.0
ⓒ

2. Specification
2-1
2-1. GSM General Specification
GSM850
Phase 1
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900 WCDMA2100 WCDMA900
Freq.
Band[MHz]
Uplink/Dow
nlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1922~1977
2112~2167
880~915
925~960
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810
UL:9612~988
8DL:10562~1
0838
UL:2712~286
3
DL:2936~308
8
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 45MHz
Mod. Bit
rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us 3.84Mcps 3.84Mcps
Time Slot
Period/Fram
ePeriod
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
FrameLength:
10ms
Slotlength:
0.667ms
FrameLength:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPSK QPSKHQPSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm 24dBm~-
50dBm
24dBm~-
50dBm
Power
Class 5pcl ~ 19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15
pcl 3(max+24dBm) 3(max+24dBm)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 8 8
Cell
Radius 35Km 35Km 2Km 2Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
•GSM(EDGE Rx only) 850/900/1800/1900 , 3G(900/2100)
•HSDPA 7.2Mbps
•3.5” HVGA TFT
•Music player, Voice Recorder
•GPS
•5M
AF Camera
•FM Radio Receiver
•Bluetooth v3.0+HS
•USB 2.0 / Wi-Fi (802.11 b/g/n)
•Sensors :Accelerometer, Compass
•Android Gingerbread OS
•SMS/MMS/Email

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. Software Download
6-1-1. Pre-requisite for Download
ㆍDownloader Program (Odin3 downloader)
ㆍGT-S6802 Mobile Phone
ㆍData Cable
ㆍJIG BOX (GH99-36900A)
ㆍRF Test Cable (GH39-00985A)
ㆍJIG Cable (GH39-01291A)
ㆍAdapter (GH99-38251A)
ㆍBinary files
※Settings

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization
6-1-2. S/W Download Process

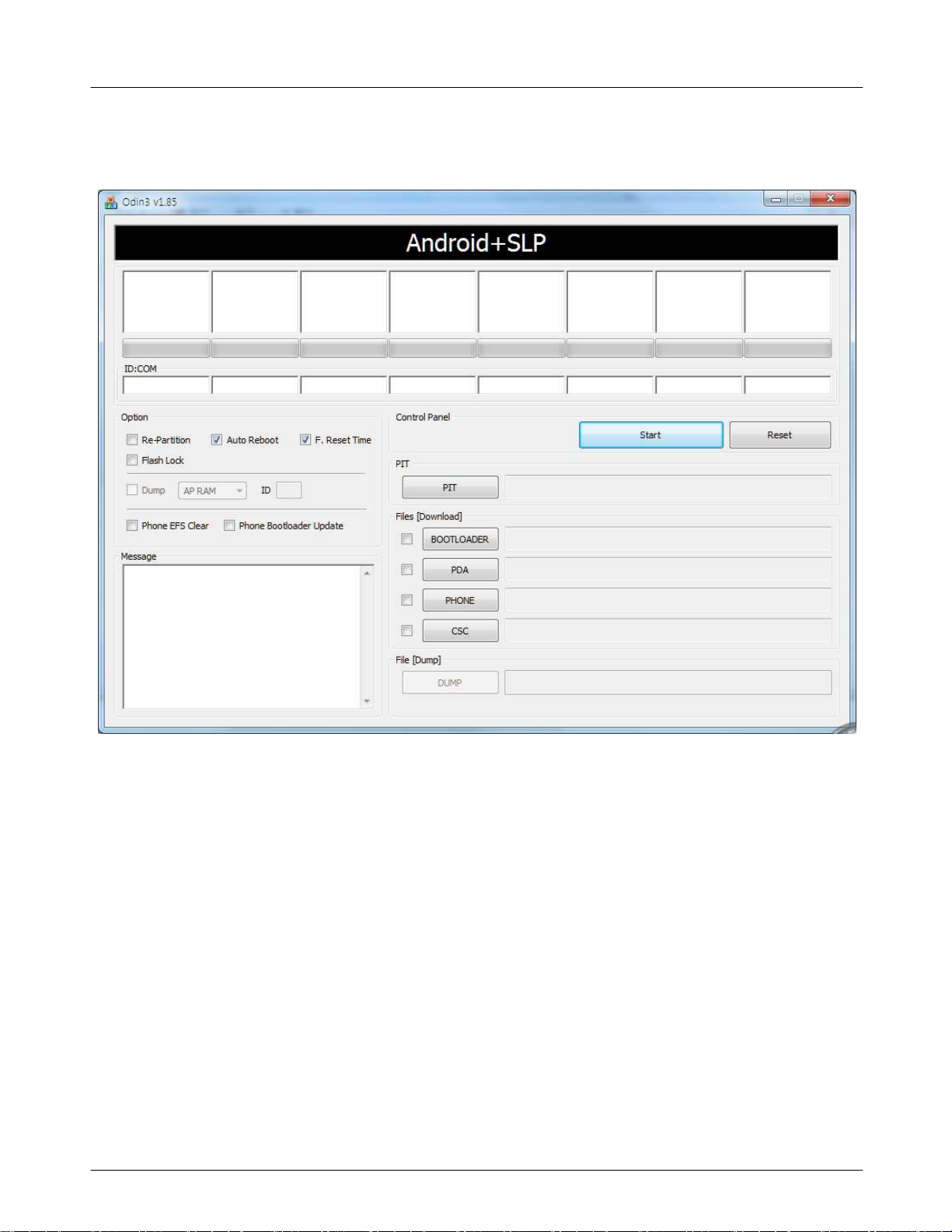

1. Load the binary download program by executing the "Odin3 Downloader"

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization

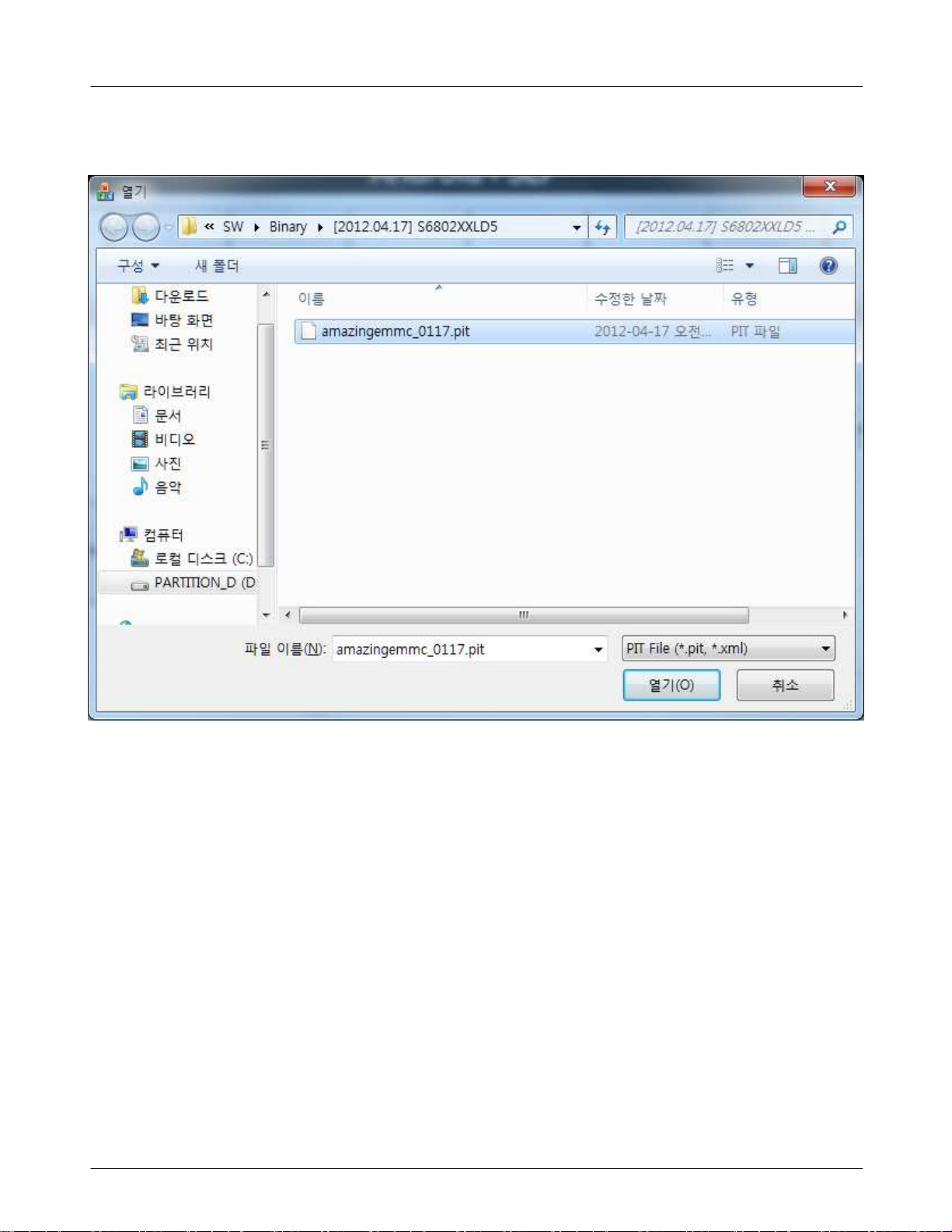

2. Click the PIT Button and Insert ".pit" binary file

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization
3. Click BOOTLOADER Button and Insert 'BOOT_........ "md5 file

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-5
This Document can not be used without Samsung's authorization

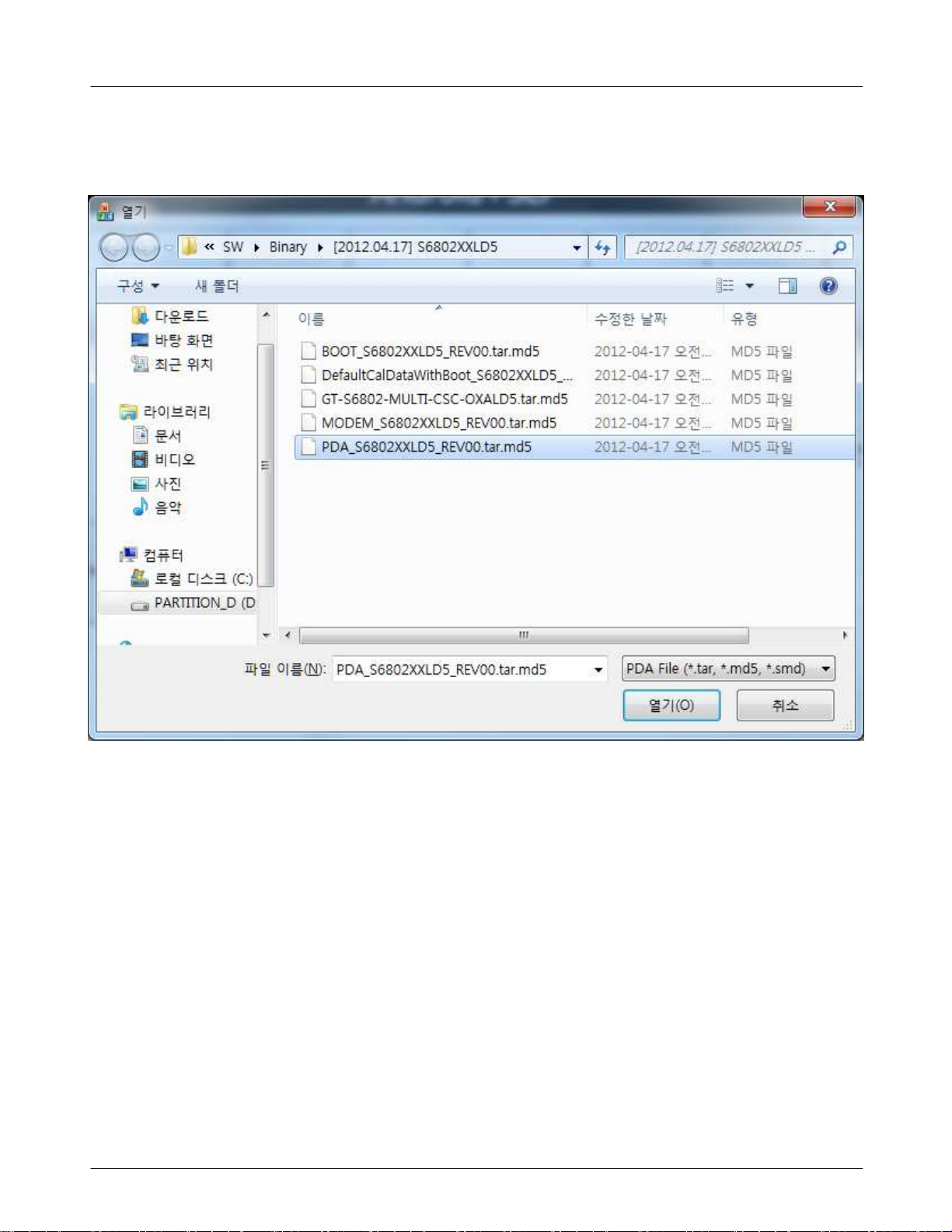

4. Click PDA Button and Insert 'PDA_......' md5 file

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-6
This Document can not be used without Samsung's authorization

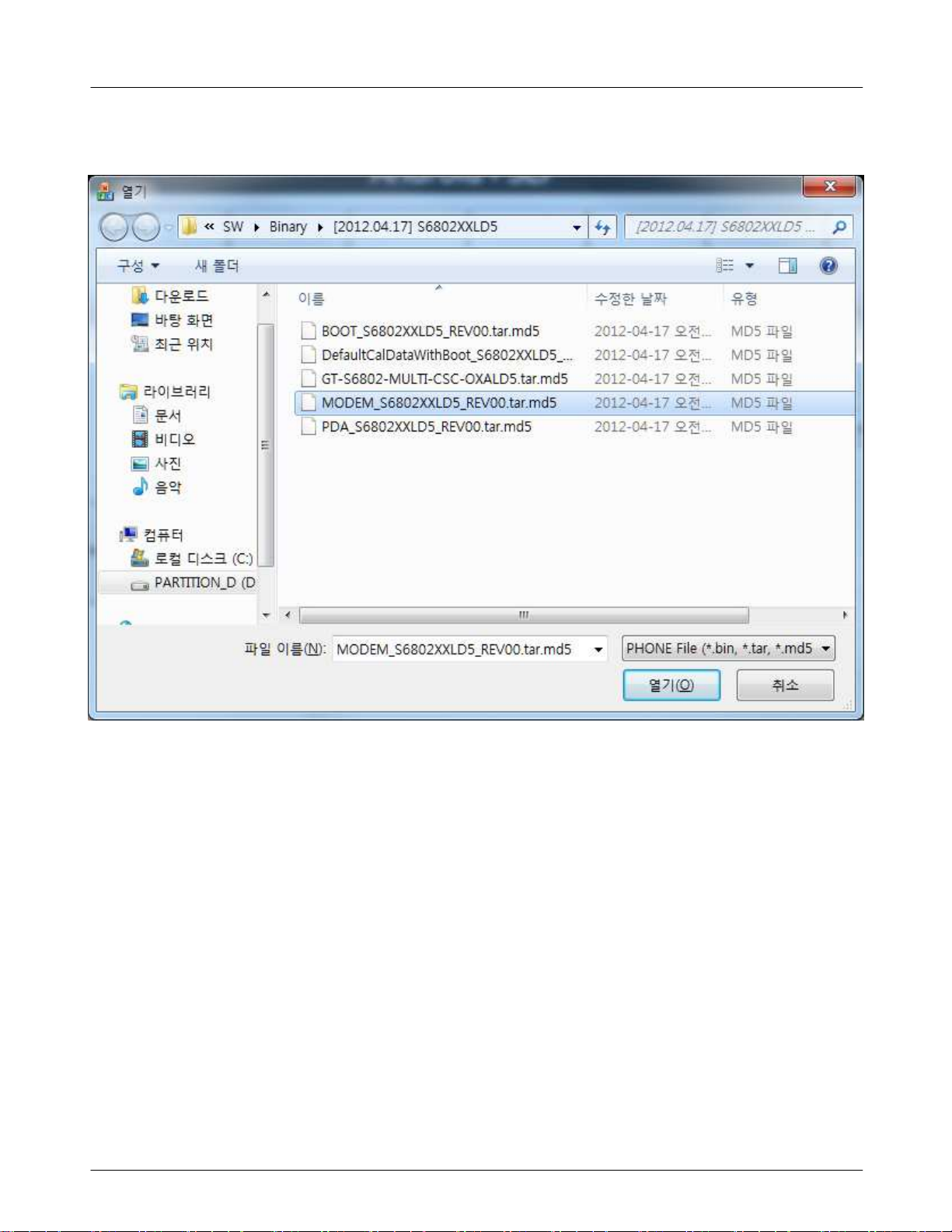

5. Click PHONE Button and Insert 'MODEM_.......' md5 file

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-7
This Document can not be used without Samsung's authorization
6. Click CSC Button and Insert 'CSC_........' md5 file

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-8
This Document can not be used without Samsung's authorization
7.Connect phone to PC
You have to set the phone as adownload mode by pressing Volume down +HomeKey +
Power on key simultaneously before connecting to PC.
Color will be changed to yellow if PC recognize phone properly.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-9
This Document can not be used without Samsung's authorization

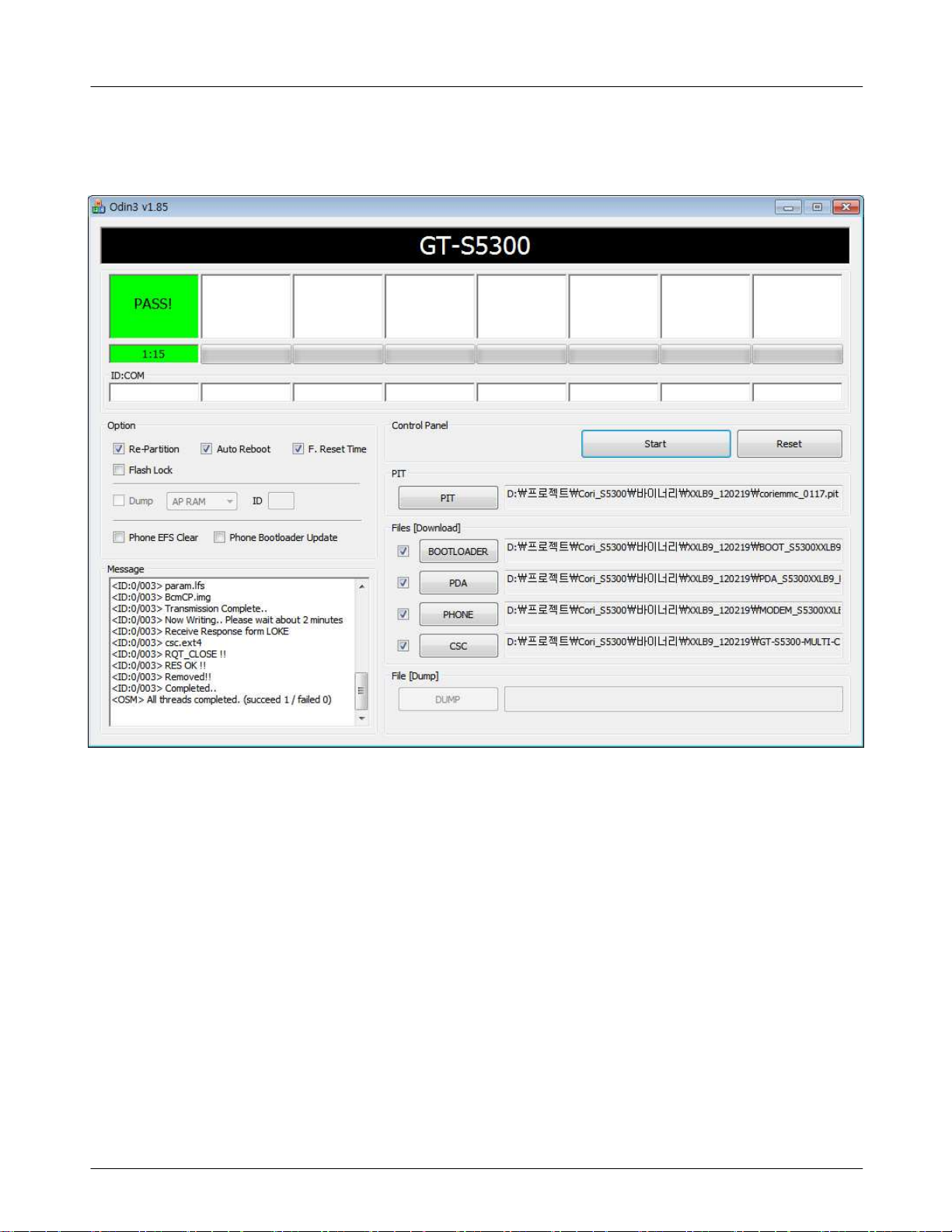

8. If you click start button, download is started.
Andyoucansee"PASS!" with green when download is done.
9. Confirm the downloaded version name and etc :
*#1234#

SAMSUNG Proprietary-Contents may change without notice
9. Reference Abbreviate
This Document can not be used without Samsung's authorization
9-1
Reference Abbreviate
―AAC:Advanced Audio Coding.
―AVC :Advanced Video Coding.
―BER :Bit Error Rate
―BPSK:Binary Phase Shift Keying
―CA :Conditional Access
―CDM :Code Division Multiplexing
―C/I :Carrier to Interference
―DMB :Digital Multimedia Broadcasting
―EN :European Standard
―ES :Elementary Stream
―ETSI:European Telecommunications Standards Institute
―MPEG:Moving Picture Experts Group
―PN :Pseudo-random Noise
―PS :Pilot Symbol
―QPSK:Quadrature Phase Shift Keying
―RS :Reed-Solomon
―SI :Service Information
―TDM :Time Division Multiplexing
―TS :Transport Stream

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization
4-1. Cellular phone Exploded View
QFR01
QME03
QLC01
QAR01
QCA01
QSP01
QCR101
QBC00
QMP01
QRE01
QME01
QAN02
QCR47
QVO01 QCK01
QKP01

Exploded View and Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’swritten authorization is? strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
4-1
4-2. Cellular phone Parts list
QAR01
ㅤ
AUDIO-RECEIVER 3009-001600
QCR47
ㅤ
SCREW-MACHINE 6001-001695
QCR67
ㅤ
SCREW-MACHINE 6001-002083
QAN02
ㅤ
INTENNA-MAIN (GT_S6352) GH42-03675A
QME03
ㅤ
TOUCH/PANEL-GT_S6802 GH59-12322A
QSP01
ㅤ
MODULE-SPK_(GT-S6802)+MOT GH59-12324A
QME01
ㅤ
DOME SHEET-GT_S6352 GH59-12373A
QCA01
ㅤ
CAMERA MODULE-5M 1/4" LSI(GT-S6802) GH59-12469A
QMP01
ㅤ
A/S ASSY-PBA MAIN (HONG) GH82-06747A
QLC01
ㅤ
ELA MODULE-LCD MODULE (GT-S6352) GH96-05682A
QBC00
ㅤ
ASSY COVER-BATT GH98-23650A
QFR01
ㅤ
ASSY CASE-FRONT GH98-23840A
QRE01
ㅤ
ASSY CASE-REAR GH98-23848A
ㅤ
QVO01 KEY-VOLUME GH64-00455A
ㅤ
QCK01 KEY-POWER GH64-00604A

SAMSUNG Proprietary-Contents may change without notice
5. MAIN Electrical Parts List
5-1
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
D400 DIODE-SWITCHING 0401-001110
ZD400 DIODE-ZENER 0403-001870
D600 DIODE-SCHOTTKY 0404-001646
ZD504,ZD506,ZD507DIODE-TVS 0406-001267
ZD508,ZD509,ZD510 DIODE-TVS 0406-001267
ZD501 DIODE-TVS 0406-001329
ZD502 DIODE-TVS 0406-001361
U406DIODE-TVS 0406-001462
Q600 FET-SILICON 0505-002088
U611 IC 1001-001715
U400 IC 1001-001723
UME300 MEMORY 1108-000464
U204IC 1201-002608
PAM100IC 1201-003303
U100 IC 1201-003366
PAM101 IC 1201-003427
U500 IC 1202-001128
U603IC 1203-007142
U600 IC 1203-007197
U402IC 1203-007314
U401 IC 1203-007358
U101IC 1205-004267
UCP300 IC 1205-004271
U202 IC 1205-004279
U203 IC 1205-004396
U403IC 1205-004513
U602IC 1209-002140
U601IC 1209-002144
V100 THERMISTOR 1404-001221
ZD500,ZD503,ZD505 DIODE-TVS 1405-001346
R406,R507 R-CHIP 2007-000138
R402,R403,R407 R-CHIP 2007-000140
R317,R320,R600,R601R-CHIP 2007-000141
R602,R607,R608,R613 R-CHIP 2007-000141
R614 R-CHIP 2007-000141
R309R-CHIP 2007-000143
R519 R-CHIP 2007-000144
R102,R201,R504,R606 R-CHIP 2007-000148
