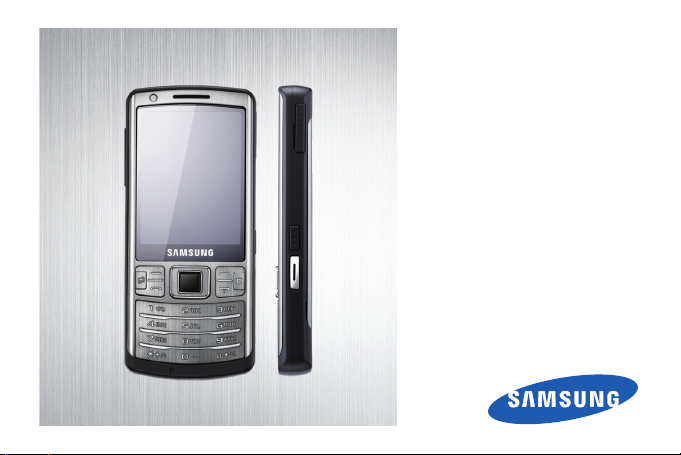

Samsung I7110 User manual

Samsung I7110
user manual

ii
using this
manual
This user manual has been specially designed to
guide you through the functions and features of
your device. To get started quickly, refer to the
Quick Start Guide.
Instructional icons
Before you start, familiarise yourself with the
icons you will see in this manual:
Warning—situations that could cause
injury to yourself or others
Caution—situations that could cause
damage to your device or other
equipment
Note—notes, usage tips, or additional
information
X Refer to—pages with related
information; for example:
X p. 12
(represents "see page 12")
→Followed by—the order of options or
menus you must select to perform a
step; for example: Press [ ] →Media
→Music player (represents [ ],
followed by Media, followed by Music
player)
[] Square brackets—device keys; for
example: [ ] (represents the End/
Power key).

iii
using this manual
Copyrights and trademarks
Rights to all technologies and products that
comprise this device are the property of their
respective owners:
ABOUT DIVX VIDEO
DivX®is a digital video format created by DivX,
Inc. This is an official DivX Certified device that
plays DivX video. Plays DivX®video up to
320x240. May play DivX®video up to
640x480.
ABOUT DIVX VIDEO-ON-DEMAND
This DivX®Certified device must be registered
with DivX in order to play DivX Video-on-
Demand (VOD) content. First generate the DivX
VOD registration code for your device and
submit it during the registration process.
[Important: DivX VOD content is protected by a
DivX DRM (Digital Rights Management) system
that restricts playback to registered DivX
Certified devices. If you try to play DivX VOD
content not authorised for your device, the
message "Authorization Error" will be displayed
and your content will not play.] Learn more at
www.divx.com/vod.
<> Angled brackets—softkeys that control
different functions at each screen; for
example: <OK> (represents the OK
softkey).
• This product includes software
licensed from Symbian Ltd.
© 1998-2008. Symbian and
Symbian OS are trademarks of
Symbian Ltd.
• Java™ is a trademark of Sun Microsystems,
Inc.
•Bluetooth
®is a registered trademark of the
Bluetooth SIG, Inc. worldwide— Bluetooth
QD ID: B014559.
• Windows Media Player®is a registered
trademark of Microsoft Corporation.
• DivX®is a registered
trademark of DivX, Inc., and
is used under licence.

iv
contents
safety and usage information 2
Safety warnings .......................................... 2
Safety precautions ...................................... 4
Important usage information ....................... 7
communication 10
Messages ................................................. 10
Log ........................................................... 20
media 23
Gallery ...................................................... 23
ShoZu ...................................................... 24
Video Editor .............................................. 25
Viewer & Editor ......................................... 29
Radio ........................................................ 32
RealPlayer® ............................................. 33
Recorder .................................................. 33
PC Studio ................................................. 34
DLNA ....................................................... 34
personal productivity 35
Contacts .................................................. 35
Calendar ................................................... 38
Quickoffice® ............................................ 39
Adobe® Reader® .................................... 39
Notes ....................................................... 40

v
contents
web 41
Browse a web page .................................. 42
Add a bookmark ....................................... 42
Use a bookmark ....................................... 43
Save a web page and view it offline .......... 43
Download files from the web ..................... 44
Download ................................................. 44
GyPSii ...................................................... 45
fring™ ...................................................... 46
Google ..................................................... 46
Yahoo! Go ................................................ 47
CNN ......................................................... 47
connectivity 48
Use the Bluetooth wireless feature ............ 48
Connect via USB ...................................... 51
Synchronise your device ........................... 52
additional programs 54
Calculator ................................................. 54
Clock ........................................................ 54
Converter ................................................. 56
GPS data .................................................. 57
Navigation ................................................ 59
Landmarks ............................................... 59
Smart reader ............................................ 60
managers 61
File manager ............................................. 61
Zip ............................................................ 63
Application manager ................................. 64
Device manager ....................................... 65
Licence manager ...................................... 65
Connection manager ................................ 66
settings 68
General settings ....................................... 68
Phone settings ......................................... 69
Connection settings .................................. 70
Applications settings ................................. 71
troubleshooting a
index e

2
safety and
usage
information
Comply with the following precautions to avoid
dangerous or illegal situations and ensure peak
performance of your device.
Keep your device away from small
children and pets
Keep your device and all accessories out of the
reach of small children or animals. Small parts
may cause choking or serious injury if
swallowed.
Protect your hearing
Safety warnings
Listening to a headset at high
volumes can damage your hearing.
Use only the minimum volume setting
necessary to hear your conversation
or music.

3
safety and usage information
Install mobile devices and
equipment with caution
Ensure that any mobile devices or related
equipment installed in your vehicle are securely
mounted. Avoid placing your device and
accessories near or in an air bag deployment
area. Improperly installed wireless equipment
can cause serious injury when air bags inflate
rapidly.
Handle and dispose of batteries and
chargers with care
• Use only Samsung-approved batteries and
chargers specifically designed for your
device. Incompatible batteries and chargers
can cause serious injuries or damage to your
device.
• Never dispose of batteries or devices in a
fire. Follow all local regulations when
disposing used batteries or devices.
• Never place batteries or phones on or in
heating devices, such as microwave ovens,
stoves, or radiators. Batteries may explode
when overheated.
Avoid interference with pacemakers
Maintain a minimum of 15 cm (6 inches)
between mobile devices and pacemakers to
avoid potential interference, as recommended
by manufacturers and the independent
research group, Wireless Technology
Research. If you have any reason to suspect
that your device is interfering with a pacemaker
or other medical equipment, turn off the device
immediately and contact the manufacturer of
the pacemaker or medical equipment for
guidance.

4
safety and usage information
Turn off the device in potentially
explosive environments
Do not use your device at refuelling points
(service stations) or near fuels or chemicals.
Turn off your device whenever directed by
warning signs or instructions. Your device could
cause explosions or fire in and around fuel or
chemical storage and transfer areas or blasting
areas. Do not store or carry flammable liquids,
gases, or explosive materials in the same
compartment as the device, its parts, or
accessories.
Reduce the risk of repetitive motion
injuries
When sending text messages or playing games
on your device, hold the device with a relaxed
grip, press the keys lightly, use special features
that reduce the number of keys you have to
press (such as templates and predictive text),
and take frequent breaks.
Drive safely at all times
Avoid using your device while driving and obey
all regulations that restrict the use of mobile
devices while driving. Use hands-free
accessories to increase your safety when
possible.
Follow all safety warnings and
regulations
Comply with any regulations that restrict the use
of a mobile device in a certain area.
Use only Samsung-approved
accessories
Using incompatible accessories may damage
your device or cause injury.
Safety precautions

5
safety and usage information
Turn off the device near medical
equipment
Your device can interfere with medical
equipment in hospitals or health care facilities.
Follow all regulations, posted warnings, and
directions from medical personnel.
Turn off the device or disable the
wireless functions when in an
aircraft
Your device can cause interference with aircraft
equipment. Follow all airline regulations and turn
off your device or switch to a mode that
disables the wireless functions when directed
by the airline personnel.
Protect batteries and chargers from
damage
• Avoid exposing batteries to very cold or very
hot temperatures (below 0° C/32° F or
above 45° C/113° F). Extreme temperatures
can reduce the charging capacity and life of
your batteries.
• Prevent batteries from contacting metal
objects, as this can create a connection
between the + and - terminals of your
batteries and lead to temporary or
permanent battery damage.
• Never use a damaged charger or battery.
• Risk of explosion if a battery or device is
replaced by an incorrect type. Dispose of
used batteries or devices according to the
instructions.

6
safety and usage information
Handle your device carefully and
sensibly
• Do not allow your device to get wet—liquids
can cause serious damage. Do not handle
your device with wet hands. Water damage
to your device can void your manufacturer’s
warranty.
• Avoid using or storing your device in dusty,
dirty areas to prevent damage to moving
parts.
• Your device is made of complex
electronics—protect it from impacts and
rough handling to avoid serious damage.
• Do not paint your device, as paint can clog
moving parts and prevent proper operation.
• Avoid using the device’s camera flash or light
close to the eyes of children or animals.
• Your device and memory cards may be
damaged by exposure to magnetic fields.
Do not use carrying cases or accessories
with magnetic closures or allow your device
to come in contact with magnetic fields for
extended periods of time.
Avoid interference with other
electronic equipment
Your device emits radio frequency (RF) signals
that may interfere with unshielded or improperly
shielded electronic equipment, such as
pacemakers, hearing aids, and medical
equipment in homes or vehicles. Consult the
manufacturers of your electronic equipment to
solve any interference problems you
experience.

7
safety and usage information
Use your device in the normal
position
Avoid contact with your device’s internal
antenna.
Allow only qualified personnel to
service your device
Allowing unqualified personnel to service your
device may result in damage to your device and
will void your warranty.
Ensure maximum battery and
charger life
• Avoid charging batteries for more than a
week, as overcharging may shorten battery
life.
• Over time, unused batteries will discharge
and must be recharged before use.
• Disconnect chargers from power sources
when not in use.
• Use batteries only for their intended
purpose.
Handle SIM cards and memory
cards with care
• Do not remove a card while the device is
transferring or accessing information, as this
could result in loss of data and/or damage to
the card or device.
• Protect cards from strong shocks, static
electricity, and electrical noise from other
equipment.
• Frequent writing and erasing will shorten the
life span of memory cards.
• Do not touch gold-coloured contacts or
terminals with your fingers or metal objects. If
dirty, wipe the card with a soft cloth.
Important usage information

8
safety and usage information
Ensure access to emergency
services
Emergency calls from your device may not be
possible in some areas or circumstances.
Before travelling in remote or undeveloped
areas, plan an alternate method of contacting
emergency services personnel.
Specific Absorption Rate (SAR)
certification information
Your device conforms to European Union (EU)
standards that limit human exposure to radio
frequency (RF) energy emitted by radio and
telecommunications equipment. These
standards prevent the sale of mobile devices
that exceed a maximum exposure level (known
as the Specific Absorption Rate, or SAR) of 2.0
watts per kilogram of body tissue.
During testing, the maximum SAR recorded for
this model was 0.825 watts per kilogram. In
normal use, the actual SAR is likely to be much
lower, as the device has been designed to emit
only the RF energy necessary to transmit a
signal to the nearest base station. By
automatically emitting lower levels when
possible, your device reduces your overall
exposure to RF energy.
The Declaration of Conformity at the back of
this manual demonstrates your device’s
compliance with the European Radio & Terminal
Telecommunications Equipment (R&TTE)
directive. For more information about the SAR
and related EU standards, visit the Samsung
mobile website.

9
safety and usage information
Correct disposal of this product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union
and other European countries with
separate collection systems)
This marking shown on the product
or its literature, indicates that it should
not be disposed with other household wastes
at the end of its working life. To prevent
possible harm to the environment or human
health from uncontrolled waste disposal, please
separate this from other types of wastes and
recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the
retailer where they purchased this product, or
their local government office, for details of
where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier
and check the terms and conditions of the
purchase contract. This product should not be
mixed with other commercial wastes for
disposal.

10
communication
Your device allows you to send and receive many
types of calls and messages over cellular networks
and the internet.
Messages
Learn to use messaging functions. For
instructions on entering text, see the Quick Start
Guide.
Message folders
When you open Messaging, you will see the
New message function and a list of folders:
•Inbox: received messaging, except email
and cell broadcast messages
•My folders: message templates and saved
messages
•New mailbox: received email messages;
when you create a mailbox, the name you
specify will appear here
•Drafts: messages you have not yet sent
•Sent: recent sent messages
•Outbox: temporary storage for messages
waiting to be sent

11
communication
•Reports: delivery reports of text and
multimedia messages; you must request a
delivery report in the message options
before sending
Inbox icons
In the Inbox, you may see the following icons
next to your messages:
Outbox status
When you are outside your service area or have
no connection to the network or email server,
your messages will remain in the Outbox folder
until you re-establish a connection. The Outbox
status explains why a message is being held in
the Outbox folder:
•Sending: the device is connecting and the
message will be sent immediately
•Waiting: the message is in cue behind
another message and will be sent as soon
as possible
• Messages sent via the Bluetooth wireless
feature are not saved in the Drafts or Sent
folder.
• You may not receive a delivery report for a
multimedia message if you send it to an
email address.
Icon Description
Unread text message
Multimedia message notification
Unread multimedia message
Unread smart message
Unread service message
Data received via a Bluetooth
connection
Unknown message type
Icon Description

12
communication
•Resend at (time): the message has failed to
send and will be sent at the specified time
•Deferred: the message has been
scheduled to send at a later time
•Failed: the device has attempted to send
the message multiple times, but has failed
Retrieve messages from a SIM card
If you have text messages stored on a SIM
card, you must copy them to the device before
you can view them.
1. In Standby mode, press [ ] →Messaging
→<Options>→SIM messages.
2. Press <Options> →Mark/Unmark →
Mark (to select one) or Mark all (to select
all).
3. Press <Options> →Copy →Inbox or a
folder.
You can now view the messages from the
folder on your device.
Multimedia messages
Before you can send multimedia messages,
you must define an access point.
Set an access point
Your service provider may supply access point
settings via a smart message. To automatically
set an access point using a smart message,
see "Save smart message data or settings to
your device."
X p. 19
To manually set an access point,
1. In Standby mode, press [ ] →Settings →
Settings →Connection →Destinations
→Multimedia msg.
2. Scroll down and press the Confirm key to
select an existing access point or press
<Options> →New access point.
3. Set access point options according to the
instructions provided by your service
provider.

13
communication
Send a multimedia message
1. In Standby mode, press [ ] →Messaging
→New message →Message.
2. Enter a phone number or press the Confirm
key to select a contact.
3. Scroll down and enter text.
4. To insert an existing multimedia object,
press <Options> →Insert content →an
object type →From Gallery. To create and
insert a new multimedia object, press
<Options> →Insert content →an object
type →New.
5. Press <Options> → Send to send the
message.
Edit a multimedia message
You can edit your multimedia message before
sending it:
• To add fields to the message header, press
<Options> →Message header fields →a
field type
• To change the message layout, press
<Options> →Place text last or Place text
first
• To remove an item, press <Options> →
Remove →an item
View a multimedia message
1. In Standby mode, press [ ] →Messaging
→Inbox.
2. Scroll to a message and press the Confirm
key to select the message.
Listen to voice mail
If your voice mail number is preset by your
service provider, you can press and hold [1] to
access your voice mail.
You can only add images with a resolution of
176 x 144 or lower.
You can add images, sounds, or videos to
slides; however, you can only add one type
of media type per slide.

14
communication
If the voice mail number is not preset or if you
need to change the voice mail number,
1. In Standby mode, press [ ] →Tools →
Call mailbox →<Options>→Change
number.
2. Enter the voice mail number provided by
your service provider and press <OK>.
You can now access your voice mail from
Standby mode by pressing and holding [1].
Email messages
Before you send or receive email messages,
you must create a mailbox.
Create a mailbox
1. In Standby mode, press [ ] →Messaging
→<Options>→Settings →E-mail or
Sync e-mail →Mailboxes.
2. Press <Options> →New mailbox.
3. Press <Start> to start the mailbox setup
wizard and follow the on-screen
instructions.
The new mailbox will automatically appear in
Messaging. To change the current mailbox,
return to email settings and switch the "Mailbox
in use" to another mailbox.
Send an email message
1. In Standby mode, press [ ] →Messaging
→New message →E-mail.
2. Enter an email address or press the
Confirm key to select a contact.
3. Scroll down and enter a subject.
4. Scroll down and enter text.
If you use the POP3 protocol, the mailbox will
not update automatically when you are
online. You must disconnect and then
reconnect to view new messages.

15
communication
5. Press <Options> →Insert →an object
type (optional).
6. Press <Options> →Send.
If you are offline or outside your service area,
the message will be held in the Outbox folder
until you are online and in your service area.
View an email message
When you open a mailbox, you can view
previously retrieved emails offline or connect to
the email server to view new messages. After
you retrieve email messages, you can view
them offline.
To view new messages online,
1. In Standby mode, press [ ] →Messaging
→your mailbox.
2. Press <Options> →Connect.
3. Press <Options> →Retrieve e-mail →
New.
To view new messages offline,
1. Repeat steps 1-3 above.
2. Press <Options> →Disconnect.
View or save email attachments
To view an attachment,
1. From an open email message, press
<Options> →Attachments.
2. Scroll to the attachment and press the
Confirm key.
The attachment opens with the
corresponding application.
To save an attachment,
1. From an open email message, press
<Options> →Attachments.
Email attachments ( ) may contain viruses
that can damage your device. To protect
your device, open attachments only if you
trust the sender.

16
communication
2. Scroll to the attachment and press
<Options> →Save.
Delete an email message
You can delete email messages from your
device only or from both your device and the
mail server.
To delete a message from your device only,
1. In Standby mode, press [ ] →Messaging
→your mailbox.
2. Scroll to an email and press <Options> →
Delete →Phone only.
To delete a message from both your device and
the mail server,
1. In Standby mode, press [ ] →Messaging
→your mailbox.
2. Scroll to an email and press <Options> →
Delete →Phone and server.
Instant messages
You can send and receive instant messages
(IM) if your service provider supports this
feature.
Log in to the IM server
1. In Standby mode, press [ ] →
Connectivity →IM.
2. If the device does not attempt to log in
automatically, press <Options> →Log in.
3. Select an account.
The email header will remain in your mailbox
until you delete the message from the mail
server.
If you are offline, messages will be deleted
from the server the next time you connect. If
you are using the POP3 protocol, deleted
messages are removed when you close the
mailbox connection.
