Samsung S7330 User manual

GSM TELEPHONE
SAMSUNG S7330
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. Main Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2008. 08. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

2. Specification
2-1
2-1. GSM General Specification
EGSM 850
Phase 2
EGSM 900
Phase 2 DCS1800 PCS1900 WCDMA
Freq. Band[MHz]
Uplink/Downlink
824~915
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1920~1980
2110~2170
ARFCN range 128~251 0~124 &
975~1023 512~885 512~810 10562~10838
Tx/Rx spacing 45 MHz 45 MHz 95 MHz 80MHz 190MHz
Mod. Bit rate/
Bit Period
270.833 Kbps
3.692 us
270.833 Kbps
3.692 us
270.833 Kbps
3.692 us
270.833 Kbps
3.692 us 3.84Mcps/s
Time Slot Period/
Frame Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms 10ms
Modulation 0.3 GMSK 0.3 GMSK 0.3 GMSK 0.3 GMSK
Up Link:2BPSK
Down
Link:QPSK
MS Power 33 dBm~5
dBm
33 dBm~5
dBm
30 dBm~0
dBm
30 dBm~0
dBm
MAX:24(+1.-3)
dBm
MIN:<-50dBm
Power Class 5 pcl ~19pcl 5pcl ~19pcl 0pcl ~15pcl 0pcl ~15pcl CLASS 3
Sensitivity -102 dBm -102 dBm -100 dBm -100 dBm -106.7 dBm
TDMA Mux 8 8 8 8 -
Cell Radius 35 Km 35 Km 2 Km - -

Specification
2-2
2-2. GSM TX power class
TX Power
control
level
GSM850 /
EGSM900
5 33±2 dBm
6 31±2 dBm
7 29±2 dBm
8 27±2 dBm
9 25±2 dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
▪Bluetooth Class 2
▪Extended GSM 850 & 900MHz &DCS1800MHz &PCS1900MHz &WCDMA 2100MHz
FIVE Band
▪Slide type
▪Color LCD (2.22" QVGA 38.43×54.31×1.85t_max)
▪Sub LCD (1.11" CSTN 26.24×24.4×1.4t_max)
▪DACP TOUCH PANNEL
▪Built-in AF 3Mega pixel and CIF Camera
▪Built-in MP3 Player
▪GPRS Multi-slot Class 12
▪Downloadable Game via JAVA
▪Sending Photo &Video by MMS or E-Mail
▪External Memory Card Socket (T-flash)
▪880mAh Battery

SAMSUNG Proprietary-Contents may change without notice
11.Reference data
11-1
This Document can not be used without Samsung's authorization
Reference Abbreviation
-AAC:Advanced Audio Coding.
-AVC :Advanced Video Coding.
-BER :Bit Error Rate
-BPSK:Binary Phase Shift Keying
-CA :Conditional Access
-CDM :Code Division Multiplexing
-C/I :Carrier to Interference
-DMB :Digital Multimedia Broadcasting
-EN :European Standard
-ES :Elementary Stream
-ETSI:European Telecommunications Standards Institute
-MPEG:Moving Picture Experts Group
-PN :Pseudo-random Noise
-PS :Pilot Symbol
-QPSK:Quadrature Phase Shift Keying
-RS :Reed-Solomon
-SI :Service Information
-TDM :Time Division Multiplexing
-TS :Transport Stream

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

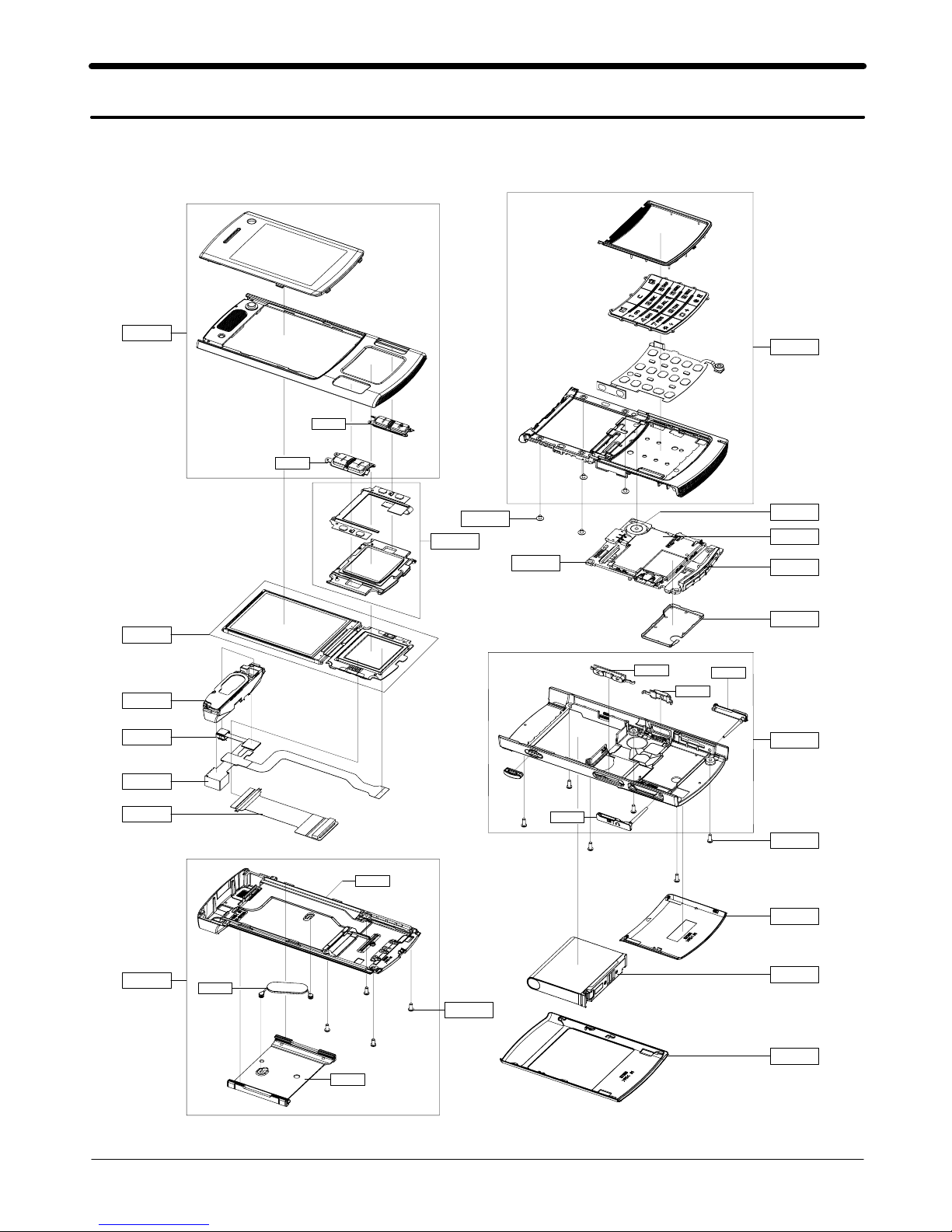

5-1. Cellular phone Exploded View
QFU01
QCR57
QMP01
QLC01
QSP01
QCA02
QCA01
QPC01
QFL00
QVO01
QHI02
QFL01
QCK01
QSD01
QRF03
QKP03
QHI03
QKP02
QFR01
QAN02
QSH02
QRE01
QRE04
QBA01
QBA00
QCR67
QCR67
QMO01
QSH01
QME03

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAN02 INTENNA-GT_S7330 GH42-01605A
QBA00 ASSY COVER-BATT UPPER GH98-09403A
QBA01 INNER BATTERY PACK-880MAH , BL GH43-02666A
QCA01 ELA UNIT-CAMERA ASSY(3M S7330) GH96-03207A
QCA02 ELA UNIT-CAMERA ASSY(CIF S7330 GH96-03208A
QCR57 SCREW-MACHINE 6001-002001
QCR67 SCREW-MACHINE 6001-002083
QCR67 SCREW-MACHINE 6001-002083
QFR01 ASSY CASE-FRONT GH98-08487A
QLC01 ELA UNIT-GT_S7330 LCD ASSY GH96-03338A
QME03 KEY FPCB-GT_S7330 TOUCH KEY GH59-05897A
QMO01 MOTOR LINEAR VIBRATION-GT_S733 GH31-00449A
QMP01 A/S ASSY-GT_S7330 PBA MAIN GH82-03098A
QPC01 FPC-GT_S7330 SLIDE FPCB GH41-02179A
QRE04 ASSY DECO-REAR GH98-10034A
QSH01 ASSY COVER-SHIELD CAN BTM GH98-09621A
QSH02 ASSY COVER-SHIELD CAN TOP GH98-10276A
QSP01 UNIT-GT_S7330 SPK MODULE GH59-05889A
QFL00 ASSY CASE-S/LOWER HINGE GH98-08484A
QFL01 ASSY CASE-S/LOWER GH98-08617A
QHI02 ASSY HINGE-PLATE GH98-08490A
QHI03 ASSY HINGE-LINK PNTEL 43ANS V2 GH98-09739A
QFU01 ASSY CASE-SLIDE UPPER GH98-08485A
QKP02 ASSY KEYPAD-SUB L(XEN/LS) GH98-08491A
QKP03 ASSY KEYPAD-SUB R(XEN/LS) GH98-08616A
QRE01 ASSY CASE-REAR GH98-08488A
QCK01 PMO KEY-CAM GH72-47969A
QRF03 PMO COVER-EARJACK GH72-47976A
QSD01 PMO COVER-MICRO SD GH72-47975A
QVO01 PMO KEY-VOLUME GH72-47970A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice

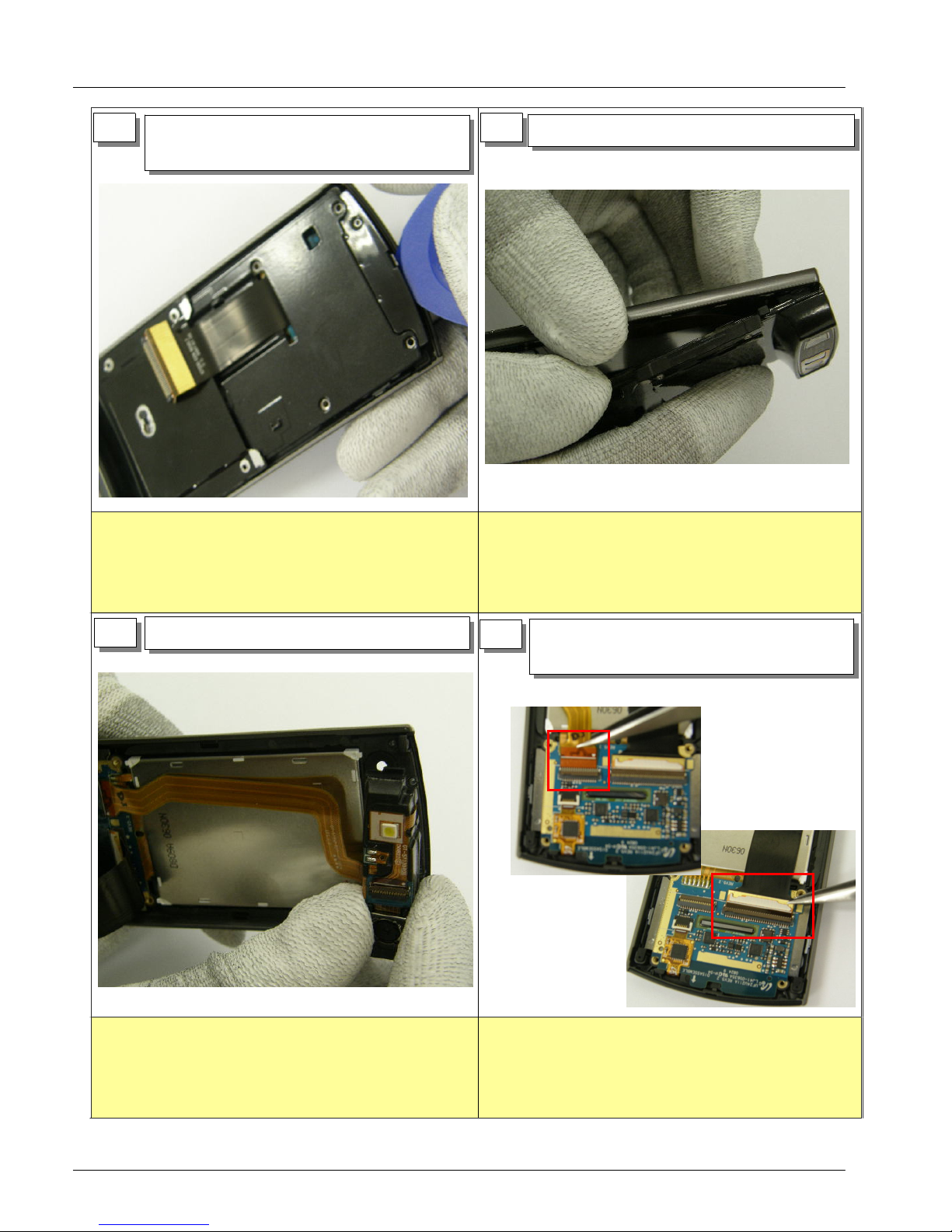

7. Disassembly and Assembly Instructions
7-1
This Document can not be used without Samsung's authorization
1) Be careful not to make any scratch on mechanical
parts during removing rear cover.
1) Be careful not to make any scratch on mechanical
parts during removing process.
1) Be careful not to make any scratch on mechanical
parts during removing process.
1) Be careful not to make any scratch on mechanical
parts during removing process.
11) Remove REAR COVER 21) Remove Screw (6 point) of Rear
3 4
1) Remove Rear side part by using
disassemble knife
1) Remove Rear side part by using
disassemble knife
7-1. Disassembly

SAMSUNG Proprietary-Contents may change without notice

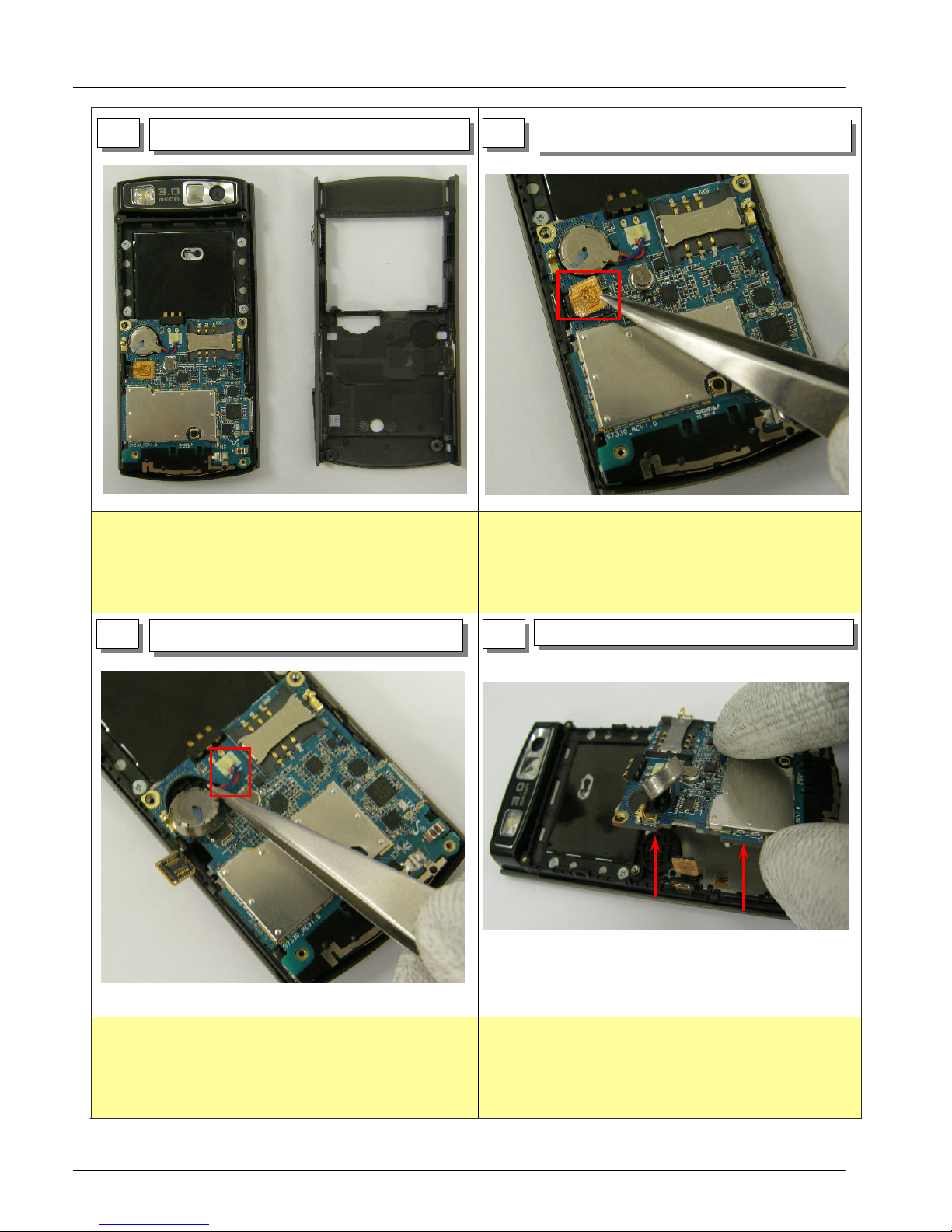

Exploded View and Parts List
7-2
This Document can not be used without Samsung's authorization
1) Be careful not to make any damage of connector
1) Be careful not to make damage of any mechanical
parts 1) Be careful not to make any damage of connector
5 6
1) Disassemble Front Assay and Rear 1) Remove KEY Connector using tweezers
7 8
1) Detach motor using tweezers 1) Raise PBA up the left of FRONT

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
7-3
This Document can not be used without Samsung's authorization
1) Be careful not to make any damage of connector 1) Be careful not to make any scratch on mechanical
parts during removing process.
1) Be careful not to make any scratch on mechanical
parts during removing process.
910
11 12
1) Detach slide FPCB connector using
tweezers
1) Remove Screw (4 point) of front
1) Disassemble slide Assay and front 1) Remove Screw (4 point) of rower

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
7-4
This Document can not be used without Samsung's authorization
1) Be careful not to make any scratch on mechanical
parts during removing rower
1) Be careful not to make any damage of rower hook,
SPK module and Slide FPCB
1) Be careful not to make any damage of FPCB 1) Be careful not to make any damage of FPCB
13 14
15 16
1) Remove Rower under part by using
disassemble knife.
1) Disassemble upper and rower
1) Detach SPK module 1) Remove SPK module FPCB using tweezers
2) Remove Slide FPCB using tweezers

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List

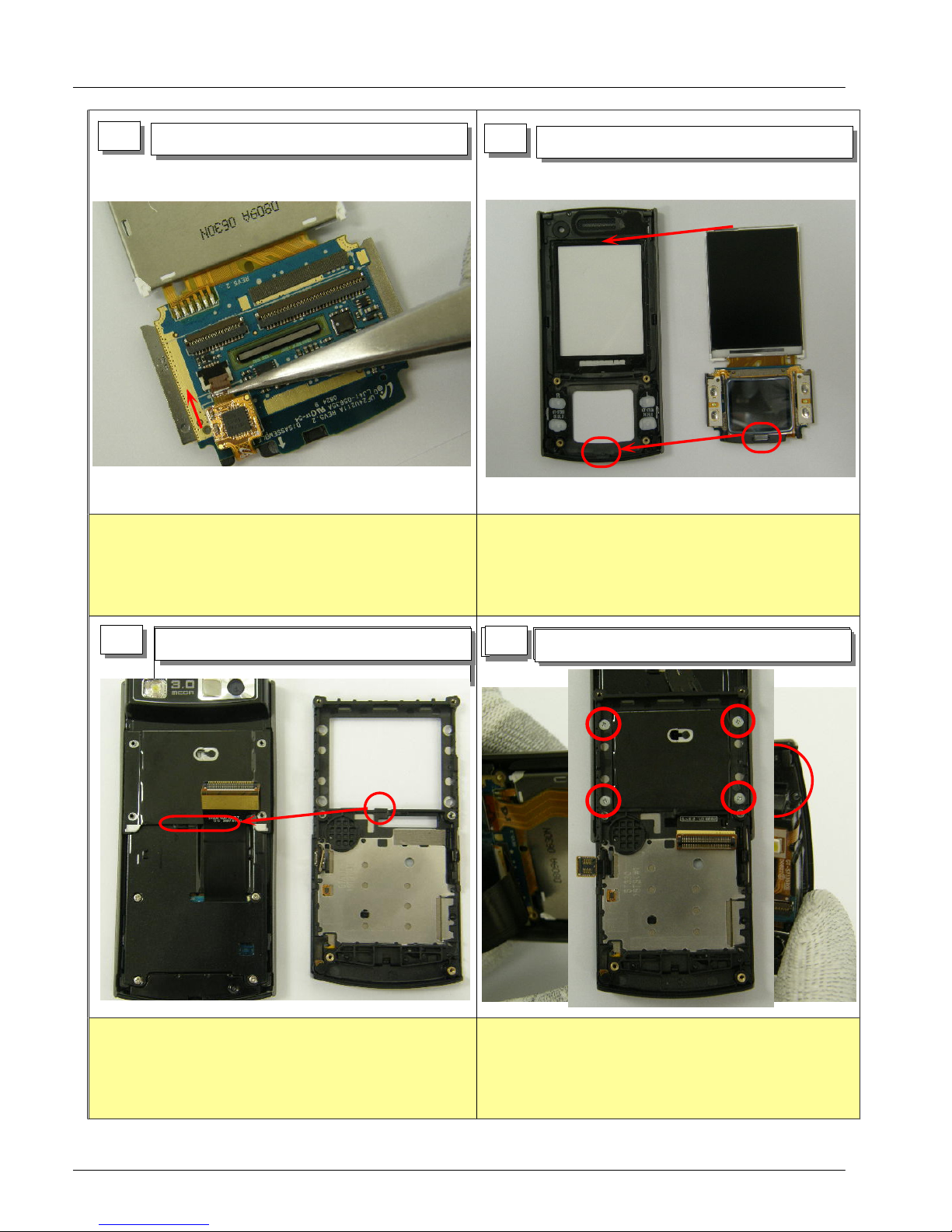

7-5
This Document can not be used without Samsung's authorization
1) Be careful not to make any damage of upper window
and LCD module
1) Be careful not to make any damage of FPCB
17 18
20
1) Disassemble LCD module and upper window. 1) Disassemble upper and LCD module
1) Remove touch window FPCB using tweezers 1) Disassemble sub LCD and Touch window
19

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List

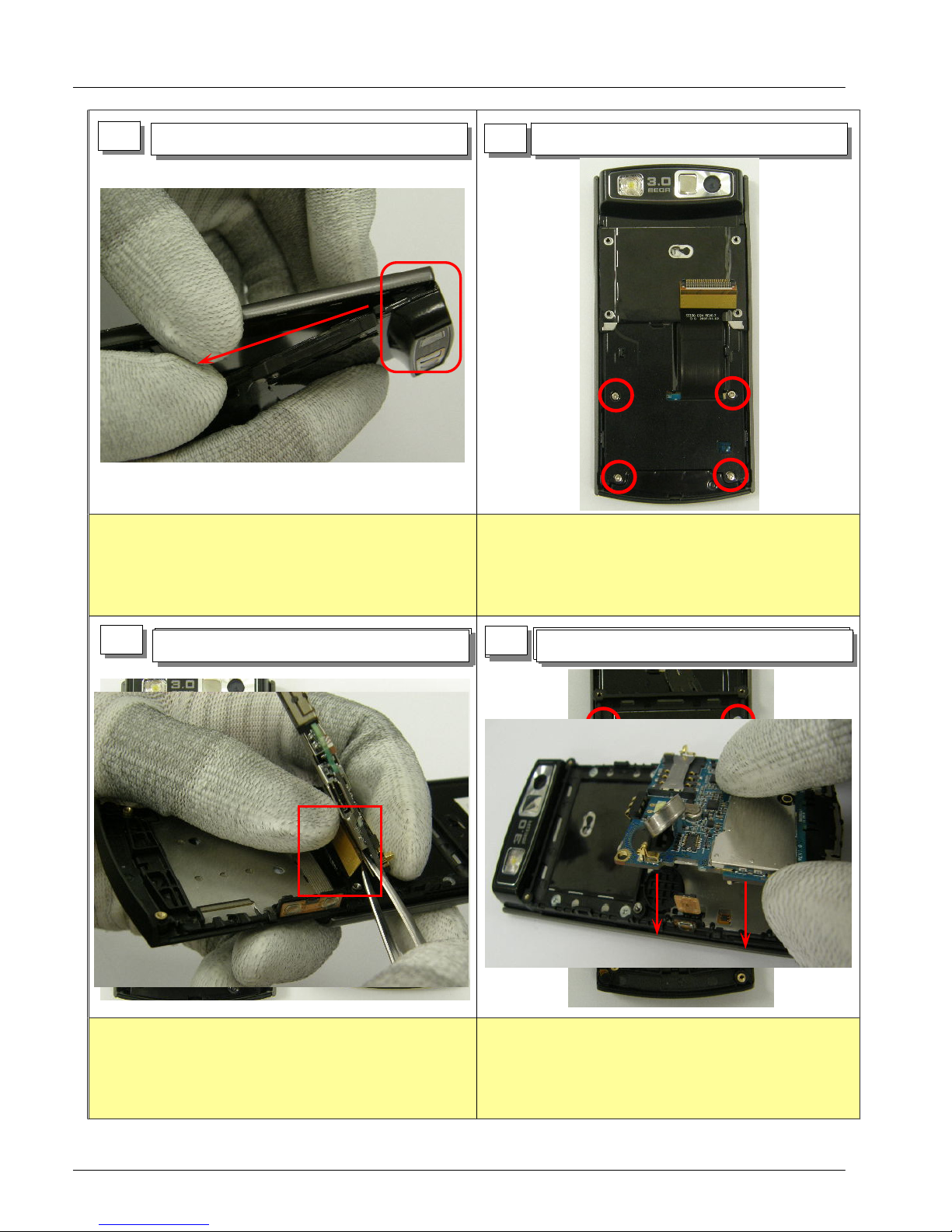

7-6
This Document can not be used without Samsung's authorization
1) Be careful not to make any damage of shield can. 1) Be careful not to make any damage of FPCB
1) Be careful not to make any damage of FPCB 1) Be careful not to make any damage of FPCB
21 1) Remove shield can from PBA 22 1) Remove CIF FPCB using tweezers
24
1) Remove CIF FPCB using tweezers 1) Remove CIF camera using tweezers
23

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
7-7
This Document can not be used without Samsung's authorization
1) Be careful not to make any damage of FPCB 1) Be careful not to make any damage of PBA
25 1) Remove 3mega camera and connector using
tweezers
26 1) Remove inettena from PBA

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
7-8
This Document can not be used without Samsung's authorization
1) Be careful not to make any damage of connector
Check connector attaching , Press again
1) Be careful not to make any damage of connector
Check CIF camera attaching , Press again
1) Be careful not to make any damage of connector 1) Check touch window attaching , Press again
2
11)Attach CIF camera and flash on SPK module
1)Attach 3M camera and connector on SPK
module
2) Soldering SPK module and FPCB
34
1)Attach CIF FPCB on 3M camera connector 1)Attach touch window on sub PCB
7-2. Assembly

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
7-9
This Document can not be used without Samsung's authorization
1) Be careful not to make any damage of connector
Attach after align Guide silk line
1) Assemble SUB LCD hook after attach MAIN LCD module
2) Be careful not to make any damage of LCD
1) Be careful not to make any damage of connector
Attach after align Guide silk line 1) Attach after align Guide rib
51)Attach touch FPCB on sub PCB 61) Assemble LCD module from the down to up
71) Attach SPK module FPCB
2) Attach Slide FPCB
11 1) Assemble Front 1) Assemble Screw 4 point Front
81)Attach SPK module on upper
12

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
7-10
This Document can not be used without Samsung's authorization
1) Assemble rower from the up to down
1) Be careful not to make any scratch on mechanical
parts during assembling screw
2) Screw size : M1.4*L3.5
TORQUE : 1.0~1.2 Kgf·cm
1) Be careful not to make any damage of FPCB
1) Be careful not to make any scratch on mechanical
parts during assembling screw
2) Screw size : M1.4*L1.5
TORQUE : 1.0~1.2 Kgf·cm
91) Assemble UPPER and ROWER 10
11
1) Assemble Screw 4 point rower
1) Assemble Front 1) Assemble Screw 4 point Front
15 1) Assemble PBA on the front
16
1) Attach Slide FPCB on PBA 12
