Samsung SGH-A517 Series User manual

GSM TELEPHONE
SGH-A517
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions

Samsung Electronics Co.,Ltd.
2007. 09. Rev.1.0
ⓒ
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast & Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specificity of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool,
because performance of parts is damaged by the influence of magnetic force.
●Surely use a standard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembling charger.
●Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum
plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is connected
completely to the proper place or a circuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM900
Phase 1
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900
Freq.
Band[MHz]
Uplink/Downlink
890~915
935~960
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 1~124 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot
Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 5pcl ~ 19pcl 0pcl ~ 15pcl 0pcl ~ 15pcl
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km -

Speclflcation
2-2
TX Power
control level GSM900
533±2dBm
631±2dBm
729±2dBm
827±2dBm
925±2dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1800
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM Tx Power Class

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization

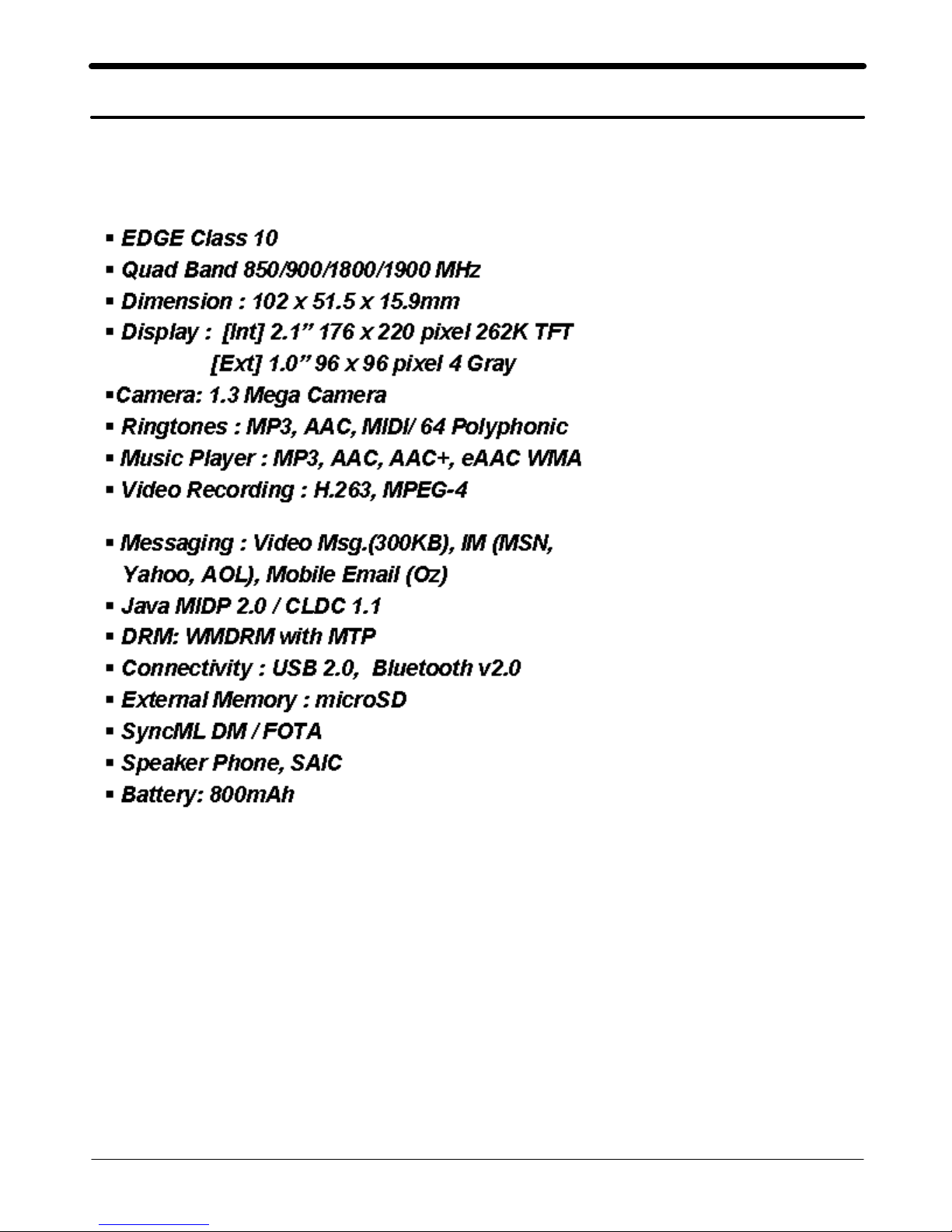

Main Function
-Concept:StylishSlimFolder

SAMSUNG Proprietary-Contents may change without notice
Product Function
3-2
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

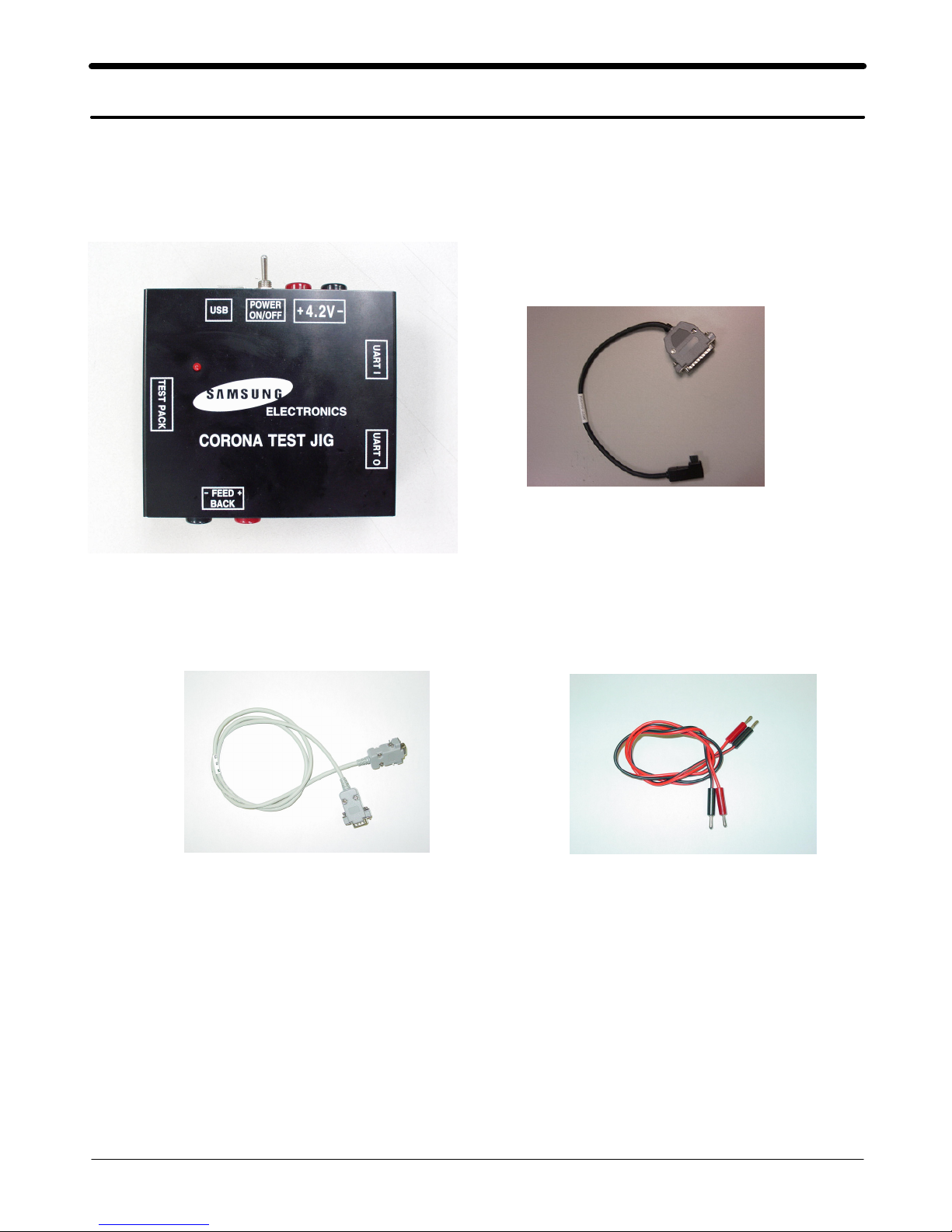

4-1. Software Downloading
Power Supply Cable
Serial Cable(CSA LL64151-A)
Test Jig (GH80-03306A) SGH-A517 Zig cable

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Pre-requsite for Downloading
• Downloader Program(OneNAND Downloder V1.2 Lite For PNX5230.exe)
• SGH-A517 Mobile Phone
• Data Cable
• Binary file, TFS file

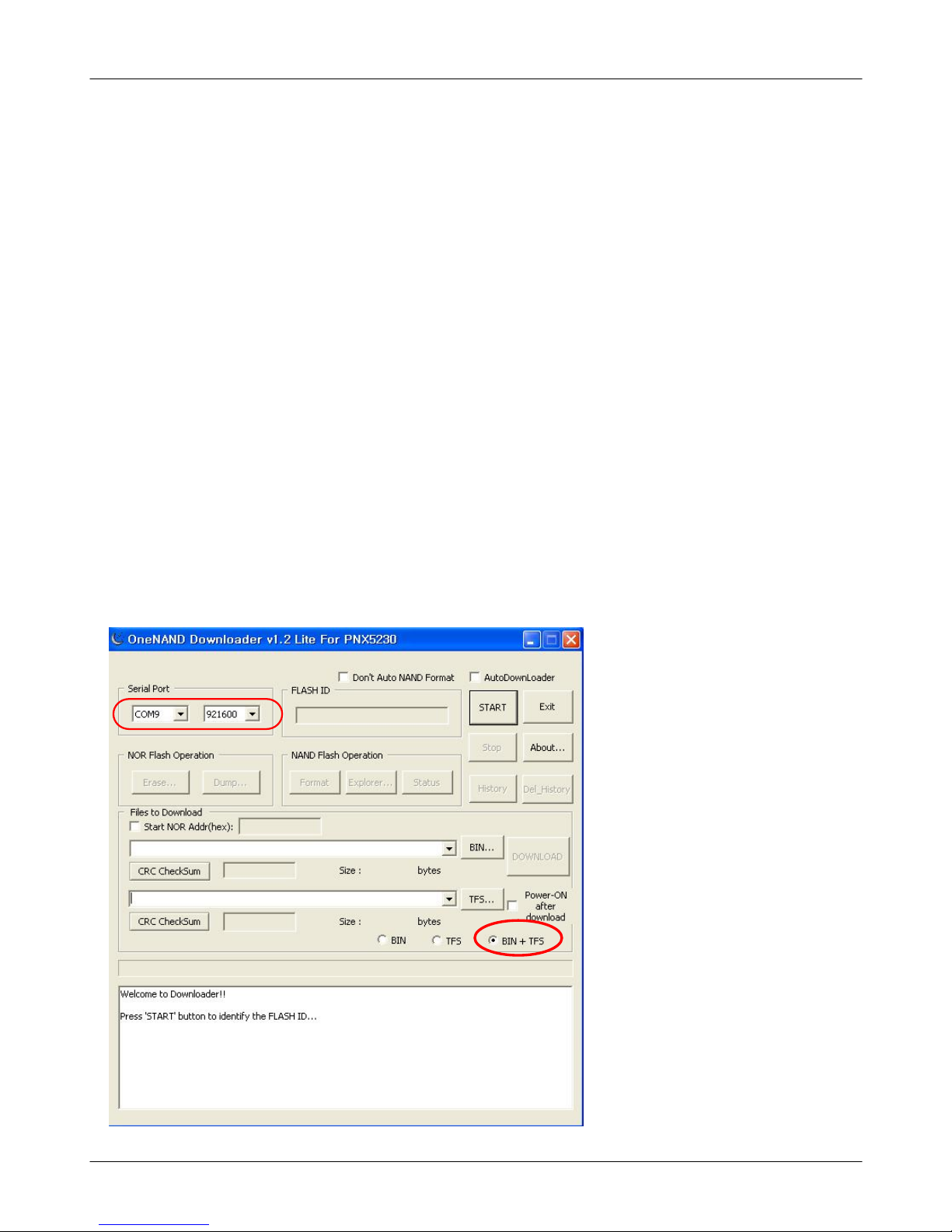

4-2-2. S/W Downloader Program
■Load the binary download program by executing the
“OneNAND Downloder V1.2 Lite For PNX5230.exe”
1. Select the connected serial port and the rate of speed
2. Select the check box, the mode you want to download.
- if the binary file wanted, check only 'BIN'
- if the tfs file wanted, check only 'TFS'
- if all the files wanted, check 'BIN+TFS'
1
2

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization

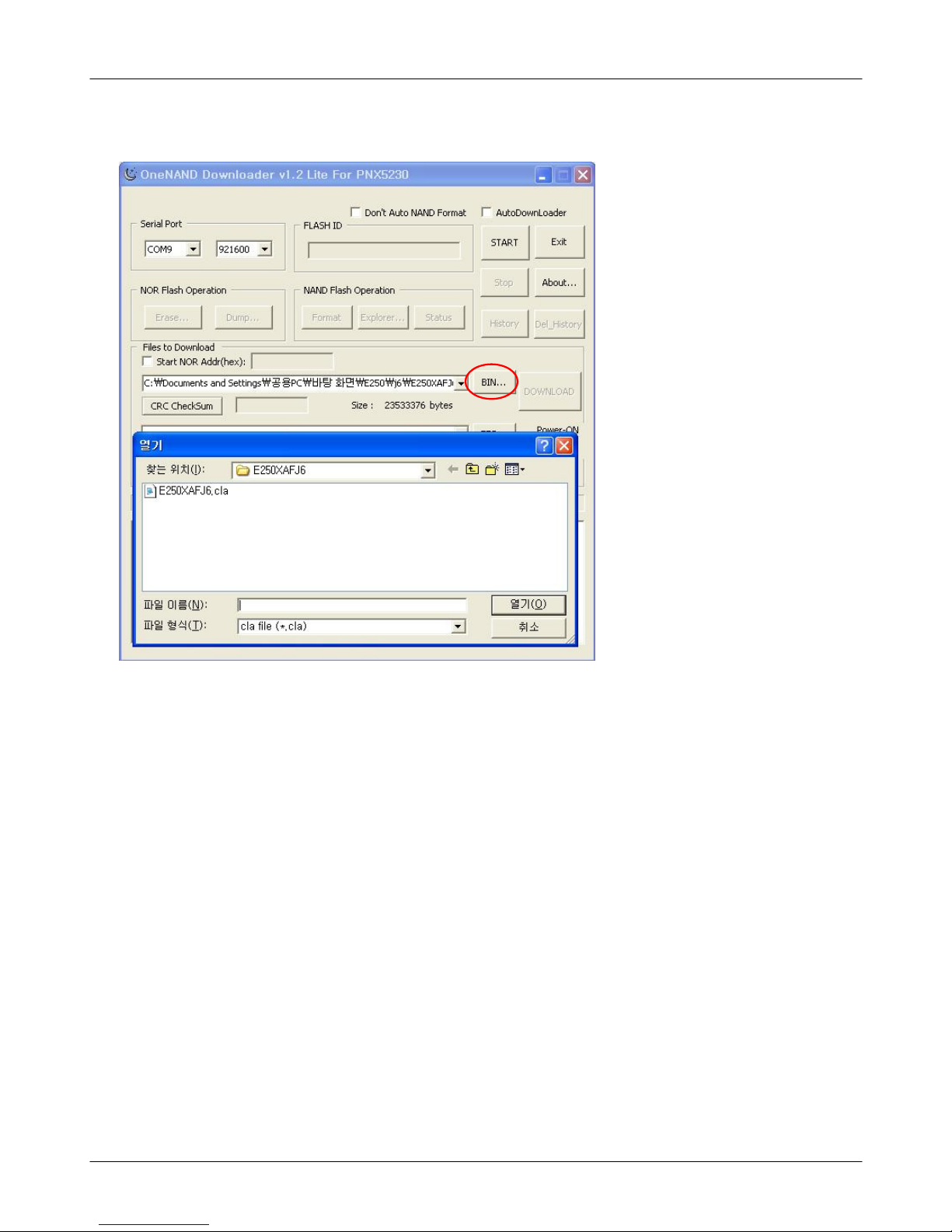

3. Select the file(s) what you want to download

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
5-1
This Document can not be used without Samsung's authorization
5. Exploded View and Parts List
5-1. Cellular phone Exploded View
QFU01
QKP01
QMP01
QSC13
QRF01
QCR12
QME16
QFL01
QLC01
QCR12
QSC05
QMW01
QCA01
QMI01
QFR01
QRE01
QMI03
QAN02
QCR12
QCR06
QVO01
QBA01
QBA00
QCB01
QMO01
QSP01
QHI01
QSD01
QRF03
QLC02

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
5-2. Cellular phone Parts list
Design LOC Description SEC Code
QAN02 INTENNA-SGH A517 GH42-01221A
QBA00 PMO CASE-BATTERY V2 GH72-41887A
QBA01 INNER BATTERY PACK-800MAH , BL GH43-02845A
QCA01 CAMERA MODULE GH59-04425A
QCB01 CBF COAXIAL CABLE GH39-00403A
QCR06 SCREW-MACHINE 6001-001155
QCR12 SCREW-MACHINE 6001-001530
QCR12 SCREW-MACHINE 6001-001530
QFR01 ASSY CASE-FRONT GH98-06354A
QFU01 ASSY CASE-FOLDER UPPER GH98-04485A
QME16 ASSY ETC-CON TO CON FPCB GH59-04424A
QMO01 MOTOR DC-SGH A517 GH31-00344A
QMP01 PBA MAIN-SGH A517 GH92-03721A
QMW01 ASSY COVER-MAIN WINDOW GH98-05300A
QRF01 TAPE-RF HOLE SHEET GH74-31422A
QSC05 TAPE-LOWER SCREW CAP GH74-31416A
QSC13 ASSY COVER-REAR SCREW CAP GH98-05301A
QSP01 SPEAKER 3001-002197
QVO01 PMO KEY-VOLUME V2 GH72-41891A
QRE01 ASSY CASE-REAR GH98-04488A
QSD01 PMO COVER-SD V2 GH72-41888A
QRF03 PMO COVER-EAR V2 GH72-41889A
QLC01 ELA ETC-A517 LCD MODULE GH96-02597A
QLC02 LCD-SUB SGH A517 GH07-01167A
QFL01 ASSY CASE-FOLDER LOWER GH98-04486A
QHI01 ASSY HINGE-HINGE GH98-03755A
QKP01 ASSY KEYPAD-(ATT/BLK) GH98-04489A
QMI01 AS-MIC SVC GH81-05445A
QMI03 AS-SGH A517 MIC RUBBER GH81-06822A

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-3
This Document can not be used without Samsung's authorization
Description SEC Code
BAG PE 6902-000634
ADAPTOR-SGH_T419 BLK GH44-01700A
ASSY ETC-LED BACK LIGHT GH59-04283A
ASSY ETC-LCD MAIN PBA GH59-04493A
ASSY ETC-LCD IF PBA GH59-04494A
UNIT-TOUCH KEY MODULE ASS'Y GH59-04831A
LABEL(R)-WATERSOAK(NEW) GH68-14285A
LABEL(R)-MAIN(ATT) GH68-14533A
BOX-SPACE AT&T GH69-05279A
CUSHION-CASE(ATT) GH69-05280A
BOX-UNIT(ATT) GH69-05309A
MPR-REMOVE TAPE LCD GH74-13804A
MPR-TAPE LED GH74-17926A
MPR-TAPE GH74-27509A
MPR-INSU TAPE SUB LCD GH74-27510A
MPR-INSU TAPE GH74-27511A
MPR-INSU TAPE GH74-27512A
TAPE-LCD CON GASKET GH74-31423A
MPR-INSU TAPE LCD GH74-31428A
VINYL-BOHO UPPER GH74-33034A
TAPE-FRONT SHIELD GH74-33037A
TAPE GASK-LCD SUB GH74-33038A
TAPE-CAMERA CON GH74-33422A
SPONGE GH74-34124A
VINYL-BOHO MAIN WINDOW GH74-35143A
PAA ETC-MANUAL(ATT) GH99-23669A

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-4
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
Design LOC Description SEC Code STATUS
ANT100 ANTENNA-CHIP 4202-001326 SA
BTC700 CONNECTOR-BATTERY 3711-006003 SA
C101 C-CER,CHIP 2203-000233 SA
C103 C-CER,CHIP 2203-000233 SA
C104 C-CER,CHIP 2203-000233 SA
C111 C-CER,CHIP 2203-006305 SA
C114 C-CER,CHIP 2203-005736 SA
C116 C-CER,CHIP 2203-006423 SA
C117 C-CER,CHIP 2203-001221 SA
C118 C-CER,CHIP 2203-005482 SA
C119 C-CER,CHIP 2203-005482 SA
C122 C-CER,CHIP 2203-000438 SA
C148 C-CER,CHIP 2203-000233 SA
C149 C-CER,CHIP 2203-000233 SA
C150 C-CER,CHIP 2203-000233 SA
C151 C-CER,CHIP 2203-005482 SA
C152 C-CER,CHIP 2203-000812 SA
C153 C-CER,CHIP 2203-005482 SA
C154 C-CER,CHIP 2203-006838 SA
C155 C-CER,CHIP 2203-001385 SA
C156 C-CER,CHIP 2203-006838 SA
C157 C-CER,CHIP 2203-005482 SA
C159 C-CER,CHIP 2203-006838 SA
C160 C-CER,CHIP 2203-000278 SA
C161 C-CER,CHIP 2203-000233 SA
C162 C-CER,CHIP 2203-006842 SA
C164 INDUCTOR-SMD 2703-002200 SA
C165 C-CER,CHIP 2203-000438 SA
C200 C-CER,CHIP 2203-005482 SA
C201 C-CER,CHIP 2203-000812 SA
C202 C-CER,CHIP 2203-000254 SA
C203 C-CER,CHIP 2203-005682 SA
C204 C-CER,CHIP 2203-006423 SA
C205 C-CER,CHIP 2203-006979 SA
C206 C-CER,CHIP 2203-006423 SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC Code STATUS
C207 C-CER,CHIP 2203-005482 SA
C208 C-CER,CHIP 2203-005482 SA
C209 C-CER,CHIP 2203-000254 SA
C210 C-CER,CHIP 2203-005482 SA
C211 C-CER,CHIP 2203-000812 SA
C212 C-CER,CHIP 2203-005482 SA
C213 C-CER,CHIP 2203-006681 SA
C214 C-CER,CHIP 2203-006626 SA
C215 C-CER,CHIP 2203-005725 SA
C216 C-CER,CHIP 2203-000628 SA
C219 C-CER,CHIP 2203-000812 SA
C220 C-CER,CHIP 2203-005482 SA
C300 C-CER,CHIP 2203-000254 SA
C301 C-CER,CHIP 2203-005482 SA
C302 C-CER,CHIP 2203-005482 SA
C303 C-CER,CHIP 2203-005482 SA
C304 C-CER,CHIP 2203-000254 SA
C305 C-CER,CHIP 2203-005482 SA
C306 C-CER,CHIP 2203-006681 SA
C307 C-CER,CHIP 2203-000425 SA
C308 C-CER,CHIP 2203-000425 SA
C311 C-CER,CHIP 2203-005138 SA
C312 C-CER,CHIP 2203-005138 SA
C313 C-CER,CHIP 2203-005725 SA
C314 C-CER,CHIP 2203-005725 SA
C322 C-CER,CHIP 2203-005482 SA
C325 C-CER,CHIP 2203-000254 SA
C326 C-CER,CHIP 2203-000254 SA
C327 C-CER,CHIP 2203-005482 SA
C328 C-CER,CHIP 2203-000254 SA
C329 C-CER,CHIP 2203-002709 SA
C330 C-CER,CHIP 2203-006260 SA
C331 C-CER,CHIP 2203-006824 SA
C402 C-CER,CHIP 2203-006562 SA
C403 C-CER,CHIP 2203-006257 SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
Design LOC Description SEC Code STATUS
C404 C-CER,CHIP 2203-006824 SA
C405 C-CER,CHIP 2203-006890 SA
C406 C-CER,CHIP 2203-006824 SA
C407 C-CER,CHIP 2203-006824 SA
C408 C-CER,CHIP 2203-006348 SA
C409 C-CER,CHIP 2203-006348 SA
C410 C-CER,CHIP 2203-006257 SA
C412 C-CER,CHIP 2203-006257 SA
C414 C-CER,CHIP 2203-006257 SA
C415 C-CER,CHIP 2203-006562 SA
C418 C-CER,CHIP 2203-006562 SA
C420 C-CER,CHIP 2203-006562 SA
C421 C-CER,CHIP 2203-006562 SA
C423 C-CER,CHIP 2203-006257 SA
C424 C-CER,CHIP 2203-000233 SA
C425 BATTERY-LI(2ND) 4302-001181 SA
C426 C-CER,CHIP 2203-000425 SA
C427 C-CER,CHIP 2203-000425 SA
C432 C-CER,CHIP 2203-006257 SA
C433 C-CER,CHIP 2203-006324 SA
C434 C-CER,CHIP 2203-005482 SA
C443 C-CER,CHIP 2203-006562 SA
C446 C-CER,CHIP 2203-006562 SA
C447 C-CER,CHIP 2203-006562 SA
C448 C-CER,CHIP 2203-006562 SA
C449 C-CER,CHIP 2203-006890 SA
C450 C-CER,CHIP 2203-005061 SA
C451 C-CER,CHIP 2203-006562 SA
C452 C-CER,CHIP 2203-006562 SA
C505 C-CER,CHIP 2203-005050 SA
C511 C-CER,CHIP 2203-005395 SA
C513 C-CER,CHIP 2203-005482 SA
C514 C-CER,CHIP 2203-006841 SA
C515 C-CER,CHIP 2203-006260 SA
C516 C-CER,CHIP 2203-006562 SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
Design LOC Description SEC Code STATUS
C517 C-CER,CHIP 2203-000330 SA
C519 C-CER,CHIP 2203-005482 SA
C521 C-CER,CHIP 2203-005395 SA
C523 C-CER,CHIP 2203-005395 SA
C524 C-CER,CHIP 2203-005482 SA
C525 C-CER,CHIP 2203-000330 SA
C526 C-CER,CHIP 2203-005482 SA
C527 C-CER,CHIP 2203-005395 SA
C540 C-CER,CHIP 2203-000278 SA
C544 C-CER,CHIP 2203-000278 SA
C550 C-CER,CHIP 2203-000233 SA
C551 C-CER,CHIP 2203-000233 SA
C552 C-CER,CHIP 2203-000233 SA
C553 C-CER,CHIP 2203-005482 SA
C600 C-CER,CHIP 2203-005482 SA
C601 C-CER,CHIP 2203-005482 SA
C603 C-CER,CHIP 2203-006824 SA
C604 C-CER,CHIP 2203-006562 SA
C613 C-CER,CHIP 2203-005482 SA
C615 C-CER,CHIP 2203-005482 SA
C616 C-CER,CHIP 2203-006824 SA
C620 C-CER,CHIP 2203-005993 SA
C622 C-CER,CHIP 2203-005993 SA
C633 C-CER,CHIP 2203-005482 SA
C634 C-CER,CHIP 2203-006137 SA
C635 C-CER,CHIP 2203-006137 SA
C636 C-CER,CHIP 2203-005482 SA
C637 C-CER,CHIP 2203-000386 SA
C638 C-CER,CHIP 2203-000386 SA
C639 C-CER,CHIP 2203-006260 SA
C640 C-CER,CHIP 2203-006260 SA
C702 C-CER,CHIP 2203-002443 SA
C703 C-CER,CHIP 2203-006841 SA
C704 C-CER,CHIP 2203-005061 SA
C705 C-CER,CHIP 2203-005482 SA
