Samsung SGH-A707 SERIES User manual

UMTS TELEPHONE
SGH-A707
UMTS TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View/Disassembly
and Assembly Instructions
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
efrcom

Samsung Electronics Co.,Ltd.
2006. 10. Rev.1.0
ⓒ
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.

CONTENTS
1. Safety Precautions
1-1. Repair Precaution......................................................................................................1-1
1-2. ESD(Electrostatically Sensitive Devices) Precaution...............................................1-2
2. Specification
2-1. GSM General Specification.......................................................................................2-1
2-2. GSM Tx Power Class...............................................................................................2-2
3. Product Function
4. Array course control
4-1. Software Adjustments................................................................................................4-1
4-2. Software Downloading...............................................................................................4-2
5. Exploded View/Disassembly & Assembly Instructions
5-1. Cellular phone Exploded View..................................................................................5-1
5-2. Cellular phone Parts list............................................................................................5-2
5-3. Disassembly & Assembly Instructions......................................................................5-5
6. MAIN Electrical Parts List
7. Block Diagrams
7-1. Base Band Block Diagram........................................................................................7-1
7-2. RF Block Diagram.....................................................................................................7-2
8. PCB Diagrams

CONTENTS
9. Flow Chart of Troubleshooting
9-1. Power On..................................................................................................................9-1
9-2. Initial...........................................................................................................................9-3
9-3. Sim Part.....................................................................................................................9-4
9-4. Microphone Part-Phone MIC....................................................................................9-7
9-5. Microphone Part-Earphone MIC...............................................................................9-9
9-6. Earphone Part.........................................................................................................9-11
9-7. Receiver Part..........................................................................................................9-14
9-8. Speaker Part...........................................................................................................9-16
9-9. Key Data Input........................................................................................................9-20
9-10. Back Light(for Color Main LCD)..........................................................................9-21
9-11. Key Back Light.....................................................................................................9-22
9-12. Camera Part..........................................................................................................9-23
9-13. Touch PAD...........................................................................................................9-24
9-14. GSM Receiver......................................................................................................9-26
9-15. GSM Transmitter..................................................................................................9-28
9-16. DCS Receiver.......................................................................................................9-30
9-17. DCS Transmitter...................................................................................................9-32
9-18. PCS Receiver.......................................................................................................9-34
9-19. PCS Transmitter...................................................................................................9-37
9-20. WCDMA850 Receiver...........................................................................................9-39
9-21. WCDMA850 Transmitter.......................................................................................9-41
9-22. WCDMA1900 Receiver.........................................................................................9-44
9-23. WCDMA1900 Transmitter.....................................................................................9-46
10. Reference data

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test, because the specification of cellular phone is sensitive for
surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool, because performance of parts is damaged by the
influence of magnetic force.
●Surely use a standard screwdriver when you disassemble this product, otherwise screw will be worn
away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembling charger.
●Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum
plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is connected
completely to the proper place or a circuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
GSM 850 EGSM 900 DCS1800 PCS1900 W-CDMA
850
W-CDMA
1900
Freq.
Band[MHz]
Uplink/Downli
nk
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
824~849
869~894
1850~1910
1930~1990
ARFCN range 128~25 0~124 &
975~1023 512~885 512~810
UL:4132~42
33
DL:4357~44
58
UL:9262~95
38
DL:9662~99
38
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz 45MHz 80MHz
Mod. Bit rate/
Bit Period
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
3.84Mcps 3.84Mcps
Time Slot
Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Frame
length :
10ms
Slot length
: 0.667ms
Frame
length :
10ms
Slot length
: 0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSK
HQPSK
QPSK
HQPSK
MS Power 33dBm~5dB
m
33dBm~5dB
m
30dBm~0dB
m
30dBm~0dB
m
24dBm ~ -
50dBm
24dBm ~ -
50dBm
Power Class
4
(max
+33dBm)
4
(max
+33dBm)
1
(max
+30dBm)
1
(max
+30dBm)
3
(max
+24dBm)
3
(max
+24dBm)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level
PCS1900
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level
GSM850
GSM900
533±2dBm
631±2dBm
729±2dBm
827±2dBm
925±2dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level
DCS1800
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
―Bluetooth
―Camera and camcorder
―Instant Messaging capability
―E-mail
―Featured applications provide alarms, calendar, calculator, record audio, converter, timer,
stopwatch, and world time.
―File viewer
―Name card
―Multimedia Message Service (MMS)
―Multimedia capability (with included Media player)
―Photo caller ID
―Speakerphone capability
―Web browser

SAMSUNG Proprietary-Contents may change without notice
Product Function
3-2
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
12
34
56
4

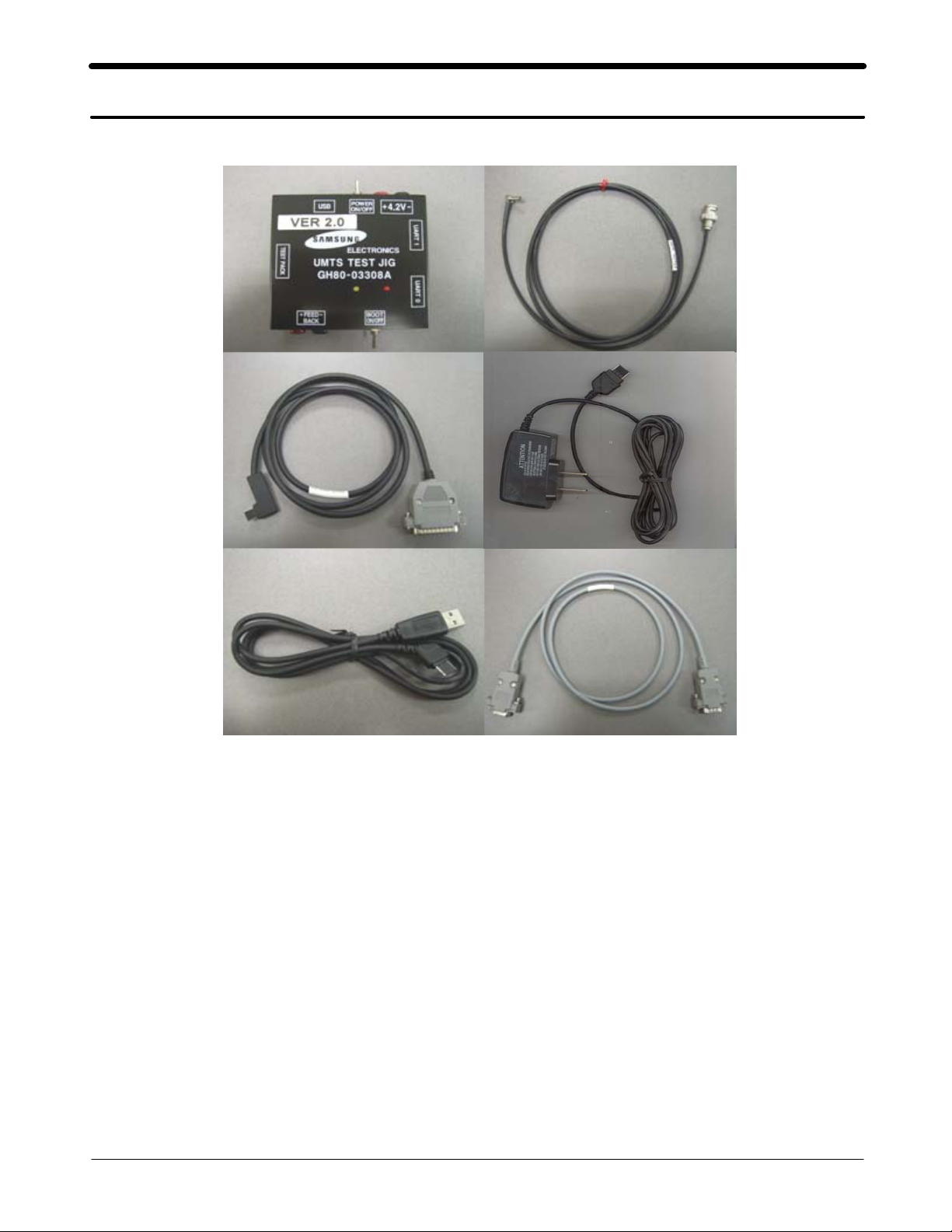

1. JIG(GH80-03308A): Download, Trace, Calibration, etc
2. RF test cable: RF test
3. Test cable(GH39-00558A): JIG to phone
4. TA (Travel Adaptor)
5. Data Link Cable (PCB200BBE): USB cable
6. Serial cable: PC to JIG

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Download
4-2-1. Pre-requsite for Download
• Downloader Program(FastMultiLoader V3.28.exe)
• SGH-A707 Mobile Phone
• USB Data Link Cable
• Binary files
4-2-2. S/W Download Process
■Load the binary download program by executing the
“FastMultiLoader V3.28.exe”

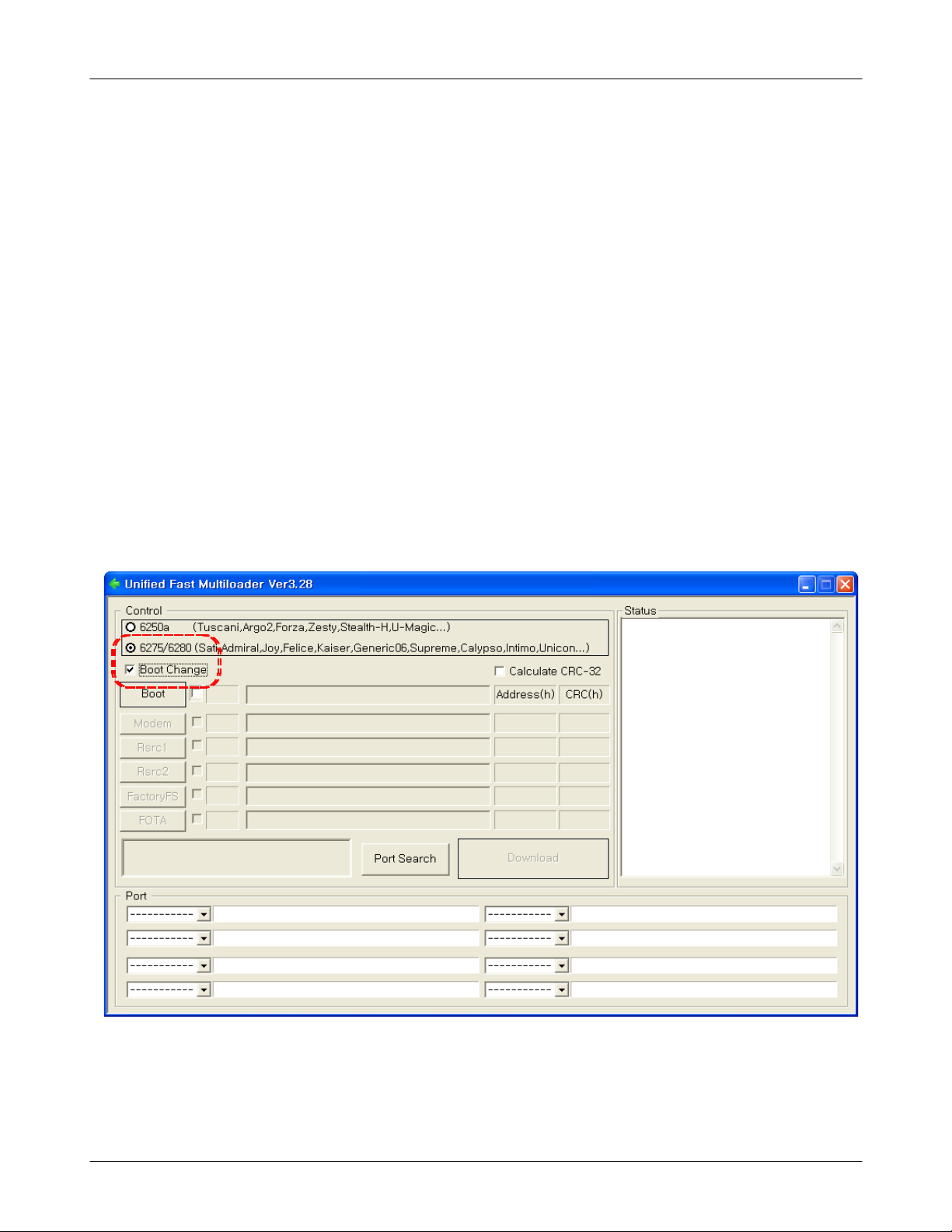

1. First, select the 6275/6280 for 'admiral'. And check 'Boot Change', then the 'Boot'
will be activated.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
2. Click the 'Boot', then the dialogue box is opened, then select the wanted file. And
select 'OK'.
3. Select the 'Boot Change' once more, then 'Boot' is inactivated, and the
others('modem', 'Rsrc1', 'Rsrc2', 'FactoryFS', and 'Fota') are activated.
- Click 'modem', 'Rsrc1', 'Rsrc2', 'FactoryFS' and 'FOTA' each, and select
wanted files.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

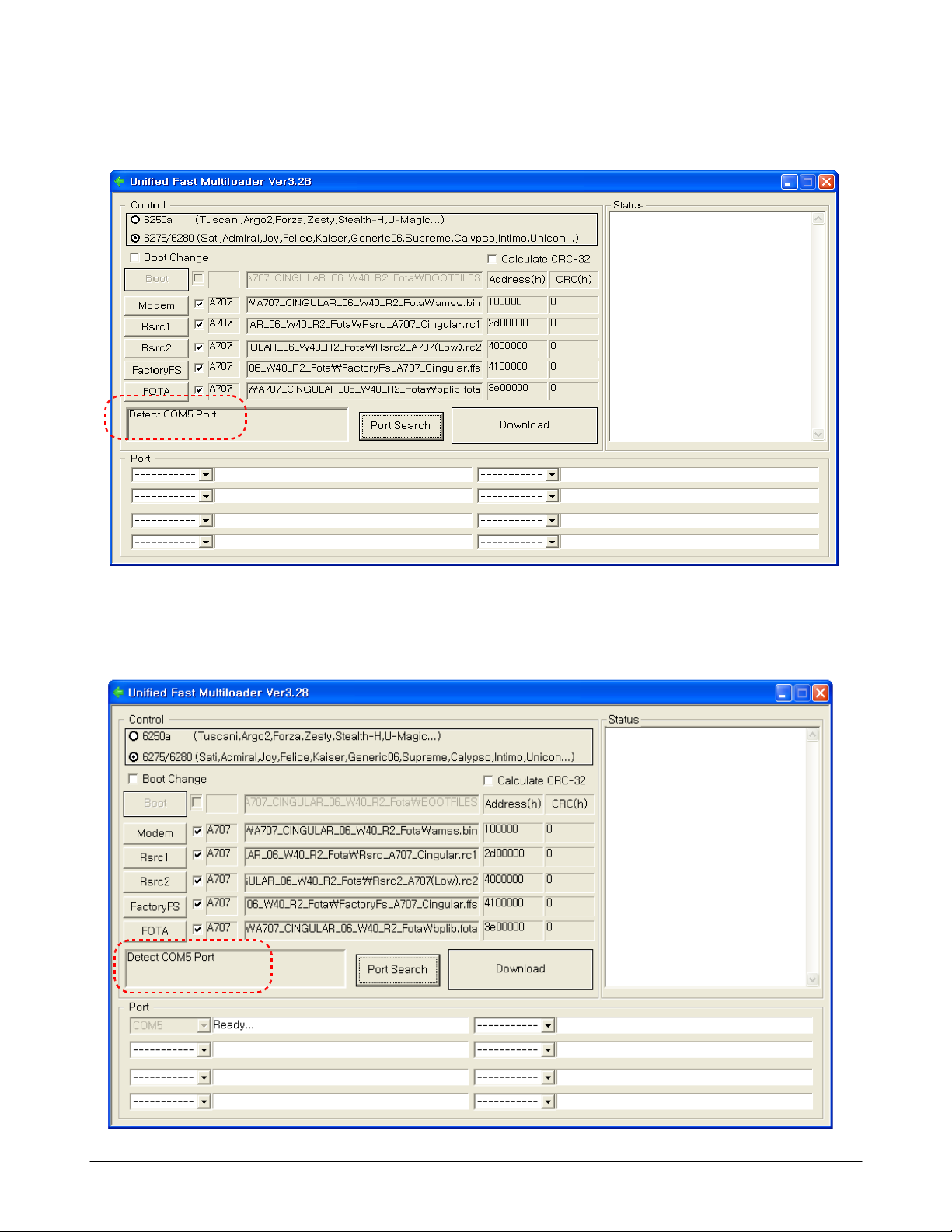

4. Connect phone to cable, the 'Detect Com port' is displayed.
5. Select 'Port Search', then 'Port' is activated.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
6. Click 'Download', then downloading is executed successively.If the download is
completed, S/W downloading is finished.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
5-1
This Document can not be used without Samsung's authorization
5. Exploded View/Disassembly&Assembly Instructions

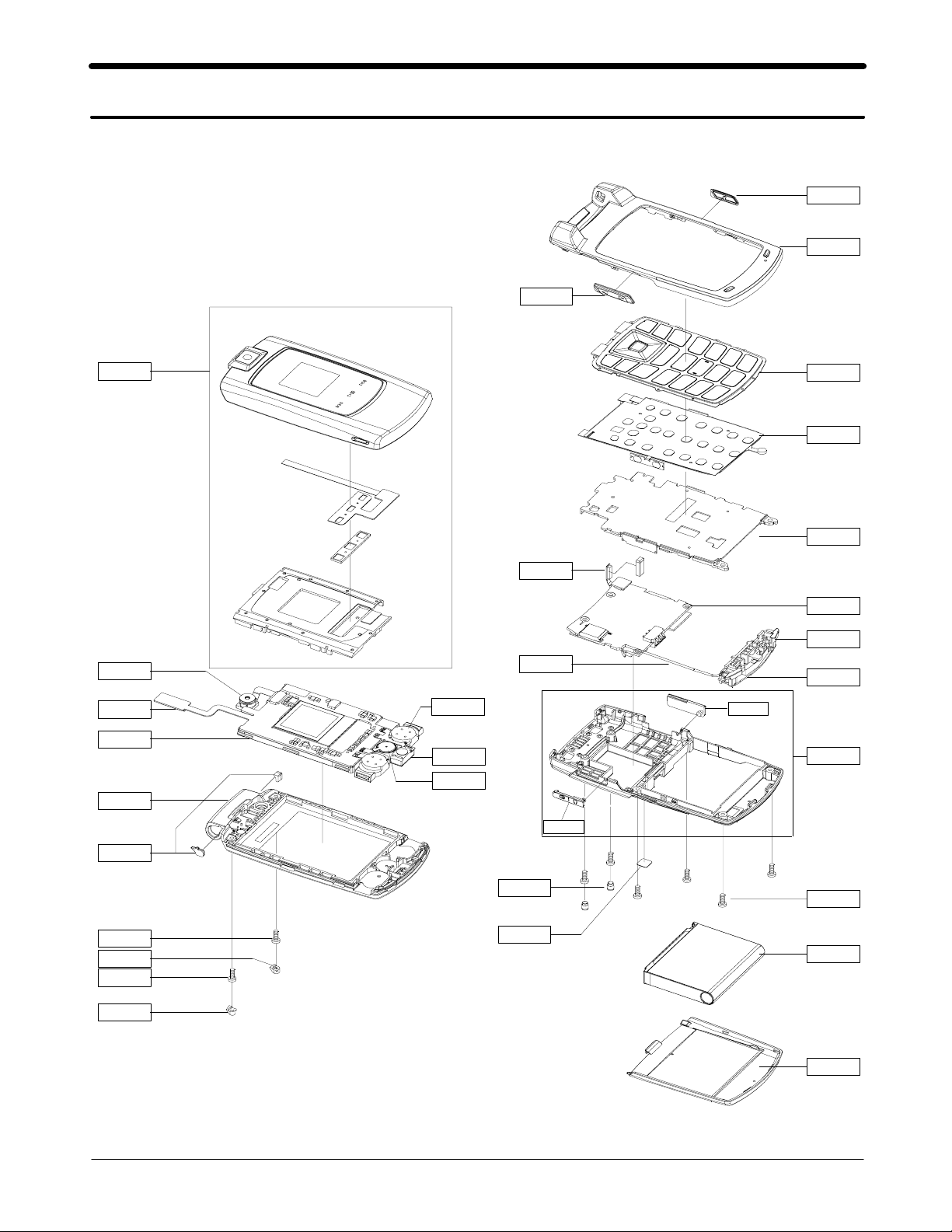

5-1. Cellular phone Exploded View
QFU01
QCB01
QAN01
QVO01
QLC01
QME03
QFL01
QSC01
QRF01
QSC13
QCA02
QSC05
QCR52
QCR52
QSC08
QSD01
QIF01
QFR01
QCK01
QME05
QM001
QME06
QME01
QKP01
QSH01
QAN06
QAN02
QRE01
QBA01
QBA00
QMP01
QCR04

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-2
This Document can not be used without Samsung's authorization
5-2. Cellular phone Parts list
Design LOC Description SEC CODE
QAN01 FPCB ANTENNA CHIP GH42-00794A
QAN02 INTENNA-SGHA707 GH42-01011A
QAN06 ASSY COVER-INTENNA CARRIER GH98-02961A
QBA00 PMO-CASE BATTERY V2 GH72-33925A
QBA01 INNER BATTERY PACK-1100MAH,BLK GH43-02651A
QCA02 UNIT-CAMERA GH59-03706A
QCB01 CBF COAXIAL CABLE-SGHA701 GH39-00693A
QCK01 ASSY KEY-CAMERA GH98-03118A
QCR04 SCREW-MACHINE 6001-001479
QCR52 SCREW-MACHINE 6001-001300
QFL01 ASSY CASE-FOLDER LOWER GH98-01631A
QFR01 ASSY CASE-FRONT COVER GH98-02448A
QFU01 MEA-FOLDER UPPER KIT(DARK_GRAY GH97-06714A
QKP01 ASSY KEYPAD-(XET/BLK) GH98-02288A
QLC01 ELA ETC-SGHA707 LCD MODULE SVC GH96-02265A
QME01 UNIT-LCD CON TO CON FPCB GH59-03780A
QME01 UNIT-MAIN KEY FPCB GH59-03719A
QME05 UNIT-RECEIVER SPEAKER FPCB ASS GH59-03717A
QME06 UNIT-SPEAKER FPCB ASSY GH59-03718A
QMO01 MOTOR DC-SGHA707 GH31-00279A
QMP01 PBA MAIN-SGHA707 GH92-03216A
QRF01 MPR-TAPE COVER RF GH74-27477A
QSC01 PMO-DECO FOLDER LOWER L GH72-33926A
QSC05 RMO-RUBBER COVER LOWER L GH73-07621A
QSC08 RMO-RUBBER COVER LOWER R GH73-07622A
QSC13 RMO-RUBBER COVER REAR GH73-07623A
QSH01 ASSY BRACKET-SHIELD GH98-01635A
QVO01 PMO-KEY VOL GH72-30608A
QRE01 ASSY CASE-REAR GH98-01633A
QIF01 PMO-COVER IF GH72-35076A
QSD01 PMO-COVER SD GH72-35077A

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-3
This Document can not be used without Samsung's authorization
Description Sec Code
BAG PE 6902-000634
ADAPTOR-SGHE690,BLK,USA GH44-01363A
LABEL(P)-WATER SOAK GH68-02026A
LABEL(R)-WATER SOAK T_MOBILE GH68-05914A
LABEL(P)-UNIT BARCODE CIN GH68-09418A
MANUAL USERS-CINGULAR SPANISH GH68-12489A
MANUAL USERS-CINGULAR ENGLISH GH68-12490A
MANUAL USERS-CINGULAR ENGLISH GH68-12491A
MANUAL USERS-CINGULAR ENGLISH GH68-12492A
LABEL(R)-MAIN(CIN) GH68-12720A
LABEL-QUALCOMM GH68-12830A
MANUAL USERS-NAPSTER PROMOTION GH68-12914A
CUSHION-CASE(CIN) GH69-04506A
BOX-UNIT(CIN) GH69-04507A
RMO-RUBBER B/T GH73-07213A
MPR-REMOVE TAPE LCD GH74-13804A
MPR-BOHO VINYL LCD CONN GH74-15350A
MPR-TAPE FPCB DOUBLE GH74-16772A
CONE-TAPE SUB LCD INSUL GH74-19756A
MPR-TAPE,33X53X0.16,TESA4976 GH74-26578A
MPR-INSU TAPE GH74-27074A
MPR-INSU TAPE GH74-27077A
MPR-TAPE GH74-27078A
MPR-INSU TAPE GH74-27110A
MPR-INSU TAPE GH74-27324A
MPR-GASK TAPE GH74-27325A
MPR-INSU TAPE GH74-27436A
MPR-GASK TAPE GH74-27437A
MPR-INSU TAPE GH74-27751A
MPR-SPONGE SPK 1 GH74-28132A
MPR-VINYL BOHO SUB WINDOW GH74-28184A
MPR-TAPE J TAG GH74-28232A
MPR-VINYL BOHO MAIN WIN PRESS GH74-28233A
MPR-GASK TAPE GH74-28263A
MPR-SPONGE SIM GH74-28585A
MPR-SPONGE PCB 1 GH74-28596A
MPR-SPONGE PCB 2 GH74-28597A
MPR-SPONGE LOWER L GH74-28600A
MPR-SPONGE LOWER R GH74-28601A

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-4
This Document can not be used without Samsung's authorization
Description Sec Code
MPR-GASK TAPE SHIELD GH74-28602A
MPR-TAPE LOWER SCREW GH74-28625A
MPR-VINYL BOHO WINDOW MAIN LOG GH74-28660A
MPR-TAPE LABEL INTENNA GH74-28783A
AS-SGHA701 MIC SVC GH81-06074A
ASSY COVER-MAIN WINDOW GH98-02935A
