Samsung SGH-C270 User manual

GSM TELEPHONE
SGH-C270
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Disassembly and Assembly
Instructions
8. Block Diagrams
9. PCB Diagrams
10. Chart of Troubleshooting
11. Reference data
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
EGSM 900 DCS1800
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
ARFCN range 0~124 & 975~1023 512~885
Tx/Rx spacing 45MHz 95MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 30dBm~0dBm
Power Class 4
(max +33dBm)
1
(max +30dBm)
Sensitivity -102dBm -100dBm
TDMA Mux 8 8
Cell Radius 35Km 2Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level GSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
•S20 Pin TA
•No Java
•WAP 2.0
•Dual band(900/1800MHz)
•16
Poly Ringtone
•Non Camera

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments

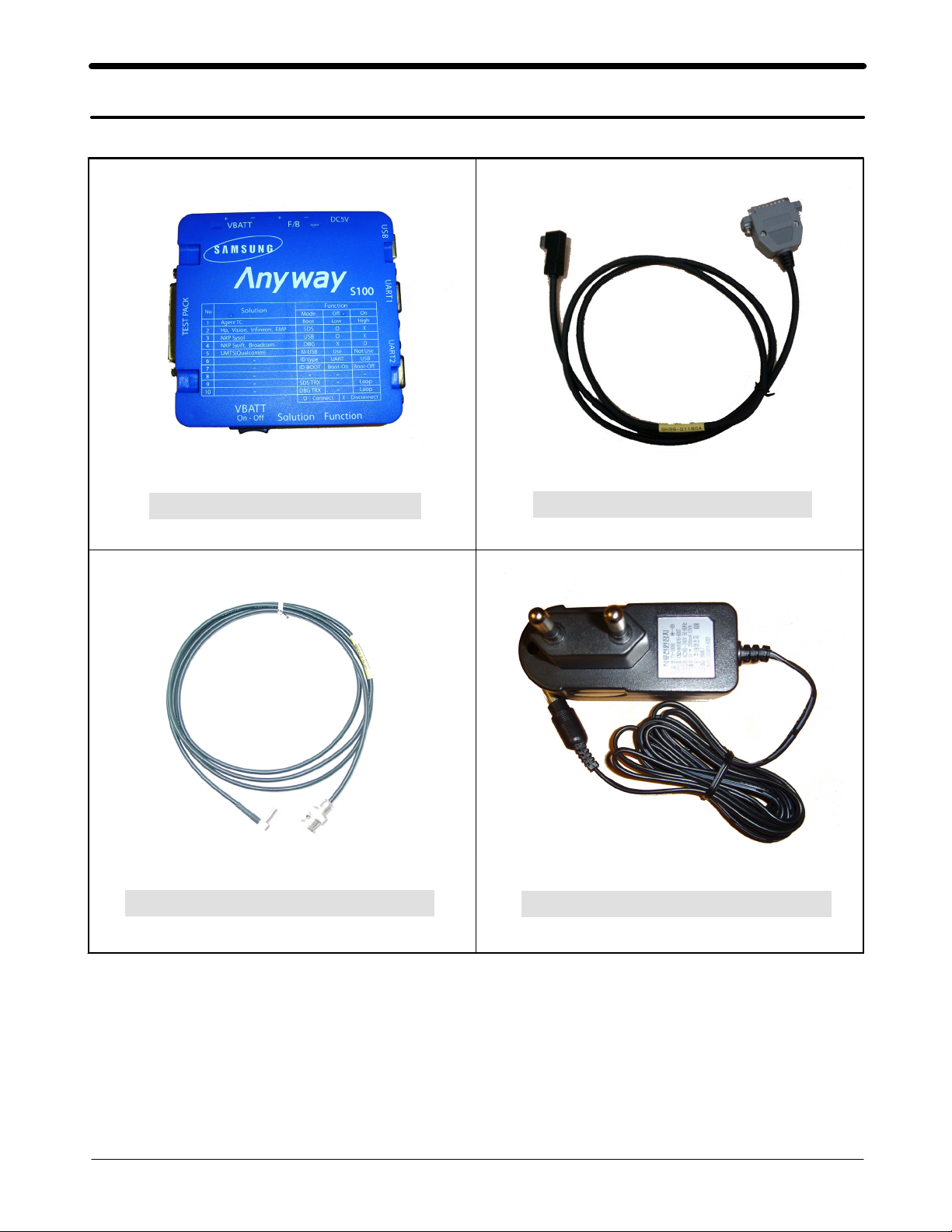

Test Cable (GH39-01160A)
Test Jig (GH99-36900A)
RF Test Cable (GH39-00985A) Adapter (GH99-38251A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Downloading Binary Files
•2binary files for downloading C270
-C270HH1.cla
-C270HH1.tfs
4-2-2. Pre-requsite for Downloading
•Downloader Program(Divo Downloader for SEC v01)
•SGH-C270 Mobile Phone
•JIG BOX
•Test Cable
•Serial Cable
•Binary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-2-3. S/W Downloader Program

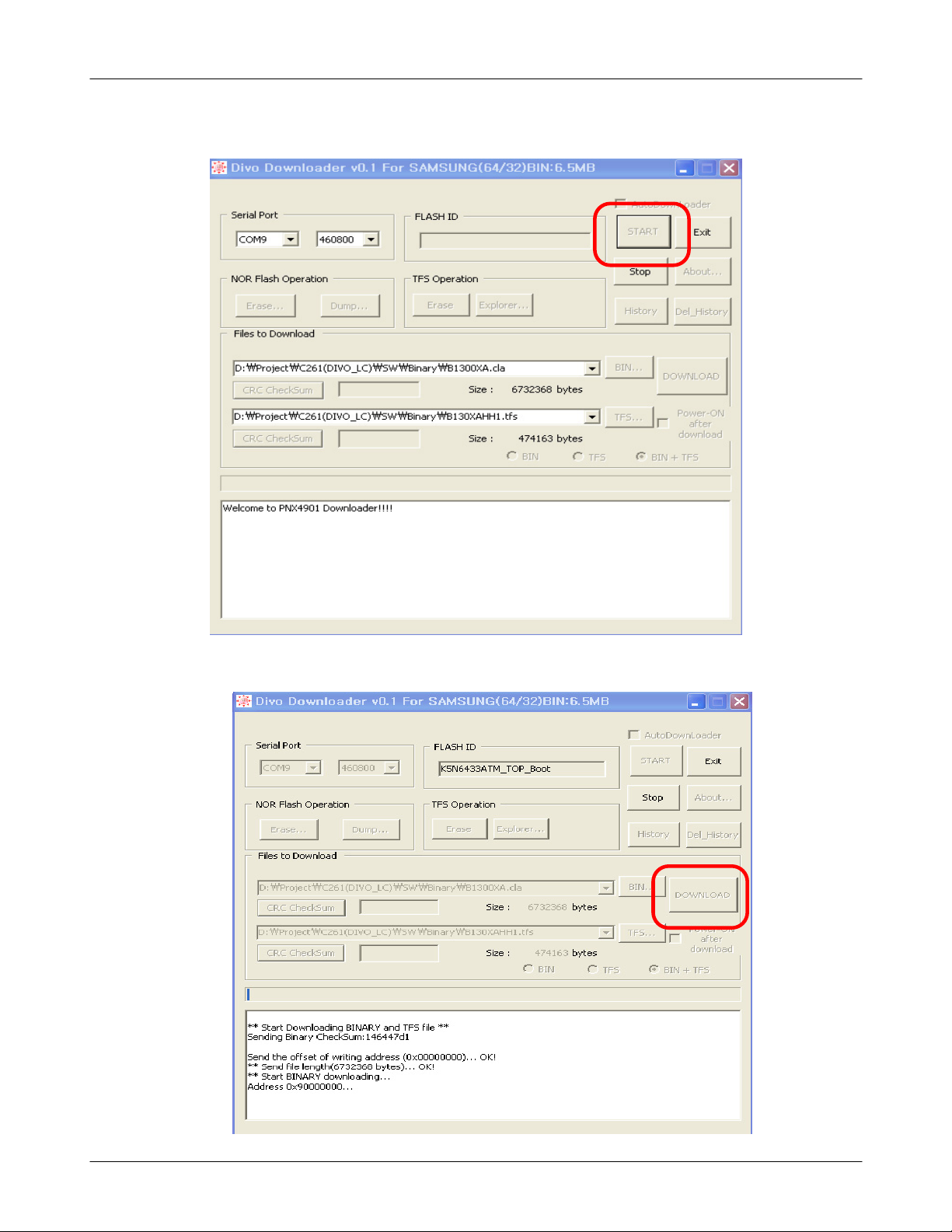

1. Load the binary download program by executing the “Divo Downloader for SEC v01”.
2. Select the Port, Baud Rate and Mode.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
3. Select the binary fileswhat you want to download

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
4. Press the "Start" button and connect the Handset
5P
ress the "Download" button.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
6. When downloading is complete, automatically the small window was showed up.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

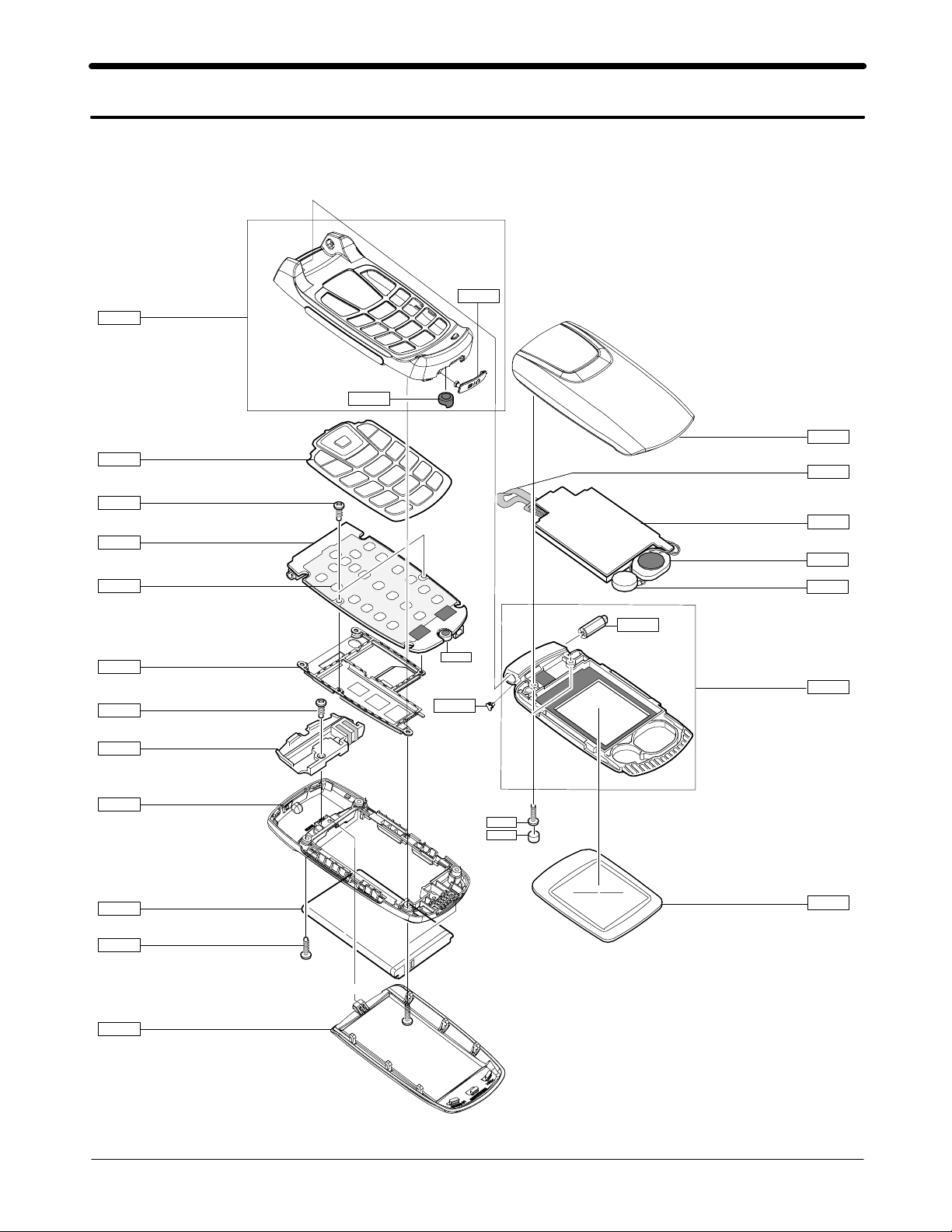

5-1. Cellular phone Exploded View
QFR01
QMI03
QIF01
QKP01
QMP01
QFU01
QLC01
QME03
QHI01
QFL01
QSP01
QMO01
QMW02
QCR72
QME01
QSH01
QCR72
QAN02
QSC01
QRE01
QBA01
QCR67
QBA00
QCR72
QSC05
QMI01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAN02 INTENNA-SGHC260 GH42-01102A
QBA00 PMO-CASE BATTERY GH72-36766A
QBA01 INNER BATTERY PACK-750MAH/EU/MAIN(BYD) GH43-03122A
QCR67 SCREW-MACHINE 6001-002083
QCR72 SCREW-MACHINE 6001-002051
QCR72 SCREW-MACHINE 6001-002051
QCR72 SCREW-MACHINE 6001-002051
QFU01 ASSY CASE-UPPER GH98-07433B
QKP01 ASSY KEYPAD-(XEN/WS) GH98-03772B
QLC01 ASSY COMM HALB-IF PBA+LCD MODULE GH96-03670A
QME01 KEY FPCB-M/DOME SHEET 22KEY GH59-05499A
QMP01 A/S ASSY-PBA MAIN (TUR) GH82-03476A
QMP01 ASSY PBA MAIN-SGH_C270 GH92-05175A
QMW02 PMO-COVER MAIN WINDOW GH72-36767A
QRE01 ASSY CASE-REAR GH98-07434A
QSC01 RMO-COVER DUMMY HOLE GH73-08828A
QSC05 RMO-COVER FOLDER SCREW GH73-09088A
QSH01 ASSY COVER-SHIELD CAN GH98-11156A
QLC01 ASSY COMM HALB-IF PBA+LCD MODULE GH96-03663A
QSP01 SPEAKER 3001-002094
QMO01 MOTOR DC-SGHC260 GH31-00308A
QME03 ASSY ETC-SGHC260 CON TO CON GH59-04070A
QFL01 ASSY CASE-LOWER GH98-03404A
QHI01 ASSY MEC-HINGE GH75-08452A
QFR01 ASSY CASE-FRONT GH98-07419A
QIF01 PMO COVER-IF GH72-46114A
QMI03 RUBBER HOLDER-MIC GH73-11375A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
0401-001110 D201,D202 SDS511Q
0403-001547 D200 TDZ5.6
0406-001286 ZD300,ZD301,ZD302 PESD5V0L5UV
0601-002591 LED300,LED301,LED302 WH104-LC
0601-002591 LED303,LED304,LED305 WH104-LC
1009-001037 U101 BU52031NVX
1108-000217 U200 K5N6433ATM-AD11
1201-002829 PAM100 RF4180B
1203-005498 U201 SUS6160MNTBG
1203-005512 U300 MIC5365-3.3YMT
1203-005729 U100 KTD101EAC-TR
1205-003662 U202 PNX4902ET
1404-001221 TH200 NCP15WB473J04RC
2007-000139 R302 RC1005J221CS
2007-000141 R300,R309 RC1005J222CS
2007-000144 R208 RC1005J512CS
2007-000148 R200,R215 RC1005J103CS
2007-000162 R212 RC1005J104CS
2007-000172 R210,R306,R307,R308 RC1005J100CS
2007-000172 R310,R314,U303 RC1005J100CS
2007-000173 R103,R104,R303,R304 RC1005J220CS
2007-000173 R305 RC1005J220CS
2007-001288 R301 MCR01MZP5J180
2007-001301 R211 MCR01MZP5J680
2007-001333 R213 MCR01MZP5J183
2007-007156 R311,R312 RC1005J1ROCS
2007-008500 R207 SR73H2BTDR100F
2203-000233 C123 GRP1555C1H101J
2203-000425 C117,C308,C309,C310 GRP1555C1H180J
2203-000425 C331,C332 GRP1555C1H180J
2203-000438 C226 GRP155R71H102K
2203-000585 C307 GRP155R71H221KD01E
2203-000679 C300,C302,C306 GRP1555C1H270J
2203-000812 C101,C108,C109,C112 GRP1555C1H330J
2203-000812 C116 GRP1555C1H330J
2203-002668 C127 C1005CG1H0R5BT

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-005234 C107,C110,C111,C115 GRP1555C1H1R2CZ01E
2203-005281 L109 GRP1555C1H1R5BZ01E
2203-005482 C113,C114,C209,C211 GRP155R61A104KA01E
2203-005482 C225,C227,C301,C304 GRP155R61A104KA01E
2203-005482 C312,C328,C330 GRP155R61A104KA01E
2203-006137 C219 CL05B223KONC
2203-006141 C218,C220 GRM188R61C105K
2203-006208 C200,C202,C222 CM105X5R475M06AT
2203-006361 C106 GRM21BR61A106K
2203-006399 C201,C203,C204,C205 GRM155R60J105KE19D
2203-006399 C206 GRM155R60J105KE19D
2203-006562 C105,C124,C125,C303 CV05X5R105K10AH
2203-006562 C305,C326 CV05X5R105K10AH
2203-006824 C212,C213 CV105X5R475K10AT
2404-001430 TA200 TCSHL1A106MRAR
2703-001748 L102 LL1005-FH5N6S
2703-001938 L100 LL1005-FH56NJ
2703-002170 L106 CIH05T6N8JNC
2703-002200 L110 CIH05T18NJNC
2703-002201 L300,L301 CIH05T33NJNC
2703-002204 L104 CIH05T22NJNC
2703-002207 C128,L108 CIH05T3N3SNC
2703-002208 L107 CIH05T2N2SNC
2703-003297 L202 CIG22L4R7MNE
2801-003856 OSC200 MC-146(32.768KHz,20ppm)
2801-004805 OSC201 SQ3D02600C2LJA
2904-001879 F100 SFR942PY002
3003-001136 MIC300 SPU0410HR5H
3301-001158 L200 BLM18PG300SN1D
3301-001729 L302,L303 BLM15AG102SN1D
3301-001812 L103 BLM15HD102SN1
3705-001503 RFS100 KMS-560
3709-001384 SIM200 5000-6P-2.3M
3710-002499 IFC300 RD2R020HB1
3711-005954 HDC300 14-5805-024-000-829
3711-006228 BTC200 2005-03-261A
GH71-08426A ANT100,ANT101 HJ-ICT-02
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's
part list.

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
7. Block Diagrams
7-1

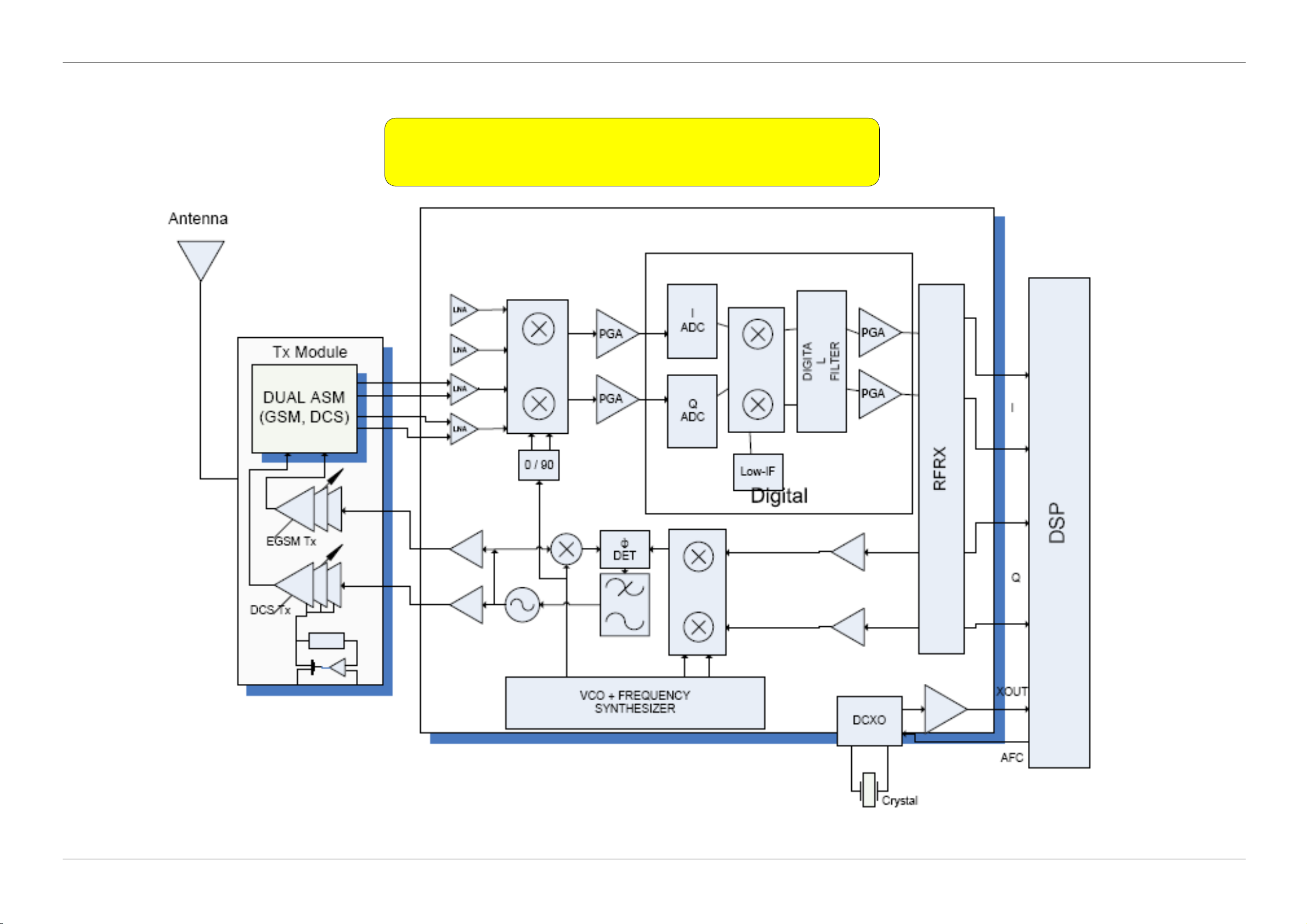

7-1. Main Block Diagram
PNX4902
RF /IF
Tranceiver
PMU
IIC
Interface /RTC
Basic Charging
SIM Interface
Charging Controller
MEMORY
Nor/UtRAM
(K5N6433ATM-AD11)
128/64MB
LCD
1.52"
Tianma
STN-LCD
Battery
750mA
BYD
KEY PAD
AUDIO MIC
MIC
---------------
Ear MIC
SPK&EARSPK

SAMSUNG Proprietary-Contents may change without notice
Block Diagrams
7-2
This Document can not be used without Samsung's authorization
7-2. RF Solution Block Diagram
C270 RF Block Diagram
Si4902

SAMSUNG Proprietary-Contents may change without notice
8. PCB Diagrams
8-1
This Document can not be used without Samsung's authorization
Top
3
1
1
C
4
1
1
C
C327
C329
CLEAR
KEYPAD
DIGIT0
KEYPAD
DIGIT1
KEYPAD
DIGIT2
KEYPAD
DIGIT3
KEYPAD
DIGIT4
KEYPAD
DIGIT5
KEYPAD
DIGIT6
KEYPAD
DIGIT7
KEYPAD
DIGIT8
KEYPAD
DIGIT9
KEYPAD
DOWN
KEYPAD
3
0
1
L
L302
L303
0
0
3
D
E
L
1
0
3
D
E
L
2
0
3
D
E
L
3
0
3
D
E
L
4
0
3
D
E
L
5
0
3
D
E
L
T
F
E
L
D
A
P
Y
E
K
MENU
KEYPAD
MIC300
OK
KEYPAD
PWR
KEYPAD
T
H
G
I
R
D
A
P
Y
E
K
SEND
KEYPAD
SHARP
KEYPAD
STAR
KEYPAD
STO
KEYPAD
1
0
1
U
X
V
N
1
3
0
2
5
U
B
UP
KEYPAD

SAMSUNG Proprietary-Contents may change without notice
PCB Diagrams
8-2
This Document can not be used without Samsung's authorization
Bottom
0
0
1
T
N
A
1
0
1
T
N
A
BAT200
BTC200
2005-03-261A
C100
1
0
1
C
C102
C104
5
0
1
C
C106
C107
C108
C109
C110
C111
2
1
1
C
C115
6
1
1
C
7
1
1
C
8
1
1
C
9
1
1
C0
2
1
C
1
2
1
C
C122
0
0
2
C
1
0
2
C
2
0
2
C
3
0
2
C
4
0
2
C
6
0
2
C
5
0
2
C
7
0
2
C
8
0
2
C
9
0
2
C
C210
C211
C212
C213
C214
C215
C216
C217
8
1
2
C
9
1
2
C
0
2
2
C
1
2
2
C
2
2
2
C
3
2
2
C
4
2
2
C
5
2
2
C
C226
7
2
2
C
C300
C301
2
0
3
C
3
0
3
C
C304
5
0
3
C
C306
7
0
3
C
8
0
3
C
C309
C310
1
1
3
C
2
1
3
C
3
1
3
C
4
1
3
C
5
1
3
C
6
1
3
C
7
1
3
C
C318
C319
C320
C321
C322
C323
C324
C325
6
2
3
C
C328
C330
1
3
3
C
0
0
1
N
C
0
2
N
O
C
1
0
1
N
C
2
-
4
0
0
7
6
7
-
2
2
0
1
N
C
2
-
4
0
0
7
6
7
-
2
D200
1
0
2
D
0
0
1
F
G200
BOTHHOLE
G201
BOTHHOLE
G202
BOTHHOLE
G203
BOTHHOLE
G204
G205
GND
HDC300
14-5805-024-000-829
IFC300
RD2R020HB1
L100
1
0
1
L
4
0
1
L
2
0
1
L
L105
0
0
2
L
1
0
2
L
2
0
2
L
0
0
3
L
1
0
3
L
0
0
2
C
S
O
1
0
2
C
S
O
0
0
1
M
A
P
0
8
1
4
F
R
Q100
R100
R101
R102
R105
R106
R108
R109
R110 R111
R112
R113
R116
0
0
2
R
1
0
2
R
R202
R203
R204
R205
R206
7
0
2
R
8
0
2
R
R209
0
1
2
R
R211
R212
3
1
2
R
4
1
2
R
5
1
2
R
0
0
3
R
R301
R302
3
0
3
R
4
0
3
R
5
0
3
R
6
0
3
R
7
0
3
R
8
0
3
R
9
0
3
R
R310
1
1
3
R
R312
R313
R314
R315
0
0
1
S
F
R
N
O
T
S
R
K
C
T
R
SIM200
5000-6P-2.3M
TA200
TCK
TDI
TDO
0
0
2
H
T
TMS
1
0
1
P
T
0
0
1
P
T
0
0
2
P
T
1
0
2
P
T
TP202
3
0
2
P
T
4
0
2
P
T
5
0
2
P
T
6
0
2
P
T
7
0
2
P
T
TRST_N
0
0
1
U
1
0
1
D
T
K
2
0
1
U
R
M
G
-
B
-
8
0
7
4
I
S
0
0
2
U
1
1
D
A
-
M
T
A
3
3
4
6
N
5
K
1
0
2
U
G
B
T
N
M
0
6
1
6
S
U
S
U202
PNX4902-REVB
0
0
3
U
T
M
Y
3
.
3
-
5
6
3
5
C
I
M
U301
DG2735DTN-T1-E4
2
0
3
U
WEn
ZD100
0
0
3
D
Z
ZD301
2
0
3
D
Z
